C9350-48TX – 48x10G mGig Data Ports – Modular Uplink – Data-Only Access Switch
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
C9350-48TX Description
The C9350-48TX is a Cisco C9350 Series Smart Switch for campus access closets that connect 10G copper endpoints without powering them. The switch has 48 Multigigabit ports running from 10M to 10G with no PoE, a modular uplink slot for up to 400G and 1760 Gbps of switching capacity on two Silicon One A100/L ASICs. Ports reach 10G only over Cat6 runs up to 55 m or Cat6A up to 100 m, while Cat5e cabling stops at 5G.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9350-48TX |
|
Downlink ports |
48 x 10M/100M/1G/2.5G/5G/10G Multigigabit RJ-45 |
|
PoE support |
No PoE |
|
Default power supply |
PWR-C2-500WAC-I, 500W AC |
|
Power supply slots |
3 |
|
Uplinks |
Modular slot, up to 400G |
|
Supported network modules |
C9350-NM-4C, C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M |
|
Switching capacity |
1,760 Gbps |
|
Forwarding rate |
1309.44 Mpps |
|
Stacking |
StackWise-1.6T, 1.6 Tbps, up to 8 members |
|
License tier |
Switching Essentials or Advantage, 48-port Access Tier 1 |
|
Minimum software |
Cisco IOS XE 17.18.1 |
Product Performance
Key Features
Each of the 48 ports negotiates 10M, 100M, 1G, 2.5G, 5G or 10G, and 10M and 100M run in full duplex only. Cat5e carries a port up to 5G; a 10G link needs Cat6 for runs up to 55 m or Cat6A for the full 100 m.
With C9350-NM-4C installed, four 100G/40G QSFP28 ports give the switch 400 Gbps of uplink. The slot also takes C9350-NM-2C, C9350-NM-8Y or C9350-NM-8M when 200G of fiber or eight Multigigabit copper uplinks is enough, and it ships empty.
Two Silicon One A100/L ASICs give the switch 1760 Gbps of switching capacity and 1309.44 Mpps of forwarding. The packet buffer totals 36 MB, with 18 MB on each ASIC.
The default PWR-C2-500WAC-I sits in the first of three bays, and supplies of different wattages can fill the other two in Combined or N+1 Redundant mode. In tests on an 850W supply at 115VAC, the switch drew 263.2 W with every port at full traffic and no uplink module, and 310.1 W with C9350-NM-4C installed.
Up to eight C9350 switches stack over StackWise-1.6T at 1.6 Tbps, and every member runs the same license level. StackPower+ joins up to four switches into one 55V power pool. Neither cable type is shared with Catalyst 9300 switches.
One hardware model serves both management paths: Cisco Catalyst Center on premises or the Meraki dashboard in the cloud. There is no regional or management-specific hardware variant to choose.
Application Scenarios
On office floors where desktops and workstations connect at 2.5G, 5G or 10G, the switch links each desk at Multigigabit speed over the existing Cat6 or Cat6A horizontal cabling.
A wiring closet or small equipment room can bring local servers and other 10G copper devices onto the switch, with their traffic leaving the closet over a 100G QSFP28 uplink module.
Campus networks that keep lab, guest and staff traffic apart run the switch as an SD-Access edge for wired users whose devices draw no power from the network.
Product Comparison
|
Parameter |
C9350-48TX | ||
|---|---|---|---|
|
Downlink ports |
48 x 10M-10G Multigigabit |
48 x 10M-10G Multigigabit |
48 x 10M/100M/1G |
|
PoE type |
No PoE |
90W UPOE+ (802.3bt Type 4) |
No PoE |
|
Default power supply |
PWR-C2-500WAC-I |
PWR-C2-1600WAC-I |
PWR-C2-500WAC-I |
|
Available PoE (default supply) |
Not applicable |
1150W |
Not applicable |
|
Maximum PoE budget |
Not applicable |
4320W |
Not applicable |
|
Uplink ports |
Modular, up to 400G |
Modular, up to 400G |
Modular, up to 200G |
|
License tier |
Essentials or Advantage, 48-port |
Essentials or Advantage, 48-port |
Essentials or Advantage, 48-port |
|
Stack bandwidth |
1.6 Tbps (StackWise-1.6T) |
1.6 Tbps (StackWise-1.6T) |
1.6 Tbps (StackWise-1.6T) |
|
Switching capacity |
1,760 Gbps |
1,760 Gbps |
496 Gbps |
C9350-48TX and C9350-48HX share 48 10G Multigigabit ports, a 400G uplink slot and 1760 Gbps of switching, but the data-only model ships on a 500W supply with no PoE, while the UPOE+ model carries 90W per port with 1150W of PoE by default and 4320W on three 1600W supplies. Closets that must power access points, phones or cameras from the switch need C9350-48HX. Where every endpoint links at 1G, C9350-48T keeps the data-only design on 48 10M/100M/1G ports with 496 Gbps of switching and up to 200G of uplink. The license tier is not tied to the hardware: Essentials or Advantage comes from the 48-port subscription, and all stack members must run the same level.
Ordering Checklist
- Subscription tier: Add a 48-port Access Tier 1 subscription of at least 36 months, LIC-CS-AC1-L-E for Essentials or LIC-CS-AC1-L-A for Advantage. Switches on IOS XE 17.18.1 boot at OS Advantage, so Essentials needs license boot level essentials and a reload.
- Uplink module: Add C9350-NM-4C, C9350-NM-2C, C9350-NM-8Y or C9350-NM-8M as its own line. The base switch ships with an empty uplink slot.
- Second power supply: Only the default PWR-C2-500WAC-I ships. Add PWR-C2-500WAC-I/2 or another /2 supply when the switch needs N+1 power redundancy without relying on StackPower+.
- Power cords: Select one cord for every supply, such as CAB-TA-NA, CAB-TA-EU or CAB-TA-UK for 500W and 850W supplies. Each cord type must match the destination country.
- Stacking cables: Select STACK-T1A-50CM, STACK-T1A-1M or STACK-T1A-3M= and CAB-SPWR-35CM or CAB-SPWR-100CM for stacked switches. They do not ship by default, and Catalyst 9300 cables do not fit.
- HSEC key: Add one HSECK9 per switch when IPsec will run on it. IPsec needs OS Advantage and Cisco IOS XE 26.2.1 or later.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco C9350 network module, 4 x 100G/40G QSFP28, up to 400 Gbps | |
|
Cisco C9350 network module, 2 x 100G/40G QSFP28, up to 200 Gbps | |
|
Cisco C9350 network module, 8 x 25G/10G/1G or 4 x 50G SFP56 | |
|
C9350-NM-8M |
Cisco C9350 network module, 8 x Multigigabit RJ-45, up to 80 Gbps |
|
PWR-C2-500WAC-I/2 |
500W AC Platinum secondary power supply |
|
PWR-C2-850WAC-I/2 |
850W AC Platinum secondary power supply |
|
PWR-C2-1600WAC-I/2 |
1600W AC Titanium secondary power supply |
|
PWR-C2-500WAC-I= |
500W AC Platinum power supply, spare |
|
StackWise-1.6T stacking cable, 50 cm | |
|
StackWise-1.6T stacking cable, 1 m | |
|
StackWise-1.6T stacking cable, 3 m | |
|
CAB-SPWR-35CM |
StackPower cable, 35 cm |
|
CAB-SPWR-100CM |
StackPower cable, 100 cm |
|
C9350-FAN-I= |
C9350 port inlet fan module, spare |
C9350-48TX Switch Front Panel
|
1 |
Beacon LED (UID button) |
6 |
Mgig port LEDs |
|---|---|---|---|
|
2 |
Mode button |
7 |
Network modules |
|
3 |
Status LEDs |
8 |
Optional RFID |
|
4 |
USB-C console port |
9 |
24×2 Multigigabit Ethernet RJ-45 ports |
|
5 |
USB-C host port |
10 |
Network module LEDs |

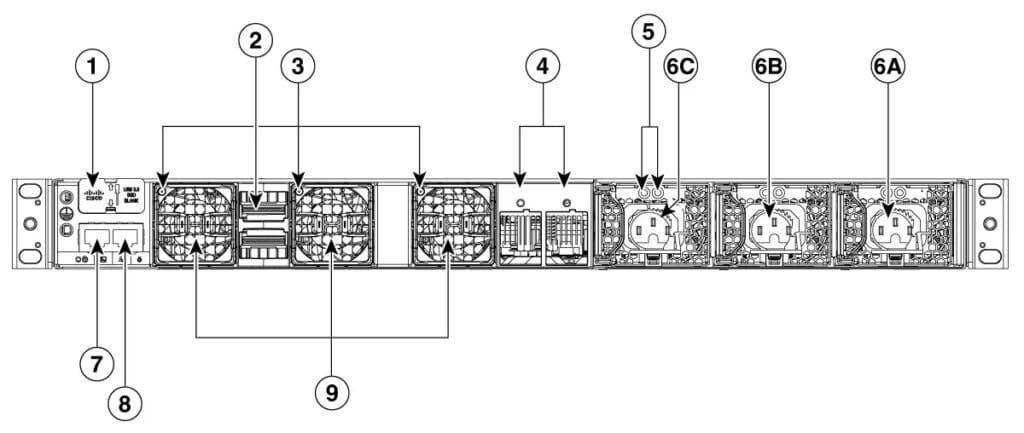

C9350-48TX Switch Rear Panel
|
1 |
USB3.0–SSD port |
6 |
Power supply modules |
|---|---|---|---|
|
2 |
StackWise ports and connectors |
7 |
RJ-45 console port |
|
3 |
Fan status LEDs |
8 |
Ethernet management port |
|
4 |
StackPower ports and connectors |
9 |
Fan modules |
|
5 |
Power supply LEDsAC OK (input) status LEDPS OK (output) status LED |
– |
– |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9350-48TX | Network license | Switching Essentials or Advantage, Access Tier 1 Large (48 port) |
| Minimum software release | Cisco IOS XE 17.18.1 | Downlink ports | 48 x 10M/100M/1G/2.5G/5G/10G Multigigabit RJ-45 |
| Port speeds | 10M and 100M full duplex only; no half duplex on Multigigabit ports | Network module slot | 1, up to 400G |
| Supported network modules | C9350-NM-4C, C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M | Copper cabling | Up to 5G on Cat5e; 10G on Cat6 up to 55 m or Cat6A up to 100 m |
| Console port | USB Type-C and RJ-45 | Management port | Ethernet management port |
| USB port | USB Type-C | Switching capacity | 1,760 Gbps |
| Forwarding rate | 1,309.44 Mpps | Switching capacity with stacking | 3,360 Gbps |
| Forwarding rate with stacking | 2,499.84 Mpps | Packet buffer | 36 MB (18 MB per ASIC) |
| ASIC | 2 x Cisco Silicon One A100/L | DRAM | 16 GB |
| Flash | 18 GB | SSD storage | Up to 240 GB (USB 3.0 SSD slot) |
| App hosting resources | 2 x 1G/10G AppGig ports; 4 vCPU; 8 GB DRAM | MAC addresses | Up to 64,000 |
| VLAN IDs | 4,094 | Active VLANs | Up to 4,000 |
| Switched virtual interfaces | Up to 4,000 | PVST instances | Up to 1,000 |
| IPv4 routes | Up to 192,000 | IPv6 routes | Up to 96,000 |
| ARP entries | Up to 64,000 | NDP entries | Up to 32,000 |
| Multicast routes | Up to 8,000 (IPv4) / 4,000 (IPv6) | IGMP snooping groups | Up to 8,000 IGMP / 4,000 MLD |
| ACL entries | Up to 5,000 (IPv4) / 2,500 (IPv6) | QoS entries | Up to 2,000 (IPv4) / 1,000 (IPv6) |
| Flexible NetFlow entries | Up to 64,000 (IPv4) / 32,000 (IPv6) | Jumbo frames | 9,216 bytes |
| Stacking | StackWise-1.6T, 1.6 Tbps, up to 8 C9350 members | StackPower | StackPower+ 55V power sharing, up to 4 switches per ring |
| Management features | Cisco Catalyst Center or Meraki Dashboard | Default power supply | PWR-C2-500WAC-I 500W AC |
| Power supply slots | 3, hot-swappable | Power redundancy | Combined (default) or N+1 redundant |
| Power connector | AC IEC 60320 C16 | Power consumption | 263.2W with no uplink module; 310.1W with C9350-NM-4C (115 VAC, full-port traffic, 850W supply) |
| Fan modules | 3 field-replaceable, N+1 redundant, rear access | Airflow | Front to back |
| Dimensions (H x W x D) | 1.73 x 17.5 x 20 in. (4.4 x 44.5 x 51 cm) with 500W or 850W supply | Operating temperature | -5°C to 45°C up to 6,000 ft; -5°C to 40°C up to 10,000 ft |
| Cold start temperature | 0°C | Storage temperature | -40°C to 75°C |
| Operating humidity | 10% to 95% noncondensing | Operating altitude | Up to 3,000 m |
| Storage altitude | Up to 4,500 m | MTBF | 261,150 hours |
| Safety certifications | IEC 62368-1, UL 62368-1, IEC 60950-1, CAN/CSA-C22.2 No. 62368-1-14, AS/NZS 60950.1 | EMC certifications | 47 CFR Part 15 Class A, EN 55032 Class A, CISPR 32 Class A, EN 55024, ICES-003 Class A, KN 32, KN 35 |
Quality Certifications
Customer Reviews
Questions & Answers
-
Can C9350-48TX be stacked?
-
What license does C9350-48TX use and what does it include?
-
What subscription term range applies to C9350-48TX and what happens when it ends?
-
How many MAC addresses and unicast routes does C9350-48TX support in the default Access SDM template?
-
How should power supplies be placed across a StackPower+ stack of C9350-48TX?
-
Which release and commands enable post-quantum MACsec between C9350-48TX uplinks?
-
Which software does C9350-48TX need for Catalyst Center energy reporting?
-
How does SmartPower manage the devices that C9350-48TX powers?
-
How many watts does C9350-48TX draw with half the ports at 100% traffic?
