DS-C9396T-48IK9 Description
The DS-C9396T-48IK9 is a Cisco MDS 9396T 32G Fibre Channel switch base module for high-density data center SANs that cool with port-side intake. The 2RU chassis has 96 SFP+ ports with 48 active, 4/8/16/32 Gbps autosensing speeds, 3 Tbps of aggregate bandwidth and two 1200W power supplies in a 1+1 arrangement. No optics are included, and the other 48 ports stay inactive until 16-port activation licenses are added.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DS-C9396T-48IK9 |
|
Product type |
32G Fibre Channel SAN switch base module |
|
Order configuration |
48 active Fibre Channel ports, 2 fans, 2 PSUs, port-side intake |
|
Active ports at order |
48 Fibre Channel ports |
|
Maximum Fibre Channel ports |
96 SFP+ Fibre Channel ports |
|
Port speed |
4/8/16/32 Gbps autosensing |
|
Included FC optics |
Not included in this base PID |
|
Airflow |
Port-side intake |
|
Port expansion path |
16-port activation increments to 64, 80, and 96 ports |
|
Power supplies |
2 x 1200W AC/HVAC/HVDC bidirectional PSUs |
|
Minimum NX-OS release |
Cisco MDS NX-OS 8.3(1) or later |
|
Form factor |
2RU rack-mountable switch |
Product Performance
Key Features
Air enters through the port side, so the chassis suits racks where the ports face the cold aisle.
The 48 active ports ship empty. Shortwave and longwave SFP+ modules at 32G, 16G or 8G are chosen separately to match each link.
Licenses of 16 ports raise the active count to 64, 80 and 96. The ports sit in six groups of 16, each with up to 8,300 buffer credits.
Application Scenarios
Where a SAN spans buildings, the switch takes longwave SFP+ optics on single-mode fiber, with the optic type chosen per link rather than fixed by the base module.
In a data center SAN, the switch links servers and storage arrays at 32G, with dedicated 32G bandwidth on every active port.
In a rack row cooled for port-side intake, the two fan modules draw air in through the port side of the 2RU chassis.
Product Comparison
|
Parameter |
DS-C9396T-48IK9 | |||
|---|---|---|---|---|
|
Maximum Fibre Channel ports |
96 SFP+ |
96 SFP+ |
96 SFP+ |
96 SFP+ |
|
Port speed |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
|
Aggregate bandwidth |
3 Tbps end-to-end full duplex |
3 Tbps end-to-end full duplex |
3 Tbps end-to-end full duplex |
3 Tbps end-to-end full duplex |
|
Included FC optics |
Not included |
Not included |
48 x 32G SW |
96 x 32G SW |
|
Airflow |
Port-side intake |
Port-side exhaust |
Port-side intake |
Port-side intake |
|
Port activation license |
M9396T-PL16 in 16-port steps to 96 |
M9396T-PL16 in 16-port steps to 96 |
M9396T-PL16 in 16-port steps to 96 |
Not applicable |
|
Fan modules and power supplies |
2 fans, 2 x 1200W PSUs |
2 fans, 2 x 1200W PSUs |
2 fans, 2 x 1200W PSUs |
2 fans, 2 x 1200W PSUs |
|
Minimum NX-OS release |
MDS NX-OS 8.3(1) |
MDS NX-OS 8.3(1) |
MDS NX-OS 8.3(1) |
MDS NX-OS 8.3(1) |
DS-C9396T-48IK9 is the base configuration with 48 active ports, two fans, two PSUs, port-side intake and no optics, while DS-C9396T-48ITK9 is the same hardware with 48 32G SW optics added, so the base PID suits orders that choose optics separately, longwave included. DS-C9396T-48EK9 matches it except for port-side exhaust airflow and fits racks that run the opposite direction. For 96 active ports on day one, DS-C9396T-96ITK9 is the model, with 96 SW optics included, because the ordering table lists no 96-port base module without optics. Otherwise M9396T-PL16 licenses add 16 ports at a time to 64, 80 and 96. MDS NX-OS 8.3(1) or later is required.
Ordering Checklist
- Port activation license: Add M9396T-PL16 for each 16-port step to 64, 80 or 96 ports; use M9396T-PL16T if the 16 optics are bought with the license. Ports above 48 stay inactive without the license, and the PL16 variant carries no optics.
- Optics: No optics are included; list DS-SFP-FC32G-SW, DS-SFP-FC32G-LW=, DS-SFP-FC16G-SW or DS-SFP-FC8G-SW= for each port that will be used. The switch arrives with empty SFP+ cages, and no link can come up until optics are ordered.
- Spare fan module: Order DS-C96S-FAN-I= for this airflow direction; the DS-CAC-1200W= power supply is bidirectional. The fan module decides airflow direction, and the opposite-direction part reverses airflow against the rack.
- Power cords: Order two cords per switch: standard CAB-HVAC-C14-2M, or a regional cord such as CAB-9K10A-EU or CAB-9K12A-NA. The two 1200W supplies each need their own cord, and the plug must match the site outlet.
Optional Add-ons
|
Model |
Description |
|---|---|
|
M9396T-PL16 |
MDS 9396T 16-port on-demand activation for base growth |
|
M9396T-PL16T |
MDS 9396T 16-port activation with 16 x 32G SW optics |
|
Cisco MDS 9396T fan module spare for port-side intake airflow | |
|
DS-CAC-1200W= |
AC/HVAC/HVDC bidirectional airflow PSU spare listed for MDS 9396T |
|
Cisco 32G Fibre Channel shortwave SFP+ optic | |
|
DS-9396T-KIT-CSCO |
MDS 9396T accessory kit for Cisco |

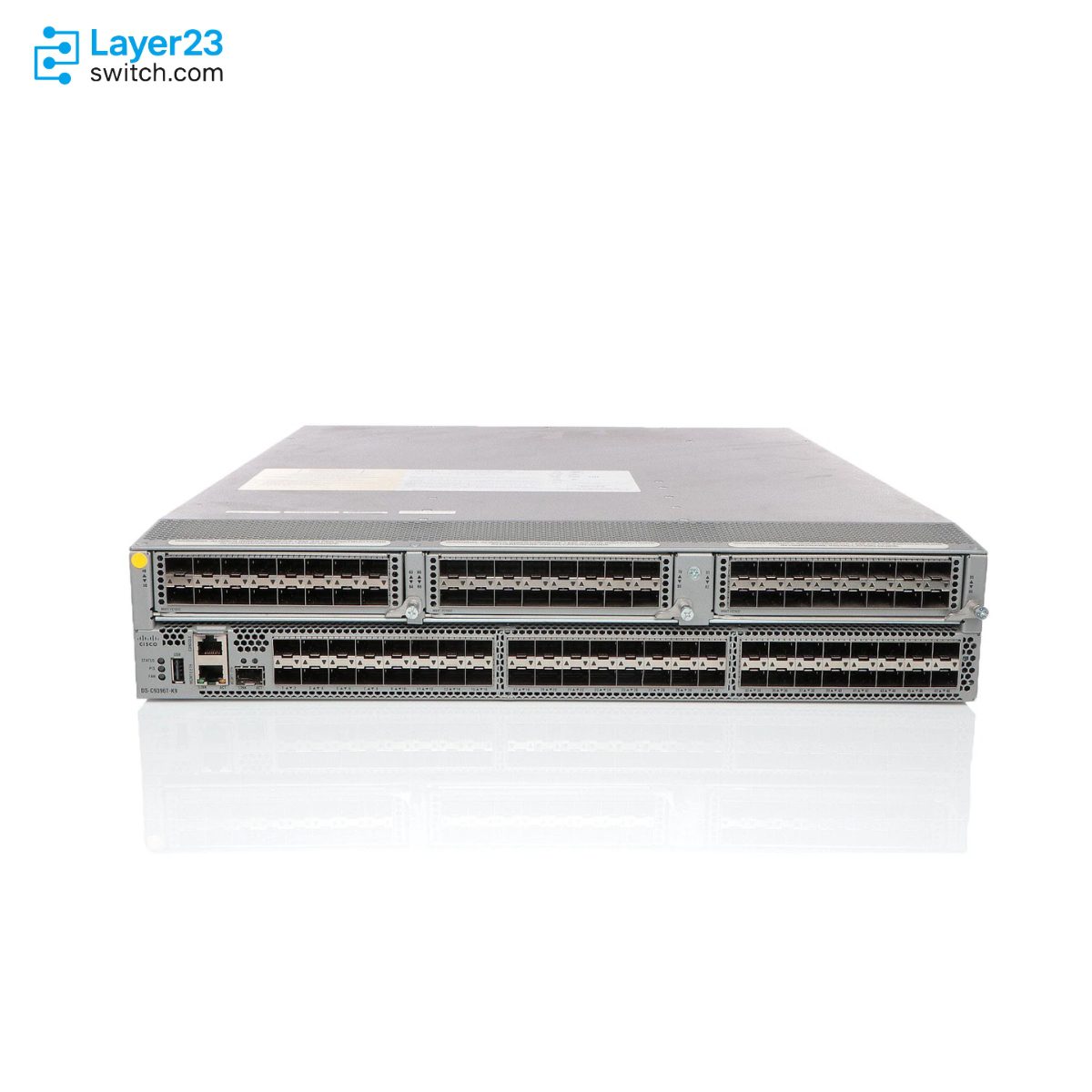

Front View
|
1 |
LEM slot 1 |
3 |
LEM slot 3 |
|
2 |
LEM slot 2 |
|
1 |
Serial console port |
5 |
USB port |
|
2 |
System status LED |
6 |
Ethernet management ports (2) |
|
3 |
Power supply status LED |
7 |
Base Fibre Channel ports |
|
4 |
Fan status LED |
8 |
Airflow Grill |

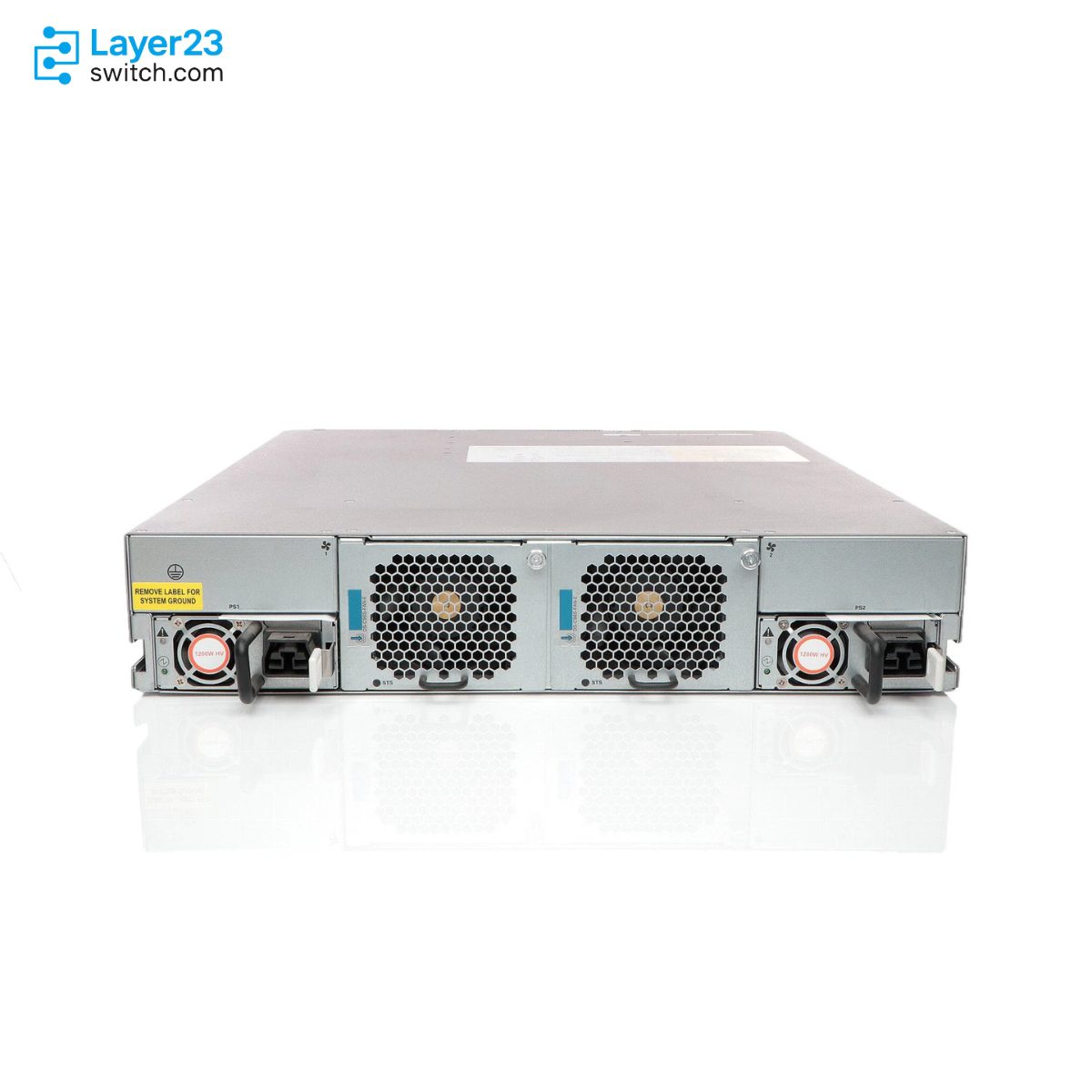

Rear View
|
1 |
Power supply unit fan |
5 |
Power supply units (2) |
|
2 |
Power supply unit handle |
6 |
Chassis fan modules (2) |
|
3 |
Power receptacle |
7 |
Fan module locking screw |
|
4 |
Power supply unit locking latch |
|
1 |
Power supply unit slot 1 |
3 |
Chassis fan module slot 2 |
|
2 |
Chassis fan module slot 1 |
4 |
Power supply unit slot 2 |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9396T-48IK9 | Product type | 32G Fibre Channel SAN switch base module |
| Order configuration | 48 active Fibre Channel ports, 2 fans, 2 PSUs, and port-side intake airflow | Rack units | 2RU rack-mountable fixed switch |
| Dimensions | 3.39 x 17.42 x 22.28 in. (8.61 x 44.25 x 56.59 cm) | Weight | 18.88 kg (41.62 lb) |
| Fibre Channel ports | 96 SFP+ hardware ports | Active ports at order | 48 active Fibre Channel ports |
| Included FC optics | Not included in this base PID | Supported FC optics listed by Cisco | 32G SW, 32G LW, 16G SW, 16G LW, 8G SW, and 8G LW Fibre Channel optics |
| Port speed | 4/8/16/32 Gbps autosensing | Switching capacity | 3 Tbps end-to-end full duplex |
| Port group architecture | Six 16-port port groups | Extended B2B credits | At least 6 ports configurable with up to 8270 Buffer-to-Buffer credits |
| Fibre Channel port types | E, F, and B standard port types; SD, ST, NP, and TE enhanced port types | Advanced functions | VSAN, NPV, IVR, Port Channel with multipath load balancing, and flow-based and zone-based QoS |
| Fabric services | Name server, Registered State Change Notification, login services, Fabric Configuration Server, broadcast, and in-order delivery | Management port | Two out-of-band Ethernet management ports |
| Programming interfaces | Scriptable CLI, Cisco DCNM web services API, NX-API REST interfaces, onboard Python interpreter, Embedded Event Manager, and Cisco NX-OS scheduler | Minimum NX-OS release | Cisco MDS NX-OS 8.3(1) or later |
| Minimum Cisco DCNM release | Cisco DCNM 11(0) or later | Fan modules | 2 hot-swappable fan modules |
| Fan direction for this PID | Port-side intake airflow with DS-C96S-FAN-I fan modules | Power supplies | 2 hot-swappable 1200W AC/HVAC/HVDC bidirectional airflow power supplies |
| Power redundancy | 1+1 power grid redundancy | AC input voltage | 90V to 305V |
| DC input voltage | 192V to 400V | Nominal input frequency | 50 to 60 Hz |
| Airflow | Front to back inward from ports using port-side intake fans | Airflow rate | Maximum 255 CFM and nominal 110 CFM at 25C |
| Operating temperature | 32 to 104F (0 to 40C) | Storage temperature | -40 to 158F (-40 to 70C) |
| Operating humidity | 10 to 90 percent noncondensing | Operating altitude | -197 to 6500 ft (-60 to 2000 m) |
