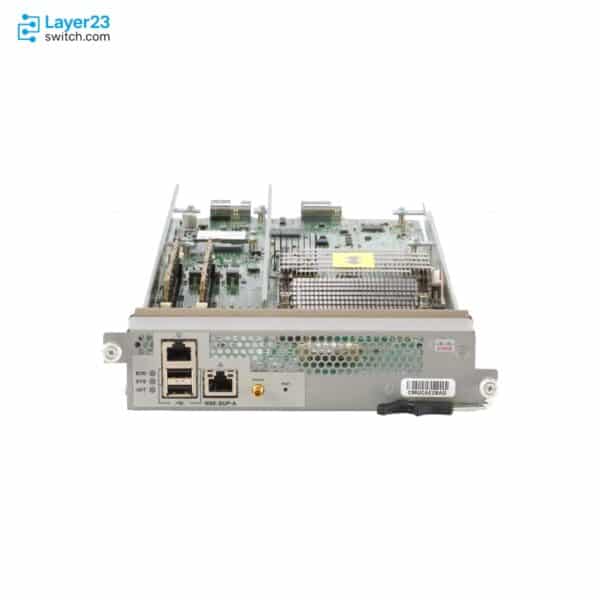

N9K-SUP-A+ – 4-Core/8-Thread Supervisor – 16GB DRAM – Nexus 9500
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
N9K-SUP-A+ Description
N9K-SUP-A+ is a Cisco Nexus 9500 Supervisor A+ module for Nexus 9504, 9508, and 9516 modular chassis. It has a 4-core, 8-thread 1.8 GHz x86 processor, 16 GB DRAM, two USB ports, one serial port, one 10/100/1000 Ethernet management port, Cisco ACI and Cisco NX-OS operating modes, support for up to two supervisors per chassis, minimum NX-OS 7.0(3)I7(1), and 69W typical / 80W maximum power. The module provides Supervisor A+ control-plane capacity for Nexus 9500 chassis and redundant supervisor designs.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
N9K-SUP-A+ |
|
Product Type |
Supervisor module |
|
Supervisor Type |
Supervisor A+ |
|
Supported Platform |
Cisco Nexus 9500 platform |
|
Supported Chassis |
Nexus 9504, Nexus 9508, Nexus 9516 |
|
Processor |
4-core, 8-thread 1.8GHz x86 |
|
DRAM |
16 GB |
|
Management Ports |
2 USB, 1 serial, 1 10/100/1000 Ethernet |
|
Operating Modes |
Cisco ACI and Cisco NX-OS |
|
Supervisors per Chassis |
Up to 2 |
|
Minimum NX-OS Release |
7.0(3)I7(1) |
|
Typical Power |
69 W |
|
Maximum Power |
80 W |
Application Scenarios
Use N9K-SUP-A+ when an installed Nexus 9500 chassis needs a replacement Supervisor A+ module. The buyer should match the existing supervisor generation and confirm the installed software release before ordering.
Choose this module when the chassis requires active-standby supervisor redundancy using Supervisor A+ modules. Cisco guidance requires redundant supervisors to be the same type within the chassis for supported redundancy.
N9K-SUP-A+ can be evaluated as a spare for Nexus 9500 environments that already run Supervisor A+ modules. Engineers should confirm that the chassis does not use unsupported -R or -R2 line-card combinations before purchase.
Product Comparison
|
Parameter |
N9K-SUP-A+ |
N9K-SUP-A |
N9K-SUP-B+ | |
|---|---|---|---|---|
|
Product Type |
Supervisor module |
Supervisor module |
Supervisor module |
Supervisor module |
|
Supervisor Type |
Supervisor A+ |
Supervisor A |
Supervisor B |
Supervisor B+ |
|
Processor |
4-core, 8-thread 1.8GHz x86 |
4-core, 4-thread 1.8GHz x86 |
6-core, 12-thread 2.2GHz x86 |
6-core, 12-thread 1.9GHz x86 |
|
DRAM |
16GB |
16GB |
24GB |
32GB |
|
Typical Power |
69 W |
69 W |
75 W |
75 W |
|
Maximum Power |
80 W |
80 W |
80 W |
90 W |
|
Weight |
5.2 lb (2.37 kg) |
4.84 lb (2.2 kg) |
6.00 lb (2.72 kg) |
5.3 lb (2.39 kg) |
|
MTBF |
414,240 hours |
312,070 hours |
292,110 hours |
421,040 hours |
|
Minimum NX-OS Release |
7.0(3)I7(1) |
6.1(2)I1(1) or later |
6.1(2)I3(1) or later |
7.0(3)I7(1) |
|
Deployment Modes |
Cisco ACI and Cisco NX-OS |
Cisco ACI and Cisco NX-OS |
Cisco ACI and Cisco NX-OS |
Cisco ACI and Cisco NX-OS |
|
Maximum Supervisors per Chassis |
2 |
2 |
2 |
2 |
|
Airflow Direction |
Port-side intake |
Port-side intake |
Port-side intake |
Port-side intake |
- Choose N9K-SUP-A+ when the Nexus 9500 chassis already uses Supervisor A+ and needs a like-for-like spare or replacement.
- Compare N9K-SUP-B or N9K-SUP-B+ when the project requires the Supervisor B family, higher DRAM, or a Cisco-supported supervisor transition from Supervisor A.
- Do not mix Supervisor A/A+ and Supervisor B/B+ modules in a dual-supervisor chassis except during a Cisco-supported migration process.
- Confirm the installed supervisor type, hardware revision, and support entitlement before ordering replacement supervisor inventory.
Selection Guide
1. Choose N9K-SUP-A+ for Supervisor A+ continuity
Select N9K-SUP-A+ when the installed Nexus 9500 system already uses Supervisor A+ modules and the goal is replacement, sparing, or matching a redundant supervisor pair.
2. Verify the second supervisor before ordering
For dual-supervisor operation, confirm the installed supervisor model. Redundant supervisors should be the same type within the chassis to support active-standby redundancy.
3. Check NX-OS release and line-card limitations
Confirm that the installed NX-OS release supports Supervisor A+. Cisco release notes also state that N9K-SUP-A and N9K-SUP-A+ are not supported on Cisco Nexus 9504 and 9508 switches with -R and -R2 line cards.
4. Choose Supervisor B family for supported migration requirements
If the project is migrating from Supervisor A family to Supervisor B family, use Cisco migration guidance and quote the correct matching Supervisor B pair rather than mixing long-term supervisor types.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Chassis Model |
Nexus 9504, Nexus 9508, or Nexus 9516 |
Confirms the supervisor is for the Cisco Nexus 9500 platform |
|
Existing Supervisor Type |
Supervisor A, A+, B, or B+ |
Redundant supervisor pairs should use the same supervisor type |
|
Supervisor Quantity |
One or two supervisors in the chassis |
Cisco lists a maximum of two Nexus 9500 supervisor modules per chassis |
|
Operating Mode |
Cisco ACI or Cisco NX-OS |
Deployment mode affects software and compatibility checks |
|
NX-OS Release |
Minimum release and current target release |
Supervisor A+ requires supported software before deployment |
|
Line Card Mix |
Whether the chassis uses -R or -R2 line cards |
Cisco notes N9K-SUP-A and N9K-SUP-A+ limitations with some -R and -R2 line-card deployments |
|
Airflow Direction |
Port-side intake |
Airflow direction must match the Nexus 9500 chassis cooling design |
|
Spare Part Requirement |
Base part or spare part ordering format |
Cisco lists N9K-SUP-A+(=), with equals sign used for spare ordering |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | N9K-SUP-A+ | Product Type | Supervisor module |
| Product Description | Cisco Nexus 9500 4-Core/8-Thread Supervisor | Supervisor Type | Supervisor A+ |
| Supported Platform | Cisco Nexus 9500 platform | Supported Chassis | Nexus 9504, Nexus 9508, Nexus 9516 |
| Processor | 4-core, 8-thread 1.8GHz x86 | DRAM | 16GB |
| Management Ports | 2 USB ports, 1 serial port, 1 10/100/1000-Mbps Ethernet port | External Clock Support | Yes |
| Deployment Modes | Cisco ACI and Cisco NX-OS | Maximum Supervisors per Chassis | 2 |
| Supervisor Redundancy | Active-standby, state-synchronized | Redundant Supervisor Requirement | Same supervisor type within a chassis |
| Minimum NX-OS Release | 7.0(3)I7(1) | Typical Power | 69 W |
| Maximum Power | 80 W | Weight | 5.2 lb (2.37 kg) |
| MTBF | 414,240 hours | Hot Swappable | Yes |
| Airflow Direction | Port-side intake | Ordering Part Number | N9K-SUP-A+(=) |
| Line Card Limitation | Not supported on Cisco Nexus 9504 and 9508 switches with -R and -R2 line cards | Warranty | 1-year limited hardware warranty |
| Module Category | Supervisor |
