N9K-C93108TC-FX Description
The N9K-C93108TC-FX is a Cisco Nexus 9300-FX Series top-of-rack switch for data center racks whose servers connect over 10GBASE-T copper. The switch has 48 RJ-45 downlinks at 100M, 1G or 10G, six 40/100G QSFP28 uplinks, 2.16 Tbps of bandwidth and a 40 MB system buffer in a 1RU chassis with port-side intake or exhaust airflow. MACsec runs only on ports at 10G and above, and Nexus 2000 fabric extenders attach to the switch in NX-OS mode.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
N9K-C93108TC-FX |
|
Downlink ports |
48 x 10GBASE-T RJ-45, each set to 100M, 1G or 10G |
|
Uplink ports |
6 x 40/100G QSFP28 |
|
Bandwidth |
2.16 Tbps |
|
Forwarding rate |
Over 1.25 bpps |
|
DRAM |
24 GB |
|
MACsec |
IEEE 802.1AE on ports running at 10G or above; Security license required |
|
Power supply configuration |
2 slots, 1+1; NXA-PAC-500W-PI or NXA-PAC-500W-PE (500W AC), NXA-PDC-930W-PI or NXA-PDC-930W-PE (930W DC), or N9K-PUV-1200W (1200W HVAC/HVDC) |
|
Typical / maximum power |
276W / 460W |
|
Fan modules |
4 x NXA-FAN-30CFM-B (port-side intake) or NXA-FAN-30CFM-F (port-side exhaust) |
|
Minimum software image |
NXOS-703I7.1 for NX-OS mode; ACI-N9KDK9-12.2A for ACI mode |
|
Form factor |
1RU, 22.5 in (57.1 cm) deep |
Product Performance
Key Features
Every RJ-45 downlink is set to 100M, 1G or 10G, which lets servers from several hardware generations share one switch while a rack is refreshed. The hosts stay on copper patch cabling throughout, with no optics needed at the server end.
The six QSFP28 uplinks run at 40G or 100G, so a rack can join a 40G spine now and move to 100G later by changing optics rather than the switch. Combinations of 1G, 10G, 25G and 50G connectivity are also supported on the uplink side.
MACsec encryption runs on ports at 10G and above and is not supported on 1G ports. One 1G port also removes MACsec from every other port in its MAC block, and a MACsec port gives up priority flow control, which matters where lossless RoCE traffic shares the fabric.
The base software covers Layer 2 switching, security and management; Layer 3 unicast and multicast routing need an NX-OS license. The Essentials package brings BGP, OSPF, PIM and VXLAN BGP EVPN, and Advantage adds SR-MPLS, MPLS Layer 3 VPN and VXLAN EVPN Multi-Site border gateways.
AC rooms, -48V DC plants and high-voltage AC or DC distribution all take the same switch; only the supply pair changes. Power planning uses the 460W maximum draw, while typical operation draws 276W.
Each of the four fan modules has two rotors, and the switch keeps running normally after one rotor fails. A second rotor failure brings a warning and a shutdown two minutes later, and a fan pulled during operation has to be replaced within one minute.
Application Scenarios
In an NX-OS VXLAN EVPN fabric, the switch acts as the leaf for a rack of servers with 10GBASE-T adapters, and its QSFP28 ports connect up to the spine.
Data centers that run Cisco ACI can add the switch in ACI mode as the leaf for copper-attached hosts, managed through the fabric’s policy model.
A row that still runs Nexus 2000 fabric extenders such as N2K-C2348TQ or N2K-C2232PP can use the switch as their parent in NX-OS mode.
Product Comparison
|
Parameter |
N9K-C93108TC-FX | |||
|---|---|---|---|---|
|
Downlinks |
48 x 100M/1/10GBASE-T RJ-45 |
48 x 100M/1/2.5/5/10G BASE-T |
48 x 100M/1/10G BASE-T |
48 x 1/10/25G SFP |
|
Uplinks |
6 x 40/100G QSFP28 |
6 x 40/100G QSFP28 |
6 x 40/100G QSFP28 |
6 x 40/100G QSFP28 |
|
Bandwidth |
2.16 Tbps |
2.16 Tbps |
2.16 Tbps |
3.6 Tbps |
|
Forwarding rate |
Over 1.25 bpps |
1.2 bpps |
1.2 bpps |
1.2 bpps |
|
Packet buffer |
40 MB |
40 MB |
40 MB |
40 MB |
|
Airflow |
Port-side intake or exhaust |
Port-side intake or exhaust |
Port-side intake or exhaust |
Port-side intake or exhaust |
N9K-C93108TC-FX is the 10GBASE-T model that runs from NXOS-703I7.1, while N9K-C93108TC-FX3P adds PoE, PoE+ and 60W UPoE on all 48 ports plus 2.5G and 5G rates, so racks that power endpoints over copper move to that model. Fabrics that encrypt 1G links with MACsec also need N9K-C93108TC-FX3P, because MACsec on N9K-C93108TC-FX covers ports at 10G and above only. N9K-C93108TC-FX3 needs NXOS-10.4.2 and does not support Nexus 2000 FEX, so rows that keep extenders stay on N9K-C93108TC-FX. Fiber-connected servers move to N9K-C93180YC-FX, with 48 SFP ports and 3.6 Tbps. An installed Essentials license upgrades to Advantage with NXOS-UPG-ES-AD-XF=.
Ordering Checklist
- Airflow direction: Use one direction on all four fans and both supplies: NXA-FAN-30CFM-B with NXA-PAC-500W-PI for port-side intake, or NXA-FAN-30CFM-F with NXA-PAC-500W-PE for port-side exhaust. N9K-PUV-1200W follows the installed fans. Mixed airflow can overheat and shut down the switch.
- Supply pair: Fit the same supply type and wattage in both slots, such as two NXA-PAC-500W-PE or two NXA-PDC-930W-PI units. AC and DC supplies cannot be mixed, and a replacement must match the wattage of the unit it replaces.
- Power cords: Order one cord per AC supply for the site, such as CAB-N5K6A-NA, CAB-9K10A-EU or CAB-C13-C14-2M, or NO-POWER-CORD outside Argentina, Brazil and Japan. N9K-PUV-1200W takes CAB-HVAC-SD-0.6M, CAB-HVAC-RT-0.6M, CAB-HVAC-C14-2M or CAB-HVDC-3T-2M, a cable list separate from the AC cords.
- Rack-mount kit: Add NXK-ACC-KIT-1RU or N3K-C3064-ACC-KIT. Each 1-RU kit comes with slider rails and a ground lug kit for the 22.5 in deep chassis.
- NX-OS license: Select an XF-class PID, such as NXOS-AD-XF for a perpetual Advantage license. GF-class PIDs are for 1G fixed platforms, and a perpetual DCN license cannot be moved to another switch later.
- Security add-on: Add ACI-SEC-XF when links will be encrypted with MACsec. MACsec does not run without a Security license, and ACI-SEC-XF replaces NXOS-SEC-XF, which is no longer orderable.
Optional Add-ons
|
Model |
Description |
|---|---|
|
NXA-PAC-500W-PI |
500W AC power supply, port-side intake (burgundy) |
|
NXA-PAC-500W-PE |
500W AC power supply, port-side exhaust (blue) |
|
NXA-PDC-930W-PI |
930W DC power supply, port-side intake |
|
NXA-PDC-930W-PE |
930W DC power supply, port-side exhaust |
|
N9K-PUV-1200W |
1200W HVAC/HVDC power supply, dual-direction airflow that follows the fans |
|
NXA-FAN-30CFM-B |
30CFM fan module, port-side intake (burgundy) |
|
NXA-FAN-30CFM-F |
30CFM fan module, port-side exhaust (blue) |
|
NXK-ACC-KIT-1RU |
Nexus fixed accessory kit with 4-post rack-mount kit |
|
1RU rack-mount kit with slider rails and ground lug kit | |
|
NX-OS Advantage perpetual license for 10G to 100G fixed platforms | |
|
NXOS-UPG-ES-AD-XF= |
NX-OS upgrade license from Essentials to Advantage, 10G and faster platforms |
|
ACI-SEC-XF |
Security add-on license covering MACsec and CloudSec |
|
NXOS-NDB |
Nexus Data Broker add-on license |

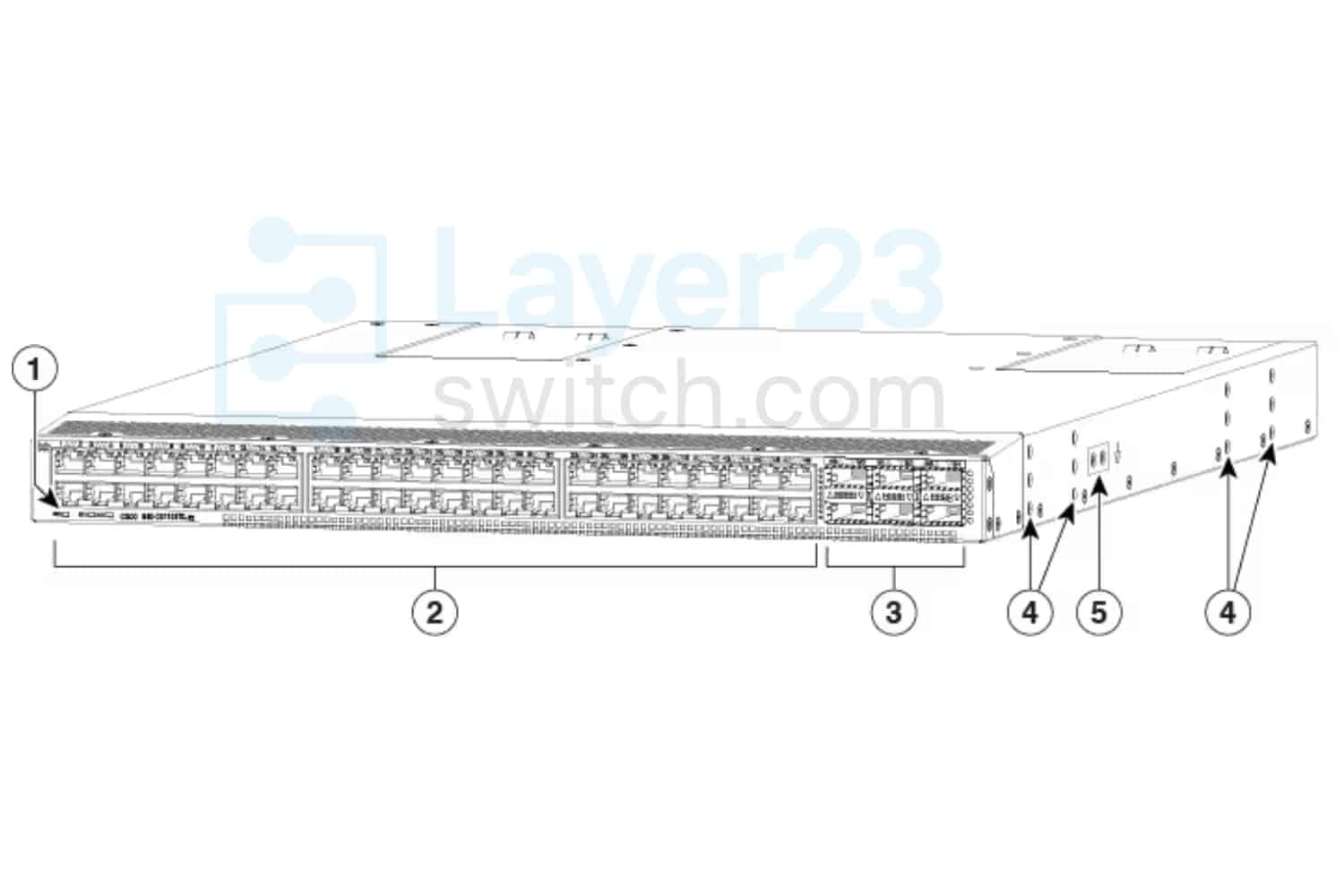

Nexus N9K-C93108TC-FX Front Panel
|
1 |
Beacon [BCN], Status [STS], and Environment [ENV] LEDs |
4 |
Screw holes (6) for attaching rack mounting brackets |
|
2 |
48 10/1-Gigabit RJ45 ports |
5 |
Grounding pad |
|
3 |
6 40/100-Gigabit QSFP28 ports |

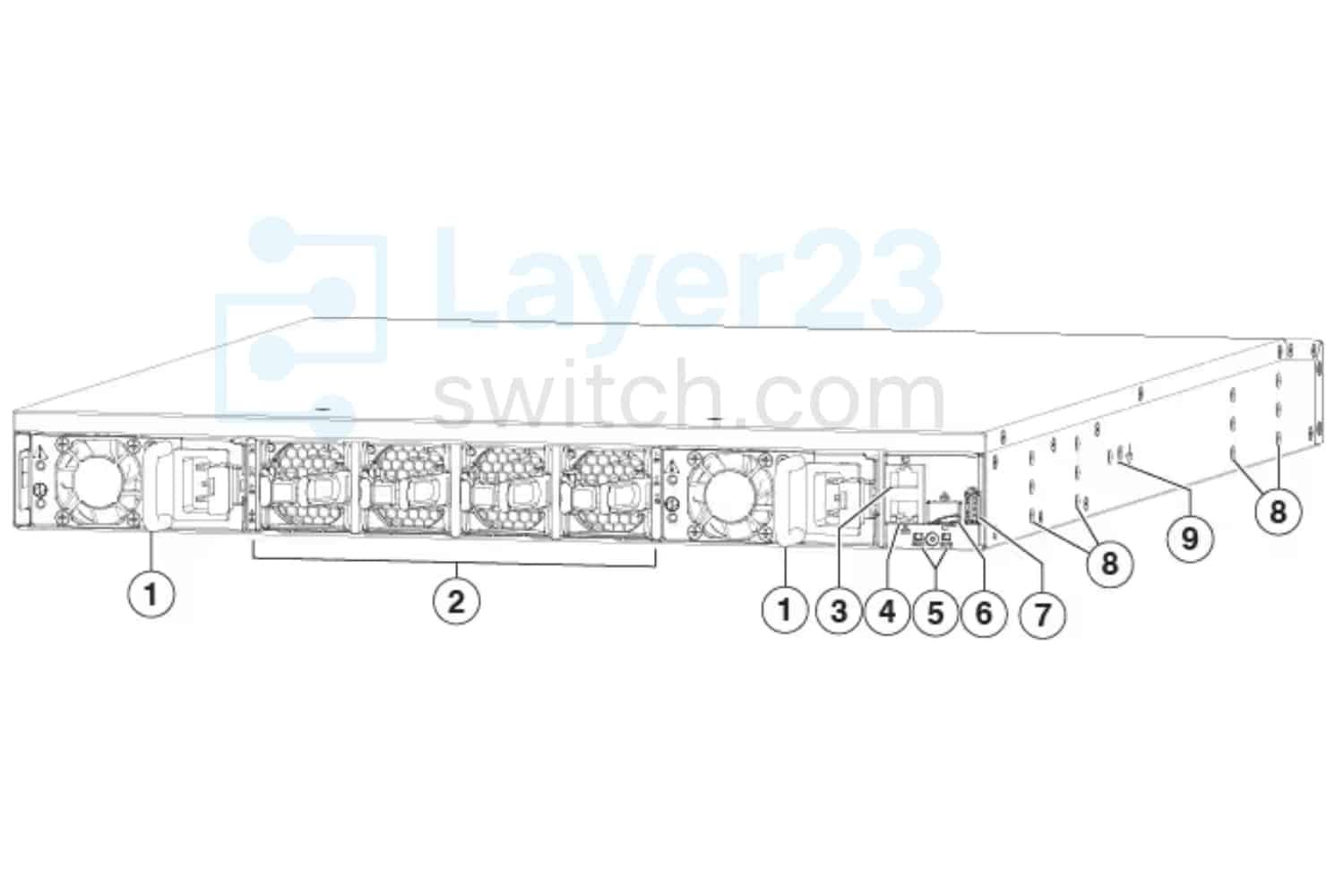

Nexus N9K-C93108TC-FX Rear Panel
|
1 |
Two power supplies (one used for operations and one used for redundancy) (AC power supplies shown) with power supply slot 1 on the left and slot 2 on the right. |
6 |
Management port (SFP+ port) |
|
2 |
Four fan modules with fan slot 1 on the left and fan slot 4 on the right |
7 |
USB port |
|
3 |
Console port (RS232 port) |
8 |
Screw holes (6) for attaching rack mounting brackets |
|
4 |
Management port (RJ-45 port) |
9 |
Grounding pad |
|
5 |
Chassis LEDs (Beacon [BCN] and Status [STS]) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | N9K-C93108TC-FX | Rack units | 1RU fixed-port data center switch |
| Ports | 48 x 100M/1/10GBASE-T and 6 x 40/100G QSFP28 | Downlink supported speeds | 100M, 1G and 10G, set per port |
| Uplink connectivity | Six 40G or 100G ports, or combinations of 1G, 10G, 25G, 40G, 50G and 100G | Bandwidth | 2.16 Tbps |
| Forwarding rate | Over 1.25 bpps | CPU | 4 cores |
| DRAM | 24 GB | SSD drive | 128 GB |
| Packet buffer | 40 MB | Management port | 2 ports: 1 RJ-45 and 1 SFP+ |
| USB port | 1; USB 2.0 devices drawing less than 2.5 W (under 0.5 A including surge) | RS-232 serial ports | 1 console port with RJ-45 interface |
| Operating modes | Cisco NX-OS mode or Cisco ACI mode | Minimum NX-OS image | NXOS-703I7.1 |
| Minimum ACI image | ACI-N9KDK9-12.2A | MACsec | IEEE 802.1AE on ports running at 10G or above |
| MACsec port-speed limit | Not supported on 1G ports or on any port in a MAC block that contains a 1G port | MACsec license | Security license required |
| Flow control on MACsec ports | Link-level flow control and PFC not supported | RoCE support | PFC, ETS and DCBX; ECN with marked-packet statistics |
| Nexus 2000 FEX support (NX-OS mode) | N2K-C2248TP, N2K-C2248TP-E, N2K-C2232TM-E, N2K-C2232PP, N2K-C2332TQ, N2K-C2348TQ, N2K-C2348TQ-E, N2K-C2348UPQ and B22 models from NX-OS 9.2(1) | Maximum number of Cisco N2000 series fabric extenders per switch | 16 |
| Maximum number of IPv4 LPM routes | 1,792,000 | Maximum number of IPv4 host entries | 1,792,000 |
| Maximum number of IPv6 LPM routes | 896,000 | Maximum number of IPv6 host entries | 1,792,000 |
| Maximum number of MAC address entries | 512,000 | Maximum number of multicast routes | 128,000 |
| IGMP snooping groups | Shipping 8,000; maximum 32,000 | Maximum number of ACL entries | 5,000 ingress and 2,000 egress (single-slice forwarding engine) |
| Maximum number of VLANs | 4,096 (127 reserved) | Number of VRF instances | Shipping 1,000; maximum 16,000 |
| Maximum number of ECMP paths | 64 | Maximum number of port channels | 512 |
| Maximum number of links in a port channel | 32 | Number of active SPAN sessions | 4 |
| Maximum number of VLANs in RPVST instances | 3,967 | Maximum number of HSRP groups | 490 |
| Number of NAT entries | 1,023 | Maximum number of MST instances | 64 |
| Number of queues | 8 | Power supply configuration | 2 slots, 1+1 (one operating, one redundant); each slot takes NXA-PAC-500W-PI or NXA-PAC-500W-PE (500W AC), NXA-PDC-930W-PI or NXA-PDC-930W-PE (930W DC), or N9K-PUV-1200W (1200W HVAC/HVDC) |
| Power supply mixing | AC and DC supplies are not mixed; all supplies and fans share one airflow direction | Typical power (AC/DC) | 276W |
| Maximum power (AC/DC) | 460W | Heat dissipation | 1569.585 BTU per hour |
| Input voltage (AC) | 100 to 240V | Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) | -48 to -60V | Input voltage (HVDC) | -240 to -380V |
| Frequency (AC) | 50 to 60 Hz | 500W AC supply | Maximum input current 5.7 A at 100 VAC; 80 Plus Platinum |
| 930W DC supply | Maximum input current 23 A at -48 VDC; above 92% efficiency at 50% load | 1200W HVAC/HVDC supply | 1230 W maximum output at 200 to 277 VAC or 192 to 400 VDC; 80 Plus Platinum |
| Fan modules | 4 fan modules: NXA-FAN-30CFM-B (port-side intake, burgundy) or NXA-FAN-30CFM-F (port-side exhaust, blue) | Airflow | Port-side intake or port-side exhaust; N9K-PUV-1200W follows the fan direction |
| Fan speed | Typical 50% with port-side intake and 70% with port-side exhaust; maximum 100% | Fan rotor redundancy | Two rotors per module; one failed rotor tolerated; more than one triggers a warning and power-down in 2 minutes |
| Acoustic noise | 64.2 dBA at 40%, 68.9 dBA at 70% and 77.8 dBA at 100% fan speed | Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | -40°C to 70°C (-40°F to 158°F) | Relative humidity | 5 to 90% operating; 5 to 95% nonoperating |
| Operating altitude | 0 to 13,123 ft (0 to 4,000 m) operating | Physical dimensions (H x W x D) | 1.72 x 17.3 x 22.5 in (4.4 x 43.9 x 57.1 cm) |
| Weight | 7.9 kg (17.4 lb) without power supplies or fans | Power supply weight | 1.1 kg (2.42 lb) each |
| Fan module weight | 0.12 kg (0.26 lb) each | Rack-mount kits | NXK-ACC-KIT-1RU (4-post) or N3K-C3064-ACC-KIT |
| Safety certifications | CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1-19, ANSI/UL 60950-1, UL 62368-1, IEC 62368-1, EN 62368-1, AS/NZS 62368-1, GB4943 | EMC: emissions | 47CFR Part 15 Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A |
| EMC: immunity | EN55024, CISPR24, EN300386, KN 61000-4 series | RoHS compliance | RoHS-6, with exceptions for leaded BGA balls and lead press-fit connectors |
| Regulatory compliance | CE Markings per directives 2004/108/EC and 2006/95/EC | MTBF | 319,790 hours |
Quality Certifications
Customer Reviews
Questions & Answers
-
Does N9K-C93108TC-FX run in NX-OS mode or ACI mode?
-
Which fan and power supply PIDs set the airflow direction of N9K-C93108TC-FX?
-
What fan speed does N9K-C93108TC-FX run at with port-side intake and port-side exhaust fans?
-
Which aisle must the ports of N9K-C93108TC-FX face with intake and exhaust fan modules?
-
What AC input range and hold-up time does the NXA-PAC-500W supply give N9K-C93108TC-FX?
-
What input current and efficiency does the NXA-PDC-930W DC supply have in N9K-C93108TC-FX?
-
Can N9K-C93108TC-FX be ordered with 24 ports?
-
Which Nexus 2000 fabric extenders can N9K-C93108TC-FX parent in NX-OS mode?
-
Which subscription license PIDs cover N9K-C93108TC-FX?
-
Which routing protocols does the Essentials license add on N9K-C93108TC-FX?
-
What humidity and altitude limits apply to N9K-C93108TC-FX?
