N9K-X9788TC-FX – 48×1/10G BaseT – 4×40/100G QSFP28 – Nexus 9500 Line Card
0/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
N9K-X9788TC-FX Description

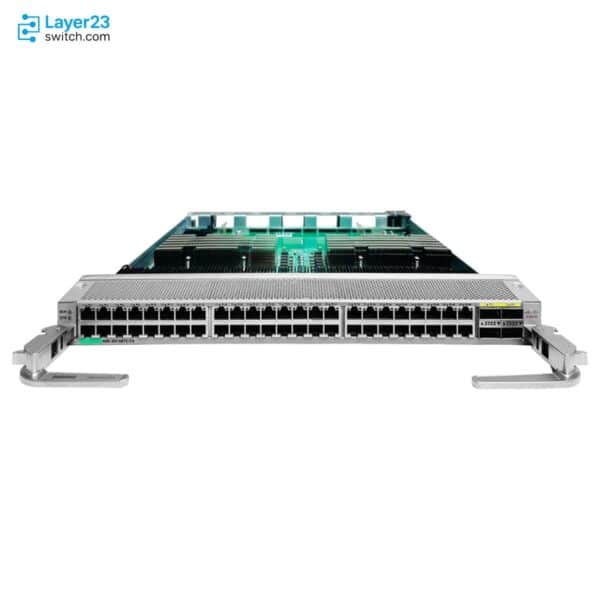

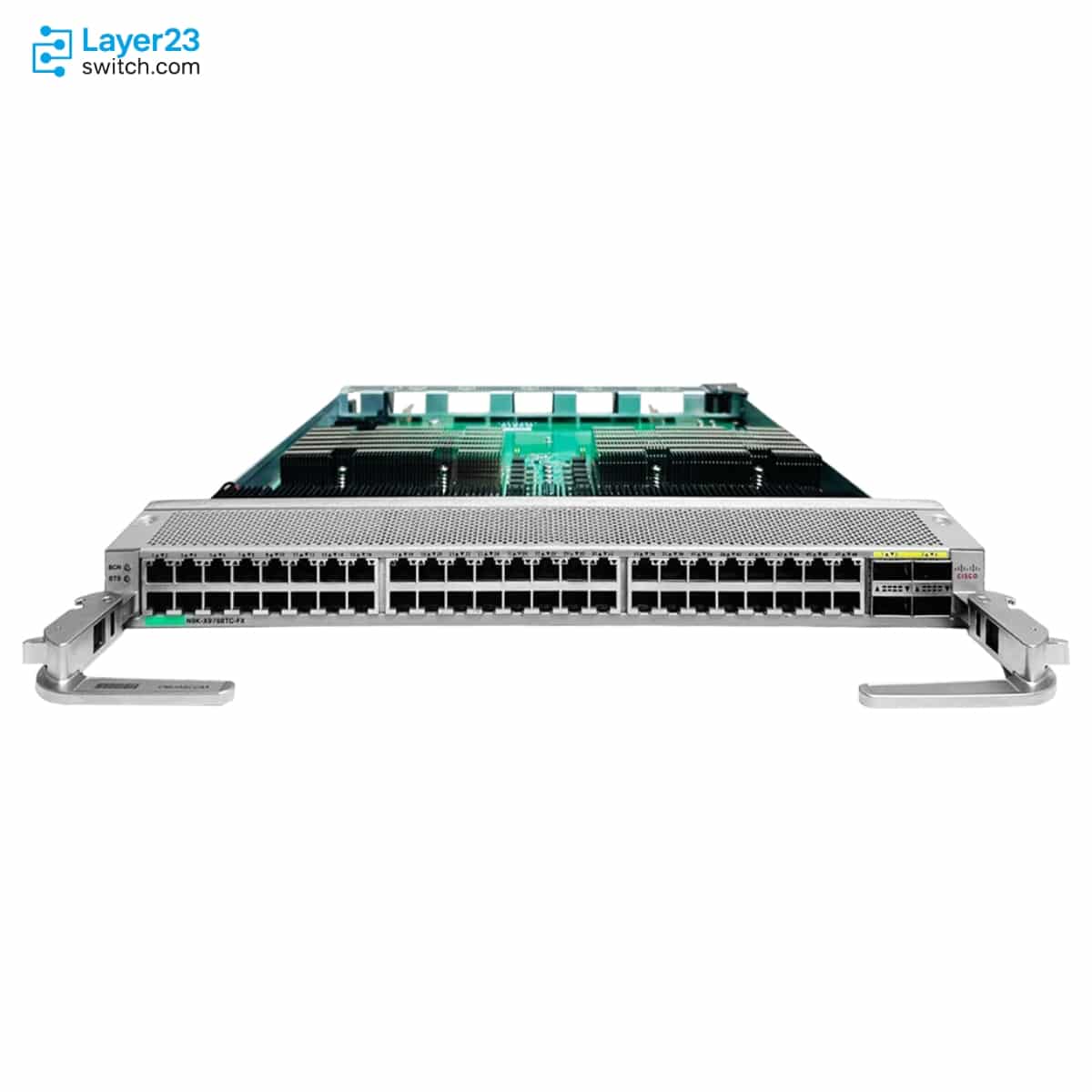

N9K-X9788TC-FX is a Cisco Nexus 9500 Cloud Scale line card that combines 48 100M/1/10G BASE-T access ports with four 40/100G QSFP28 aggregation ports for Nexus 9500 modular chassis deployments.
The buying distinction from N9K-X97160YC-EX is media and access-speed coverage: N9K-X9788TC-FX is the BaseT copper option with MACSec listed, while N9K-X97160YC-EX uses SFP+ access ports for 1/10/25G fiber-oriented designs. Treat the order as a cabling and port-media decision before comparing price.
Quote review should verify the Nexus 9504, Nexus 9508, or Nexus 9516 chassis, NX-OS mode, fabric module family, port-side intake airflow, BaseT cabling plan, QSFP28 optics, and any software or optics matrix requirements for 40/100G links.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
N9K-X9788TC-FX |
|
Product family |
Cisco Nexus 9500 Series |
|
Product type |
Cloud-scale BaseT plus QSFP line card |
|
Supported chassis |
Cisco Nexus 9504, Nexus 9508, Nexus 9516 |
|
Access-layer ports |
48 x 100M/1/10G Ethernet BASE-T |
|
Aggregation-layer ports |
4 x 40/100G Ethernet QSFP28 |
|
Cisco NX-OS support |
Yes |
|
Cisco ACI spine support |
No |
|
MACSec support |
Yes |
|
N+1 fabric module redundancy |
No |
|
Fabric modules for maximum bandwidth |
4 |
|
Performance and forwarding rate |
1.76 Tbps, 0.59 bpps |
|
Power and airflow |
513 W typical, 684 W maximum, port-side intake |
Application Scenarios
N9K-X9788TC-FX fits a Nexus 9500 modular chassis where the access-side cabling plan calls for copper BASE-T ports instead of SFP+ access ports. The four QSFP28 ports keep 40/100G aggregation available on the same line card.
This line card is relevant when the chassis is running Cisco NX-OS and the BOM needs both dense 1/10G BaseT access and a small set of 40/100G QSFP28 aggregation ports. It should not be treated as an ACI-spine card because Cisco lists ACI spine support as No for X9788TC-FX.
N9K-X9788TC-FX can be selected with Nexus 9500 cloud-scale line cards that use a four-fabric maximum-bandwidth plan. The order should also account for Cisco hardware-guide rules on same-type fabric modules and the chassis-specific line-card slot count.
Product Comparison
|
Parameter |
N9K-X9788TC-FX |
N9K-X97160YC-EX | |
|---|---|---|---|
|
Product family |
Cisco Nexus 9500 Series |
Cisco Nexus 9500 Series |
Cisco Nexus 9500 Series |
|
Product type |
BaseT plus QSFP cloud-scale line card |
SFP+ plus QSFP cloud-scale line card |
100G QSFP28 cloud-scale line card |
|
Primary port layout |
48 x 100M/1/10G BASE-T plus 4 x 40/100G QSFP28 |
48 x 1/10/25G SFP+ plus 4 x 40/100G QSFP28 |
32 x 100G QSFP28 |
|
Primary access media |
Copper BASE-T |
SFP+ fiber or DAC media |
QSFP28 100G media |
|
Cisco NX-OS support |
Yes |
Yes |
Yes |
|
Cisco ACI spine support |
No |
No |
No |
|
MACSec support |
Yes |
No |
Yes |
|
N+1 fabric module redundancy |
No |
No |
Yes |
|
Fabric modules for maximum bandwidth |
4 |
4 |
4 |
|
Fabric modules for N+1 redundancy |
Not listed |
Not listed |
5 for homogeneous X9732C-FX chassis |
|
Performance |
1.76 Tbps |
3.2 Tbps |
6.4 Tbps |
|
Forwarding rate |
0.59 bpps |
2.17 bpps |
2.16 bpps |
|
Packet buffer |
80 MB |
80 MB |
160 MB |
|
Typical power |
513 W |
415 W |
520 W |
|
Maximum power |
684 W |
516 W |
840 W |
|
Airflow |
Port-side intake |
Port-side intake |
Port-side intake |
- In a N9K-X9788TC-FX vs N9K-X97160YC-EX comparison, the core difference is access media: N9K-X9788TC-FX uses 48 BASE-T copper access ports, while N9K-X97160YC-EX uses 48 SFP+ access ports with 1/10/25G support.
- The N9K-X9788TC-FX difference from N9K-X9732C-FX is port mix and fabric redundancy: N9K-X9788TC-FX combines copper BaseT with four QSFP28 ports and has no N+1 fabric module redundancy listed, while N9K-X9732C-FX is a 32-port 100G QSFP28 line card with a five-fabric N+1 option in homogeneous chassis designs.
- For buyers deciding which model to choose, the comparison should start with cabling media, 100G port density, MACSec requirement, and whether the Nexus 9500 fabric plan already supports the selected line-card family.
Selection Guide
1. Choose N9K-X9788TC-FX for BaseT access plus QSFP aggregation
Select N9K-X9788TC-FX when the Nexus 9500 chassis needs 48 copper 100M/1/10G BASE-T ports and four 40/100G QSFP28 ports on the same cloud-scale line card.
2. Move to N9K-X97160YC-EX for SFP+ access designs
Compare N9K-X97160YC-EX when the access-side design is built around SFP+ media and 1/10/25G access ports instead of copper BASE-T cabling.
3. Use N9K-X9732C-FX for higher 100G QSFP28 density
Choose N9K-X9732C-FX when the order needs 32 100G QSFP28 ports and the chassis design can take advantage of its listed N+1 fabric module redundancy option.
4. Verify chassis mode and fabric details before quote approval
Confirm NX-OS mode, same-type fabric modules, line-card slot capacity, port-side intake airflow, and QSFP28 optics support before finalizing the bill of materials.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
N9K-X9788TC-FX or spare format N9K-X9788TC-FX= |
Prevents substitution with the SFP+ X97160YC-EX or 100G-only X9732C-FX line card |
|
Chassis |
Cisco Nexus 9504, Nexus 9508, or Nexus 9516 |
Confirms the order is for a supported Nexus 9500 modular chassis |
|
Software mode |
Cisco NX-OS deployment |
Cisco lists X9788TC-FX for NX-OS and not for ACI spine in the line-card summary |
|
Fabric plan |
Four cloud-scale fabric modules for maximum bandwidth |
The data sheet lists four fabric modules for maximum bandwidth on X9788TC-FX |
|
Fabric module type |
Same-type fabric modules across the chassis |
Cisco hardware guides state that modular-switch fabric modules must match |
|
Port media |
BASE-T access cabling plus QSFP28 40/100G optics |
Avoids ordering a copper access line card for a fiber-only access design |
|
Chassis quantity |
Up to 4 in Nexus 9504, 8 in Nexus 9508, or 16 in Nexus 9516 |
Aligns the line-card count with Cisco release-note maximum quantities |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product family | Cisco Nexus 9500 Series |
| Product ID | N9K-X9788TC-FX | Product type | Cloud-scale BaseT plus QSFP line card |
| Cisco ordering description | Cisco Nexus 9500 48p 1/10G BaseT plus 4p 100G QSFP cloud-scale line card | Spare part format | N9K-X9788TC-FX= |
| Supported chassis | Cisco Nexus 9504, Nexus 9508, Nexus 9516 | Maximum quantity by chassis | 4 in 9504, 8 in 9508, 16 in 9516 |
| Access-layer ports | 48 x 100M/1/10G Ethernet BASE-T | Aggregation-layer ports | 4 x 40/100G Ethernet QSFP28 |
| Cisco NX-OS support | Yes | Cisco ACI spine support | No |
| MACSec support | Yes | N+1 fabric module redundancy | No |
| Fabric modules for maximum bandwidth | 4 | Packet buffer | 80 MB |
| Performance | 1.76 Tbps | Forwarding rate | 0.59 bpps |
| Typical power | 513 W | Maximum power | 684 W |
| Weight | 13 lb (5.9 kg) | MTBF | 429,630 hours |
| Hot-swappable | Yes | Airflow | Port-side intake |
