N9K-SUP-B Description

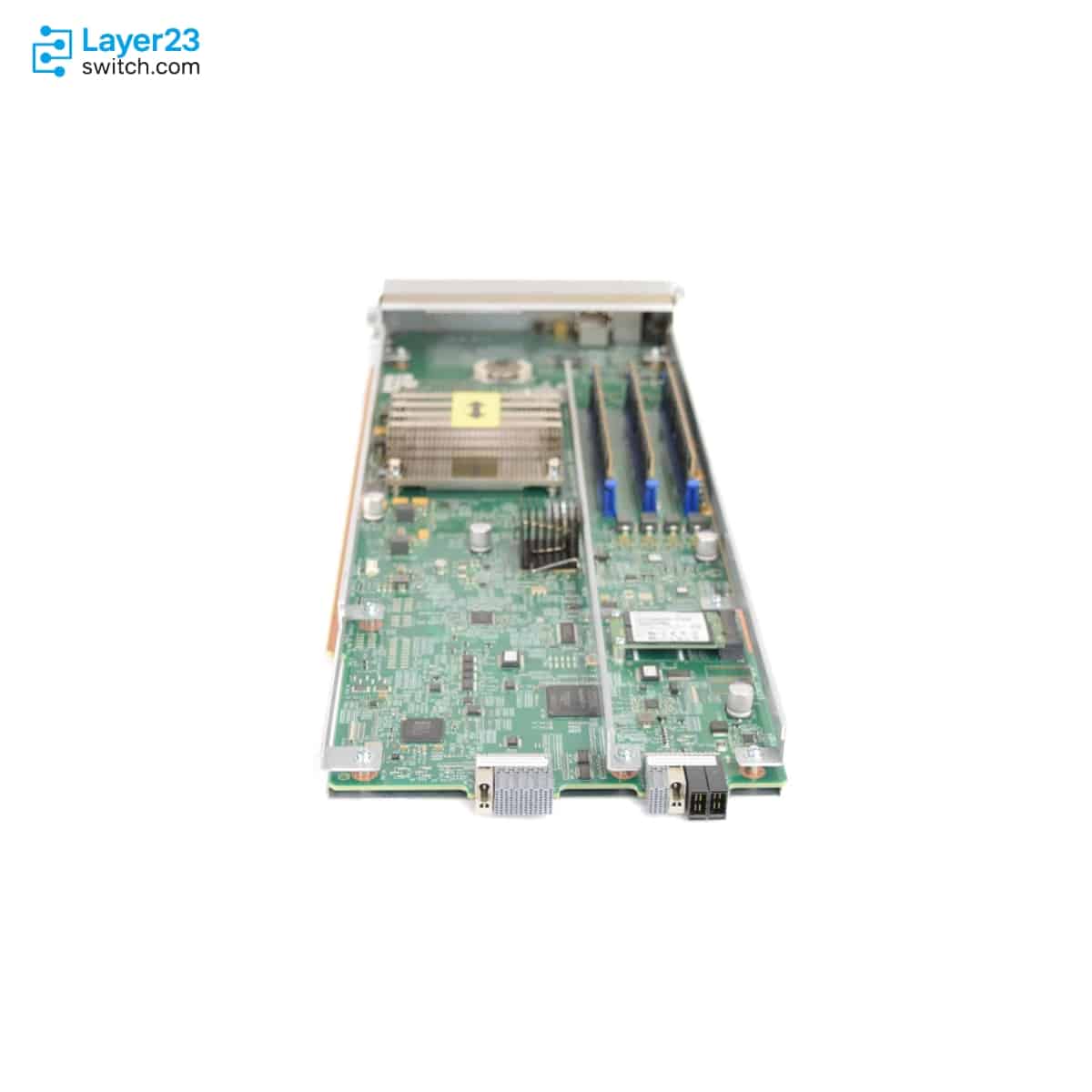

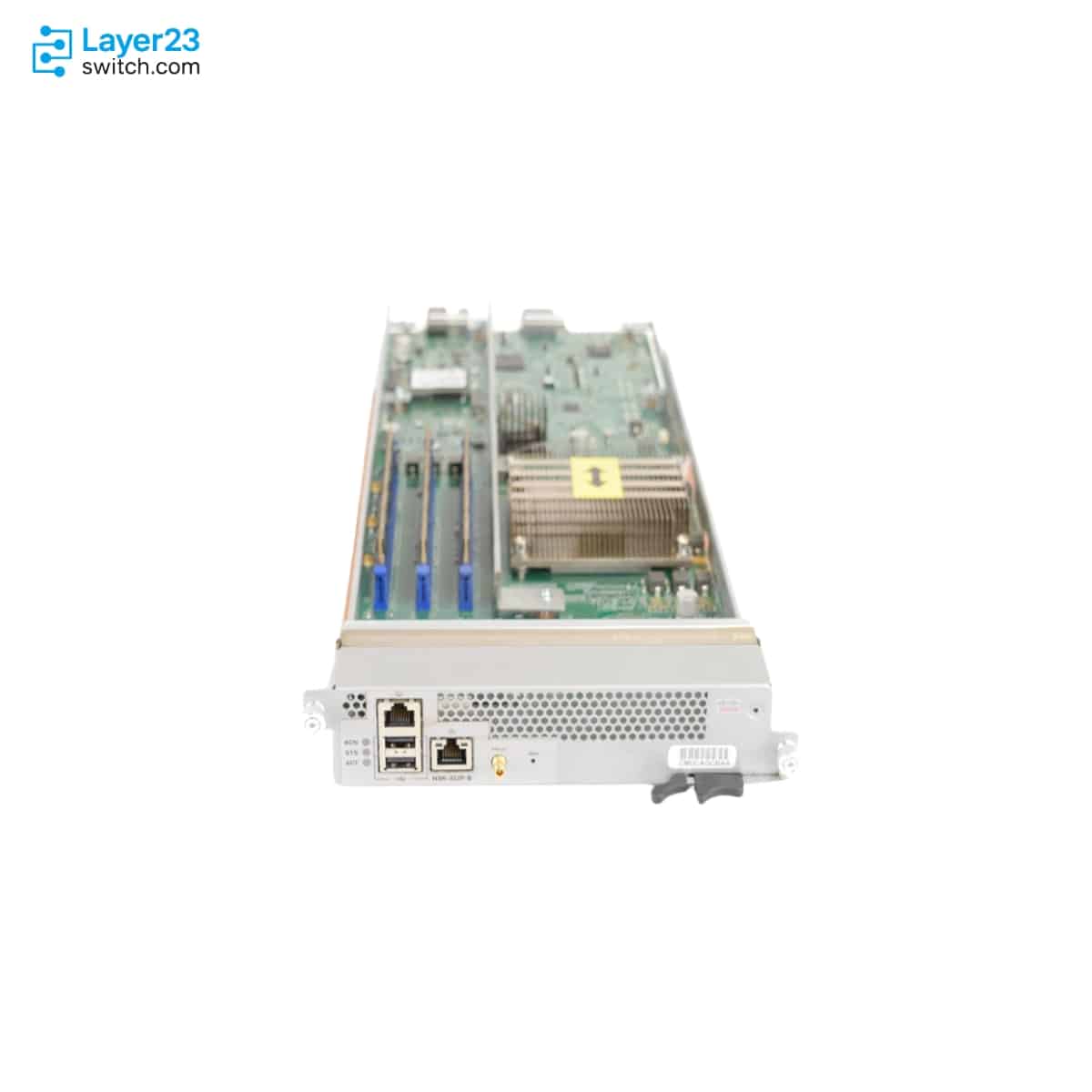

N9K-SUP-B is a Cisco Nexus 9500 Supervisor B module for Nexus 9500 modular chassis control-plane and management-plane operation.
This supervisor module uses a 6-core, 12-thread x86 processor with 24GB DRAM and 256GB SSD storage. It is used in Cisco Nexus 9500 chassis environments where the supervisor model, software release, and dual-supervisor redundancy plan must match the installed platform.
Before requesting a quote, confirm the Nexus 9500 chassis, installed supervisor type, NX-OS release, ACI or NX-OS mode, and whether this is a like-for-like replacement or a migration from Supervisor A family hardware.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
N9K-SUP-B |
|
Product Family |
Cisco Nexus 9500 Series |
|
Product Type |
Supervisor module |
|
Supervisor Type |
Supervisor B |
|
Supported Platform |
Cisco Nexus 9500 platform |
|
Supported Chassis |
Nexus 9504, Nexus 9508, Nexus 9516 |
|
Processor |
6-core, 12-thread x86 |
|
DRAM |
24 GB |
|
SSD Storage |
256 GB |
|
Management Ports |
2 USB, 1 serial, 1 10/100/1000 Ethernet |
|
Operating Modes |
Cisco ACI and Cisco NX-OS |
|
Supervisors per Chassis |
Up to 2 |
|
Minimum NX-OS Release |
6.1(2)I3(1) or later |
|
Typical Power |
75 W |
|
Maximum Power |
80 W |
|
Weight |
6.00 lb (2.72 kg) |
Application Scenarios
Use N9K-SUP-B when an installed Nexus 9500 chassis already uses Supervisor B modules and needs a like-for-like replacement. The buyer should match the existing supervisor type before quoting a spare.
Choose this module when the chassis requires active-standby supervisor redundancy with Supervisor B modules. Cisco guidance says redundant supervisors should be the same type within a chassis for supported supervisor redundancy.
N9K-SUP-B can be evaluated when a Nexus 9500 environment is moving from the Supervisor A family to the Supervisor B family. Cisco migration guidance should be followed, and the final redundant pair should not mix Supervisor A/A+ with Supervisor B/B+ long term.
Product Comparison
|
Parameter |
N9K-SUP-B |
N9K-SUP-B+ |
N9K-SUP-A |
N9K-SUP-A+ |
|---|---|---|---|---|
|
Product Type |
Supervisor module |
Supervisor module |
Supervisor module |
Supervisor module |
|
Supervisor Type |
Supervisor B |
Supervisor B+ |
Supervisor A |
Supervisor A+ |
|
Processor |
6-core, 12-thread x86 |
6-core, 12-thread 1.9GHz x86 |
4-core, 4-thread 1.8GHz x86 |
4-core, 8-thread 1.8GHz x86 |
|
DRAM |
24GB |
32GB |
16GB |
16GB |
|
SSD Storage |
256GB |
256GB |
64GB |
64GB |
|
Typical Power |
75 W |
75 W |
69 W |
69 W |
|
Maximum Power |
80 W |
90 W |
80 W |
80 W |
|
Weight |
6.00 lb (2.72 kg) |
5.3 lb (2.39 kg) |
4.84 lb (2.2 kg) |
5.2 lb (2.37 kg) |
|
MTBF |
292,110 hours |
421,040 hours |
312,070 hours |
414,240 hours |
|
Minimum NX-OS Release |
6.1(2)I3(1) or later |
7.0(3)I7(1) |
6.1(2)I1(1) or later |
7.0(3)I7(1) |
|
Deployment Modes |
Cisco ACI and Cisco NX-OS |
Cisco ACI and Cisco NX-OS |
Cisco ACI and Cisco NX-OS |
Cisco ACI and Cisco NX-OS |
|
Maximum Supervisors per Chassis |
2 |
2 |
2 |
2 |
|
Airflow Direction |
Port-side intake |
Port-side intake |
Port-side intake |
Port-side intake |
- Choose N9K-SUP-B when the installed Nexus 9500 chassis already uses Supervisor B and needs a like-for-like replacement or matched redundant pair.
- Compare N9K-SUP-B+ when the project needs the Supervisor B+ model with 32GB DRAM and the software release supports it.
- Compare Supervisor A or A+ only when matching an existing Supervisor A family chassis; Supervisor A/A+ and Supervisor B/B+ should not be mixed long term.
- Confirm the exact installed supervisor type before ordering, because a mismatched supervisor can prevent supported redundancy.
Selection Guide
1. Choose N9K-SUP-B for Supervisor B continuity
Select N9K-SUP-B when the installed Nexus 9500 system already uses Supervisor B modules and the goal is replacement, sparing, or building a matching redundant supervisor pair.
2. Verify the second supervisor before ordering
For dual-supervisor operation, confirm the installed active or standby supervisor. Cisco guidance says redundant supervisors should be of the same type within a chassis.
3. Check software release and operating mode
Confirm the Cisco NX-OS release, ACI or NX-OS operating mode, and planned supervisor compatibility before ordering. Supervisor B is listed with minimum software support from 6.1(2)I3(1) or later.
4. Use Cisco migration guidance for A-family to B-family changes
If the chassis is moving from Supervisor A or A+ to Supervisor B or B+, follow Cisco migration guidance and quote the final matched supervisor pair rather than leaving a mixed supervisor configuration.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Chassis Model |
Nexus 9504, Nexus 9508, or Nexus 9516 |
Confirms the supervisor is for the Cisco Nexus 9500 platform |
|
Existing Supervisor Type |
Supervisor A, A+, B, or B+ |
Redundant supervisor pairs should use the same supervisor family and type |
|
Supervisor Quantity |
One or two supervisors in the chassis |
Cisco lists a maximum of two Nexus 9500 supervisor modules per chassis |
|
Operating Mode |
Cisco ACI or Cisco NX-OS |
Deployment mode affects software and compatibility checks |
|
NX-OS Release |
Minimum release and current target release |
Supervisor B requires supported software before deployment |
|
Migration Plan |
Whether the chassis is moving from Supervisor A family to Supervisor B family |
Mixed Supervisor A and B operation is for migration, not a steady-state redundant design |
|
Airflow Direction |
Port-side intake |
Airflow direction must match the Nexus 9500 chassis cooling design |
|
Spare Part Requirement |
Base part or spare part ordering format |
Cisco lists N9K-SUP-B(=), with equals sign used for spare ordering |
|
Purchase Details |
Quote, stock status, lead time, warranty handling, and shipping destination |
Helps match availability to the planned supervisor replacement window |
Specifications
Packaging weight and dimensions included:| Weight | 23.4 kg |
|---|---|
| Dimensions | 65 × 55 × 18 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | N9K-SUP-B | Product Family | Cisco Nexus 9500 Series |
| Product Type | Supervisor module | Product Description | Cisco Nexus 9500 6-Core/12-Thread Supervisor |
| Supervisor Type | Supervisor B | Supported Platform | Cisco Nexus 9500 platform |
| Supported Chassis | Nexus 9504, Nexus 9508, Nexus 9516 | Processor | 6-core, 12-thread x86 |
| DRAM | 24GB | SSD Storage | 256GB |
| Management Ports | 2 USB ports, 1 serial port, 1 10/100/1000-Mbps Ethernet port | External Clock Support | Yes |
| Deployment Modes | Cisco ACI and Cisco NX-OS | Maximum Supervisors per Chassis | 2 |
| Supervisor Redundancy | Active-standby, state-synchronized | Redundant Supervisor Requirement | Same supervisor type within a chassis |
| Minimum NX-OS Release | 6.1(2)I3(1) or later | Typical Power | 75 W |
| Maximum Power | 80 W | Weight | 6.00 lb (2.72 kg) |
| MTBF | 292,110 hours | Hot Swappable | Yes |
| Airflow Direction | Port-side intake | Ordering Part Number | N9K-SUP-B(=) |
| Warranty | 1-year limited hardware warranty | Module Category | Supervisor |
