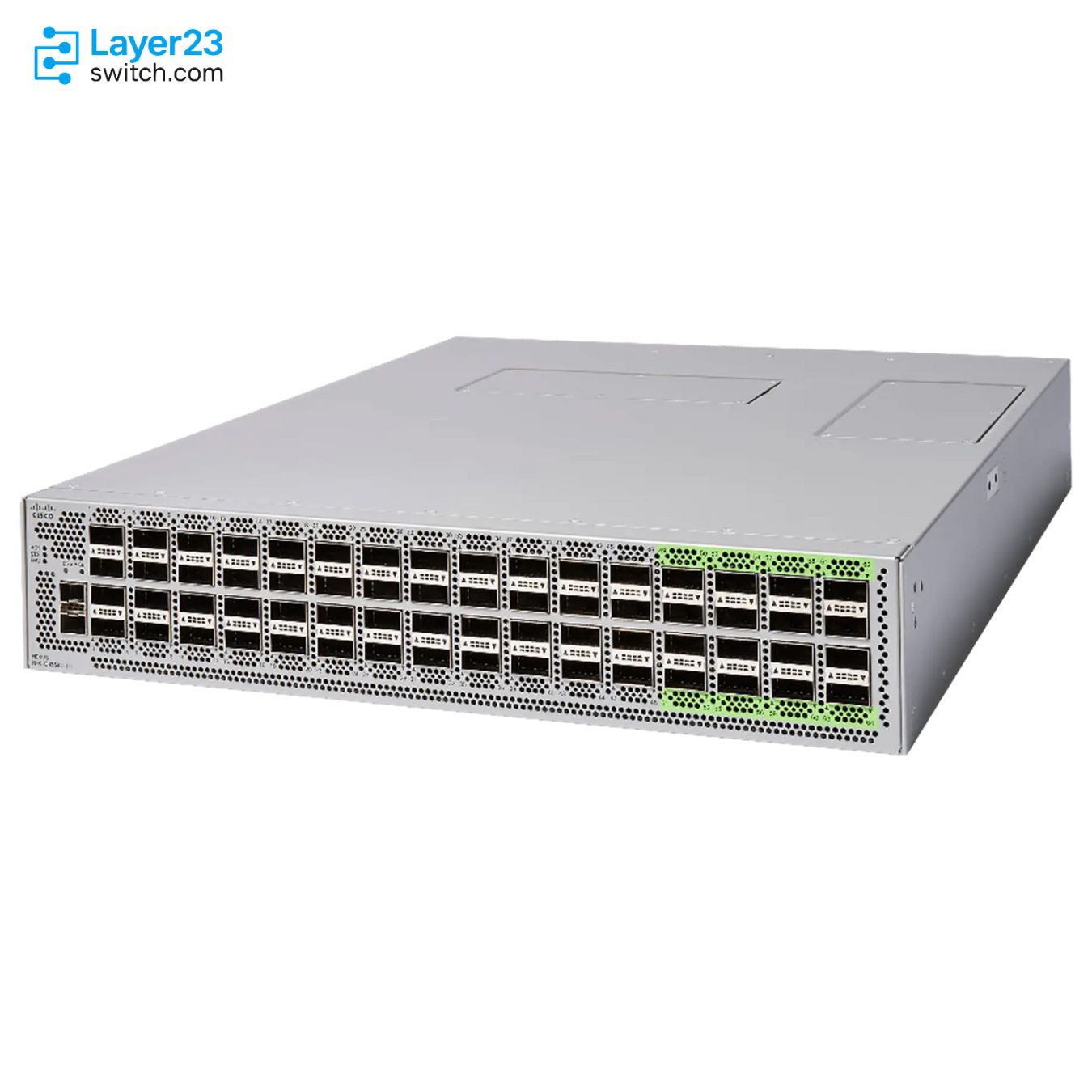

N9K-C9364C – 64×40/100G QSFP28 – 2×1/10G SFP+ – 2RU Spine Switch
5/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
N9K-C9364C Description
N9K-C9364C is a Cisco Nexus 9364C 2RU fixed-port data center switch for Nexus 9000 spine fabrics with 64 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports.
The main procurement difference from N9K-C9332C is density: N9K-C9364C doubles the QSFP28 port count, uses a 2RU chassis, and provides 12.84 Tbps bandwidth, while N9K-C9332C is the smaller 32-port 1RU model. Cisco also states that breakout cables are not supported on this 9364C platform, so the port plan should stay aligned to native 40G or 100G QSFP28 links and documented adapter use.
For quote preparation, verify Cisco ACI Spine or NX-OS mode, supported optics from Cisco transceiver tables, 1200W AC or 930W DC power selection, port-side intake or exhaust airflow, and rack-mount accessories before the hardware and optics are ordered together.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
N9K-C9364C |
|
Product family |
Cisco Nexus 9364C |
|
Product type |
2RU fixed-port data center switch |
|
High-speed ports |
64 x 40/100G QSFP28 |
|
Additional Ethernet ports |
2 x 1/10G SFP+ |
|
Operating mode |
Cisco ACI Spine or Cisco NX-OS |
|
Switching bandwidth |
12.84 Tbps |
|
Forwarding rate |
4.3 bpps |
|
System buffer |
40 MB |
|
System memory |
32 GB |
|
SSD storage |
128 GB |
|
Power supply options |
1200W AC, 930W DC, or 1200W HVAC/HVDC |
|
Airflow options |
Port-side intake or port-side exhaust |
Product Performance
Key Features
N9K-C9364C is built around 64 fixed 40/100G QSFP28 ports, so it fits data center fabrics that need high 100G spine density without moving to a modular chassis.
The 2RU form factor matters when comparing this SKU with N9K-C9332C, because the 9364C trades more rack height for double the QSFP28 port count and higher switching bandwidth.
Cisco documents the switch for Cisco ACI Spine or NX-OS mode, so the purchase should match the intended fabric operating model and software plan.
Cisco states that breakout cables are not supported on this model, which makes the optics and cable plan different from newer platforms that support more flexible breakout designs.
The last 16 QSFP28 ports are marked as MACsec-capable in Cisco documentation, which should be considered when mapping encrypted leaf-to-spine or secure fabric links.
The platform has Cisco-listed port-side intake and port-side exhaust options for power and cooling, and the selected power supply type should match the rack power design.
Application Scenarios
Deploy N9K-C9364C when the fabric requires a Cisco Nexus ACI Spine switch with 64 fixed 40/100G QSFP28 ports. It is a stronger fit than N9K-C9332C when the spine layer needs more high-speed ports in fewer switch nodes.
Use this SKU for NX-OS environments that need fixed QSFP28 aggregation across servers, leaf switches, or service blocks. The 2 x 1/10G SFP+ ports can support auxiliary Ethernet connectivity while the primary data plane remains QSFP28-based.
Select this model when the cabling design is based on native 40G or 100G QSFP28 links rather than breakout cables. The order should confirm supported optics, QSA adapter needs, airflow direction, and power source type before installation planning.
Product Comparison
|
Parameter |
N9K-C9364C | |
|---|---|---|
|
Product family |
Cisco Nexus 9364C |
Cisco Nexus 9332C |
|
Product role |
ACI Spine or NX-OS fixed switch |
ACI Spine or NX-OS fixed switch |
|
Form factor |
2RU |
1RU |
|
Fixed QSFP28 ports |
64 x 40/100G |
32 x 40/100G |
|
Additional SFP+ ports |
2 x 1/10G |
2 x 1/10G |
|
Switching bandwidth |
12.84 Tbps |
6.4 Tbps |
|
Forwarding rate |
4.3 bpps |
4.4 bpps |
|
Breakout cable support |
Not supported |
Not supported |
|
MACsec-capable QSFP28 ports |
Last 16 ports |
Last 8 ports |
|
System memory |
32 GB |
16 GB |
|
System buffer |
40 MB |
40 MB |
|
SSD storage |
128 GB |
128 GB |
|
Power supply options |
1200W AC, 930W DC, 1200W HVAC/HVDC |
750W AC, 1100W AC, 1100W DC, 1100W HVAC/HVDC |
|
Typical AC power |
429W |
296W |
|
Maximum AC power |
1245W |
700W |
- In a N9K-C9364C vs N9K-C9332C comparison, the primary difference is port density: N9K-C9364C provides 64 QSFP28 ports in 2RU, while N9K-C9332C provides 32 QSFP28 ports in 1RU.
- The N9K-C9364C difference from N9K-C9332C also includes switching bandwidth and memory, with 12.84 Tbps and 32 GB on N9K-C9364C versus 6.4 Tbps and 16 GB on N9K-C9332C.
- For buyers deciding which model to choose, N9K-C9364C is the comparison point when the design needs maximum 40/100G QSFP28 count in this fixed-spine pair.
Selection Guide
1. Select N9K-C9364C for 64-port QSFP28 spine density
Choose N9K-C9364C when the bill of materials requires 64 fixed 40/100G QSFP28 ports in a Cisco Nexus fixed spine switch.
2. Move to N9K-C9332C for a smaller 1RU spine
Use N9K-C9332C only when 32 QSFP28 ports are enough and the rack plan prioritizes a 1RU switch over the higher port count of N9K-C9364C.
3. Avoid designs that depend on breakout cables
Keep N9K-C9364C out of port plans that require breakout cables, because Cisco documents breakout cables as unsupported on this model.
4. Confirm optics, power, and airflow as one BOM review
Verify Cisco-supported optics, QSA adapter requirements, 1200W AC or 930W DC power selection, airflow direction, and rack accessories before finalizing the quote.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Operating mode |
Cisco ACI Spine or Cisco NX-OS deployment |
The software and fabric plan must match the intended operating model |
|
Port layout |
64 x 40/100G QSFP28 ports plus 2 x 1/10G SFP+ ports |
The BOM should reserve this SKU for native high-density QSFP28 designs |
|
Breakout requirement |
No breakout cable dependency in the port map |
Cisco documents breakout cables as unsupported on this switch |
|
Optics and adapters |
Cisco-supported transceivers, cables, and QSA adapter use |
Optic support and minimum release requirements should come from Cisco compatibility tables |
|
Power supply type |
1200W AC, 930W DC, or 1200W HVAC/HVDC modules |
DC redundancy has Cisco-documented environmental and optics limits |
|
Airflow direction |
Port-side intake or port-side exhaust across cooling and power choices |
Airflow direction must match the hot-aisle or cold-aisle rack plan |
|
Rack accessories |
N9K-C9300-RMK or required Nexus 9300 accessory kit |
The 2RU chassis should ship with the correct installation hardware |
Optional Add-ons
|
Model |
Description |
|---|---|
|
NXA-FAN-160CFM-PI |
Cisco Nexus fan with port-side intake airflow |
|
NXA-FAN-160CFM-PE |
Cisco Nexus fan with port-side exhaust airflow |
|
NXA-PAC-1200W-PI |
Cisco Nexus 1200W AC power supply with port-side intake airflow |
|
NXA-PAC-1200W-PE |
Cisco Nexus 1200W AC power supply with port-side exhaust airflow |
|
N9K-PUV-1200W |
Cisco Nexus 1200W HVAC/HVDC dual-airflow power supply |
|
NXA-PDC-930W-PI |
Cisco Nexus 930W DC power supply with port-side intake airflow |
|
NXA-PDC-930W-PE |
Cisco Nexus 930W DC power supply with port-side exhaust airflow |
|
N9K-C9300-RMK |
Cisco Nexus 9300 rack mount kit |
|
N9K-C9300-ACK |
Cisco Nexus 9300 accessory kit |

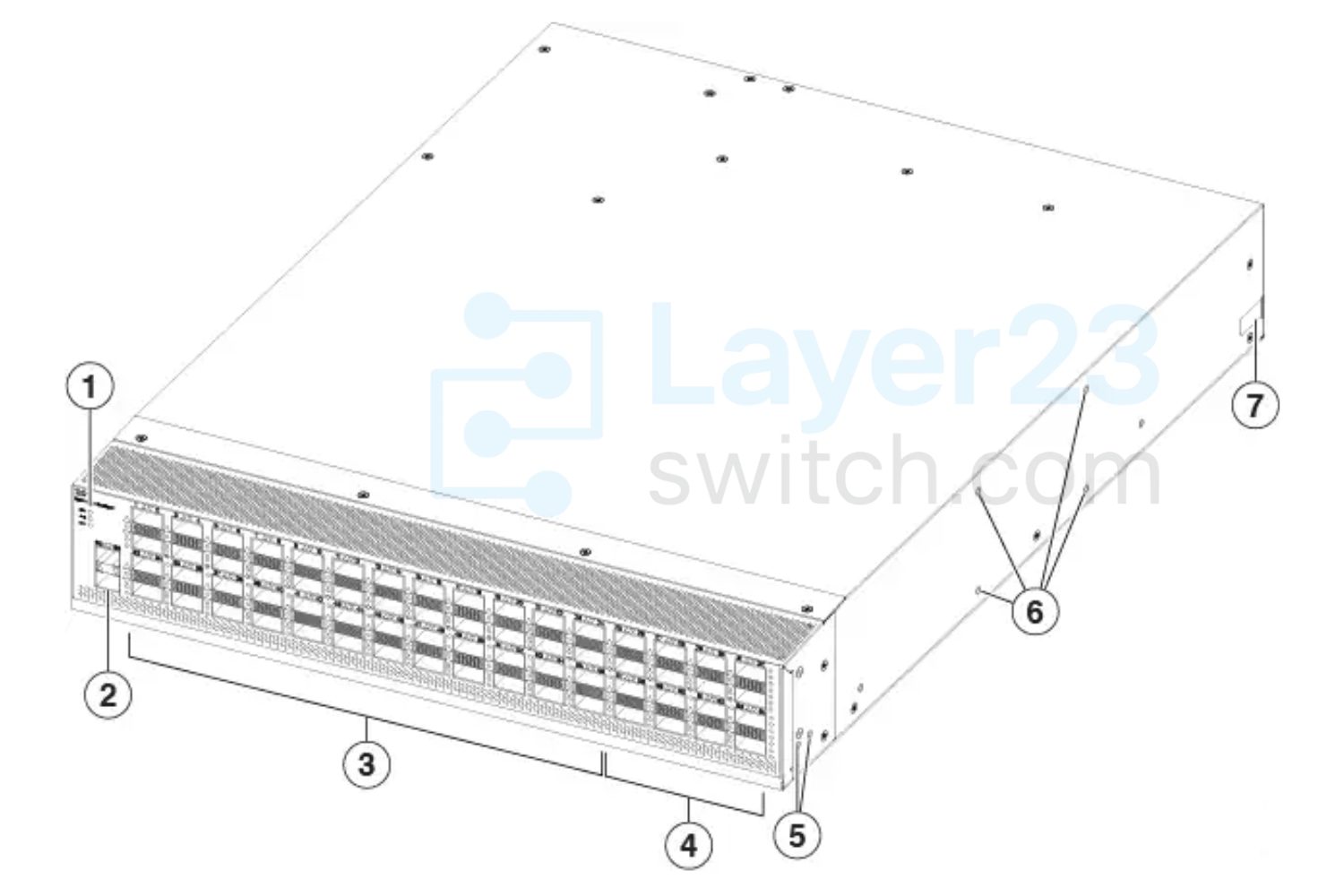

Nexus N9K-C9364C Front Panel
|
1 |
Beacon (BCN), Status (STS), and Environment (ENV) LEDs |
5 |
Screw holes for front mounting brackets (four-post rack installations) |
|
2 |
1-/10-Gigabit SFP+ ports (2) |
6 |
Screw holes for center-mount bracket (two-post rack installations) |
|
3 |
40-/100-Gigabit QSFP28 ports (ports 1 to 48 in 4 rows of 12 ports) |
7 |
Notch on both sides of the chassis for locking the power supply end of the chassis to the bottom support rails (four-post rack installations). |
|
4 |
Green colored 40-/100-Gigabit QSFP28 ports supporting MACsec (when software support is available) (ports 49 to 64 in 4 rows of 4 ports) |

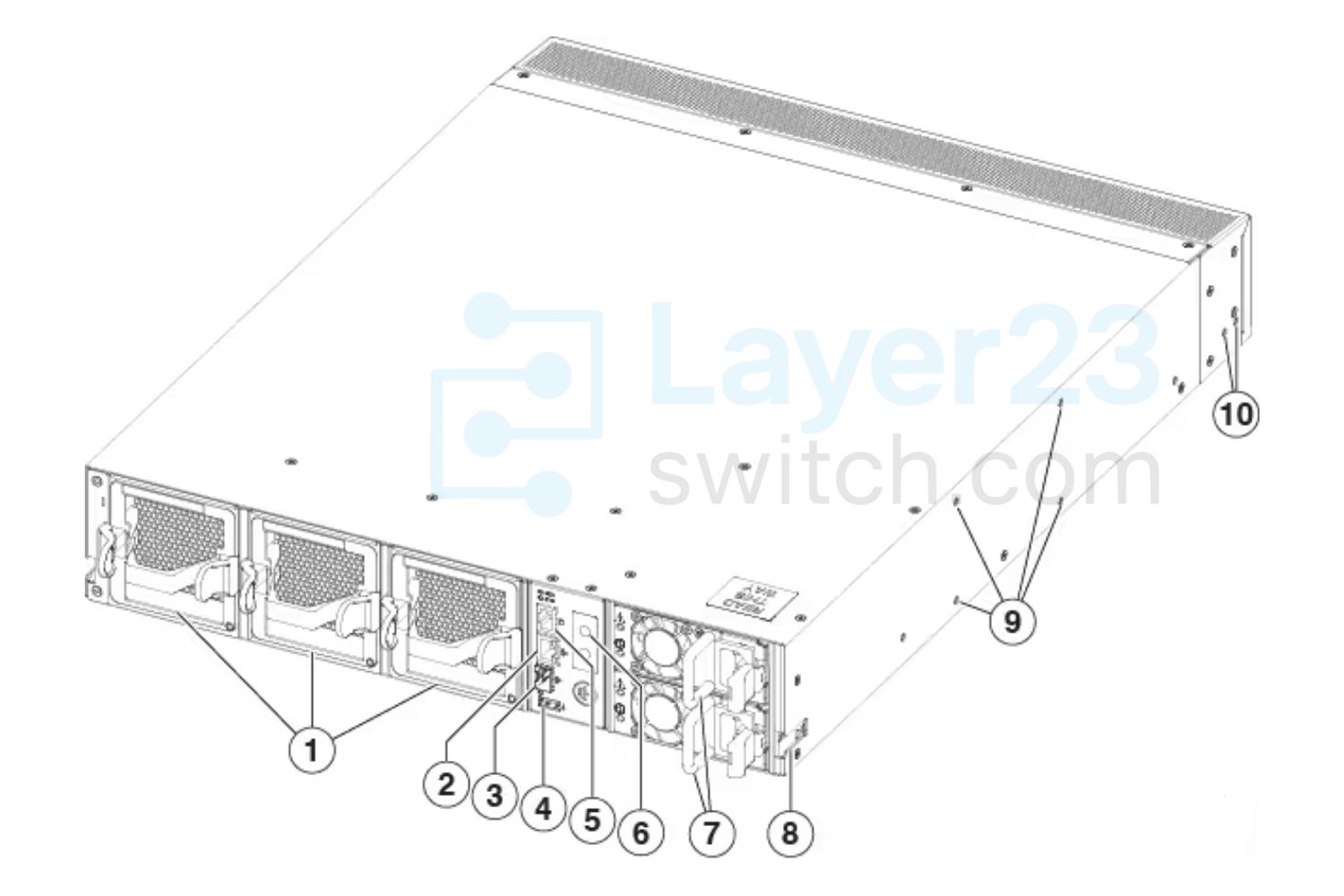

Nexus N9K-C9364C Rear Panel
|
1 |
Fan modules (3) with slots numbered from 1 (left) to 3 (right) |
6 |
Grounding pad |
|
2 |
Management port (1—RJ-45 copper port) |
7 |
Power supply modules (1 or 2) (AC power supplies shown) with slots numbered 1 (top) and 2 (bottom) |
|
3 |
Management port (1—SFP optical port) |
8 |
Notch on both sides of the chassis for locking the power supply end of the chassis to the bottom support rails (four-post rack installations). |
|
4 |
USB port (1) |
9 |
Screw holes for center-mount bracket (two-post rack installations) |
|
5 |
Console port (1) |
10 |
Screw holes for front mounting brackets (four-post rack installations) |
Specifications
Packaging weight and dimensions included:| Weight | 38.1 kg |
|---|---|
| Dimensions | 79 × 31 × 61 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | N9K-C9364C | Product Family | Cisco Nexus 9364C |
| Device Type | Fixed-port data center switch | Form Factor | 2RU |
| Operating Modes | Cisco ACI Spine or Cisco NX-OS | High-Speed Ports | 64 x 40/100G QSFP28 |
| Additional Ethernet Ports | 2 x 1/10G SFP+ | Management Ports | 1 x 10/100/1000BASE-T and 1 x 1G SFP |
| Console Port | 1 x RS-232 | USB Ports | 1 |
| Switching Bandwidth | 12.84 Tbps | Forwarding Rate | 4.3 bpps |
| Breakout Cable Support | Not supported | MACsec-Capable Ports | Last 16 QSFP28 ports |
| System Buffer | 40 MB | System Memory | 32 GB |
| SSD Storage | 128 GB | CPU | Broadwell-DE 4 cores |
| Power Supply Options | 1200W AC, 930W DC, or 1200W HVAC/HVDC | Power Supply Slots | 2 modules, 1 for operation and 1 for redundancy |
| Supported AC Power Supplies | NXA-PAC-1200W-PI, NXA-PAC-1200W-PE | Supported DC Power Supplies | NXA-PDC-930W-PI, NXA-PDC-930W-PE |
| Supported HVAC/HVDC Power Supply | N9K-PUV-1200W | 930W DC Redundancy Note | 1+1 redundancy requires 40C or lower ambient temperature and 3.5W QSFP+ modules or passive QSFP cables |
| AC Input Voltage | 100 to 240V AC | DC Input Voltage | -40V to -72V DC |
| AC Frequency | 50 to 60 Hz | Airflow Options | Port-side intake or port-side exhaust |
| Fan Module Options | NXA-FAN-160CFM-PI, NXA-FAN-160CFM-PE | Airflow Matching Requirement | Fans and power supplies should use the same airflow direction |
| Typical Power Consumption | 429W | Maximum Power Consumption | 1245W |
| Heat Dissipation Requirement | 4248.116 BTU/hr | Chassis Dimensions | 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm) |
| Weight With Power Supplies and Fans | 36.9 lb (16.74 kg) | Weight Without Power Supplies and Fans | 27.4 lb (12.43 kg) |
| Operating Temperature | 32 to 104F (0 to 40C) | Nonoperating Temperature | -40 to 158F (-40 to 70C) |
| Humidity | 5 to 90% noncondensing | Operating Altitude | 0 to 13,123 ft (0 to 4,000 m) |
| MTBF | 257,860 hours | Maximum VLANs | 4096 with 127 reserved |
| Maximum VRF Instances | 1,000 | Maximum Port Channels | 64 |
| Maximum Links in a Port Channel | 32 | Maximum ECMP Paths | 64 |
| Maximum VTEPs | 256 | Active SPAN Sessions | 4 |
| RoHS Compliance | Yes | Supported Optics Reference | Cisco transceiver support tables for supported modules and minimum releases |
| Rack Mount Kit | N9K-C9300-RMK | Accessory Kit | N9K-C9300-ACK |
