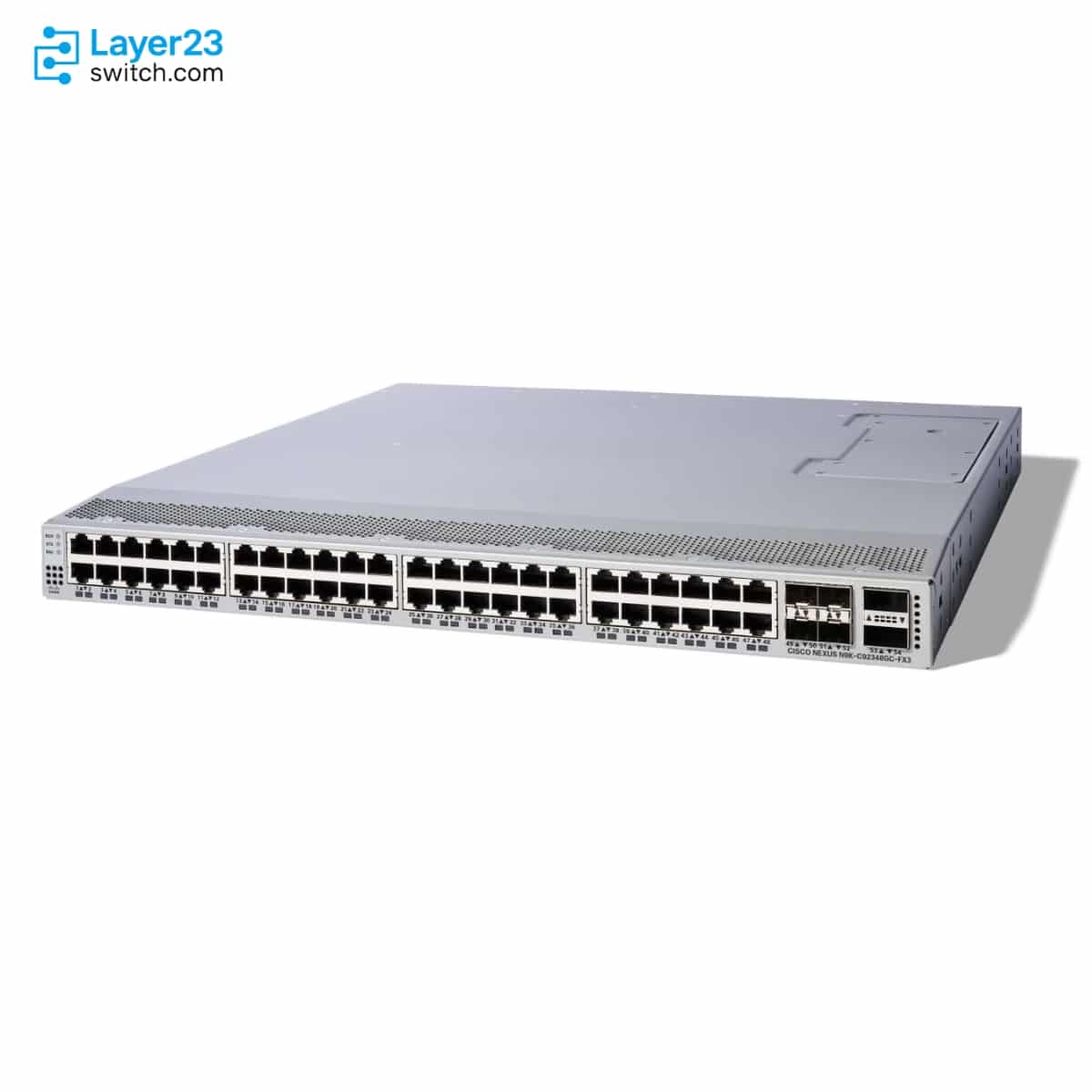

N9K-C92348GC-FX3 – 48x10M/100M/1G Base-T – 4x25G SFP28 + 2x100G QSFP28 – Nexus Data Center Switch
Shop Expert-Recommended Accessories for the N9K-C92348GC-FX3
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $853.95.$52.00Current price is: $52.00. -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $2,439.88.$150.00Current price is: $150.00. -
SFP-25G-SR-S
25GBASE-SR SFP28 - 850nm MMF - 100m OM4Original price was: $1,213.85.$258.00Current price is: $258.00. -
SFP-10/25G-LR-S
10/25GBASE-LR SFP28 - 10 km G.652 SMF - 0 to 70°C Commercial TemperatureOriginal price was: $2,787.19.$431.00Current price is: $431.00. -
QSFP-40G-SR4-S
40G SR4 S-Class QSFP - MPO-12 MMF - No BreakoutOriginal price was: $2,061.70.$391.00Current price is: $391.00. -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $1,260.58.$95.80Current price is: $95.80. -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $570.10.$70.00Current price is: $70.00. -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $633.46.$59.00Current price is: $59.00. -
QSFP-100G-DR-S
100G DR QSFP - LC SMF - 500m ReachOriginal price was: $15,960.00.$598.00Current price is: $598.00. -
QSFP-100G-SR4-S
100G SR4 QSFP - MPO-12 MMF - 100m OM4Original price was: $2,433.79.$268.00Current price is: $268.00. -
SFP-10G-AOC3M
10G SFP+ AOC - 3m Length - Active Optical CableOriginal price was: $561.00.$80.64Current price is: $80.64. -
SFP-25G-AOC3M
25G SFP28 AOC - 3m Length - Active Optical CableOriginal price was: $512.38.$279.00Current price is: $279.00. -
QSFP-H40G-CU5M
40G QSFP DAC - 5m Length - Passive Copper CableOriginal price was: $457.49.$84.00Current price is: $84.00. -
QSFP-100G-AOC3M
100G QSFP AOC - 3m Length - Active Optical CableOriginal price was: $2,433.79.$385.00Current price is: $385.00. -
QSFP-100G-CU3M
100G QSFP DAC - 3m Length - Passive Copper CableOriginal price was: $396.49.$128.00Current price is: $128.00. -
QSFP-H40G-AOC3M
40G QSFP+ AOC - 3m Length - Active Optical CableOriginal price was: $1,036.95.$271.00Current price is: $271.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
N9K-C92348GC-FX3 Description
The N9K-C92348GC-FX3 is a Cisco N9200 platform 1RU data center switch for top-of-rack copper access in gigabit server and management racks. The switch has 48 Base-T ports at 10M, 100M or 1G, four 1/10/25G SFP28 ports and two 40/100G QSFP28 ports, with 0.696 Tbps of bandwidth, a 40 MB shared buffer and room for 1,792,000 LPM routes. The default NX-OS software covers Layer 2 features only, so OSPF, EIGRP or BGP routing needs an added license, and the switch has no native line-rate VXLAN routing.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Downlink ports |
48 x 10M/100M/1G Base-T |
|
SFP28 ports |
4 x 1/10/25G |
|
QSFP28 ports |
2 x 40/100G |
|
Bandwidth |
0.696 Tbps |
|
Forwarding rate |
Over 517 Mpps |
|
Shared system buffer |
40 MB |
|
DRAM |
32 GB |
|
Solid-State disk (SSD) drive |
128 GB |
|
Number of LPM routes |
1,792,000 |
|
Number of MAC address entries |
512,000 |
|
Power supplies (up to 2) |
350W AC, 440W DC or 350W HVAC/HVDC |
|
Typical / maximum power |
226W / 242W |
|
Airflow |
Port-side intake or port-side exhaust |
Product Performance
Key Features
All 48 Base-T ports negotiate 10M, 100M or 1G. Older management interfaces, PDUs and building controllers that still link at 10M can share the rack switch with gigabit server NICs.
Four SFP28 ports run at 1G, 10G or 25G, and two QSFP28 ports run at 40G or 100G. The uplinks are fixed on the chassis and need no module slot.
The forwarding tables hold 1,792,000 LPM routes, 1,792,000 host entries and 512,000 MAC addresses. Up to 16,000 VRFs and 128-way ECMP give a routed leaf room for many tenants and parallel paths to the spine.
The control plane runs on a four-core CPU with 32 GB of system memory and a 128 GB solid-state disk. Telemetry on this model is collected in software rather than exported from the ASIC.
Each of the two hot-swappable supplies comes in a port-side intake or port-side exhaust version, as 350W AC, 440W DC or 350W HVAC/HVDC. Typical draw is 226W and the maximum is 242W, below the rating of any one supply.
Out of the box the switch runs Layer 2 security and management features. OSPF, EIGRP, BGP and IP multicast arrive with an added NX-OS license, and native line-rate VXLAN routing is not available on this model.
Application Scenarios
In a data center management network, the switch collects console servers, server BMC ports and PDU interfaces at 10M, 100M or 1G and carries that traffic upstream over its SFP28 ports.
A row of servers with 1G copper NICs connects to the switch at the top of each rack, while the two QSFP28 ports run 100G links to the spine layer.
Hosting providers that route at the rack can keep each customer in its own VRF on this leaf, using the 1,792,000-route table to hold full tenant routing.
Product Comparison
|
Parameter |
N9K-C92348GC-FX3 | |||
|---|---|---|---|---|
|
Downlink ports |
48 x 10M/100M/1G Base-T |
48 x 100M/1G Base-T |
48 x 1/10/25G SFP+ |
48 x 100M/1/10G BASE-T |
|
Uplink ports |
4 x 1/10/25G SFP28 and 2 x 40/100G QSFP28 |
4 x 1/10/25G SFP28 and 2 x 40/100G QSFP28 |
6 x QSFP28, 4 of them 100G capable |
6 x 40/100G QSFP28 |
|
Bandwidth |
0.696 Tbps |
0.696 Tbps |
3.2 Tbps |
2.16 Tbps |
|
Forwarding rate |
Over 517 Mpps |
Over 517 Mpps |
Over 2.5 Bpps |
1.2 Bpps |
|
Shared system buffer |
40 MB |
40 MB |
20 MB |
40 MB |
|
Number of LPM routes |
1,792,000 |
16,000 (default) |
6,000 (default) |
1,792,000 |
|
Airflow |
Port-side intake or exhaust |
Port-side intake or exhaust |
Port-side intake or exhaust |
Port-side intake or exhaust |
N9K-C92348GC-FX3 and N9K-C92348GC-X share the same 48-port copper layout, uplinks and 0.696 Tbps, but N9K-C92348GC-FX3 adds 10M on the Base-T ports and holds 1,792,000 LPM routes against a 16,000 default. A rack that only needs 100M and 1G copper with a small routing table can use N9K-C92348GC-X. Server racks cabled for 10G or 25G fiber move to N9K-C92160YC-X, with 48 SFP+ ports and 3.2 Tbps, though its default LPM table is 6,000 routes. Where the copper runs must carry 10G, N9K-C93108TC-FX3 keeps the 1,792,000-route table and adds 10G BASE-T on all 48 ports with six 100G uplinks at 2.16 Tbps.
Ordering Checklist
- Airflow direction: Order both supplies with the same airflow suffix, port-side intake (NXA-PAC-350W-PI2) or port-side exhaust (NXA-PAC-350W-PE2). The PI and PE suffixes set port-side intake or port-side exhaust airflow for the chassis.
- Power input type: Select AC (NXA-PAC-350W-PI2 or NXA-PAC-350W-PE2), DC (NXA-PDC-440W-PI or NXA-PDC-440W-PE) or HVAC/HVDC (NXA-PHV-350W-PI or NXA-PHV-350W-PE) supplies to match the rack feed. DC supplies accept -40 to -72V.
- Layer 3 license: Add N93-LAN1K9 when OSPF, EIGRP or BGP routing is needed. Without an added license the default NX-OS software runs Layer 2 security and management features only.
- Power cords: Add the destination-country cord, such as CAB-9K10A-EU, CAB-9K10A-UK or CAB-9K12A-NA, for AC supplies. HVAC supplies take CAB-HVAC-SD-0.6M or CAB-HVAC-RT-0.6M instead.
Optional Add-ons
|
Model |
Description |
|---|---|
|
NXA-PAC-350W-PI2 |
350W AC power supply, port-side intake |
|
NXA-PAC-350W-PE2 |
350W AC power supply, port-side exhaust |
|
NXA-PDC-440W-PI |
DC power supply, port-side intake |
|
NXA-PDC-440W-PE |
DC power supply, port-side exhaust |
|
NXA-PHV-350W-PI |
350W HVAC/HVDC power supply, port-side intake |
|
NXA-PHV-350W-PE |
350W HVAC/HVDC power supply, port-side exhaust |
|
N93-LAN1K9 |
Enhanced Layer 3 license with full OSPF, EIGRP and BGP for the N9200 and N9300 platforms |
|
NXK-ACC-KIT-1RU |
Nexus 3K/9K fixed accessory kit for 1RU front and rear removal |

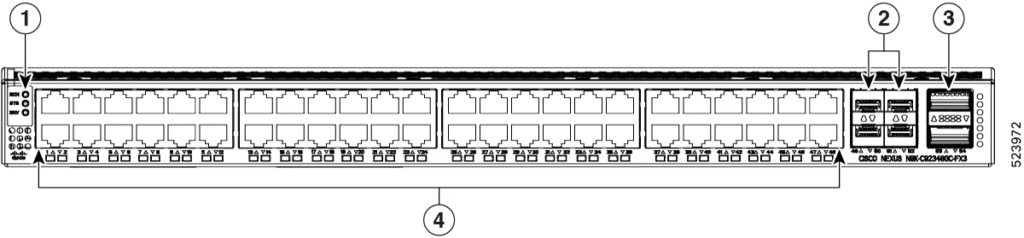

Front Panel
| 1 | LEDs | 2 | SFP28 ports (4) |
| 3 | QSFP28 ports (2) | 4 | 10M/100M/1G RJ45 ports (48) |

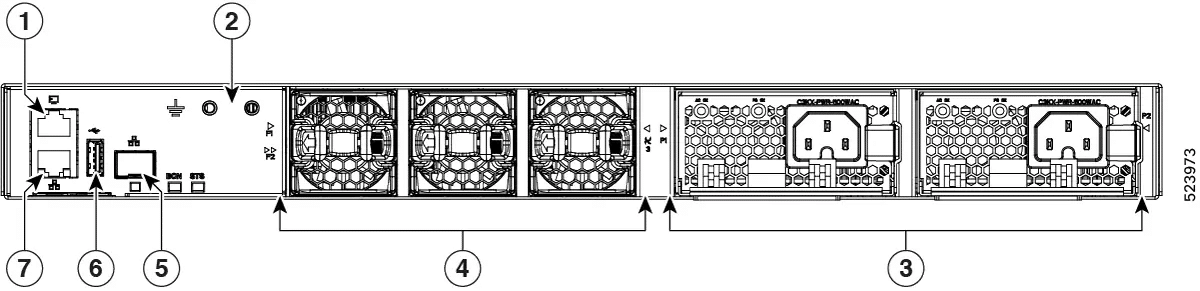

Rear Panel
| 1 | Console port | 2 | Grounding pad |
| 3 | Power supply modules (1 or 2) (AC power supplies shown) with slots numbered 1 (left) and 2 (right) | 4 | Fan modules (3) with slots numbered from 1 (left) to 3 (right) |
| 5 | Management port (SFP) | 6 | USB port |
| 7 | Management port (RJ45) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Ports | 48 x 10M/100M/1G Base-T, 4 x 1/10/25G SFP28, 2 x 40/100G QSFP28 | Supported speeds | 10M, 100M and 1G on Base-T ports; 1G, 10G and 25G on SFP28 ports; 40G and 100G on QSFP28 ports |
| Rack units | 1RU fixed switch | Bandwidth | 0.696 Tbps |
| Forwarding rate | Over 517 Mpps | Shared system buffer | 40 MB |
| CPU | 4 cores | DRAM | 32 GB |
| Solid-State disk (SSD) drive | 128 GB | Management port | 2 ports: 1 RJ-45 and 1 SFP |
| USB port | 1 | RS-232 serial ports | 1 |
| Telemetry support | Yes, software only | Number of LPM routes | 1,792,000 |
| Number of IP host entries | 1,792,000 | Number of MAC address entries | 512,000 |
| Number of multicast routes | 128,000 | Number of IGMP snooping groups | 32,000 |
| Number of ACL entries | Single-slice forwarding engine: 5000 ingress, 2000 egress | Maximum number of VLANs | 4096 (127 reserved) |
| Number of VRF instances | 16,000 | Maximum number of ECMP paths | 128-way |
| Maximum number of ECMP groups | 256 | Maximum number of ECMP members | 64,000 |
| Maximum number of port channels | 512 | Maximum number of links in a port channel | 32 |
| Number of active SPAN sessions | 4 | Number of VLANs in RPVST instances | 3967 |
| Number of HSRP groups | 490 | Number of MST instances | 64 |
| Number of NAT entries | 1023 | Power supplies (up to 2) | 350W AC port-side intake and port-side exhaust; 440W DC port-side intake and port-side exhaust; 350W HVAC/HVDC |
| Typical power (AC) | 226W | Maximum power (AC) | 242W |
| Input voltage (AC) | 100 to 240V | Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) | -40 to -72V DC (minimum and maximum); -48 to -60V DC (nominal) | Input voltage (HVDC) | 240 to 380V |
| Frequency (AC) | 50 to 60 Hz | Fan modules | 3 |
| Airflow | Port-side intake and exhaust | Field-replaceable modules | Hot-swappable power supplies and fans with N+1 redundancy |
| Acoustics (port-side exhaust) | 60.7 dBA at 40%, 71.9 dBA at 70%, 81.6 dBA at 100% fan speed | Acoustics (port-side intake) | 66.1 dBA at 40%, 73.2 dBA at 70%, 79.6 dBA at 100% fan speed |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | Nonoperating (storage) temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating humidity | 5 to 85% (noncondensing) | Operating altitude | 0 to 13,123 ft (0 to 4000 m) |
| Physical (H x W x D) | 1.72 x 17.3 x 19.7 in. (4.4 x 43.9 x 49.9 cm) | Weight | 6.57 kg (14.5 lb) without power supplies or fans |
| MTBF | 283,670 hours | Safety certifications | NEBS, UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 (Second Edition), AS/NZS 60950-1, GB4943 |
| EMC: emissions | 47CFR Part 15 Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A | EMC: immunity | EN55024, CISPR24, EN300386, KN 61000-4 series |
| RoHS compliance | RoHS-6 compliant with exceptions for leaded BGA balls and lead press-fit connectors |
