N9K-C93108TC-FX3 Description
The N9K-C93108TC-FX3 is a Cisco N9300-FX3 Series 1RU data center access switch for server racks cabled with 10GBASE-T copper. The 48 RJ-45 downlinks run at 100M, 1G or 10G with no PoE, and six 40/100G QSFP28 uplinks sit behind 2.16 Tbps of bandwidth, 1.2 Bpps of forwarding and a 40 MB buffer, in port-side intake or exhaust builds. The switch does not support Nexus 2000 Series Fabric Extenders, and MACsec is limited to uplink ports 49 to 54.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
N9K-C93108TC-FX3 |
|
Downlink ports |
48 x 100M/1/10G BASE-T, each set to 100M, 1G or 10G |
|
Uplink ports |
6 x 40/100G QSFP28 |
|
Bandwidth |
2.16 Tbps |
|
Forwarding rate |
1.2 Bpps |
|
DRAM |
32 GB |
|
Packet buffer |
40 MB |
|
MACsec |
Ports 49 to 54 from NX-OS 10.4(2)F; Security license required |
|
Power supply configuration |
Up to 2: NXA-PAC-500W-PI or NXA-PAC-500W-PE (500W AC), NXA-PDC-930W-PI or NXA-PDC-930W-PE (930W DC), or N9K-PUV-1200W (1200W HVAC/HVDC) |
|
Typical / maximum power |
420W / 464W |
|
Fan modules |
4 x NXA-SFAN-35CFM-PI (port-side intake) or NXA-SFAN-35CFM-PE (port-side exhaust) |
|
Minimum software release |
NXOS-10.4.2; ACI-16.0.5; Hyperfabric 26-03 |
|
Form factor |
1RU, 17.9 in (45.5 cm) deep |
Product Performance
Key Features
Each of the 48 RJ-45 downlinks is configured for 100M, 1G or 10G, which lets older 1G servers and current 10GBASE-T hosts share one rack switch. The ports carry data only, with no PoE output.
The six QSFP28 uplinks run as 40G or 100G ports, or in combinations of 1G, 10G, 25G, 40G, 50G and 100G connectivity. A rack can join a 40G spine now and move to 100G later by changing optics rather than the switch.
From NX-OS 10.4(2)F, MACsec encrypts traffic on ports 49 to 54, the six QSFP28 uplinks; the 48 copper downlinks are not covered. Encryption needs a Security license, and a port running MACsec gives up link-level and priority flow control.
The switch runs Cisco NX-OS from NXOS-10.4.2, Cisco ACI from ACI-16.0.5, or the cloud-managed Cisco Nexus Hyperfabric from release 26-03.
An AC room, a -48V DC plant and high-voltage AC or DC distribution all take the same switch; only the supply pair changes. The two hot-swappable supply slots run N+1, and power planning works from the 464W maximum draw rather than the 420W typical figure.
Shared tables hold up to 1,792,000 IPv4 LPM routes and 512,000 MAC addresses, with 32 GB of system memory and a 128 GB SSD behind them. Up to 16,000 VRF instances leave room for many tenants on a single leaf.
Application Scenarios
In a rack of servers with 10GBASE-T network cards, the switch connects each host over RJ-45 copper patch cabling and carries rack traffic to the spine on its 40/100G QSFP28 uplinks.
A data center team running Cisco Nexus Hyperfabric can add copper-attached servers to the fabric with this switch as a cloud-managed leaf.
Where the leaf and its spine sit in different rooms or buildings, the 100G uplinks between them can run MACsec while servers stay on unencrypted copper inside the rack.
Product Comparison
|
Parameter |
N9K-C93108TC-FX3 | |||
|---|---|---|---|---|
|
Downlinks |
48 x 100M/1/10G BASE-T |
48 x 100M/1/2.5/5/10G BASE-T |
48 x 1/10/25G SFP28 |
48 x 100M/1/10GBASE-T |
|
Uplinks |
6 x 40/100G QSFP28 |
6 x 40/100G QSFP28 |
6 x 40/100G QSFP28 |
6 x 40/100G QSFP28 |
|
Bandwidth |
2.16 Tbps |
2.16 Tbps |
3.6 Tbps |
2.16 Tbps |
|
Forwarding rate |
1.2 Bpps |
1.2 Bpps |
1.2 Bpps |
Over 1.25 Bpps |
|
Packet buffer |
40 MB |
40 MB |
40 MB |
40 MB |
|
Airflow |
Port-side intake and exhaust |
Port-side intake and exhaust |
Port-side intake and exhaust |
Port-side intake and exhaust |
|
POE ports |
Not applicable |
Ports 1 to 48 (PoE, PoE+, UPoE) |
Not applicable |
Not published |
|
Maximum number of Cisco N2000 series fabric extenders per switch |
Not applicable |
16 |
16 |
16 |
|
Minimum NX-OS release |
NXOS-10.4.2 |
NXOS-9.3.5 |
NXOS-9.3.7 |
NXOS-703I7.1 |
N9K-C93108TC-FX3 runs its 48 copper ports at 100M, 1G or 10G with no PoE, while N9K-C93108TC-FX3P adds 2.5G and 5G rates and PoE, PoE+ or UPoE on ports 1 to 48 behind the same six QSFP28 uplinks and 2.16 Tbps. Racks that power devices from the switch, or rows that hang Nexus 2000 Fabric Extenders off the leaf, need N9K-C93108TC-FX3P, since N9K-C93108TC-FX3 has no FEX support. Servers on 1/10/25G SFP28 optics or DAC cables move to N9K-C93180YC-FX3, with 3.6 Tbps on the same uplinks. A fabric that cannot move to NXOS-10.4.2 points to N9K-C93108TC-FX, the prior generation with the same port layout, FEX support and a minimum of NXOS-703I7.1.
Ordering Checklist
- Airflow direction: Order the four fans and the supplies for the rack’s airflow: NXA-SFAN-35CFM-PI with NXA-PAC-500W-PI or NXA-PDC-930W-PI for port-side intake, or the -PE versions for port-side exhaust. N9K-PUV-1200W has bidirectional airflow.
- Power input: Choose NXA-PAC-500W-PI or -PE for 100 to 240V AC, NXA-PDC-930W-PI or -PE for -48 to -60V DC, or N9K-PUV-1200W for 200 to 277V HVAC and -240 to -380V HVDC feeds. The switch holds up to two supplies.
- NX-OS license: Add an NX-OS license, subscription or perpetual, when the switch will route. The default software covers only Layer 2 security and management; Layer 3 unicast and multicast routing and Nexus Data Broker need the additional license.
- Security license: Add a Security license when uplink ports 49 to 54 will run MACsec. MACsec does not run without it.
- Rack-mount kit: Add NXK-ACC-KIT-1RU for a 4-post rack or NXK-ACC-KIT-2P for a 2-post rack.
Optional Add-ons
|
Model |
Description |
|---|---|
|
NXA-PAC-500W-PI |
Cisco N9000 500W AC power supply, port-side intake |
|
NXA-PAC-500W-PE |
Cisco N9000 500W AC power supply, port-side exhaust |
|
NXA-PDC-930W-PI |
Cisco N9000 930W DC power supply, port-side intake |
|
NXA-PDC-930W-PE |
Cisco N9000 930W DC power supply, port-side exhaust |
|
N9K-PUV-1200W |
Cisco N9300 1200W universal power supply, HVAC/HVDC, bidirectional airflow |
|
NXA-SFAN-35CFM-PI |
Cisco Nexus fan, 35CFM, port-side intake airflow |
|
NXA-SFAN-35CFM-PE |
Cisco Nexus fan, 35CFM, port-side exhaust airflow |
|
NXK-ACC-KIT-1RU |
Cisco Nexus fixed accessory kit with 4-post rack mount kit |
|
NXK-ACC-KIT-2P |
Cisco Nexus fixed accessory kit with 2-post rack mount kit |

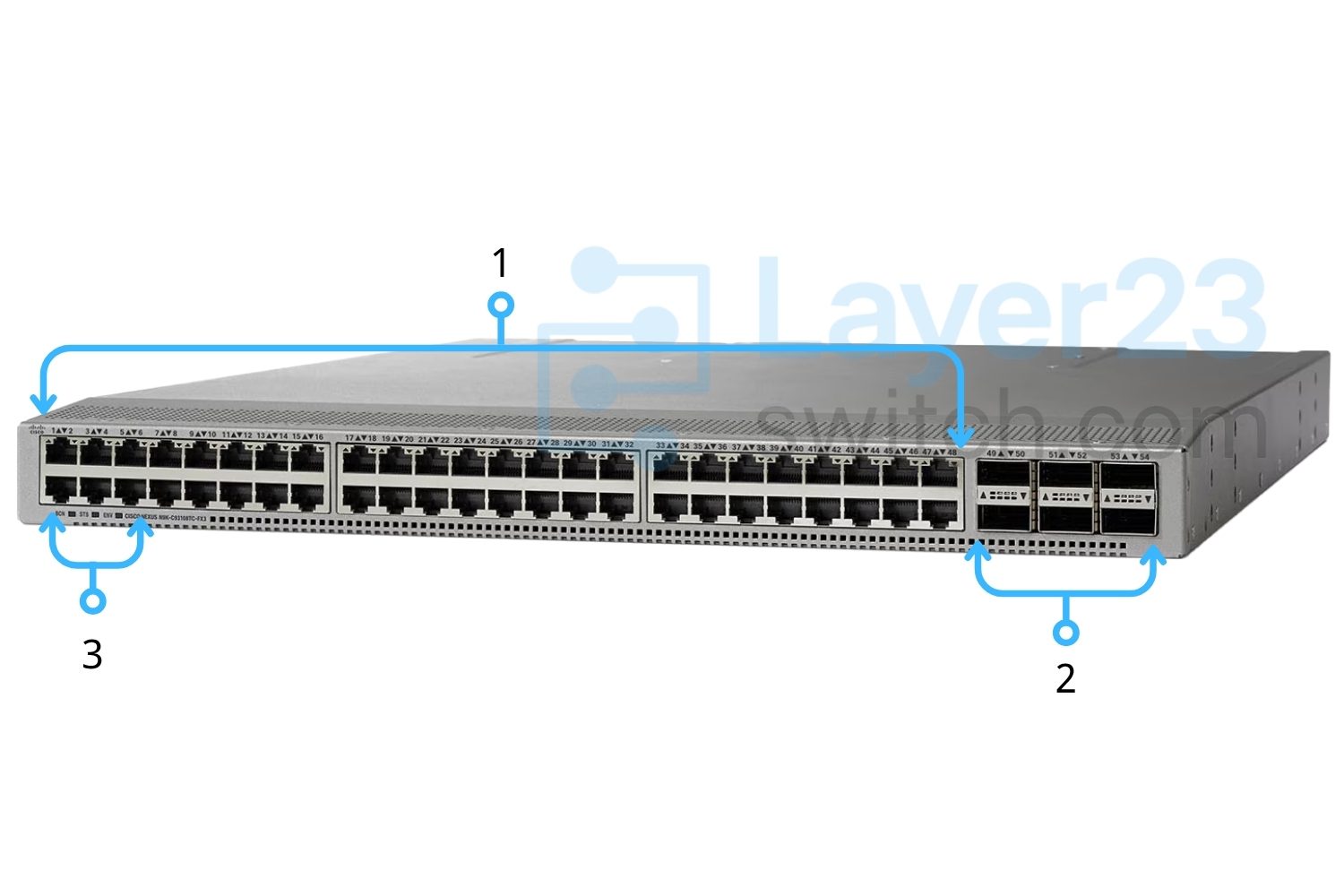

Nexus N9K-C93108TC-FX3 Front Panel
|
1 |
48 100M/1G/10GBASE-T ports |
2 |
6 40/100-Gigabit QSFP28 ports |
|
3 |
BCN, STS, ENV LEDs |

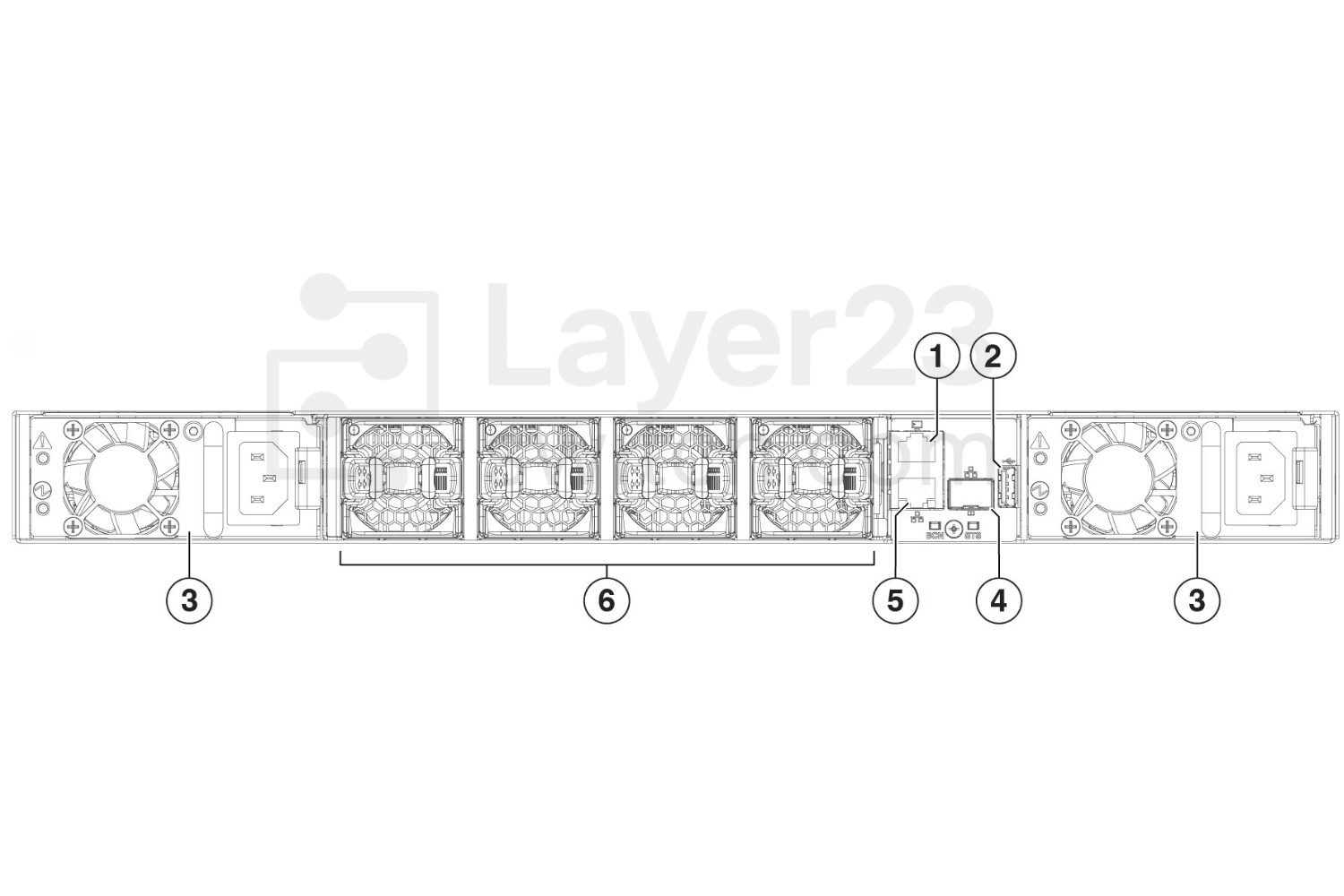

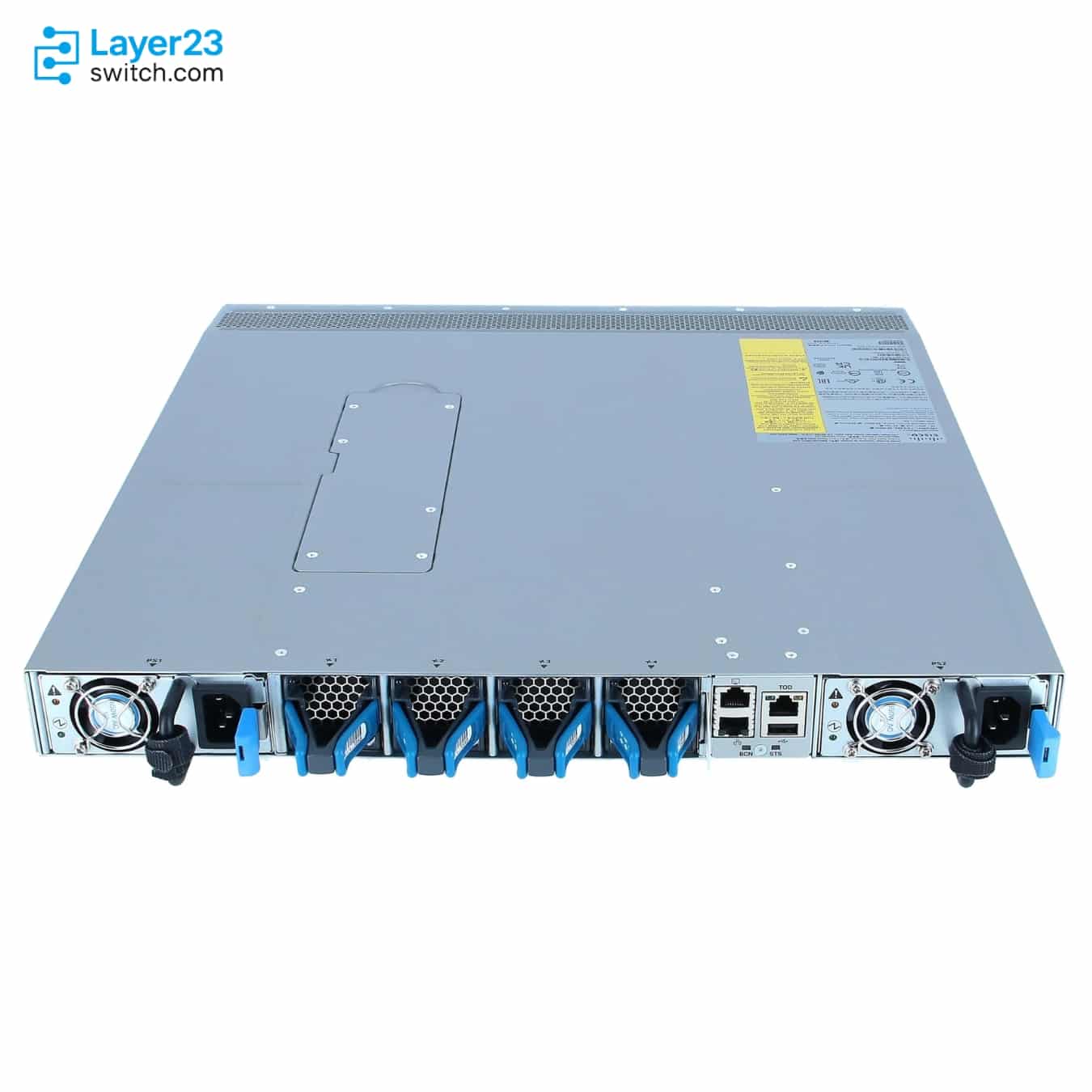

Nexus N9K-C93108TC-FX3 Rear Panel
|
1 |
Console port (1) |
2 |
USB port (1) |
|
3 |
Power supply modules (1 or 2) (AC power supplies shown) with slots numbered 1 (left) and 2 (right) |
4 |
Management port (1—SFP optical port) |
|
5 |
Management port (1—RJ-45 copper port) |
6 |
Fan modules (4) with slots numbered from 1 (left) to 4 (right) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | N9K-C93108TC-FX3 | Rack units | 1RU fixed data center switch |
| Downlinks | 48 x 100M/1/10G BASE-T, each configurable for 100M, 1G or 10G | Uplinks | 6 x 40/100G QSFP28 |
| Uplink connectivity | Up to six 40G or 100G ports, or combinations of 1G, 10G, 25G, 40G, 50G and 100G | Bandwidth | 2.16 Tbps |
| Forwarding rate | 1.2 Bpps | CPU | 4 cores |
| DRAM | 32 GB default; 32 GB maximum | SSD drive | 128 GB |
| Packet buffer | 40 MB | USB port | 1 |
| Management port | 2 ports: 1 RJ-45 and 1 SFP | RS-232 serial ports | 1 |
| Operating modes | Cisco NX-OS, Cisco ACI or Cisco Nexus Hyperfabric | Minimum NX-OS release | NXOS-10.4.2 |
| Minimum ACI release | ACI-16.0.5 | Minimum hyperfabric release | Hyperfabric 26-03 |
| MACsec | Ports 49 to 54 from NX-OS 10.4(2)F | MACsec license | Security license required |
| Flow control on MACsec ports | Link-level flow control and PFC not supported; MKA is the only key exchange protocol | RoCE support | PFC, ETS and DCBX; ECN with marked-packet statistics; WRED |
| Software licensing | Default software covers Layer 2 security and management; Layer 3 unicast and multicast routing and Nexus Data Broker need additional licenses, subscription or perpetual | Maximum number of Cisco N2000 series fabric extenders per switch | Not supported on this model |
| Maximum number of IPv4 LPM routes | 1,792,000 | Maximum number of IPv4 host entries | 1,792,000 |
| Maximum number of IPv6 LPM routes | 896,000 | Maximum number of IPv6 host entries | 1,792,000 |
| Maximum number of MAC address entries | 512,000 | Maximum number of multicast routes | 128,000 |
| Number of IGMP snooping groups | 32,000 | Maximum number of ACL entries | 5,000 ingress and 2,000 egress (single-slice forwarding engine) |
| Maximum number of VLANs | 4,096 | Number of VRF instances | 16,000 |
| Maximum number of ECMP paths | 128-way | Maximum number of port channels | 512 |
| Maximum number of links in a port channel | 32 | Number of active SPAN sessions | 4 |
| Maximum number of VLANs in RPVST instances | 3,967 | Maximum number of HSRP groups | 490 |
| Number of NAT entries | 1,023 | Maximum number of MST instances | 64 |
| Flow-table size for Cisco Nexus dashboard insights | 64,000 | Number of queues | 8 |
| Power supply configuration | Up to 2 hot-swappable supplies with N+1 redundancy: NXA-PAC-500W-PI or NXA-PAC-500W-PE (500W AC), NXA-PDC-930W-PI or NXA-PDC-930W-PE (930W DC), or N9K-PUV-1200W (1200W HVAC/HVDC) | Power supply airflow | 500W AC and 930W DC supplies in port-side intake or port-side exhaust versions; N9K-PUV-1200W bidirectional |
| Typical power (AC/DC) | 420W | Maximum power (AC/DC) | 464W |
| Input voltage (AC) | 100 to 240V | Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) | -48 to -60V | Input voltage (HVDC) | -240 to -380V |
| Frequency (AC) | 50 to 60 Hz | Fan modules | 4 hot-swappable fans: NXA-SFAN-35CFM-PI (port-side intake) or NXA-SFAN-35CFM-PE (port-side exhaust) |
| Airflow | Port-side intake or port-side exhaust | Acoustic noise | Port-side exhaust: 68.6 dBA at 50%, 76 dBA at 70%, 85.9 dBA at 100% fan speed; port-side intake: 70.7 dBA, 78.3 dBA and 86.9 dBA |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | Nonoperating (storage) temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating humidity | 5 to 95% (noncondensing) | Operating altitude | 0 to 13,123 ft (0 to 4000 m) |
| Physical dimensions (H x W x D) | 1.72 x 17.3 x 17.9 in. (4.4 x 43.9 x 45.5 cm) | Weight | 7.1 kg (15.8 lb) without power supplies or fans |
| Power supply weight | 500W AC: 1.0 kg (2.14 lb); 930W DC: 1.1 kg (2.42 lb); 1200W HVAC/HVDC: 1.1 kg (2.42 lb) | Fan tray weight | NXA-SFAN-35CFM-PE or NXA-SFAN-35CFM-PI: 0.13 kg (0.28 lb) |
| Rack-mount kits | NXK-ACC-KIT-1RU (4-post) or NXK-ACC-KIT-2P (2-post) | MTBF | 315,600 hours |
| Regulatory compliance | CE markings according to directives 2004/108/EC and 2006/95/EC | Safety certifications | NEBS, UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943 |
| EMC: emissions | 47CFR Part 15 Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A | EMC: immunity | EN55024, CISPR24, EN300386, KN 61000-4 series |
| RoHS compliance | RoHS-6 compliant with exceptions for leaded BGA balls and lead press-fit connectors |
