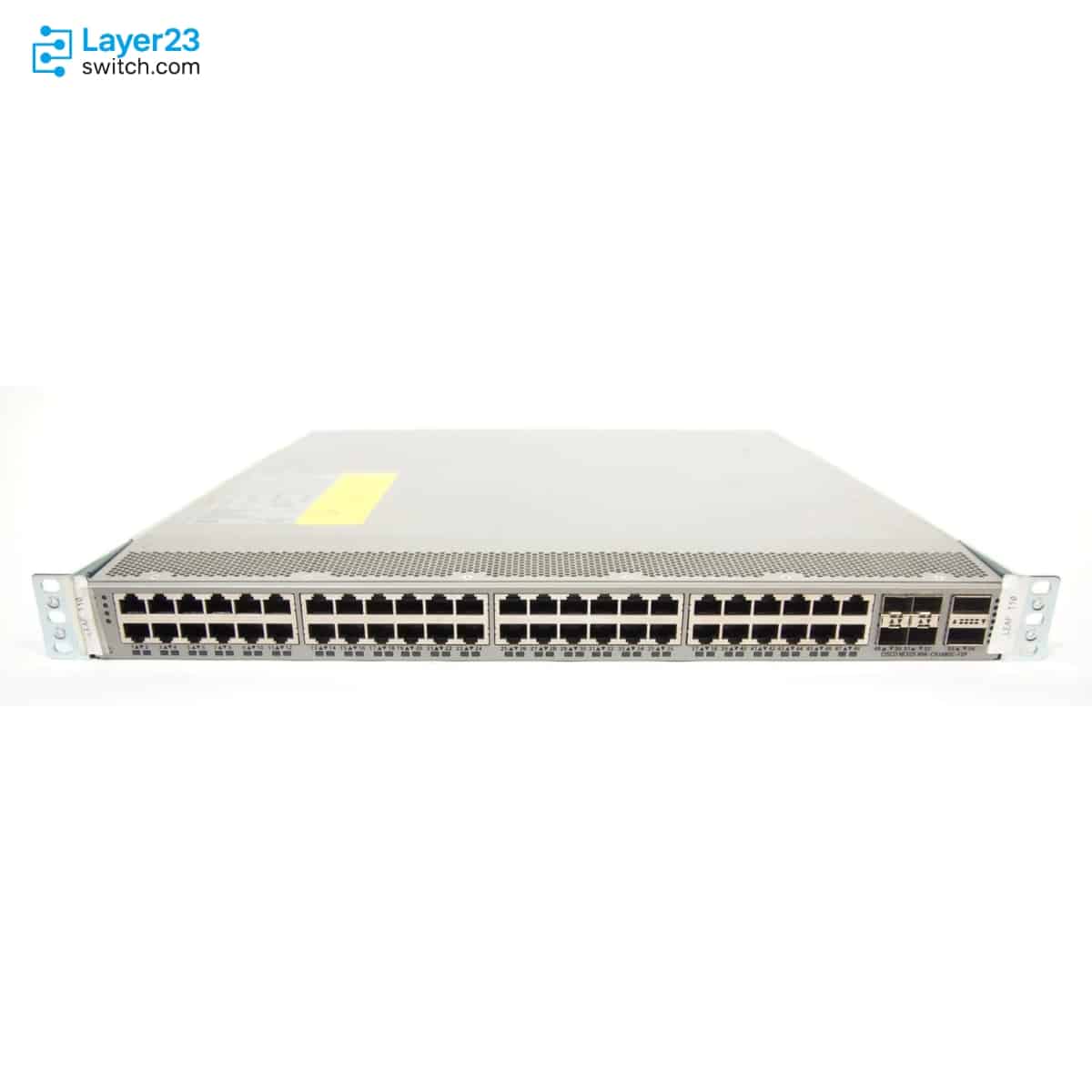

N9K-C9348GC-FXP – 48x100M/1G BASE-T – 4x25G SFP28 + 2x100G QSFP28
Shop Expert-Recommended Accessories for the N9K-C9348GC-FXP
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $853.95.$52.00Current price is: $52.00. -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $2,439.88.$150.00Current price is: $150.00. -
SFP-25G-SR-S
25GBASE-SR SFP28 - 850nm MMF - 100m OM4Original price was: $1,213.85.$258.00Current price is: $258.00. -
QSFP-40G-SR4-S
40G SR4 S-Class QSFP - MPO-12 MMF - No BreakoutOriginal price was: $2,061.70.$391.00Current price is: $391.00. -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $1,260.58.$95.80Current price is: $95.80. -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $570.10.$70.00Current price is: $70.00. -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $633.46.$59.00Current price is: $59.00. -
QSFP-100G-SR4-S
100G SR4 QSFP - MPO-12 MMF - 100m OM4Original price was: $2,433.79.$268.00Current price is: $268.00. -
SFP-10G-AOC3M
10G SFP+ AOC - 3m Length - Active Optical CableOriginal price was: $561.00.$80.64Current price is: $80.64. -
SFP-25G-AOC3M
25G SFP28 AOC - 3m Length - Active Optical CableOriginal price was: $512.38.$279.00Current price is: $279.00. -
QSFP-H40G-CU5M
40G QSFP DAC - 5m Length - Passive Copper CableOriginal price was: $457.49.$84.00Current price is: $84.00. -
QSFP-100G-AOC3M
100G QSFP AOC - 3m Length - Active Optical CableOriginal price was: $2,433.79.$385.00Current price is: $385.00. -
QSFP-100G-CU3M
100G QSFP DAC - 3m Length - Passive Copper CableOriginal price was: $396.49.$128.00Current price is: $128.00. -
QSFP-H40G-AOC3M
40G QSFP+ AOC - 3m Length - Active Optical CableOriginal price was: $1,036.95.$271.00Current price is: $271.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
N9K-C9348GC-FXP Description
The N9K-C9348GC-FXP is a Cisco Nexus 9300-FX Series 1RU switch for data center racks that connect management and 1G devices over copper. The switch has 48 100M/1G BASE-T downlinks, four 1/10/25G SFP28 downlinks, two 40/100G QSFP28 uplinks and 696 Gbps of bandwidth, with over 517 Mpps of forwarding and three fan modules. MACsec runs only on ports 49 to 54, so the 48 BASE-T ports are not covered.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product SKU |
N9K-C9348GC-FXP |
|
Product type |
Fixed-port data center switch |
|
Form factor |
1RU |
|
BASE-T downlink ports |
48 × 100M/1GBASE-T |
|
SFP28 downlink ports |
4 × 1/10/25G SFP28 |
|
QSFP28 uplink ports |
2 × 40/100G QSFP28 |
|
Switching capacity |
696 Gbps |
|
Forwarding rate |
Over 517 Mpps |
|
Management port |
1 × RJ-45 and 1 × SFP+ |
|
Typical power consumption |
178 W |
|
Maximum power consumption |
287 W |
|
Fan modules |
3 |
|
Airflow options |
Port-side intake or port-side exhaust |
Product Performance
Key Features
All 48 BASE-T ports stop at 1G, which suits management and appliance interfaces. There are no 10GBASE-T ports on this model.
The SFP28 ports run at 1G, 10G or 25G, so a few fiber-attached hosts sit in the same chassis as the copper devices.
Two fixed QSFP28 ports carry the upstream links at 40G or 100G. The 696 Gbps of bandwidth is what those uplinks share with the access side.
From NX-OS 9.3(1), MACsec is limited to ports 49 through 54. The 48 BASE-T ports do not take part in encryption.
Supplies are 350W AC, 350W high-voltage or 440W DC, with typical draw of 178W and a maximum of 287W. Two slots give a 1+1 arrangement.

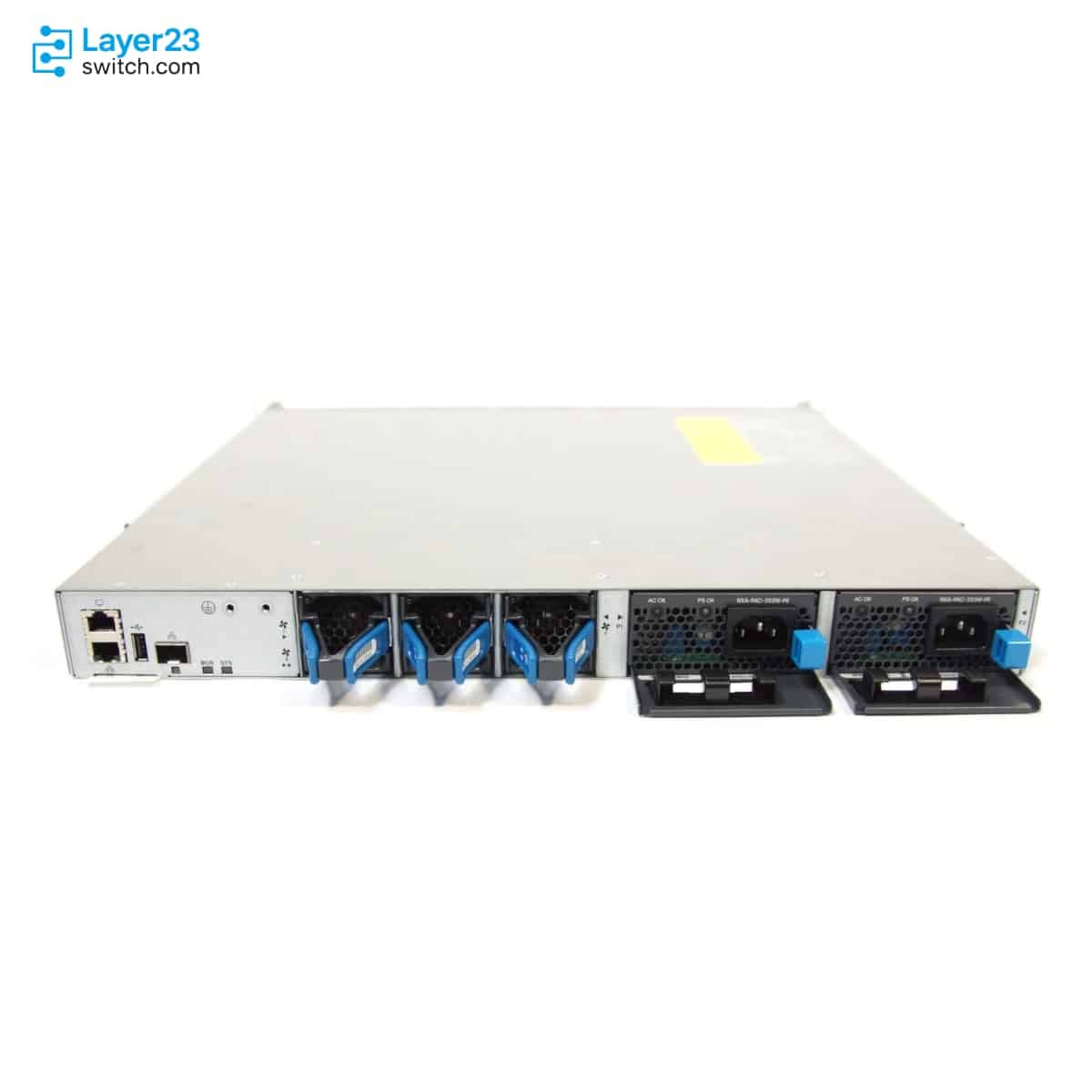

The three fan modules and both power supplies must use the same airflow direction, port-side intake or port-side exhaust. AC and DC sources cannot be mixed.
Application Scenarios
In a data center management network, the switch connects server BMC ports, storage controllers and appliance management interfaces over 100M and 1G copper, then uplinks on QSFP28.
A fabric that runs Cisco ACI can use the switch in ACI mode as the leaf for devices that only need 100M or 1G, with the minimum image at ACI-N9KDK9-13.0.
A rack of mostly 1G copper hosts can also hang a few fiber-attached servers on the four SFP28 ports, which run at 1G, 10G or 25G.
Product Comparison
|
Parameter |
N9K-C9348GC-FXP | |||
|---|---|---|---|---|
|
Downlinks |
48 x 100M/1G BASE-T and 4 x 1/10/25G SFP28 |
48 x 10M/100M/1G BASE-T and 4 x 1/10/25G SFP28 |
48 x 100M/1/10GBASE-T |
48 x 1/10/25G SFP |
|
Uplinks |
2 x 40/100G QSFP28 |
2 x 40/100G QSFP28 |
6 x 40/100G QSFP28 |
6 x 40/100G QSFP28 |
|
Bandwidth |
696 Gbps |
696 Gbps |
2.16 Tbps |
3.6 Tbps |
|
Forwarding rate |
Over 517 Mpps |
Over 517 Mpps |
Over 1.25 bpps |
1.2 bpps |
|
Packet buffer |
40 MB |
40 MB |
40 MB |
40 MB |
|
Airflow |
Port-side intake or exhaust |
Port-side intake or exhaust |
Port-side intake or exhaust |
Port-side intake or exhaust |
N9K-C9348GC-FXP and N9K-C9348GC-FX3 share the same 48 x 100M/1G BASE-T ports, four SFP28 ports, two QSFP28 uplinks and 696 Gbps, but N9K-C9348GC-FX3 carries 32 GB of memory against 24 GB and is listed as a Nexus 2000 FEX parent, which Cisco’s FEX matrix does not list for N9K-C9348GC-FXP. Servers that need 10GBASE-T copper move to N9K-C93108TC-FX, with 48 ports at 100M, 1G or 10G, six 40/100G QSFP28 uplinks and 2.16 Tbps. Racks wired for 48 fiber ports at 1G, 10G or 25G move to N9K-C93180YC-FX at 3.6 Tbps. MACsec on N9K-C9348GC-FXP is limited to ports 49 to 54.
Ordering Checklist
- Airflow direction: Order fans NXA-FAN-30CFM-B or NXA-FAN-30CFM-F with supplies in the matching -PI or -PE version, such as NXA-PAC-350W-PI or NXA-PDC-440W-PE. Fans and supplies are separate PIDs per direction, so the order must carry one direction throughout.
- Supply type: Select 350W AC (NXA-PAC-350W-PI or NXA-PAC-350W-PE) or 440W DC (NXA-PDC-440W-PI or NXA-PDC-440W-PE). The supply PID decides the site power input; up to two supplies fit.
- Power cords: Add a cord for the site, such as CAB-9K12A-NA, CAB-9K10A-EU or CAB-C13-C14-2M. The datasheet lists cords per country, separate from the supplies.
- Rack-mount kit: Add NXK-ACC-KIT-1RU (4-post) or NXK-ACC-KIT-2P (2-post). The 2-post kit is supported on this model only; the family datasheet lists the 4-post kit for all N9300-FX models.
- NX-OS license: Select a GF-class PID, such as NXOS-AD-GF for a perpetual Advantage license. XF-class PIDs are for 10G to 100G fixed platforms, and a perpetual DCN license cannot be moved to another switch later.
- Security add-on: Add ACI-SEC-XF when MACsec will run on the uplink ports. The licensing guide lists ACI-SEC-XF as needed for the N9K-C9348GC-FXP uplink ports.
Optional Add-ons
|
Model |
Description |
|---|---|
|
NXA-FAN-30CFM-B |
Cisco Nexus 30CFM fan module, port-side intake airflow |
|
NXA-FAN-30CFM-F |
Cisco Nexus 30CFM fan module, port-side exhaust airflow |
|
NXA-PAC-350W-PI |
Cisco Nexus 350W AC power supply, port-side intake |
|
NXA-PAC-350W-PE |
Cisco Nexus 350W AC power supply, port-side exhaust |
|
NXA-PHV-350W-PI |
Cisco Nexus 350W PHV/HVDC power supply, port-side intake |
|
NXA-PHV-350W-PE |
Cisco Nexus 350W PHV/HVDC power supply, port-side exhaust |
|
NXA-PDC-440W-PI |
Cisco Nexus 440W DC power supply, port-side intake |
|
NXA-PDC-440W-PE |
Cisco Nexus 440W DC power supply, port-side exhaust |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | N9K-C9348GC-FXP | Product type | Fixed-port data center switch |
| Rack units | 1RU | Deployment role | Data center 1G copper access and management switching |
| Switch mode support | Cisco NX-OS or Cisco ACI mode | BASE-T downlink ports | 48 × 100M/1GBASE-T |
| SFP28 downlink ports | 4 × 1/10/25G SFP28 | QSFP28 uplink ports | 2 × 40/100G QSFP28 |
| Supported downlink speeds | 100-Mbps and 1-Gbps on BASE-T ports | SFP28 port speeds | 1/10/25-Gbps |
| QSFP28 port speeds | 40/100-Gbps | Switching capacity | 696 Gbps |
| Forwarding rate | Over 517 Mpps | Minimum NX-OS image | NXOS-703I7.1 |
| Minimum ACI image | ACI-N9KDK9-13.0 | CPU | 4 cores |
| DRAM | 24 GB | SSD drive | 128 GB |
| Packet buffer | 40 MB | Management port | 2 ports: 1 RJ-45 and 1 SFP+ |
| USB port | 1 | RS-232 serial ports | 1 |
| Fan modules | 3 | Supported fan modules | NXA-FAN-30CFM-B, NXA-FAN-30CFM-F |
| Fan module weight | 0.12 kg (0.26 lb) | Power supply slots | 2 |
| Power redundancy | 1+1 redundancy with two power supply modules | Power supply selection | NXA-PAC-350W-PI 350W AC, NXA-PAC-350W-PE 350W AC, NXA-PHV-350W-PI 350W, NXA-PHV-350W-PE 350W, NXA-PDC-440W-PI 440W DC, or NXA-PDC-440W-PE 440W DC selected by input type |
| Power supply matching requirement | Do not mix AC and DC power sources or airflow directions | Typical power consumption | 178 W |
| Maximum power consumption | 287 W | Heat dissipation requirement | 979.284 BTU/hr |
| AC input voltage | 100 to 120 VAC, 200 to 240 VAC | PHV/HVDC input voltage | 100 to 277 VAC or 240 to 380 VDC |
| DC input voltage | -48 to -60 VDC | AC input frequency | 50 to 60 Hz |
| Airflow | Port-side intake or port-side exhaust | Airflow matching requirement | Fan and power supply modules must use the same airflow direction |
| Chassis width | 17.3 in (43.9 cm) | Chassis depth with AC power supplies | 19.7 in (49.9 cm) |
| Chassis depth with DC power supplies | 21.0 in (53.34 cm) | Chassis height | 1.72 in (4.4 cm) |
| Chassis weight without power supplies or fans | 6.44 kg (14.2 lb) | Power supply module weight | 1.2 kg (2.64 lb) |
| Operating temperature | 32 to 104F (0 to 40C) | Storage temperature | -40 to 158F (-40 to 70C) |
| Operating humidity | 5 to 90% | Storage humidity | 5 to 95% |
| Operating altitude | 0 to 13,123 ft (0 to 4000 m) | RoHS compliance | RoHS-6 compliant with listed exceptions |
| MTBF | 257,860 hours | Maximum IPv4 LPM routes | 1,792,000 |
| Maximum IPv4 host entries | 1,792,000 | Maximum IPv6 LPM routes | 896,000 |
| Maximum IPv6 host entries | 1,792,000 | Maximum MAC address entries | 512,000 |
| Maximum multicast routes | 128,000 | IGMP snooping groups | Shipping 8,000, maximum 32,000 |
| Fabric extenders per switch | 16 | VLAN IDs | 4096 with 127 reserved |
| VRF instances | Shipping 1,000, maximum 16,000 | Maximum ECMP paths | 64 |
| Maximum port channels | 512 | Maximum links in a port Channel | 32 |
| Active SPAN sessions | 4 | Number of queues | 8 |
| Product status | Available Order | Release date | 24-JUN-2017 |
Get More Information
Need pricing, stock, or shipping details for the N9K-C9348GC-FXP ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What input voltage ranges do the N9K-C9348GC-FXP power supplies accept?
-
Which subscription license PIDs cover N9K-C9348GC-FXP?
-
Which perpetual license PIDs does N9K-C9348GC-FXP list for ACI and NX-OS?
-
Which ports on N9K-C9348GC-FXP support MACsec and what license does it need?
