N9K-C93108TC-FX3P Description

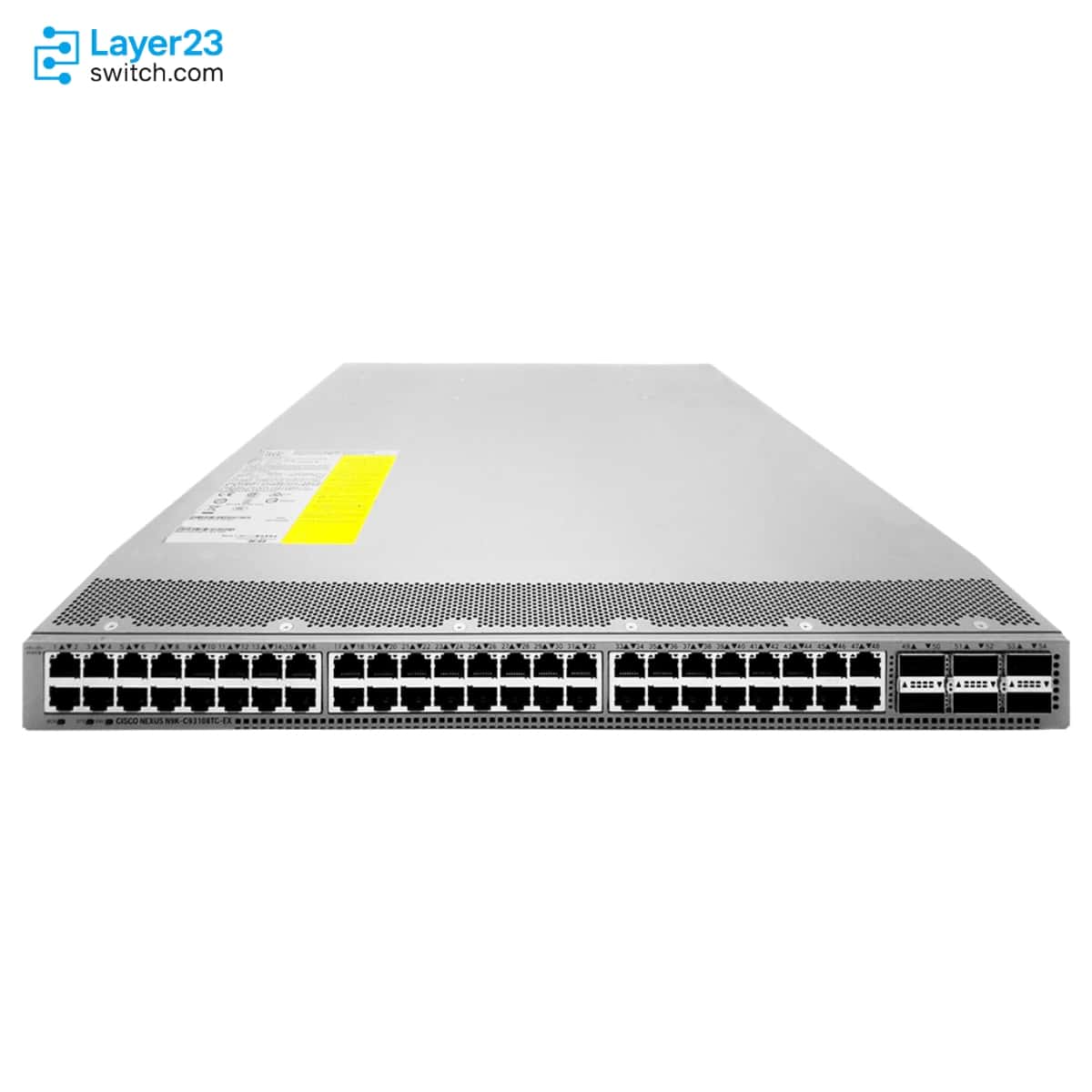

The N9K-C93108TC-FX3P is a Cisco Nexus 9300-FX3 Series fixed-port data center switch for multigigabit copper racks that also power endpoints. The switch provides 48 100M/1/2.5/5/10GBASE-T ports with PoE on ports 1 to 48, six 40/100G QSFP28 uplinks, 2.16 Tbps of switching bandwidth, and port-side intake or exhaust airflow. Available PoE runs from 500W on two redundant 1100W supplies to 1920W on two nonredundant 1900W supplies.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
N9K-C93108TC-FX3P |
|
Product type |
Fixed-port data center switch |
|
Form factor |
1RU |
|
Downlink ports |
48 x 100M/1/2.5/5/10GBASE-T |
|
PoE support |
PoE on ports 1 to 48 |
|
Uplink ports |
6 x 40/100G QSFP28 |
|
Switching capacity |
2.16 Tbps |
|
Forwarding rate |
1.2 Bpps |
|
System resources |
4-core CPU, 16GB memory, 128GB SSD, 40MB buffer |
|
PoE power table |
500W to 1920W available PoE by PSU and redundancy mode |
|
Airflow options |
Port-side intake or port-side exhaust |
|
Minimum releases |
NXOS-9.3.5 and ACI-15.1.3 |
Product Performance
Key Features
All 48 ports negotiate 100M, 1G, 2.5G, 5G and 10G, so devices with 2.5G and 5G interfaces link at their own rate instead of falling back to 1G.
Ports 1 to 48 supply 15W, 30W or 60W per port. PoE is not available when the ports run through a Fabric Extender.
Two nonredundant 1900W supplies give 1920W, enough for 48 ports at 30W or 32 ports at 60W. In redundant mode the budget drops to 1300W on 1900W supplies and to 500W on 1100W supplies, where only 16 ports can run at 30W.
The 1900W supply is offered only in port-side intake. A port-side exhaust build therefore uses 1100W supplies and the matching exhaust fans.
The QSFP28 uplinks are built into the chassis with 2.16 Tbps of switching bandwidth and 1.2 Bpps of forwarding behind them, so no uplink module is needed.
MACsec link encryption is supported across all port speeds, including 1G and 10G on the copper ports.
Application Scenarios
In a data center rack with mixed-speed copper devices, the switch terminates 100M to 10GBASE-T links on its 48 downlink ports and carries their traffic to the spine over 40/100G QSFP28 uplinks.
A data center edge room with powered devices can draw PoE, PoE+ or UPoE from ports 1 to 48, and two nonredundant 1900W supplies give 1920W to share across them.
Server rows cabled through Nexus 2000 Series Fabric Extenders can use the switch as their parent, which supports up to 16 Fabric Extenders.
Product Comparison
|
Parameter |
N9K-C93108TC-FX3P |
N9K-C9348GC-FX3PH | ||
|---|---|---|---|---|
|
Downlink ports |
48 x 100M/1/2.5/5/10G BASE-T |
48 x 100M/1/10G BASE-T |
48 x 1/10/25G SFP28 |
40 x 10M/100M/1G BASE-T; 8 x 10M/100M BASE-T half-duplex |
|
Uplink ports |
6 x 40/100G QSFP28 |
6 x 40/100G QSFP28 |
6 x 40/100G QSFP28 |
4 x 1/10/25G SFP28; 2 x 40/100G QSFP28 |
|
PoE power budget |
500W with two 1100W PSUs in redundant mode |
Not applicable |
Not applicable |
Not published |
|
Maximum PoE power budget |
1920W with two 1900W PSUs in nonredundant mode |
Not applicable |
Not applicable |
Not published |
|
Switching capacity |
2.16 Tbps |
2.16 Tbps |
3.6 Tbps |
696 Gbps |
|
Forwarding rate |
1.2 Bpps |
1.2 Bpps |
1.2 Bpps |
Over 517 Mpps |
|
Packet buffer |
40 MB |
40 MB |
40 MB |
40 MB |
|
Airflow |
Port-side intake and exhaust |
Port-side intake and exhaust |
Port-side intake and exhaust |
Not published |
|
Minimum NX-OS release |
NXOS-9.3.5 |
NXOS-10.4.2 |
NXOS-9.3.7 |
NXOS-10.4.1 |
N9K-C93108TC-FX3P adds 2.5G and 5G Base-T speeds and PoE on all 48 copper ports to N9K-C93108TC-FX3, which stops at 100M/1G/10G with no PoE output. Racks that feed powered devices from the switch need N9K-C93108TC-FX3P, with up to 1920W of PoE on two 1900W supplies and 500W in 1100W redundant mode; a rack with no powered devices can use N9K-C93108TC-FX3, which requires NXOS-10.4.2 against NXOS-9.3.5. Servers on 1/10/25G SFP28 fiber or DAC call for N9K-C93180YC-FX3, and 10M/100M/1G copper with PoE and four SFP28 ports points to N9K-C9348GC-FX3PH at 696 Gbps.
PoE Power Planning
|
PSU configuration |
Redundancy mode |
Available PoE power |
Supported powered-port count |
|---|---|---|---|
|
Two 1900W PSUs |
Nonredundant |
1920W |
48 PoE, 48 PoE+, 32 UPoE |
|
Two 1900W PSUs |
Redundant |
1300W |
48 PoE, 43 PoE+, 21 UPoE |
|
Two 1100W PSUs |
Nonredundant |
1600W |
48 PoE, 48 PoE+, 26 UPoE |
|
Two 1100W PSUs |
Redundant |
500W |
33 PoE, 16 PoE+, 8 UPoE |
Ordering Checklist
- Power supplies: Select NXA-PAC-1100W-PE or NXA-PAC-1100W-PI at 1100W, or NXA-PAC-1900W-PI at 1900W; the switch takes up to two. The pair sets the PoE budget: 500W redundant or 1600W nonredundant on 1100W supplies, 1300W redundant or 1920W nonredundant on 1900W supplies.
- Airflow direction: Pair fans NXA-FAN-35CFM-PI or NXA-FAN-35CFM-PE with power supplies ending in the same -PI or -PE. The 1900W supply is listed only as port-side intake, so a port-side exhaust build is limited to the 1100W NXA-PAC-1100W-PE.
Optional Add-ons
|
Model |
Description |
|---|---|
|
NXA-PAC-1100W-PE |
Cisco Nexus 9000 1100W AC power supply, port-side exhaust |
|
NXA-PAC-1100W-PI |
Cisco Nexus 9000 1100W AC power supply, port-side intake |
|
NXA-PAC-1900W-PI |
Cisco Nexus 9000 1900W AC power supply, port-side intake |
|
NXA-FAN-35CFM-PE |
Cisco Nexus fan, 35CFM, port-side exhaust airflow |
|
NXA-FAN-35CFM-PI |
Cisco Nexus fan, 35CFM, port-side intake airflow |
|
NXK-ACC-KIT-1RU |
Cisco Nexus fixed accessory kit with 4-post rack mount kit |
|
NXK-ACC-KIT-2P |
Cisco Nexus fixed accessory kit with 2-post rack mount kit |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | N9K-C93108TC-FX3P | Product type | Fixed-port data center switch |
| Rack units | 1RU | Downlink ports | 48 x 100M/1/2.5/5/10GBASE-T |
| PoE ports | Ports 1 to 48 | Uplink ports | 6 x 40/100G QSFP28 |
| Management port | 1 x RJ-45 and 1 x SFP | Console port | 1 x RS-232 |
| USB port | 1 | Switching capacity | 2.16 Tbps |
| Forwarding rate | 1.2 Bpps | CPU | 4 cores |
| DRAM | Default 16GB, expandable 16GB | SSD drive | 128GB |
| Packet buffer | 40MB | Minimum NX-OS release | NXOS-9.3.5 |
| Minimum ACI release | ACI-15.1.3 | Power supply slots | 2 |
| Power redundancy | One power supply for operation and one for redundancy | Power supply selection | NXA-PAC-1100W-PE 1100W AC, NXA-PAC-1100W-PI 1100W AC, or NXA-PAC-1900W-PI 1900W AC selected for PoE budget and airflow |
| Fan modules | 4 | Supported fan modules | NXA-FAN-35CFM-PE, NXA-FAN-35CFM-PI |
| Airflow options | Port-side intake or port-side exhaust | Typical power consumption | 360W |
| Maximum power consumption | 530W | Heat dissipation requirement | 1808.43 BTU/hr |
| Available PoE with two 1900W PSUs nonredundant | 1920W | Available PoE with two 1900W PSUs redundant | 1300W |
| Available PoE with two 1100W PSUs nonredundant | 1600W | Available PoE with two 1100W PSUs redundant | 500W |
| Fabric extenders per switch | 16 | Maximum IPv4 LPM routes | 1,792,000 |
| Maximum MAC address entries | 512,000 | VLAN IDs | 4096 with 27 reserved |
| Maximum ECMP paths | 128-way | Maximum port channels | 512 |
| Maximum links in a port channel | 32 | Rack accessory kits | NXK-ACC-KIT-1RU, NXK-ACC-KIT-2P |
| Support status | Available order | PoE power budget | 500W with two 1100W PSUs in redundant mode; up to 1920W with two 1900W PSUs in nonredundant mode |
| Expanded PoE budget | 1920W with two 1900W PSUs in nonredundant mode; 1300W with two 1900W PSUs in redundant mode |
Quality Certifications
Customer Reviews
Questions & Answers
-
Can N9K-C93108TC-FX3P run in NX-OS mode and ACI mode?
-
Which fans and power supplies give N9K-C93108TC-FX3P port-side exhaust airflow?
-
Can N9K-C93108TC-FX3P act as the parent switch for Cisco Nexus 2000 Series Fabric Extenders?
-
How much heat does N9K-C93108TC-FX3P dissipate and what power does it draw?
-
What are the port-channel, ECMP and VLAN limits of N9K-C93108TC-FX3P?
-
How much DRAM and how many IPv4 routes does N9K-C93108TC-FX3P support?
