N9K-C92348GC-X – 48x100M/1G Base-T – 4x25G SFP28 + 2x100G QSFP28 – Nexus ToR Switch
1/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
N9K-C92348GC-X Description

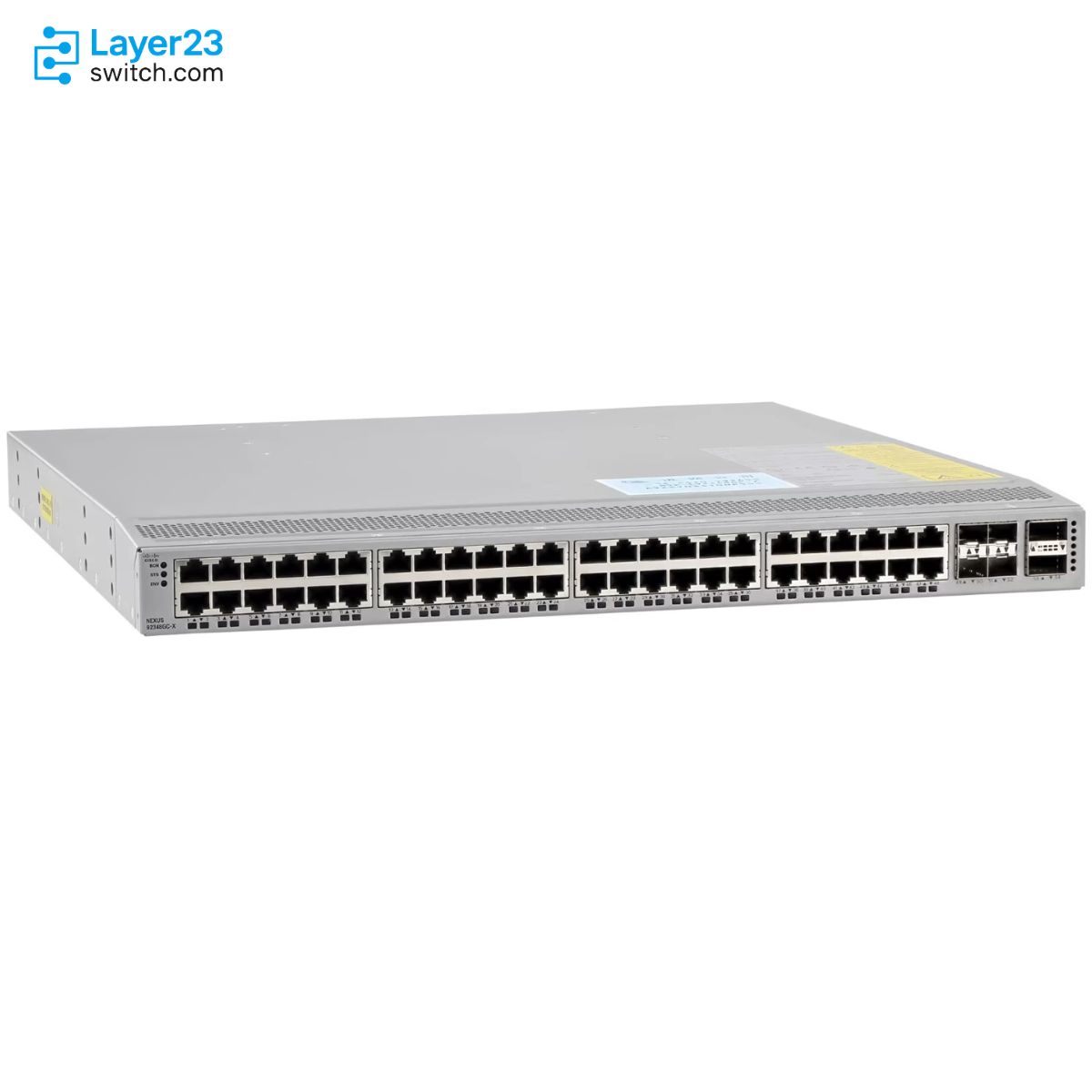

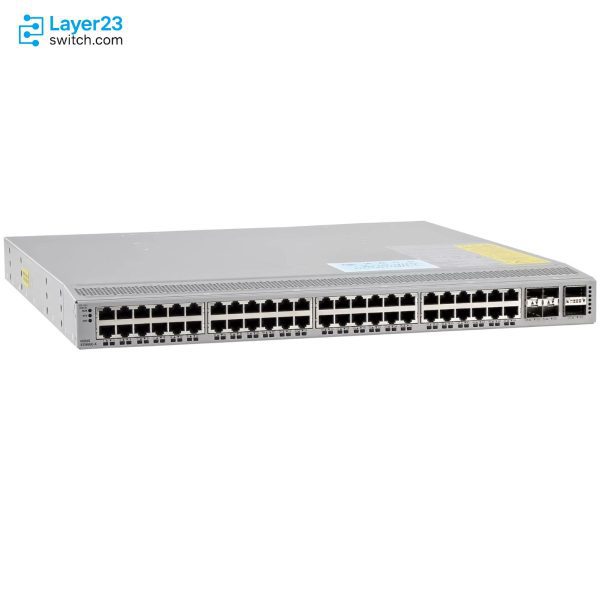

N9K-C92348GC-X is a Cisco Nexus 92348GC-X fixed 1RU data center switch for top-of-rack or management switching with 48 100M/1G Base-T downlink ports, four 1/10/25G SFP28 ports, and two 40/100G QSFP28 ports.
This SKU fits Nexus 9200 designs that still need dense 1G copper server or infrastructure connectivity while reserving SFP28 and QSFP28 ports for higher-speed aggregation links. Compared with N9K-C92348GC-FX3, N9K-C92348GC-X keeps the same broad port layout but does not add 10M Base-T support, 32 GB memory, or a 128 GB SSD.
Before purchase review, confirm whether the rack requires port-side intake or exhaust airflow, AC or DC power supplies, supported optics from the Cisco compatibility tables, rack depth for the airflow sleeve, and the NX-OS feature set required for the deployment.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
N9K-C92348GC-X |
|
Product family |
Cisco Nexus 9200 platform |
|
Product type |
Fixed 1RU data center switch |
|
Downlink ports |
48 x 100M/1G Base-T |
|
SFP28 ports |
4 x 1/10/25G |
|
QSFP28 ports |
2 x 40/100G |
|
Bandwidth |
0.696 Tbps |
|
Shared system buffer |
40 MB |
|
System memory |
8 GB |
|
SSD |
16 GB |
|
Power supplies |
Up to 2 |
|
Fan modules |
3 |
|
Airflow options |
Port-side intake or port-side exhaust |
Product Performance
Key Features
The port mix combines 48 100M/1G Base-T ports with SFP28 and QSFP28 interfaces, so the same 1RU switch can handle copper endpoints and higher-speed uplinks.
The chassis is a fixed 1RU Nexus 9200 platform switch, which keeps rack planning simpler than modular Nexus chassis builds.
Cisco identifies the model as based on Cisco Cloud Scale technology, aligning this SKU with Nexus data center switching rather than campus access switching.
Cisco lists both port-side intake and port-side exhaust fan and power-supply options, so the quote should not mix opposite airflow parts.
The switch supports up to two power supplies, with one used for operation and one for redundancy when the ordered power design supports that layout.
Cisco points optic and cable selection to the Nexus transceiver compatibility tables, so SFP28 and QSFP28 media should be validated before release.
Application Scenarios
Use N9K-C92348GC-X when a rack needs many 100M or 1G Base-T connections for servers, appliances, controllers, or infrastructure ports while keeping Nexus switching at the rack edge.
Select this SKU for a Nexus 9200 ToR or management-switching role where copper density is more important than 10GBASE-T downlinks.
Choose this model when the design needs 25G SFP28 and 100G QSFP28 uplink options but the endpoint side remains 100M or 1G copper.
Product Comparison
|
Parameter |
N9K-C92348GC-X | |
|---|---|---|
|
Product family |
Cisco Nexus 9200 platform |
Cisco Nexus 9200 platform |
|
Product type |
Fixed 1RU data center switch |
Fixed 1RU data center switch |
|
Base-T port count |
48 |
48 |
|
Base-T supported speeds |
100M and 1G |
10M, 100M, and 1G |
|
SFP28 ports |
4 x 1/10/25G |
4 x 1/10/25G |
|
QSFP28 ports |
2 x 40/100G |
2 x 40/100G |
|
Bandwidth |
0.696 Tbps |
0.696 Tbps |
|
System memory |
8 GB |
32 GB |
|
SSD |
16 GB |
128 GB |
|
Shared system buffer |
40 MB |
40 MB |
|
Typical AC power |
150 W |
226 W |
|
Maximum AC power |
245 W |
242 W |
|
Fan modules |
3 |
3 |
|
Airflow options |
Port-side intake and exhaust |
Port-side intake and exhaust |
- In a N9K-C92348GC-X vs N9K-C92348GC-FX3 comparison, both models keep 48 Base-T ports, four SFP28 ports, two QSFP28 ports, and 0.696 Tbps bandwidth.
- The N9K-C92348GC-X difference from N9K-C92348GC-FX3 is the Base-T speed floor and system resources: the FX3 model adds 10M Base-T support, 32 GB memory, and a 128 GB SSD.
- For buyers comparing N9K-C92348GC-X vs N9K-C92348GC-FX3, the key order check is whether the rack needs older 10M copper support or the higher memory and SSD profile documented for FX3.
Selection Guide
1. Choose N9K-C92348GC-X for 100M/1G copper downlinks
Select this SKU when the BOM requires 48 Base-T downlinks and the connected devices only need 100M or 1G speeds on copper.
2. Compare N9K-C92348GC-FX3 for 10M Base-T support
Use the FX3 alternative when the official port plan must include 10M copper compatibility or when the project requires the FX3 memory and SSD profile.
3. Validate the uplink media plan early
Confirm the SFP28 and QSFP28 optics or cables in Cisco compatibility documentation before adding this switch to a quote.
4. Match airflow and power before ordering
Check port-side intake or exhaust direction, AC or DC power type, power cords, rack depth, and support coverage before purchase release.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact PID |
N9K-C92348GC-X rather than N9K-C92348GC-FX3 |
The FX3 model changes Base-T speed support, memory, SSD, and power profile |
|
Downlink requirement |
48 ports of 100M/1G Base-T |
The X model is not the 10M/100M/1G FX3 variant |
|
Uplink media |
Four SFP28 ports and two QSFP28 ports with Cisco-supported optics or cables |
Optics are selected separately from the base switch |
|
Airflow direction |
Port-side intake or port-side exhaust fans and power supplies |
Mixed airflow parts can create rack cooling problems |
|
Power design |
AC or DC power supplies and two-supply redundancy requirement |
Cisco lists multiple power-supply options for this chassis |
|
Rack fit |
1RU space, 18.5 in. chassis depth, and airflow sleeve depth if used |
Cabinet clearance should be checked before installation |
Optional Add-ons
|
Model |
Description |
|---|---|
|
NXA-FAN-30CFM-F |
Fan module with port-side exhaust airflow |
|
NXA-FAN-30CFM-B |
Fan module with port-side intake airflow |
|
N2200-PAC-400W |
400W AC power supply with port-side exhaust airflow |
|
N2200-PAC-400W-B |
400W AC power supply with port-side intake airflow |
|
N2200-PDC-350W-B |
350W DC power supply with port-side intake airflow |
|
N2200-PDC-400W |
400W DC power supply with port-side exhaust airflow |
|
N9K-AIRFLOW-SLV |
Airflow sleeve for supported rack depth planning |
Specifications
Packaging weight and dimensions included:| Weight | 23.5 kg |
|---|---|
| Dimensions | 73 × 63 × 20 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | N9K-C92348GC-X | Product family | Cisco Nexus 9200 platform |
| Product type | Fixed 1RU data center switch | Port configuration | 48 x 100M/1G Base-T, 4 x 1/10/25G SFP28, 2 x 40/100G QSFP28 |
| Downlink ports | 48 x 100M/1G Base-T | SFP28 ports | 4 x 1/10/25G |
| QSFP28 ports | 2 x 40/100G | Bandwidth | 0.696 Tbps |
| Shared system buffer | 40 MB | CPU | 4 cores |
| System memory | 8 GB | SSD | 16 GB |
| Management ports | 1 RJ-45 and 1 SFP | USB ports | 1 |
| RS-232 serial ports | 1 | Power supplies | Up to 2 |
| Power supply options | 400W AC, 400W DC, or 350W DC airflow-specific options | Typical AC power | 150 W |
| Maximum AC power | 245 W | AC input voltage | 100 to 240 V |
| Fan modules | 3 | Airflow options | Port-side intake and port-side exhaust |
| Dimensions | 1.72 x 17.3 x 18.5 in. (4.4 x 43.9 x 45.7 cm) | Weight without power supplies or fans | 14.12 lb (6.4 kg) |
| Operating temperature | 32 to 104F (0 to 40C) | Operating altitude | 0 to 13123 ft (0 to 4000 m) |
| MTBF | 474571 hours | Rack airflow sleeve depth | 636.49 mm minimum and 748.25 mm maximum |
