N9K-C93180YC-FX3 Description

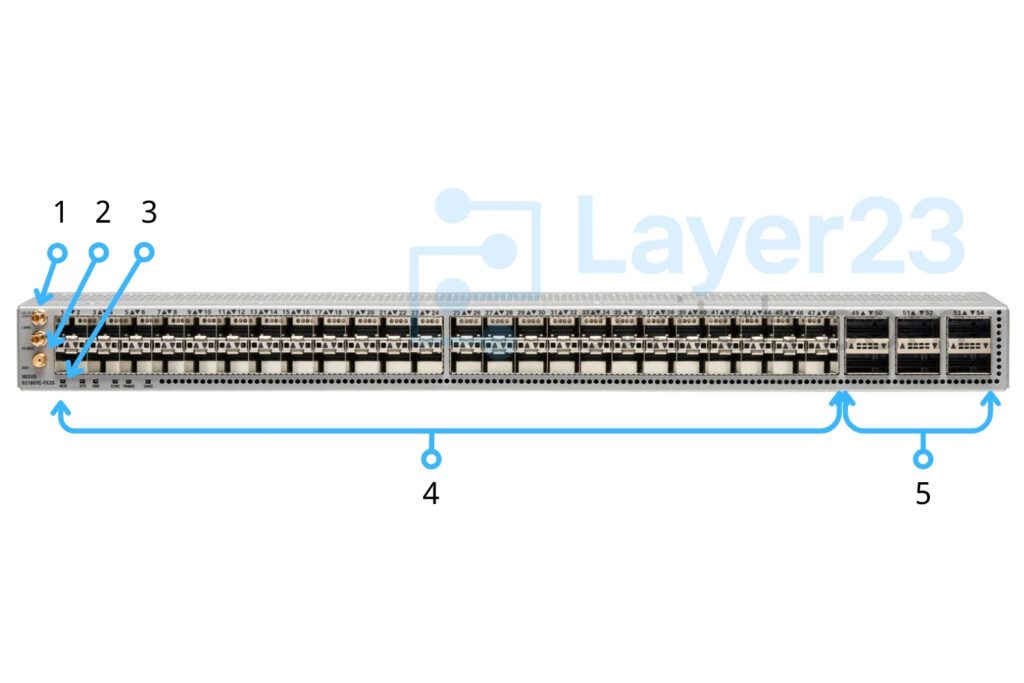

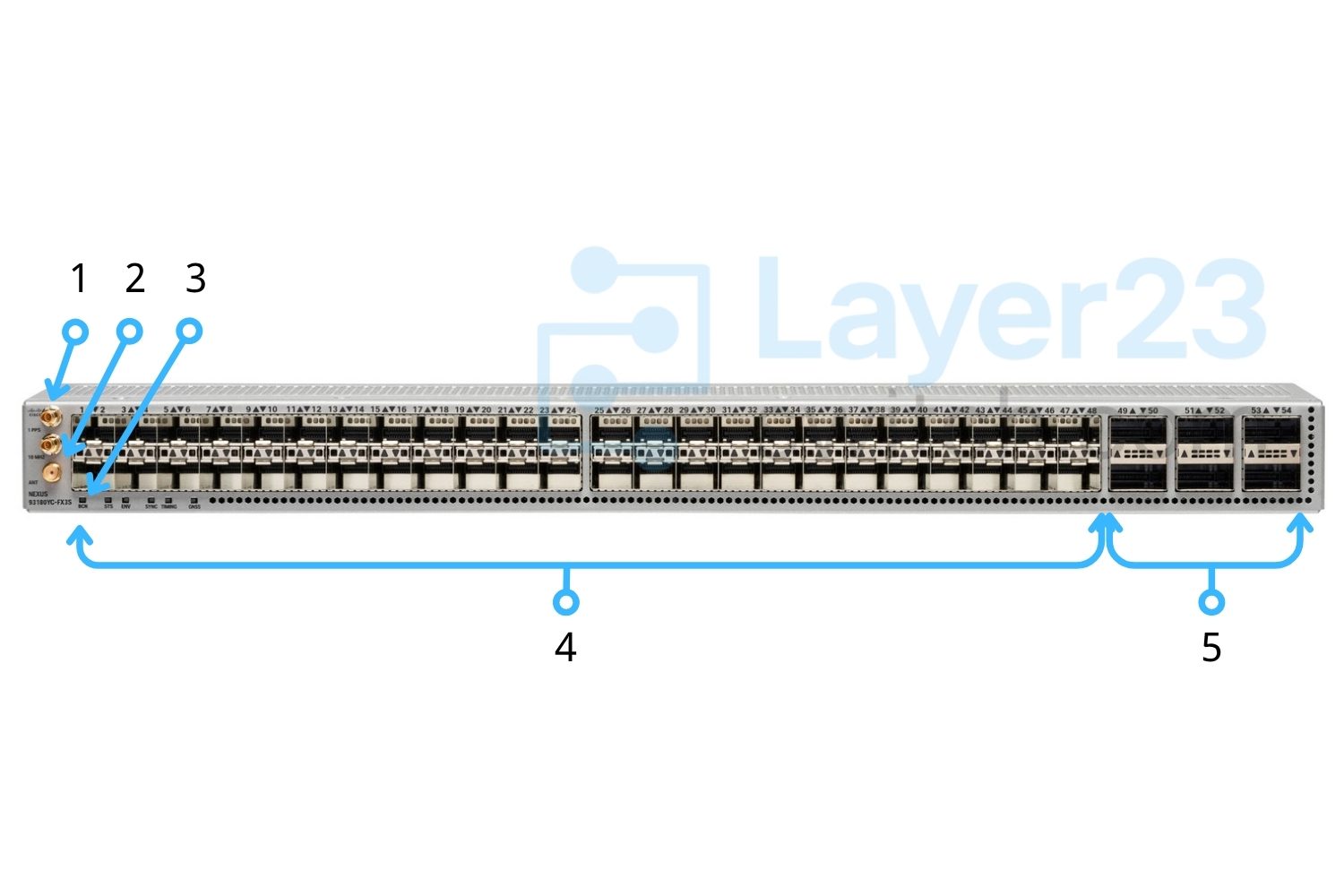

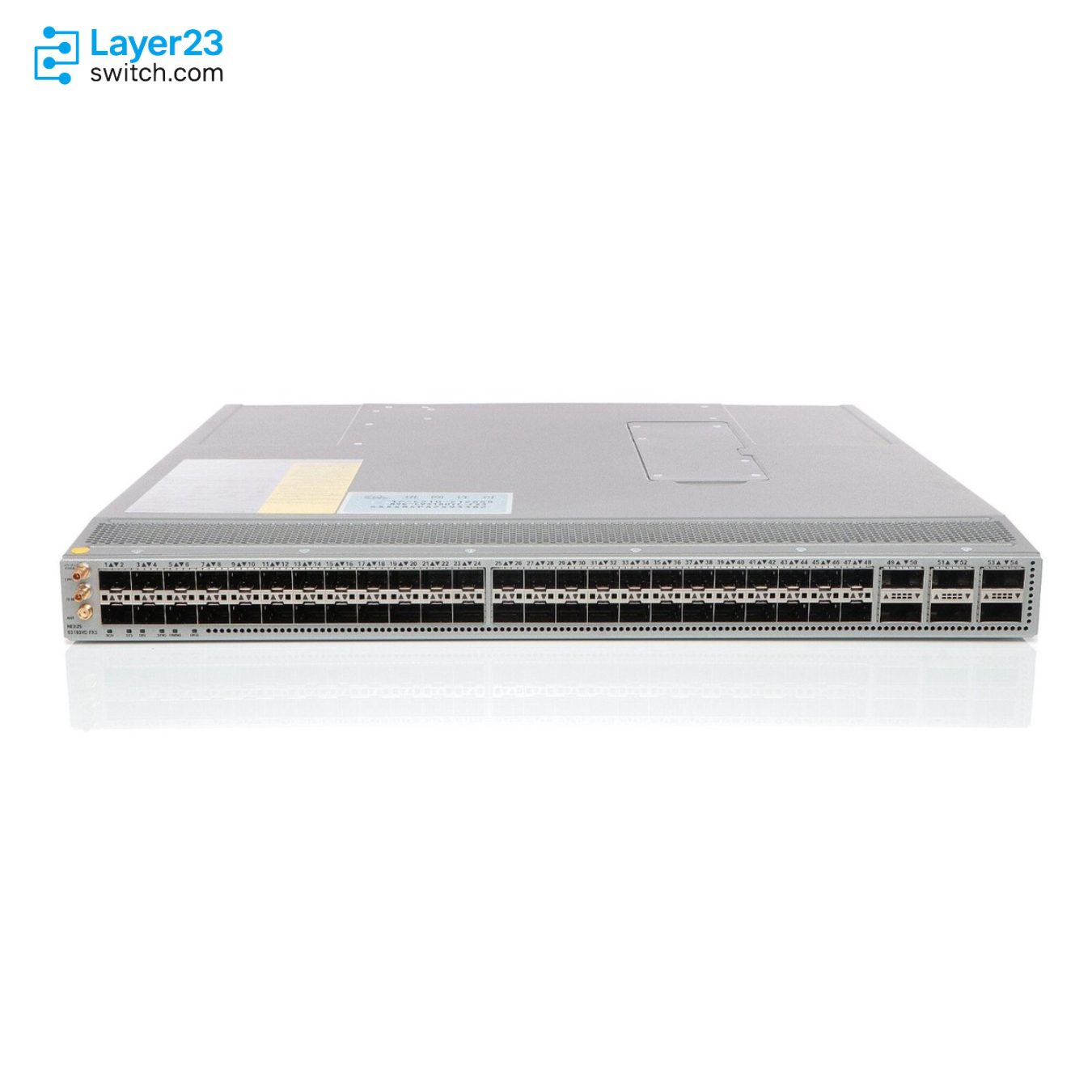

The N9K-C93180YC-FX3 is a Cisco Nexus 9300-FX3 Series 1RU fixed-port data center switch for 25G server racks. The switch provides 48 1/10/25G SFP28 downlink ports, six 40/100G QSFP28 uplinks, 3.6 Tbps of switching bandwidth, 1.2 Bpps of forwarding, and port-side intake or exhaust airflow. Parent support for up to 16 Nexus 2000 Series Fabric Extenders is available on this model.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product SKU |
N9K-C93180YC-FX3 |
|
Product type |
Fixed-port data center switch |
|
Form factor |
1RU |
|
Downlink ports |
48 x 1/10/25G SFP28 |
|
Uplink ports |
6 x 40/100G QSFP28 |
|
Switching capacity |
3.6 Tbps |
|
Forwarding rate |
1.2 Bpps |
|
Management port |
1 x RJ-45 |
|
Maximum power consumption |
600W |
|
Fan modules |
4 |
|
Airflow options |
Port-side intake or port-side exhaust |
|
Minimum NX-OS release |
NXOS-9.3.7 |
|
Minimum ACI release |
ACI-15.1.3 |
Product Performance
Key Features
Each downlink cage runs at 1G, 10G or 25G with the matching optic or cable, so one rack can hold servers from several NIC generations.
Six 100G uplinks give 600G against 1.2 Tbps of downlink, a 2:1 ratio when every server port runs at 25G. Racks with lighter traffic stay well below that.
The switch can act as parent for up to 16 Nexus 2000 Series Fabric Extenders, which extends the port count of a row without adding switches to manage.
MACsec link encryption is supported at all port speeds, including 1G and 10G.

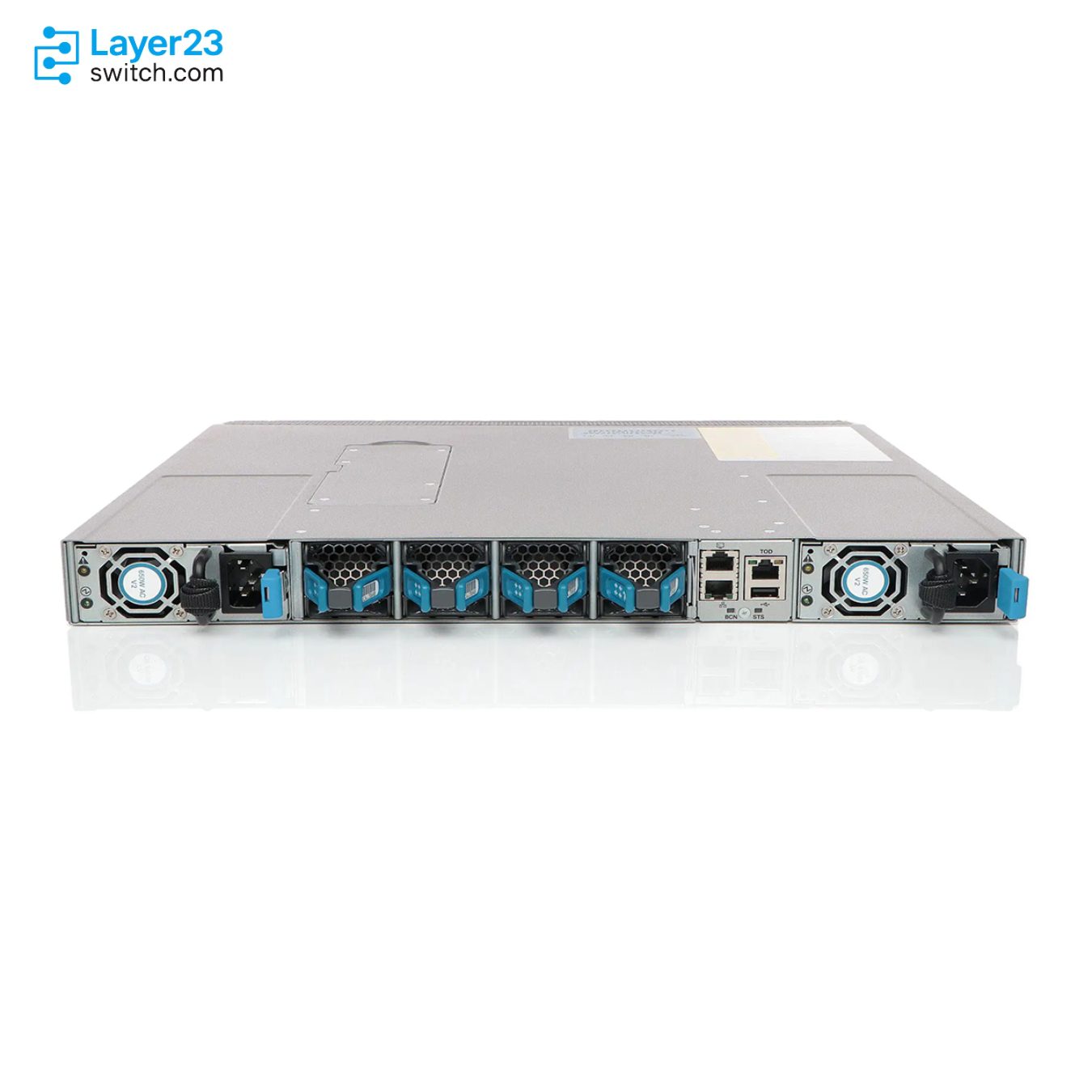

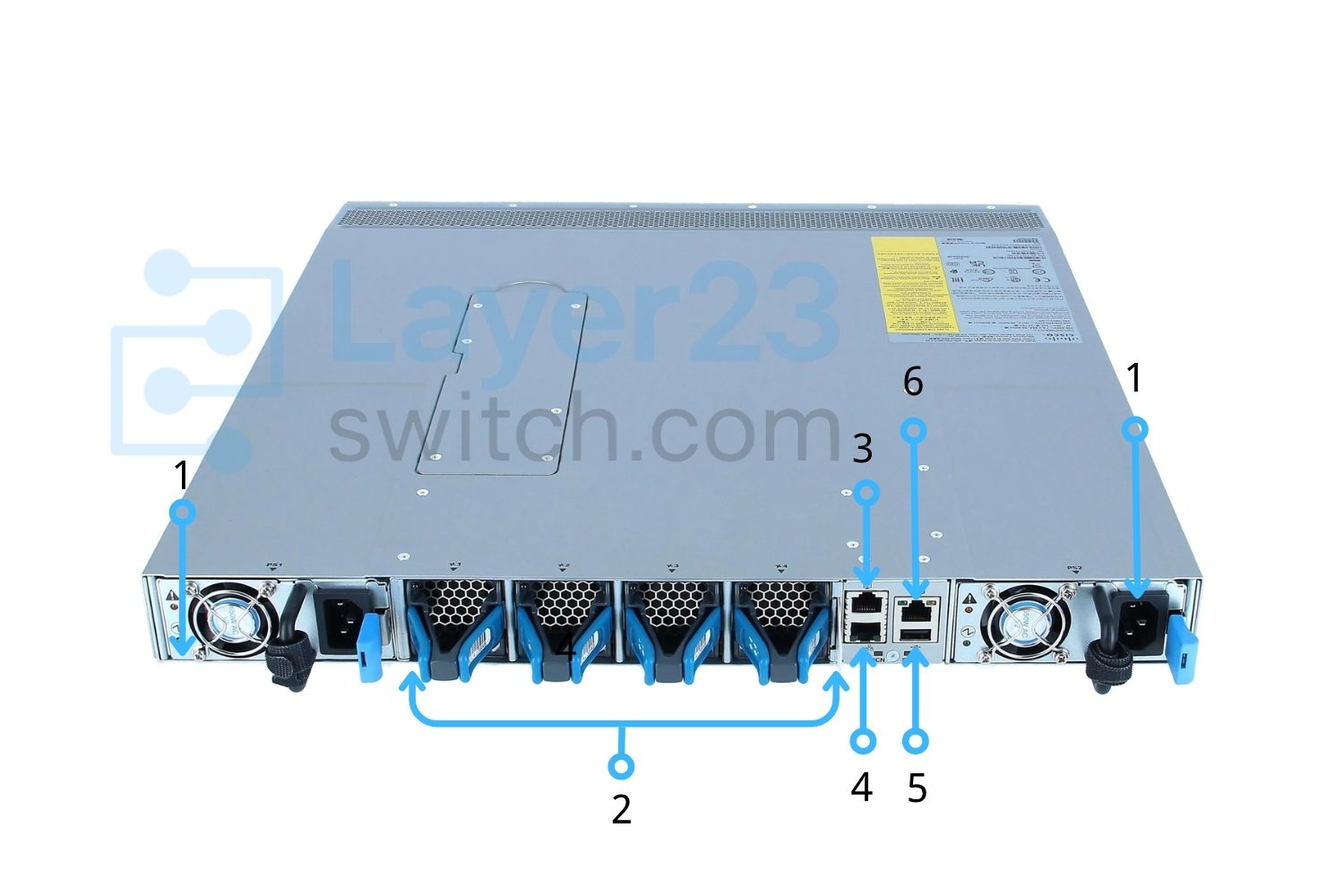

The four fan modules and the power supplies must face the same direction, port-side intake or exhaust, so the choice follows the rack’s hot-aisle and cold-aisle layout.
NX-OS mode needs NXOS-9.3.7 or later and ACI mode needs ACI-15.1.3 or later, so a fabric on older code has to be upgraded first.
Application Scenarios
In a data center leaf layer, servers with 25G SFP28 NICs connect to the 48 downlink ports, and the six QSFP28 uplinks carry their traffic to the spine at 40G or 100G.
A rack cabled for 10G fiber can keep its existing links on the 1/10/25G ports while 25G server NICs are added later, so both speeds share one switch during the move.
A data center edge rack that distributes time can feed 1PPS and 10MHz GPS signals through the switch, which accepts them on its timing input and output connectors.
Product Comparison
|
Parameter |
N9K-C93180YC-FX3 | |||
|---|---|---|---|---|
|
Downlink ports |
48 x 1/10/25G SFP28 |
48 x 100M/1/2.5/5/10G BASE-T |
48 x 100M/1/10G BASE-T |
48 x 10M/100M/1G BASE-T |
|
Uplink ports |
6 x 40/100G QSFP28 |
6 x 40/100G QSFP28 |
6 x 40/100G QSFP28 |
4 x 1/10/25G SFP28; 2 x 40/100G QSFP28 |
|
Switching capacity |
3.6 Tbps |
2.16 Tbps |
2.16 Tbps |
696 Gbps |
|
Forwarding rate |
1.2 Bpps |
1.2 Bpps |
1.2 Bpps |
Over 517 Mpps |
|
Packet buffer |
40 MB |
40 MB |
40 MB |
40 MB |
|
Airflow |
Port-side intake and exhaust |
Port-side intake and exhaust |
Port-side intake and exhaust |
Port-side intake and exhaust |
|
Maximum Cisco Nexus 2000 series fabric extenders per switch |
16 |
16 |
Not applicable |
Not applicable |
N9K-C93180YC-FX3 has 48 downlink ports of 1/10/25G SFP28, while N9K-C93108TC-FX3 and N9K-C93108TC-FX3P have 48 BASE-T downlink ports with the same six 40/100G QSFP28 uplinks, which is why its switching bandwidth is 3.6 Tbps against 2.16 Tbps. Racks cabled in copper at 100M to 10G go to N9K-C93108TC-FX3, and copper that needs 2.5G or 5G steps goes to N9K-C93108TC-FX3P. N9K-C9348GC-FX3 serves 10M, 100M and 1G copper access with four SFP28 uplink ports and two QSFP28 ports at 696 Gbps. Cisco lists Fabric Extender parent support, up to 16 Nexus 2000 units, only for N9K-C93180YC-FX3 and N9K-C93108TC-FX3P, so a FEX design cannot move to N9K-C93108TC-FX3 or N9K-C9348GC-FX3.
Optional Add-ons
|
Model |
Description |
|---|---|
|
NXA-PAC-650W-PE |
Cisco Nexus 9000 650W AC power supply, port-side exhaust |
|
NXA-PAC-650W-PI |
Cisco Nexus 9000 650W AC power supply, port-side intake |
|
NXA-PDC-930W-PE |
Cisco Nexus 9000 930W DC power supply, port-side exhaust |
|
NXA-PDC-930W-PI |
Cisco Nexus 9000 930W DC power supply, port-side intake |
|
N9K-PUV-1200W |
Cisco Nexus 9000 1200W HVAC/HVDC dual-direction power supply |
|
NXA-FAN-35CFM-PE |
Cisco Nexus fan module, 35CFM, port-side exhaust airflow |
|
NXA-FAN-35CFM-PI |
Cisco Nexus fan module, 35CFM, port-side intake airflow |
|
NXK-ACC-KIT-1RU |
Cisco Nexus fixed accessory kit with 1RU rack mount kit |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | N9K-C93180YC-FX3 | Product type | Fixed-port data center switch |
| Rack units | 1RU | Software mode | Cisco NX-OS or Cisco ACI mode |
| Minimum NX-OS release | NXOS-9.3.7 | Minimum ACI release | ACI-15.1.3 |
| Switching capacity | 3.6 Tbps | Forwarding rate | 1.2 Bpps |
| Downlink ports | 48 x 1/10/25G SFP28 | Uplink ports | 6 x 40/100G QSFP28 |
| QSFP28 port speed support | 10/25/40/50/100G on ports 49 to 54 | Management port | 1 x RJ-45 |
| Console port | 1 x RS-232 | USB port | 1 |
| CPU | 4 cores | DRAM | Default 16GB, expandable 16GB |
| SSD drive | 128GB | Packet buffer | 40MB |
| Power supply slots | 2 | Power redundancy | 1+1 with two power supply modules |
| Power supply selection | NXA-PAC-650W-PE 650W AC, NXA-PAC-650W-PI 650W AC, NXA-PDC-930W-PE 930W DC, NXA-PDC-930W-PI 930W DC, or N9K-PUV-1200W 1200W universal supply selected by input type | Power supply options | 650W AC, 930W DC, 1200W HVAC/HVDC |
| Maximum power consumption | 600W | AC input voltage | 100 to 240V |
| HVAC input voltage | 200 to 277V | DC input voltage | -48 to -60V |
| HVDC input voltage | -240 to -380V | AC input frequency | 50 to 60 Hz |
| Fan modules | 4 | Supported fan modules | NXA-FAN-35CFM-PE, NXA-FAN-35CFM-PI |
| Airflow | Port-side intake or port-side exhaust | Chassis width | 17.3 in (43.9 cm) |
| Chassis depth | 19.5 in (49.6 cm) | Chassis height | 1.72 in (4.4 cm) |
| Chassis weight without fans or PSUs | 9.52 kg (21 lb) | Fan module weight | 0.12 kg (0.26 lb) |
| 650W AC power supply weight | 1.1 kg (2.42 lb) | 930W DC power supply weight | 1.1 kg (2.42 lb) |
| 1200W HVAC/HVDC power supply weight | 1.1 kg (2.42 lb) | Operating temperature | 0°C to 40°C (32°F to 104°F) at sea level; the maximum drops 1°C for every 1000 ft (300 m) of altitude |
| Storage temperature | -40 to 158F (-40 to 70C) | Operating altitude | 0 to 13,123 ft (0 to 4000 m) |
| RoHS compliance | Yes | MTBF | 303,190 hours |
| Maximum IPv4 LPM routes | 1,792,000 | Maximum IPv4 host entries | 1,792,000 |
| Maximum IPv6 LPM routes | 896,000 | Maximum IPv6 host entries | 1,792,000 |
| Maximum MAC address entries | 512,000 | Maximum multicast routes | 128,000 |
| IGMP snooping groups | 32,000 | Fabric extenders per switch | 16 |
| ACL entries | 5000 ingress, 2000 egress | VLAN IDs | 4096 with 27 reserved |
| VRF instances | 16,000 | Maximum ECMP paths | 128-way |
| Maximum port channels | 512 | Maximum links in a port Channel | 32 |
| Active SPAN sessions | 4 | RPVST VLAN instances | 3967 |
| HSRP groups | 490 | NAT entries | 1023 |
| MST instances | 64 | Nexus dashboard insights flow table size | 64,000 |
| Number of queues | 8 |
