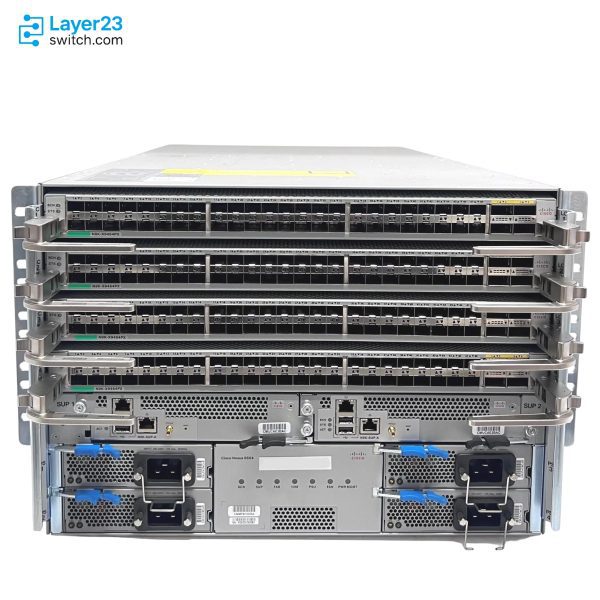

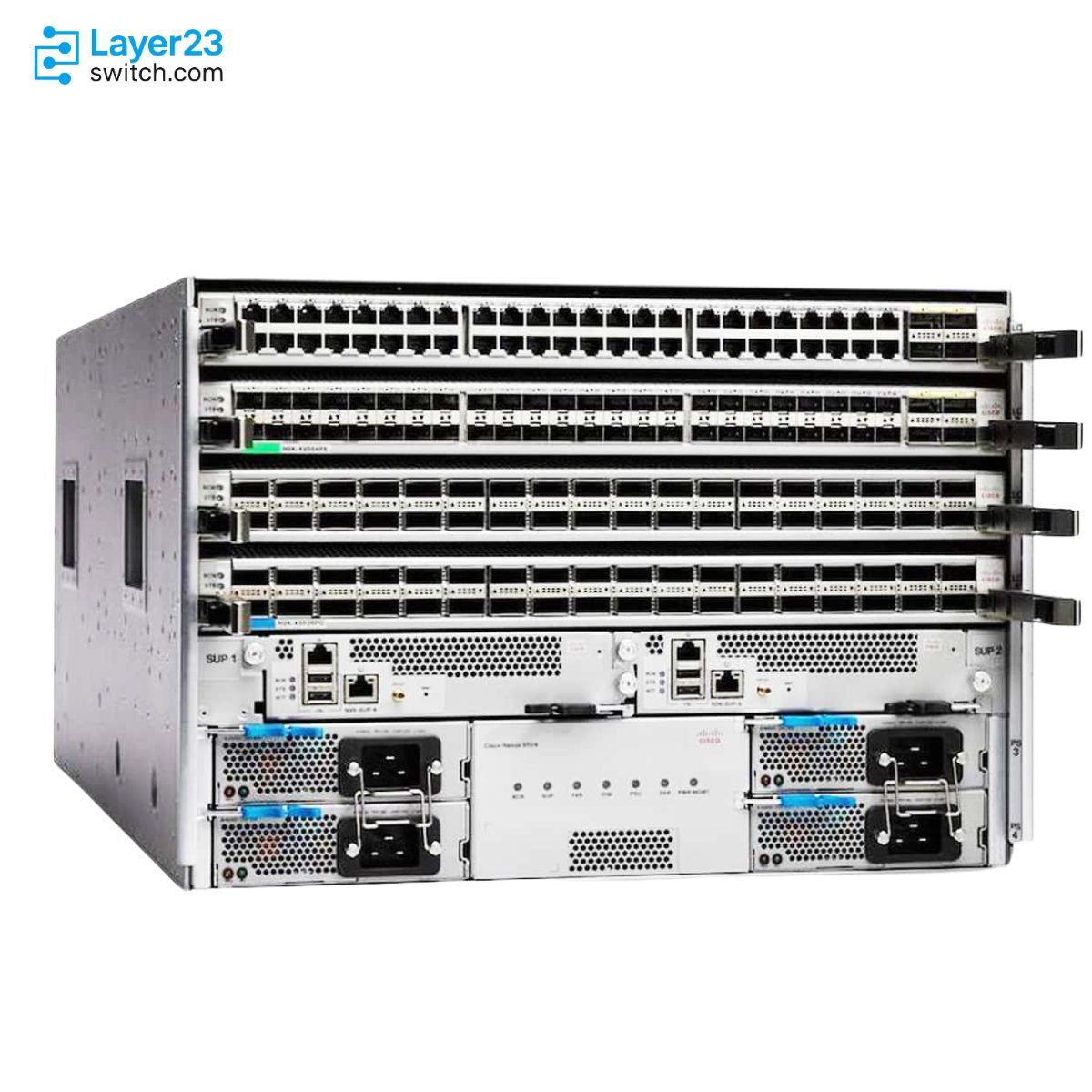

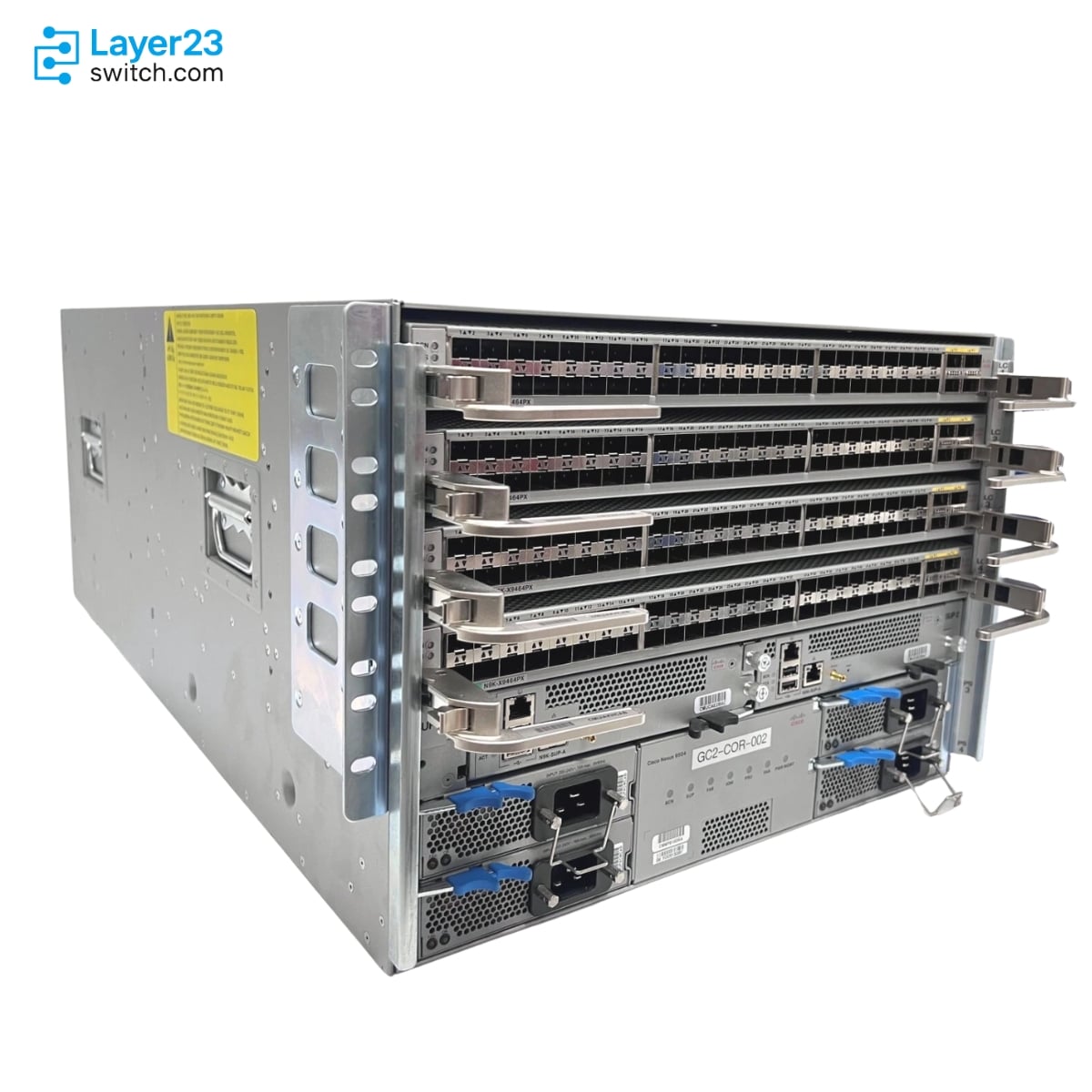

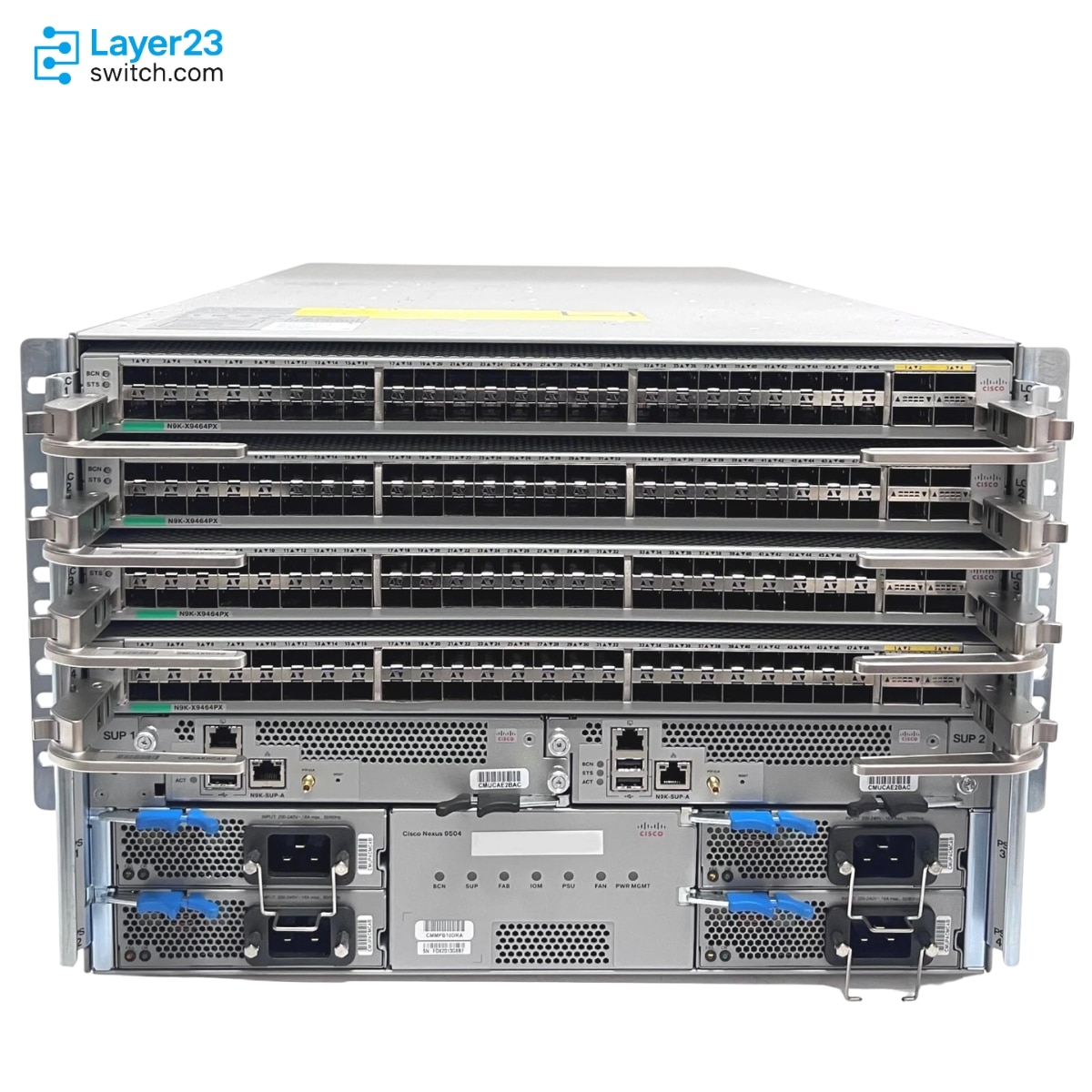

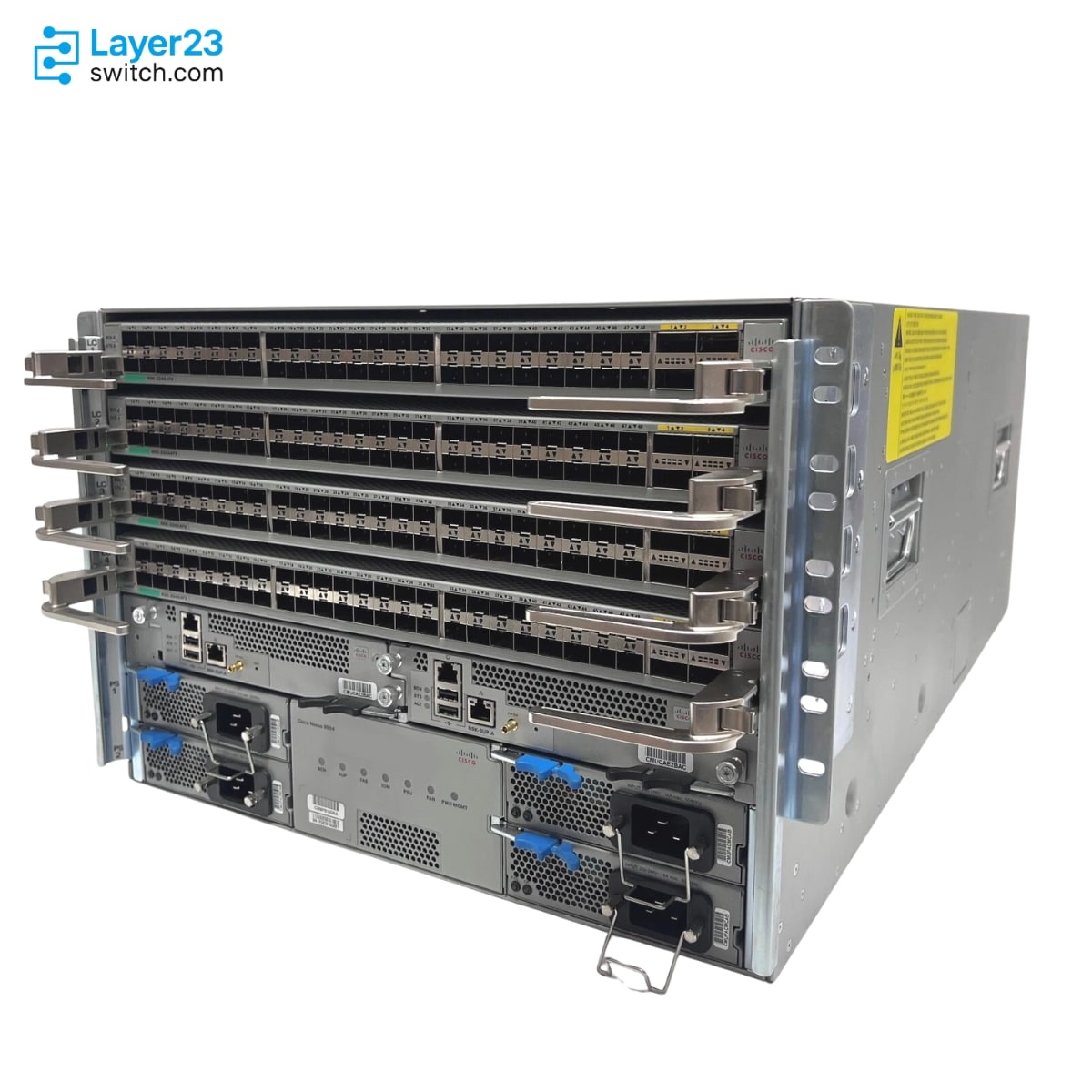

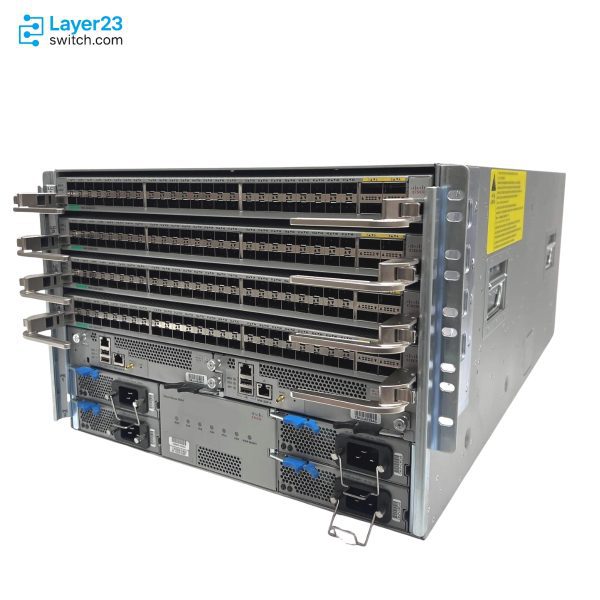

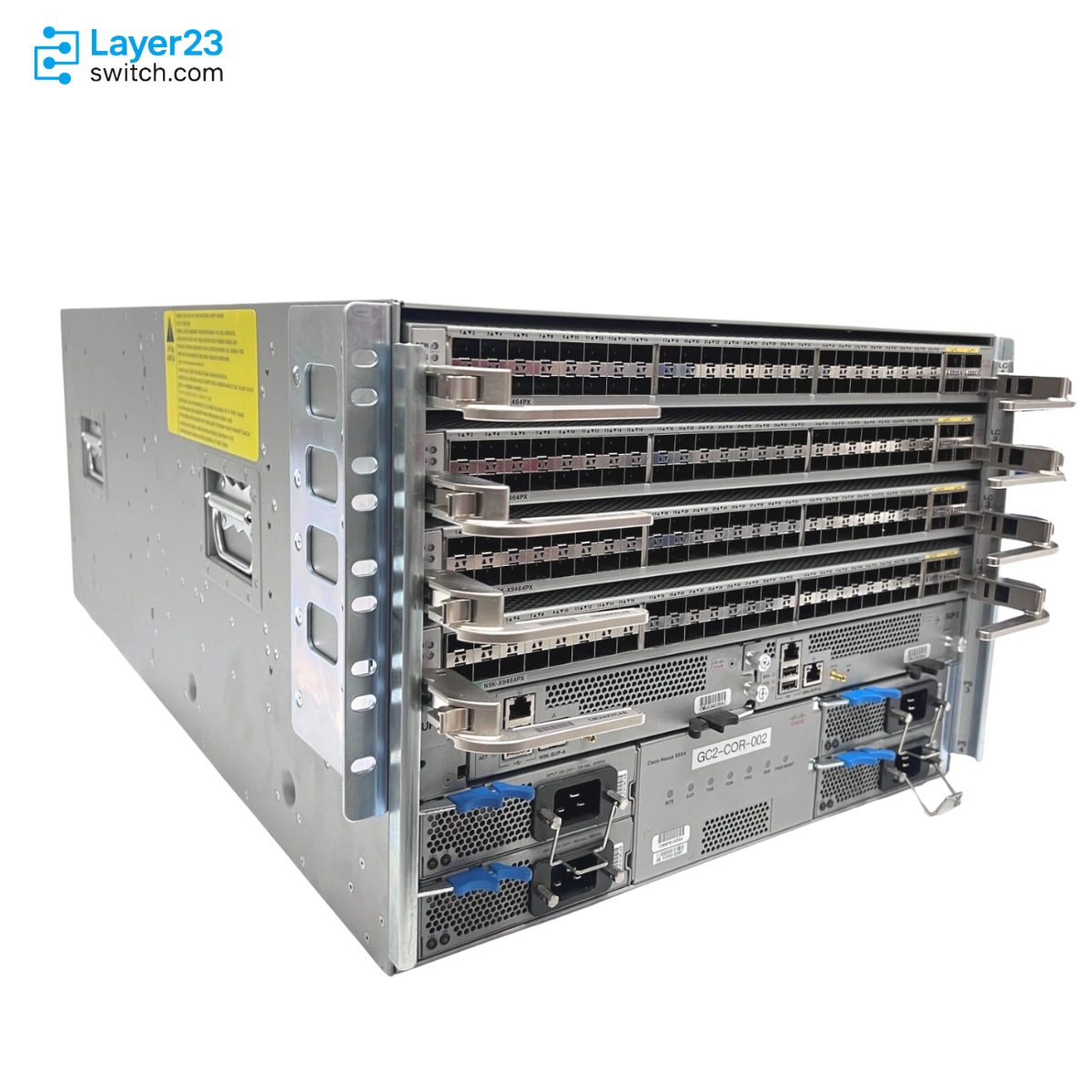

N9K-C9504 Description
The N9K-C9504 is a Cisco Nexus 9500 Series 4-slot modular switch chassis for data center spine, core and aggregation layers. The 7 RU chassis holds 4 line cards, up to 6 fabric modules of one type, 2 supervisors and 4 power supplies, and each FM-G fabric module adds up to 1.6 Tbps to every line card slot. Supervisors, system controllers, fabric modules, fan trays and power supplies are ordered as separate PIDs, or together in the N9K-C9504-B3-E bundle.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
N9K-C9504 |
|
Bundle scope |
Chassis only; supervisors, system controllers, fabric modules, fan trays and power supplies are separate modules |
|
Number of line card slots |
4 |
|
Rack units |
7 RU |
|
Supervisor slots |
2, for N9K-SUP-A, N9K-SUP-A+, N9K-SUP-B or N9K-SUP-B+ of the same type |
|
System controller slots |
2, for N9K-SC-A |
|
Fabric module slots |
6, all fabric modules of the same type |
|
Fabric capacity per line card slot |
Up to 1.6 Tbps per N9K-C9504-FM-G; 800 Gbps per N9K-C9504-FM-E |
|
Fan trays |
3 x N9K-C9504-FAN, or 3 x N9K-C9504-FAN2 with FM-G fabric modules |
|
Power supply selection |
No default supply; up to 4 of N9K-PAC-3000W-B 3000W AC, N9K-PDC-3000W-B 3000W DC, N9K-PUV-3000W-B 3000W universal or N9K-PUV2-3000W-B 3150W dual-input universal |
|
Airflow |
Port-side intake |
|
Weight |
38.2 kg (84 lb) |
Product Performance
Key Features
Line cards connect straight to the fabric modules, because the chassis has no midplane. Supervisors, system controllers, power supplies and line cards are the same parts used across the Nexus 9500 chassis family; only the fabric modules and fan trays are specific to the 4-slot chassis.
Each fabric module adds its own share to every line card slot: 800 Gbps from an N9K-C9504-FM-E and up to 1.6 Tbps from an N9K-C9504-FM-G. The chassis takes up to six fabric modules, and all of them must be the same type.
N9K-X9716D-GX, with 16 ports of 400G QSFP-DD, runs in this chassis only on FM-G fabric modules. FM-G modules in turn need N9K-C9504-FAN2 fan trays, and every empty fabric slot then takes an N9K-C9504-FAN-PWR connector instead of a blank.
Three fabric modules go in FM 2, FM 4 and FM 6; four go in FM 2, FM 3, FM 4 and FM 6. Slot FM 5 serves only N9K-X9736C-FX, N9K-X9736Q-FX and N9K-X9736C-FX3, and a chassis that mixes EX, FX, FX3 and GX line cards runs at most four fabric modules.
Four bays take 3 kW AC, DC or universal supplies, or the 3.15 kW dual-input universal unit. On a 220 V input, four 3 kW supplies provide 12,000W in combined mode, 9,000W in n+1 or 6,000W in n+n, and every supply must match the AC or DC type already installed.
Two supervisors of the same type run active-standby, while two N9K-SC-A system controllers manage the power supplies and fan trays. Cooling continues on two of the three fan trays while one is swapped; removing a second tray shuts the switch down within two minutes.
Application Scenarios
In a Cisco ACI fabric, the chassis serves as a spine, with N9K-X9732C-EX line cards on N9K-C9504-FM-E fabric modules terminating 100G QSFP28 links from the leaf switches.
A data center running NX-OS can place the chassis at its core or border, where it routes between pods using VXLAN with a BGP-EVPN control plane.
At the end of a server row, N9K-X9788TC-FX line cards give each slot 48 copper ports at 100M, 1G or 10G for rack servers, plus four 40/100G QSFP28 ports toward the spine.
Product Comparison
|
Parameter |
N9K-C9504 |
N9K-C9508 |
N9K-C9516 | |
|---|---|---|---|---|
|
Number of line card slots |
4 |
4 |
8 |
16 |
|
Rack units |
7 |
7 |
13 |
21 |
|
Bundle scope |
Chassis only |
Chassis with 1 supervisor, 3 power supplies, 2 system controllers, 4 N9K-C9504-FM-E and 3 fan trays |
Chassis only |
Chassis only |
|
Fabric modules supported |
FM-E, FM-S, FM-R, FM-G and the 40G FM |
4 x N9K-C9504-FM-E included |
FM-E, FM-E2, FM-R, FM-S, FM-G and the 40G FM |
FM-E, FM-E2 and the 40G FM |
|
Fabric capacity per line card slot |
Up to 1.6 Tbps per FM-G; 800 Gbps per FM-E |
800 Gbps per included FM-E |
Up to 1.6 Tbps per FM-G; 800 Gbps per FM-E or FM-E2 |
800 Gbps per FM-E or FM-E2 |
|
Power supply slots |
4 |
4, with 3 supplies included |
8 |
10 |
|
Power supply selection |
None included; N9K-PAC-3000W-B 3000W AC, N9K-PDC-3000W-B 3000W DC, N9K-PUV-3000W-B 3000W or N9K-PUV2-3000W-B 3150W |
3 included from the same 3000W and 3150W models |
None included; same 3000W and 3150W models |
None included; same 3000W and 3150W models |
|
Fan trays |
3 x N9K-C9504-FAN or N9K-C9504-FAN2 |
3 included |
3 x N9K-C9508-FAN or N9K-C9508-FAN2 |
3 x N9K-C9516-FAN |
|
Airflow |
Port-side intake |
Port-side intake |
Port-side intake |
Port-side intake |
N9K-C9504 and N9K-C9504-B3-E share the same 4-slot, 7 RU chassis, but N9K-C9504 is the chassis alone, while N9K-C9504-B3-E adds 1 supervisor, 3 power supplies, 2 system controllers, 4 N9K-C9504-FM-E fabric modules and 3 fan trays. A build planned around 1.6 Tbps per slot from FM-G fabric modules and FAN2 trays starts from N9K-C9504, since every fabric module in a chassis must be the same type and the bundle carries FM-E. More than four line cards moves the design to N9K-C9508, with 8 line card slots and 8 power supply slots in 13 RU and the same FM-G option. N9K-C9516 reaches 16 slots and 10 power supply slots in 21 RU, but its fabric stops at 800 Gbps per slot because no FM-G exists for it.
Ordering Checklist
- Supervisors and controllers: Add one or two supervisors from N9K-SUP-A, N9K-SUP-A+, N9K-SUP-B or N9K-SUP-B+, plus two N9K-SC-A system controllers. A redundant supervisor pair must be the same type.
- Fabric modules and fan trays: Pair N9K-C9504-FM-E with N9K-C9504-FAN trays and N9K-C9504-FM-CV blanks, or N9K-C9504-FM-G with N9K-C9504-FAN2 trays and N9K-C9504-FAN-PWR in empty slots. FM-G modules do not run on first-generation trays.
- Fabric module count: Four N9K-C9504-FM-E give full bandwidth to N9K-X9732C-EX, N9K-X9732C-FX and N9K-X9788TC-FX, while N9K-X9736C-FX needs five. Fewer modules leave the line cards below full bandwidth.
- Power supplies: Add module maximum power, divide by 3000W and round up, then add one for n+1. Choose N9K-PAC-3000W-B, N9K-PUV-3000W-B, N9K-PUV2-3000W-B or N9K-PDC-3000W-B without mixing AC and DC types.
- Power cords: Select CAB-AC-STRT-C19US, CAB-AC-2500W-US1, CAB-AC-2500W-EU or CAB-AC-2500W-INT for each 3 kW AC supply. NO-PWR-CORD ships the order with no cord.
- Rack-mount kit: Add N9K-C9504-RMK= for this chassis. N9K-C9500-RMK= is the kit for the N9K-C9508 and N9K-C9516 chassis.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco N9500 4-core, 8-thread supervisor with 16GB DRAM and 64GB SSD | |
|
Cisco N9500 6-core, 12-thread supervisor with 32GB DRAM and 256GB SSD | |
|
N9K-SC-A |
Cisco N9500 system controller, managing power supplies and fan trays |
|
4-slot cloud-scale fabric module, 800 Gbps per line card slot, ACI and NX-OS | |
|
N9K-C9504-FM-G |
4-slot cloud-scale fabric module, 1.6 Tbps per line card slot, requires N9K-C9504-FAN2 |
|
Fan tray for the N9504 chassis, port-side intake | |
|
N9K-C9504-FAN2 |
4-slot 400G cloud-scale fan tray (Generation 2) for FM-G fabric modules |
|
N9K-C9504-FAN-PWR |
Fan tray power connector for empty fabric slots with FM-G |
|
N9K-C9504-FM-CV |
Fabric module blank for empty slots with FM-E or the 40G fabric module |
|
Cisco N9500 3000W AC power supply, port-side intake | |
|
N9K-PUV-3000W-B |
Cisco N9500 3000W universal AC/DC power supply, port-side intake |
|
N9K-PUV2-3000W-B |
Cisco N9500 3150W dual-input universal AC/DC power supply, port-side intake |
|
N9K-PDC-3000W-B |
Cisco N9500 3000W -48V to -60V DC power supply, port-side intake |
|
N9K-C9500-P-CV= |
Nexus 9500 power supply slot cover |
|
32-port 100G QSFP28 cloud-scale line card, ACI spine capable | |
|
32-port 100G QSFP28 cloud-scale line card with MACsec | |
|
48-port 100M/1G/10G BASE-T plus 4-port 40/100G QSFP28 line card | |
|
N9K-X9716D-GX |
16-port 400G QSFP-DD line card, on FM-G fabric |
|
N9K-C9504-RMK= |
Rack mount kit for the N9504 chassis |
|
N9K-C9500-ACK= |
Cisco N9500 accessory kit |
|
N95-LAN1K9 |
LAN Enterprise License for the Nexus 9500 platform |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | N9K-C9504 | Cisco ordering description | Cisco N9504 Chassis with 4 line card slots |
| Number of line card slots | 4 | Rack units | 7 |
| Supervisor slots | 2 (SUP 1 and SUP 2); redundant supervisors must be the same type | Supported supervisors | N9K-SUP-A, N9K-SUP-A+, N9K-SUP-B and N9K-SUP-B+ |
| System controller slots | 2 (SC 1 and SC 2) for N9K-SC-A | System controller power | N9K-SC-A 14 W typical, 25 W maximum, hot swappable |
| Fabric module slots | 6 (FM 1 to FM 6), all fabric modules of the same type | Supported fabric modules | N9K-C9504-FM-E, N9K-C9504-FM-S, N9K-C9504-FM-R, N9K-C9504-FM-G and the 40G fabric module for the N9504 |
| Fabric capacity per line card slot | Up to 1.6 Tbps per N9K-C9504-FM-G and 800 Gbps per N9K-C9504-FM-E | Fabric module total capacity | N9K-C9504-FM-G 6.4 Tbps; N9K-C9504-FM-E 3,200 Gbps |
| Fabric module slot rules | 3 modules in FM 2, 4 and 6; 4 in FM 2, 3, 4 and 6; 5 FM-E in FM 2 to FM 6; 6 in all slots; FM 5 works only with N9K-X9736C-FX, N9K-X9736Q-FX and N9K-X9736C-FX3 | Mixed line card generations | EX, FX, FX3 and GX line cards can share a chassis with at most 4 fabric modules; additional fabric modules are powered down |
| Line cards with N9K-C9504-FM-E | N9K-X97160YC-EX, N9K-X9732C-EX, N9K-X9732C-FX, N9K-X9736C-EX and N9K-X9788TC-FX at 4 fabric modules; N9K-X9736C-FX, N9K-X9736C-FX3 and N9K-X9736Q-FX at 5 | Line cards with N9K-C9504-FM-G | N9K-X9732C-EX, N9K-X9736C-EX, N9K-X97160YC-EX, N9K-X9732C-FX, N9K-X9736C-FX, N9K-X9736C-FX3, N9K-X9788TC-FX and N9K-X9716D-GX |
| Fan tray slots | 3 (FAN 1 to FAN 3), each covering two fabric module slots | Supported fan trays | N9K-C9504-FAN with the 40G fabric module, N9K-C9504-FM-E, N9K-C9504-FM-S and N9K-C9504-FM-R; N9K-C9504-FAN2 with N9K-C9504-FM-G |
| Empty fabric slot fillers | N9K-C9504-FM-CV with the 40G fabric module or N9K-C9504-FM-E; N9K-C9504-FAN-PWR with FM-G fabric modules | N9K-C9504-FAN power | 95 W typical, 150 W maximum |
| Fan tray service | Operates on two fan trays while one is replaced; with more than one tray removed the switch shuts down within two minutes | Power supply slots | 4 (PS 1 to PS 4) |
| Power supply options | No default supply; N9K-PAC-3000W-B 3000W AC, N9K-PUV-3000W-B 3000W universal AC/DC, N9K-PUV2-3000W-B 3150W dual-input universal AC/DC or N9K-PDC-3000W-B 3000W DC | Power supply input | N9K-PAC-3000W-B 200 to 240 VAC; N9K-PUV-3000W-B 200 to 277 VAC or 240 to 380 VDC; N9K-PDC-3000W-B -48 to -60 VDC |
| Power redundancy modes | Combined, n+1 and n+n; up to 2 supplies in combined mode, 3 with n+1 and 4 with n+n | Available power with 3 kW supplies at 220 V | 2 supplies 6,000W / 3,000W / 3,000W; 3 supplies 9,000W / 6,000W / 3,000W; 4 supplies 12,000W / 9,000W / 6,000W (combined / n+1 / n+n) |
| Power supply sizing | Sum of module maximum power divided by 3000W and rounded up; one more for n+1; double for n+n | Power type rule | All supplies of the same type, AC or DC; AC and DC supplies are not mixed |
| Power supply efficiency | 80PLUS Platinum or higher on AC input | Airflow | Port-side intake, front-to-back through the chassis |
| Operating modes | Cisco ACI or Cisco NX-OS; ACI-mode and NX-OS-mode line cards are not mixed in one chassis | Management interfaces | On each supervisor: two USB ports, one serial port and one 10/100/1000 Ethernet management port |
| Dimensions (H x W x D) | 12.25 x 17.50 x 33.15 in (31.1 x 44.50 x 84.20 cm), depth including handles | Weight | 38.2 kg (84 lb) |
| Mean time between failure (MTBF) hours | 1,038,080 | Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | -40°C to 70°C (-40°F to 158°F) | Operating humidity | 5 to 90% operating and 5 to 95% nonoperating, noncondensing |
| Operating altitude | 0 to 13,123 ft (0 to 4,000 m) | Regulatory compliance | CE Markings according to directives 2004/108/EC and 2006/95/EC |
| Safety certifications | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943 | EMC: emissions | 47CFR Part 15 Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A |
| EMC: immunity | EN55024, CISPR24, EN300386, KN 61000-4 series | RoHS compliance | RoHS-6 compliant with exceptions for leaded ball grid array (BGA) balls and lead press-fit connectors |
