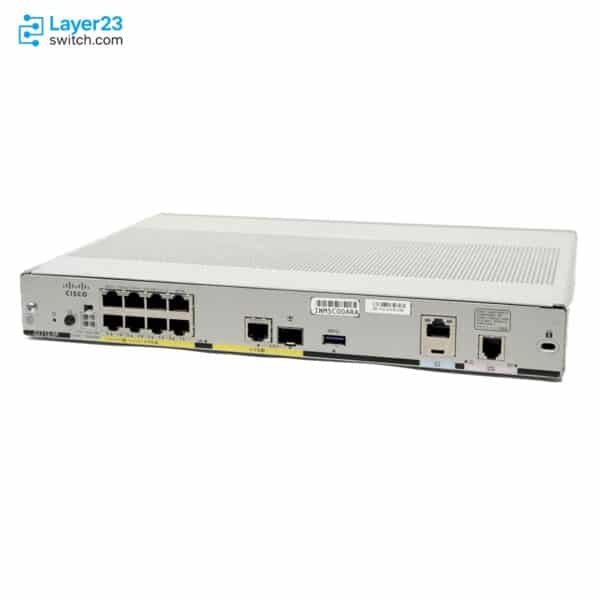

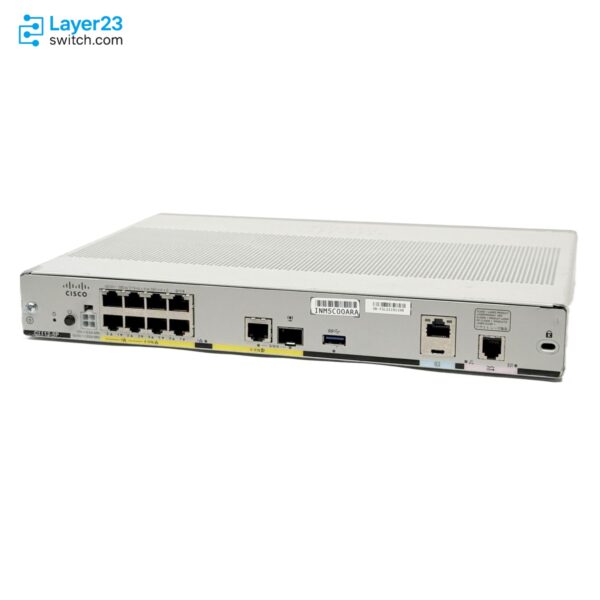

C1112-8P Description
The C1112-8P is a Cisco 1000 Series Integrated Services Router for small branch offices whose WAN service arrives over a G.FAST or VDSL2 copper line. The router pairs a Gigabit RJ-45/SFP combo WAN port with a G.FAST DSL port (Annex B), adds eight Gigabit LAN ports, and runs up to 600 Mbps of IPsec at 512 bytes on 4 GB of DRAM. The SEC license alone caps encrypted traffic at 50 Mbps, and the full IPsec rate needs the HSEC license.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
WAN interfaces |
1 x 1G RJ-45/SFP combo port and 1 x G.FAST DSL port (Annex B) |
|
DSL modes |
G.FAST profiles 106a and 106b; VDSL2 profiles up to 35b; ADSL2/2+ compatible |
|
LAN switch ports |
8 x 1G RJ-45 |
|
IPv4 forwarding throughput (512B) |
Up to 1,800 Mbps |
|
IPsec throughput (512B, autonomous mode) |
Up to 600 Mbps |
|
SD-WAN IPsec throughput (512B) |
Up to 650 Mbps |
|
DRAM and flash |
4 GB DRAM, 4 GB flash |
|
Default technology package |
IP Base (SL-1100-8P-IPB) |
|
Default power supply |
External AC adapter, 66W maximum output, 12 VDC |
|
Default PoE budget |
None; the standard 66W adapter carries no PoE |
|
PoE with ISR-1100-POE4 |
150W power supply: 4 x 802.3af PoE or 2 x 802.3at PoE+ |
|
Minimum software release |
Cisco IOS XE 16.8.1 |
Product Performance
Key Features
The second WAN port is a DSL interface rather than Ethernet, so the router terminates a copper telephone-pair circuit without an external modem. It runs G.FAST with spectrum up to 106 MHz, VDSL2 up to profile 35b, and stays compatible with ADSL2/2+ lines.
The Gigabit combo port accepts an RJ-45 cable or an SFP. Supported optics include GLC-SX-MMD for multimode runs and GLC-LH-SMD, GLC-EX-SMD and GLC-ZX-SMD for single-mode fiber, so a fiber handoff can sit beside the DSL line.
Powering phones or cameras from the LAN switch needs the optional ISR-1100-POE4 adapter and its 150W supply. With it installed, four ports deliver 802.3af PoE, or two ports deliver 802.3at PoE+.
Hardware IPsec reaches 600 Mbps at 512 bytes in autonomous mode, but licensing decides how much of it is usable. SEC allows 50 Mbps, FL-VPERF-8P-200 lifts the ceiling to 250 Mbps, and the HSEC license removes the limit.
One Universal IOS XE image runs the router under Catalyst SD-WAN Manager or as a CLI, WebUI and Cisco DNA Center managed device. In SD-WAN mode it carries 200 overlay tunnels, and IPsec drops from 650 Mbps to 250 Mbps once QoS, deep packet inspection and Flexible NetFlow are applied.
With 4 GB of DRAM, autonomous mode holds 280K IPv4 and 260K IPv6 routes, 100K NAT sessions and 1K VRFs.
Application Scenarios
Where the carrier reaches a small office only over telephone copper, the router brings the G.FAST or VDSL2 service straight into its DSL port and routes it to the eight wired desks and devices on the LAN.
A retail branch in an SD-WAN fabric uses the DSL circuit as one transport and a fiber or Ethernet service on the combo port as the other, with both tunnels managed from Catalyst SD-WAN Manager.
In a reception area or small clinic, up to four IP phones, or two PoE+ wireless access points, draw power directly from the router’s LAN ports once the PoE adapter is fitted.
Product Comparison
|
Parameter |
C1112-8P |
C1113-8P | ||
|---|---|---|---|---|
|
WAN interfaces |
1 x 1G RJ-45/SFP combo + 1 x G.FAST DSL (Annex B) |
2 x 1G: RJ-45/SFP combo + RJ-45 |
1 x 1G RJ-45/SFP combo + 1 x G.FAST DSL (Annex A) |
2 x 1G: RJ-45/SFP combo + RJ-45 |
|
IPsec throughput (512B) |
Up to 600 Mbps |
Up to 600 Mbps |
Up to 600 Mbps |
Up to 600 Mbps |
|
SD-WAN IPsec throughput (512B) |
Up to 650 Mbps |
Up to 650 Mbps |
Up to 650 Mbps |
Up to 700 Mbps |
|
IPv4 forwarding throughput (512B) |
Up to 1,800 Mbps |
Up to 1,800 Mbps |
Up to 1,800 Mbps |
Up to 1,600 Mbps |
|
SD-WAN overlay tunnels scale |
200 |
200 |
200 |
200 |
|
Pluggable |
Not applicable |
Not applicable |
Not applicable |
CAT4 LTE USB dongle |
|
Flash/DRAM |
4 GB/4 GB |
4 GB/4 GB |
4 GB/4 GB |
8 GB/8 GB |
|
Default PoE budget |
None; the standard 66W adapter carries no PoE |
None; the standard 66W adapter carries no PoE |
None; the standard 66W adapter carries no PoE |
None; the standard 66W adapter carries no PoE |
|
PoE with optional PoE supply |
150W supply: 4 PoE or 2 PoE+ on 8 x 1G LAN ports |
150W supply: 4 PoE or 2 PoE+ on 8 x 1G LAN ports |
150W supply: 4 PoE or 2 PoE+ on 8 x 1G LAN ports |
150W supply: 4 PoE or 2 PoE+ on 8 x 1G LAN ports |
C1112-8P and C1111-8P share eight LAN ports, 600 Mbps of IPsec and 1800 Mbps of forwarding, but C1112-8P has a G.FAST DSL port (Annex B) where C1111-8P has a second copper Gigabit WAN port. Sites whose two circuits both arrive as Ethernet or fiber need C1111-8P, since C1112-8P has only one Ethernet WAN port. A G.FAST line provisioned as Annex A calls for C1113-8P, which keeps the same throughput and 4 GB of memory. Branches that need SD-WAN IPsec up to 700 Mbps, 8 GB of DRAM and flash, or a CAT4 LTE USB dongle for backup move to C1121X-8P, which has no DSL port and forwards up to 1600 Mbps.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Standard power adapter |
66W maximum output at 12 VDC; supplies no PoE |
|
PoE option |
ISR-1100-POE4: internal PoE adapter with a 150W power supply, orderable with the router or later as a field-replaceable unit |
|
PoE ports with ISR-1100-POE4 |
4 ports at 802.3af PoE, or 2 ports at 802.3at PoE+ |
|
PoE budget |
Set by port count; no wattage budget is published beyond the 150W supply rating |
|
PoE output voltage |
-53.5 VDC |
|
Endpoint count |
Four 802.3af phones or cameras, or two 802.3at PoE+ access points; the remaining LAN ports carry data only |
Ordering Checklist
- Technology license: IP Base (SL-1100-8P-IPB) is the default; add SL-1100-8P-SEC for zone-based firewall, IPsec VPN and DMVPN, or SL-1100-8P-APP for MPLS and NBAR2. SL-1K licenses fit 112x models, not this router.
- IPsec performance license: Add FL-1100-8P-HSEC to remove the encryption limit, or FL-VPERF-8P-200 for a 250 Mbps ceiling. With SEC alone, tunnels stop at 50 Mbps.
- Software type: The IOS software version and type is a required selection, and the router needs Cisco IOS XE 16.8.1 or later.
- DSL firmware: The xDSL firmware option is a required selection for this DSL model; B2pvfbH043j is the G.FAST Annex B image.
- PoE supply: Add ISR-1100-POE4 when LAN ports must power phones or access points; it replaces the standard 66W adapter with a 150W supply. Without it no LAN port supplies power.
- Rack kit and power cord: Order ACS-1100-RM-19 for rack mounting, because ACS-1100-RM2-19 fits 112x models. The power cord is a required line on every order.
Optional Add-ons
|
Model |
Description |
|---|---|
|
ISR-1100-POE4= |
Internal PoE adapter with 150W power supply for 4 PoE or 2 PoE+ LAN ports |
|
FL-1100-8P-HSEC= |
HSEC license that removes the encrypted throughput limit on ISR 1100 8P models |
|
FL-VPERF-8P-200= |
IPsec performance license adding 200 Mbps on ISR 1100 8P models |
|
SL-1100-8P-SEC= |
Security technology license: zone-based firewall, IPsec VPN, DMVPN, FlexVPN, GETVPN |
|
SL-1100-8P-SECNPE= |
Security license with no payload encryption |
|
SL-1100-8P-APP= |
Application Experience license: MPLS, L2TPv3, VPLS, NBAR2, AVC, PfRv3 |
|
ACS-1100-RM-19= |
Rack-mount kit for 111x models |
|
1000BASE-LX/LH SFP for the combo WAN port, single-mode, DOM | |
|
1000BASE-SX SFP for the combo WAN port, multimode, DOM | |
|
1000BASE-EX SFP for the combo WAN port, single-mode, DOM | |
|
1000BASE-ZX SFP for the combo WAN port, DOM | |
|
10/100/1000BASE-T copper SFP |

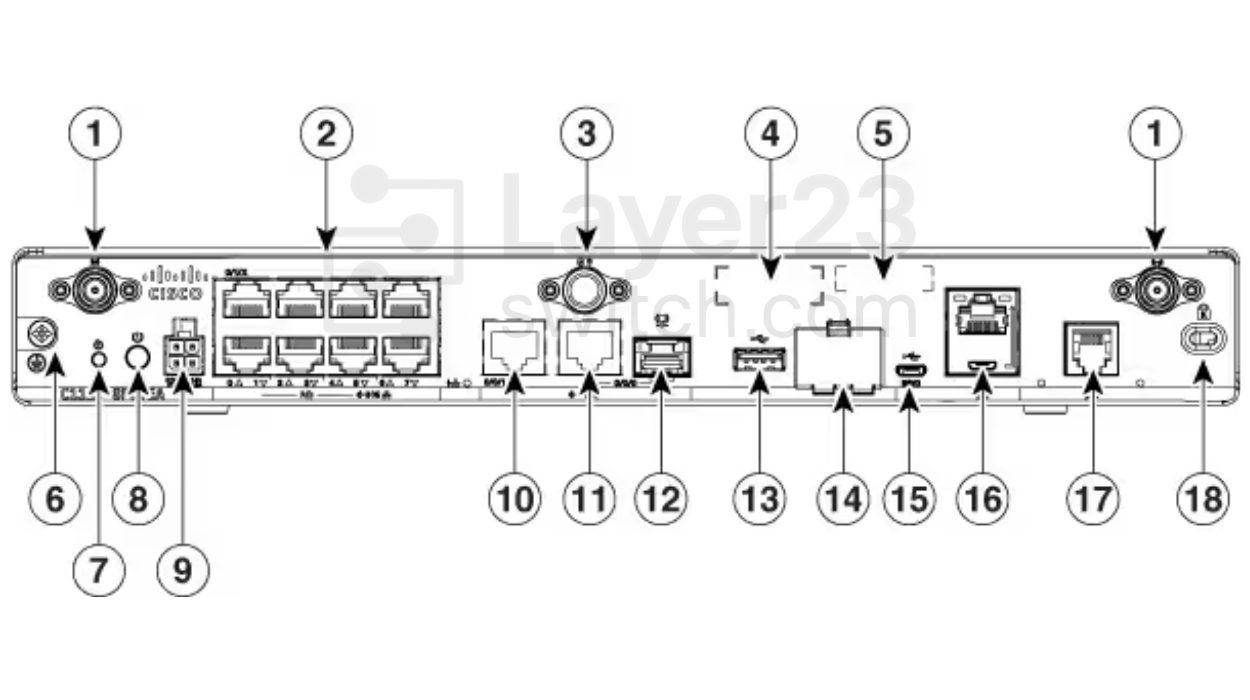

C1121X-8PLTEP Rear Panel
|
1 |
LTE antennas – main and diversity |
2 |
Ethernet switch |
|
3 |
GPS connection |
4 |
CLEI label |
|
5 |
Serial number |
6 |
Grounding |
|
7 |
Reset button |
8 |
Power switch |
|
9 |
4-pin power connector |
10 |
GE 0/0/1 |
|
11 |
GE 0/0/0 – RJ45 |
12 |
GE 0/0/0 – SFP |
|
13 |
USB3.0 |
14 |
Lower slot0Upper slot1 |
|
15 |
LTE provisioning port |
16 |
RJ45/Micro USB console |
|
17 |
DSL |
18 |
Kensington lock slot |
|
19 |
Product Identification Number (PID) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1112-8P | WAN interfaces | 1 x Gigabit Ethernet copper/SFP combo port and 1 x G.FAST DSL port (Annex B) |
| G.FAST | ITU G.9700/9701/997.2; profiles 106a and 106b; spectrum up to 106 MHz | VDSL2 | ITU G.993.2; profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a and 35b |
| ADSL | Compatible with ADSL2/2+ | LAN switch ports | 8 x Gigabit Ethernet (copper) |
| Console port | 1 x Micro-USB/RJ-45 | USB port | 1 x Type A USB 3.0 |
| LTE | Not supported | Embedded access point | Not supported |
| DRAM | 4 GB | Flash | 4 GB |
| IPv4 forwarding throughput (512B) | Up to 1,800 Mbps | IPsec throughput (512B) | Up to 600 Mbps |
| SD-WAN IPsec throughput (512B) | Up to 650 Mbps | SD-WAN Profile: IPsec + QoS + deep packet inspection + Flexible NetFlow (512B) | Up to 250 Mbps |
| SD-WAN overlay tunnels scale | 200 | Number of IPsec SVTI tunnels | 100 |
| Number of ACLs per system | 4K | Number of IPv4 ACEs per system | 10K |
| Number of IPv4 routes | 280K | Number of IPv6 routes | 260K |
| Number of NAT sessions | 100K | Number of VRFs | 1K |
| Default technology package | IP Base (SL-1100-8P-IPB): routing protocols, ACL, NAT, QoS, BFD, VRF Lite, IPSLA responder and initiator | Optional technology licenses | APP (SL-1100-8P-APP), SEC (SL-1100-8P-SEC), SEC-NPE (SL-1100-8P-SECNPE) |
| SEC license IPsec performance | Up to 50 Mbps | VPERF license | FL-VPERF-8P-200; IPsec performance limited to 250 Mbps |
| HSEC license | FL-1100-8P-HSEC; removes the encrypted performance limit; Cisco IOS XE 16.8.1 or later | Software image | Single Universal Cisco IOS XE image; features enabled by right-to-use licenses |
| Management | WebUI without a license; Catalyst SD-WAN Manager (controller mode) or Cisco DNA Center (autonomous mode) | Minimum software release | Cisco IOS XE 16.8.1 |
| DSL firmware | B2pvfbH043j (G.FAST Annex B); B2pv6F039g1.d26d (Annex B and J) | Default power supply | External AC adapter, 66W maximum output |
| AC input voltage | Universal 100 to 240 VAC, 50 to 60 Hz | Output voltage | 12 VDC |
| Default PoE budget | None; the standard 66W adapter carries no PoE | PoE with ISR-1100-POE4 | 150W power supply: 4 PoE ports or 2 PoE+ ports |
| Inline PoE | 802.3af-compliant PoE, 802.3at-compliant PoE+ | PoE output voltage | -53.5 VDC |
| Maximum power consumption (excluding external PS loss) | 35.3W | Operating temperature | 0 to 40°C at sea level; 1°C per 1000 ft derating from 40°C |
| Operating altitude | 0 to 10,000 ft (0 to 3048 m) | Operating humidity | 10% to 85% relative humidity, noncondensing |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | Nonoperating altitude | 0 to 15,000 ft (0 to 4572 m) |
| Nonoperating humidity | 5% to 95% relative humidity, noncondensing | Dimensions (H x W x D) | 1.75 x 12.70 x 9.015 in. |
| Weight | 1.98 kg (4.37 lb) | Rack-mount kit | ACS-1100-RM-19 |
| Compatible SFPs | GLC-EX-SMD, GLC-LH-SM, GLC-LH-SMD, GLC-SX-MM, GLC-SX-MMD, GLC-ZX-SM, GLC-ZX-SMD, GLC-T, GLC-TE | Standard safety certifications | UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1, UL 62368-1, CSA 62368-1, EN 62368-1, IEC 62368-1 |
| EMC emissions | EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, EN61000-6-1 | EMC immunity | EN55024/CISPR24, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11, EN300-386 |
