ISR4331/K9 Description
The ISR4331/K9 is a Cisco ISR 4331 integrated services router from the Cisco 4000 Family for branch offices that combine WAN routing, voice and a service module in a 1RU chassis. The router has three onboard Gigabit Ethernet ports, two NIM slots, one SM-X slot, an ISC voice DSP slot and 4 GB of DRAM, with 100 Mbps of aggregate throughput by default or 300 Mbps under a performance license. Without the HSEC license, encryption stops at 1,000 secure tunnels and 250 Mbps of crypto bandwidth.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Onboard WAN or LAN ports |
3 x 10/100/1000; 2 RJ-45-based and 2 SFP-based |
|
Management port |
1 dedicated Gigabit Ethernet port |
|
Module slots |
2 NIM slots, 1 enhanced SM-X slot and 1 onboard ISC slot |
|
Aggregate throughput |
100 Mbps default; 300 Mbps with FL-4330-PERF-K9 |
|
DRAM |
4 GB, upgradable to 16 GB |
|
Default flash |
4 GB, upgradable to 16 GB |
|
Default power supply model |
PWR-4330-AC internal AC supply; 250W maximum system power |
|
Default PoE budget |
None; the default AC supply carries no PoE |
|
PoE with PWR-4330-POE-AC |
250W for endpoints, 530W platform maximum |
|
Redundant power supply |
Not available |
|
Software modes |
Autonomous or Catalyst SD-WAN controller mode on one universalk9 image from Cisco IOS XE 17.2.1 |
|
Encryption without HSEC |
1,000 secure tunnels and 250 Mbps of crypto bandwidth |
|
Form factor |
1RU, 1.75 x 17.25 x 17.25 in; rack or wall mount |
Product Performance
Key Features
The SM-X slot links to the system at up to 10 Gbps and to the other module slots at 1 Gbps. SM-X-6X1G, for example, adds six routed dual-mode GE/SFP ports to the chassis without taking a NIM slot.
When the design calls for more NIMs than service modules, an optional carrier card converts the SM-X slot into a NIM slot. A console server built on NIM-24A asynchronous modules then holds three of them, 72 serial lines in one chassis.
As shipped, the router forwards 100 Mbps of aggregate traffic. A performance-on-demand license delivered remotely triples that to 300 Mbps on the same hardware, and a separate boost license covers CEF-only forwarding over the onboard ports.
From Cisco IOS XE 17.2.1 the universalk9 image runs the router either in autonomous mode or under Catalyst SD-WAN controllers. Autonomous mode keeps a perpetual license; controller mode uses a term license that must be renewed.
The PoE version of the internal supply sends 802.3af or 802.3at power to integrated switch modules, up to 250W for endpoints. Eight 30W PoE+ endpoints would draw 240W, inside that limit.
The chassis is 1RU high and 17.25 in deep, ships with 19-inch rack brackets and can also be mounted on a wall. Typical sound pressure is 52.8 dBA, with air moving from the I/O side to the bezel side.
Application Scenarios
A branch office with a fiber circuit from one carrier and copper broadband from another terminates both on the router’s onboard Gigabit ports, and the router handles routing, zone-based firewall and IPsec VPN once the security package is licensed.
In a Catalyst SD-WAN deployment, the router joins the overlay in controller mode and forwards branch traffic across the transport circuits under policies pushed from the central controllers.
Offices that keep a local call path use the router as a voice gateway, with CUBE connecting the call controller to a carrier SIP trunk and SRST keeping phones working during a WAN outage. A PVDM4 in the ISC slot supplies the DSP resources for transcoding and conferencing.
Product Comparison
|
Parameter |
ISR4331/K9 |
ISR4321/K9 |
ISR4351/K9 | |
|---|---|---|---|---|
|
Total onboard WAN or LAN 1G ports |
3 (2 RJ-45-based, 2 SFP-based) |
2 (2 RJ-45-based, 1 SFP-based) |
3 (3 RJ-45-based, 3 SFP-based) |
4 (2 RJ-45, 2 SFP) |
|
Aggregate throughput (default) |
100 Mbps |
50 Mbps |
200 Mbps |
Not published |
|
Aggregate throughput (performance license) |
300 Mbps |
100 Mbps |
400 Mbps |
Not published |
|
IPsec throughput (1400 bytes) |
Not published |
Not published |
Not published |
Up to 1 Gbps |
|
Module slots |
2 NIM, 1 SM-X, 1 ISC |
2 NIM, 1 ISC |
3 NIM, 2 SM-X, 1 ISC |
1 NIM, 1 PIM |
|
DRAM |
4 GB (16 GB maximum) |
4 GB (8 GB maximum) |
4 GB (16 GB maximum) |
8 GB (32 GB maximum) |
|
Default power supply |
Internal AC, 250W maximum system power |
External AC, 125W maximum system power |
Internal AC, 430W maximum system power |
PWR-CC1-100WAC 100W AC, integrated |
|
Default PoE budget |
0W |
0W |
0W |
0W |
|
Maximum endpoint PoE |
250W with PWR-4330-POE-AC |
120W with PWR-4320-POE-AC |
500W with PoE power supply |
150W with PWR-CC1-150WAC |
ISR4331/K9 and ISR4351/K9 share three onboard Gigabit ports, but ISR4331/K9 carries two NIM slots and one SM-X slot against three and two, and licenses up to 300 Mbps against 400 Mbps. A branch that needs more than 300 Mbps, a third NIM alongside a service module, or more than 250W of endpoint PoE moves to ISR4351/K9. ISR4321/K9 drops the SM-X slot and the third port and stops at 100 Mbps, which suits sites with no service module and no more than 120W of PoE. C8200-1N-4T brings four onboard ports, 8 GB of DRAM and up to 1 Gbps of IPsec, but only one NIM slot plus a PIM slot. Sites on DC power need ISR4331-DC/K9, which accepts 24 to 60 VDC and supports no PoE.
Ordering Checklist
- Technology package: The base router runs IP Base only; add SL-4330-SEC-K9 for IPsec and zone-based firewall, SL-4330-UC-K9 for CME, SRST and CUBE, or SL-4330-APP-K9 for MPLS and AVC.
- HSEC license: Add FL-4330-HSEC-K9 when the design needs more than 1,000 secure tunnels or more than 250 Mbps of crypto bandwidth. The license requires the security package and has no evaluation period.
- Performance license: Order FL-4330-PERF-K9 when the branch needs more than 100 Mbps of aggregate throughput. The license raises the ceiling to 300 Mbps; without it the router stays at 100 Mbps.
- Memory and flash: MEM-4300-4GU8G or MEM-4300-4GU16G takes DRAM from 4 GB to 8 GB or 16 GB, and MEM-FLSH-4U8G or MEM-FLSH-4U16G takes flash from 4 GB to 8 GB or 16 GB.
- PoE power supply: Order PWR-4330-POE-AC when integrated switch modules must power endpoints. The standard AC supply delivers no PoE.
- Mounting kit: 19-inch rack brackets ship with the router; add ACS-4330-RM-23= for a 23-inch rack or ACS-4330-WM= for wall installation.
Optional Add-ons
|
Model |
Description |
|---|---|
|
PWR-4330-POE-AC |
AC power supply with PoE for the ISR 4330; up to 250W of endpoint PoE |
|
PWR-4330-AC |
AC power supply for the ISR 4330 |
|
MEM-4300-4GU8G |
DRAM upgrade from 4 GB to 8 GB (4G+4G) for the ISR 4330 and ISR 4350 |
|
MEM-4300-4GU16G |
DRAM upgrade from 4 GB to 16 GB (8G+8G) for the ISR 4330 and ISR 4350 |
|
MEM-FLSH-4U8G |
eUSB flash upgrade from 4 GB to 8 GB for the ISR 4300 |
|
MEM-FLSH-4U16G |
eUSB flash upgrade from 4 GB to 16 GB for the ISR 4350 and ISR 4330 |
|
FL-4330-PERF-K9 |
Performance license raising aggregate throughput from 100 Mbps to 300 Mbps |
|
FL-4330-BOOST-K9 |
Boost performance license for CEF-only forwarding on the ISR 4330 |
|
FL-4330-HSEC-K9 |
HSEC export compliance license for the ISR 4330 |
|
SL-4330-SEC-K9 |
Security technology package license |
|
SL-4330-UC-K9 |
Unified Communications technology package license |
|
SL-4330-APP-K9 |
Application Experience technology package license |
|
32-channel voice DSP module for the onboard ISC slot | |
|
64-channel voice DSP module for the onboard ISC slot | |
|
6-port dual-mode GE/SFP service module for the SM-X slot | |
|
24-port asynchronous serial NIM | |
|
ACS-4330-RM-23= |
23-inch rack kit for the ISR 4330 |
|
ACS-4330-WM= |
Wall mount kit for the ISR 4330 |
|
ACS-4330-FANASSY= |
Fan assembly for the ISR 4330 |
Front View
|
1 |
USB Type B mini port |
2 |
Serial console port |
|
3 |
AUX port |
4 |
USB Type A port |
|
5 |
Management port |
6 |
LEDs |
|
7 |
AC Power |
|
|

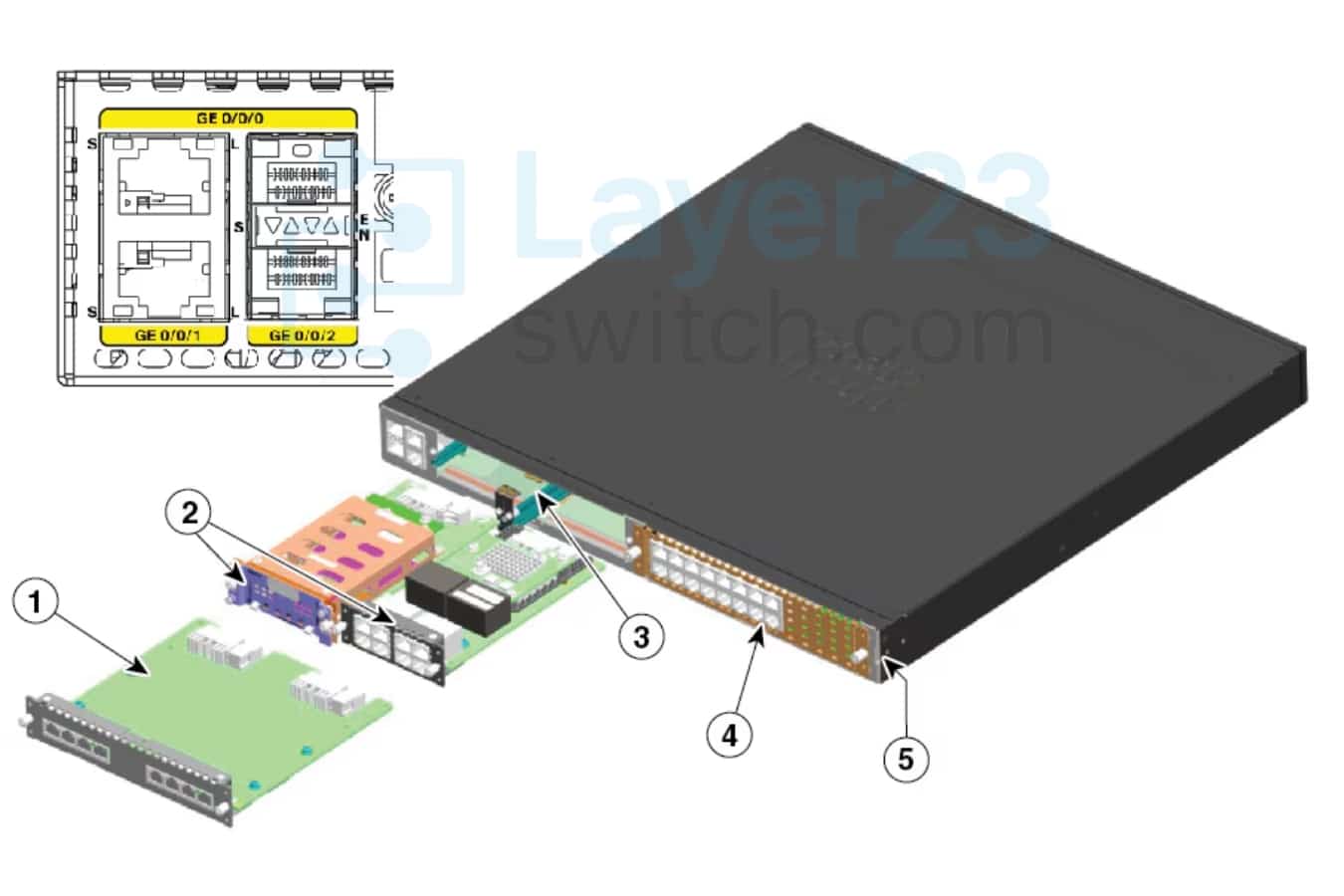

Rear View
|
1 |
Double-wide NIM |
2 |
NIMs |
|
3 |
Removable module slot divider |
4 |
SM-X slot |
|
5 |
Ground connection |
|
|
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | ISR4331/K9 | Rack height | 1RU |
| Total onboard WAN or LAN 10/100/1000 ports | 3 | RJ-45-based ports | 2 |
| SFP-based ports | 2 | Total onboard WAN or LAN 10Gbps ports | 0 |
| Dual-mode port behavior | An SFP port shares the physical port of the same-numbered RJ-45 port; one medium at a time | RJ-45 port standards | 10BASE-T, 100BASE-TX, 1000BASE-T |
| SFP port modules | 1000BASE-LX/LH, SX, ZX, CWDM and 100 Mbps SFP modules | Management port | 1 dedicated Gigabit Ethernet port |
| NIM slots | 2, with a removable slot divider for a double-wide NIM | Enhanced service-module slots | 1 |
| Double-wide service-module slots | 0 | Onboard ISC slot | 1, for PVDM4 voice DSP modules |
| OIR (all I/O modules) | Yes | Aggregate throughput (default) | 100 Mbps |
| Aggregate throughput (performance license) | 300 Mbps with FL-4330-PERF-K9 | Default memory DRAM | 4 GB |
| Maximum memory DRAM | 16 GB | Flash | 4 GB |
| Maximum flash memory | 16 GB | External USB 2.0 slots (type A) | 1 |
| USB console port (type B mini) | 1 | Serial console port (RJ-45) | 1 |
| Serial auxiliary port (RJ-45) | 1 | Power-supply options | Internal AC and PoE |
| Default power supply model | PWR-4330-AC, internal AC | Default PoE budget | None; the default AC supply carries no PoE |
| Redundant power supply | Not available | AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz | AC input current range | 3 to 1.3 A |
| Typical power (no modules) | 42W | Maximum power with AC power supply | 250W |
| Maximum power with PoE power supply (platform only) | 530W | Maximum endpoint PoE power from PoE power supply | 250W |
| PoE standards from the PoE power supply | 802.3af PoE and 802.3at PoE+ to integrated switch modules | Dimensions (H x W x D) | 1.75 x 17.25 x 17.25 in (44.45 x 438.15 x 438.15 mm) |
| Rack-mount 19 in. EIA | Included | Rack-mount 23 in. EIA | Optional |
| Wall-mount | Supported | Weight with AC PS (no modules) | 6.2 kg (13.5 lb) |
| Weight with AC PS with PoE | 6.4 kg (14.1 lb) | Typical weight (fully loaded with modules) | 7.3 kg (16.1 lb) |
| Airflow | I/O side to bezel side | MTBF | 587,250 hours |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | Storage temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative humidity | 5% to 85% operating; 5% to 95% nonoperating | Operating altitude | 0 to 3,050 m (10,000 ft); 0 to 2,000 m (6,560 ft) in China |
| Sound pressure (typical/maximum) | 52.8/74.8 dBA | Sound power (typical/maximum) | 61.2/81.6 dBA |
| Safety certifications | UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1 | EMC certifications | ICES-003 Class A, EN55032 Class A, CISPR32 Class A, AS/NZS CISPR 32 Class A, VCCI V-3, CNS 13438, EN 300-386, EN 55024, CISPR 24 |
| Software image | universalk9; autonomous and Catalyst SD-WAN controller mode from Cisco IOS XE 17.2.1 | Technology packages | IP Base by default; Security, Unified Communications and Application Experience by license |
| Crypto limits without HSEC | 1,000 secure tunnels and 250 Mbps of crypto bandwidth |
