ISR4451-X/K9 Description
The ISR4451-X/K9 is a Cisco ISR 4451-X modular router from the Cisco 4000 Family Integrated Services Routers for large branch WAN edges that run service modules. Four onboard 1G ports each take an RJ-45 or SFP connection, and the chassis adds three NIM slots, two SM-X slots, 4 GB of control-plane DRAM and 1 Gbps of aggregate throughput that a performance license raises to 2 Gbps. Without an HSEC license, encryption stops at 1,000 secure tunnels and 250 Mbps, and none of the onboard ports runs at 10G.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Onboard WAN or LAN ports |
4 x 10/100/1000; each port runs as RJ-45 or SFP, one at a time |
|
Management port |
1 dedicated Gigabit Ethernet port |
|
Module slots |
3 NIM, 2 SM-X (or 1 double-wide SM-X) and 1 onboard ISC slot |
|
Aggregate throughput |
1 Gbps default; 2 Gbps with FL-44-PERF-K9 |
|
DRAM |
2 GB data plane; 4 GB control plane, upgradable to 16 GB |
|
Flash |
8 GB CompactFlash, upgradable to 32 GB |
|
Default power supply |
PWR-4450-AC 450W AC; second bay for a redundant supply |
|
Default PoE budget |
None; PWR-4450-AC provides no PoE |
|
Endpoint PoE with PoE supply |
500W with PoE redundancy; 950W with PoE boost and no redundancy |
|
Front-panel PoE+ |
GE 0/0/0 and GE 0/0/1, 30.8W total |
|
Encryption without HSEC |
1,000 secure tunnels and 250 Mbps |
|
Software modes |
Autonomous or Catalyst SD-WAN controller mode on one universalk9 image from Cisco IOS XE 17.2.1 |
|
Form factor |
2RU, 3.5 x 17.25 x 18.5 in |
Product Performance
Key Features
Each SM-X slot links to the system at up to 10 Gbps, and the pair can hold one double-wide module instead. Cisco UCS E-Series server modules fit these slots and bring branch applications onto the router itself. With a carrier card, an SM-X slot becomes an extra NIM slot.
Each of the three NIM slots has two 2 Gbps links, one to the route processor and one for module-to-module traffic, and I/O modules can be swapped while the router runs. Voice DSP capacity sits on a PVDM4 in the internal ISC slot, which leaves all three NIM slots for interfaces.
The router forwards 1 Gbps of aggregate traffic as shipped. FL-44-PERF-K9, delivered remotely, doubles that to 2 Gbps with no hardware change, and FL-44-BOOST-K9 applies to plain CEF routing over the onboard ports.
PWR-4450-AC ships in one bay at 450W, and the second bay takes another AC, DC or PoE supply for redundancy. A site on DC power uses PWR-4450-DC, which accepts 48 to 60 VDC.
With PWR-4450-POE-AC installed, the router delivers 500W of endpoint PoE with supply redundancy, or 950W with PoE boost and no redundancy. Separately, GE 0/0/0 and GE 0/0/1 offer 802.3at PoE+ from an internal daughter card that shares 30.8W across the two ports.
Within the ISR 4000 family, VXLAN in the AX feature set runs only on the ISR 4451. OTV is also limited to this model, and only on links below 100 Mbps.
Application Scenarios
A regional office terminates two carrier circuits on the onboard Gigabit ports, using SFP optics for a fiber handoff and RJ-45 for a copper one, while an LTE Advanced NIM adds a cellular path.
In a Catalyst SD-WAN rollout, the router joins the overlay in controller mode, which runs from the same universalk9 image as autonomous routing on Cisco IOS XE 17.2.1 and later.
Branch sites that keep a few local applications can host them on a UCS E-Series server module in an SM-X slot, with the router handling WAN routing in the same chassis.
Product Comparison
|
Parameter |
ISR4451-X/K9 |
ISR4461/K9 |
ISR4431/K9 | |
|---|---|---|---|---|
|
Onboard WAN or LAN ports |
4 x 1G (RJ-45 or SFP) |
4 x 1G (RJ-45 or SFP), 2 x 10G |
4 x 1G (RJ-45 or SFP) |
2 x 1G SFP, 4 x 1G RJ-45 |
|
SD-WAN IPsec throughput (1400 bytes) |
Not published |
Not published |
Not published |
Up to 2 Gbps |
|
Aggregate throughput (default) |
1 Gbps |
1.5 Gbps |
500 Mbps |
Not published |
|
Aggregate throughput (performance license) |
2 Gbps |
3 Gbps |
1 Gbps |
Not published |
|
Module slots |
3 NIM, 2 SM-X, 1 ISC |
3 NIM, 3 SM-X, 1 ISC |
3 NIM, 1 ISC |
2 NIM, 2 SM, 1 PIM |
|
DRAM |
2 GB data plane; 4 GB control plane, 16 GB maximum |
4 GB data plane; control plane up to 32 GB |
2 GB data plane; 4 GB control plane, 16 GB maximum |
8 GB |
|
Default power supply |
PWR-4450-AC 450W AC |
Not published |
Not published |
2 x PWR-CC1-650WAC 650W AC |
|
Default PoE budget |
0W (PWR-4450-AC) |
Not published |
Not published |
0W (PWR-CC1-650WAC) |
|
Maximum endpoint PoE |
500W redundant; 950W with PoE boost |
500W redundant; 950W with PoE boost |
250W redundant; 500W with PoE boost |
500W with PWR-CC1-1000WAC |
ISR4451-X/K9 and ISR4461/K9 share three NIM slots and the same 950W endpoint PoE ceiling, but ISR4461/K9 adds two 10G ports and a third SM-X slot and forwards 1.5 Gbps by default and 3 Gbps licensed against 1 Gbps and 2 Gbps. A site with 10G circuits, or traffic above 2 Gbps, needs ISR4461/K9. ISR4431/K9 keeps the four 1G ports and three NIM slots but has no SM-X slot and tops out at 1 Gbps, so it suits branches that run no service modules. C8300-2N2S-6T is the Catalyst 8300 option with six 1G ports, a PIM slot and up to 2 Gbps of SD-WAN IPsec, at the cost of one NIM slot. Up to 2 Gbps, FL-44-PERF-K9 keeps ISR4451-X/K9 in place.
Ordering Checklist
- Technology package: The base router runs IP Base; add SL-44-SEC-K9 for IPsec and firewall, SL-44-UC-K9 for voice or SL-44-APP-K9 for MPLS and AVC. The base image activates only IP Base.
- HSEC license: Add FL-44-HSEC-K9 when the design needs more than 1,000 secure tunnels or 250 Mbps of encryption. It requires the security package and has no evaluation period.
- Performance license: Order FL-44-PERF-K9 when the site needs 2 Gbps of aggregate throughput. Without it the router stays at 1 Gbps.
- Memory and flash: MEM-4400-4GU8G or MEM-4400-4GU16G takes control-plane DRAM from the default 4 GB to 8 GB or 16 GB. MEM-FLASH-8U16G or MEM-FLASH-8U32G takes flash from 8 GB to 16 GB or 32 GB.
- Second power supply: Add PWR-4450-AC/2 for AC redundancy, or PWR-4450-POE-AC with PWR-4450-POE-AC/2 when endpoint PoE is needed. An empty bay takes PWR-COVER-4450=.
Optional Add-ons
|
Model |
Description |
|---|---|
|
PWR-4450-AC/2 |
Secondary 450W AC power supply for redundancy |
|
PWR-4450-DC |
DC power supply for the ISR 4450 and ISR 4350 |
|
PWR-4450-POE-AC |
1000W AC power supply with PoE module |
|
PWR-4450-POE-AC/2 |
Secondary 1000W AC power supply with PoE module |
|
PWR-GE-POE-4400 |
PoE module for the onboard GE ports |
|
PWR-COVER-4450= |
Cover for an empty power supply bay |
|
MEM-4400-4GU8G |
Control-plane DRAM upgrade from 4 GB to 8 GB (4 GB + 4 GB) |
|
MEM-4400-4GU16G |
Control-plane DRAM upgrade from 4 GB to 16 GB (8 GB + 8 GB) |
|
MEM-FLASH-8U16G |
CompactFlash upgrade from 8 GB to 16 GB |
|
MEM-FLASH-8U32G |
CompactFlash upgrade from 8 GB to 32 GB |
|
FL-44-PERF-K9 |
Performance license raising aggregate throughput from 1 Gbps to 2 Gbps |
|
FL-44-BOOST-K9 |
Boost license for CEF-only forwarding on the ISR 4450 series |
|
FL-44-HSEC-K9 |
HSEC export compliance license for the ISR 4400 series |
|
SL-44-SEC-K9 |
Security technology package license |
|
SL-44-UC-K9 |
Unified Communications technology package license |
|
SL-44-APP-K9 |
Application Experience technology package license |
|
64-channel voice DSP module for the onboard ISC slot | |
|
Six-port dual-mode GE/SFP service module for an SM-X slot | |
|
One-port dual-mode GE/SFP NIM | |
|
NIM-LTEA-EA |
LTE Advanced Cat 6 NIM for the Americas, Europe and the Middle East |
|
NIM-SSD |
NIM carrier card for two hot-swappable SATA SSDs |
|
ACS-4450-RM-23= |
23-inch rack-mount kit |
|
ACS-4450-FANASSY= |
Spare fan assembly |

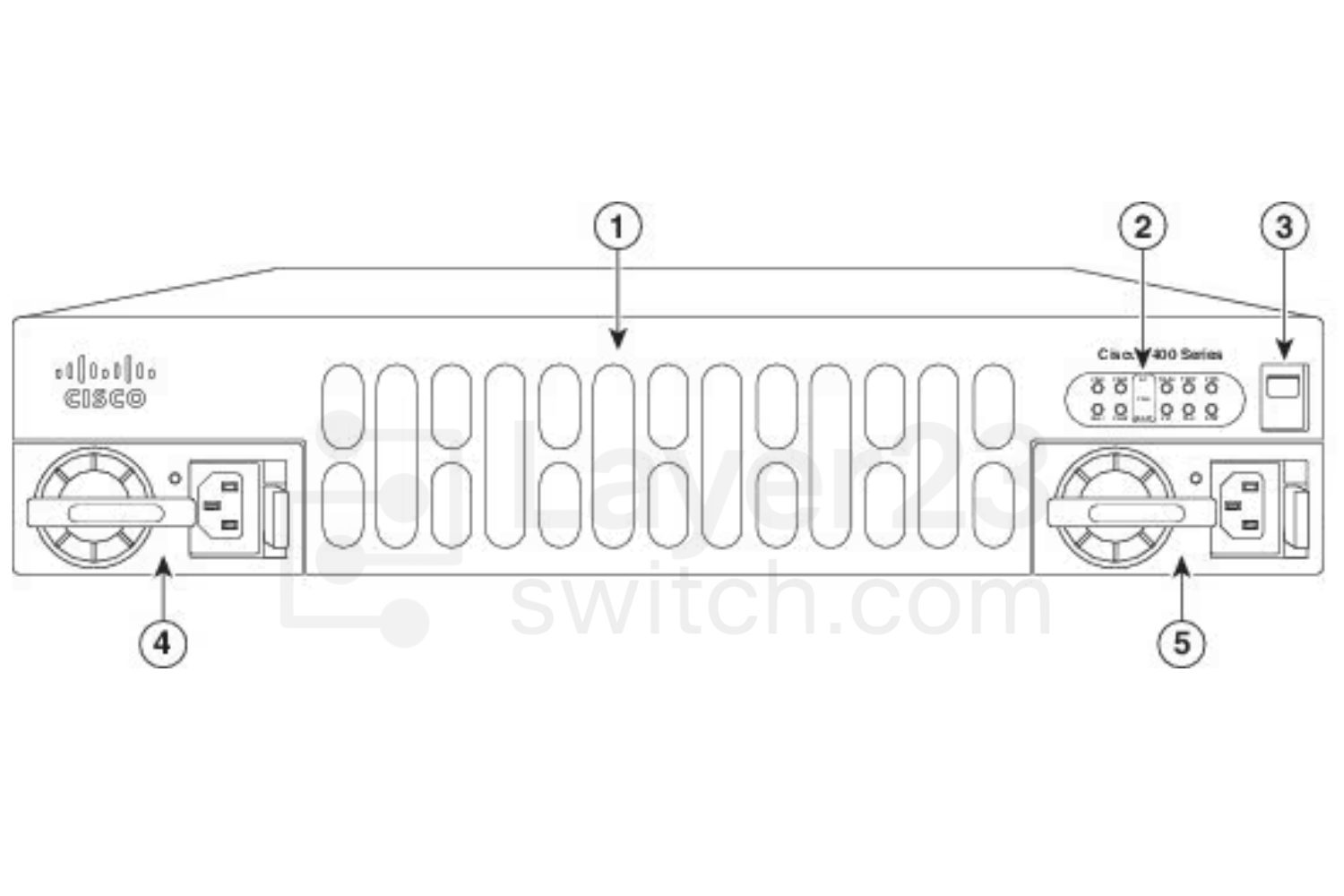

Front View
|
1 |
Router fan tray (hidden) behind removable bezel |
2 |
LEDs |
|
3 |
Router power On/Off switch |
4 |
AC power supply unit (PSU0) |
|
5 |
AC power supply unit (PSU1) |
|
|
|

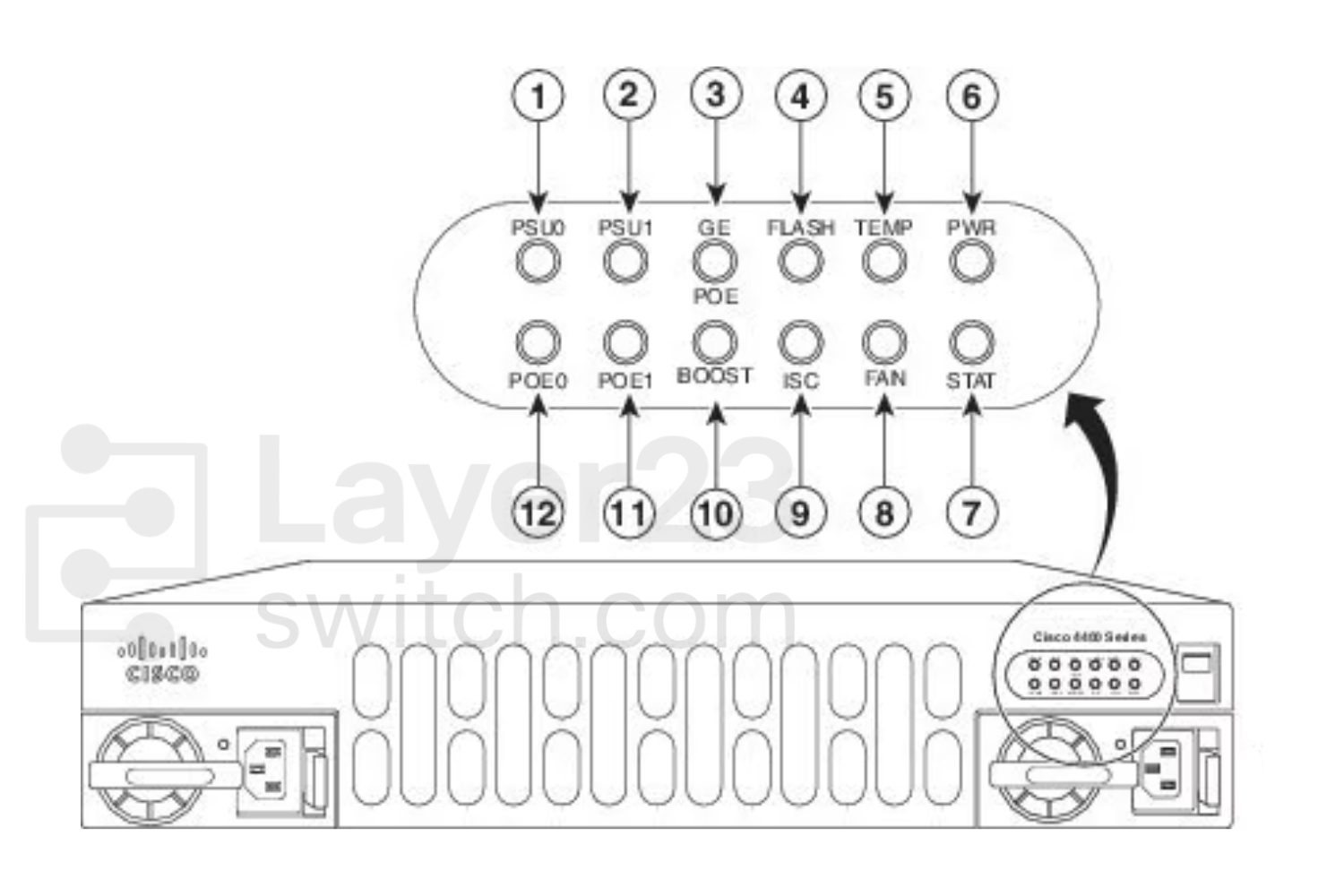

1 |
PSU0: Power supply unit 1 |
2 |
PSU1: Power supply unit 2 |
|
3 |
GE POE: Internal PoE daughter card status |
4 |
FLASH: Compact flash status |
|
5 |
TEMP: Temperature status |
6 |
PWR: Power |
|
7 |
STAT: System status |
8 |
FAN: Fan status |
|
9 |
ISC: Integrated Services Card status |
10 |
POE BOOST: Power over Ethernet boost mode |
|
11 |
POE 1: Power over Ethernet 1status |
12 |
POE 0: Power over Ethernet 0 status |

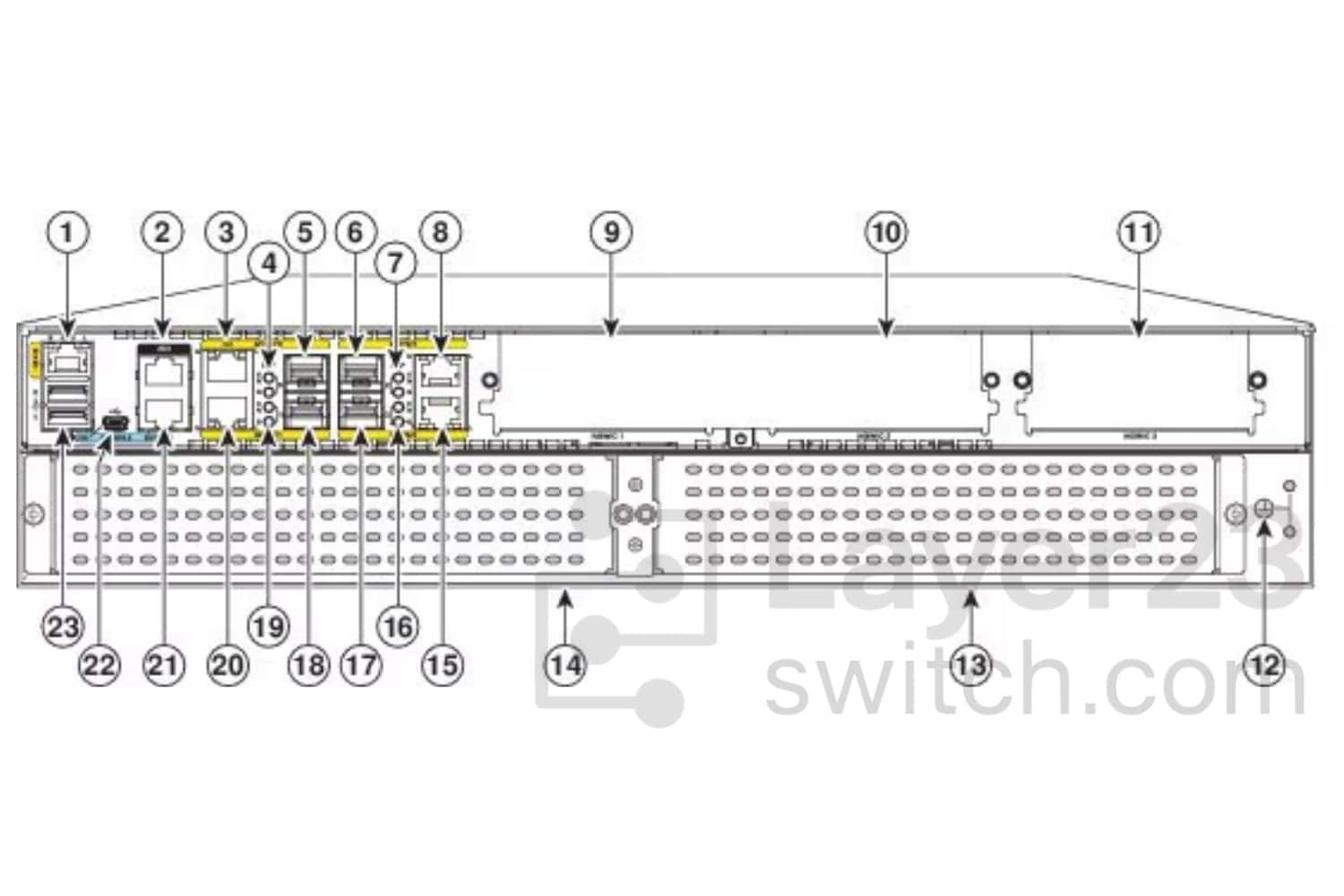

Rear View
|
1 |
GE 0 management port |
2 |
Auxiliary port |
|
3 |
RJ-45 Gigabit Ethernet port (GE 0/0/0) |
4 |
LEDs for the GE 0/0/0 interface (See Table 1-1 for detailed LED information) |
|
5 |
SFP/Gigabit Ethernet port (GE 0/0/0) |
6 |
SFP/Gigabit Ethernet port (GE 0/0/2) |
|
7 |
LEDs for the GE 0/0/2 interface |
8 |
RJ-45 Gigabit Ethernet port (GE 0/0/2) |
|
9 |
NIM slot 1 (shown with slot divider removed). |
10 |
NIM slot 2 (shown with slot divider removed). |
|
11 |
NIM slot 3 |
12 |
Ground connection |
|
13 |
Enhanced Service Module (SM-X) 2 |
14 |
Enhanced Service Module (SM-X) 1 |
|
15 |
RJ-45 Gigabit Ethernet port GE 0/0/3 |
16 |
LEDs for the GE 0/0/3 interface |
|
17 |
SFP/Gigabit Ethernet GE 0/0/3 |
18 |
SFP Gigabit Ethernet GE 0/0/1 |
|
19 |
LEDs for the GE 0/0/1 interface |
20 |
RJ-45 Gigabit Ethernet port GE 0/0/1 |
|
21 |
Serial console port |
22 |
USB Type B mini port |
|
23 |
USB 0 and USB 1 |
|
|
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | ISR4451-X/K9 | Rack height | 2RU |
| Total onboard WAN or LAN 10/100/1000 ports | 4 | RJ-45-based ports | 4 |
| SFP-based ports | 4, each sharing a physical port with the same-numbered RJ-45 port | Total onboard WAN or LAN 10Gbps ports | 0 |
| RJ-45 port standards | 10BASE-T, 100BASE-TX, 1000BASE-T | SFP port modules | 1000BASE-LX/LH, SX, ZX, CWDM and 100 Mbps SFP modules |
| Management port | 1 dedicated Gigabit Ethernet port (GE0) | NIM slots | 3 |
| Enhanced service-module (SM-X) slots | 2 | Double-wide service-module slots | 1, with no single-wide SM-X modules installed |
| Onboard ISC slot | 1, for PVDM4 voice DSP modules | UCS E-Series server modules | Supported |
| OIR (all I/O modules) | Yes | Aggregate throughput (default) | 1 Gbps |
| Aggregate throughput (performance license) | 2 Gbps with FL-44-PERF-K9 | Default memory DRAM (data plane) | 2 GB |
| Maximum memory DRAM (data plane) | 2 GB | Default memory DRAM (control/services plane) | 4 GB |
| Maximum memory DRAM (control/services plane) | 16 GB | Flash | 8 GB internal CompactFlash |
| Maximum flash memory | 32 GB | External USB 2.0 slots (type A) | 2 |
| USB console port (type B mini) | 1 | Serial console port (RJ-45) | 1 |
| Serial auxiliary port (RJ-45) | 1 | Default power supply | PWR-4450-AC 450W AC |
| Power-supply options | Internal AC, DC and PoE | Redundant power supply | Internal AC, DC or PoE second supply |
| AC input voltage | 100 to 240 VAC autoranging | AC input frequency | 47 to 63 Hz |
| AC input current range | 7.1 to 3.0 A | DC input voltage | 48 to 60 VDC, 12 A maximum |
| Maximum power with AC power supply | 450W (no PoE) | Maximum power with DC power supply | 437W (no PoE) |
| Maximum PoE platform power | 1000W with PoE redundancy; 1450W with PoE boost and no redundancy | Maximum endpoint PoE | 500W with PoE redundancy; 950W with PoE boost and no redundancy |
| Front-panel PoE+ ports | GE 0/0/0 and GE 0/0/1, 802.3at, 30.8W total from the internal PoE daughter card | Typical power (no modules) | 158W |
| Dimensions (H x W x D) | 3.5 x 17.25 x 18.5 in (88.9 x 438.15 x 469.9 mm) | Rack-mount 19 in. EIA | Included |
| Rack-mount 23 in. | Optional | Wall-mount | Not supported |
| Weight with AC PS (no modules) | 13.1 kg (28.8 lb) with 450W AC power supply | Weight with PoE PS | 13.9 kg (30.6 lb) with 1000W AC power supply and one PoE module |
| Typical weight (fully loaded with modules) | 19.4 kg (42.7 lb) | Airflow | I/O side to bezel side |
| MTBF | 480,770 hours | Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | -40°C to 70°C (-40°F to 158°F) | Relative humidity | 5% to 85% operating; 5% to 95% nonoperating |
| Operating altitude | 0 to 3,050 m (10,000 ft); 0 to 2,000 m (6,560 ft) in China | Sound pressure (typical/maximum) | 50.6/73.1 dBA |
| Sound power (typical/maximum) | 58.2/78.8 dBA | Safety certifications | UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1 |
| EMC certifications | ICES-003 Class A, EN55032 Class A, CISPR32 Class A, AS/NZS CISPR 32 Class A, VCCI V-3, CNS 13438, EN 300-386, EN 55024, CISPR 24 | Software image | universalk9; autonomous and Catalyst SD-WAN controller mode from Cisco IOS XE 17.2.1 |
| Technology packages | IP Base by default; Security, Unified Communications and Application Experience by license | Crypto limits without HSEC | 1,000 secure tunnels and 250 Mbps of crypto bandwidth |
