C9800-80-K9 Description

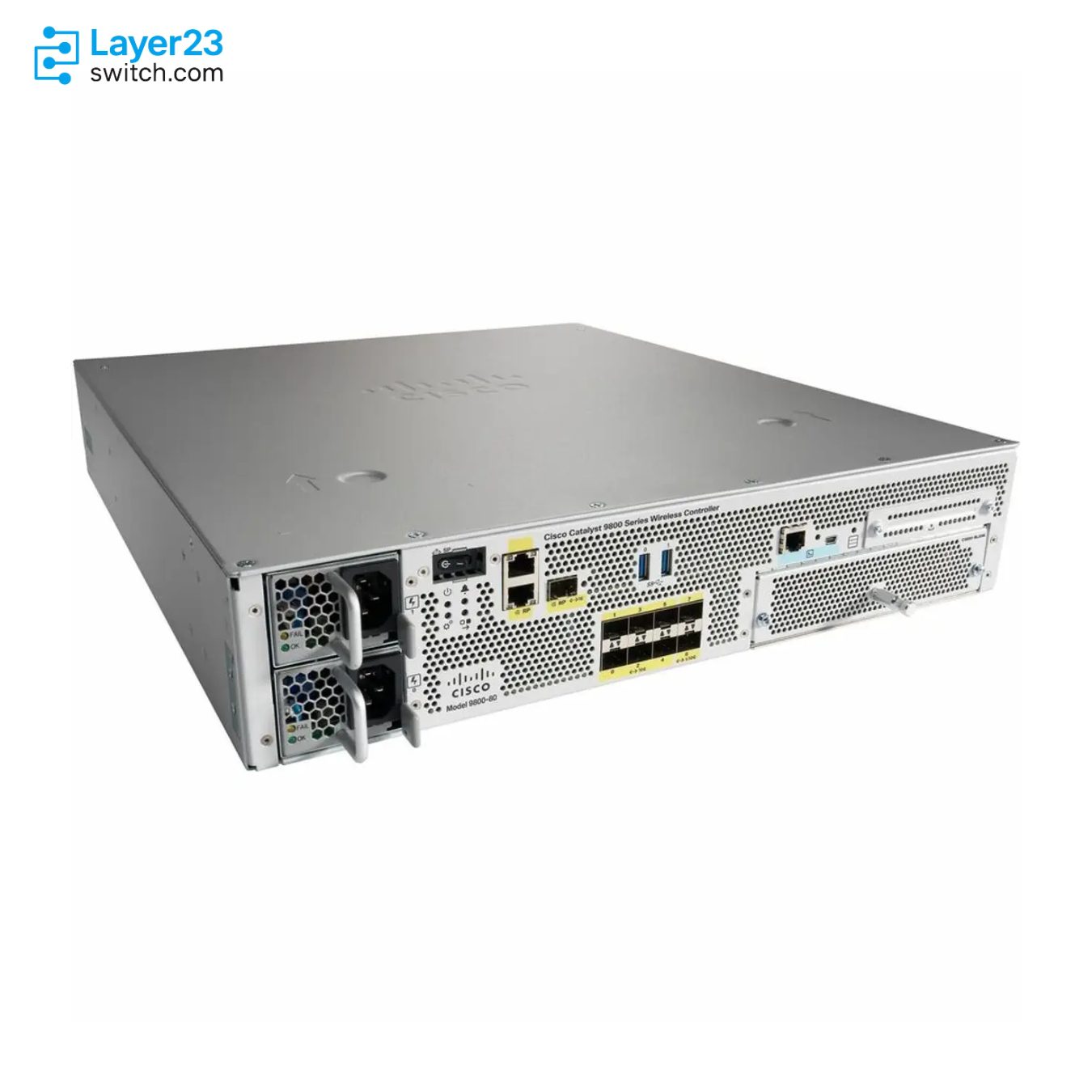

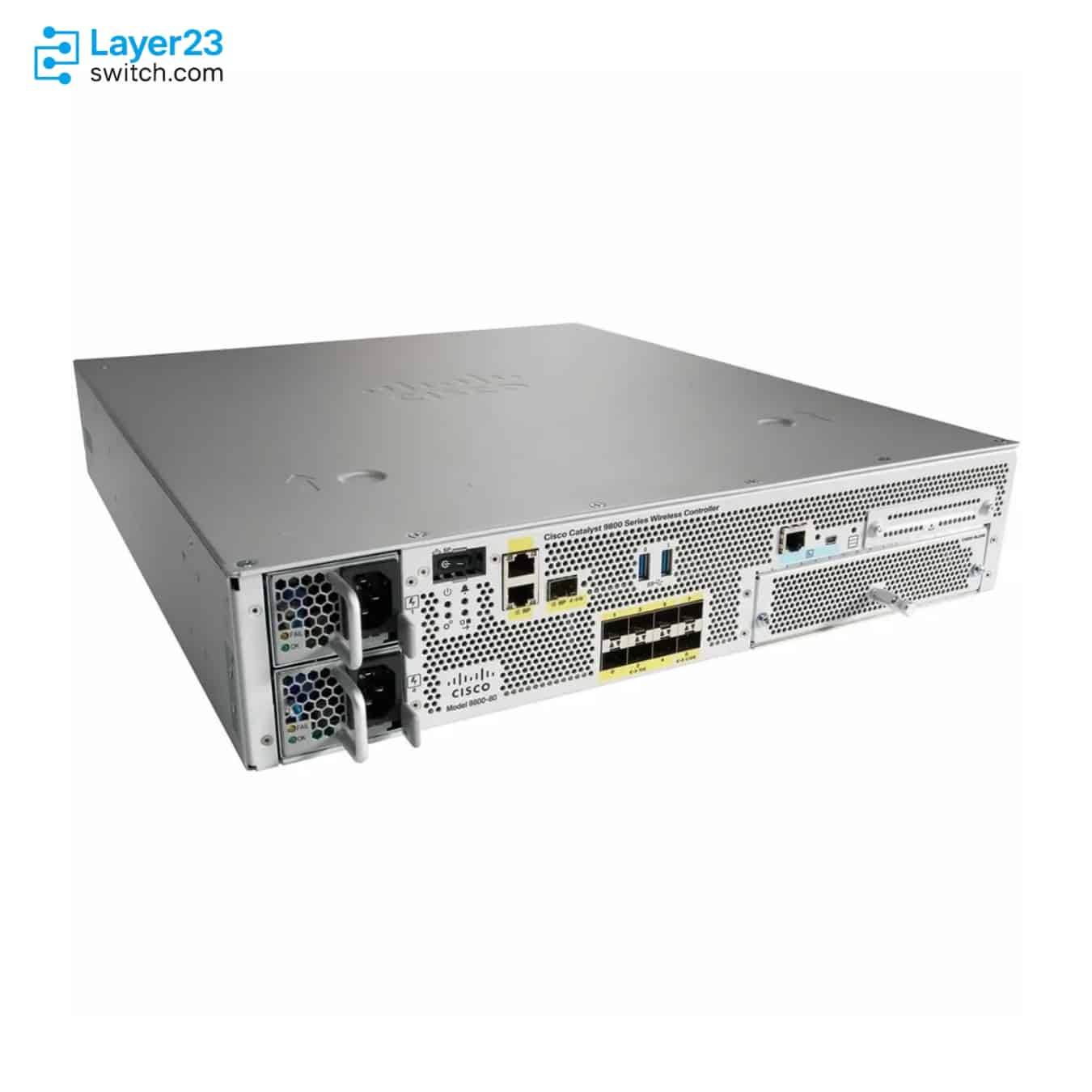

The C9800-80-K9 is a Cisco Catalyst 9800-80 wireless controller for large campus and distributed WLANs. The 2RU controller manages up to 6000 access points and 64,000 clients at up to 80 Gbps, with eight 10G SFP+ uplinks and optional 10G, 40G or 100G uplink modules. The controller boots without a license, but every access point it connects needs a Cisco DNA subscription under Smart Licensing.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9800-80-K9 |
|
Product type |
Catalyst 9800-80 wireless controller appliance |
|
Controller scale |
Up to 6000 access points and 64,000 clients |
|
Maximum throughput |
Up to 80 Gbps |
|
Fixed uplinks |
8x 10G or 6x 10G plus 2x 1G SFP+/SFP |
|
Optional modular uplinks |
10G, 40G, and 100G module options supported |
|
Deployment modes |
Centralized, Cisco FlexConnect, and Fabric Wireless (SD-Access) |
|
Form factor |
2RU appliance |
|
Operating system |
Cisco IOS XE |
|
Minimum software release |
Cisco IOS XE Software Release 16.10.1 |
|
Licensing |
Smart License enabled with Cisco DNA subscriptions for access points |
Product Performance
Application Scenarios
At a university or corporate campus, the controller terminates thousands of access points and tens of thousands of clients from a central data center rack.
In a Cisco SD-Access network, the controller runs Fabric Wireless so access points in many buildings share one policy and segmentation design.
For a retailer or healthcare group with distributed branches, the controller manages Cisco FlexConnect sites of up to 100 access points each from one location.
Product Comparison
|
Parameter |
C9800-80-K9 |
C9800-CL-K9 | |
|---|---|---|---|
|
Form factor |
2RU appliance |
1RU appliance |
Virtual machine on VMware ESXi, KVM, Hyper-V or Cisco NFVIS, or public cloud |
|
Maximum number of access points supported |
6000 |
2000 |
100 / 1000 / 3000 / 6000 (Ultra-low / Small / Medium / Large) |
|
Maximum number of clients supported |
64,000 |
32,000 |
1000 / 10,000 / 32,000 / 64,000 (Ultra-low / Small / Medium / Large) |
|
Maximum throughput |
80 Gbps |
40 Gbps |
2.1 Gbps (low profile without SR-IOV) / 5 Gbps (high profile with SR-IOV) |
|
Fixed uplink ports |
8 x 10G SFP+ (or 6 x 10G + 2 x 1G SFP/SFP+) |
4 x 10G/1G SFP+/SFP |
None (virtual interfaces on the host) |
|
Number of WLANs |
4096 |
4096 |
4096 |
|
Number of site tags |
6000 |
2000 |
100 / 1000 / 3000 / 6000 |
C9800-80-K9 is the 2RU appliance in this group and is separated from C9800-40-K9 by scale: it manages up to 6000 access points and 64000 clients at up to 80 Gbps, against 2000 access points, 32000 clients and 40 Gbps on the 1RU C9800-40-K9. Sites above 2000 access points, or with more than 32000 clients, need C9800-80-K9 rather than C9800-40-K9. C9800-80-K9 also brings eight fixed 10G ports where C9800-40-K9 has four, so a controller that must terminate more 10G links in one chassis points to C9800-80-K9. C9800-CL-K9 runs as a virtual machine with no physical ports and is sized by profile, from 100 up to 6000 access points and 5 Gbps at most, so a design that has to run on a hypervisor or public cloud uses C9800-CL-K9, while a hardware controller above 5 Gbps stays with C9800-80-K9.
Ordering Checklist
- Uplink module: Add an optional hot-swappable module: C9800-18X1GE=, C9800-1X40GE=, C9800-2X40GE= or C9800-1X100GE=. The module is a separate line in the ordering table and is not part of C9800-80-K9.
- Power supply type: Order C9800-AC-1100W= for AC or C9800-DC-950W= for DC, with the second supply of the same type. Redundancy works only between power supplies of the same type.
- Redundancy port optic: Order GLC-SX-MMD or GLC-LH-SMD for the 1G SFP redundancy port. Only these two SFPs are supported in the SSO redundancy port.
- Access point subscription: Order a Cisco DNA Essentials or Advantage term of 3, 5 or 7 years for each access point, tied to a Smart Account. The controller starts without a license, but each connected access point needs a subscription, and Advantage is the default.
- DTLS license: Add LIC-C9800-DTLS-K9 to the order if DTLS encryption is required. The Catalyst 9800 Series DTLS License is a separate line item in the ordering table.

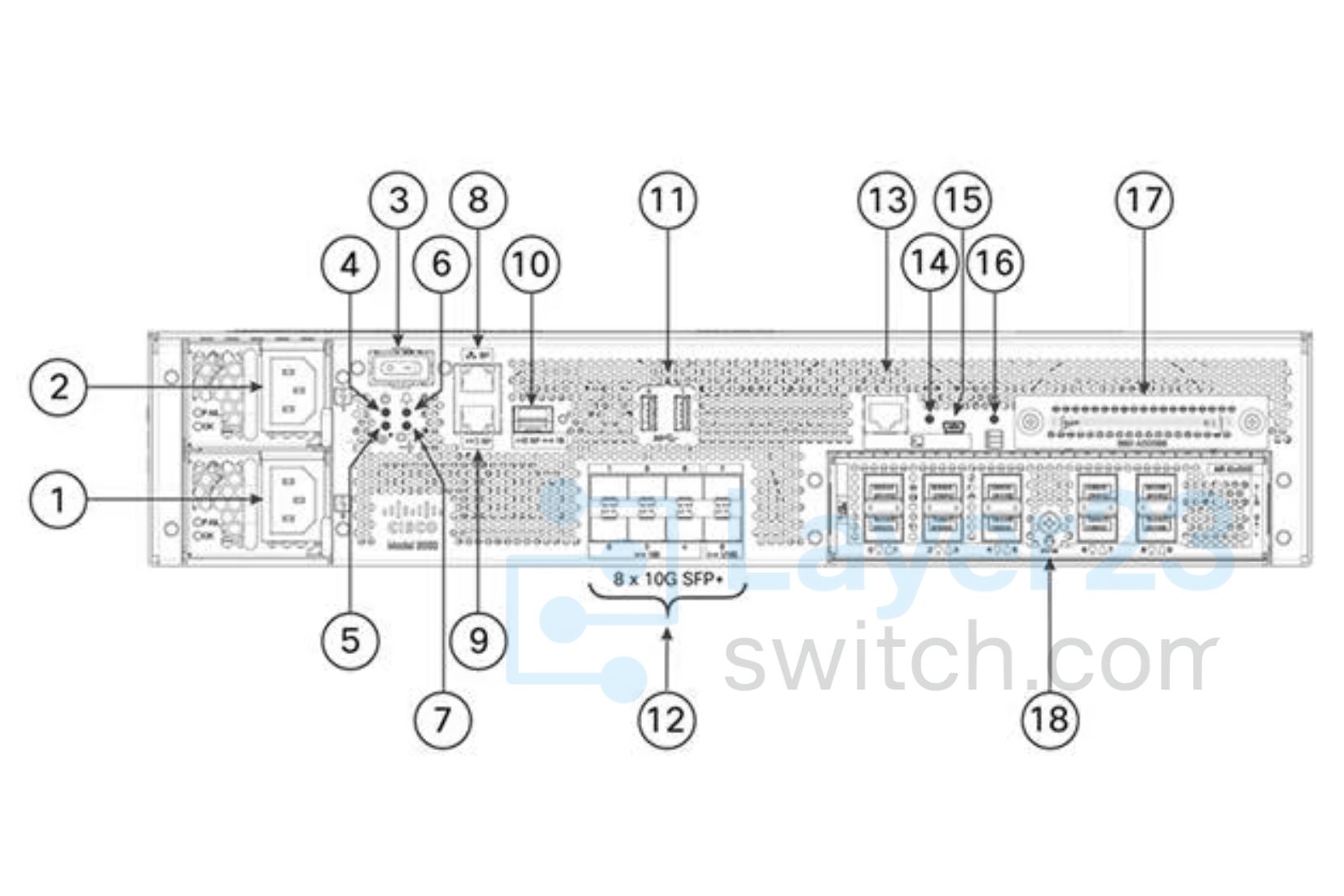

C9800-80-K9 Front View
|
Label |
Component |
|---|---|
|
1 |
Power supply (PEM 0) |
|
2 |
Power supply (PEM 1) |
|
3 |
Power (PWR) switch |
|
4 |
PWR: Power LED |
|
5 |
SYS: System LED |
|
6 |
ALM: Alarm LED |
|
7 |
HA: High-availability LED |
|
8 |
SP: RJ-45 10/100/1000 management Ethernet port |
|
9 |
RP: RJ-45 10/100/1000 redundancy Ethernet port |
|
10 |
RP: 1G SFP port (the only SFPs supported on the RP port are GLC-SX-MMD and GLC-LH-SMD) |
|
11 |
USB ports 0 and 1 |
|
12 |
Fixed: 6x 10G and 2x 1G or 8x 10G |
|
13 |
CON: RJ-45 compatible console port |
|
14 |
LINK: RJ-45 connector LED |
|
15 |
CON: Mini USB console port |
|
16 |
SSD: SSD activity LED |
|
17 |
SSD access |
|
18 |
Modular uplink |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9800-80-K9 | Controller model | Cisco Catalyst 9800-80 Wireless Controller |
| Product type | Wireless controller appliance | Rack units | 2RU appliance |
| Operating system | Cisco IOS XE | Minimum software release | Cisco IOS XE Software Release 16.10.1 |
| Maximum access points | Up to 6000 | Maximum clients | 64000 |
| Maximum throughput | Up to 80 Gbps | Maximum WLANs | 4096 |
| VLAN IDs | 4096 | Maximum flex APs per site | 100 |
| Maximum site tags | 6000 | Maximum policy tags | 6000 |
| Maximum RF tags | 6000 | Maximum RF profiles | 12000 |
| Maximum policy profiles | 1000 | Maximum flex profiles | 6000 |
| Fixed uplinks | 8x 10G or 6x 10G plus 2x 1G SFP+/SFP | Modular uplink support | Optional 10G, 40G, and 100G modules |
| Deployment modes | Centralized, Cisco FlexConnect, and Fabric Wireless (SD-Access) | Management | Cisco DNA Center, Cisco Prime Infrastructure, integrated WebUI, and open standards APIs |
| Policy engine integration | Cisco Identity Services Engine (ISE) | Location platform | Cisco Connected Mobile Experiences (CMX) and Cisco Spaces |
| Access point support | Aironet 802.11ac Wave 1 and Wave 2 access points plus Cisco Catalyst 9100 802.11ax access points | License model | Smart License enabled |
| Wireless license requirement | Cisco DNA licenses required for connecting any access points | Redundant power supply | AC or DC power supply options |
| Power entry module behavior | Can operate with a single PEM installed; PEMs are hot-swappable | Airflow | Front-to-rear chassis airflow |

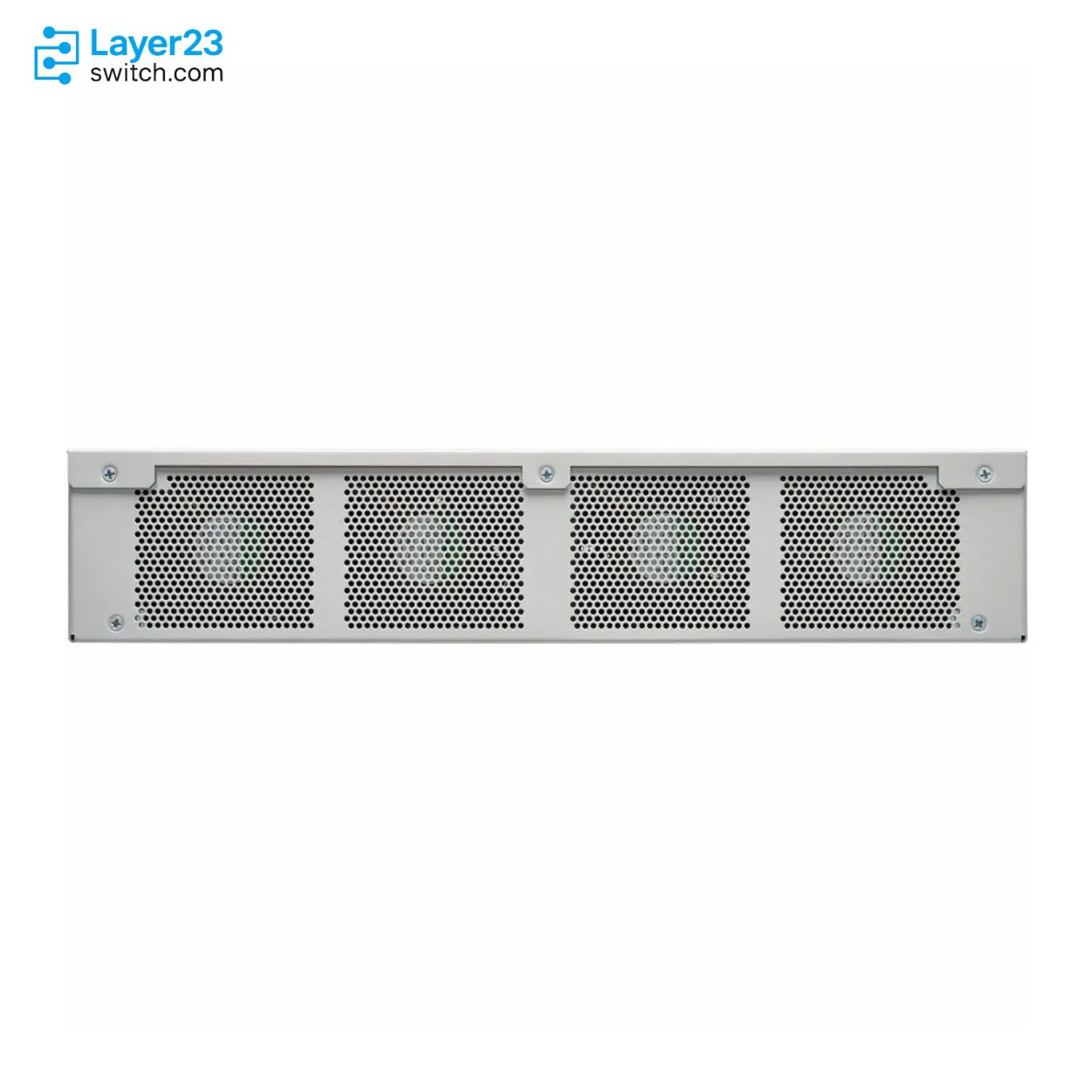

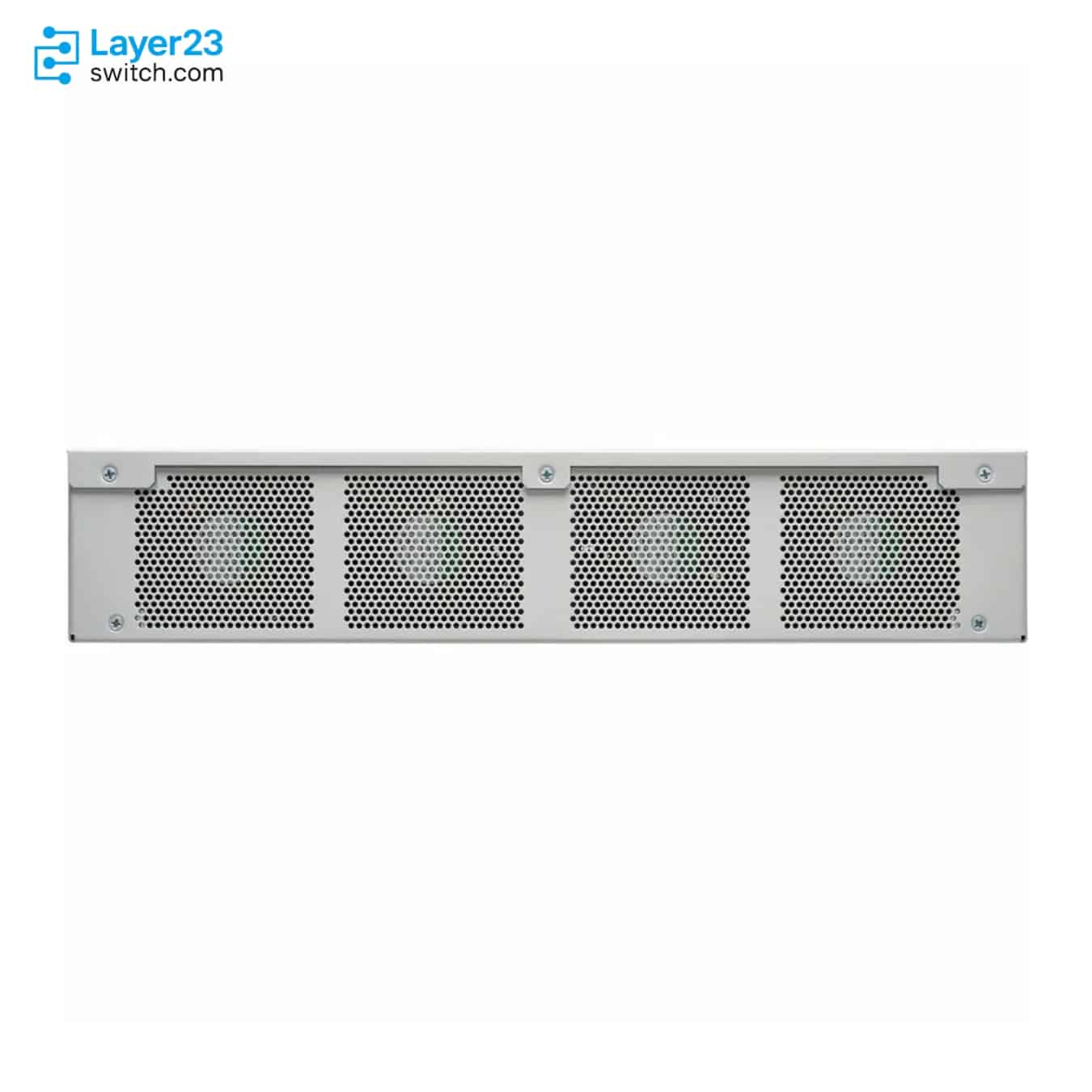

| Internal fans | Four internal fans located at the rear of the chassis | Electrical input | 90 to 264 VAC with AC PEM; -40 to -72 VDC with DC PEM |
| Maximum power with modules | 600W | Heat dissipation | 2,047 BTU/hr |
| Dimensions | 3.5 x 17.3 x 22.0 in. including card handles, cable-management brackets, and power supply handles | Weight | 15.42 kg (34 lb) fully loaded |
| Operating temperature | 32 to 104F (0 to 40C) nominal | Operating humidity | 10 to 90% relative humidity nominal |
| Short-term operating humidity | 5 to 90% relative humidity |
