C9105AXI-A – Access Point – Wi-Fi 6 – A Domain

Brand: Category: Availability: In Stock Model:

C9105AXI-A

(5 customer reviews)
Questions

0/mo Solds

List Price: $837 $225
  • 100% Genuine
    Original, factory-authenticated
  • S/N Verifiable
    Verified by official serial-check
Condition New Factory Sealed Related Quantity
Trusted & Secure Payments
Shipping Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc. Packaging weight and dimensions included:
layer23-switch
Certified Expertise for Project Delivery

CCIE · JNCIE · NSE7 · ACDX · HPE · Dell Server/AI Expert

Stable Global Supply Chain for Thriving Businesses.

  • $3,000,000 Inventory
  • Certified Cisco Partner ships
  • Collaborating with FedEx, UPS, DHL

Free Expert Support from Planning to Deployment

  • Assistance with product selection and network solution design
  • Configuration guidance and best-practice recommendations
  • Troubleshooting support provided by CCIE-level technical experts

Established Global IT Distributor

With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

C9105AXI-A Description

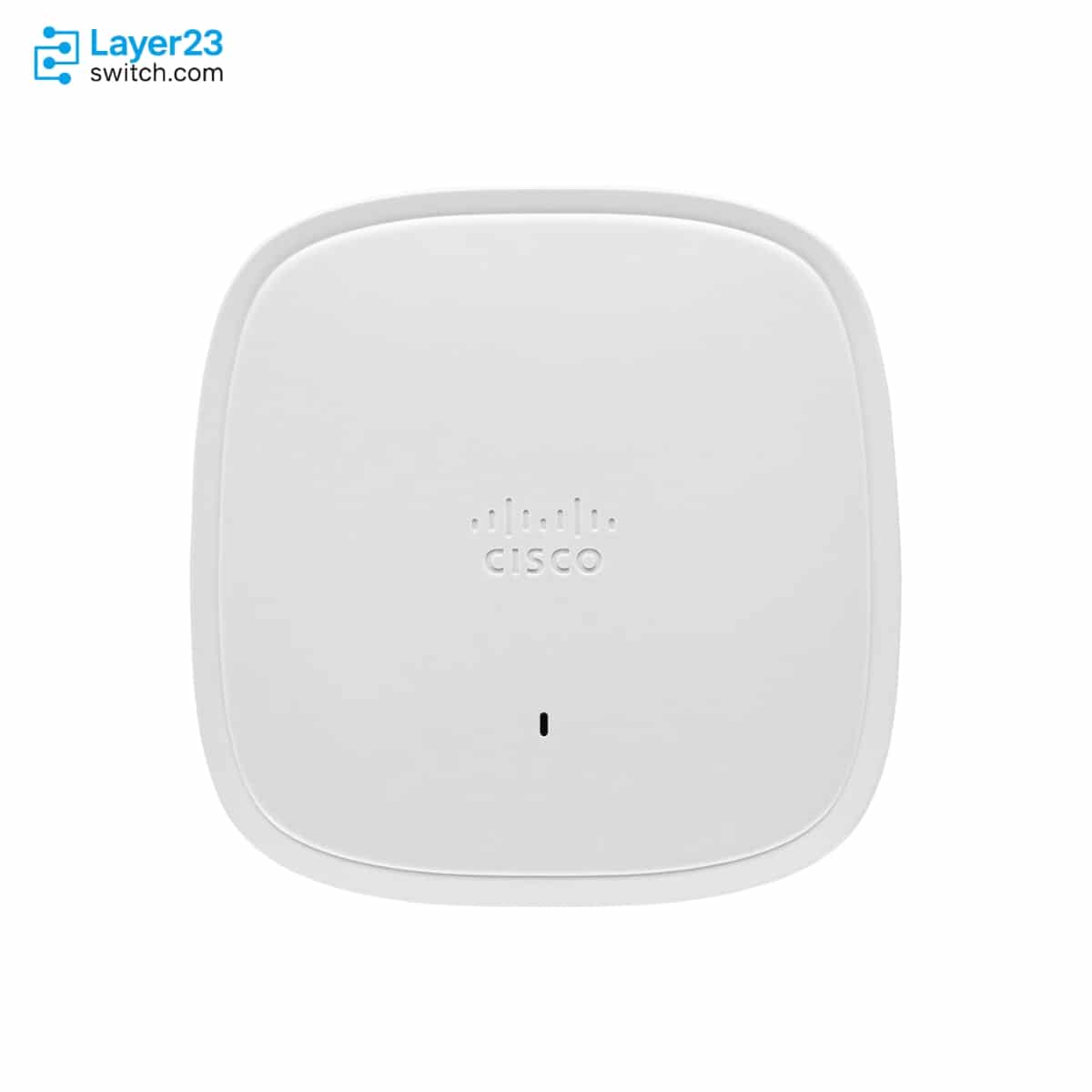

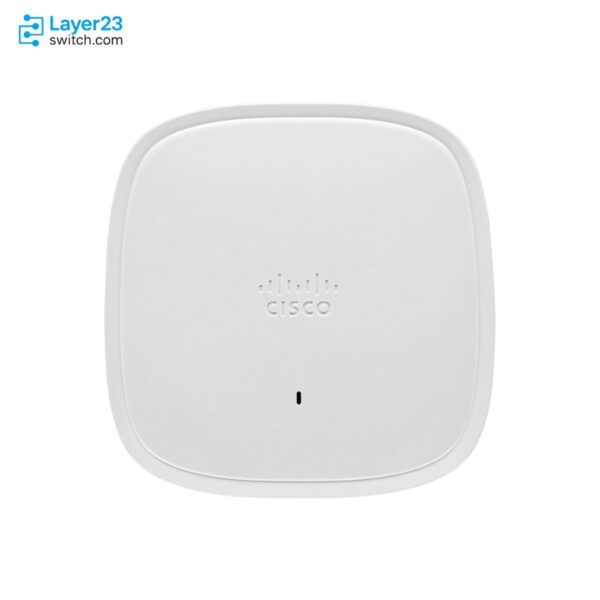

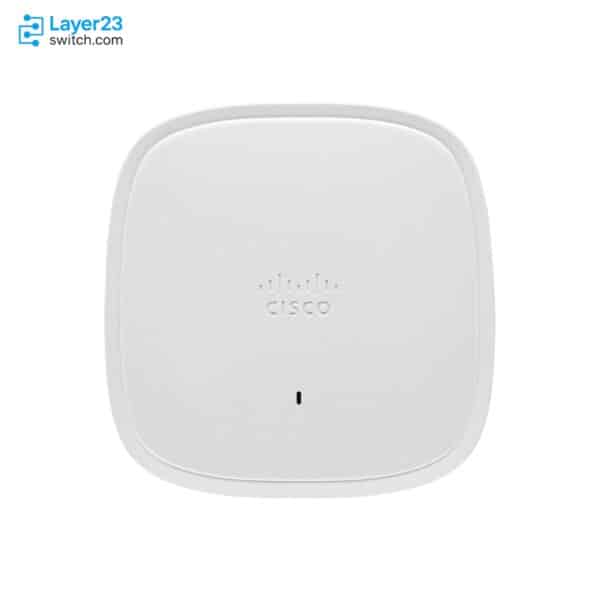

Cisco C9105AXI-A (Catalyst 9105AXI) is an indoor, controller-based Wi-Fi 6 access point with integrated antennas, delivering 2×2:2 MIMO on both 2.4 GHz and 5 GHz. It supports key 802.11ax capabilities—uplink/downlink OFDMA, downlink MU-MIMO, BSS Coloring, and Target Wake Time—to improve efficiency, capacity, and client battery life in dense environments. Hardware includes a 1×1 GbE uplink, RJ-45 console, multi-color status LED, and internal dual-band antennas (4 dBi at 2.4 GHz; 5 dBi at 5 GHz). The unit operates from 0–50 °C and is powered by 802.3af/at PoE or Cisco power injectors. C9105AXI joins Cisco Catalyst 9800 and AireOS-family controllers, and is also available with an Embedded Wireless Controller image (C9105AXI-EWC-x).A Domain

Quick Specs

Parameter

Specification

Notes

Wi-Fi standard

802.11ax (Wi-Fi 6)

OFDMA, MU-MIMO, BSS Coloring, TWT

Radio/streams

2×2:2 (2.4 GHz) + 2×2:2 (5 GHz)

Series capability; per-radio 2 spatial streams

Max PHY rate

Up to 1.488 Gbps

80 MHz@5 GHz + 20 [email protected] GHz

Antenna (internal)

2.4 GHz 4 dBi; 5 GHz 5 dBi

Omnidirectional in azimuth

Uplink

1× 10/100/1000 Base-T

RJ-45 uplink port

Console

RJ-45 console

RS-232 via RJ-45

PoE input

802.3af/at (also UPOE)

AIR-PWRINJ5=/6= injectors supported

PoE/throughput

On 802.3af: 2×2 on both bands; 1 GbE link

AXI PoE behavior table

Operating temp

0–50 °C (32–122 °F)

AXI environmental spec

Product Highlights

MAX PHY rates
Link speed
Operating temperature

Product Comparison

Parameter

C9105AXI-A

C9105AXW-A

C9105AXIT-A

Positioning / form factor

Indoor AP with internal antennas

Wall-plate AP

Teleworker indoor AP (bundle)

Radios / streams

2×2:2 (2.4G) + 2×2:2 (5G)

2×2:2 + 2×2:2

2×2:2 + 2×2:2 (same radio spec)

Max PHY (series)

Up to 1.488 Gbps

Up to 1.488 Gbps

Up to 1.488 Gbps

Uplink port

1× 1G (Base-T)

1× 2.5G mGig (Base-T)

1× 1G (Base-T)

Downlink ports

—

3× 1G (LAN1 PSE 10.5 W)

—

USB

—

USB 2.0 (4.5 W)

—

Antenna gain

2.4G 4 dBi; 5G 5 dBi

2.4G 3 dBi; 5G 5 dBi

Same as AXI (internal)

PoE input

802.3af/at

802.3af/at

802.3af/at

PoE behavior

On 802.3af: 2×2 on both bands; 1 GbE link

On 802.3af: 2×2 both bands, 2.5G link; on 802.3at: USB or LAN1 PSE enabled

Same as AXI radios; standard teleworker kit power

Operating temp

0–50 °C

0–50 °C

0–50 °C (series)

Dimensions

150×150×30 mm

90×160×32.66 mm

Same chassis as base model

Weight

0.7 lb (329.5 g)

0.8 lb (373.2 g)

—

Variant with EWC

C9105AXI-EWC-x

—

—

Notes

AXI is ceiling/wall style

Wall-plate with downlinks & mGig

Teleworker bundle (injector/cables)

Supported Platforms

Platform

Compatibility

Notes

Catalyst 9800 Series

Supported (9800-L, 9800-40, 9800-80, 9800-CL)

Preferred controller platform for seamless integration and advanced features

Catalyst 3504 Wireless Controller

Supported

Ideal for mid-sized enterprise deployments

Catalyst 5520 Wireless Controller

Supported

High scalability for large deployments

Catalyst 8540 Wireless Controller

Supported

Enterprise-grade high capacity and redundancy

vWLC (Virtual Wireless Controller)

Supported

Flexible virtual deployment with full control features

Cloud Management (via Cisco Meraki)

Not Supported

C9105AXI is not compatible with Meraki cloud solutions

AireOS (WLC Software)

Supported (on selected platforms)

Compatible with AireOS controllers for legacy environments

Specifications

Category Parameter Specification Notes
Product Model C9105AXI-A (Catalyst 9105AXI-A) Indoor, controller-based Wi-Fi 6 access point with internal antennas
Product Variants C9105AXI-A; C9105AXI-EWC-A A denotes regulatory domain; EWC image includes embedded wireless controller
Radios Spatial streams 2×2:2 on 2.4GHz; 2×2:2 on 5GHz Simultaneous dual-band
Radios Max PHY rate (series) Up to 1.488Gbps 80MHz @ 5GHz + 20MHz @ 2.4GHz
Antennas Integrated antennas 2.4GHz peak gain 4dBi; 5GHz peak gain 5dBi Omnidirectional in azimuth
Antennas IoT/BLE Single internal 2.4GHz IoT–BLE antenna Dedicated BLE/IOT radio present
Wi-Fi standards 802.11a/b/g/n/ac/ax Wi-Fi 6 (802.11ax) with backward compatibility
802.11n (v2.0) Features 2×2 MIMO; MRC; 20/40MHz; DFS; CSD; A-MPDU/A-MSDU Up to 444.4Mbps (40MHz@5GHz + [email protected])
802.11ac Features 2×2 downlink MU-MIMO; beamforming; 20/40/80MHz; DFS; CSD; A-MPDU/A-MSDU Up to 866.7Mbps (80MHz@5GHz); WPA3 supported
802.11ax Features 2×2 uplink/downlink MU-MIMO; OFDMA (UL/DL); TWT; BSS Coloring; beamforming; MRC Wi-Fi 6 efficiency and latency reduction
Interfaces Ethernet uplink 1× 10/100/1000 Base-T (RJ-45) PoE-In
Interfaces Console RJ-45 (RS-232)
Indicators & controls LED Single multi-color status LED Green = normal; Blue = clients associated; Red/Green alternating during join; Blue blinking during image download
Indicators & controls Mode button Yes Supports factory reset and storage clear (hold-time options)
Power Input options 802.3af PoE; 802.3at PoE+; Cisco UPOE Supported injectors: AIR-PWRINJ5= (af), AIR-PWRINJ6= (at)
Power PoE behavior (AXI) On 802.3af: 2×2 on 2.4GHz and 5GHz; link 1G
Environmental Operating temperature 0–50°C (32–122°F) Above 40°C, 2.4GHz radio shifts 2×2→1×1
Environmental Operating humidity 10%–90% non-condensing
Environmental Operating altitude (test) 3000m @ 40°C (9843ft)
Physical Dimensions (W×L×H) 150×150×30mm (5.9×5.9×1.18in) Without bracket
Physical Weight 0.7lb (329.5g) Device only
Physical Security Torx security screw; Kensington lock slot
Mounting Options Wall, junction box; below suspended ceiling; above ceiling with additional hardware Vertical wall mounting supported
Mounting Brackets (per docs) AIR-AP-BRACKET-8=; AIR-AP-BRACKET-W4= BRACKET-8 referenced in Getting Started; BRACKET-W4 listed in datasheet accessories
Software Controller versions CUWN 8.10 MR3+; IOS-XE 17.3.1+
Software Supported controllers Catalyst 9800 Series; 3504; 5520; 8540; vWLC
Transmit power 2.4GHz Max 20dBm (100mW); Min −7dBm (0.2mW)
Transmit power 5GHz Max 20dBm (100mW); Min −7dBm (0.2mW)
Compliance Safety IEC 60950-1; EN 60950-1; UL 60950-1; IEC 62368-1; EN 62368-1; UL/CUL 62368-1; CAN/CSA-C22.2 No.60950-1; AS/NZS60950.1; UL 2043 (C9105AXI only); Class III equipment
Compliance Radio EN 300 328 (v2.1.1); EN 301 893 (v2.1.1); AS/NZS 4268 (2017); FCC Part 15C/15.247/15.407

Get More Information

Discover unbeatable prices and fast shipping for the C9105AXI-A Access the detailed C9105AXI-A datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

Quality Certifications

Customer Reviews

Write A Review
5.0
(5 reviews)
5 Stars
5
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
    Chris Evans
    Posted on 25/07/2024
    Verified Buyer
    5.0

    Reliable supplier. We’ve used them for several projects now without issue.

    Supply Dept
    Posted on 18/05/2024
    Verified Buyer
    5.0

    Inventory availability is consistent. That’s why we keep coming back.

    Facility Manager
    Posted on 15/03/2024
    Verified Buyer
    5.0

    We ordered a large batch. Everything was packed well on a pallet. No damages.

    Tony Stark
    Posted on 10/01/2024
    Verified Buyer
    5.0

    Fastest delivery we’ve had this year. Impressive logistics.

    Procurement Team
    Posted on 20/11/2023
    Verified Buyer
    5.0

    Competitive pricing and excellent service. The account manager was very attentive.

Questions & Answers

  • Why select the C9105AXI-A for small offices instead of larger C9115 models?

    C9105AXI-A provides reliable Wi-Fi 6 in a compact form factor, ideal for moderate client counts and simpler cabling. C9115 adds capacity for very dense floors but costs more and requires larger PoE budgets.

  • Does C9105AXI-A support WPA3 and enterprise onboarding?

    Yes. It supports WPA3 and 802.1X with policy enforcement via Catalyst 9800 and ISE. This improves security while maintaining straightforward onboarding for employees and guests.

  • How should I plan channels for C9105AXI-A?

    Use primarily 5 GHz with 20/40 MHz where interference allows. Keep 2.4 GHz minimal for legacy or IoT, and validate roaming with realistic client mixes before opening day.

  • What power and switch considerations apply?

    Plan for 802.3af or PoE+. Ensure access switches have enough PoE across ports and trust QoS so collaboration traffic remains smooth during busy periods.

  • Is C9105AXI-A good for retail or cafés?

    Yes. Compact design, strong security, and flexible policy fit small venues. Use captive portals and bandwidth controls to balance guest traffic with POS systems.

  • How does C9105AXI-A compare with C9105AXW-E wall-plate APs?

    AXI covers open spaces from the ceiling; AXW integrates Ethernet drops at the wall for rooms. Choose based on layout and whether per-room ports are required.

  • Does C9105AXI-A integrate with DNA Center?

    Yes. Templates and Assurance streamline configuration and highlight issues like interference, sticky clients, and DHCP problems quickly.

  • Any mounting and survey tips?

    Mount centrally, avoid obstructions, and survey for -60 to -65 dBm coverage. Test with typical client devices to validate roaming and throughput under real conditions.
