C9105AXI-I – Wi-Fi 6 2×2:2 AP – Internal Antennas – 1G PoE Uplink
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9105AXI-I Description

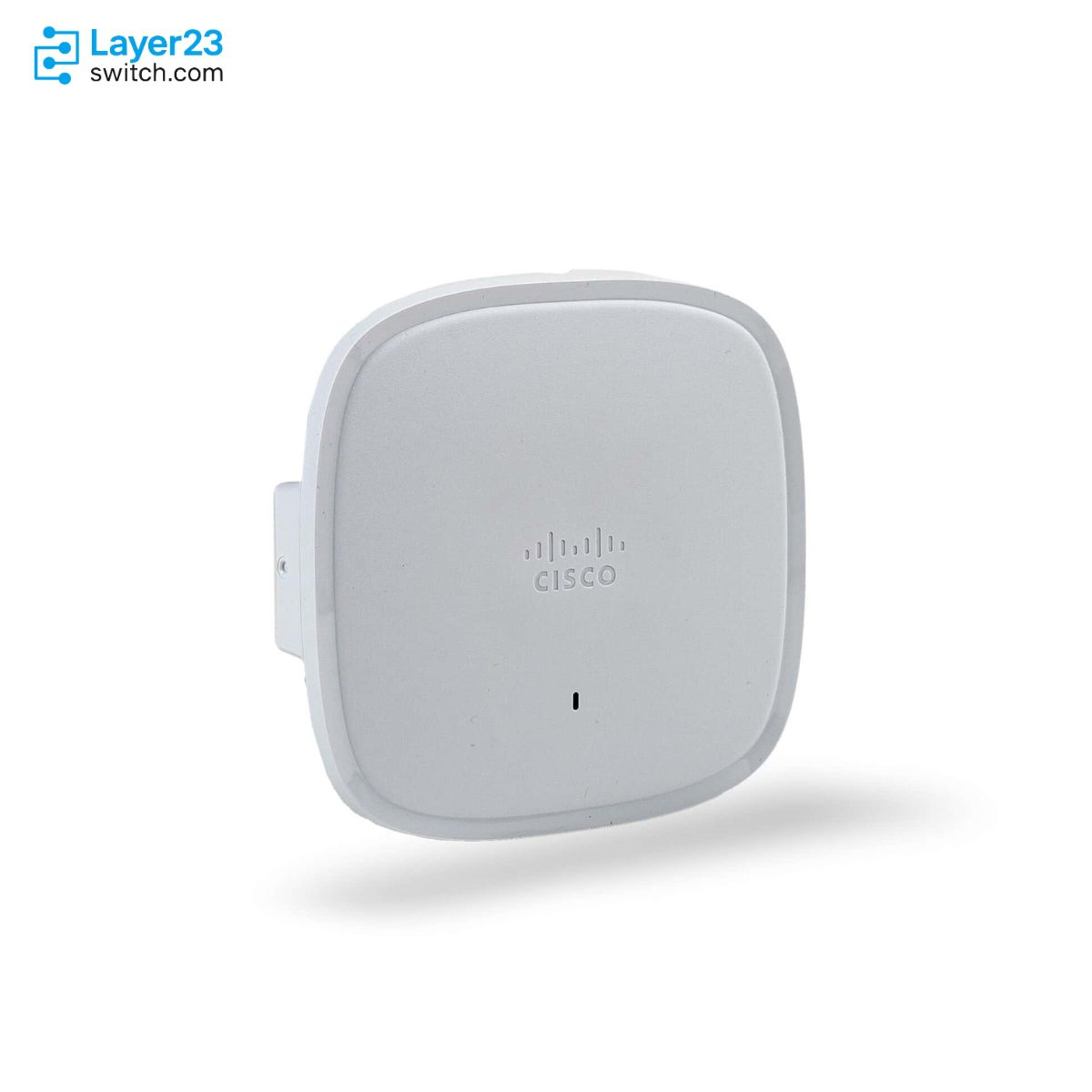

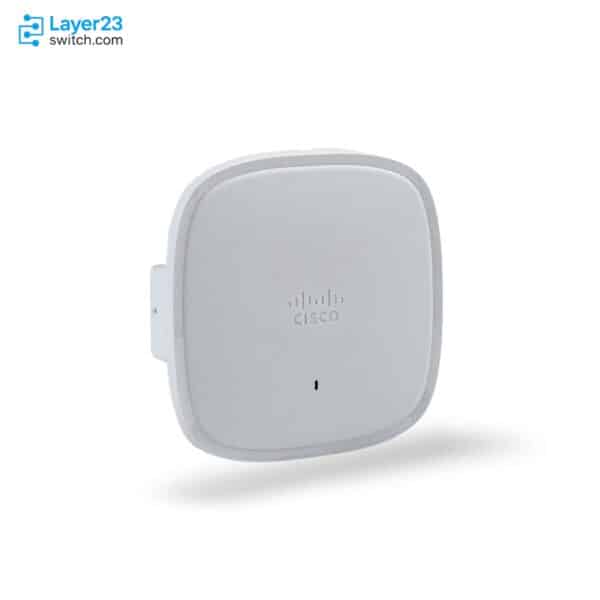

C9105AXI-I is a Cisco Catalyst 9105AXI Series indoor Wi-Fi 6 access point with internal antennas and the I regulatory-domain suffix. It is a controller-based Catalyst 9100 AP for indoor wireless coverage, using dual-band 2.4 GHz and 5 GHz radios, 2x2:2 SS MU-MIMO, a single 10/100/1000 Base-T Ethernet uplink, and 802.3af PoE or 802.3at PoE+ power from a switch port or Cisco injector.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9105AXI-I |
|
Product type |
Indoor Wi-Fi 6 wireless access point |
|
Exact model evidence |
C9105AXI-I listed in Cisco EU declaration of conformity records |
|
Ordering pattern |
C9105AXI-x with x as the regulatory-domain suffix |
|
Management model |
Controller-based C9105AXI access point |
|
Software support |
Cisco Unified Wireless Network 8.10.MR3 or Cisco IOS XE 17.3.1 or later |
|
Wireless standards |
IEEE 802.11a/b/g/n/ac/ax |
|
Radio design |
Dual-band dual-concurrent 2.4 GHz and 5 GHz radios |
|
MIMO profile |
2×2:2 SS MU-MIMO |
|
Antenna design |
Internal antennas with 4 dBi 2.4 GHz and 5 dBi 5 GHz peak gain |
|
Ethernet uplink |
1 x 10/100/1000 Base-T Ethernet uplink |
|
PoE input |
802.3af PoE or 802.3at PoE+ switch port or Cisco injector |
Application Scenarios
C9105AXI-I fits a Catalyst 9105AXI bill of materials when the wireless design calls for the AXI internal-antenna AP and the deployment country maps to the -I regulatory-domain order suffix.
Use this SKU where a branch, office floor, or small campus area needs a controller-managed 2×2:2 Wi-Fi 6 AP powered from a 1G Ethernet access port.
C9105AXI-I is the AXI path for ceiling or surface mounting; choose a C9105AXW order family only when the requirement includes wall-plate placement and LAN downlink ports.
Product Comparison
|
Parameter |
C9105AXI-I |
C9105AXW-I | |
|---|---|---|---|
|
Exact model evidence |
Listed by Cisco as C9105AXI-I in EU conformity records |
Listed by Cisco as C9105AXI-E in EU conformity and 9105AXI guide records |
Listed by Cisco as C9105AXW-I in EU conformity records |
|
Ordering family |
C9105AXI-x |
C9105AXI-x |
C9105AXW-x |
|
Product role |
Indoor access point with internal antennas |
Indoor access point with internal antennas |
Wall-plate access point with internal antennas |
|
Regulatory suffix |
-I |
-E |
-I |
|
Wi-Fi generation |
Wi-Fi 6 / 802.11ax |
Wi-Fi 6 / 802.11ax |
Wi-Fi 6 / 802.11ax |
|
MIMO profile |
2×2:2 SS MU-MIMO |
2×2:2 SS MU-MIMO |
2×2:2 SS MU-MIMO |
|
Ethernet uplink |
1 x 10/100/1000 Base-T Ethernet uplink |
1 x 10/100/1000 Base-T Ethernet uplink |
1 x 100/1000/2500 Base-T Ethernet uplink |
|
Downlink Ethernet ports |
No downlink LAN ports listed for C9105AXI |
No downlink LAN ports listed for C9105AXI |
3 x 10/100/1000 Base-T LAN ports |
|
Primary order distinction |
AXI hardware path with -I regulatory suffix |
AXI hardware path with -E regulatory suffix |
Wall-plate order family with -I regulatory suffix |
- In a C9105AXI-I vs C9105AXI-E comparison, the hardware family and AXI interface set remain aligned; the ordering difference is the regulatory-domain suffix that must match the approved country record.
- The C9105AXI-I vs C9105AXW-I comparison is mainly a mounting and Ethernet-layout difference: C9105AXI-I is the AXI AP with one 1G uplink, while C9105AXW-I is the wall-plate family with a 2.5G uplink and LAN downlink ports.
- For buyers deciding which model to choose, keep C9105AXI-I on the order only when the deployment needs the AXI form factor and the -I country-domain check is confirmed.
Selection Guide
1. Start with the regulatory-domain check
Choose C9105AXI-I only after the installation country has been matched to the -I regulatory domain through Cisco compliance resources.
2. Keep AXI and AXW layouts separate
Use C9105AXI-I for AXI placement with a single 1G PoE uplink; move to C9105AXW-I when the site design needs wall-plate LAN downlink ports.
3. Confirm the controller path before ordering
Validate the wireless controller platform and software baseline before adding the AP line to the purchase request.
4. Tie mounting hardware to the AP family
Plan AIR-AP-BRACKET-8 and the required ceiling clip or adapter for AXI mounting instead of assuming wall-plate hardware will fit.
Ordering Checklist
|
Procurement Area |
Required Check |
Risk Controlled |
|---|---|---|
|
Regulatory-domain suffix |
Confirm the -I suffix against Cisco compliance resources for the deployment country |
The x in C9105AXI-x is a country-domain placeholder and is not interchangeable by preference |
|
AXI versus AXW family |
Verify whether the order needs C9105AXI-I or C9105AXW-I |
The AXW family changes the physical layout and Ethernet port profile |
|
Controller readiness |
Check Cisco Catalyst 9800, AireOS, or vWLC support with the required software release |
A controller-based AP must join a supported controller before WLAN service |
|
PoE source |
Confirm 802.3af or 802.3at power from the switch port or Cisco injector |
The C9105AXI family is powered through the Ethernet uplink |
|
Mounting accessories |
Match AIR-AP-BRACKET-8, ceiling clips, or channel adapter to the intended install location |
The AXI installation path depends on AP bracket and ceiling hardware selection |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9105AXI-I | Product Type | Indoor Wi-Fi 6 wireless access point |
| Exact Model Evidence | C9105AXI-I listed in Cisco EU declaration of conformity records | Ordering Pattern | C9105AXI-x with x as regulatory-domain suffix |
| Management Model | Controller-based C9105AXI access point | Software Support | Cisco Unified Wireless Network 8.10.MR3 or Cisco IOS XE 17.3.1 or later |
| Controller Support | Catalyst 9800 Series, Cisco 3504, 5520, 8540, and vWLC | Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Radio Design | Dual-band dual-concurrent 2.4 GHz and 5 GHz radios | MIMO Profile | 2×2:2 SS MU-MIMO |
| 802.11ax Capability | Uplink/downlink OFDMA, downlink MU-MIMO, BSS coloring, and Target Wake Time | 802.11ax PHY Rate | Up to 1.488 Gbps with 80 MHz 5 GHz and 20 MHz 2.4 GHz channels |
| Internal Antennas | Two dual-band internal antennas plus one internal IoT BLE antenna | Antenna Gain | 4 dBi at 2.4 GHz and 5 dBi at 5 GHz peak gain |
| Ethernet Uplink | 1 x 10/100/1000 Base-T Ethernet uplink | Console Port | RJ-45 management console port |
| PoE Input Options | 802.3af PoE, 802.3at PoE+, Cisco UPOE, or Cisco power injector | PoE Feature Mode | 802.3af supports 2×2 radios and 1G link speed |
| Power Draw | 11W at powered device and 12.5W at power sourcing equipment | Default Bracket | AIR-AP-BRACKET-8 low-profile bracket |
| Dimensions | 5.9 x 5.9 x 1.18 in. (150 x 150 x 30 mm) | Weight | 0.7 lb. (329.5 g) |
| Operating Temperature | 32 to 122 F (0 to 50 C) | Operating Humidity | 10% to 90% noncondensing |
| Storage Temperature | -22 to 158 F (-30 to 70 C) | Regulatory Reminder | Country approval must be verified through Cisco compliance resources |
| Mounting Guidance | AXI mounting uses AIR-AP-BRACKET-8 with compatible ceiling clips or adapter |
