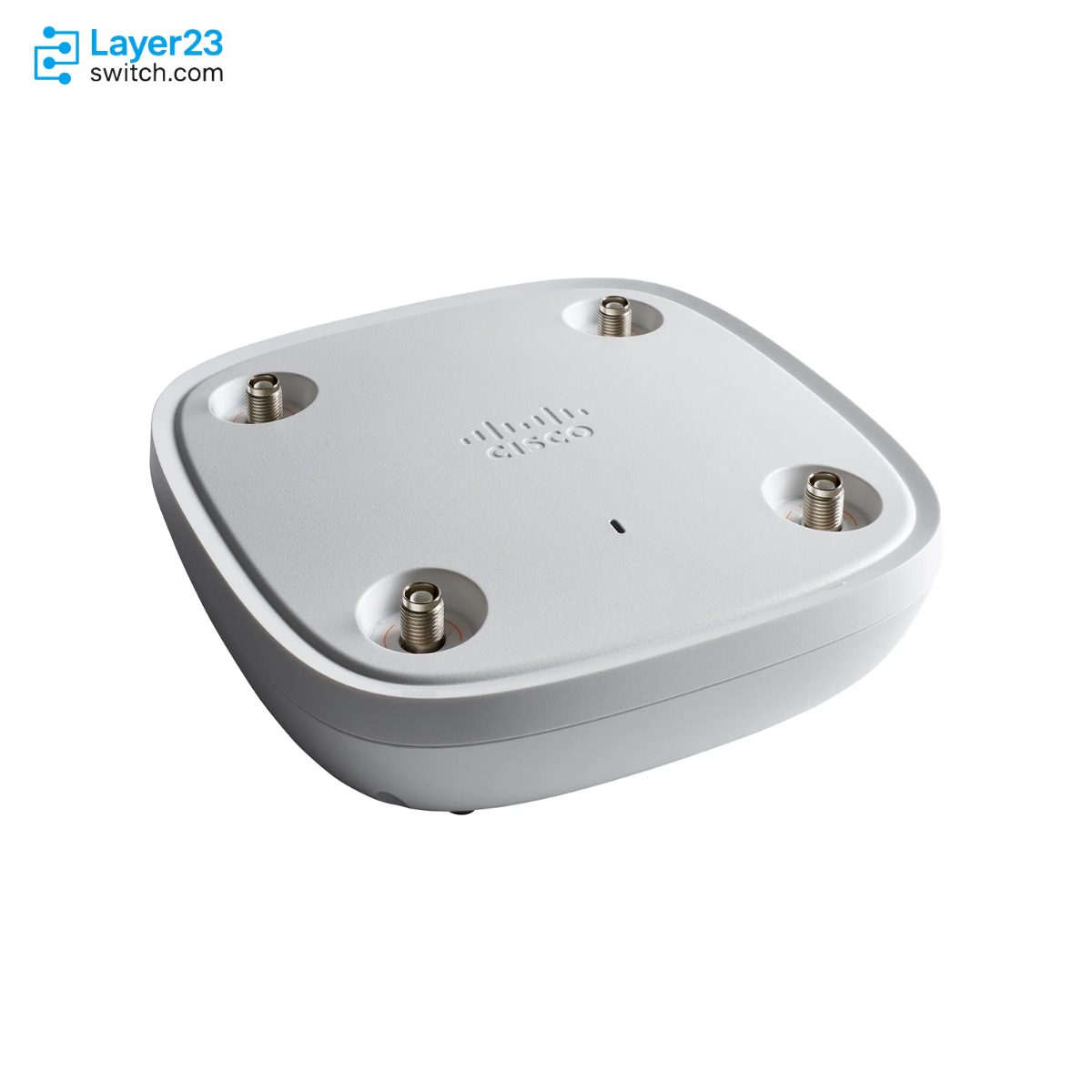

C9115AXE-E – Access Point – External antennas – Wi-Fi 6 – E Domain

Brand: Category: Availability: In Stock Model:

C9115AXE-E

(3 customer reviews)
Questions

0/mo Solds

List Price: $837 $328
  • 100% Genuine
    Original, factory-authenticated
  • S/N Verifiable
    Verified by official serial-check
Condition New Factory Sealed Related Quantity
Trusted & Secure Payments
Shipping Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc. Packaging weight and dimensions included:
layer23-switch
Certified Expertise for Project Delivery

CCIE · JNCIE · NSE7 · ACDX · HPE · Dell Server/AI Expert

Stable Global Supply Chain for Thriving Businesses.

  • $3,000,000 Inventory
  • Certified Cisco Partner ships
  • Collaborating with FedEx, UPS, DHL

Free Expert Support from Planning to Deployment

  • Assistance with product selection and network solution design
  • Configuration guidance and best-practice recommendations
  • Troubleshooting support provided by CCIE-level technical experts

Established Global IT Distributor

With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

C9115AXE-E Description

Cisco C9115AXE-E is an indoor, controller-based Wi-Fi 6 access point with external antenna connectors for challenging RF environments that need directional or higher-gain antennas. It delivers 4×4:4 MIMO on both 2.4 GHz and 5 GHz, implementing uplink/downlink OFDMA, MU-MIMO, BSS Coloring, and Target Wake Time to maximize efficiency, capacity, and client battery life in dense deployments. Hardware includes a 2.5G mGig uplink (IEEE 802.3bz, Cat5e-ready), USB 2.0, RJ-45 console, Bluetooth 5.0, and RP-TNC antenna connectors. Power options include 802.3at PoE+ and Cisco UPOE(+); under 802.3af it runs in reduced-feature mode (2×2 both bands, 1G uplink, USB off). The AP operates from −20 to 50 °C and integrates with Cisco Catalyst 9800 series and supported AireOS controllers (AireOS 8.9+; IOS-XE 16.11+).

Quick Specs

Parameter

Specification

Notes

Wi-Fi standard

802.11ax (Wi-Fi 6); backward-compatible a/b/g/n/ac

OFDMA, MU-MIMO, BSS Coloring, TWT

Radios / streams

4×4:4 (2.4 GHz) + 4×4:4 (5 GHz)

Dual-concurrent

Max PHY rate

Up to 5.38 Gbps

160 MHz @5 GHz + 20 MHz @2.4 GHz

Antennas

External antennas via RP-TNC connectors

Dual-band external antenna support

Uplink

1× 100/1000/2500 Base-T (mGig, IEEE 802.3bz)

Cat5e supports all speeds

USB

USB 2.0

Bluetooth / IoT

Integrated Bluetooth 5.0

Power input

802.3at PoE+ / 802.3bt UPOE(+) / 802.3af

Injectors: AIR-PWRINJ6= (at), AIR-PWRINJ5= (af)

PoE behavior

802.3at: 4×4 both bands, 2.5G link, USB on; 802.3af: 2×2 both bands, 1G, USB off

Full-feature power ≈21.4 W (AXE)

Operating temp

−20–50 °C (−4–122 °F)

Wider range vs. AXI

Dimensions (W×L×H)

8.0×8.0×1.7 in (20.3×20.3×4.3 cm)

AP only

Weight

2.43 lb (1.1 kg)

AP only

Controllers / SW

AireOS 8.9+; IOS-XE 16.11+

9800/3504/5520/8540/vWLC

Regulatory domain

-E

Verify local approval

Product Highlights

MAX PHY rates
Link speed
Max PoE Power

Product Comparison

Parameter

C9115AXE-E

C9115AXI-E

C9115AXI-EWC-E

Form factor / antennas

Indoor AP, external antennas (RP-TNC)

Indoor AP, internal antennas

Indoor AP, internal antennas

Radios / streams

4×4:4 (2.4G) + 4×4:4 (5G)

4×4:4 (2.4G) + 4×4:4 (5G)

4×4:4 (2.4G) + 4×4:4 (5G)

Max PHY rate

Up to 5.38 Gbps

Up to 5.38 Gbps

Up to 5.38 Gbps

Uplink

1× 100/1000/2500 Base-T (mGig)

1× 100/1000/2500 Base-T (mGig)

1× 100/1000/2500 Base-T (mGig)

USB

USB 2.0

USB 2.0

USB 2.0

Bluetooth / IoT

Integrated Bluetooth 5.0

Integrated Bluetooth 5.0

Integrated Bluetooth 5.0

Antenna gain

Depends on selected external antenna

2.4G 3 dBi; 5G 4 dBi

2.4G 3 dBi; 5G 4 dBi

PoE input / behavior

802.3at full-feature; 802.3af reduced

802.3at full-feature; 802.3af reduced

Same as AXI

Max PoE consumption

≈21.4 W (full features)

≈20.4 W (full features)

≈20.4 W (full features)

Operating temperature

−20–50 °C

0–50 °C

0–50 °C

Dimensions (W×L×H)

8.0×8.0×1.7 in

8.0×8.0×1.5 in

8.0×8.0×1.5 in

Weight

2.43 lb

1.98 lb

1.98 lb

Software / controllers

AireOS 8.9+; IOS-XE 16.11+

AireOS 8.9+; IOS-XE 16.11+

AireOS 8.9+; IOS-XE 16.11+

Regulatory domain

-E (verify local approval)

-E (verify local approval)

-E (verify local approval)

Model Selection Guide – C9115AXE-E

  • Choose C9115AXE-E when you need external antennas for directional coverage, long corridors, high-ceiling spaces, or mixed indoor areas with obstructions where internal antennas are sub-optimal.
  • If you don’t need antenna flexibility and prefer a compact unit, consider C9115AXI-E (internal antennas, smaller chassis, 0–50 °C).
  • For small/medium sites seeking on-AP control without a separate WLC, consider C9115AXI-EWC-E (embedded wireless controller image). Ensure your WLC software meets AireOS 8.9+ or IOS-XE 16.11+ before rollout.

Specifications

Category Parameter Specification Notes
Product Model C9115AXE-E (Catalyst 9115AXE, regulatory domain E) Verify local regulatory approval
Architecture Deployment Controller-based (CAPWAP) AireOS 8.9+; IOS-XE 16.11+ on controllers
Radios Spatial streams 4×4:4 (2.4 GHz); 4×4:4 (5 GHz) Simultaneous dual-band
Wi-Fi features 802.11ax (incl.) OFDMA (UL/DL), MU-MIMO, TWT, BSS Coloring, beamforming, MRC
Throughput Max PHY rate Up to 5.38 Gbps 160 MHz @5 GHz + 20 MHz @2.4 GHz
Antennas Connectors RP-TNC external-antenna connectors Dual-band external antenna options
Interfaces Ethernet uplink 1× 100/1000/2500 Base-T (mGig, 802.3bz) Cat5e supports all speeds
Interfaces Console RJ-45 (management console)
Interfaces USB USB 2.0
IoT Bluetooth Integrated Bluetooth 5.0
Power Input types 802.3at PoE+, 802.3bt UPOE(+), 802.3af Injectors: AIR-PWRINJ6= (at), AIR-PWRINJ5= (af)
Power PoE behavior 802.3at: 4×4 radios, 2.5G link, USB on Full-feature power ≈21.4 W (AXE)
Power Reduced feature mode When 802.3af: 2×2 radios, 1G link, USB off Enable LLDP/CDP for proper negotiation
Environmental Operating temperature −20–50 °C (−4–122 °F) Wider range vs. AXI
Environmental Operating humidity 10%–90% (non-condensing)
Environmental Storage temperature −30–70 °C (−22–158 °F)
Environmental Operating altitude test 9843 ft (3000 m) @ 40 °C
Memory System memory 2048 MB DRAM; 1024 MB flash
Physical Dimensions (W×L×H) 8.0×8.0×1.7 in (20.3×20.3×4.3 cm) AP only
Physical Weight 2.43 lb (1.1 kg) AP only
Compliance Safety/EMC/Radio Complies with IEC/EN/UL 60950-1, 62368-1; CISPR/EN 55032/24/35; EN 300 328; EN 301 893; FCC Part 15, etc. See datasheet compliance list
Security WLAN security WPA3/WPA2/WPA; 802.1X; AES; EAP-TLS/TTLS/PEAP/EAP-FAST/SIM, etc.
Controllers Supported platforms Catalyst 9800 Series; 3504; 5520; 8540; vWLC Meet minimum versions above

Get More Information

Discover unbeatable prices and fast shipping for the C9115AXE-E Access the detailed C9115AXE-E datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

Quality Certifications

Customer Reviews

Write A Review
5.0
(3 reviews)
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
    Purchasing
    Posted on 25/10/2024
    Verified Buyer
    5.0

    Invoice provided instantly upon shipping. Smooth process.

    Jason Bourne
    Posted on 12/06/2024
    Verified Buyer
    5.0

    Efficiency is key. You guys have it. Delivery was on target.

    Warehouse Ops
    Posted on 28/02/2024
    Verified Buyer
    5.0

    Packaged securely. Even the box corners were sharp. Good handling.

Questions & Answers

  • When should I choose C9115AXE-E external-antenna AP instead of C9115AXI-E?

    Select C9115AXE-E for directional coverage: long aisles, high ceilings, or outdoor-adjacent spaces. External antennas let you shape patterns, reduce bleed-over, and improve SNR in challenging RF geometries.

  • What antenna options pair well with C9115AXE-E?

    Use patch or directional antennas for aisles, downtilt omnis for high ceilings, and specialized antennas for outdoor canopies. Always match connectors, observe gain limits, and follow local EIRP regulations.

  • Does C9115AXE-E still support WPA3 and modern roaming?

    Yes. WPA3, 802.11r/k/v, and OFDMA/MU-MIMO are supported with Catalyst 9800. Directional antennas improve cell boundaries, helping clients roam decisively under load.

  • Any special mounting considerations for C9115AXE-E?

    Yes. Aim antennas appropriately, mind cable strain relief, and weather-seal where needed in semi-outdoor areas. Keep antenna leads short to minimize loss and maintain pattern integrity.

  • How does power planning differ from AXI?

    PoE+ is still recommended, but ANT gain may reduce required transmit power for coverage. Validate link budgets and ensure switch power reserves for many APs in one closet.

  • Can I mix C9115AXE-E with AXI models on the same floor?

    Absolutely. Use AXI for open offices and AXE for problem spots like warehouses or atriums. Keep consistent SSIDs and policies so client experience remains seamless.

  • What survey method suits C9115AXE-E?

    Perform a predictive survey using the exact antenna patterns, then validate with an active survey. Adjust downtilt and orientation on-site to eliminate dead zones.

  • Is DNA Center helpful with AXE deployments?

    Yes. It speeds consistent provisioning and provides Assurance insights on retries and SNR, flagging mis-aimed antennas or reflections early.
