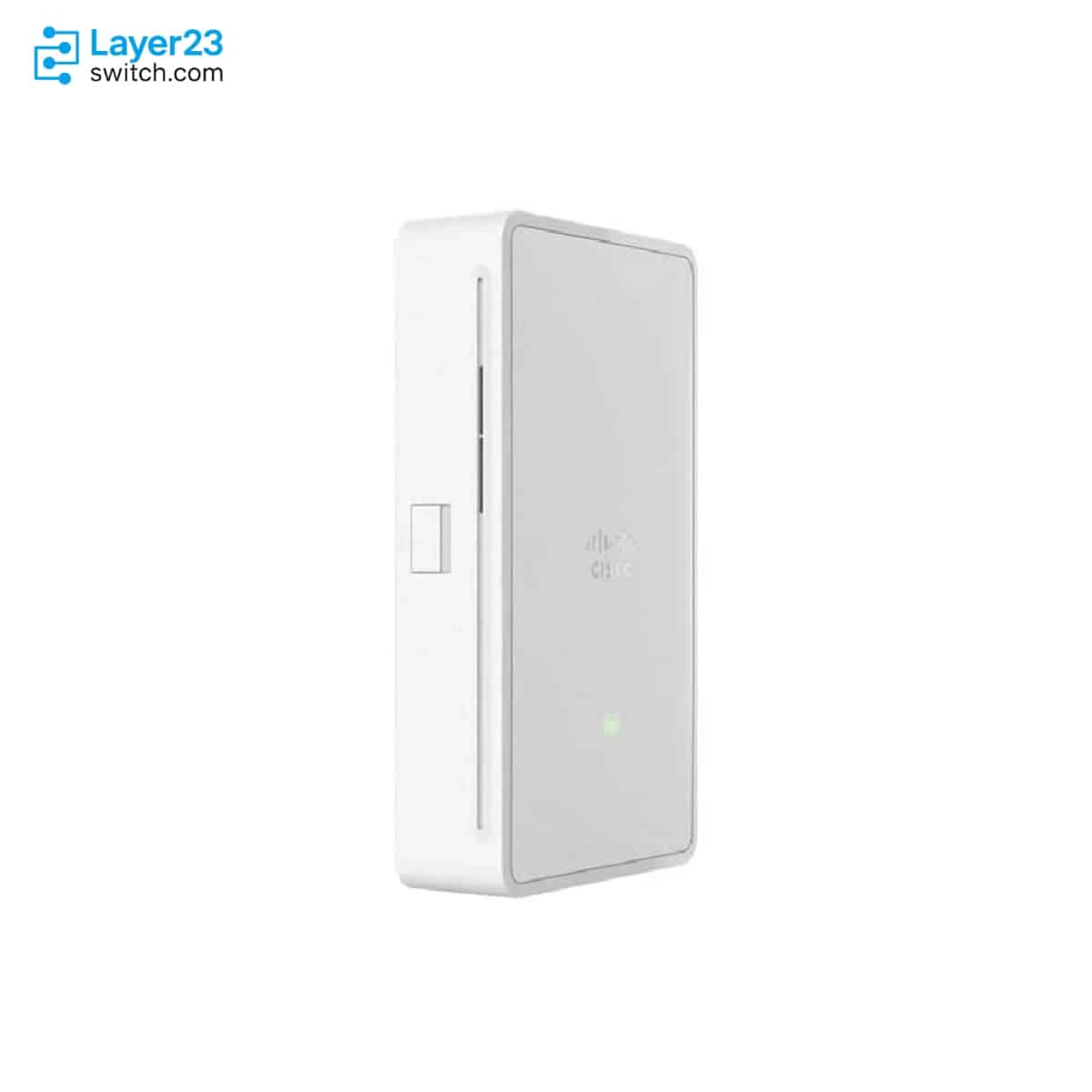

C9105AXW-E – Wi-Fi 6 2×2:2 AP – Wall Plate mGig Uplink – 3x1G Downlinks
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9105AXW-E Description
C9105AXW-E is a Cisco Catalyst 9105AXW wall-plate Wi-Fi 6 access point for indoor rooms that need wireless coverage and local Ethernet breakout from one wall-mounted unit. The E regulatory-domain model is listed in Cisco European Community and EFTA records, uses a controller-based C9105AXW deployment model, and supports Cisco Unified Wireless Network 8.10MR3 or Cisco IOS XE 17.3.1 or later. It provides dual-band dual-concurrent 2.4 GHz and 5 GHz radios with 2x2:2 SS MU-MIMO, internal antennas, one 100/1000/2500 Base-T uplink, three 10/100/1000 Base-T downlink ports, and PoE input from an 802.3af or 802.3at switch port or supported Cisco injector.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9105AXW-E |
|
Product type |
Wall-plate Wi-Fi 6 wireless access point |
|
Exact model record |
C9105AXW-E listed in Cisco European Community and EFTA model records |
|
Ordering pattern |
C9105AXW-x with x as the regulatory-domain suffix |
|
Management model |
Controller-based C9105AXW access point |
|
Software support |
Cisco Unified Wireless Network 8.10MR3 or Cisco IOS XE 17.3.1 or later |
|
Wireless standards |
IEEE 802.11a/b/g/n/ac/ax |
|
Radio design |
Dual-band dual-concurrent 2.4 GHz and 5 GHz radios |
|
MIMO profile |
2×2:2 SS MU-MIMO |
|
Antenna design |
Internal antennas with 3 dBi 2.4 GHz and 5 dBi 5 GHz peak gain |
|
Ethernet interfaces |
1 x 100/1000/2500 Base-T uplink plus 3 x 10/100/1000 Base-T downlink ports |
|
PoE input |
802.3af PoE or 802.3at PoE+ switch port or Cisco injector |
Application Scenarios
C9105AXW-E fits Catalyst 9105AXW projects where the installation country requires Cisco’s -E regulatory-domain listing and the site needs the AXW wall-plate form factor.
Use this SKU when a room design needs Wi-Fi 6 coverage plus wired downlink ports from the same wall-mounted AP instead of a ceiling-oriented AXI access point.
C9105AXW-E suits WLAN refresh work where the access point will join a supported Cisco wireless controller and use a 100/1000/2500 Base-T uplink from the access switch.
Product Comparison
|
Parameter |
C9105AXW-E |
C9105AXW-EWC-E |
C9105AXWT-E |
|---|---|---|---|
|
Exact model listing |
Listed by Cisco for European Community and EFTA countries |
Listed by Cisco for European Community and EFTA countries |
Listed by Cisco for European Community and EFTA countries |
|
Ordering family |
C9105AXW-x |
C9105AXW-EWC-x |
C9105AXWT-x |
|
Product role |
Wall-plate access point with internal antennas |
Wall-plate access point with internal antennas and Embedded Wireless Controller image |
Teleworker access point with internal antennas |
|
Regulatory suffix |
-E |
-E |
-E |
|
Wi-Fi generation |
Wi-Fi 6 / 802.11ax |
Wi-Fi 6 / 802.11ax |
Wi-Fi 6 / 802.11ax |
|
MIMO profile |
2×2:2 SS MU-MIMO |
2×2:2 SS MU-MIMO |
2×2:2 SS MU-MIMO |
|
Ethernet uplink |
1 x 100/1000/2500 Base-T |
1 x 100/1000/2500 Base-T |
1 x 100/1000/2500 Base-T |
|
Downlink Ethernet ports |
3 x 10/100/1000 Base-T |
3 x 10/100/1000 Base-T |
3 x 10/100/1000 Base-T |
|
Order distinction |
Standard controller-based AXW PID |
AXW PID with Embedded Wireless Controller software image |
Teleworker order path with cradle or cover kit scope |
- In a C9105AXW-E vs C9105AXW-EWC-E comparison, the hardware family and -E suffix align, while the main difference is the Embedded Wireless Controller software-image order path.
- The C9105AXW-E vs C9105AXWT-E difference is the bundle and deployment role: C9105AXW-E is the standard wall-plate AP PID, while C9105AXWT-E is Cisco’s teleworker order family.
- For buyers deciding which model to choose, C9105AXW-E should stay on the order when the project needs the AXW wall-plate AP without the EWC image or teleworker kit scope.
Selection Guide
1. Start with the -E country check
Select C9105AXW-E only after the deployment country maps to Cisco’s -E regulatory-domain approval path for the 9105AXW family.
2. Match the AP body to the room design
Use the AXW wall-plate family when the site needs the mGig uplink and local downlink Ethernet ports at a wall location; use AXI only for the different ceiling or surface AP layout.
3. Separate standard and EWC orders
Keep C9105AXW-E as the standard controller-based PID, and order C9105AXW-EWC-E only when the design requires the embedded-controller software image at purchase.
4. Confirm power features before quoting
Check whether the switch port will provide 802.3af or 802.3at power because USB output and LAN1 PoE-out depend on the supported power mode.
Ordering Checklist
|
Procurement Area |
Required Check |
Risk Controlled |
|---|---|---|
|
Regulatory-domain suffix |
Confirm C9105AXW-E against Cisco compliance resources for the installation country |
The x in C9105AXW-x is a regulatory-domain placeholder and cannot be swapped casually |
|
Standard versus EWC PID |
Decide whether the BOM needs C9105AXW-E or C9105AXW-EWC-E |
The EWC model is a separate Cisco order family with a different software-image path |
|
Teleworker boundary |
Use C9105AXWT-E only when the request calls for the teleworker order family |
The AXWT PID carries a different deployment and kit scope from the standard AXW wall-plate AP |
|
PoE source |
Verify 802.3af or 802.3at power from the switch port or Cisco injector |
The available USB and LAN1 PSE functions change by PoE mode |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9105AXW-E | Product Type | Wall-plate Wi-Fi 6 wireless access point |
| Exact Model Record | C9105AXW-E listed in Cisco European Community and EFTA model records | Ordering Pattern | C9105AXW-x with x as regulatory-domain suffix |
| Management Model | Controller-based C9105AXW access point | Software Support | Cisco Unified Wireless Network 8.10MR3 or Cisco IOS XE 17.3.1 or later |
| Controller Support | Catalyst 9800 Series, Cisco 3504, 5520, 8540, and vWLC | Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Radio Design | Dual-band dual-concurrent 2.4 GHz and 5 GHz radios | MIMO Profile | 2×2:2 SS MU-MIMO |
| 802.11ax Capability | Uplink/downlink MU-MIMO, OFDMA, Target Wake Time, BSS coloring, and beamforming | 802.11ax PHY Rate | Up to 1.488 Gbps with 80 MHz 5 GHz and 20 MHz 2.4 GHz channels |
| Internal Antennas | Two dual-band internal antennas plus one internal IoT BLE antenna | Antenna Gain | 3 dBi at 2.4 GHz and 5 dBi at 5 GHz peak gain |
| Ethernet Uplink | 1 x 100/1000/2500 Base-T Ethernet uplink | Downlink Ethernet | 3 x 10/100/1000 Base-T Ethernet downlink ports |
| LAN1 PSE Budget | LAN1 supports 10.5W PSE power budget when the supported power mode enables PoE-out | Console Port | RJ-45 management console port |
| USB Port | USB 2.0 with 4.5W output when the supported power mode enables USB | Pass-through Port | Pass-through port listed for Catalyst 9105AXW |
| PoE Input Options | 802.3af PoE, 802.3at PoE+, Cisco UPOE, AIR-PWRINJ5=, or AIR-PWRINJ6= | PoE Feature Mode | 802.3af disables USB and LAN1 PSE; 802.3at supports either USB 4.5W or LAN1 PSE 10.5W |
| PoE Draw | 13W PD on 802.3af, 18.5W PD with USB on 802.3at, or 25.5W PD with LAN1 PSE on 802.3at | Default Bracket | AIR-AP-BRACKET-W4 wall-mount bracket |
| Dimensions | 3.54 x 6.3 x 1.3 in. (90 x 160 x 32.66 mm) | Weight | 0.8 lb. (373.2 g) |
| Operating Temperature | 32 to 122 F (0 to 50 C) | Operating Humidity | 10% to 90% noncondensing |
| Storage Temperature | -22 to 158 F (-30 to 70 C) | Environmental Note | Above 40 C ambient, 2.4 GHz shifts from 2×2 to 1×1 and USB plus LAN1 PSE are disabled |
| Mounting Guidance | Catalyst 9105AXW mounts vertically on a wall or junction box with AIR-AP-BRACKET-W4 |
Get More Information
Need pricing, stock, or shipping details for the C9105AXW-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is C9105AXW-E used for?
-
What does AXW mean on C9105AXW-E?
-
How is C9105AXW-E different from C9105AXI-E?
-
What Wi-Fi standard does C9105AXW-E support?
-
What PoE planning matters for C9105AXW-E?
-
How does C9105AXW-E register to a Catalyst 9800 controller?
-
Where does C9105AXW-E fit instead of C9105AXI?
-
What installation issue matters for C9105AXW-E?
Warranty
Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.
All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.
Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.
If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.
We support multiple secure payment and logistics options, backed by industry-leading verification:
Visit How to Pay page for more information
Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

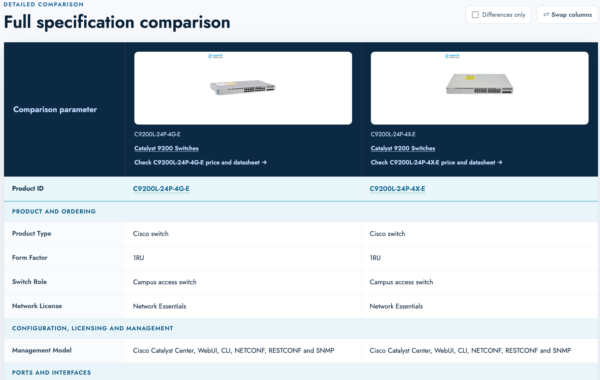

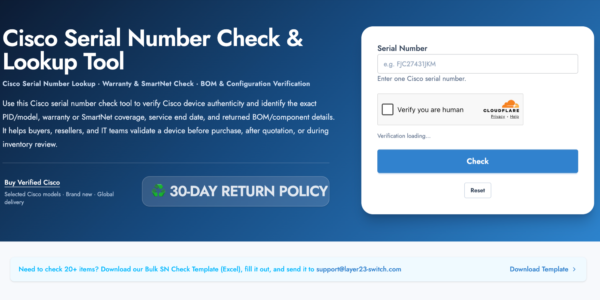

Verify, plan, and comparewith confidence

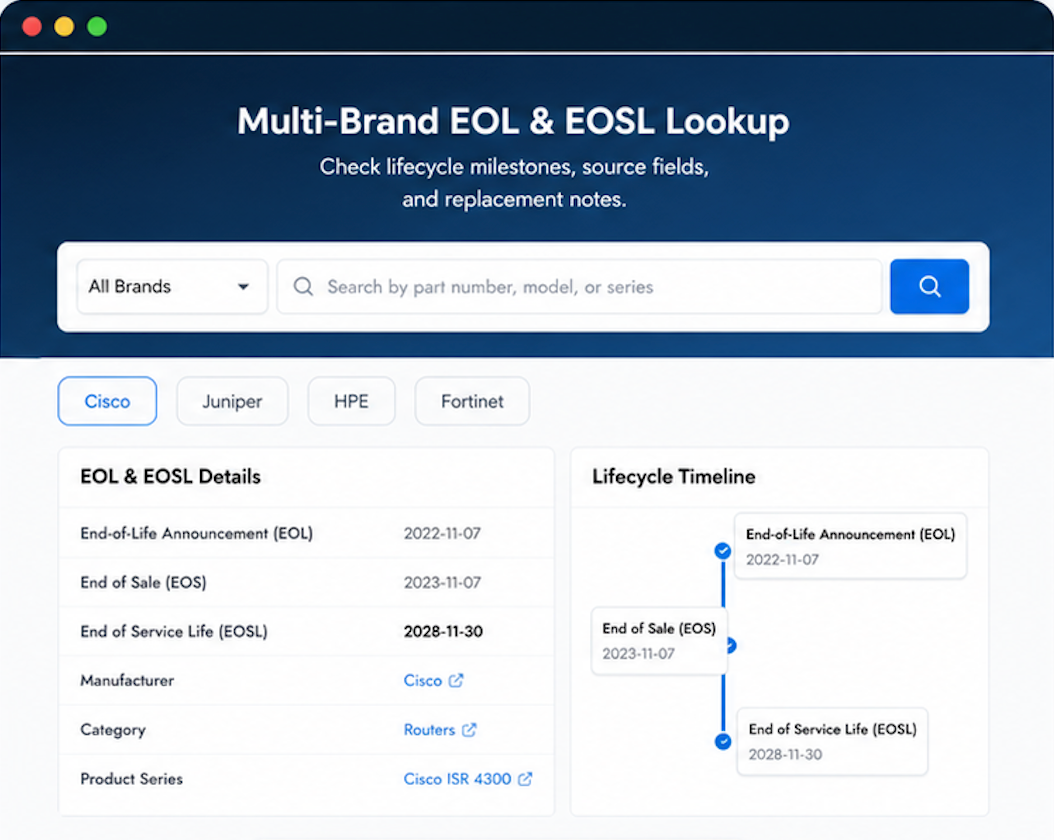

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.
