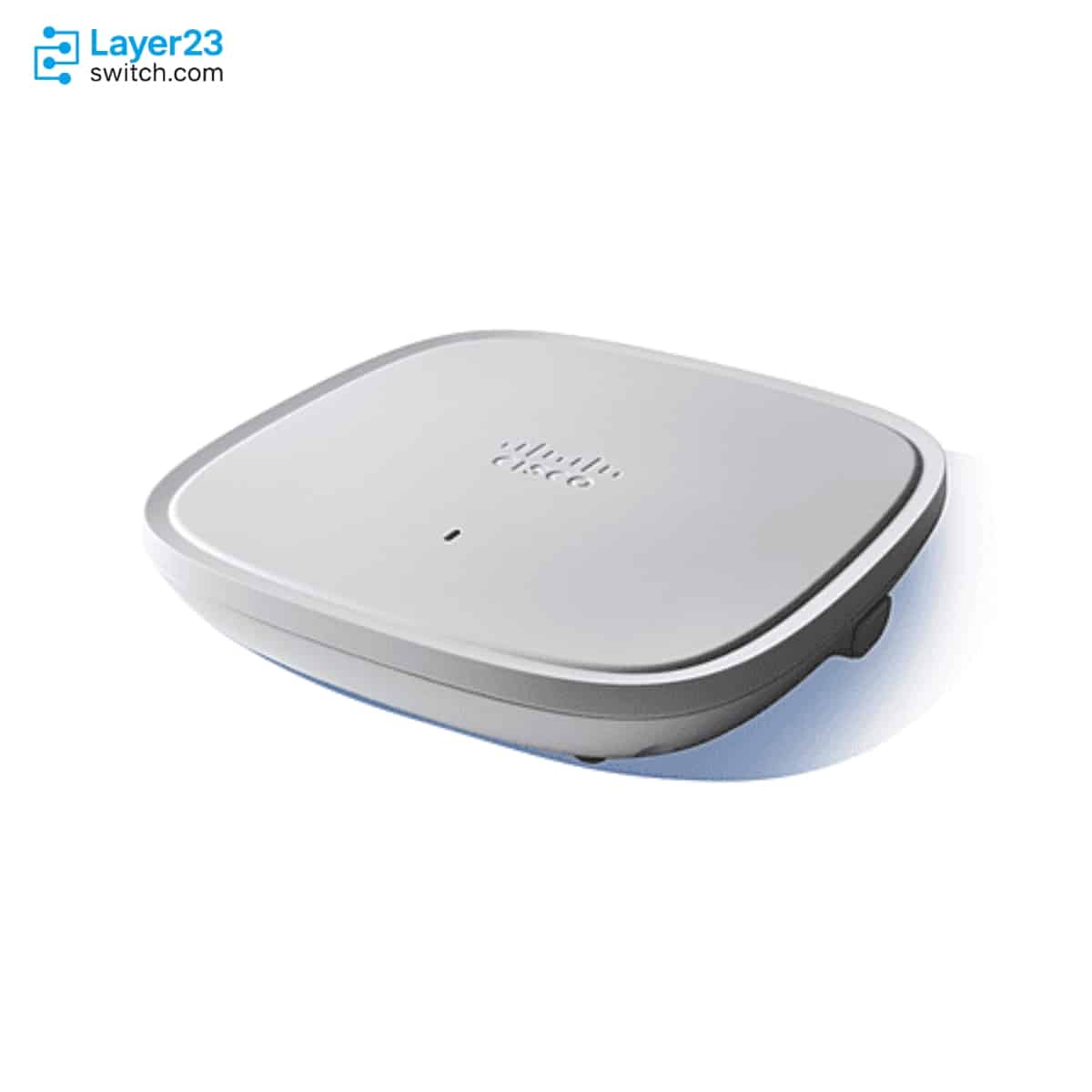

C9115AXI-E – Wi-Fi 6 4×4:4 AP – Internal Antennas – 2.5G PoE Uplink
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9115AXI-E Description
C9115AXI-E is a Cisco Catalyst 9115 Series indoor Wi-Fi 6 access point for controller-based wireless access in the E regulatory domain. The model uses the C9115AXI internal-antenna design with dual-band 2.4 GHz and 5 GHz radios, 4x4 MIMO with four spatial streams, and a 100/1000/2500 Multigigabit Ethernet RJ-45 uplink. Cisco documentation lists it for Catalyst 9800 Series and AireOS controller environments with Cisco Unified Wireless Network Software Release 8.9 or later or Cisco IOS XE Software Release 16.11 or later, and its PoE behavior supports full 4x4 radio operation, 2.5G Ethernet, USB, and 20.4W maximum draw on 802.3at while reducing features on 802.3af power.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9115AXI-E |
|
Product type |
Indoor Wi-Fi 6 wireless access point |
|
Exact model record |
C9115AXI-E listed in Cisco EU/EFTA regulatory records |
|
Ordering pattern |
C9115AXI-x with x as the regulatory-domain suffix |
|
Management model |
Controller-based access point |
|
Software support |
Cisco Unified Wireless Network Software Release 8.9 or later and Cisco IOS XE Software Release 16.11 or later |
|
Supported controllers |
Cisco Catalyst 9800 Series plus Cisco 3504, 5520, 8540, and Virtual Wireless Controller |
|
Wireless standard |
Wi-Fi 6 / IEEE 802.11ax |
|
Radio and MIMO profile |
Dual-band 2.4 GHz and 5 GHz radios with 4×4 MIMO and four spatial streams |
|
Antenna design |
Four integrated dual-band internal antennas on C9115AXI models |
|
Ethernet interfaces |
1 x 100/1000/2500 Multigigabit Ethernet RJ-45, RJ-45 console, and USB 2.0 |
|
PoE feature mode |
802.3at supports 4×4 radios, 2.5G link, USB, and 20.4W max PoE draw; 802.3af reduces radios to 2×2, link to 1G, disables USB, and lists 13W max PoE draw |
Application Scenarios
C9115AXI-E fits indoor Wi-Fi 6 refresh work where the deployment country maps to the -E regulatory domain and the design uses Cisco Catalyst 9115AXI internal antennas.
Use C9115AXI-E for carpeted office, education, or campus areas where the AP should follow the ceiling-oriented AXI internal-antenna model rather than an external antenna layout.
C9115AXI-E suits access-layer upgrades that pair Cisco wireless controller discovery with 802.3at PoE so the AP can run the documented 4×4 radio, 2.5G uplink, and USB profile.
Product Comparison
|
Parameter |
C9115AXI-E |
C9115AXI-H | |
|---|---|---|---|
|
Exact model listing |
C9115AXI-E listed in Cisco EU/EFTA regulatory records |
C9115AXE-E listed in Cisco EU/EFTA regulatory records |
C9115AXI-H listed by Cisco as Catalyst 9115AX Series |
|
Ordering family |
C9115AXI-x |
C9115AXE-x |
C9115AXI-x |
|
Product type |
Indoor access point with internal antennas |
Indoor access point with external antennas |
Indoor Wi-Fi 6 wireless access point |
|
Regulatory suffix |
-E |
-E |
-H |
|
Wi-Fi generation |
Wi-Fi 6 / 802.11ax |
Wi-Fi 6 / 802.11ax |
Wi-Fi 6 / 802.11ax |
|
MIMO profile |
4×4 MIMO with four spatial streams |
4×4 MIMO with four spatial streams |
4×4 MIMO with four spatial streams |
|
Antenna connection |
Four integrated dual-band internal antennas |
Four RP-TNC antenna connectors for external dual-band antennas |
Four integrated dual-band internal antennas |
|
Antenna gain boundary |
2.4 GHz 3 dBi and 5 GHz 4 dBi internal antenna gain |
Certified for external antennas up to 6 dBi on 2.4 GHz and 5 GHz |
2.4 GHz 3 dBi and 5 GHz 4 dBi internal antenna gain |
|
Ethernet uplink |
1 x 100/1000/2500 Multigigabit Ethernet |
1 x 100/1000/2500 Multigigabit Ethernet |
1 x 100/1000/2500 Multigigabit Ethernet |
|
802.3at max PoE draw |
20.4W listed for Catalyst 9115I |
21.4W listed for Catalyst 9115E |
20.4W listed for Catalyst 9115I |
|
Dimensions |
8.0 x 8.0 x 1.5 in. |
8.0 x 8.0 x 1.7 in. |
8.0 x 8.0 x 1.5 in. |
|
Weight |
1.98 lb. |
2.43 lb. |
1.98 lb. |
- In a C9115AXI-E vs C9115AXE-E comparison, the confirmed difference is the antenna path: C9115AXI-E is the integrated internal-antenna AP, while C9115AXE-E is the external-antenna AP.
- The C9115AXI-E difference matters when the RF plan expects a ceiling-focused AXI body; C9115AXE-E belongs in the comparison when RP-TNC external antennas are part of the design.
- For buyers deciding which model to choose, keep the same -E suffix for regional compliance and choose between C9115AXI-E and C9115AXE-E by antenna hardware. C9115AXI-H is included as an additional same-family comparison point.
Selection Guide
1. Anchor the order to the -E approval
Select C9115AXI-E only when Cisco compliance resources support the -E regulatory domain for the installation country.
2. Choose AXI for integrated antenna designs
Use the AXI model when the WLAN survey calls for the internal dual-band antenna layout documented for the Catalyst 9115AXI family.
3. Move to AXE only for external antenna requirements
Specify C9115AXE-E instead when the deployment needs external antenna connectors or directional antenna planning confirmed for the AXE family.
4. Plan power for full feature operation
Reserve 802.3at PoE or a Cisco-supported injector when the quote requires 4×4 radios, 2.5G Ethernet, and USB availability.
Ordering Checklist
|
Procurement Area |
Required Check |
Risk Controlled |
|---|---|---|
|
Regulatory domain |
Match C9115AXI-E to the target country approval record |
The -E suffix is not interchangeable with other C9115AXI domains |
|
Antenna family |
Confirm AXI internal antennas rather than AXE external antenna hardware |
The two model families use different RF planning assumptions |
|
Controller software |
Check Cisco Unified Wireless Network 8.9 or later or Cisco IOS XE 16.11 or later |
The AP must join a supported Cisco wireless controller for service |
|
Mounting choice |
Select AIR-AP-BRACKET-1 or AIR-AP-BRACKET-2 for the installation surface |
Missing bracket selection can delay physical deployment |
|
Country compliance |
Recheck Cisco compliance resources before finalizing regional rollout quantities |
Regulatory approval can vary by country even within the same AP family |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9115AXI-E | Product Type | Indoor Wi-Fi 6 wireless access point |
| Exact Model Record | C9115AXI-E listed in Cisco EU/EFTA regulatory records | Ordering Pattern | C9115AXI-x with x as regulatory-domain suffix |
| Management Model | Controller-based access point | Software Support | Cisco Unified Wireless Network Software Release 8.9 or later; Cisco IOS XE Software Release 16.11 or later |
| Supported Controllers | Cisco Catalyst 9800 Series, Cisco 3504, 5520, 8540, and Virtual Wireless Controller | Wireless Standard | Wi-Fi 6 / IEEE 802.11ax |
| Radio Design | Dedicated 2.4 GHz radio and 5 GHz radio | MIMO Profile | 4×4 MIMO with four spatial streams on both bands |
| Internal Antennas | Four integrated dual-band antennas on C9115AXI models | 2.4 GHz Antenna Gain | 3 dBi peak gain for integrated internal antennas |
| 5 GHz Antenna Gain | 4 dBi peak gain for integrated internal antennas | Ethernet Uplink | 1 x 100/1000/2500 Multigigabit Ethernet RJ-45 |
| Console Port | RJ-45 management console port | USB Port | USB 2.0 |
| Status Indicator | Multi-color status LED | PoE Input Options | 802.3at PoE+, 802.3bt Cisco UPOE, AIR-PWRINJ6=, 802.3af PoE, or AIR-PWRINJ5= |
| 802.3at Feature Mode | 4×4 radios, 2.5G link speed, USB enabled, and 20.4W max PoE consumption for Catalyst 9115I | 802.3af Feature Mode | 2×2 radios, 1G link speed, USB disabled, and 13W max PoE consumption |
| Power Negotiation Note | LLDP/CDP should be enabled for proper power negotiation | Dimensions | 8.0 x 8.0 x 1.5 in. (20.3 x 20.3 x 3.8 cm) |
| Weight | 1.98 lb. (0.9 kg) | Operating Temperature | 32 to 122 F (0 to 50 C) |
| Operating Humidity | 10% to 90% noncondensing | Storage Temperature | -22 to 158 F (-30 to 70 C) |
| Operating Altitude Test | 40 C at 9843 ft. | Environmental Feature Shift | Above 40 C ambient, radios shift from 4×4 to 2×2, Ethernet downgrades to 1G, and USB is disabled |
| System Memory | 2048 MB DRAM and 1024 MB flash | Mounting Bracket Options | AIR-AP-BRACKET-1 low-profile bracket or AIR-AP-BRACKET-2 universal bracket |
| Warranty | Limited lifetime hardware warranty |
Get More Information
Need pricing, stock, or shipping details for the C9115AXI-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Who is C9115AXI-E built for?
-
What does the E suffix mean on C9115AXI-E?
-
Does C9115AXI-E need PoE+ for full features?
-
What is reduced on C9115AXI-E with 802.3af PoE?
-
How is C9115AXI-E different from C9105AXI-E?
-
Is C9115AXI-E an internal-antenna AP?
-
Can C9115AXI-E be ordered as an EWC AP?
-
What needs sizing before buying C9115AXI-E?
