C9800-40-K9 Description

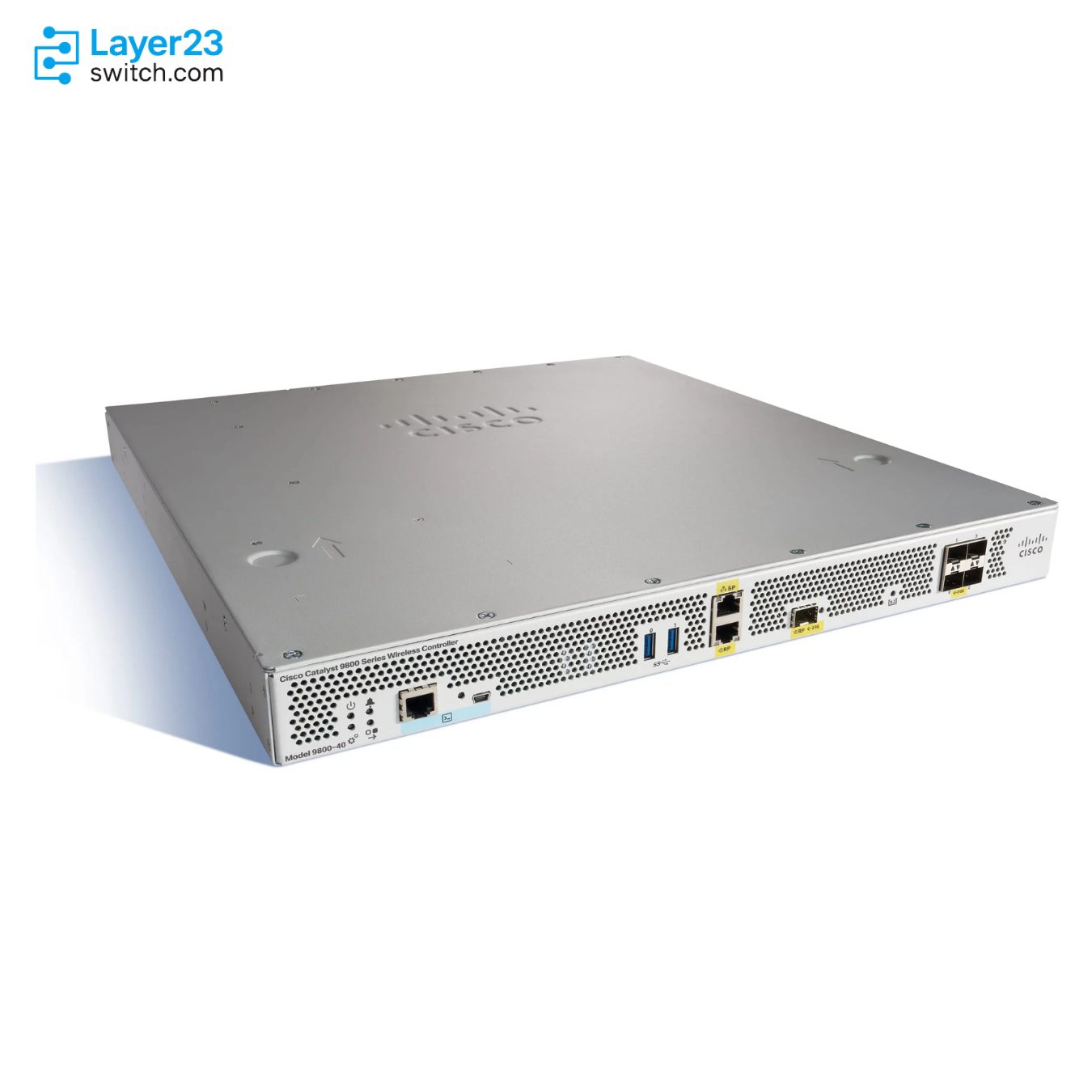

The C9800-40-K9 is a Cisco Catalyst 9800-40 Wireless Controller, a fixed 1RU appliance that runs Cisco IOS XE for enterprise campus WLANs. The controller manages up to 2000 access points and 32,000 clients at up to 40 Gbps through four 10G/1G SFP+/SFP data ports, with a maximum power draw of 381W. The data ports run only at 10G or 1G, with no 10/100 Mbps operation, and connect to a switch rather than directly to access points.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9800-40-K9 |
|
Controller type |
Catalyst 9800-40 fixed wireless controller appliance |
|
Maximum number of access points |
Up to 2000 |
|
Maximum number of clients |
32,000 |
|
Maximum throughput |
Up to 40 Gbps |
|
Data ports |
4x 10G/1G SFP+/SFP |
|
Redundancy ports |
1x RJ-45 and 1x 1G SFP for SSO |
|
Power supply |
AC PEM with optional redundant hot-swappable AC PEM |
|
Maximum power consumption |
381W |
|
Form factor |
1RU |
|
Deployment modes |
Centralized, Cisco FlexConnect, and Fabric Wireless (SD-Access) |
|
Minimum software release |
Cisco IOS XE Software Release 16.10.1 |
Application Scenarios
On a corporate or university campus with up to 2000 access points, the controller sits in a data center rack and reaches the distribution switches over 10G SFP+ links.
A retail or banking group can keep its branch access points in Cisco FlexConnect mode, up to 100 per site, while one controller at headquarters manages them all.
Hospitals and other sites where clients must stay connected through a controller failure run two controllers as an SSO 1:1 active-standby pair linked over the redundancy ports.
Product Comparison
|
Parameter |
C9800-40-K9 |
CW9800M | ||
|---|---|---|---|---|
|
Maximum number of access points |
Up to 2000 |
Up to 6000 |
Up to 3000 |
250 (500 with Performance license) |
|
Maximum number of clients |
32,000 |
64,000 |
32,000 |
5000 (10,000 with Performance license) |
|
Maximum throughput |
Up to 40 Gbps |
Up to 80 Gbps |
Up to 50 Gbps |
5 Gbps (10 Gbps with Performance license) |
|
Interfaces |
4x 10G/1G SFP+/SFP |
8x 10G SFP+ (or 6x 10G + 2x 1G), optional 10G/40G/100G modules |
4x 1/10G SFP+ and 2x 25G SFP28 |
4x 2.5G/1G copper and 2x 10G SFP+ |
|
Form factor |
1RU |
2RU |
1RU |
1RU half-width |
|
Power supply |
AC with optional redundant AC PEM |
Redundant AC or DC PEMs |
One AC supply, hot-swappable PEM redundancy |
External 110W AC adapter |
|
Maximum power consumption |
381W |
600W with modules |
350W |
84.5W |
|
Minimum software release |
Cisco IOS XE 16.10.1 |
Cisco IOS XE 16.10.1 |
Cisco IOS XE 17.14.1 |
Cisco IOS XE 16.12.1 |
C9800-40-K9 and C9800-80-K9 share the same Cisco IOS XE 16.10.1 baseline, but C9800-80-K9 scales to 6000 access points, 64,000 clients and 80 Gbps in 2RU, against 2000 access points, 32,000 clients and 40 Gbps in 1RU for C9800-40-K9. A design above 2000 access points, or one that needs 40G or 100G uplink modules, moves to the 2RU controller. CW9800M keeps the 1RU size and 32,000 clients but takes up to 3000 access points at 50 Gbps with two 25G SFP28 ports, provided the network can run Cisco IOS XE 17.14.1 or later. Sites with 500 access points or fewer can use C9800-L-F-K9, which manages 250 access points as shipped and 500 with its Performance license.
Ordering Checklist
- Access point subscriptions: Order a Cisco DNA Essentials or Advantage subscription of 3, 5 or 7 years for every access point, tied to a Smart Account. The controller boots without a license, but access points cannot join without one.
- Unified licensing release: LIC-CW-E and LIC-CW-A Cisco Networking Subscriptions also cover C9800-40-K9, but they need Cisco IOS XE 17.15.2 on the controller. An older image cannot consume them.
- Standby controller: Add a second controller when the design uses SSO 1:1 active standby or N+1 redundancy. SSO pairs an active unit with a standby unit, so the HA design needs two controllers.
- Redundant power supply: Add C9800-AC-750W R= for the optional PEM 1 slot. The base unit runs on PEM 0 alone, so power redundancy needs this separate line.
- Redundancy port optic: Order GLC-SX-MMD or GLC-LH-SMD for the 1G SFP redundancy port. No other SFP is supported on that port.
- Data port optics: Order 10G SFP+ or 1G SFP modules from the supported list, such as SFP-10G-SR or GLC-LH-SMD, for ports TE0 to TE3. The ports do not run at 10/100 Mbps.
- DTLS license: Add LIC-C9800-DTLS-K9 when DTLS encryption is required. The DTLS license is a separate line in the ordering table.

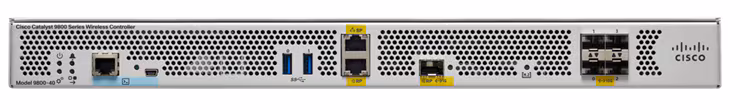

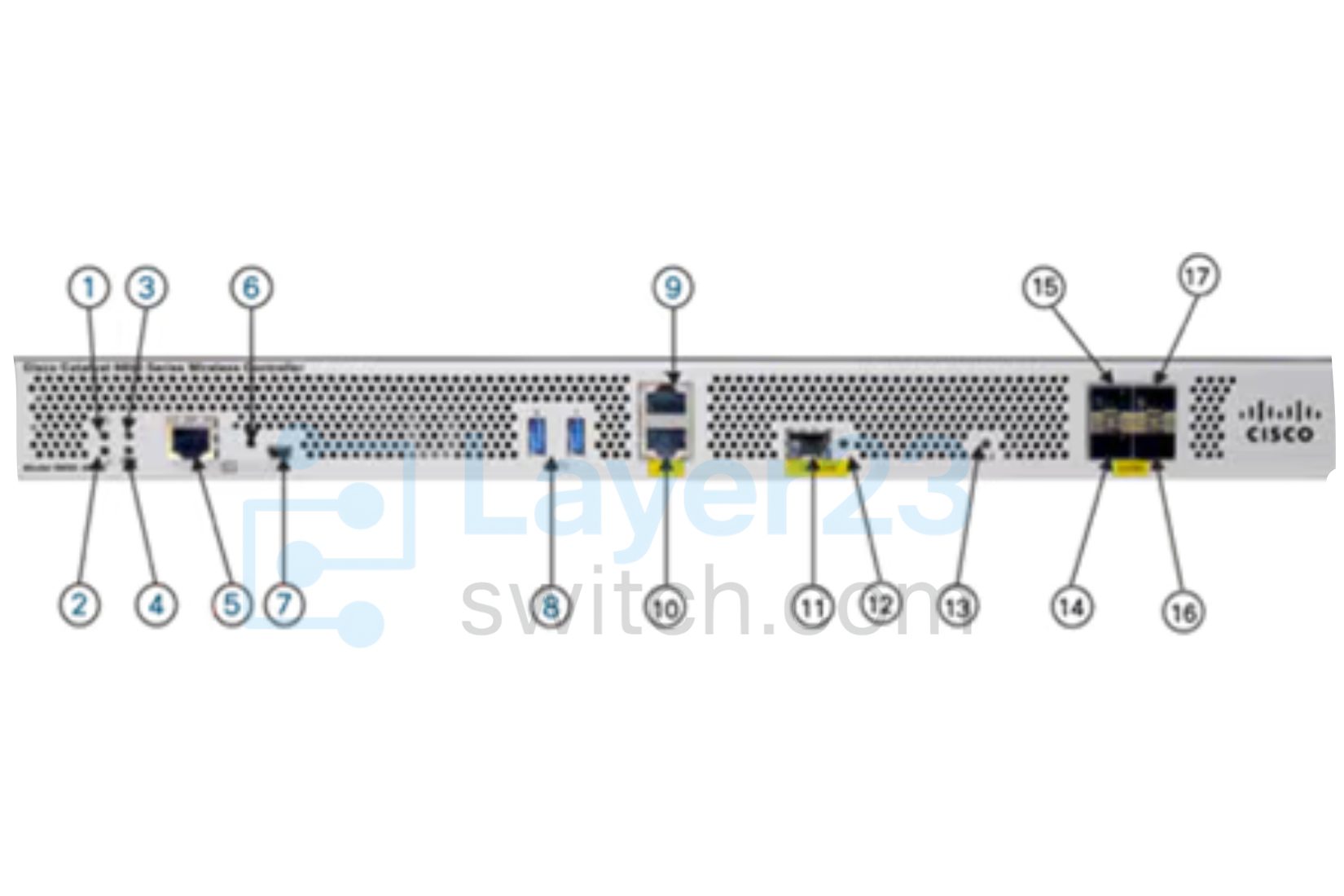

C9800-40-K9 Front View
|
Label |
Component |
|---|---|
|
1 |
PWR: Power LED |
|
2 |
SYS: System LED |
|
3 |
ALM: Alarm LED |
|
4 |
HA: High-availability LED |
|
5 |
CON: RJ-45 compatible console port |
|
6 |
EN: USB console-enabled LED |
|
7 |
CON: Mini USB console port |
|
8 |
USB ports 0 and 1 |
|
9 |
SP: RJ-45 10/100/1000 management Ethernet port |
|
10 |
RP: RJ-45 10/100/1000 redundancy Ethernet port |
|
11 |
RP: 1 GE SFP port (the only SFPs supported on the RP port are GLC-SX-MMD and GLC-LH-SMD) |
|
12 |
LINK: RJ-45 connector LED |
|
13 |
SSD: SSD activity LED |
|
14 |
TE0: 1 GE SFP/10 GE SFP+ port 0 |
|
15 |
TE1: 1 GE SFP/10 GE SFP+ port 1 |
|
16 |
TE2: 1 GE SFP/10 GE SFP+ port 2 |
|
17 |
TE3: 1 GE SFP/10 GE SFP+ port 3 |

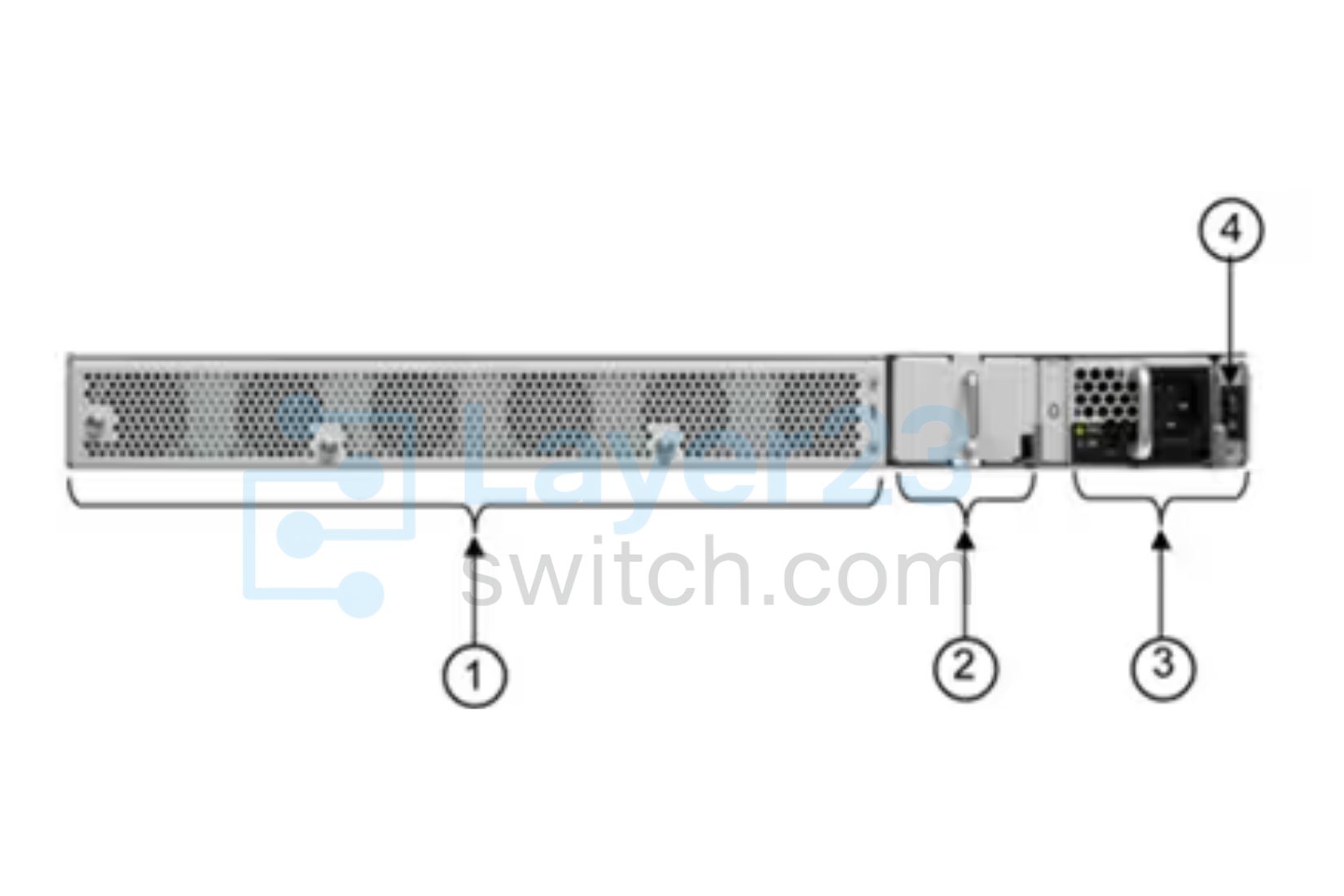

C9800-40-K9 Rear View
|
Label |
Component |
|---|---|
|
1 |
Fans |
|
2 |
Optional redundant power supply (PEM 1) |
|
3 |
Power supply (PEM 0) |
|
4 |
Power/standby switch |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9800-40-K9 | Controller model | Cisco Catalyst 9800-40 Wireless Controller |
| Rack units | 1RU | Operating system | Cisco IOS XE |
| Minimum software release | Cisco IOS XE Software Release 16.10.1 | Deployment modes | Centralized, Cisco FlexConnect, and Fabric Wireless (SD-Access) |
| Maximum number of access points | Up to 2000 | Maximum number of clients | 32,000 |
| Maximum throughput | Up to 40 Gbps | Maximum WLANs | 4096 |
| VLAN IDs | 4096 | Maximum site tags | 2000 |
| Maximum flex APs per site | 100 | Maximum policy tags | 2000 |
| Maximum RF tags | 2000 | Maximum RF profiles | 4000 |
| Maximum policy profiles | 1000 | Maximum flex profiles | 2000 |
| Data ports | 4x 1G SFP/10G SFP+ (TE0 to TE3), 10G or 1G mode; 10/100 Mbps not supported | Management port | 1x RJ-45 10/100/1000 service port |
| Redundancy ports | 1x RJ-45 10/100/1000 and 1x 1G SFP for SSO (GLC-SX-MMD or GLC-LH-SMD only) | Console port | 1x RJ-45 console and 1x mini USB console |
| USB port | 2x USB 3.0 for external memory | SSD storage | 240 GB SATA SSD |
| DRAM | Up to 32 GB DDR3 with error-correcting code | Bootflash | 32 GB internal |
| Crypto processing | Up to 30 Gbps on a dedicated security processor | TCAM | 80 Mb |
| Supported SFP modules | GLC-BX-D, GLC-BX-U, GLC-LH-SMD, GLC-SX-MMD, GLC-EX-SMD, GLC-ZX-SMD, GLC-TE | Supported SFP+ modules | SFP-10G-AOC1M/2M/3M/5M/7M/10M, SFP-10G-SR/SR-S/SR-X, SFP-10G-LR/LRM/LR-X, SFP-10G-ER, SFP-10G-ZR, SFP-H10GB-CU1M/1.5M/2M/2.5M/3M/5M, SFP-H10GB-ACU7M/ACU10M, DWDM-SFP10G-30.33 to DWDM-SFP10G-61.41 |
| Access points | Aironet 802.11ac Wave 1 and Wave 2 access points, Cisco Catalyst 9100 802.11ax access points | Wireless standards | IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave 1 and Wave 2, 802.11ax |
| Management | Cisco DNA Center, Cisco Prime Infrastructure, integrated WebUI, and open standards APIs | Interoperability | AireOS-based controllers |
| Policy engine | Cisco Identity Services Engine (ISE) | Location platform | Cisco Connected Mobile Experiences (CMX), Cisco Spaces |
| High availability | SSO with 1:1 active standby and N+1 redundancy; ISSU; SMU hot and cold patching | License | Smart License enabled; Cisco DNA subscription required for each access point |
| Power supply | AC PEM 0 with optional redundant AC PEM 1, hot-swappable | AC input | 90 to 264 VAC, 47 to 63 Hz |
| Maximum power consumption | 381W | Heat dissipation | 1,300 BTU/hr |
| Airflow | Front-to-rear | Fan modules | Six internal fans |
| Sound power level | 74.1 dBA at 27°C nominal operation | Operating temperature | 0°C to 40°C (32°F to 104°F) normal; 0°C to 50°C (32°F to 122°F) short term |
| Storage temperature | -40 to 65°C | Operating humidity | 10 to 90% noncondensing nominal; 5 to 90% noncondensing short term |
| Operating altitude | 0 to 3000 m (0 to 10,000 ft) | Nonoperating altitude | 0 to 12,192 m (0 to 40,000 ft) |
| Dimensions (H x W x D) | 17.3 x 19.5 x 1.72 in (43.94 x 49.53 x 4.37 cm) | Weight | 10.34 kg (22.8 lb) |
| Safety certifications | UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1 | EMC emissions | Class A: FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032, ICES-003, VCCI, KN 32, CNS-13438 |
