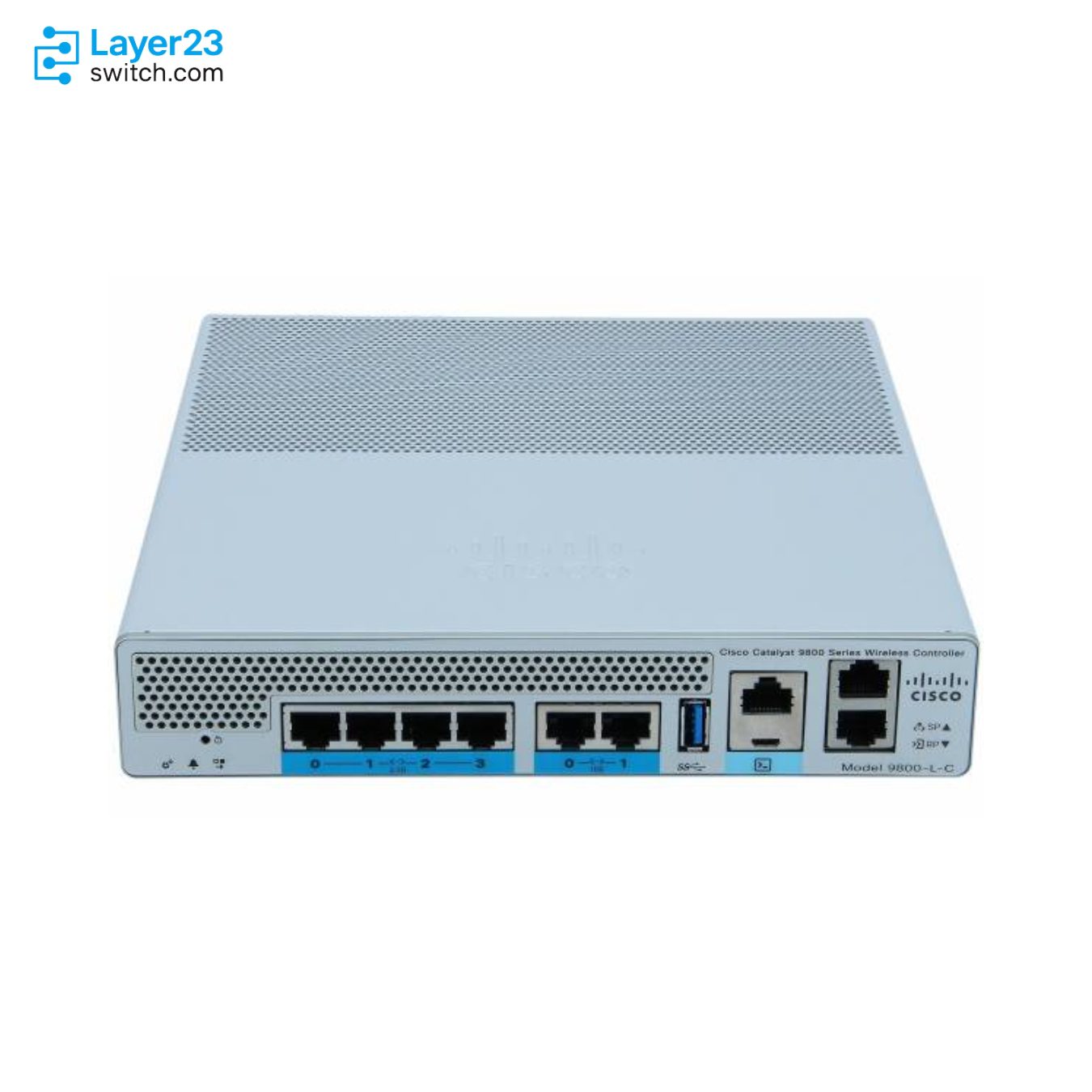

C9800-L-C-K9 Description
The C9800-L-C-K9 is a Cisco Catalyst 9800-L fixed wireless controller with copper uplinks for small and midsize enterprise WLANs. The half-width 1RU appliance carries two 10G Multigigabit RJ-45 copper ports and four 2.5G/1G copper ports, and it manages 250 access points, 5000 clients and 5 Gbps as shipped, or 500 access points, 10,000 clients and 10 Gbps with the Performance license. The controller boots without a license, but each joining access point needs its own Cisco DNA Essentials or Advantage subscription.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9800-L-C-K9 |
|
Controller type |
Catalyst 9800-L fixed wireless controller, copper uplink |
|
Maximum number of access points |
250; 500 with Performance license |
|
Maximum number of clients |
5000; 10,000 with Performance license |
|
Maximum throughput |
5 Gbps; 10 Gbps with Performance license |
|
Fixed uplinks |
2x 10G/Multigigabit copper (RJ-45) |
|
Data ports |
4x 2.5G/1G RJ-45 copper |
|
Redundancy port |
1x RJ-45 for SSO |
|
Power supply |
External 110W AC adapter C9800-AC-110W, shipped by default |
|
Maximum power consumption |
86.9W |
|
Form factor |
1RU half-width |
|
Minimum software release |
Cisco IOS XE Software 16.12.1 |
Application Scenarios
In a single headquarters building with up to 250 access points, the controller connects to the core switch over its 10G Multigigabit RJ-45 ports and the links run on copper patch cabling with no optics.
A company with small regional offices can leave the branch access points in Cisco FlexConnect mode while one controller at the main site handles their configuration and policy centrally.
Two controllers form an SSO active-standby pair through their RJ-45 redundancy ports, linked back to back or through a Layer 2 switch. The half-width chassis lets both units sit side by side in one rack unit.
Product Comparison
|
Parameter |
C9800-L-C-K9 |
CW9800L | ||
|---|---|---|---|---|
|
Maximum number of access points |
250; 500 with Performance license |
250; 500 with Performance license |
Up to 500 |
Up to 2000 |
|
Maximum number of clients |
5000; 10,000 with Performance license |
5000; 10,000 with Performance license |
Up to 10,000 |
32,000 |
|
Maximum throughput |
5 Gbps; 10 Gbps with Performance license |
5 Gbps; 10 Gbps with Performance license |
10 Gbps |
Up to 40 Gbps |
|
Fixed uplinks |
2x 10G/Multigigabit copper (RJ-45) |
2x 10G SFP+ fiber |
2x 1G/10G SFP+ |
4x 10G/1G SFP+/SFP |
|
2.5G/1G copper ports |
4x RJ-45 |
4x RJ-45 |
Not applicable |
Not applicable |
|
Power supply |
External 110W AC adapter |
External 110W AC adapter |
110W AC adapter, optional redundant supply kit |
AC PEM with optional redundant AC PEM |
|
Maximum power consumption |
86.9W |
84.5W |
90W |
381W |
|
Form factor |
1RU half-width |
1RU half-width |
1RU |
1RU |
|
Minimum software release |
Cisco IOS XE 16.12.1 |
Cisco IOS XE 16.12.1 |
Cisco IOS XE 17.18.2 |
Cisco IOS XE 16.10.1 |
C9800-L-C-K9 and C9800-L-F-K9 differ only in their two 10G uplinks, which are Multigigabit RJ-45 copper on C9800-L-C-K9 and SFP+ fiber on C9800-L-F-K9. A controller that must reach its switch over fiber therefore needs the fiber model. Both start at 250 access points and reach 500 access points, 10,000 clients and 10 Gbps once LIC-C9800L-PERF is added with the order or later as LIC-C9800L-PERF=. CW9800L is rated for 500 access points and 10 Gbps on SFP+ uplinks and adds an optional redundant supply kit, provided the network can run Cisco IOS XE 17.18.2 or later. Designs above 500 access points move to C9800-40-K9, with 2000 access points and 40 Gbps on four 10G/1G SFP+ ports.
Ordering Checklist
- Access point subscriptions: Order a Cisco DNA Essentials or Advantage subscription of 3, 5 or 7 years for every access point, tied to a Smart Account. Access points cannot join the controller without one.
- Unified licensing release: LIC-CW-E and LIC-CW-A Cisco Networking Subscriptions cover C9800-L-C-K9 only on Cisco IOS XE 17.15.2 or later. An older image cannot consume them.
- Performance license: Add LIC-C9800L-PERF when the site will pass 250 access points or 5000 clients. In an SSO pair, both controllers need their own Performance license.
- Standby controller: Add a second C9800-L-C-K9 when the design uses SSO active standby or N+1 redundancy. Both designs need a second controller on the order.
- DTLS license: Add LIC-C9800-DTLS-K9 when client data between access points and the controller must be encrypted. It is an optional line in the ordering steps.
- Power cord and rack tray: Choose the Type C5 cord for the destination country, such as CAB-AC-C5 for the US and Canada, for the included C9800-AC-110W adapter. Add C9800L-RMNT when the controller goes in a rack.

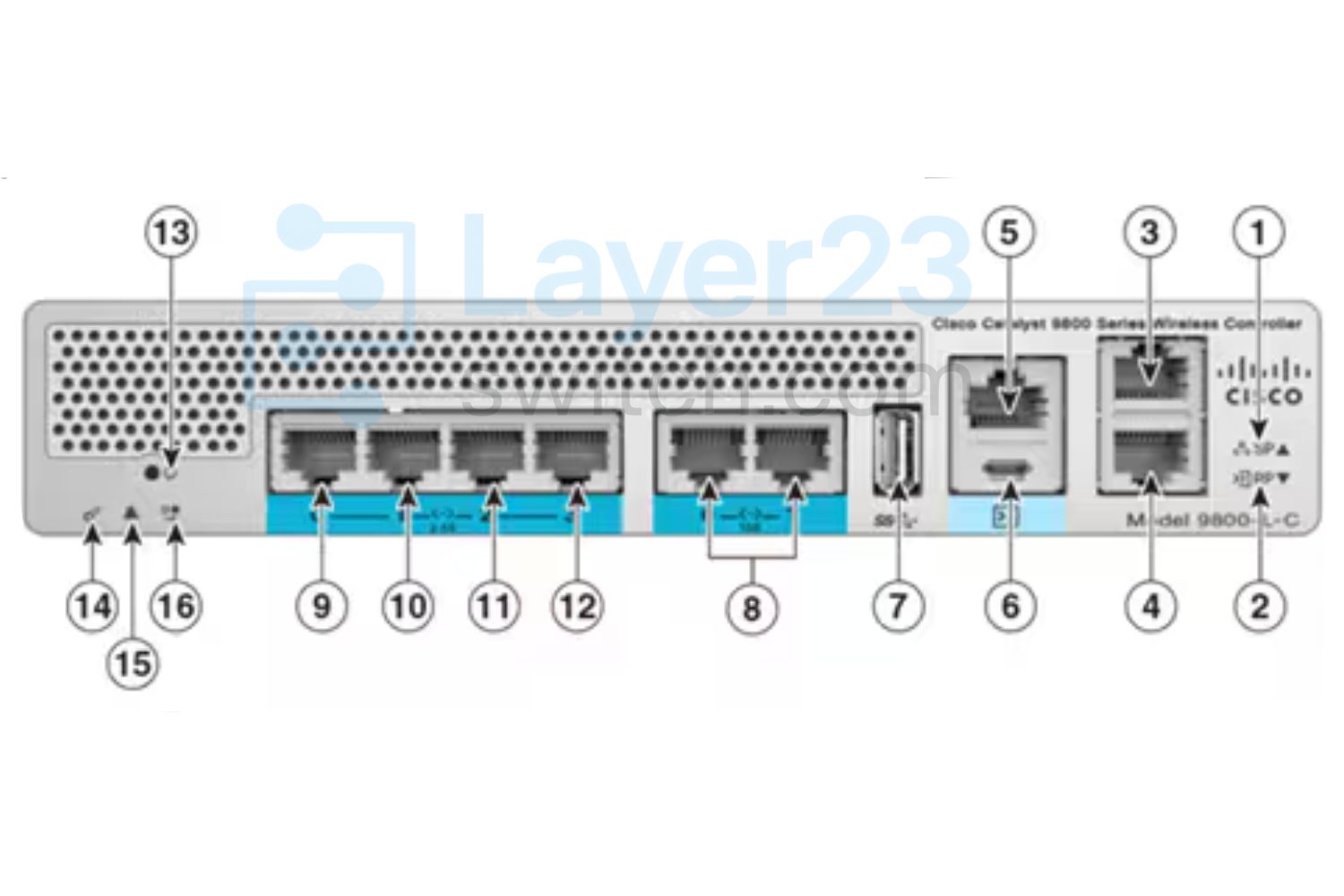

C9800-L-C-K9 Front View
|
Label |
Description |
Label |
Description |
|---|---|---|---|
|
1 |
Service port LED |
2 |
Redundancy port LED |
|
3 |
Service Port (SP) (RJ-45) for out-of-band management |
4 |
Redundancy port |
|
5 |
RJ-45 console port |
6 |
Micro-B USB console |
|
7 |
USB 3.0 port |
8 |
2x 10G/Multigigabit copper |
|
9-12 |
Quad RJ-45 2.5G/1G Multigigabit Ethernet ports |
13 |
Reset button |
|
14 |
System LED |
15 |
Alarm LED |
|
16 |
High availability LED |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9800-L-C-K9 | Controller model | Cisco Catalyst 9800-L (Copper Uplink) Wireless Controller |
| Form factor | 1RU half-width chassis; side-by-side installation in a standard 19-in. rack | Operating system | Cisco IOS XE |
| Minimum software release | Cisco IOS XE Software 16.12.1 | Deployment modes | Centralized, Cisco FlexConnect, and fabric |
| Maximum number of access points | 250; 500 with Performance license | Maximum number of clients | 5000; 10,000 with Performance license |
| Maximum throughput | 5 Gbps; 10 Gbps with Performance license (1374-byte packets) | Throughput with IMIX | 5 Gbps with or without Performance license |
| Maximum WLANs | 4096 | VLAN IDs | 4096 |
| Fixed uplinks | 2x 10G/Multigigabit copper (RJ-45) | Data ports | 4x 2.5G/1G RJ-45 copper; 10 Mbps not supported; must connect to a switch |
| Management port | 1x RJ-45 service port for out-of-band management | Redundancy port | 1x RJ-45 for SSO |
| Console port | 1x RJ-45 console and 1x Micro USB console | USB port | 1x USB 3.0 for external memory |
| CPU | Intel Broadwell-NE, 8 cores, 2 GHz | DRAM | 16 GB DDR4 |
| Flash | 32 GB eMMC bulk flash | Bluetooth | Hardware support for a Bluetooth dongle as an IP management interface |
| Access points | Cisco Aironet 802.11ac Wave 1 and Wave 2 access points, Cisco Catalyst 9100 802.11ax access points | Wireless | IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave 1 and Wave 2, 802.11ax |
| Cisco Wi-Fi 7 access points | Supported on-premises from Cisco IOS XE 17.15.2; some access point models need a later release | Interoperability | AireOS-based controllers |
| Management | Cisco DNA Center, Cisco Prime Infrastructure, embedded WebUI, and open standards APIs | High availability | SSO with active standby and N+1 redundancy; ISSU; SMU hot and cold patching |
| License | Smart License enabled; Cisco DNA subscription required for each access point; optional perpetual Performance license LIC-C9800L-PERF | Default power supply | External single-output 12V DC, 110W, 120/240V AC adapter C9800-AC-110W, shipped by default |
| AC input | 90 to 264 VAC, 47 to 63 Hz; adapter input 100 to 240 VAC, 50/60 Hz | Maximum power consumption | 86.9W (with 4.5W USB load) |
| Heat dissipation | 296.4 BTU/hr (with 4.5W USB load) | Sound power level | 40 dBA normal at 25°C; 42.9 dBA maximum at 40°C |
| Operating temperature | 0°C to 40°C (32°F to 104°F); maximum derated 1.0°C per 1000 ft (305 m) of altitude | Storage temperature | -25°C to 70°C (-13°F to 158°F) |
| Operating altitude | 0 to 3000 m (0 to 10,000 ft) | Nonoperating altitude | 0 to 12,192 m (0 to 40,000 ft) |
| Dimensions (H x W x D) | 8.5 x 9.06 x 1.58 in (21.59 x 23.01 x 4.02 cm) | Weight | 1.79 kg (3.95 lb) |
| Safety certifications | UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1 | EMC emissions | Class A: FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032, ICES-003, VCCI, KN 32, CNS-13438; EN61000-3-2, EN61000-3-3 |
