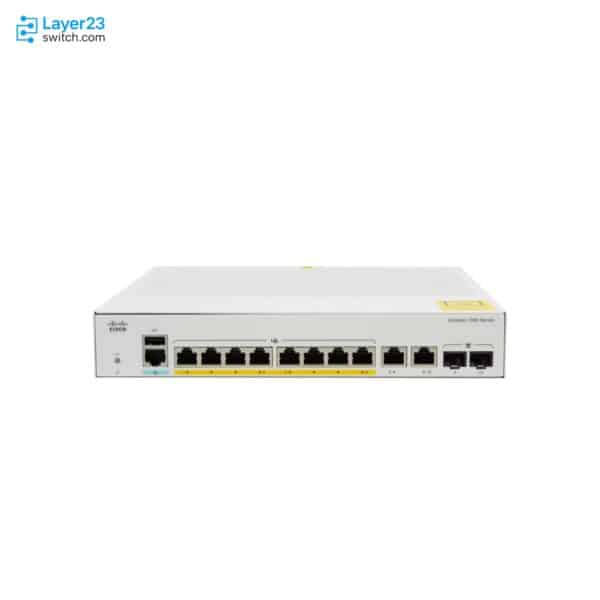

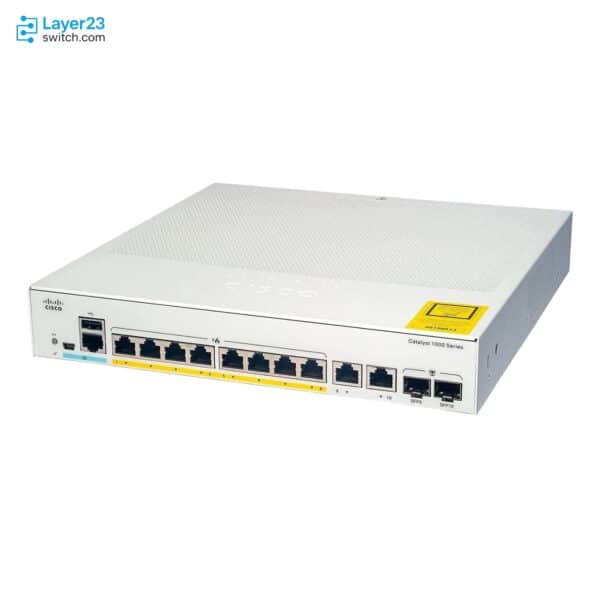

C1000-8P-2G-L Description
The C1000-8P-2G-L is a Cisco Catalyst 1000 Series fixed managed Gigabit Ethernet Layer 2 access switch for small branch and edge closets. It has eight 10/100/1000 RJ-45 PoE+ ports sharing a 67W PoE budget, two 1G SFP/RJ-45 combo uplinks, 20 Gbps of switching bandwidth, and a fanless chassis. Layer 3 is limited to static routing, so dynamic routing protocols are not part of the feature set.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1000-8P-2G-L |
|
Product type |
Fixed managed Gigabit Ethernet Layer 2 switch |
|
Downlink ports |
8 x 10/100/1000 RJ45 PoE+ ports |
|
Uplink ports |
2 x 1G SFP/RJ-45 combo uplinks |
|
Default PoE budget |
67W available PoE |
|
Per-port PoE support |
Up to 30W per PoE+ port |
|
Internal power input |
Single fixed internal AC power supply |
|
Fan design |
Fanless 8-port model |
|
Switching capacity |
20 Gbps for 8-port models |
|
Forwarding rate |
14.88 Mpps for 8-port models |
|
Dimensions |
10.56 x 12.73 x 1.73 in. |
|
Voltage |
100 to 240V AC in |
|
Frequency |
50 to 60 Hz |
Product Performance
Key Features
Eight IEEE 802.3at ports draw from one 67W pool, about 8W per port if every port is powered at once. The budget is fixed and cannot be raised.
Connected phones and cameras keep their power while the switch reloads, so a software upgrade does not reboot every powered endpoint.
Each of the two uplinks is a 1G SFP and RJ-45 combo port, so a closet can reach the router over copper or fiber without a separate uplink module.
With no fans, the 8-port chassis makes no noise, which suits desks, shelves and open office areas.
The 8-port chassis mounts on a DIN rail or in a rack with the compact bracket kits. It can also stand upright, hang with ports down, or sit under a desk.
Up to eight Gigabit Catalyst 1000 switches can be grouped over their SFP uplinks and managed from one IP address. Units with 1G uplinks group only with other 1G units.
Application Scenarios
In a small branch office, the switch powers IP phones and a wireless access point from its PoE+ ports and uplinks to the router over a 1G SFP or RJ-45 combo port.
A shop or front desk can set the switch on a shelf or under a counter to feed a point-of-sale terminal and a PoE+ IP camera, since the compact chassis has no fan.
In a classroom, the switch mounts on a wall to power a ceiling access point and connect a teaching computer, with a copper or fiber uplink back to the building closet.
Product Comparison
|
Parameter |
C1000-8P-2G-L |
C1000-8P-E-2G-L |
C1000-8FP-2G-L |
C1000-8T-2G-L |
|---|---|---|---|---|
|
Gigabit Ethernet / FE ports |
8 x 10/100/1000 RJ45 PoE+ |
8 x 10/100/1000 RJ45 PoE+ |
8 x 10/100/1000 RJ45 PoE+ |
8 x 10/100/1000 RJ45 data |
|
PoE power budget |
67W |
67W |
120W |
No PoE |
|
Uplink ports |
2 x 1G SFP/RJ-45 combo |
2 x 1G SFP/RJ-45 combo |
2 x 1G SFP/RJ-45 combo |
2 x 1G SFP/RJ-45 combo |
|
Switching capacity |
20 Gbps |
20 Gbps |
20 Gbps |
20 Gbps |
|
Fanless |
Yes |
Yes |
Yes |
Yes |
|
Power supply |
Internal AC |
External power supply |
Internal AC |
Internal AC |
|
Layer 3 functionality |
Static routing |
Static routing |
Static routing |
Static routing |
|
Single IP management |
Up to 8 switches, 1G models only |
Up to 8 switches, 1G models only |
Up to 8 switches, 1G models only |
Up to 8 switches, 1G models only |
C1000-8P-2G-L is the internal-power model of the 8-port 67W PoE+ pair: C1000-8P-E-2G-L has the same eight PoE+ ports, 2 x 1G combo uplinks and 67W budget but runs from an external power supply, which suits sites that want a replaceable supply. Endpoint loads above 67W, such as several PoE+ access points or cameras, need C1000-8FP-2G-L, which keeps the eight ports and raises the budget to 120W. Sites with no powered endpoints can order C1000-8T-2G-L, the data-only 8-port model with the same combo uplinks. Single IP Management groups only 1G models with other 1G models, so a closet that also uses 10G uplink models cannot share one management IP.
PoE Power Planning
|
Check Item |
Cisco-confirmed Value |
Planning Impact |
|---|---|---|
|
Available PoE |
67W |
Keep the total endpoint power budget inside the switch-level limit |
|
Per-port PoE support |
Up to 30W per PoE+ port |
A single endpoint may need PoE+ power but the full port set cannot all draw the per-port maximum at once |
|
Consumption with PoE |
80.24W |
Size UPS and branch electrical capacity for the powered-switch load |
|
Higher PoE alternative |
C1000-8FP-2G-L with 120W |
Move to the full-PoE model when the endpoint worksheet exceeds 67W |
Ordering Checklist
- Single IP Management: Up to 8 Gigabit Catalyst 1000 switches can be grouped over the front-panel SFP uplinks, and C1000-8P-2G-L only with other 1G models. A group mixing 1G and 10G models is not supported.
- Uplink optics: Add SFP modules for the 2 combo uplinks, checked in the Cisco Transceiver Module Compatibility Matrix. Optics are not part of the switch order.
- Power cord: Select one AC power cord for the destination country. The cord is not supplied with the switch and must be selected on the order.
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable option with RJ-45 connector for Catalyst 1000 management access |
|
CAB-CONSOLE-USB |
Cisco console cable option with USB connector for Catalyst 1000 management access |
|
PWR-CLP |
Power cable clip for Catalyst 1000 cable management |
|
CMPCT-CBLE-GRD |
Cable guard for Catalyst 1000 8-port and 16-port compact models |
|
CMPCT-DIN-MNT |
DIN rail mount for Catalyst 1000 8-port and 16-port compact models |
|
RCKMNT-19-CMPCT= |
19 in. rack mount bracket for Catalyst 1000 8-port and 16-port compact models |
|
RCKMNT-23-CMPCT= |
23 in. and 24 in. rack mount bracket for Catalyst 1000 8-port and 16-port compact models |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1000-8P-2G-L | Product type | Fixed managed Gigabit Ethernet Layer 2 switch |
| Downlink ports | 8 x 10/100/1000 RJ45 PoE+ ports | Uplink ports | 2 x 1G SFP/RJ-45 combo uplinks |
| Default PoE budget | 67W available PoE | Per-port PoE support | Up to 30W per PoE+ port |
| Fan design | Fanless 8-port model | Internal power input | Single fixed internal AC power supply |
| Voltage | 100 to 240V AC in | Frequency | 50 to 60 Hz |
| Input current | 0.23A to 0.27A | Power rating | 0.089 kVA maximum consumption |
| Consumption without PoE | 12.19W | Consumption with PoE | 80.24W |
| Maximum BTU per hour | 89.71 BTU/hr | Forwarding bandwidth | 10 Gbps for 8-port models |
| Switching capacity | 20 Gbps for 8-port models | Forwarding rate | 14.88 Mpps for 8-port models |
| Console port | RJ-45 Ethernet console | USB-A port | 1 USB-A port for storage and Bluetooth console |
| CPU | ARM v7 800 MHz | DRAM | 512 MB |
| Flash | 256 MB | Operating temperature | -5°C to 50°C (23°F to 122°F) up to 5,000 ft. |
| Operating humidity | 5% to 90% noncondensing | Dimensions | 10.56 x 12.73 x 1.73 in. |
