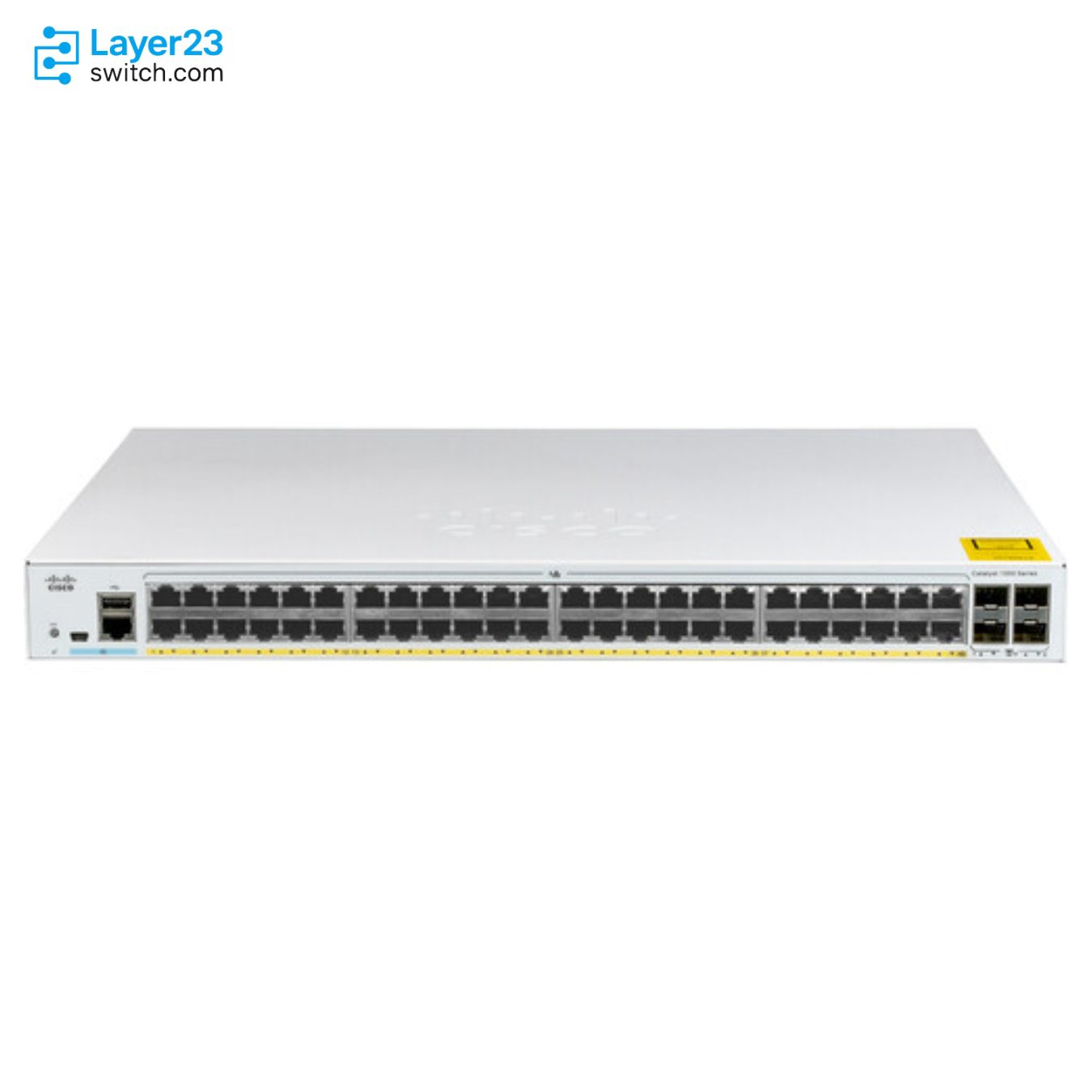

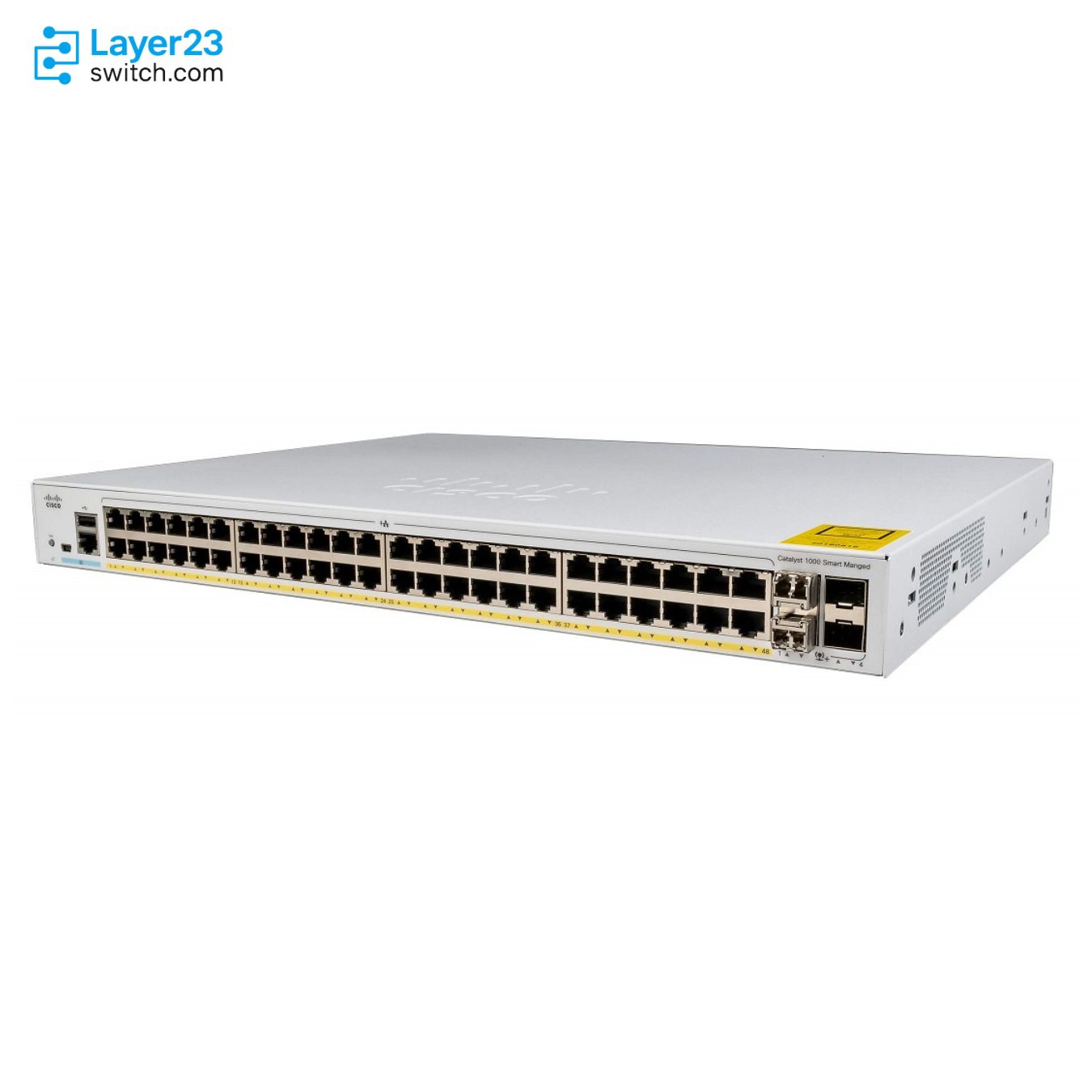

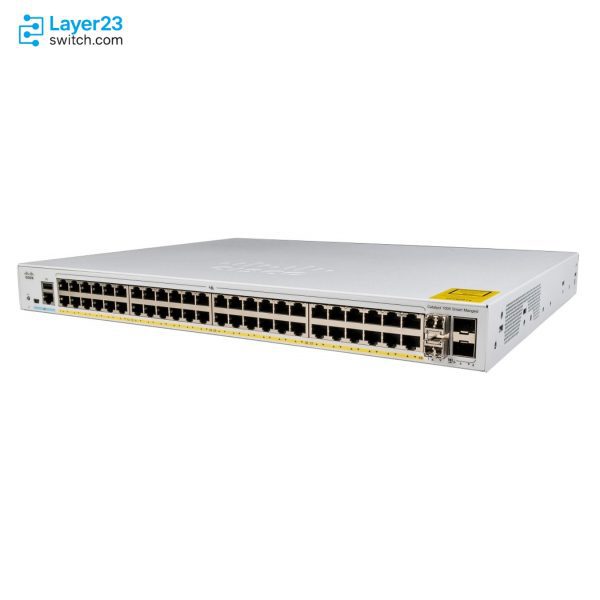

C1000-48T-4G-L – 48x1G Data Ports – 4x1G SFP Uplinks – Catalyst 1000
5/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C1000-48T-4G-L Description
C1000-48T-4G-L is a Cisco Catalyst 1000 Series fixed managed Gigabit Ethernet Layer 2 data switch with 48 10/100/1000 RJ45 Ethernet ports and four 1G SFP uplinks.
The key order difference is endpoint power and uplink tier. C1000-48P-4G-L keeps the same 48-port and 4 x 1G SFP uplink class but adds PoE+ with a 370W budget, while C1000-48T-4X-L stays data-only and changes the uplinks to 10G SFP+.
Quote review should confirm that endpoints do not require switch PoE, the uplink bill of materials uses 1G SFP optics, the site can support a non-fanless 48-port chassis, and the AC input, power cord, rack installation, warranty support, stock status, and global shipping terms match the final order.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1000-48T-4G-L |
|
Product family |
Cisco Catalyst 1000 Series |
|
Product type |
Fixed managed Gigabit Ethernet Layer 2 switch |
|
Downlink ports |
48 x 10/100/1000 RJ45 data ports |
|
Uplink interfaces |
4 x 1G SFP uplinks |
|
PoE budget |
Data switch with no PoE budget |
|
Fan design |
Fan-cooled 48-port model |
|
Power supply design |
Single fixed internal AC power supply |
|
Forwarding bandwidth |
52 Gbps for 48-port models with 1G uplinks |
|
Switching bandwidth |
104 Gbps for 48-port models with 1G uplinks |
|
Forwarding rate |
77.38 Mpps for 48-port models with 1G uplinks |
|
Dimensions |
17.48 x 11.34 x 1.73 in. |
|
Weight |
3.95 kg |
Product Performance
Key Features
The model provides 48 Gigabit RJ45 data ports, making it the 48-port choice when phones, cameras, access points, or other endpoints do not need power from the switch.
The uplink profile is 4 x 1G SFP, so the fiber plan should be built around 1G transceivers rather than the 10G SFP+ optics used by C1000-48T-4X-L.
Cisco marks 48-port Catalyst 1000 models as not fanless, and the data sheet lists 31.5 dB typical sound pressure for the 48T 4G and 4X models.
Catalyst 1000 switches operate on Cisco IOS Software and support management through CLI and an on-box web UI for smaller Cisco access networks.
The switch uses a fixed internal AC power supply, so the practical order checks are the 100 to 240V AC input range, UPS load, regional power cable, and optional cord retainer.
Cisco documents access-switch functions such as 802.1X, IPv4 and IPv6 ACLs, BPDU Guard, SPAN, SNMP, and sFlow across the Catalyst 1000 family.
Application Scenarios
C1000-48T-4G-L fits branch, school, retail, and office closets where many wired endpoints need Gigabit switching but endpoint power is handled outside the access switch.
Use this SKU when the upstream design is standardized on four 1G SFP uplinks and the access layer does not require the 10G SFP+ handoff of C1000-48T-4X-L.
The model is a clear step from C1000-24T-4G-L when the design keeps the same data-only and 1G SFP uplink profile but requires 48 copper access ports.
Product Comparison
|
Parameter |
C1000-48T-4G-L | |||
|---|---|---|---|---|
|
Product family |
Catalyst 1000 Series |
Catalyst 1000 Series |
Catalyst 1000 Series |
Catalyst 1000 Series |
|
Product type |
48-port Gigabit data switch |
48-port Gigabit data switch |
48-port Gigabit PoE+ switch |
24-port Gigabit data switch |
|
Downlink ports |
48 x 10/100/1000 RJ45 data |
48 x 10/100/1000 RJ45 data |
48 x 10/100/1000 RJ45 PoE+ |
24 x 10/100/1000 RJ45 data |
|
Uplink interfaces |
4 x 1G SFP |
4 x 10G SFP+ |
4 x 1G SFP |
4 x 1G SFP |
|
PoE budget |
Data model with no PoE budget |
Data model with no PoE budget |
370W |
Data model with no PoE budget |
|
Fanless |
No |
No |
No |
Yes |
|
Dimensions |
17.48 x 11.34 x 1.73 in. |
17.48 x 11.34 x 1.73 in. |
17.48 x 13.78 x 1.73 in. |
17.48 x 9.45 x 1.73 in. |
|
Weight |
3.95 kg |
3.95 kg |
5.43 kg |
2.63 kg |
|
Power rating |
0.06 kVA |
0.06 kVA |
0.5 kVA |
0.08 kVA |
|
Consumption without PoE |
53.66W |
54.73W |
54.25W |
22.8W |
|
Forwarding bandwidth class |
52 Gbps for 48-port 1G-uplink models |
88 Gbps for 48-port 10G-uplink models |
52 Gbps for 48-port 1G-uplink models |
28 Gbps for 24-port 1G-uplink models |
|
Switching bandwidth class |
104 Gbps for 48-port 1G-uplink models |
176 Gbps for 48-port 10G-uplink models |
104 Gbps for 48-port 1G-uplink models |
56 Gbps for 24-port 1G-uplink models |
|
Forwarding rate class |
77.38 Mpps for 48-port 1G-uplink models |
130.94 Mpps for 48-port 10G-uplink models |
77.38 Mpps for 48-port 1G-uplink models |
41.67 Mpps for 24-port 1G-uplink models |
|
Ordering description |
48x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks |
48x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks |
48x 10/100/1000 Ethernet PoE+ and 370W PoE budget ports, 4x 1G SFP uplinks |
24x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks |
- In a C1000-48T-4G-L vs C1000-48T-4X-L comparison, the confirmed difference is uplink speed: both are 48-port data models, but the 4X variant changes the uplinks from 1G SFP to 10G SFP+.
- The C1000-48T-4G-L difference from C1000-48P-4G-L is endpoint power, because both stay in the 48-port 1G SFP class while the 48P model adds a 370W PoE budget.
- For C1000-48T-4G-L vs C1000-24T-4G-L, the comparison centers on copper port count and chassis profile: the current SKU doubles the data ports and is not fanless.
- The which model to choose check should start with PoE requirement, then confirm whether the site needs 24 or 48 ports and 1G SFP or 10G SFP+ uplinks.
Selection Guide
1. Choose it for 48-port data-only access
Select C1000-48T-4G-L when the bill of materials needs 48 Gigabit RJ45 data ports, four 1G SFP uplinks, and no switch PoE budget.
2. Move to C1000-48T-4X-L for 10G aggregation
Use C1000-48T-4X-L when the endpoint count and data-only role stay the same but the upstream design requires four 10G SFP+ uplinks.
3. Use C1000-48P-4G-L when endpoints need PoE+
Specify C1000-48P-4G-L when the same 48-port and 1G uplink class is correct but phones, cameras, access points, or other powered devices must draw from a 370W switch PoE budget.
4. Keep C1000-24T-4G-L for smaller quiet access
Choose C1000-24T-4G-L when 24 data ports are enough and the installation needs the fanless 24-port hardware profile.
Ordering Checklist
|
Order Review Area |
Cisco-confirmed Item |
Procurement Check |
|---|---|---|
|
Exact line item |
C1000-48T-4G-L |
Match the quote to the 48-port Catalyst 1000 data switch with four 1G SFP uplinks |
|
Copper access scope |
48 x 10/100/1000 RJ45 data ports |
Confirm endpoint power is not expected from the switch because this SKU is not a PoE+ model |
|
Fiber uplink tier |
4 x 1G SFP uplinks |
Prepare the 1G SFP optic plan and avoid assuming 10G SFP+ ports |
|
Variant boundary |
C1000-48T-4X-L changes to 10G SFP+ uplinks |
Use the 4X variant only when the aggregation layer requires the higher uplink tier |
|
PoE substitute |
C1000-48P-4G-L adds 370W PoE+ in the same 1G SFP uplink class |
Use the PoE model only when endpoint power must come from the access switch |
|
Electrical plan |
100 to 240V AC input, 50 to 60 Hz, 0.74A to 1.29A current, and 0.06 kVA power rating |
Align the switch with rack power, UPS sizing, and the required country power cable |
|
Installation accessories |
CAB-CONSOLE-RJ45, CAB-CONSOLE-USB, PWR-CLP, and RCKMNT-1RU-2KX= are Cisco-listed options |
Add console access, cable retention, and rackmount items only when the installation package requires them |
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable option with RJ-45 connector for Catalyst 1000 management access |
|
CAB-CONSOLE-USB |
Cisco console cable option with USB connector for Catalyst 1000 management access |
|
PWR-CLP |
Cisco power clip for power-cable management |
|
RCKMNT-1RU-2KX= |
Rackmount kit for Cisco Catalyst 1000 24-port and 48-port models |
Specifications
Packaging weight and dimensions included:| Weight | 9.91 kg |
|---|---|
| Dimensions | 56 × 41 × 17 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product family | Cisco Catalyst 1000 Series |
| Product ID | C1000-48T-4G-L | Product type | Fixed managed Gigabit Ethernet Layer 2 switch |
| Downlink ports | 48 x 10/100/1000 RJ45 data ports | Uplink interfaces | 4 x 1G SFP uplinks |
| PoE budget | Data switch with no PoE budget | Fanless | No |
| Fan design | Fan-cooled 48-port model | Power supply design | Single fixed internal AC power supply |
| Voltage | 100 to 240V AC in | Frequency | 50 to 60 Hz |
| Current | 0.74A to 1.29A | Power rating | 0.06 kVA maximum consumption |
| Consumption without PoE | 53.66W | Maximum power wattage for BTU/hr | 64.83W |
| Forwarding bandwidth | 52 Gbps for 48-port models with 1G uplinks | Switching bandwidth | 104 Gbps for 48-port models with 1G uplinks |
| Forwarding rate | 77.38 Mpps for 48-port models with 1G uplinks | Unicast MAC addresses | 16000 |
| Maximum active VLANs | 256 | VLAN IDs available | 4094 |
| Maximum STP instances | 64 | Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes | Jumbo Ethernet frame | 10240 bytes |
| Console port | RJ-45 Ethernet console | USB-A port | 1 USB-A port for storage and Bluetooth console |
| Cisco IOS image | Single universal Cisco IOS Software image | Management interfaces | CLI and on-box web UI |
| CPU | ARM v7 800 MHz | DRAM | 512 MB |
| Flash memory | 256 MB | Operating temperature | -5 to 50 deg C at sea level |
| Operating altitude | 10000 ft (3000 m) | Operating humidity | 5% to 90% at 40 deg C non-condensing |
| Acoustic noise | 31.5 dB typical sound pressure for C1000-48T-4G-L and C1000-48T-4X-L | Dimensions | 17.48 x 11.34 x 1.73 in. |
| Weight | 3.95 kg |
