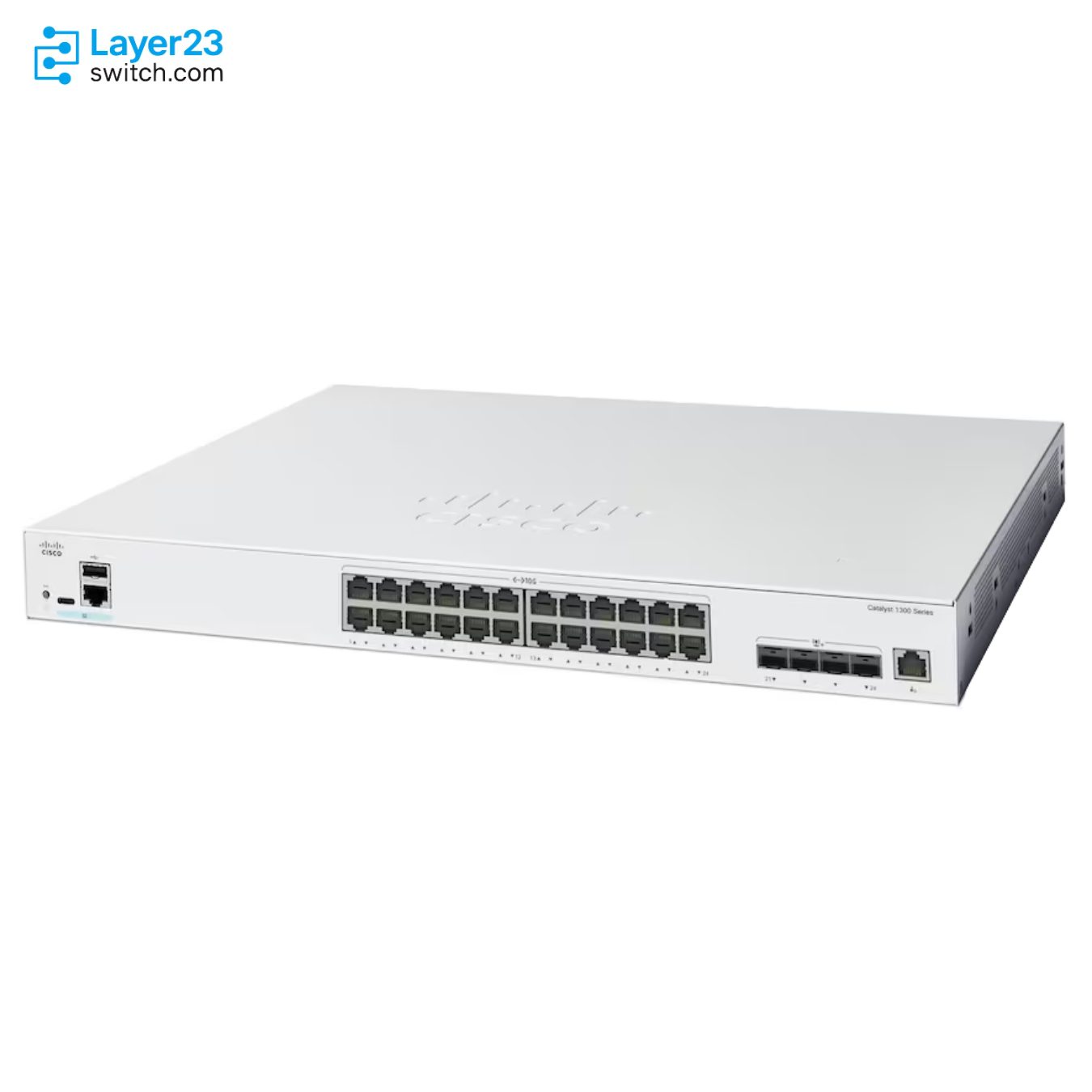

C1300-24T-4X – 24x1G Data Ports – 4x10G SFP+ Uplinks – Fanless Access Switch
4/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C1300-24T-4X Description
C1300-24T-4X is a Cisco Catalyst 1300 managed Layer 3 Gigabit Ethernet switch for campus and branch access networks that need fixed copper connectivity with high-speed fiber uplinks. The switch provides 24 x 10/100/1000 RJ45 data ports and 4 x 10 Gigabit SFP+ uplinks, with 128.0 Gbps switching capacity and a 95.23 Mpps forwarding rate. It is a data-only, fanless model with an internal universal AC power supply, making it suited for access-layer deployments where PoE output is not required.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1300-24T-4X |
|
Product type |
Managed Layer 3 Gigabit Ethernet switch |
|
Downlink ports |
24 x 10/100/1000 RJ45 data ports |
|
Uplink interfaces |
4 x 10 Gigabit SFP+ |
|
PoE role |
Data-only model with no PoE output budget |
|
Switching capacity |
128.0 Gbps |
|
Forwarding rate |
95.23 Mpps |
|
Hardware stacking |
C1300 Family 1, up to 8 switches in a stack |
|
Packet buffer |
1.5 MB |
|
Power supply |
Internal universal AC |
|
Fan design |
Fanless |
|
Unit weight |
3.14 kg (6.92 lb) |
Product Performance
Key Features
The T-model access side is built for unpowered Gigabit Ethernet endpoints, so PoE phones, cameras, or access points require a PoE-capable adjacent SKU instead.
Four SFP+ uplinks let the same 24-port copper access layer connect to 10G aggregation without moving to a 48-port chassis.
Cisco lists C1300-24T-4X as fanless, which matters for office rooms, retail back rooms, or compact cabinets where acoustic output is part of the site plan.
The data sheet places C1300-24T-4X in C1300 Family 1 and states that same-family PIDs can be stacked together.
Power planning uses the built-in 100 to 240V AC supply, so the quote should capture the correct regional power cord rather than an external adapter.
Catalyst 1300 documentation covers IPv4 and IPv6 routing, RIP v2, policy-based routing, web UI, CLI, SNMP, Cisco Business Dashboard, and Cisco Business mobile app management.
Application Scenarios
C1300-24T-4X fits sites where desks, printers, kiosks, or uplinked edge devices need 24 Gigabit copper ports but powered-device draw is handled elsewhere.
Use this SKU when the access layer can stay at 1G on copper while upstream fiber or DAC connectivity needs four 10G SFP+ ports.
The model is relevant when a C1300 Family 1 stack needs another non-PoE member with the 4X uplink layout and the same 1.5 MB packet-buffer class.
Product Comparison
|
Parameter |
C1300-24T-4X | |||
|---|---|---|---|---|
|
Product type |
Managed Layer 3 Gigabit Ethernet switch |
Managed Layer 3 Gigabit Ethernet PoE+ switch |
Managed Layer 3 Gigabit Ethernet PoE+ switch |
Managed Layer 3 Gigabit Ethernet switch |
|
Downlink ports |
24 x 10/100/1000 data ports |
24 x 10/100/1000 PoE+ ports |
24 x 10/100/1000 PoE+ ports |
24 x 10/100/1000 data ports |
|
Uplink interfaces |
4 x 10 Gigabit SFP+ |
4 x 10 Gigabit SFP+ |
4 x 10 Gigabit SFP+ |
4 x Gigabit SFP |
|
PoE budget |
No PoE output budget |
195W |
375W |
No PoE output |
|
PoE-capable ports |
No PoE output ports |
24 |
24 |
No PoE output |
|
Switching capacity |
128.0 Gbps |
128.0 Gbps |
128.0 Gbps |
56.0 Gbps |
|
Forwarding rate |
95.23 Mpps |
95.23 Mpps |
95.23 Mpps |
41.66 Mpps |
|
Hardware stacking |
C1300 Family 1 stacking-supported model |
C1300 Family 1 stacking-supported model |
C1300 Family 1 stacking-supported model |
Not listed in C1300 Family 1 stack models |
|
Fan design |
Fanless |
Fanless |
1 fan |
Fanless |
|
Packet buffer |
1.5 MB |
1.5 MB |
1.5 MB |
1.5 MB |
|
Power supply |
Internal universal AC |
Internal universal AC |
Internal universal AC |
Internal universal AC |
|
Unit weight |
3.14 kg |
3.95 kg |
4.92 kg |
2.63 kg |
- In a C1300-24T-4X vs C1300-24P-4X comparison, the table difference is PoE: both use 24 copper ports and four 10G SFP+ uplinks, but C1300-24T-4X is the data-only model.
- The C1300-24T-4X vs C1300-24FP-4X difference is also the PoE class; C1300-24FP-4X keeps the same 4X uplink layout and adds the higher 375W PoE budget.
- For C1300-24T-4X vs C1300-24T-4G, the comparison turns on uplink speed and capacity because the 4G model uses four Gigabit SFP uplinks and 56.0 Gbps switching capacity.
- C1300-24T-4X vs C1300-48T-4X is a port-count comparison: both are data-only 4X models, while the 48T version doubles copper access ports and raises switching capacity to 176.0 Gbps.
Selection Guide
1. Select it for non-PoE 24-port access
Choose C1300-24T-4X when the BOM calls for 24 copper data ports and endpoint power is not expected from the access switch.
2. Move to a P or FP SKU for powered endpoints
Select C1300-24P-4X or C1300-24FP-4X only when phones, cameras, access points, or readers need switch-delivered PoE+.
3. Keep 4X when uplinks must be 10G
C1300-24T-4G belongs on a lower-uplink-speed quote, while C1300-24T-4X is the data-only 24-port choice when four 10G SFP+ uplinks are required.
4. Use 48T for port-count expansion
Choose C1300-48T-4X instead when the design needs 48 copper data ports but should remain in the non-PoE 4X Catalyst 1300 class.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact product ID |
Purchase line shows C1300-24T-4X |
Separates the data-only 4X model from 24P and 24FP PoE variants |
|
Endpoint power plan |
Connected devices do not need PoE from this switch |
Prevents ordering a T model for phones, cameras, readers, or access points that require PoE |
|
Stack family |
Any stack uses compatible C1300 Family 1 PIDs |
Cisco states that cross-family stacking is not supported |
|
AC input and cord |
Site uses 100 to 240V AC and the correct country power cord |
Avoids treating the 24-port model as an external-adapter unit |
|
Management owner |
Web UI, CLI, SNMP, Cisco Business Dashboard, or mobile app ownership is assigned |
Keeps day-one configuration and monitoring responsibilities clear |
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable with RJ-45 connector for Catalyst 1300 models |
|
CAB-CONSOLE-USB-C |
Cisco USB-C console cable option for Catalyst 1300 models |
|
CAB-CONSOLE-USB-C= |
Cisco USB-C console cable spare option for Catalyst 1300 models |
|
PWR-CLP |
Cisco power cable restraining clip for Catalyst 1300 models |
|
RCKMNT-1RU-1K= |
Cisco 1RU rack-mount kit for C1000, C1200, and C1300 24/48-port models |
|
SFP-H10GB-CU1M |
Cisco-listed 10G copper coax SFP+ cable, 1 m |
|
SFP-H10GB-CU3M |
Cisco-listed 10G copper coax SFP+ cable, 3 m |
|
SFP-H10GB-CU5M |
Cisco-listed 10G copper coax SFP+ cable, 5 m |
|
SFP-10G-SR |
Cisco-listed 10G multimode fiber SFP+ option |
|
SFP-10G-LR |
Cisco-listed 10G single-mode fiber SFP+ option |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1300-24T-4X | Product type | Managed Layer 3 Gigabit Ethernet switch |
| Downlink ports | 24 x 10/100/1000 RJ45 data ports | Uplink interfaces | 4 x 10 Gigabit SFP+ |
| Total system ports | 24 x Gigabit Ethernet plus 4 x 10G | PoE role | Data-only model with no PoE output budget |
| Switching capacity | 128.0 Gbps | Forwarding rate | 95.23 Mpps |
| Hardware stacking | C1300 Family 1, up to 8 switches in a stack | Packet buffer | 1.5 MB |
| Operating software | Linux-based software | Management | Web UI, CLI, Cisco Business Dashboard, Cisco Business mobile app, SNMP |
| Console ports | Cisco standard RJ-45 console port and USB Type C port | Flash | 1GB SLC |
| CPU | ARM dual-core at 1.5 GHz | DRAM | 1 GB DDR4 for C1300 |
| Power supply | Internal universal AC | AC input | 100 to 240V, 50 to 60 Hz |
| System power consumption | 110V=22.3W; 220V=22.4W | Idle power | 110V=4.9W; 220V=5.2W |
| Heat dissipation | 76.4 BTU/hr | Fan design | Fanless |
| MTBF | 646,083 hours at 25 C | Unit weight | 3.14 kg (6.92 lb) |
| Operating temperature | 23 to 122 F (-5 to 50 C) | Storage temperature | -13 to 158 F (-25 to 70 C) |
| Warranty | Limited lifetime with return-to-factory replacement | Package contents | Switch, power cord, mounting kit, pointer card |
Get More Information
Need pricing, stock, or shipping details for the C1300-24T-4X ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is Cisco C1300-24T-4X used for?
-
Does C1300-24T-4X support PoE?
-
What uplinks does C1300-24T-4X have?
-
How is C1300-24T-4X different from C1300-24P-4X?
-
Is C1300-24T-4X a good upgrade from a 1G-uplink switch?
-
Can C1300-24T-4X be stacked?
-
Is C1300-24T-4X fanless?
-
When is C1300-24T-4X not the best choice?
