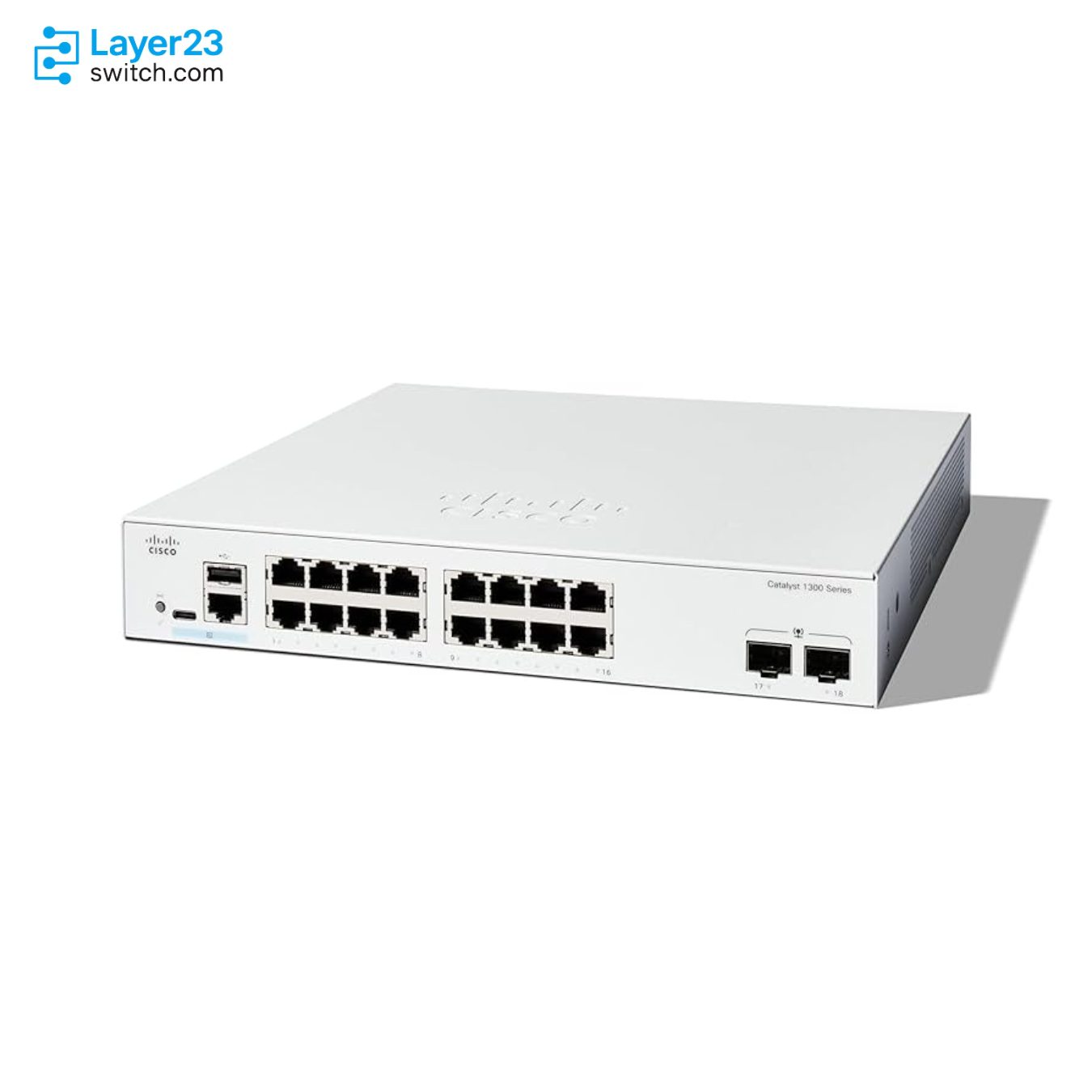

C1300-16T-2G – 16x1G Data Ports – 2x1G SFP Uplinks – Fanless Layer 3 Switch
Shop Expert-Recommended Accessories for the C1300-16T-2G
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $633.46.$59.00Current price is: $59.00. -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $1,260.58.$95.80Current price is: $95.80.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
C1300-16T-2G Description
The C1300-16T-2G is a Cisco Catalyst 1300 Series fanless Layer 3 data switch for small offices, classrooms and shops whose wired devices have their own power. The switch has 16 data-only Gigabit RJ-45 ports with no PoE output, two separate Gigabit SFP uplinks and 36 Gbps of switching capacity from an internal 100-240V supply. The model is not on any Catalyst 1300 hardware stacking list, so it runs as a standalone unit.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1300-16T-2G |
|
RJ-45 ports |
16 x 10/100/1000 |
|
Uplink ports |
2 x Gigabit SFP |
|
Total ports |
18 x Gigabit Ethernet |
|
PoE |
No PoE output; data-only ports |
|
Switching capacity |
36 Gbps |
|
Forwarding rate |
26.78 Mpps |
|
Packet buffer |
1.5 MB |
|
Fan modules |
Fanless |
|
Layer 3 routing |
RIP v2, policy-based routing, static routes |
|
IPv4 routes |
990 (dynamic plus static) |
|
Hardware stacking |
Not supported |
|
Power supply |
Internal, 100-240V 50-60 Hz |
Product Performance
Key Features
The two SFP slots are separate ports rather than copper/SFP combo pairs, so all 16 RJ-45 ports stay available when both uplinks carry fiber. GLC-LH-SMD reaches 10 km on single-mode, and GLC-SX-MMD covers 550 m on multimode.
With no fan and a 268 x 272 x 43.94 mm chassis weighing 2.18 kg, the switch can sit on a shelf in an open-plan office, a classroom or a store rather than in a wiring closet.
At 110V the switch draws no more than 10.9W, and it idles at 4.6W. Heat output is 38.2 BTU/hr, a small load for a shared cabinet or a desk-side UPS.
IPv4 and IPv6 route at wire speed, with RIP v2, policy-based routing and a built-in DHCP server. Up to 128 IP interfaces let staff, guest and device VLANs route on the switch itself instead of the site router.
The forwarding table holds 16,000 MAC addresses and 2,000 IGMP snooping groups. Up to 1,024 ACL rules can filter traffic in either direction, and time-based ACLs apply them only during set hours.
802.1X and web authentication decide who gets onto each port. DHCP snooping, IP Source Guard and Dynamic ARP Inspection then block spoofed addresses on the same ports.
Application Scenarios
In a small office, the switch connects desktop PCs, printers and a local file server over Gigabit copper, and routes between the staff and device VLANs without a separate router.
A school places the fanless unit in a classroom or library to link student workstations, where it adds no fan noise to the room and hands traffic to the building network over one SFP uplink.
Point-of-sale terminals, a back-office PC and a separately powered access point in a retail store plug into the copper ports, while Guest VLAN keeps visitor traffic apart from store systems.
Product Comparison
|
Parameter |
C1300-16T-2G | |||
|---|---|---|---|---|
|
RJ-45 ports |
16 x 10/100/1000 |
16 x 10/100/1000 PoE+ |
24 x 10/100/1000 |
16 x 10/100/1000 |
|
PoE power budget |
Not applicable |
120W |
Not applicable |
Not applicable |
|
Uplink ports |
2 x Gigabit SFP |
2 x Gigabit SFP |
4 x Gigabit SFP |
2 x Gigabit SFP |
|
Switching capacity |
36 Gbps |
36 Gbps |
56 Gbps |
36 Gbps |
|
Fan modules |
Fanless |
Fanless |
Fanless |
Fanless |
|
IPv4 routing |
Up to 990 routes, RIP v2 |
Up to 990 routes, RIP v2 |
Up to 990 routes, RIP v2 |
Up to 32 static routes |
|
Hardware stacking |
Not supported |
Not supported |
Not supported |
Not published |
C1300-16T-2G and C1300-16P-2G share 16 Gigabit ports, two SFP uplinks and 36 Gbps, and PoE separates them: C1300-16T-2G is data-only, while C1300-16P-2G offers 30W PoE+ on each of its 16 ports from a shared 120W budget for sites with phones, cameras or access points. A site that outgrows 16 copper ports or needs more than two uplinks moves to C1300-24T-4G, with 24 data ports, four Gigabit SFP slots and 56 Gbps. C1200-16T-2G keeps the same port layout and 36 Gbps but routes with up to 32 static routes only, which suits networks where the site router handles inter-VLAN traffic.
Ordering Checklist
- Uplink optics: Add one supported 1G SFP per uplink in use, such as GLC-SX-MMD (550 m multimode), GLC-LH-SMD (10 km single-mode) or GLC-TE (100 m copper). The box ships without optics.
- Rack bracket: Add RCKMNT-CMPCT-1K= if the switch goes into a 19-inch rack. Only 24-port and 48-port models ship with 19-inch brackets.
- Power cord option: Leave NO-POWER-CORD off the order unless a cord is sourced locally, because selecting it removes the power cord from the box.
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Console cable, 6 feet, RJ-45 connector |
|
CAB-CONSOLE-USB-C |
USB-C console cable |
|
CAB-CONSOLE-USB-C= |
USB-C console cable, spare |
|
RCKMNT-CMPCT-1K= |
19-in rack-mount bracket for C1000, C1200 and C1300 8-, 12- and 16-port models |
|
1000 Mbps SFP, multimode fiber, 550 m | |
|
1000 Mbps SFP, single-mode fiber, 10 km | |
|
1000 Mbps SFP, single-mode fiber, 40 km | |
|
1000 Mbps SFP, single-mode fiber, 70 km | |
|
GLC-BX-U |
1000 Mbps bidirectional SFP, single-mode fiber, 10 km |
|
GLC-BX-D |
1000 Mbps bidirectional SFP, single-mode fiber, 10 km |
|
1000 Mbps copper SFP, UTP Cat 5e, 100 m | |
|
MGBSX1 |
1000 Mbps SFP, multimode fiber, 500 m |
|
MGBLX1 |
1000 Mbps SFP, single-mode fiber, 10 km |
|
MGBLH1 |
1000 Mbps SFP, single-mode fiber, 40 km |
|
MGBT1 |
1000 Mbps copper SFP, UTP Cat 5e, 100 m |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1300-16T-2G | Product type | Managed Layer 3 Gigabit Ethernet switch |
| Total ports | 18 x Gigabit Ethernet | RJ-45 ports | 16 x 10/100/1000 |
| Uplink ports | 2 x Gigabit SFP | PoE | No PoE output; data-only ports |
| Console port | Cisco standard RJ-45 console port and USB Type C port | USB port | USB Type C, for file and image management and console access |
| Switching capacity | 36 Gbps, wire speed and nonblocking | Forwarding rate | 26.78 Mpps (64-byte packets) |
| Packet buffer | 1.5 MB, dynamically shared across all ports | MAC addresses | 16,000 entries |
| IPv4 routes | 990 (dynamic plus static) | IP interfaces | 128 |
| ACL rules | 1,024 | IGMP groups | 2,000 |
| VLANs | 4,094 (4078 to 4094 reserved for internal use) | Jumbo frames | Up to 9,000 bytes |
| Spanning tree | MSTP 16 instances; PVST+ and Rapid PVST+ 126 instances | Link aggregation | LACP, up to 8 groups with up to 8 ports each |
| Port mirroring | Up to 8 source ports to 1 destination port | Layer 3 routing | IPv4 and IPv6 wire-speed routing, RIP v2, policy-based routing |
| DHCP | DHCP server, DHCP relay, UDP relay | Voice | Voice VLAN with Voice Services Discovery Protocol, Auto Smartports |
| VLAN features | Guest VLAN, private VLAN, unauthenticated VLAN, RADIUS dynamic VLAN | Security | 802.1X, web authentication, DHCP snooping, IP Source Guard, Dynamic ARP Inspection, port security, storm control, IPv6 First Hop Security, RADIUS, TACACS+, SSH, SSL, BPDU Guard, Root Guard |
| QoS | 8 hardware queues, strict priority and WRR scheduling, 802.1p, DSCP and IP precedence classification, ingress policing, egress shaping | Hardware stacking | Not supported |
| Energy efficiency | EEE 802.3az on all copper Gigabit Ethernet ports, energy detect, cable length detection, time-based port operation | Discovery | LLDP-MED, CDP, Bonjour |
| Operating system | Customized Linux OS | Management | Cisco Business Dashboard, Cisco Business mobile app, Cisco Network Plug and Play, web UI, SNMP v1/v2c/v3, CLI |
| Firmware upgrade | Dual images | CPU | ARM dual-core at 1.5 GHz |
| DRAM | 1 GB DDR4 | Flash | 1GB SLC |
| Default power supply | Internal, universal, 100-240V 50-60 Hz | System power consumption | 110V=10.9W; 220V=11.2W |
| Idle power | 110V=4.6W; 220V=4.9W | Heat dissipation | 38.2 BTU/hr |
| Fan modules | Fanless | MTBF at 25°C | 912,776 hours |
| Cabling | UTP Cat 5e or better for 1000BASE-T | Mounting | Rack-mountable; 19-in bracket not included |
| Dimensions (H x W x D) | 268 x 272 x 43.94 mm (10.55 x 10.69 x 1.73 in) | Weight | 2.18 kg (4.80 lb) |
| Operating temperature | -5°C to 50°C (23°F to 122°F); cold start minimum 32°F (0°C) | Storage temperature | -25°C to 70°C (-13°F to 158°F) |
| Operating humidity | 10% to 90%, relative, noncondensing | Storage humidity | 10% to 90%, relative, noncondensing |
| Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A | Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3ad, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w, 802.1s, 802.1X, 802.1AB, 802.3az |
| Package contents | Switch, power cord unless NO-POWER-CORD is selected, pointer card |
Get More Information
Need pricing, stock, or shipping details for the C1300-16T-2G ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Can C1300-16T-2G join a hardware stack with other Catalyst 1300 switches?
-
What CPU and memory does C1300-16T-2G have?
-
Which port security and IPv6 first-hop features does C1300-16T-2G support on its 16 data ports?
-
What Layer 2 limits does C1300-16T-2G support for VLANs, LACP and spanning tree?
-
Which console cable and rack bracket can be ordered for C1300-16T-2G?
