C1200-16T-2G Description

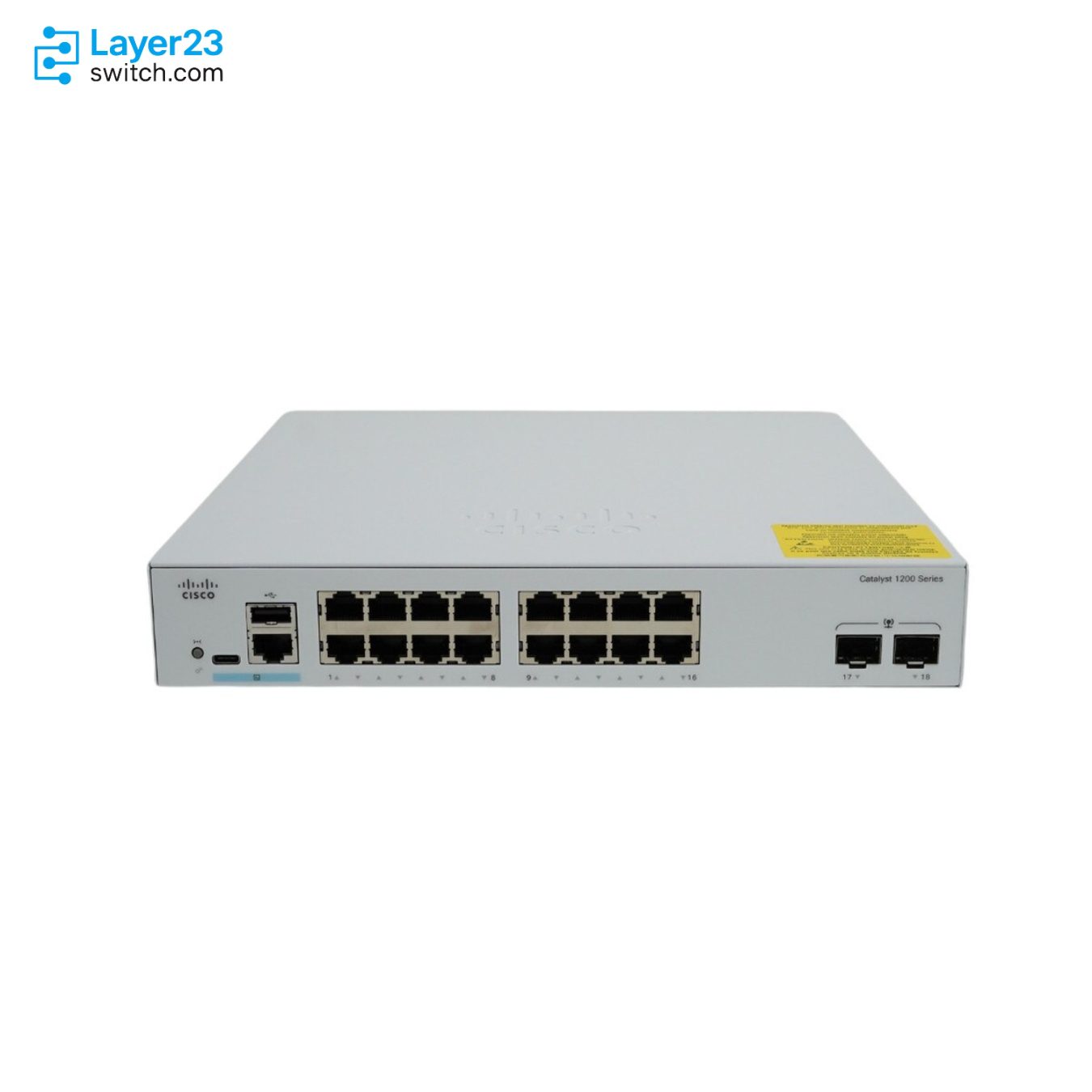

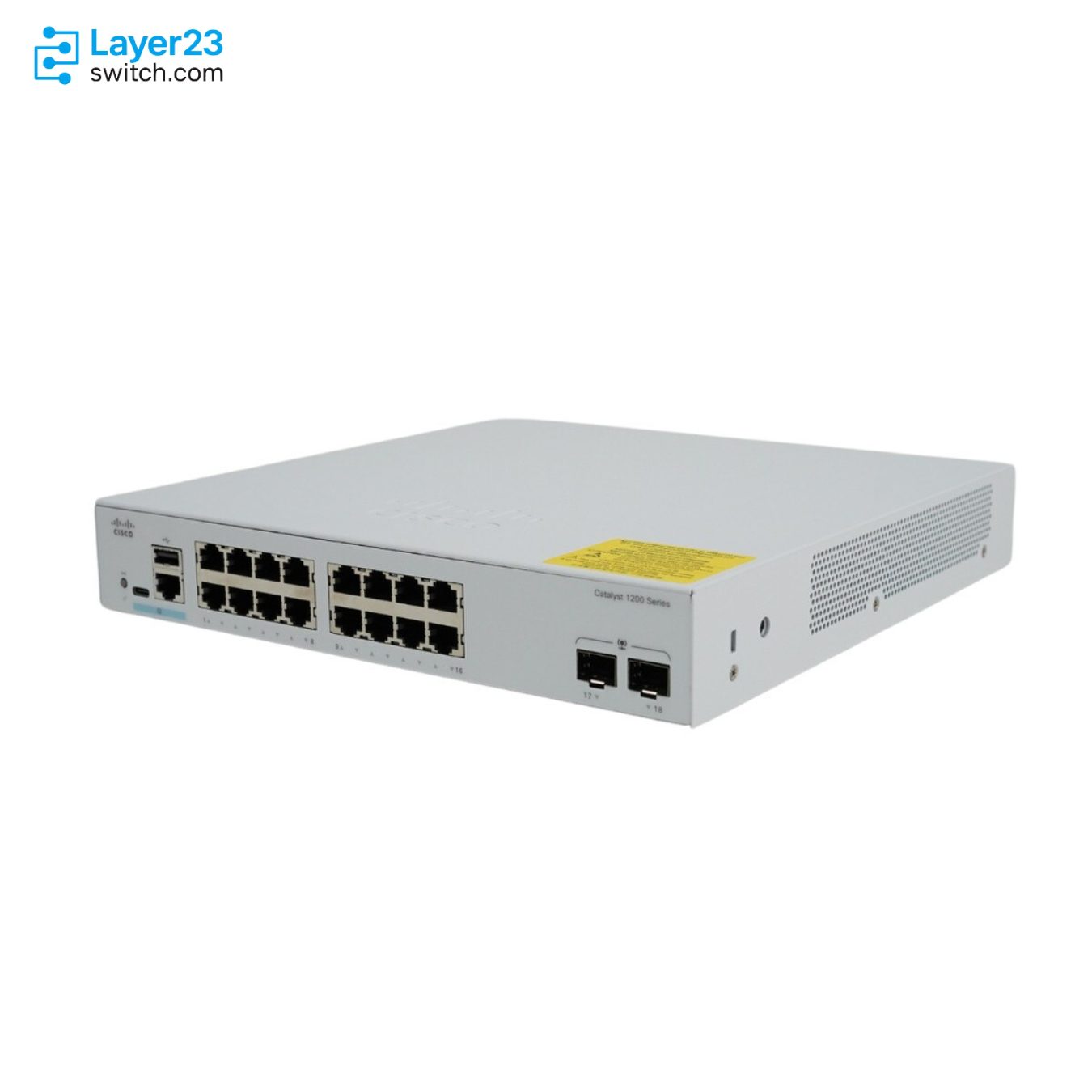

C1200-16T-2G is a Cisco Catalyst 1200 Series managed Gigabit Ethernet switch with 16 10/100/1000 copper ports and 2 Gigabit SFP uplinks for compact access switching.
The SKU is the 16-port data model in the Catalyst 1200 family, so it fits orders that need copper endpoint access without a PoE power budget. The closest same-port alternative is C1200-16P-2G, which keeps 2 Gigabit SFP uplinks but changes the downlink set to PoE+ with a 120W PoE budget.
Quote review should confirm the non-PoE endpoint plan, 1G SFP uplink media, internal AC power requirement, rack-mount bracket selection, and Cisco-supported SFP modules before commercial terms are finalized.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1200-16T-2G |
|
Product family |
Cisco Catalyst 1200 Series |
|
Product type |
Managed Gigabit Ethernet switch |
|
Downlink ports |
16 x 10/100/1000 ports |
|
Uplink interfaces |
2 x Gigabit SFP |
|
PoE profile |
Data-only model with no PoE output budget |
|
Power supply design |
Internal universal AC power |
|
Switching capacity |
36 Gbps |
|
Forwarding rate |
26.78 Mpps |
|
Static routing capacity |
32 static routes and 16 IP interfaces |
|
VLAN capacity |
Up to 255 active VLANs |
|
Fan design |
Fanless |
|
Dimensions |
268 x 272 x 44 mm |
Product Performance
Key Features
The order line is for 16 Gigabit copper data ports, so it should not be substituted for a PoE+ Catalyst 1200 SKU when phones, cameras, or access points need switch-supplied power.
The 2 x Gigabit SFP uplink layout is useful when the access edge needs fiber handoff without moving to the 24-port models that use four SFP uplinks.
Cisco identifies the model as fanless, which keeps the hardware suitable for desks, small cabinets, and quiet office-side network locations.

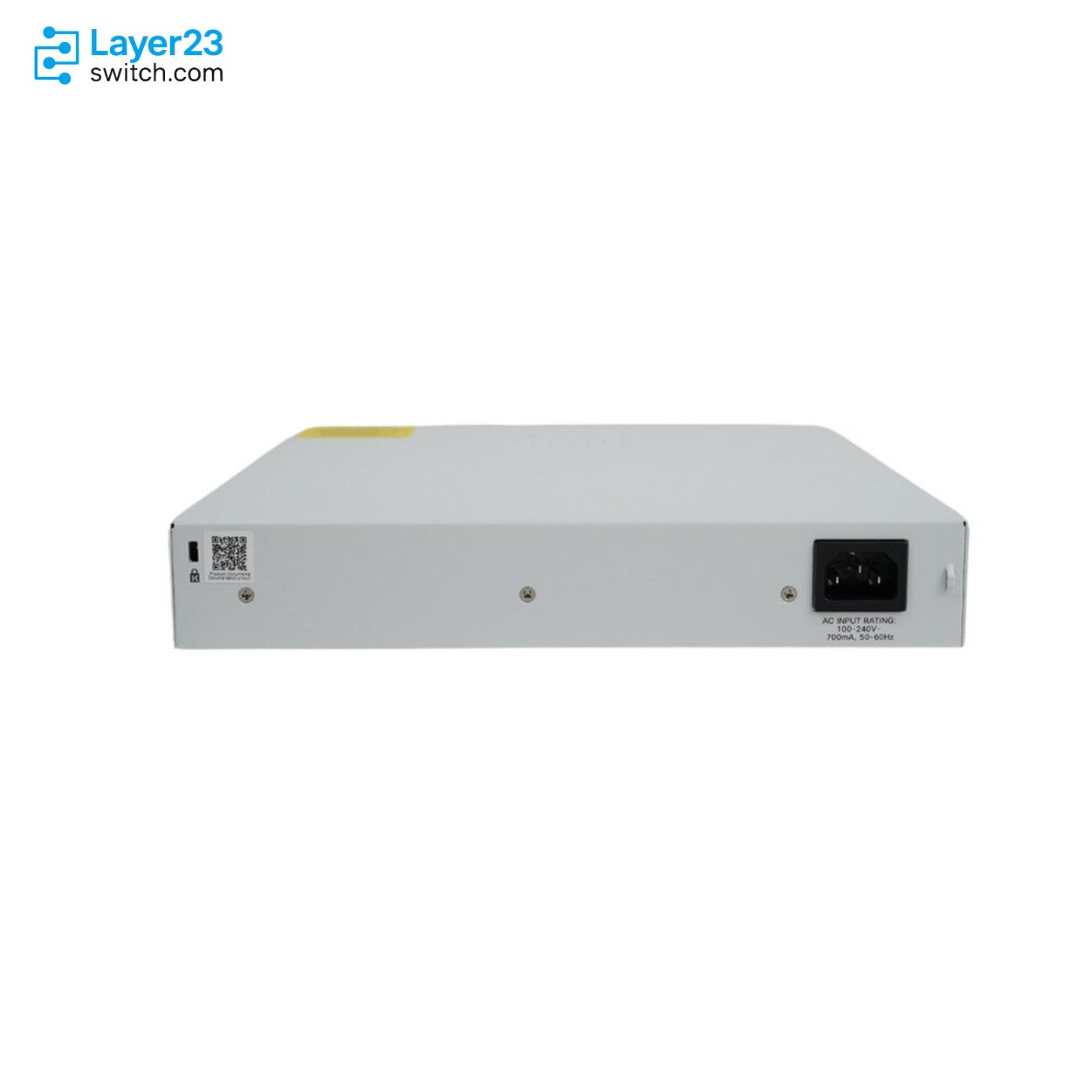

The C1200-16T-2G power design is internal 100 to 240V AC, separating it from external-power compact Catalyst 1200 variants.
Cisco documents 32 static routes, 16 IP interfaces, and support for up to 255 active VLANs, giving buyers basic Layer 3 segmentation without changing to a larger platform.
The switch supports Cisco Business Dashboard, the Cisco Business mobile app, embedded web management, and SNMP, which helps standardize operations for smaller Catalyst 1200 deployments.
Application Scenarios
C1200-16T-2G fits branch, office, lab, and back-office networks that need 16 Gigabit copper endpoint ports and 1G fiber uplinks without PoE budget planning.
The fanless design and compact 1RU height make the SKU practical for small racks, wall-side brackets, shelves, or work areas where a fan-cooled switch would add avoidable noise.
Use the SKU where VLANs, ACLs, QoS, and static routing are required at the access layer, but the design does not require stacking, 10G uplinks, or a PoE access budget.
Product Comparison
|
Parameter |
C1200-16T-2G | |||
|---|---|---|---|---|
|
Product family |
Catalyst 1200 Series |
Catalyst 1200 Series |
Catalyst 1200 Series |
Catalyst 1200 Series |
|
Product type |
Managed Gigabit Ethernet switch |
Managed Gigabit Ethernet switch |
Managed Gigabit Ethernet PoE+ switch |
Managed Gigabit Ethernet switch |
|
Downlink ports |
16 x 10/100/1000 |
8 x 10/100/1000 |
16 x 10/100/1000 PoE+ |
24 x 10/100/1000 |
|
Uplink interfaces |
2 x Gigabit SFP |
2 x Gigabit copper/SFP combo |
2 x Gigabit SFP |
4 x Gigabit SFP |
|
PoE profile |
Data only |
Data only |
PoE+ with 120W budget |
Data only |
|
Switching capacity |
36 Gbps |
20 Gbps |
36 Gbps |
56 Gbps |
|
Forwarding rate |
26.78 Mpps |
14.88 Mpps |
26.78 Mpps |
41.66 Mpps |
|
Power supply |
Internal universal AC |
External AC |
Internal universal AC |
Internal universal AC |
|
Fan design |
Fanless |
Fanless |
Fanless |
Fanless |
|
Dimensions |
268 x 272 x 44 mm |
268 x 185 x 44 mm |
268 x 297 x 44 mm |
445 x 240 x 44 mm |
|
Unit weight |
1.78 kg |
1.39 kg |
2.38 kg |
2.63 kg |
- In a C1200-16T-2G vs C1200-8T-E-2G comparison, the difference is access scale and uplink form: C1200-16T-2G doubles the copper port count and uses 2 dedicated Gigabit SFP uplinks instead of combo uplinks.
- The C1200-16T-2G vs C1200-16P-2G difference is PoE: both are 16-port Catalyst 1200 models with 2 Gigabit SFP uplinks, but C1200-16P-2G adds PoE+ with a 120W budget.
- For C1200-16T-2G vs C1200-24T-4G, the comparison is port density and uplink count: the 24T model moves to 24 copper ports and 4 Gigabit SFP uplinks.
- The which model to choose check should start with data-only versus PoE+ endpoints, then confirm whether 16 access ports and 2 SFP uplinks are enough for the site.
Selection Guide
1. Select it for 16-port data access
Choose C1200-16T-2G when the bill of materials needs 16 non-PoE Gigabit copper ports and 2 dedicated 1G SFP uplinks.
2. Move to C1200-16P-2G for powered endpoints
Specify C1200-16P-2G when the same 16-port access count must power phones, wireless access points, cameras, or other PoE+ devices.
3. Use C1200-24T-4G for more data ports
Choose C1200-24T-4G when the deployment stays data-only but needs 24 copper ports and four Gigabit SFP uplinks.
4. Keep the compact model for quiet locations
Stay with C1200-16T-2G when fanless operation, compact depth, and internal AC power are part of the site requirement.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
C1200-16T-2G |
Keeps the order tied to the 16-port Catalyst 1200 data model |
|
Endpoint power |
No PoE output budget required |
Prevents accidental ordering of a data-only switch for powered endpoint plans |
|
Uplink media |
2 x 1G SFP uplinks |
Aligns fiber or copper SFP choices with the access uplink design |
|
Power input |
Internal 100 to 240V AC power |
Confirms the site is not expecting an external power-adapter model |
|
Mounting hardware |
Rack-mountable 16-port form factor and compatible bracket |
Keeps the physical installation matched to the compact Catalyst 1200 chassis |
|
Management baseline |
Cisco Business Dashboard, mobile app, web UI, and SNMP |
Confirms the operating model before adding the switch to a small-business network |
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable with RJ-45 connector for all Catalyst 1200 models |
|
CAB-CONSOLE-USB-C |
Cisco USB-C console cable option for all Catalyst 1200 models |
|
CAB-CONSOLE-USB-C= |
Cisco USB-C console cable spare option for all Catalyst 1200 models |
|
PWR-CLP |
Cisco power cable restraining clip for all Catalyst 1200 models |
|
RCKMNT-CMPCT-1K= |
19-inch rack-mount bracket for C1000, C1200, and C1300 8-port and 16-port models |
Specifications
Packaging weight and dimensions included:| Weight | 4.95 kg |
|---|---|
| Dimensions | 41 × 40.5 × 10.5 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product family | Cisco Catalyst 1200 Series |
| Product ID | C1200-16T-2G | Product type | Managed Gigabit Ethernet switch |
| Downlink ports | 16 x 10/100/1000 ports | Uplink interfaces | 2 x Gigabit SFP |
| PoE profile | Data-only model with no PoE output budget | Fan design | Fanless |
| Switching capacity | 36 Gbps | Forwarding rate | 26.78 Mpps |
| Packet buffer | 1.5 MB | MAC address table | 8,000 addresses |
| Jumbo frame | Up to 9000 bytes | Active VLANs | Up to 255 |
| Static routing | Up to 32 static routes | Layer 3 interfaces | Up to 16 IP interfaces |
| ACL scale | Up to 512 rules | QoS queues | 8 hardware queues |
| Management | Cisco Business Dashboard, mobile app, web UI, SNMP | Operating software | Customized Linux OS software |
| Power supply | Internal universal AC | AC input | 100 to 240V, 50 to 60 Hz |
| System power consumption | 110V=10.8W; 220V=11.0W | Idle power | 110V=4.3W; 220V=4.4W |
| Heat dissipation | 37.5 BTU/hr | MTBF | 2,165,105 hours |
| Dimensions | 268 x 272 x 44 mm | Weight | 1.78 kg |
| Operating temperature | 23 to 122°F (-5 to 50°C) | Storage temperature | -13 to 158°F (-25 to 70°C) |
| Warranty | Limited lifetime | Package contents | Switch, power cord, mounting kit, pointer card |
