C1200-24T-4X Description

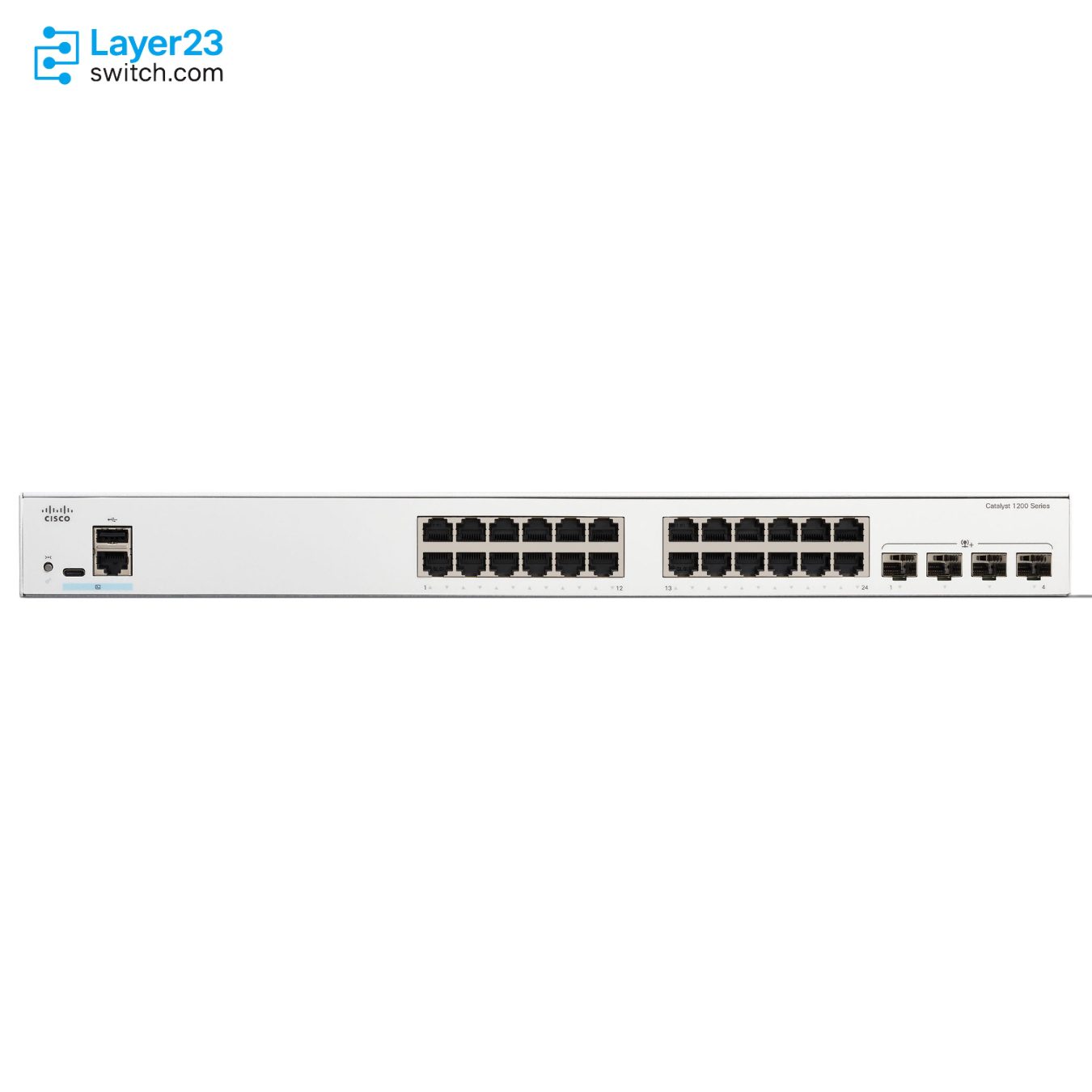

The C1200-24T-4X is a Cisco Catalyst 1200 Series managed switch for data-only access closets that aggregate 24 Gigabit endpoints over 10G uplinks. The switch has 24 10/100/1000 RJ-45 ports, four 10G SFP+ uplinks and 128.0 Gbps of switching capacity at 95.23 Mpps, in a fanless 445 x 240 x 44 mm chassis. The switch has no PoE output, so powered endpoints need a separate power source or a Catalyst 1200 PoE+ model.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1200-24T-4X |
|
Product type |
Managed Gigabit Ethernet switch |
|
Downlink ports |
24 x 10/100/1000 data ports |
|
Uplink ports |
4 x 10 Gigabit SFP+ |
|
PoE profile |
No PoE output budget model with no PoE output budget |
|
Switching capacity |
128.0 Gbps |
|
Forwarding rate |
95.23 Mpps |
|
Packet buffer |
1.5 MB |
|
Internal power input |
Internal universal AC power |
|
Fan design |
Fanless |
|
Dimensions |
445 x 240 x 44 mm |
|
Weight |
2.78 kg |
Product Performance
Key Features
The 24 RJ-45 ports run at 10/100/1000 and supply no PoE, which suits endpoints that have their own power.
Uplinks run at 10G with SFP+ optics or copper cables, or at 1G with Gigabit SFP modules, so the switch can join a 1G aggregation layer now and a 10G one later.
The 24 Gigabit ports plus four 10G uplinks total 64 Gbps in each direction, which equals the 128.0 Gbps capacity, so the switch forwards at wire speed at 95.23 Mpps.
Worst-case draw is 23.1W at 110V and heat output is 78.8 BTU/hr, which allows fanless operation with no airflow planning.
The 445 x 240 x 44 mm chassis is shallower than the PoE variants at 299 and 345 mm, and it ships with 19-inch brackets.
The switch routes IPv4 and IPv6 at wire speed with up to 32 static routes and 16 IP interfaces for simple inter-VLAN routing.
Application Scenarios
In a branch office closet, the switch connects 24 wired workstations and printers and hands their traffic to the aggregation layer over 10G SFP+ links.
An office-side cabinet can host the fanless chassis, which draws 23.1W at 110V and produces no fan noise near the people it serves.
In a training room, 24 workstations connect at 1G each and share four 10G uplinks to the file server or core switch, so uplink bandwidth does not limit the group.
Product Comparison
|
Parameter |
C1200-24T-4X | |||
|---|---|---|---|---|
|
RJ-45 ports |
24 x Gigabit Ethernet |
24 x Gigabit Ethernet |
24 x Gigabit Ethernet |
48 x Gigabit Ethernet |
|
Number of ports that support PoE |
No PoE output |
No PoE output |
24 |
No PoE output |
|
Uplink ports |
4 x 10 Gigabit SFP+ |
4 x Gigabit SFP |
4 x 10 Gigabit SFP+ |
4 x 10 Gigabit SFP+ |
|
Power dedicated to PoE |
No PoE output |
No PoE output |
195W |
No PoE output |
|
Switching capacity |
128.0 Gbps |
56.0 Gbps |
128.0 Gbps |
176.0 Gbps |
|
Packet buffer |
1.5 MB |
1.5 MB |
1.5 MB |
3 MB |
|
Fan modules |
Fanless |
Fanless |
Fanless |
1 |
|
Dimensions (H x W x D) |
445 x 240 x 44 mm |
445 x 240 x 44 mm |
445 x 299 x 44 mm |
445 x 288 x 44 mm |
|
Layer 3 routing |
Up to 32 static routes, 16 IP interfaces |
Up to 32 static routes, 16 IP interfaces |
Up to 32 static routes, 16 IP interfaces |
Up to 32 static routes, 16 IP interfaces |
C1200-24T-4X differs from C1200-24T-4G in its uplinks: four 10G SFP+ ports and 128.0 Gbps of switching capacity, against four 1G SFP ports and 56.0 Gbps, with the same 24 data-only copper ports. Where the aggregation layer runs at 1G only, C1200-24T-4G is the match. Powered endpoints call for C1200-24P-4X, which keeps the 10G uplinks and adds PoE+ with a 195W budget on a 299 mm deep chassis. A rack that needs 48 copper ports moves to C1200-48T-4X, which reaches 176.0 Gbps with a 3 MB packet buffer and one fan, where C1200-24T-4X is fanless.
Ordering Checklist
- Uplink optics: Add SFP-10G-SR, SFP-10G-LR, or SFP-H10GB-CU1M, SFP-H10GB-CU3M and SFP-H10GB-CU5M copper cables for 10G on the four SFP+ ports; 1G modules such as GLC-SX-MMD and GLC-LH-SMD run them at 1G. The package holds the switch, power cord, mounting kit and pointer card.
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable with RJ-45 connector for Catalyst 1200 models |
|
CAB-CONSOLE-USB-C |
Cisco USB-C console cable option for Catalyst 1200 models |
|
CAB-CONSOLE-USB-C= |
Cisco USB-C console cable spare option for Catalyst 1200 models |
|
PWR-CLP |
Cisco power cable restraining clip for Catalyst 1200 models |
|
RCKMNT-1RU-1K= |
Rack-mount kit for 1RU C1000, C1200, and C1300 24-port and 48-port models |
|
Cisco-listed 10G SFP+ copper cable option for Catalyst 1200 SFP+ ports | |
|
Cisco-listed 10G SFP+ copper cable option for Catalyst 1200 SFP+ ports | |
|
Cisco-listed 10G SFP+ copper cable option for Catalyst 1200 SFP+ ports | |
|
Cisco-listed 10G multimode fiber SFP+ option for Catalyst 1200 SFP+ ports | |
|
Cisco-listed 10G single-mode fiber SFP+ option for Catalyst 1200 SFP+ ports | |
|
Cisco-listed 10G multimode fiber SFP+ option for Catalyst 1200 SFP+ ports | |
|
Cisco-listed 10G single-mode fiber SFP+ option for Catalyst 1200 SFP+ ports |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1200-24T-4X | Product type | Managed Gigabit Ethernet switch |
| Downlink ports | 24 x 10/100/1000 data ports | Uplink ports | 4 x 10 Gigabit SFP+ |
| Total ports | 24 x Gigabit Ethernet plus 4 x 10 Gigabit Ethernet | PoE profile | Data-only model with no PoE output budget |
| Switching capacity | 128.0 Gbps | Forwarding rate | 95.23 Mpps |
| Packet buffer | 1.5 MB | Default power supply | Internal universal AC |
| AC input | 100 to 240V, 50 to 60 Hz | Fan design | Fanless |
| MTBF | 2,026,793 hours at 25 C | Dimensions | 445 x 240 x 44 mm |
| Weight | 2.78 kg | Operating temperature | 23 to 122 F (-5 to 50 C) |
| Storage temperature | -13 to 158 F (-25 to 70 C) | Operating humidity | 10% to 90% noncondensing |
| Storage humidity | 10% to 90% noncondensing | Package contents | Switch, power cord, mounting kit, pointer card |
| Minimum Ethernet cable | Category 5e or higher for 1000BASE-T |
