C1200-48T-4X Description

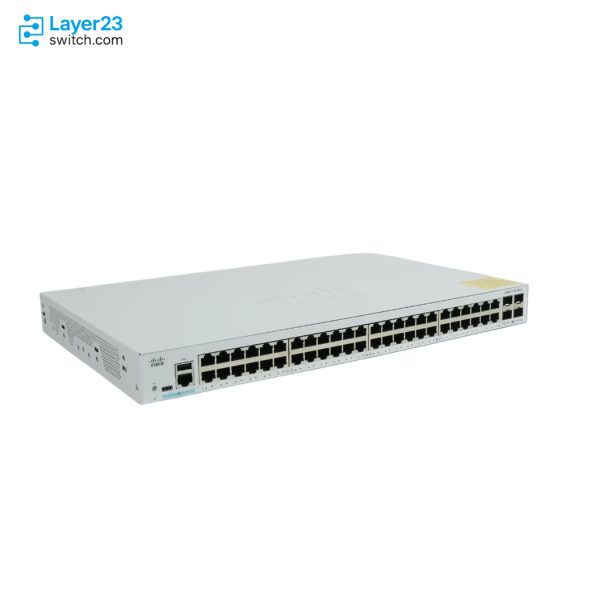

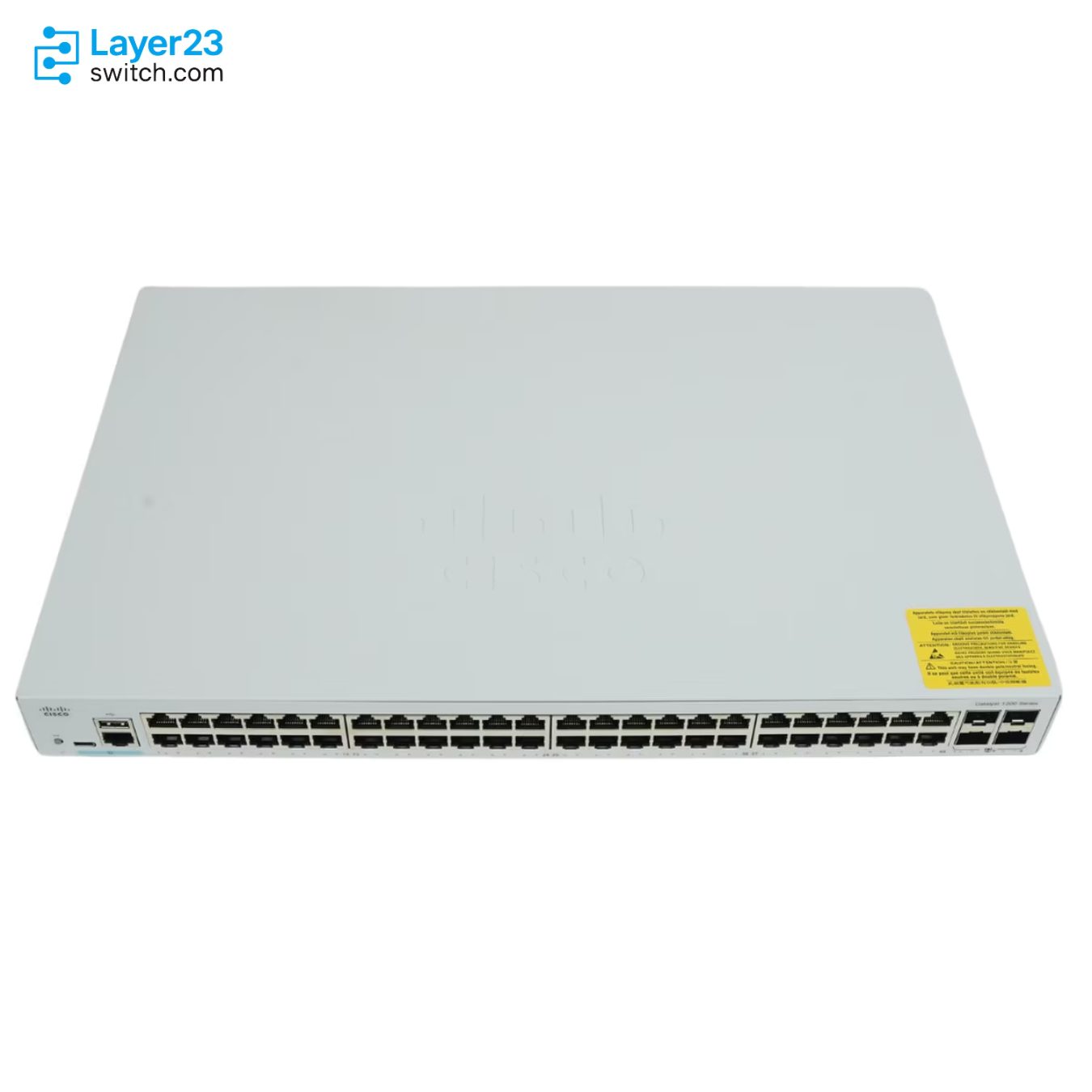

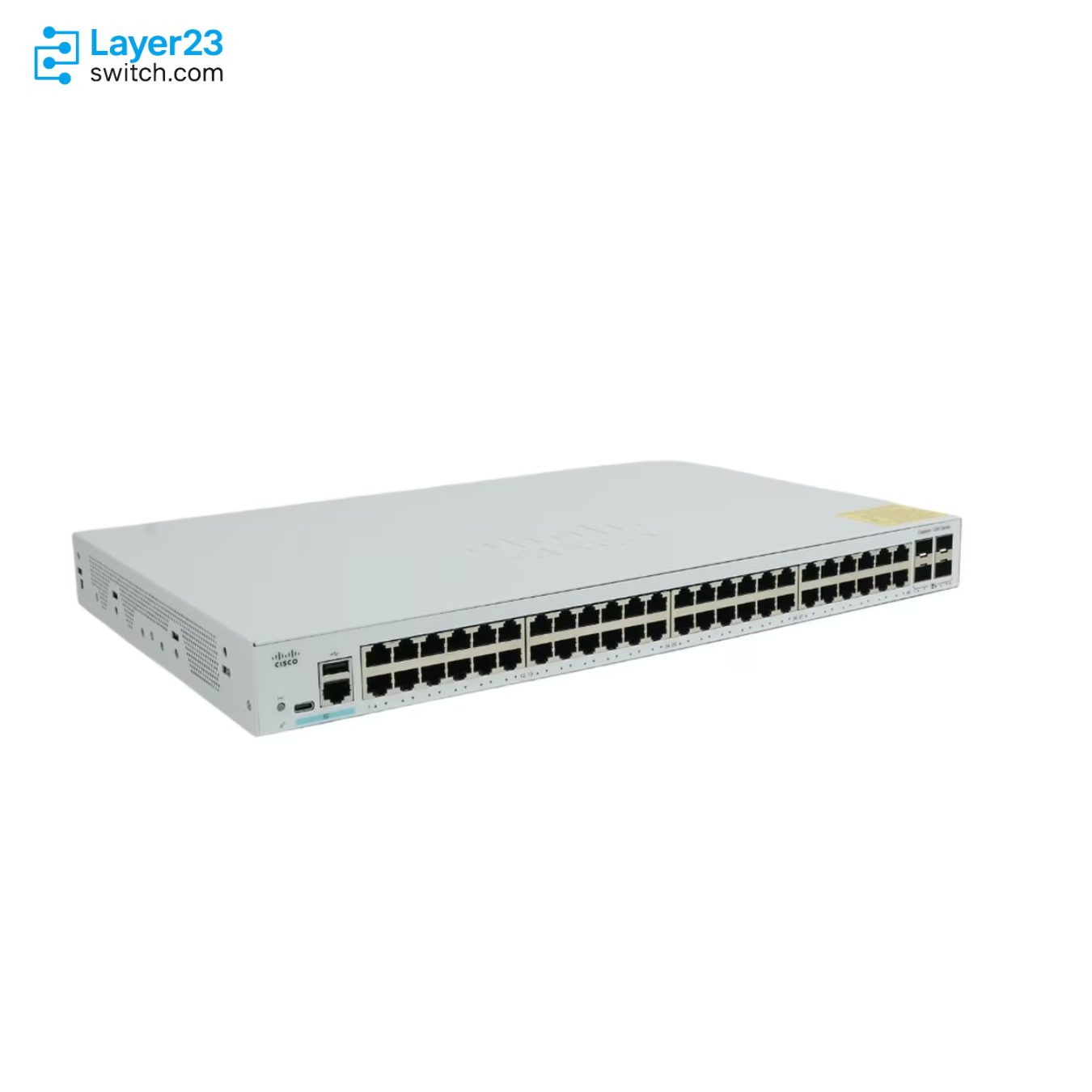

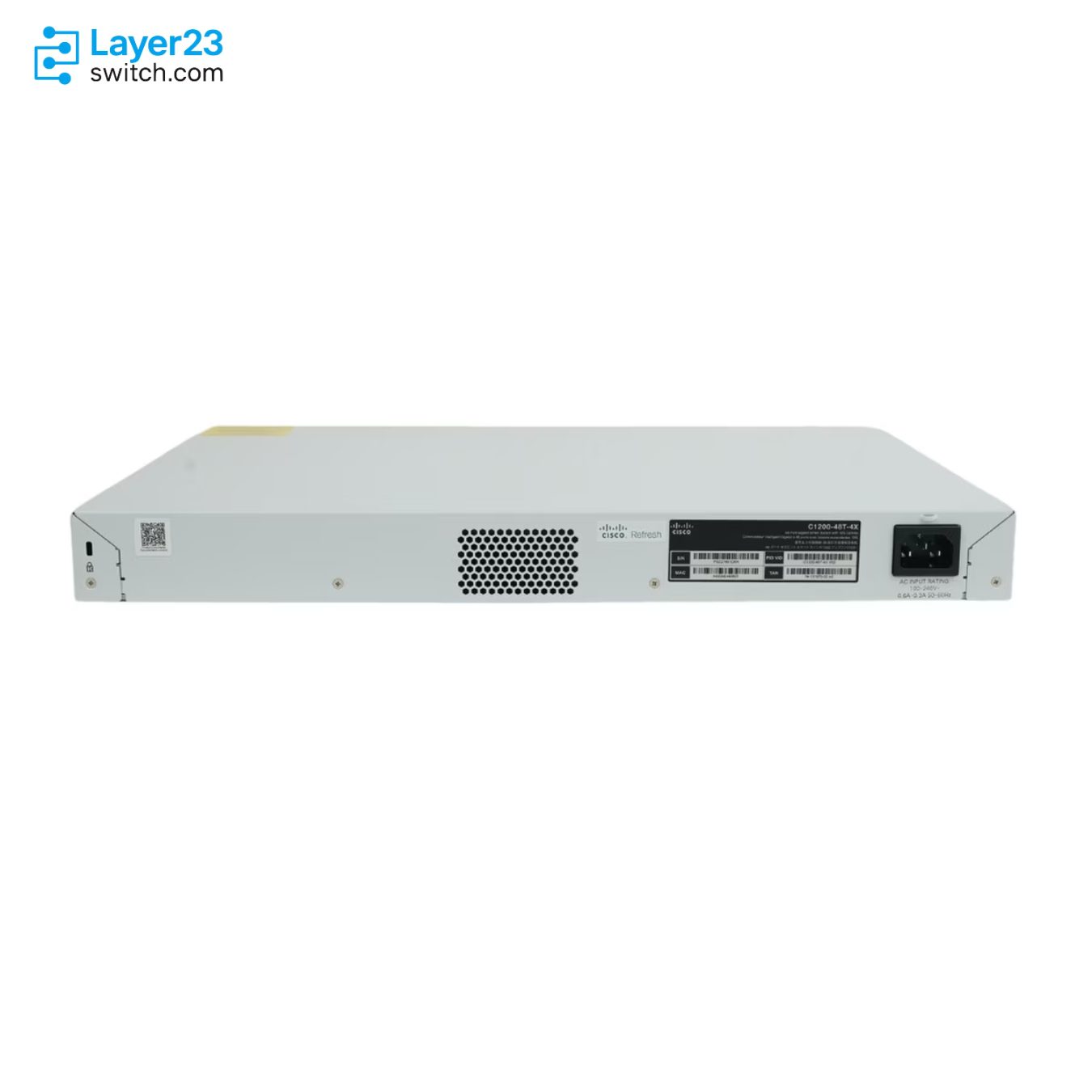

The C1200-48T-4X is a Cisco Catalyst 1200 Series managed Gigabit Ethernet switch for access racks that need 48 data ports with 10G uplinks. The switch has 48 10/100/1000 ports, four 10 Gigabit SFP+ uplinks, 176 Gbps of switching capacity and 130.94 Mpps of forwarding rate in a 1RU chassis with one fan. The model has no PoE output, so powered endpoints need separate injectors or adapters, and the SFP+ ports run at 10G or 1G.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1200-48T-4X |
|
Product type |
Managed Gigabit Ethernet switch |
|
Downlink ports |
48 x 10/100/1000 data ports |
|
Uplink ports |
4 x 10 Gigabit SFP+ |
|
Total ports |
48 x Gigabit Ethernet plus 4 x 10 Gigabit Ethernet |
|
PoE profile |
No PoE output budget model with no PoE output budget |
|
Switching capacity |
176.0 Gbps |
|
Forwarding rate |
130.94 Mpps |
|
Packet buffer |
3 MB |
|
Internal power input |
Internal universal AC power |
|
Fan design |
1 fan with 29.7 dBA acoustic value at 25 C |
|
Dimensions and weight |
445 x 288 x 44 mm; 3.95 kg |
Product Performance
Key Features
All 48 RJ-45 ports run at 10/100/1000 without PoE, which suits endpoints with their own power.
The SFP+ ports support both 10G and 1G speeds, so the uplinks can start on 1G optics and move to 10G later.
Wire-speed, nonblocking switching of 176 Gbps and 130.94 Mpps leaves headroom for 48 ports feeding 10G uplinks.
The 48-port, 3 MB buffer layout matches C1200-48P-4X, but the chassis is 288 mm deep at 3.95 kg instead of 350 mm and 5.43 kg.
One fan at 29.7 dBA at 25 C keeps noise low enough for rooms near users.
Up to 32 static routes and 16 IP interfaces let the switch route between VLANs at wire speed without a separate router.
Application Scenarios
An office or lab rack with workstations, printers and small servers can use the 48 Gigabit ports and send traffic to the distribution layer over 10G SFP+ links.
A branch cabinet where phones and access points are powered by other switches can use this switch for the wired data devices and uplink to the core at 10G.
A school or library closet with wall jacks for PCs can aggregate them at 176 Gbps and link to the campus backbone over fiber or DAC cables on the SFP+ ports.
Product Comparison
|
Parameter |
C1200-48T-4X | |||
|---|---|---|---|---|
|
Total ports |
48x Gigabit Ethernet + 4x 10 Gigabit Ethernet |
52x Gigabit Ethernet |
48x Gigabit Ethernet + 4x 10 Gigabit Ethernet |
24x Gigabit Ethernet + 4x 10 Gigabit Ethernet |
|
Uplink |
4x 10 Gigabit SFP+ |
4x Gigabit SFP |
4x 10 Gigabit SFP+ |
4x 10 Gigabit SFP+ |
|
PoE power budget |
No PoE output |
No PoE output |
375W |
No PoE output |
|
Number of ports that support PoE |
No PoE output |
No PoE output |
48 |
No PoE output |
|
Switching capacity |
176 Gbps |
104 Gbps |
176 Gbps |
128 Gbps |
|
Packet buffer |
3 MB |
3 MB |
3 MB |
1.5 MB |
|
Fan modules |
1 fan |
1 fan |
1 fan |
Fanless |
|
Dimensions (H x W x D) |
445 x 288 x 44 mm |
445 x 288 x 44 mm |
445 x 350 x 44 mm |
445 x 240 x 44 mm |
C1200-48T-4X is the data-only 10G-uplink model: 48 copper ports with 4 x 10 Gigabit SFP+ uplinks and 176.0 Gbps, against C1200-48T-4G, which has 4 x Gigabit SFP and 104.0 Gbps for closets whose aggregation runs at 1G. Powered endpoints such as phones, cameras and access points need C1200-48P-4X, which keeps the uplinks and capacity but adds a 375W PoE+ budget on a 445 x 350 x 44 mm chassis instead of 445 x 288 x 44 mm. When 24 copper ports are enough, C1200-24T-4X keeps the 4 x 10 Gigabit SFP+ uplinks and is fanless, with 128.0 Gbps and a 1.5 MB buffer.
Ordering Checklist
- Uplink optics: Add SFP-10G-SR, SFP-10G-LR, their -S versions SFP-10G-SR-S and SFP-10G-LR-S, or SFP-H10GB-CU1M, -CU3M and -CU5M copper cables for the four SFP+ ports. The package holds none of them, so the 10G uplinks stay empty until modules or cables are on the order.
- Rack kit: The 19-in. bracket ships with the switch; add RCKMNT-1RU-1K=, the separate 1RU rack kit, only if that kit is wanted. A second bracket kit duplicates the included bracket when it already fits the rack.
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable with RJ-45 connector for Catalyst 1200 models |
|
CAB-CONSOLE-USB-C |
Cisco USB-C console cable option for Catalyst 1200 models |
|
CAB-CONSOLE-USB-C= |
Cisco USB-C console cable spare option for Catalyst 1200 models |
|
PWR-CLP |
Cisco power cable restraining clip for Catalyst 1200 models |
|
RCKMNT-1RU-1K= |
Rack-mount kit for 1RU C1000, C1200, and C1300 24-port and 48-port models |
|
Cisco-listed 10G SFP+ copper cable option for Catalyst 1200 SFP+ ports | |
|
Cisco-listed 10G SFP+ copper cable option for Catalyst 1200 SFP+ ports | |
|
Cisco-listed 10G SFP+ copper cable option for Catalyst 1200 SFP+ ports | |
|
Cisco-listed 10G multimode fiber SFP+ option for Catalyst 1200 SFP+ ports | |
|
Cisco-listed 10G single-mode fiber SFP+ option for Catalyst 1200 SFP+ ports | |
|
Cisco-listed 10G multimode fiber SFP+ option for Catalyst 1200 SFP+ ports | |
|
Cisco-listed 10G single-mode fiber SFP+ option for Catalyst 1200 SFP+ ports |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1200-48T-4X | Product type | Managed Gigabit Ethernet switch |
| Downlink ports | 48 x 10/100/1000 data ports | Uplink ports | 4 x 10 Gigabit SFP+ |
| Total ports | 48 x Gigabit Ethernet plus 4 x 10 Gigabit Ethernet | PoE profile | Data-only model with no PoE output budget |
| Switching capacity | 176.0 Gbps | Forwarding rate | 130.94 Mpps |
| Packet buffer | 3 MB | Active VLANs | Up to 255 |
| Static routing | Up to 32 static routes | Layer 3 interfaces | Up to 16 IP interfaces |
| ACL scale | Up to 512 rules | QoS queues | 8 hardware queues |
| Management | On-device UI, CLI, Cisco Business Dashboard, Cisco Business mobile app, SNMP | Console port | Cisco Standard RJ-45 console and USB Type C port |
| Operating software | Customized Linux OS software | Minimum Ethernet cable | Category 5e or higher for 1000BASE-T |
| CPU | Dual-core ARM at 1.4 GHz | DRAM | 1 GB DDR4 |
| Flash | 512 MB | Default power supply | Internal universal AC |
| AC input | 100 to 240V, 50 to 60 Hz | System power consumption | 110V=40.01W; 220V=39.77W |
| Idle power | 110V=13.12W; 220V=12.93W | Heat dissipation | 136.50 BTU/hr |
| Fan design | 1 fan | Acoustic noise | 25 C: 29.7 dBA |
| MTBF | 1,452,667 hours at 25 C | Dimensions | 445 x 288 x 44 mm |
| Weight | 3.95 kg | Operating temperature | 23 to 122 F (-5 to 50 C) |
| Storage temperature | -13 to 158 F (-25 to 70 C) | Package contents | Switch, power cord, mounting kit, pointer card |
| Mounting | Rack-mountable |
Get More Information
Need pricing, stock, or shipping details for the C1200-48T-4X ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Can two C1200-48T-4X switches be stacked into one unit?
-
Does C1200-48T-4X support RIP or OSPF routing?
-
What is the MTBF of C1200-48T-4X?
-
What CPU and memory does C1200-48T-4X have?
