C1200-24FP-4G Description

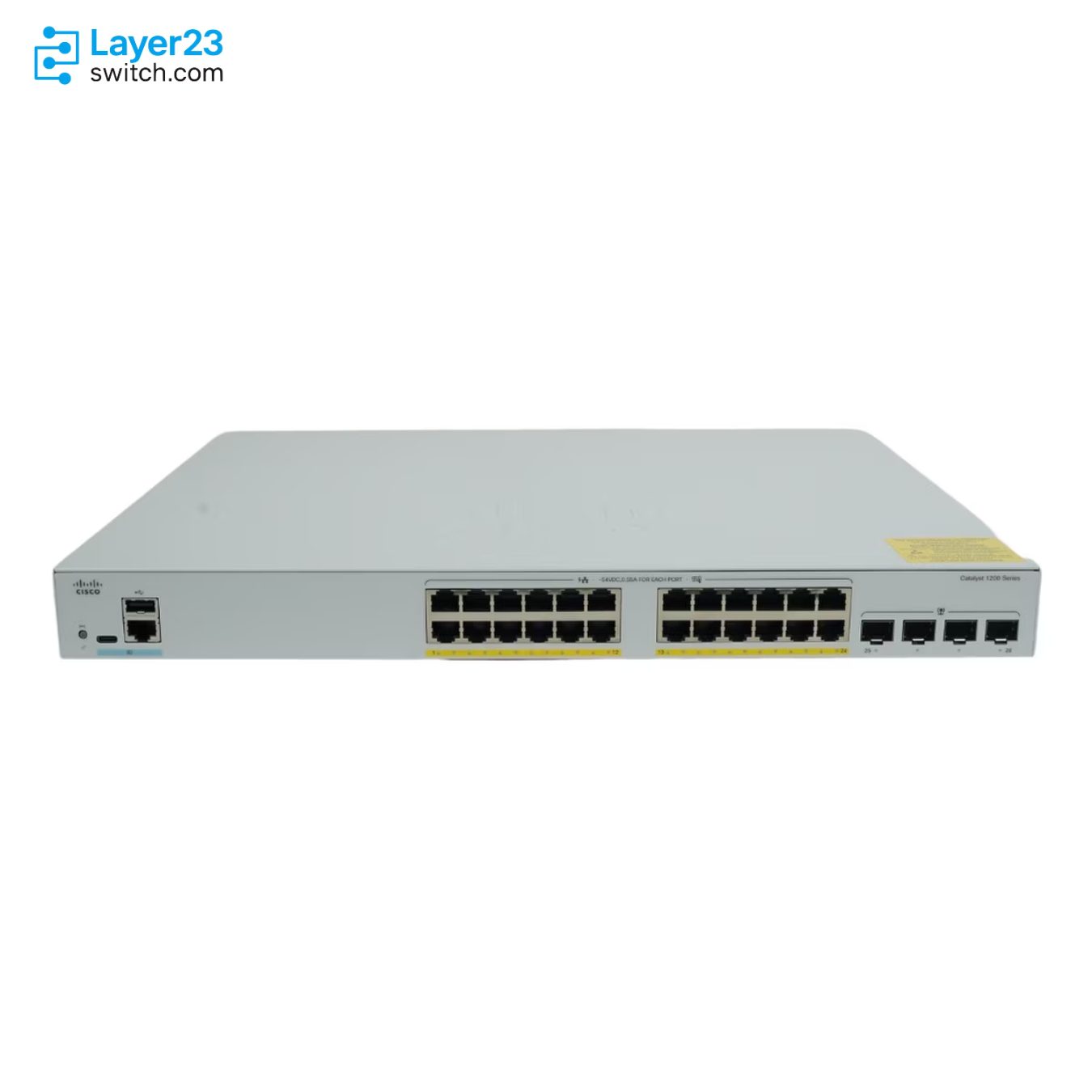

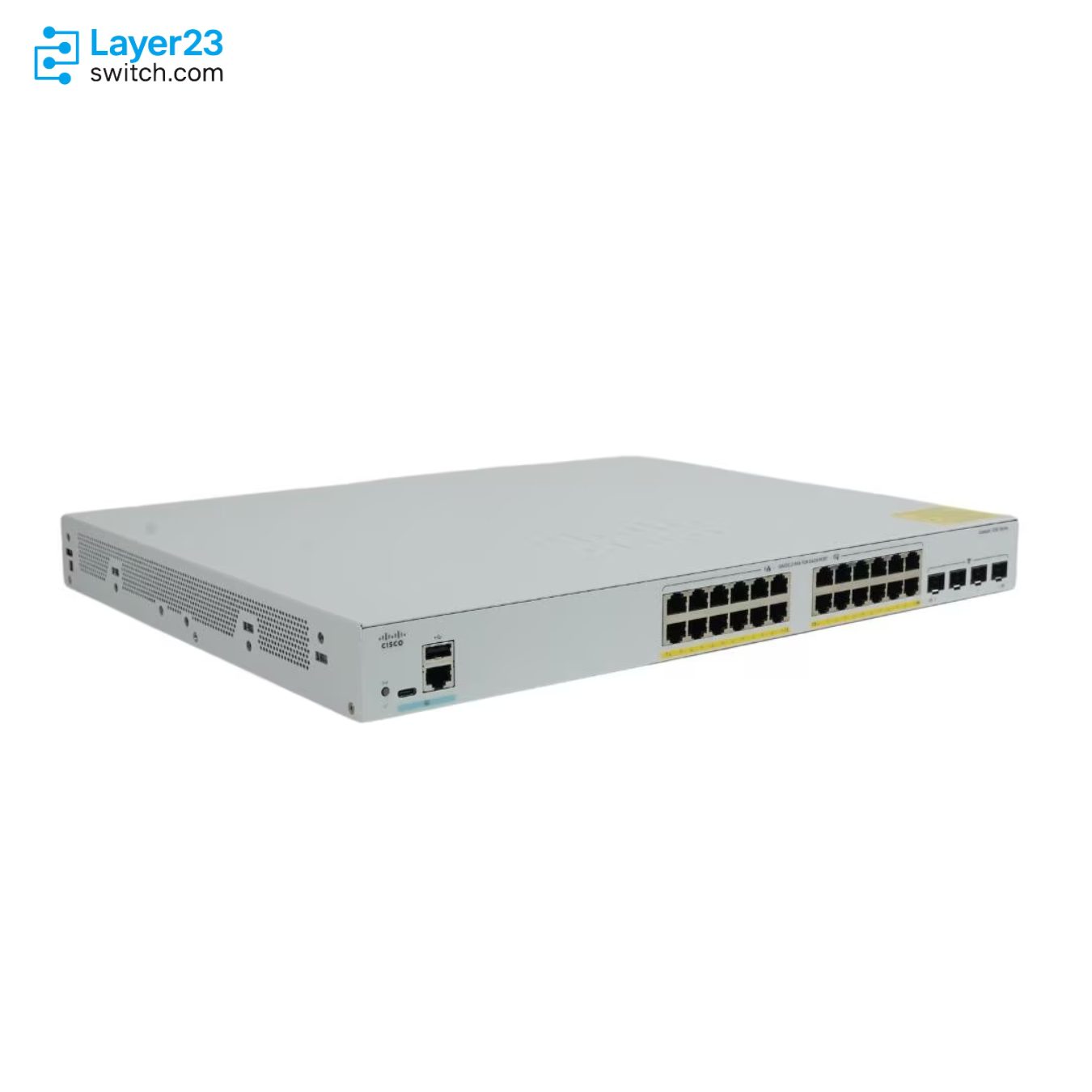

The C1200-24FP-4G is a Cisco Catalyst 1200 Series fixed managed PoE+ access switch for branch and small-office closets that power phones, cameras and access points. The switch has 24 Gigabit PoE+ ports sharing a 375W budget, four Gigabit SFP uplinks, 56 Gbps of switching capacity and one fan. Each port can deliver up to 30.0W, but the budget covers only 12 ports at that level, and Layer 3 is limited to static routing.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1200-24FP-4G |
|
Product type |
Managed Gigabit Ethernet PoE+ switch |
|
Downlink ports |
24 x 10/100/1000 RJ45 PoE+ ports |
|
Uplink ports |
4 x Gigabit SFP |
|
Default PoE budget |
375W power dedicated to PoE |
|
Per-port PoE support |
Up to 30.0W to any Gigabit Ethernet port within the switch PoE budget |
|
Internal power input |
Internal universal AC power |
|
Switching capacity |
56.0 Gbps |
|
Forwarding rate |
41.67 Mpps |
|
Fan design |
1 fan |
|
Dimensions |
445 x 345 x 44 mm |
|
Weight |
4.6 kg |
Product Performance
Key Features
Every port can supply up to 30.0W, but 375W covers only 12 ports at that level. Lower-draw devices let the budget stretch across all 24 ports, so the combined draw of the endpoints sets the limit.
The 24 RJ-45 ports support 802.3at PoE+, 802.3af and Cisco prestandard PoE, which covers current endpoints and older Cisco phones on the same switch.
The uplinks run at 1G and accept modules such as GLC-SX-MMD for multimode fiber, GLC-LH-SMD for single-mode fiber and GLC-TE for copper.

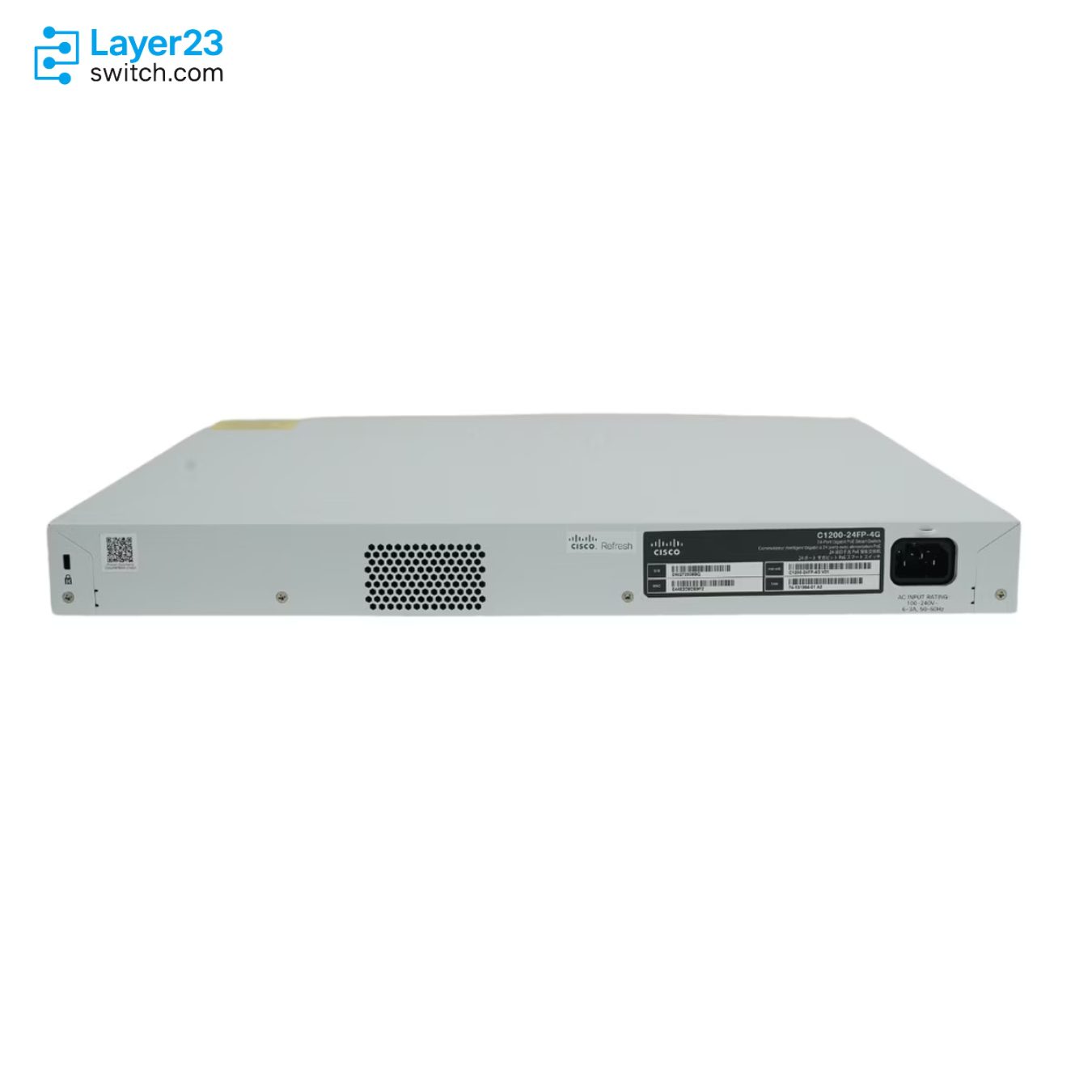

One fan cools the chassis, which produces 34.8 dBA at 25°C and dissipates 1512.3 BTU/hr at full PoE load, so rack airflow and nearby workspace both matter.
System draw with PoE reaches 443.5W at 110V and 429.9W at 220V, which is the figure to use when sizing the circuit and UPS.
The switch holds up to 32 static routes and 16 IP interfaces, enough to route between VLANs locally but not to run dynamic routing protocols.
Application Scenarios
In a branch office, the switch powers IP phones and wireless access points from its PoE+ ports and carries their traffic upstream over Gigabit SFP links.
A retail back room or school wiring rack can run PoE+ cameras, badge readers and classroom access points from one 24-port switch, with VLANs separating each device group.
At a surveillance aggregation point, the switch supplies PoE+ to IP cameras and forwards their streams to a recorder over a fiber or copper SFP uplink.
Product Comparison
|
Parameter |
C1200-24FP-4G | |||
|---|---|---|---|---|
|
RJ-45 ports |
24 |
24 |
24 |
48 |
|
Uplink ports |
4 x Gigabit SFP |
4 x Gigabit SFP |
4 x 10 Gigabit SFP+ |
4 x Gigabit SFP |
|
Power dedicated to PoE (default PoE budget) |
375W |
195W |
375W |
375W |
|
Number of ports that support PoE |
24 |
24 |
24 |
48 |
|
Switching capacity |
56 Gbps |
56 Gbps |
128 Gbps |
104 Gbps |
|
Fan modules |
1 fan |
Fanless |
1 fan |
1 fan |
|
IPv4 routing |
Up to 32 static routes |
Up to 32 static routes |
Up to 32 static routes |
Up to 32 static routes |
|
Power supply |
Internal universal AC |
Internal universal AC |
Internal universal AC |
Internal universal AC |
|
Dimensions |
445 x 345 x 44 mm |
445 x 299 x 44 mm |
445 x 345 x 44 mm |
445 x 350 x 44 mm |
C1200-24FP-4G gives 24 PoE+ ports a 375W budget, while C1200-24P-4G keeps the same 24 ports and 4 Gigabit SFP uplinks on a 195W budget; sites whose powered devices total under 195W can drop to C1200-24P-4G, which is also fanless where C1200-24FP-4G has one fan. Uplinks faster than 1G need C1200-24FP-4X, which keeps the 375W budget and moves to 4 x 10 Gigabit SFP+ ports and 128.0 Gbps of switching, up from 56.0 Gbps. Sites that need 48 powered ports should order C1200-48P-4G, which shares the same 375W budget across twice as many PoE+ ports and switches 104.0 Gbps. Catalyst 1200 has no license tier, so none of these moves involves a software upgrade.
PoE Power Planning
|
Check Item |
Cisco-confirmed Value |
Planning Impact |
|---|---|---|
|
Available PoE |
375W power dedicated to PoE |
Total endpoint draw should be checked against the switch budget before the SKU is quoted |
|
PoE port count |
24 ports support PoE |
All downlink ports can be used for powered endpoints within the total budget |
|
Per-port PoE limit |
Up to 30.0W to any Gigabit Ethernet port until the switch budget is reached |
Individual PoE+ endpoints are supported but the total endpoint mix still has to stay inside the 375W class |
|
Power consumption with PoE |
110V=443.5W; 220V=429.9W |
UPS and circuit planning should use the powered-switch draw rather than only idle consumption |
|
Heat dissipation |
1512.3 BTU/hr |
Rack placement should include thermal planning for the full-PoE configuration |
Ordering Checklist
- Uplink SFP modules: Add a module from Cisco’s Catalyst 1200 list for 1G ports, such as GLC-SX-MMD, GLC-LH-SMD, GLC-TE or MGBSX1. The SFP uplink cages are empty on the switch and only the listed modules are supported.
- Console cable: Add CAB-CONSOLE-RJ45 or CAB-CONSOLE-USB-C. The package lists a switch, power cord, mounting kit and pointer card, with no console cable.
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable with RJ-45 connector for Catalyst 1200 models |
|
CAB-CONSOLE-USB-C |
Cisco USB-C console cable option for Catalyst 1200 models |
|
CAB-CONSOLE-USB-C= |
Cisco USB-C console cable spare option for Catalyst 1200 models |
|
PWR-CLP |
Cisco power cable restraining clip for Catalyst 1200 models |
|
RCKMNT-1RU-1K= |
Rack-mount kit for 1RU C1000, C1200, and C1300 24-port and 48-port models |
|
Cisco-listed 1G multimode SFP option for Catalyst 1200 SFP ports | |
|
Cisco-listed 1G single-mode SFP option for Catalyst 1200 SFP ports | |
|
Cisco-listed 1G copper SFP option for Catalyst 1200 SFP ports |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1200-24FP-4G | Product type | Managed Gigabit Ethernet PoE+ switch |
| Downlink ports | 24 x 10/100/1000 RJ45 PoE+ ports | Uplink ports | 4 x Gigabit SFP |
| Total ports | 28 x Gigabit Ethernet | Default PoE budget | 375W power dedicated to PoE |
| PoE-capable ports | 24 | Per-port PoE support | Up to 30.0W to any Gigabit Ethernet port within the switch PoE budget |
| Switching capacity | 56.0 Gbps | Forwarding rate | 41.67 Mpps |
| Packet buffer | 1.5 MB | Active VLANs | Up to 255 |
| Static routing | Up to 32 static routes | Layer 3 interfaces | Up to 16 IP interfaces |
| Management | On-device UI, Cisco Business Dashboard, Cisco Business mobile app, SNMP | Operating software | Customized Linux OS software |
| CPU | Dual-core ARM at 1.4 GHz | DRAM | 1 GB DDR4 |
| Flash | 512 MB | Console port | Cisco Standard RJ-45 console and USB Type C port |
| Default power supply | Internal universal AC | AC input | 100 to 240V, 50 to 60 Hz |
| System power consumption | 110V=28.9W; 220V=29.8W | Power consumption with PoE | 110V=443.5W; 220V=429.9W |
| Idle power | 110V=16.5W; 220V=17.4W | Heat dissipation | 1512.3 BTU/hr |
| Fan design | 1 fan | Acoustic noise | 25 C: 34.8 dBA |
| MTBF | 698,220 hours at 25 C | Dimensions | 445 x 345 x 44 mm |
| Weight | 4.6 kg | Operating temperature | 23 to 122 F (-5 to 50 C) |
| Storage temperature | -13 to 158 F (-25 to 70 C) |
