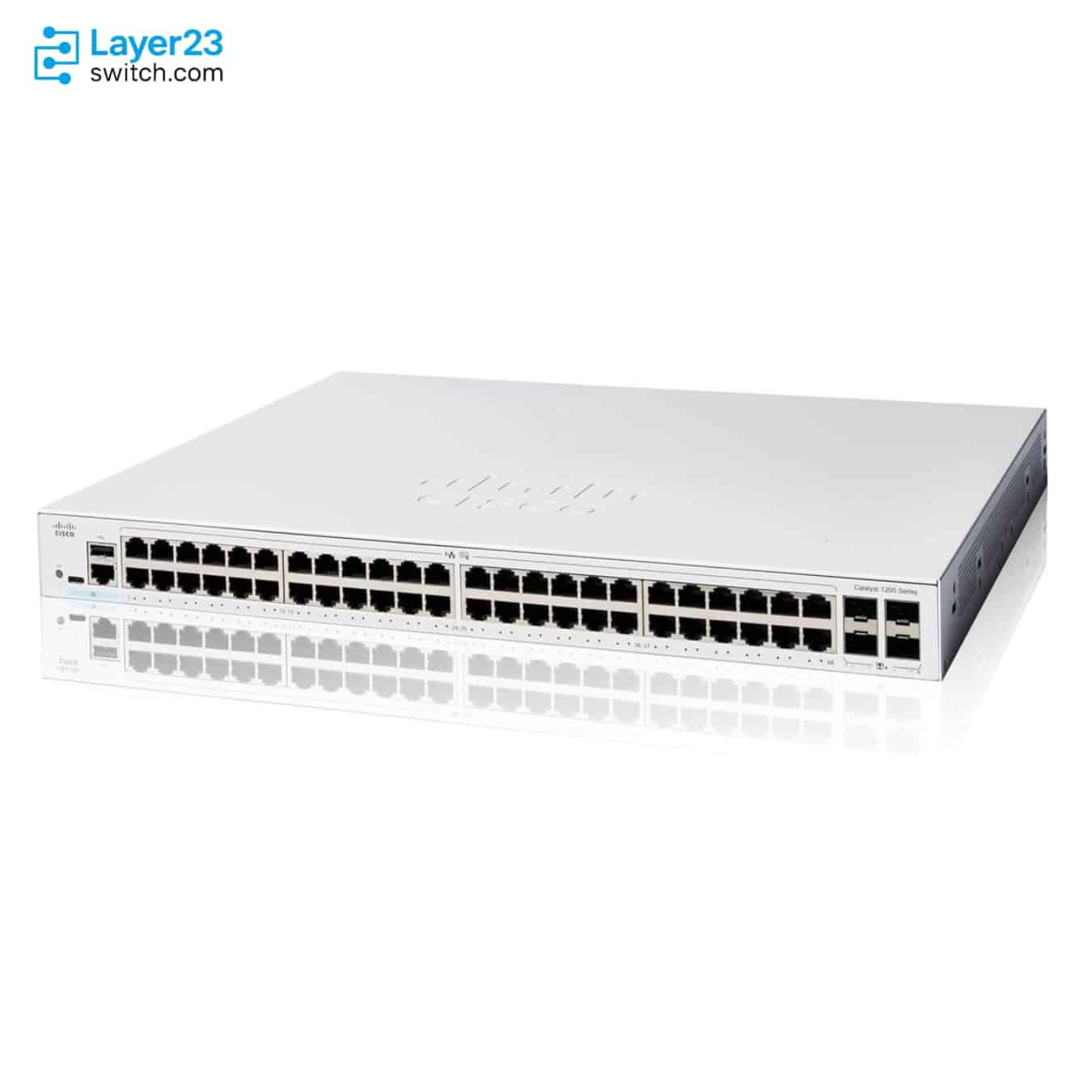

C1200-48T-4G – 48x1G Data Ports – 4x1G SFP Uplinks – Data-Only Catalyst 1200
4/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C1200-48T-4G Description
C1200-48T-4G is a Cisco Catalyst 1200 Series managed Gigabit Ethernet switch for campus and branch access networks that need dense copper connectivity without PoE. It provides 48 10/100/1000 data ports with 4 Gigabit SFP uplinks, 104.0 Gbps switching capacity, and a 77.38 Mpps forwarding rate, with an internal universal AC power supply and a single-fan cooling design.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1200-48T-4G |
|
Product type |
Managed Gigabit Ethernet switch |
|
Downlink ports |
48 x 10/100/1000 data ports |
|
Uplink interfaces |
4 x Gigabit SFP |
|
Total system ports |
52 x Gigabit Ethernet |
|
PoE profile |
No PoE output budget model with no PoE output budget |
|
Switching capacity |
104.0 Gbps |
|
Forwarding rate |
77.38 Mpps |
|
Packet buffer |
3 MB |
|
Internal power input |
Internal universal AC power |
|
Cooling profile |
1 fan with 29.7 dBA acoustic value at 25 C |
|
Dimensions and weight |
445 x 288 x 44 mm; 3.95 kg |
Product Performance
Key Features
The PID is for copper data access, so it belongs in bills where endpoints have separate power and a PoE budget should not be priced into the switch line.
The 4 x Gigabit SFP uplink side fits fiber or copper SFP handoff at the 1G aggregation tier, with Cisco-listed SFP options available for the Catalyst 1200 family.
Cisco identifies the model as rack-mountable and lists a 445 x 288 x 44 mm chassis, which is shallower than the 48-port PoE 4G model and useful for cabinet fit checks.
The switch uses internal 100 to 240V AC power, so the quote should match the correct cord, PDU capacity, and UPS plan instead of an external power adapter.
Catalyst 1200 documentation covers Layer 2 switching, VLAN support, STP, ACL, QoS, and IPv4/IPv6 static routing for small and midsize access deployments.
Cisco documents on-device UI, CLI, Cisco Business Dashboard, Cisco Business mobile app, SNMP, RJ-45 console, and USB-C console access for this switch family.
Application Scenarios
C1200-48T-4G fits office, retail, lab, or branch racks where desktops, printers, terminals, and other self-powered devices need 48 copper Gigabit ports.
C1200-48T-4G fits access designs built around 4 x Gigabit SFP links where the buyer does not need the SFP+ uplink class of C1200-48T-4X.
The data-only profile avoids a PoE budget while retaining Catalyst 1200 management features, making it suitable when access density matters more than endpoint power delivery.
Product Comparison
|
Parameter |
C1200-48T-4G | |||
|---|---|---|---|---|
|
Product type |
Managed Gigabit Ethernet switch |
Managed Gigabit Ethernet PoE+ switch |
Managed Gigabit Ethernet switch |
Managed Gigabit Ethernet switch |
|
Downlink ports |
48 x 10/100/1000 data |
48 x 10/100/1000 PoE+ |
48 x 10/100/1000 data |
24 x 10/100/1000 data |
|
Uplink interfaces |
4 x Gigabit SFP |
4 x Gigabit SFP |
4 x 10 Gigabit SFP+ |
4 x Gigabit SFP |
|
PoE profile |
No PoE output budget |
PoE+ with 375W budget |
No PoE output |
No PoE output |
|
Total system ports |
52 x Gigabit Ethernet |
52 x Gigabit Ethernet |
48 x Gigabit Ethernet plus 4 x 10 Gigabit Ethernet |
28 x Gigabit Ethernet |
|
Switching capacity |
104.0 Gbps |
104.0 Gbps |
176.0 Gbps |
56.0 Gbps |
|
Forwarding rate |
77.38 Mpps |
77.38 Mpps |
130.94 Mpps |
41.66 Mpps |
|
Packet buffer |
3 MB |
3 MB |
3 MB |
1.5 MB |
|
Power supply |
Internal universal AC |
Internal universal AC |
Internal universal AC |
Internal universal AC |
|
Fan design |
1 fan |
1 fan |
1 fan |
Fanless |
|
Dimensions |
445 x 288 x 44 mm |
445 x 350 x 44 mm |
445 x 288 x 44 mm |
445 x 240 x 44 mm |
|
Unit weight |
3.95 kg |
5.43 kg |
3.95 kg |
2.63 kg |
- In a C1200-48T-4G vs C1200-48P-4G comparison, the hardware layout keeps 48 copper ports and 4 x 1G SFP uplinks, but C1200-48P-4G adds a 375W PoE+ budget and a deeper chassis.
- The C1200-48T-4G vs C1200-48T-4X difference is the uplink tier: the 4G model uses 4 x Gigabit SFP while the 4X model uses 4 x 10 Gigabit SFP+ with higher capacity figures.
- For C1200-48T-4G vs C1200-24T-4G, the comparison is access density and cooling profile; the 48-port model doubles the copper data ports and uses one fan.
- The which model to choose check should start with endpoint power, then confirm whether the uplink handoff is 1G SFP or 10G SFP+.
Selection Guide
1. Choose it for 48-port non-PoE access
Select C1200-48T-4G when the rack needs forty-eight copper Gigabit data ports and powered endpoints are not part of the switch budget.
2. Use C1200-48P-4G for powered endpoints
Move to C1200-48P-4G if phones, cameras, access points, or readers need switch-supplied PoE+ on the same 48-port 1G-uplink footprint.
3. Use C1200-48T-4X for 10G aggregation
Specify C1200-48T-4X when the endpoint side remains data-only but the upstream design requires four 10 Gigabit SFP+ uplinks.
4. Keep C1200-24T-4G for smaller data closets
C1200-24T-4G is the lower-density data model when 24 copper ports and fanless operation meet the site requirement.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact PID |
C1200-48T-4G |
Keeps the order tied to the 48-port data-only 1G-uplink model |
|
Endpoint power |
Attached devices are self-powered or do not need PoE from the switch |
Avoids replacing a PoE design with a data-only Catalyst 1200 SKU |
|
Uplink tier |
Four Gigabit SFP ports are enough for the aggregation design |
Separates this model from C1200-48T-4X with 10G SFP+ uplinks |
|
SFP media |
Cisco-listed 1G SFP optics or copper SFPs match the fiber or copper handoff |
Prevents 10G SFP+ assumptions on a 4G uplink switch |
|
AC power |
Internal 100 to 240V AC input and the correct power cord fit the rack |
Aligns the switch with the PDU and UPS plan |
|
Cooling and placement |
One-fan operation and 29.7 dBA acoustic value at 25 C are acceptable |
Helps decide whether the switch belongs near users or in a wiring closet |
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable with RJ-45 connector for Catalyst 1200 models |
|
CAB-CONSOLE-USB-C |
Cisco USB-C console cable option for Catalyst 1200 models |
|
CAB-CONSOLE-USB-C= |
Cisco USB-C console cable spare option for Catalyst 1200 models |
|
PWR-CLP |
Cisco power cable restraining clip for Catalyst 1200 models |
|
RCKMNT-1RU-1K= |
Rack-mount kit for 1RU C1000, C1200, and C1300 24-port and 48-port models |
|
MGBSX1 |
Cisco-listed 1000 Mbps multimode fiber SFP option |
|
MGBLH1 |
Cisco-listed 1000 Mbps single-mode fiber SFP option up to 40 km |
|
MGBLX1 |
Cisco-listed 1000 Mbps single-mode fiber SFP option up to 10 km |
|
MGBT1 |
Cisco-listed 1000 Mbps UTP Cat 5e SFP option up to 100 m |
|
GLC-SX-MMD |
Cisco-listed 1000BASE-SX multimode SFP option with DOM |
|
GLC-LH-SMD |
Cisco-listed 1000BASE-LX/LH single-mode SFP option with DOM |
|
GLC-TE |
Cisco-listed 1000BASE-T copper SFP option |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1200-48T-4G | Product type | Managed Gigabit Ethernet switch |
| Downlink ports | 48 x 10/100/1000 data ports | Uplink interfaces | 4 x Gigabit SFP |
| Total system ports | 52 x Gigabit Ethernet | PoE profile | Data-only model with no PoE output budget |
| Switching capacity | 104.0 Gbps | Forwarding rate | 77.38 Mpps |
| Packet buffer | 3 MB | Active VLANs | Up to 255 |
| Static routing | Up to 32 static routes | Layer 3 interfaces | Up to 16 IP interfaces |
| ACL scale | Up to 512 rules | QoS queues | 8 hardware queues |
| Management | On-device UI, CLI, Cisco Business Dashboard, Cisco Business mobile app, SNMP | Console port | RJ-45 console and USB Type C console |
| CPU | Dual-core ARM at 1.4 GHz | DRAM | 1 GB DDR4 |
| Flash memory | 512 MB | Power supply | Internal universal AC |
| AC input | 100 to 240V, 50 to 60 Hz | System power consumption | 110V=38.80W; 220V=38.07W |
| Idle power | 110V=13.36W; 220V=13.09W | Heat dissipation | 132.39 BTU/hr |
| Fan design | 1 fan | Acoustic noise | 25 C: 29.7 dBA |
| MTBF | 1,452,667 hours at 25 C | Dimensions | 445 x 288 x 44 mm |
| Unit weight | 3.95 kg | Operating temperature | 23 to 122 F (-5 to 50 C) |
| Storage temperature | -13 to 158 F (-25 to 70 C) | Warranty | Limited lifetime |
| Package contents | Switch, power cord, mounting kit, pointer card | Minimum Ethernet cable | Category 5e or higher for 1000BASE-T |
Get More Information
Need pricing, stock, or shipping details for the C1200-48T-4G ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is C1200-48T-4G used for?
-
Can C1200-48T-4G power access points or phones?
-
What uplinks does C1200-48T-4G provide?
-
Is C1200-48T-4G fanless?
-
How is C1200-48T-4G different from C1200-24T-4G?
-
Can C1200-48T-4G segment a dense office floor?
-
When does C1200-48T-4G not fit a design?
-
What deployment intent is specific to C1200-48T-4G?
