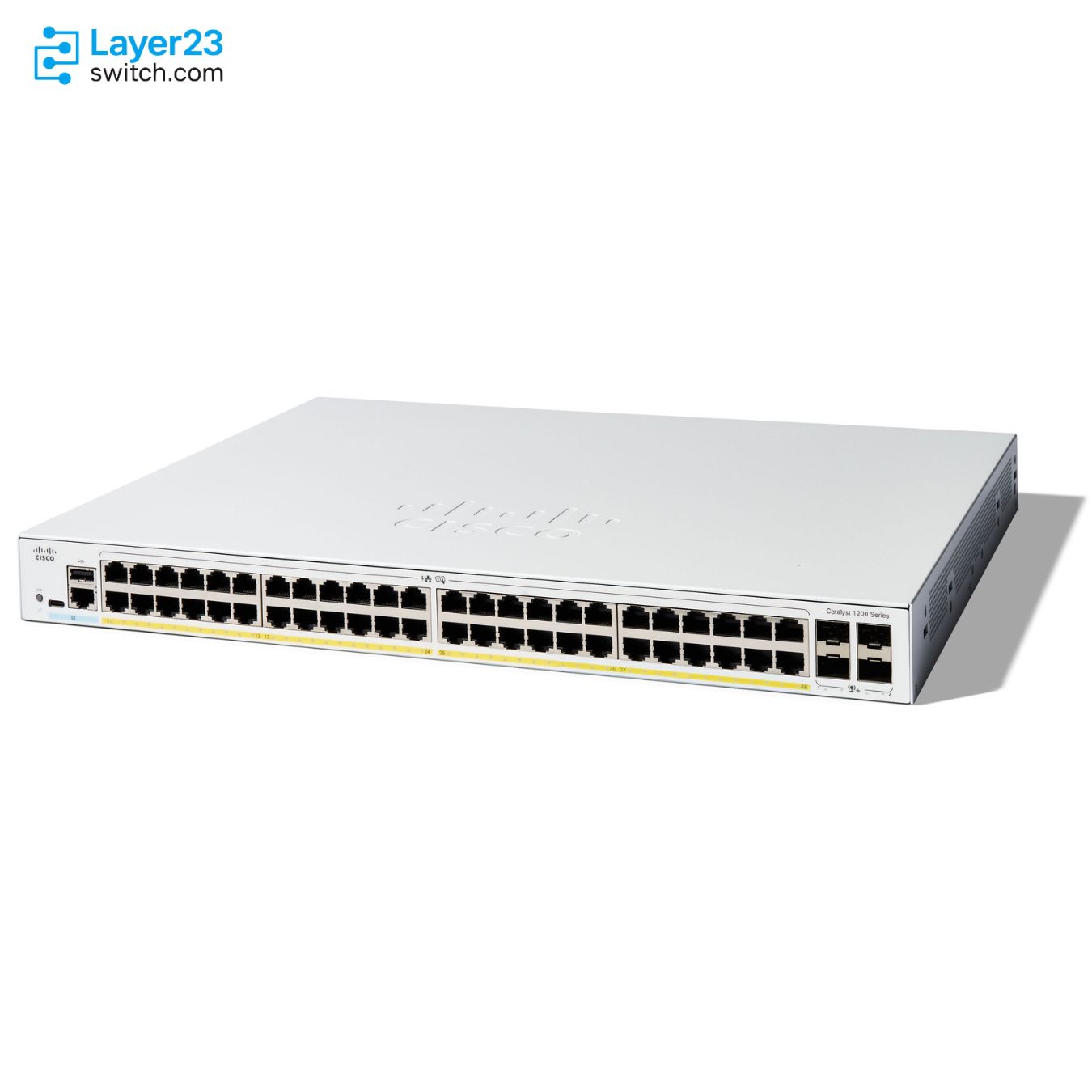

C1200-48P-4G Description
The C1200-48P-4G is a Cisco Catalyst 1200 Series managed PoE+ switch for large wiring closets that power phones, cameras and access points over 48 copper ports. The switch has 48 10/100/1000 PoE+ ports sharing a 375W PoE budget, four Gigabit SFP uplinks, 104.0 Gbps of switching capacity and a 3 MB packet buffer, cooled by one fan. Each port supplies up to 30.0W, but 375W covers only 12 devices at that level, and the uplinks stay at 1G.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1200-48P-4G |
|
Product type |
Managed Gigabit Ethernet PoE+ switch |
|
Downlink ports |
48 x 10/100/1000 RJ45 PoE+ ports |
|
Uplink ports |
4 x Gigabit SFP |
|
Total ports |
52 x Gigabit Ethernet |
|
Default PoE budget |
375W power dedicated to PoE |
|
PoE-capable ports |
48 |
|
Switching capacity |
104.0 Gbps |
|
Forwarding rate |
77.38 Mpps |
|
Packet buffer |
3 MB |
|
Fan design |
1 fan |
|
Dimensions |
445 x 350 x 44 mm |
Product Performance
Key Features
All 48 RJ-45 ports support 802.3at PoE+, 802.3af and Cisco prestandard PoE, so a single switch can serve a full closet of powered endpoints.
The pool averages about 7.8W per port across 48 ports, or 30.0W for 12 ports at once. Deployments with many 15W-class devices fit better than ones with many 30.0W devices.
The uplinks run at 1G over fiber or copper SFP modules, which matches aggregation layers that have not moved to 10G.
The 48 copper ports plus four SFP uplinks total 52 Gbps in each direction, which equals the 104.0 Gbps capacity, so the switch forwards at wire speed at 77.38 Mpps.
The 3 MB buffer is twice the 1.5 MB found on the 24-port models, which gives bursty traffic from 48 ports more room before packets drop.
One fan cools the 445 x 350 x 44 mm, 5.43 kg chassis at 37.3 dBA at 25 C, so it belongs in a closet rather than next to desks.
Application Scenarios
On an office floor, the switch powers desk phones and ceiling access points from 48 PoE+ ports and sends their traffic upstream over the SFP uplinks.
A warehouse or school building can collect IP cameras on the PoE+ ports, as long as the combined camera draw stays inside the 375W budget.
A multi-room store or clinic can land every phone, printer and terminal drop in one 1RU switch, with fiber SFP links to the main equipment room.
Product Comparison
|
Parameter |
C1200-48P-4G | |||
|---|---|---|---|---|
|
RJ-45 ports |
48 x Gigabit Ethernet |
48 x Gigabit Ethernet |
48 x Gigabit Ethernet |
24 x Gigabit Ethernet |
|
Number of ports that support PoE |
48 |
No PoE output |
48 |
24 |
|
Uplink ports |
4 x Gigabit SFP |
4 x Gigabit SFP |
4 x 10 Gigabit SFP+ |
4 x Gigabit SFP |
|
Power dedicated to PoE (default PoE budget) |
375W |
No PoE output |
375W |
375W |
|
Switching capacity |
104.0 Gbps |
104.0 Gbps |
176.0 Gbps |
56.0 Gbps |
|
Packet buffer |
3 MB |
3 MB |
3 MB |
1.5 MB |
|
Fan modules |
1 |
1 |
1 |
1 |
|
Dimensions (H x W x D) |
445 x 350 x 44 mm |
445 x 288 x 44 mm |
445 x 350 x 44 mm |
445 x 345 x 44 mm |
|
Layer 3 routing |
Up to 32 static routes, 16 IP interfaces |
Up to 32 static routes, 16 IP interfaces |
Up to 32 static routes, 16 IP interfaces |
Up to 32 static routes, 16 IP interfaces |
C1200-48P-4G differs from C1200-48T-4G in PoE: it supplies 48 PoE+ ports from a 375W budget, while C1200-48T-4G has the same 48 copper ports and 4 x 1G SFP uplinks with no PoE output. A 10G aggregation layer calls for C1200-48P-4X, which keeps the 375W budget and raises switching capacity from 104.0 Gbps to 176.0 Gbps through four SFP+ uplinks. A closet that powers no more than 24 devices can use C1200-24FP-4G, which has the same 375W budget and 4 x 1G SFP uplinks on 24 PoE+ ports, at 56.0 Gbps on a 345 mm deep chassis.
PoE Power Planning
|
Check Item |
Cisco-confirmed Value |
Planning Impact |
|---|---|---|
|
Available PoE |
375W power dedicated to PoE |
Total powered-device draw must fit the switch budget before quote approval |
|
PoE port count |
48 PoE+ access ports |
Endpoint count can scale to 48 copper ports but remains limited by aggregate budget |
|
Power consumption with PoE |
110V=450.65W; 220V=437.14W |
UPS and circuit planning should use the powered-switch draw rather than idle power |
|
Heat dissipation |
1537.68 BTU/hr |
Rack thermal planning should reflect PoE load and the 48-port chassis |
|
Fan design |
1 fan with 37.3 dBA acoustic value at 25 C |
Placement should account for fan-cooled operation in offices or classrooms |
Ordering Checklist
- Uplink optics: Add 1G modules for the four SFP ports, such as GLC-SX-MMD, GLC-LH-SMD, GLC-BX-U and GLC-BX-D, GLC-TE for Cat5e copper, or MGBSX1, MGBLH1, MGBLX1 and MGBT1. The package holds the switch, power cord, mounting kit and pointer card, so every uplink module is a separate order line.
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable with RJ-45 connector for Catalyst 1200 models |
|
CAB-CONSOLE-USB-C |
Cisco USB-C console cable option for Catalyst 1200 models |
|
CAB-CONSOLE-USB-C= |
Cisco USB-C console cable spare option for Catalyst 1200 models |
|
PWR-CLP |
Cisco power cable restraining clip for Catalyst 1200 models |
|
RCKMNT-1RU-1K= |
Rack-mount kit for 1RU C1000, C1200, and C1300 24-port and 48-port models |
|
Cisco-listed 1000BASE-SX multimode SFP option with DOM | |
|
Cisco-listed 1000BASE-LX/LH single-mode SFP option with DOM | |
|
Cisco-listed 1000BASE-T copper SFP option |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1200-48P-4G | Product type | Managed Gigabit Ethernet PoE+ switch |
| Downlink ports | 48 x 10/100/1000 RJ45 PoE+ ports | Uplink ports | 4 x Gigabit SFP |
| Total ports | 52 x Gigabit Ethernet | Default PoE budget | 375W power dedicated to PoE |
| PoE-capable ports | 48 | Switching capacity | 104.0 Gbps |
| Forwarding rate | 77.38 Mpps | Packet buffer | 3 MB |
| Active VLANs | Up to 255 | Static routing | Up to 32 static routes |
| Layer 3 interfaces | Up to 16 IP interfaces | Management | CLI, on-box web UI, Cisco Business Dashboard, Cisco Business mobile app, SNMP |
| Operating software | Customized Linux OS software | Console port | Cisco Standard RJ-45 console and USB Type C port |
| CPU | Dual-core ARM at 1.4 GHz | DRAM | 1 GB DDR4 |
| Flash | 512 MB | Default power supply | Internal universal AC |
| AC input | 100 to 240V, 50 to 60 Hz | System power consumption | 110V=44.81W; 220V=43.93W |
| Power consumption with PoE | 110V=450.65W; 220V=437.14W | Idle power | 110V=21.03W; 220V=20.68W |
| Heat dissipation | 1537.68 BTU/hr | Fan design | 1 fan |
| Acoustic noise | 25 C: 37.3 dBA | MTBF | 856,329 hours at 25 C |
| Dimensions | 445 x 350 x 44 mm | Weight | 5.43 kg |
| Operating temperature | 23 to 122 F (-5 to 50 C) | Storage temperature | -13 to 158 F (-25 to 70 C) |
| Package contents | Switch, power cord, mounting kit, pointer card |
