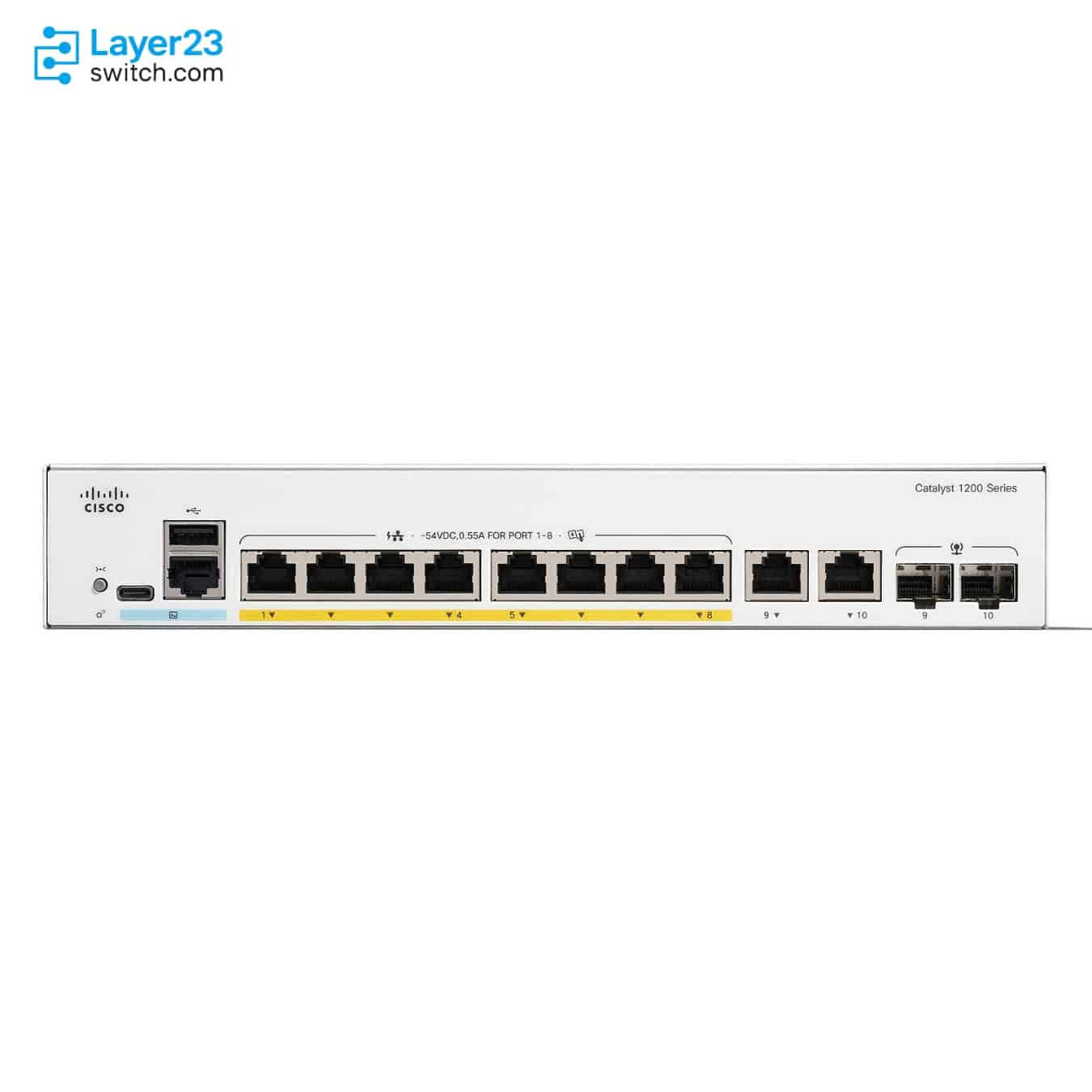

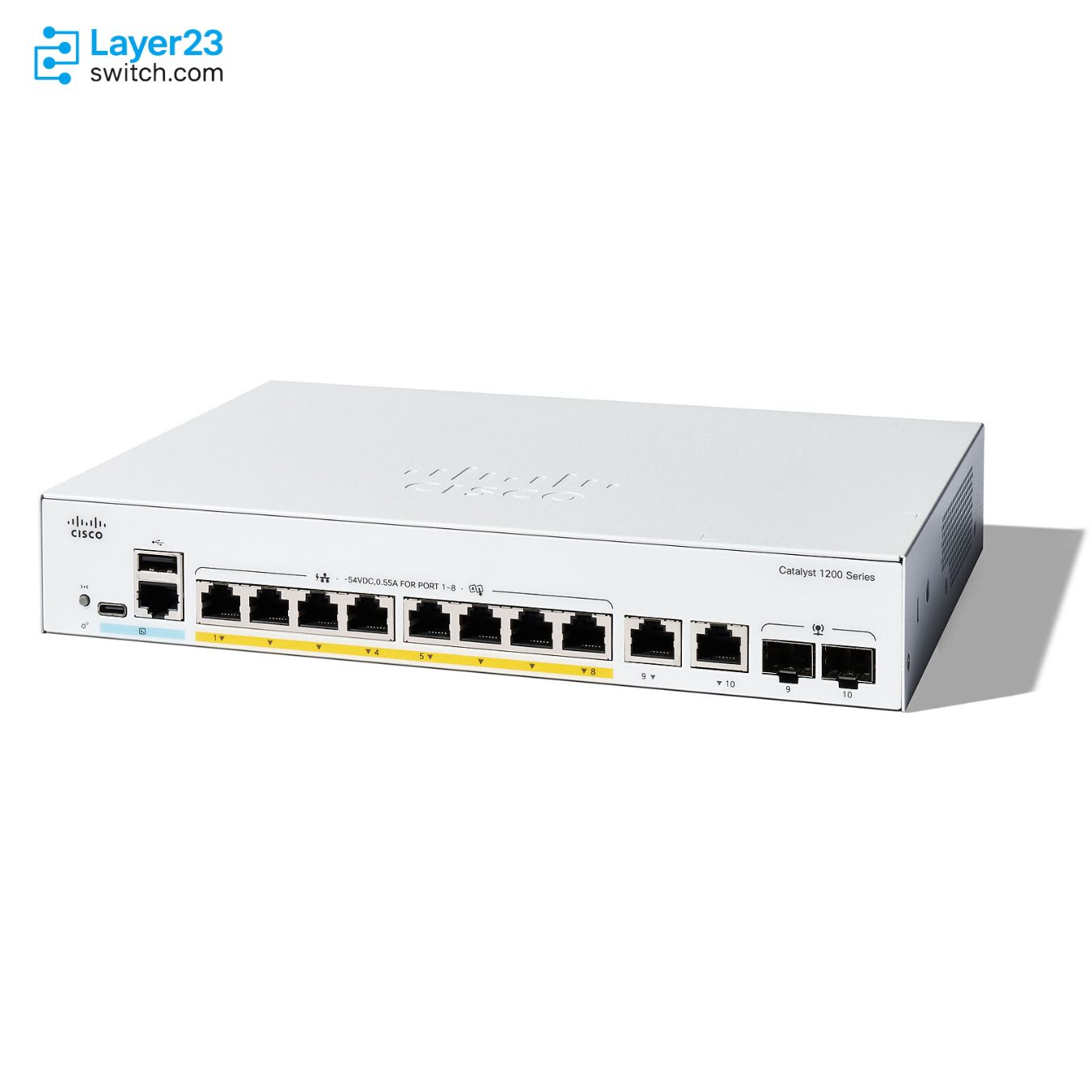

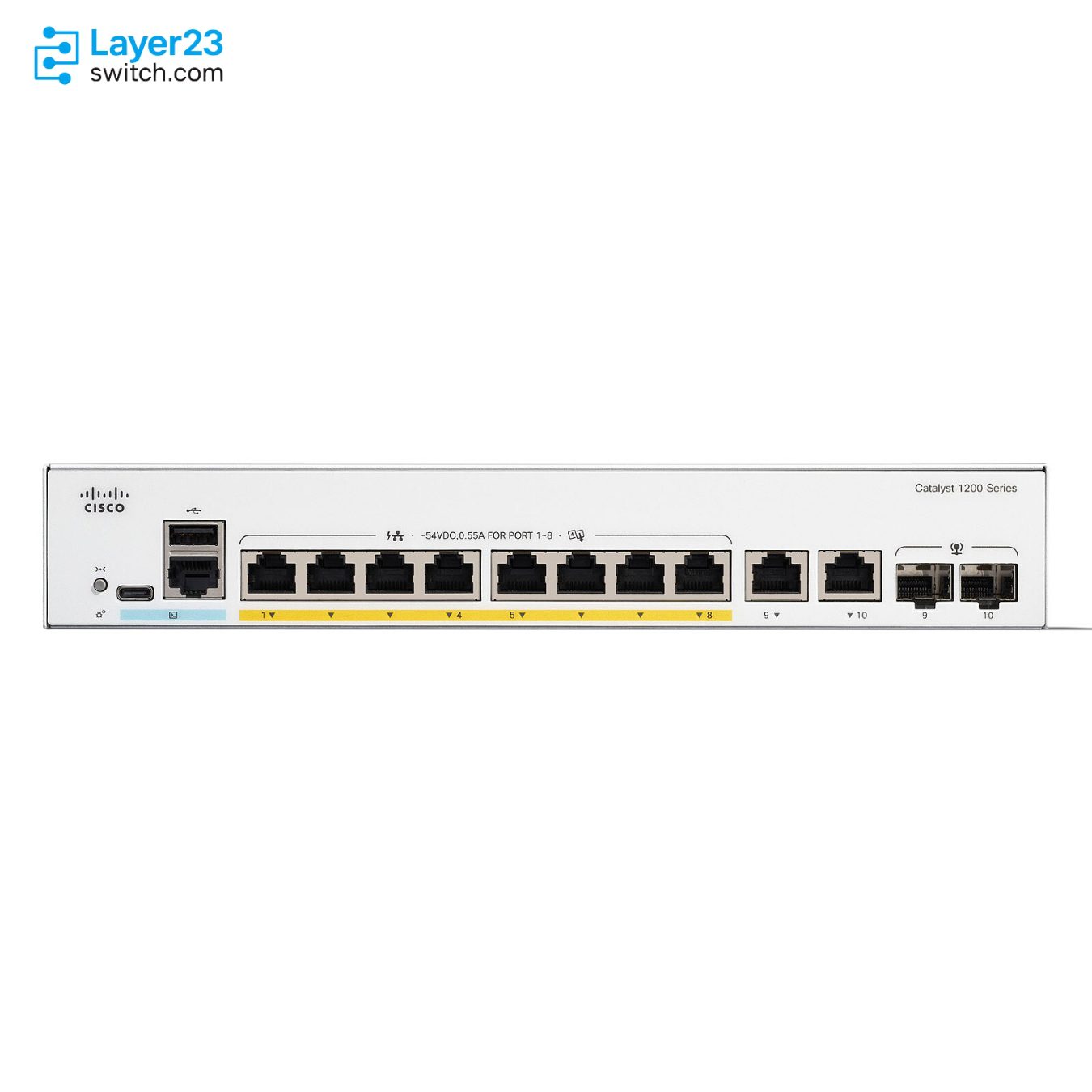

C1200-8P-E-2G – 8x1G PoE+ Ports – 2x1G Combo Uplinks – 67W PoE Budget
3/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C1200-8P-E-2G Description
C1200-8P-E-2G is a Cisco Catalyst 1200 Series managed Gigabit Ethernet PoE+ switch for access deployments that need powered edge ports in a compact fanless form factor. It provides 8 x 10/100/1000 RJ45 PoE+ downlink ports, 2 x Gigabit copper/SFP combo uplinks, a 67W PoE budget, 20.0 Gbps switching capacity, and a 14.88 Mpps forwarding rate, with external power and rack-mount support for wiring-closet installation.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1200-8P-E-2G |
|
Product type |
Managed Gigabit Ethernet PoE+ switch |
|
Downlink ports |
8 x 10/100/1000 RJ45 PoE+ ports |
|
Uplink interfaces |
2 x Gigabit copper/SFP combo ports |
|
Default PoE budget |
67W power dedicated to PoE |
|
PoE-capable ports |
8 |
|
Per-port PoE support |
Up to 30.0W to any Gigabit Ethernet port within the switch PoE budget |
|
Switching capacity |
20.0 Gbps |
|
Forwarding rate |
14.88 Mpps |
|
Power input |
External power supply |
|
Fan design |
Fanless |
|
Rack mounting |
Rack-mountable |
Product Performance
Key Features
The switch supports 8 PoE+ copper ports with a Cisco-listed 67W aggregate budget, making the endpoint power worksheet more important than the port count alone.
The two uplink positions can be planned as copper or SFP handoff points, with one active interface in each combo pair.
Cisco lists C1200-8P-E-2G in the external 100 to 240V power group, unlike C1200-8FP-2G and C1200-16P-2G internal-power alternatives.
The official ordering entry identifies the model as rack-mountable, and the data sheet lists the C1200-8P-E unit as fanless.
The model comparison lists Layer 2 switching, VLAN support, STP, ACL, QoS, and IPv4/IPv6 static routing across Catalyst 1200 models.
Catalyst 1200 model documentation identifies on-device UI, Cisco Business Dashboard, and Cisco Business mobile app management for this switch family.
Application Scenarios
C1200-8P-E-2G fits small access locations where 8 powered copper ports are enough and the device list can stay within the Cisco-listed 67W PoE budget.
The two Gigabit copper/SFP combo uplinks suit compact racks where the upstream handoff may be RJ45 copper in one site and 1G SFP media in another.
This SKU is relevant for quiet small-office, retail, education, or branch placements where the buyer wants a fanless 8-port PoE+ switch and accepts an external power supply.
Product Comparison
|
Parameter |
C1200-8P-E-2G | |||
|---|---|---|---|---|
|
Product type |
Managed Gigabit Ethernet PoE+ switch |
Managed Gigabit Ethernet PoE+ switch |
Managed Gigabit Ethernet switch |
Managed Gigabit Ethernet PoE+ switch |
|
Downlink ports |
8 x 10/100/1000 PoE+ |
8 x 10/100/1000 PoE+ |
8 x 10/100/1000 data |
16 x 10/100/1000 PoE+ |
|
Uplink interfaces |
2 x Gigabit copper/SFP combo |
2 x Gigabit copper/SFP combo |
2 x Gigabit copper/SFP combo |
2 x Gigabit SFP |
|
Default PoE budget |
67W |
120W |
No PoE output |
120W |
|
PoE-capable ports |
8 |
8 |
No PoE output |
16 |
|
Switching capacity |
20.0 Gbps |
20.0 Gbps |
20.0 Gbps |
36.0 Gbps |
|
Forwarding rate |
14.88 Mpps |
14.88 Mpps |
14.88 Mpps |
26.78 Mpps |
|
Power supply |
External power supply |
Internal universal AC |
External power supply |
Internal universal AC |
|
Fan design |
Fanless |
Fanless |
Fanless |
Fanless |
|
Rack mounting |
Rack-mountable |
Rack-mountable |
Rack-mountable |
Rack-mountable |
|
Unit dimensions |
268 x 185 x 44 mm |
268 x 185 x 44 mm |
268 x 185 x 44 mm |
268 x 297 x 44 mm |
- In a C1200-8P-E-2G vs C1200-8FP-2G comparison, the difference is PoE budget and power supply: C1200-8P-E-2G is 67W with external power, while C1200-8FP-2G is 120W with internal universal AC.
- The C1200-8P-E-2G vs C1200-8T-E-2G difference is powered access; both keep the 8-port combo-uplink format, but C1200-8T-E-2G is data only.
- For C1200-8P-E-2G vs C1200-16P-2G, the comparison is access scale and uplink form because C1200-16P-2G provides 16 PoE+ ports and fixed 1G SFP uplinks.
- The which model to choose check should start with PoE budget, then confirm whether the order needs external power, internal AC, combo uplinks, or more powered ports.
Selection Guide
1. Choose it for 67W compact PoE access
Specify C1200-8P-E-2G when the site needs 8 Gigabit PoE+ ports and the confirmed powered-device draw fits inside the 67W budget.
2. Move up for more PoE headroom
Select C1200-8FP-2G when the same 8-port combo-uplink footprint is required but the endpoint plan needs the Cisco-listed 120W PoE class.
3. Shift to data-only for nonpowered endpoints
C1200-8T-E-2G is the closer alternative when the rack still needs two Gigabit combo uplinks but phones, cameras, access points, or readers should not draw switch power.
4. Increase port count with the 16-port PoE model
C1200-16P-2G fits orders that need 16 powered copper ports and 2 fixed 1G SFP uplinks rather than the 8-port combo-uplink layout.
PoE Power Planning
|
Check Item |
Cisco-confirmed Value |
Planning Impact |
|---|---|---|
|
Available PoE |
67W power dedicated to PoE |
The endpoint worksheet must keep aggregate draw within the lower 8-port Catalyst 1200 PoE budget |
|
PoE port count |
8 PoE+ access ports |
Powered devices can be connected across the copper access ports while sharing one switch-level power pool |
|
Per-port PoE limit |
Up to 30.0W to any Gigabit Ethernet port within the switch budget |
A single higher-draw device is possible only if enough aggregate budget remains |
|
Power consumption with PoE |
110V=87.89W; 220V=84.86W |
UPS and circuit planning should use the powered-switch draw when PoE endpoints are attached |
|
Heat dissipation |
299.91 BTU/hr |
Cabinet ventilation should reflect the PoE-loaded heat figure even though the model is fanless |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact product ID |
C1200-8P-E-2G appears on the purchase line |
Prevents substitution with the 120W C1200-8FP model or a data-only 8-port switch |
|
PoE worksheet |
Total powered-device load stays within 67W |
The switch has 8 PoE+ ports but a smaller aggregate PoE pool than C1200-8FP-2G |
|
Power arrangement |
External 100 to 240V power supply is acceptable at the install site |
The order should not assume the internal AC design used by larger Catalyst 1200 PoE models |
|
Combo uplink plan |
RJ45 copper or SFP media is selected for each combo position |
Only one side of each copper/SFP combo pair operates at a time |
|
Rack hardware |
RCKMNT-CMPCT-1K= is included when 19-in. mounting is needed |
Cisco lists the compact bracket for C1000, C1200, and C1300 8-port and 16-port models |
|
SFP selection |
1G SFP model, media type, and reach match the uplink design |
Cisco lists supported Gigabit SFP options for Catalyst 1200 uplink planning |
|
Operations model |
On-device UI, Cisco Business Dashboard, or Cisco Business mobile app is the intended management path |
The management handoff should match the tools documented for Catalyst 1200 deployments |
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable with RJ-45 connector for Catalyst 1200 models |
|
CAB-CONSOLE-USB-C |
Cisco USB-C console cable option for Catalyst 1200 models |
|
CAB-CONSOLE-USB-C= |
Cisco USB-C console cable spare option for Catalyst 1200 models |
|
PWR-CLP |
Cisco power cable restraining clip for Catalyst 1200 models |
|
RCKMNT-CMPCT-1K= |
Cisco compact 19-in. rack-mount bracket for C1000, C1200, and C1300 8-port and 16-port models |
|
Cisco-listed multimode fiber 1000 Mbps SFP option with 550 m maximum distance | |
|
Cisco-listed single-mode fiber 1000 Mbps SFP option with 10 km maximum distance | |
|
Cisco-listed UTP Cat 5e 1000 Mbps copper SFP option with 100 m maximum distance |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1200-8P-E-2G | Product type | Managed Gigabit Ethernet PoE+ switch |
| Downlink ports | 8 x 10/100/1000 RJ45 PoE+ ports | Uplink interfaces | 2 x Gigabit copper/SFP combo ports |
| Total system ports | 10 x Gigabit Ethernet | Default PoE budget | 67W power dedicated to PoE |
| PoE-capable ports | 8 | Per-port PoE support | Up to 30.0W to any Gigabit Ethernet port within the switch PoE budget |
| Switching capacity | 20.0 Gbps | Forwarding rate | 14.88 Mpps |
| Packet buffer | 1.5 MB | Active VLANs | Up to 255 |
| Static routing | IPv4/IPv6 static routing | ACL scale | Up to 512 rules |
| QoS queues | 8 hardware queues | Management | On-device UI, Cisco Business Dashboard, Cisco Business mobile app |
| Operating software | Customized Linux OS software | Console port | Cisco Standard RJ-45 console and USB Type C port |
| Power supply | External power supply | AC input | 100 to 240V, 50 to 60 Hz external |
| System power consumption | 110V=13.04W; 220V=13.33W | Power consumption with PoE | 110V=87.89W; 220V=84.86W |
| Idle power | 110V=7.76W; 220V=7.46W | Heat dissipation | 299.91 BTU/hr |
| Fan design | Fanless | MTBF | 1,706,649 hours at 25 C |
| Dimensions | 268 x 185 x 44 mm | Unit weight | 1.53 kg |
| Operating temperature | 23 to 122 F (-5 to 50 C) | Storage temperature | -13 to 158 F (-25 to 70 C) |
| Certifications | UL 62368, CSA 22.2, CE mark, FCC Part 15 Class A | Warranty | Limited lifetime |
