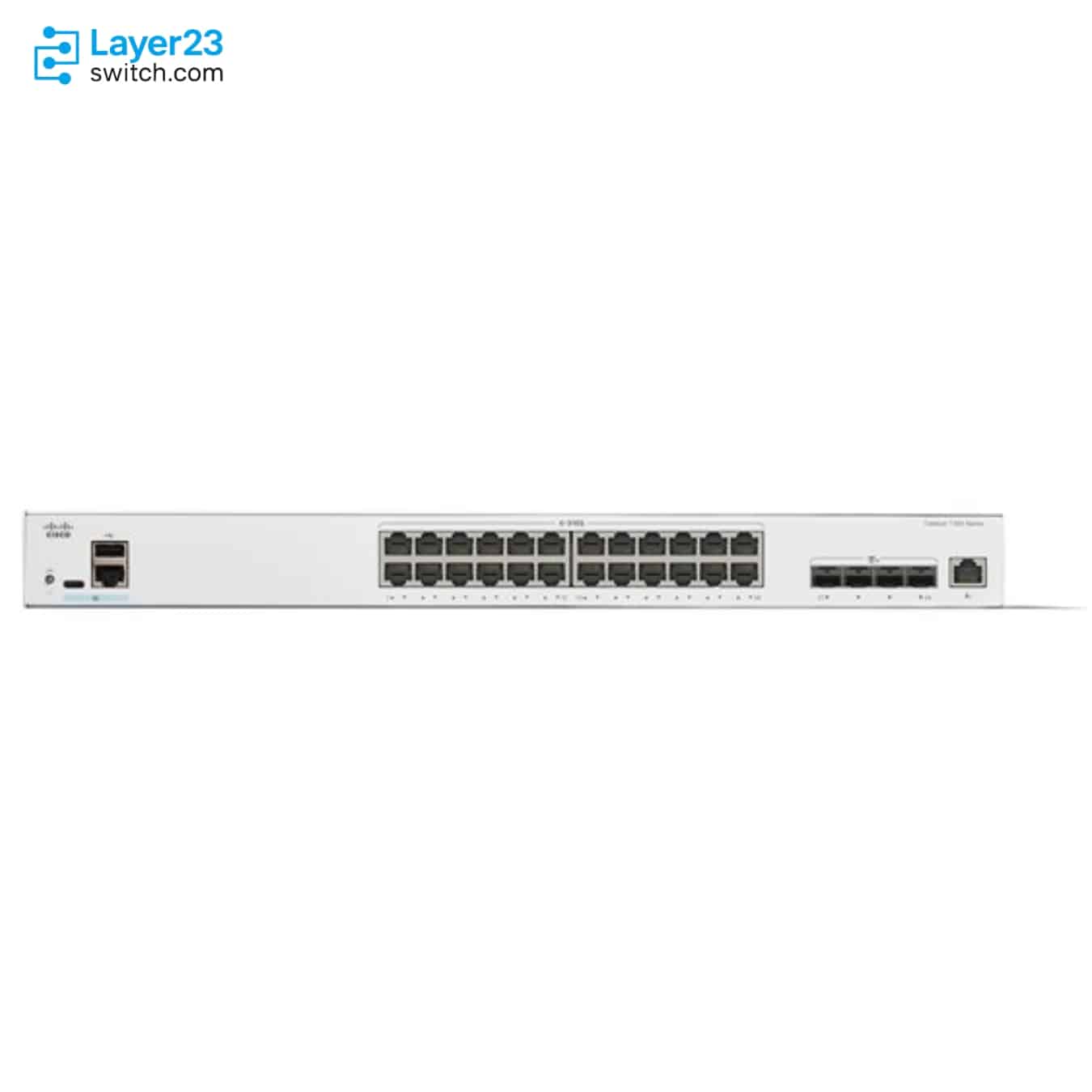

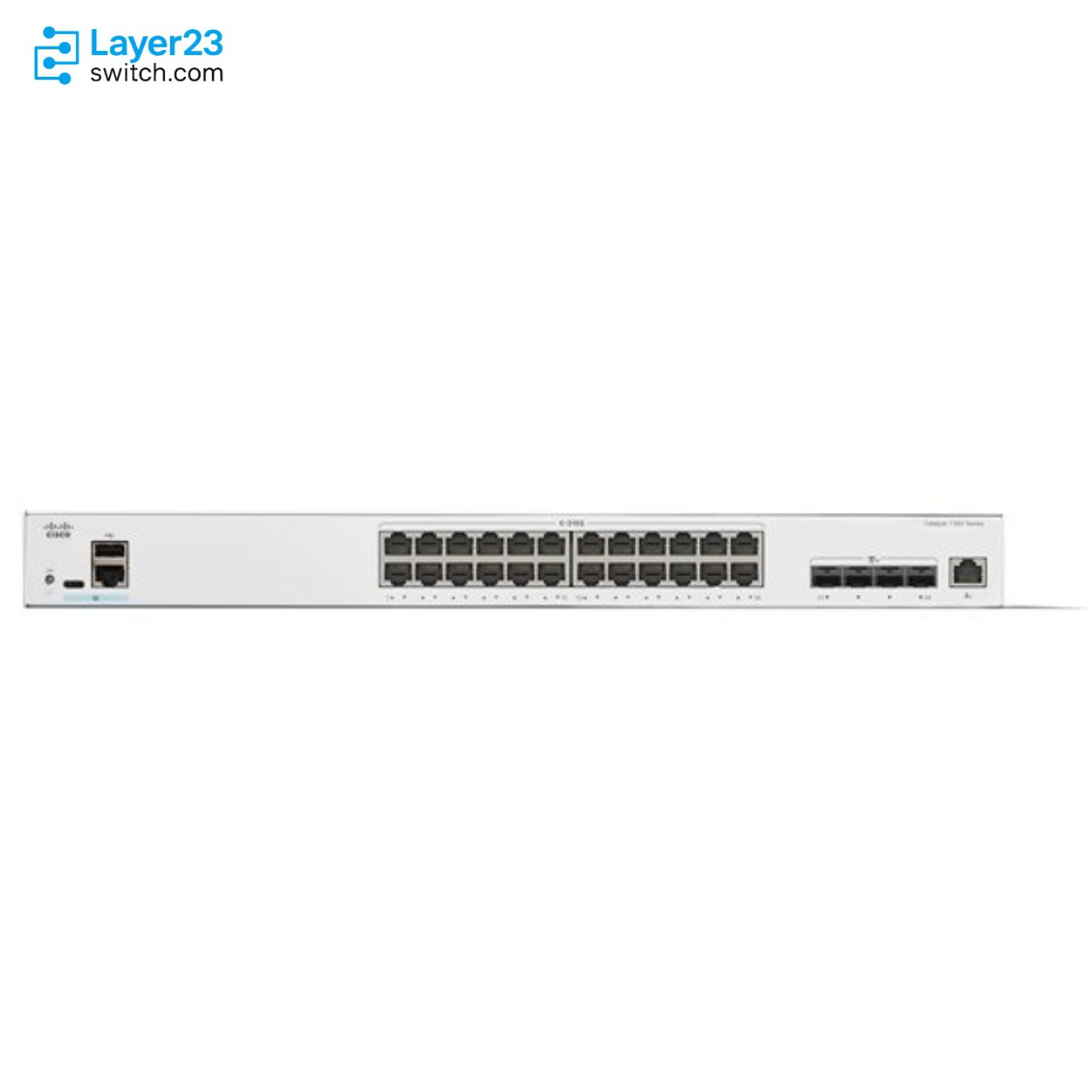

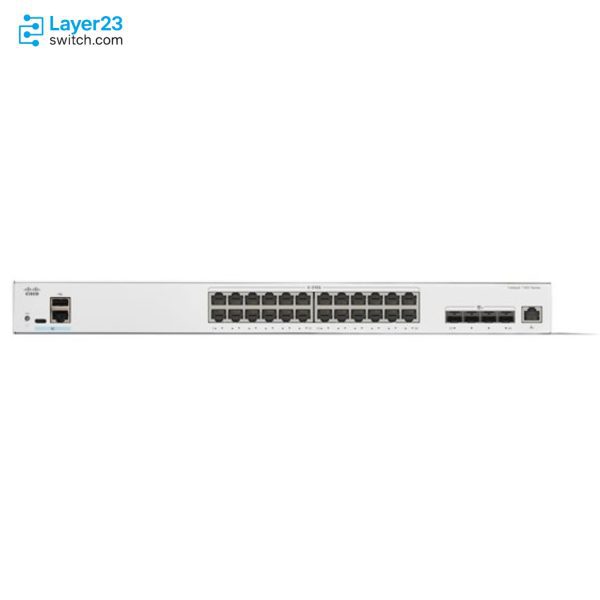

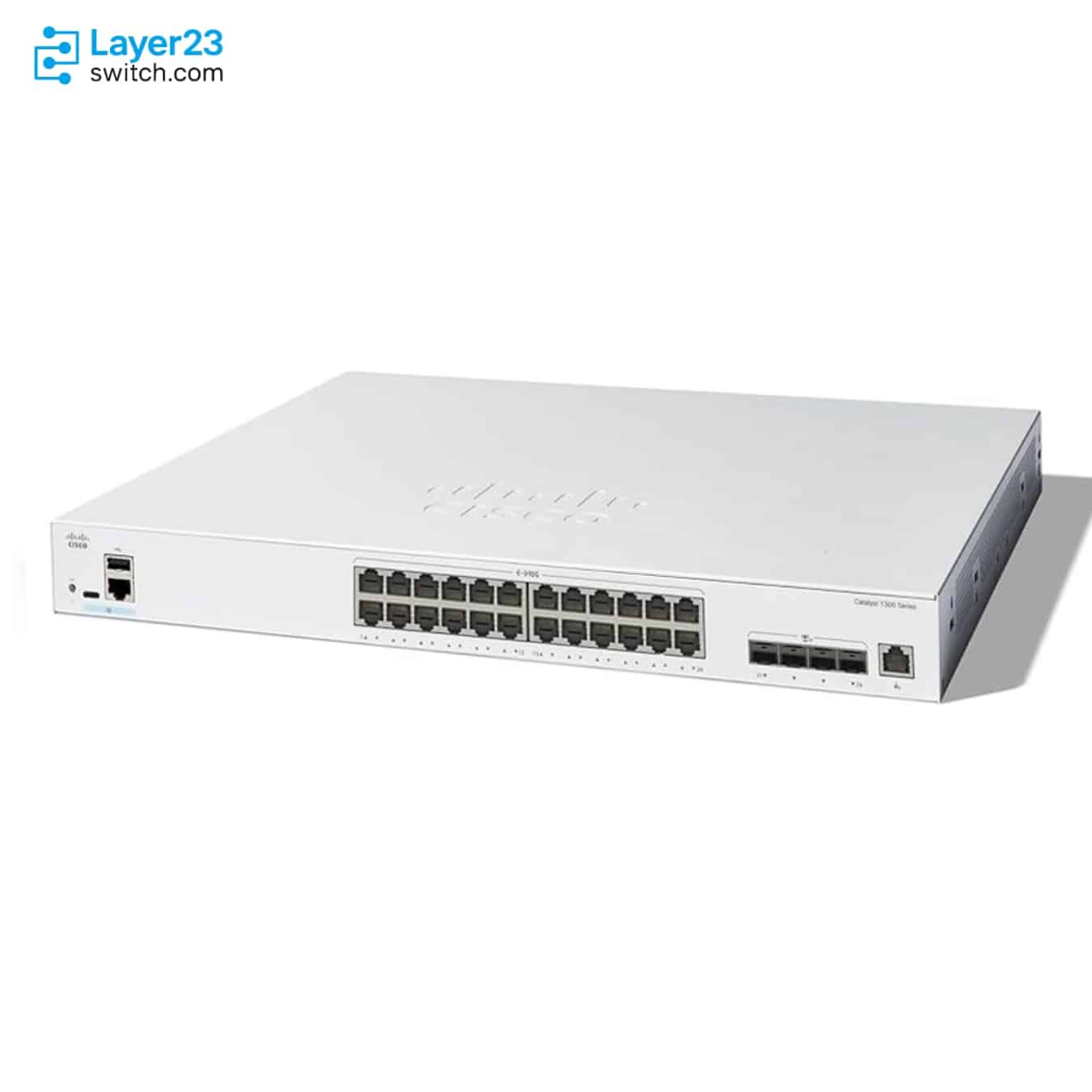

C1300-24FP-4X – 24x1G PoE+ Ports – 4x10G SFP+ Uplinks – 375W PoE Budget
2/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C1300-24FP-4X Description
C1300-24FP-4X is a Cisco Catalyst 1300 Series managed Layer 3 Gigabit Ethernet PoE+ switch for campus access networks that need full PoE on 24 copper edge ports plus high-speed fiber uplinks. The SKU provides 24 x 10/100/1000 RJ45 PoE+ downlink ports, 4 x 10G SFP+ uplink interfaces, a 375W dedicated PoE budget, 128.0 Gbps switching capacity, and 95.23 Mpps forwarding rate for access-layer deployments that also need Catalyst 1300 hardware stacking support.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1300-24FP-4X |
|
Product type |
Managed Layer 3 Gigabit Ethernet PoE+ switch |
|
Downlink ports |
24 x 10/100/1000 RJ45 PoE+ ports |
|
Uplink interfaces |
4 x 10 Gigabit SFP+ |
|
Default PoE budget |
375W power dedicated to PoE |
|
PoE-capable ports |
24 |
|
PoE standards |
802.3at PoE+, 802.3af, and Cisco pre-standard PoE |
|
Switching capacity |
128.0 Gbps |
|
Forwarding rate |
95.23 Mpps |
|
Hardware stacking |
Supported in C1300 Family 1, up to 8 switches in a stack |
|
Packet buffer |
1.5 MB |
|
Internal power input |
Internal universal AC power |
Product Performance
Key Features
C1300-24FP-4X combines 24 PoE+ copper access ports with the higher 24-port PoE planning class, so endpoint count and aggregate wattage should both be checked.
The uplink block supports 10G SFP+ connectivity, letting the order stay in the 4X Catalyst 1300 family instead of the 1G-uplink 4G models.
Cisco includes C1300-24FP-4X in C1300 Family 1 stacking documentation, with up to 8 switches managed as one stack when the stack design is used.
The Catalyst 1300 Series supports 802.3af PoE and 802.3at PoE+, so phones, cameras, readers, and access points must be matched to the supported endpoint power class.
Cisco documents IPv4 and IPv6 routing features for Catalyst 1300, including C1300 route scale and Layer 3 interfaces for branch and SMB segmentation.
Operations teams can use Cisco Business Dashboard, Cisco Business mobile app, web UI, CLI, and SNMP according to Cisco Catalyst 1300 documentation.
Application Scenarios
C1300-24FP-4X fits access closets where powered copper endpoints remain at 24 ports but the uplink handoff must move to 10G SFP+ rather than 1G SFP.
Use this SKU when the design calls for a C1300 Family 1 stack member with 24 PoE+ downlinks, full-PoE planning, and 4X uplink connectivity.
The SKU is relevant when a C1300-24P-4X budget is too small for endpoint draw or when a C1300-24FP-4G uplink tier is too slow for the aggregation plan.
Product Comparison
|
Parameter |
C1300-24FP-4X | |||
|---|---|---|---|---|
|
Product type |
Managed Layer 3 Gigabit Ethernet PoE+ switch |
Managed Layer 3 Gigabit Ethernet PoE+ switch |
Managed Layer 3 Gigabit Ethernet PoE+ switch |
Managed Layer 3 Gigabit Ethernet PoE+ switch |
|
Downlink ports |
24 x 10/100/1000 PoE+ |
24 x 10/100/1000 PoE+ |
24 x 10/100/1000 PoE+ |
48 x 10/100/1000 PoE+ |
|
Uplink interfaces |
4 x 10 Gigabit SFP+ |
4 x 10 Gigabit SFP+ |
4 x Gigabit SFP |
4 x 10 Gigabit SFP+ |
|
Default PoE budget |
375W dedicated PoE value |
195W |
375W |
740W |
|
Ordering description PoE value |
370W power budget |
195W power budget |
370W power budget |
740W power budget |
|
PoE-capable ports |
24 |
24 |
24 |
48 |
|
Switching capacity |
128.0 Gbps |
128.0 Gbps |
56.0 Gbps |
176.0 Gbps |
|
Forwarding rate |
95.23 Mpps |
95.23 Mpps |
41.66 Mpps |
130.94 Mpps |
|
Hardware stacking |
C1300 Family 1 stacking-supported model |
C1300 Family 1 stacking-supported model |
Not listed in the C1300 stacking model family |
C1300 Family 1 stacking-supported model |
|
Packet buffer |
1.5 MB |
1.5 MB |
1.5 MB |
1.5 MB |
|
Power supply |
Internal universal AC |
Internal universal AC |
Internal universal AC |
Internal universal AC |
|
Chassis size |
17.49 x 13.78 x 1.73 in |
17.49 x 11.77 x 1.73 in |
17.49 x 13.77 x 1.73 in |
17.49 x 13.78 x 1.73 in |
- In a C1300-24FP-4X vs C1300-24P-4X comparison, the real difference is PoE capacity: both stay on 24 PoE+ ports and 4 x 10G SFP+ uplinks, but C1300-24FP-4X uses the higher 375W dedicated PoE class.
- The C1300-24FP-4X vs C1300-24FP-4G difference is uplink speed and switching capacity; the 4X SKU uses 4 x 10G SFP+ and 128.0 Gbps while the 4G SKU uses 4 x 1G SFP and 56.0 Gbps.
- For C1300-24FP-4X vs C1300-48FP-4X, the comparison is access density and PoE pool size, because the 48FP model doubles the copper port count and raises the PoE budget to 740W.
- The which SKU to order check should start with endpoint wattage, then confirm 10G uplink need and whether the stack design requires a C1300 Family 1 supported model.
Selection Guide
1. Choose it for 24 full-PoE ports with 10G uplinks
Specify C1300-24FP-4X when the bill of materials needs 24 Gigabit PoE+ access ports, a 375W dedicated PoE planning value, and 4 x 10G SFP+ uplinks.
2. Use C1300-24P-4X when 195W is enough
C1300-24P-4X is the closer 4X alternative when the same port and uplink count is needed but the endpoint worksheet fits the 195W PoE class.
3. Use C1300-24FP-4G for 1G SFP handoff
C1300-24FP-4G keeps the full-PoE 24-port access profile but belongs in orders where 4 x 1G SFP uplinks match the upstream design.
4. Move to C1300-48FP-4X for higher access density
C1300-48FP-4X is the comparison point when the project needs 48 powered copper ports and a 740W budget rather than a 24-port full-PoE switch.
PoE Power Planning
|
Check Item |
Cisco-confirmed Value |
Planning Impact |
|---|---|---|
|
Dedicated PoE value |
375W power dedicated to PoE |
Use this value for endpoint power planning across the 24 PoE+ copper ports |
|
Ordering description value |
370W power budget in the ordering row |
Reconcile the ordering text with the PoE specification table before finalizing the quote record |
|
PoE port count |
24 PoE-capable access ports |
Powered endpoints share one switch-level PoE pool rather than independent per-port budgets |
|
PoE standards |
802.3at PoE+, 802.3af, and Cisco pre-standard PoE |
Endpoint compatibility should be checked against the requested power standard |
|
Power consumption with PoE |
110V=454.2W; 220V=441.2W |
UPS and circuit sizing should use loaded PoE consumption rather than idle draw |
|
Heat dissipation |
1548.8 BTU/hr |
Rack thermal planning should account for loaded PoE operation |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
C1300-24FP-4X on the purchase line |
Prevents substitution with the 195W C1300-24P-4X or the 1G-uplink C1300-24FP-4G |
|
PoE worksheet |
Aggregate endpoint draw fits the Cisco-listed dedicated PoE value |
Keeps phones, cameras, readers, and wireless access points inside the supported switch budget |
|
Uplink media |
10G SFP+ optic, DAC, or AOC choice matches the upstream handoff |
Avoids quoting a 4G model or unsupported media for the 4X uplink design |
|
Stack design |
C1300 Family 1 stack membership and stack count are planned when stacking is required |
Keeps the switch aligned with Cisco’s C1300 stacking model family |
|
Power plan |
Internal 100 to 240V AC input and regional power cord are correct |
Aligns the switch with rack PDU, UPS, and site power requirements |
|
Rack and thermal plan |
1RU mounting space, PoE-loaded power draw, and heat dissipation are acceptable |
Avoids under-sizing the cabinet plan for a powered access switch |
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable with RJ-45 connector for Catalyst 1300 models |
|
CAB-CONSOLE-USB-C |
Cisco USB-C console cable option for Catalyst 1300 models |
|
CAB-CONSOLE-USB-C= |
Cisco USB-C console cable spare option for Catalyst 1300 models |
|
PWR-CLP |
Cisco power cable restraining clip for Catalyst 1300 models |
|
RCKMNT-1RU-1K= |
Cisco 1RU rack-mount kit for C1000, C1200, and C1300 24/48-port models |
|
SFP-H10GB-CU1M |
Cisco-listed 10G copper coax SFP+ cable, 1 m |
|
SFP-H10GB-CU3M |
Cisco-listed 10G copper coax SFP+ cable, 3 m |
|
SFP-H10GB-CU5M |
Cisco-listed 10G copper coax SFP+ cable, 5 m |
|
SFP-10G-SR |
Cisco-listed 10G multimode fiber SFP+ option |
|
SFP-10G-LR |
Cisco-listed 10G single-mode fiber SFP+ option |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1300-24FP-4X | Product type | Managed Layer 3 Gigabit Ethernet PoE+ switch |
| Downlink ports | 24 x 10/100/1000 RJ45 PoE+ ports | Uplink interfaces | 4 x 10 Gigabit SFP+ |
| Total system ports | 24 x Gigabit Ethernet plus 4 x 10 Gigabit Ethernet | Default PoE budget | 375W power dedicated to PoE |
| Ordering description PoE value | 370W power budget | PoE-capable ports | 24 |
| PoE standards | 802.3at PoE+, 802.3af, Cisco pre-standard PoE | Switching capacity | 128.0 Gbps |
| Forwarding rate | 95.23 Mpps | Packet buffer | 1.5 MB |
| Hardware stacking | C1300 Family 1, up to 8 switches in a stack | Layer 3 interfaces | Up to 128 IP interfaces in C1300 |
| IPv4 route scale | Up to 990 dynamic plus static IPv4 routes in C1300 | Operating software | Linux-based software |
| Management | Cisco Business Dashboard, Cisco Business mobile app, web UI, CLI, SNMP | Console ports | Cisco standard RJ-45 console port and USB Type C port |
| Flash | 1GB SLC | DRAM | 1 GB DDR4 for C1300 |
| CPU | ARM dual-core at 1.5 GHz | Power supply | Internal universal AC |
| AC input | 100 to 240V, 50 to 60 Hz | System power consumption | 110V=40.9W; 220V=40.9W |
| Power consumption with PoE | 110V=454.2W; 220V=441.2W | Idle power | 110V=21.9W; 220V=22.5W |
| Heat dissipation | 1548.8 BTU/hr | Acoustic noise and MTBF | 25 C: 39 dBA; 389,607 hours at 25 C |
| Chassis size | 17.49 x 13.78 x 1.73 in | Unit weight | 4.92 kg (10.84 lb) |
| Operating temperature | 23 to 122 F (-5 to 50 C) | Storage temperature | -13 to 158 F (-25 to 70 C) |
| Warranty | Limited lifetime with return-to-factory replacement | Package contents | Switch, power cord, mounting kit, pointer card |
