C1300-8P-E-2G Description

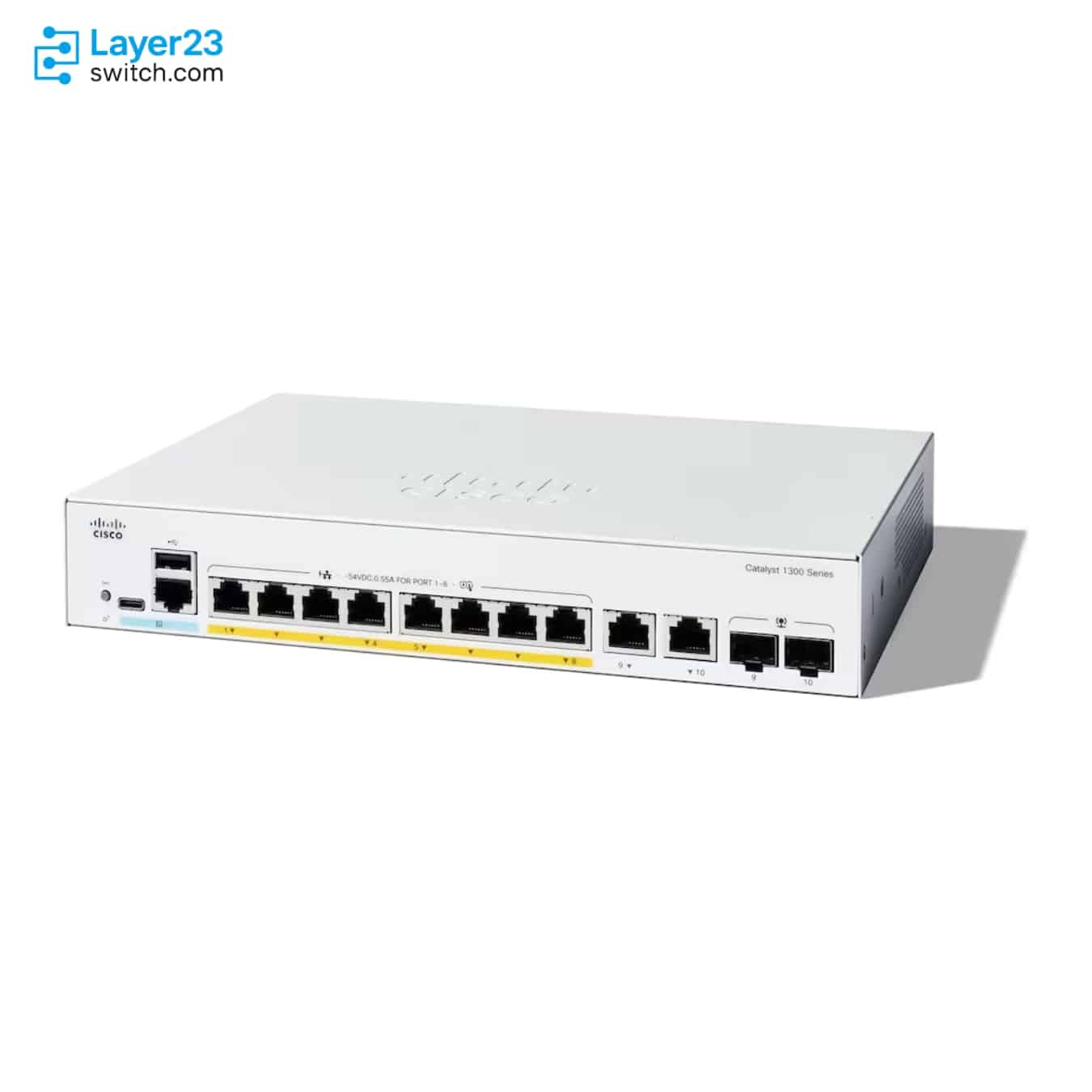

The C1300-8P-E-2G is a Cisco Catalyst 1300 Series compact Layer 3 PoE+ switch for small offices, shops and classrooms that power a few low-draw endpoints. Eight Gigabit PoE+ ports, each rated at 30W, draw from one 67W budget, while two Gigabit copper/SFP combo ports carry the uplink and the fanless chassis switches 20 Gbps. Power comes from an external 100-240V supply rather than a built-in one, and the 67W pool runs only two ports at the full 30W at the same time.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1300-8P-E-2G |
|
RJ-45 ports |
8 x 10/100/1000 PoE+ |
|
Combo uplink ports |
2 x Gigabit copper/SFP combo |
|
PoE power budget |
67W |
|
Maximum power per PoE+ port |
30W |
|
Number of ports that support PoE |
8 |
|
PoE standards |
802.3at PoE+, 802.3af, Cisco pre-standard PoE |
|
Switching capacity |
20 Gbps |
|
Forwarding rate |
14.88 Mpps |
|
Fan modules |
Fanless |
|
Layer 3 routing |
RIP v2, policy-based routing, static routes |
|
Hardware stacking |
Not supported |
|
Power supply |
External, 100-240V 50-60 Hz |
Product Performance
Key Features
Every port can deliver up to 30W of PoE+, and all eight draw from the same 67W budget. The budget, not the port count, sets the limit: the rated draw of phones, cameras and access points has to be added up before they share one switch.
Each of the two uplink positions pairs an RJ-45 port with an SFP slot, and only one side is active at a time. A fiber run to the main cabinet takes a 1G SFP such as GLC-LH-SMD for 10 km on single-mode, while a short copper handoff uses the RJ-45 side.
The chassis has no fan, measures 268 x 185 x 43.94 mm and weighs 1.72 kg. Without fan noise, the switch can be installed in a shop, a classroom or an open-plan office rather than a wiring closet.
The switch runs from an external 100-240V supply, not an internal one. The install point therefore needs room and an outlet for the adapter, and with every PoE port loaded the worst-case draw reaches 87.89W at 110V.
IPv4 and IPv6 traffic routes at wire speed, with RIP v2 for dynamic routes, policy-based routing and a built-in DHCP server. The table holds 990 IPv4 routes across up to 128 IP interfaces, and traffic between local VLANs can route on the switch instead of the site router.
Persistent PoE keeps phones and cameras powered while the switch restarts after a firmware upgrade. Time-based PoE can switch port power off on a schedule, for example outside opening hours.
Application Scenarios
At a small office front desk, the switch powers IP phones and a ceiling access point from its PoE+ ports, and Voice VLAN keeps the phone traffic in its own segment.
A retail store mounts the fanless unit in a back-room cabinet to power IP cameras, and an SFP in one combo port carries the fiber link to the main network cabinet.
Clinics and offices with a visitor waiting room run the guest access point from one PoE+ port, while a Guest VLAN keeps visitor devices apart from staff traffic.
Product Comparison
|
Parameter |
C1300-8P-E-2G | |||
|---|---|---|---|---|
|
RJ-45 ports |
8 x Gigabit Ethernet PoE+ |
8 x Gigabit Ethernet |
8 x Gigabit Ethernet PoE+ |
8 x Gigabit Ethernet PoE+ |
|
Combo ports (RJ-45 + SFP) |
2 x Gigabit Ethernet combo |
2 x Gigabit Ethernet combo |
2 x Gigabit Ethernet combo |
2 x Gigabit Ethernet combo |
|
PoE power budget |
67W |
Not applicable |
120W |
67W |
|
Number of ports that support PoE |
8 |
Not applicable |
8 |
8 |
|
Switching capacity |
20 Gbps |
20 Gbps |
20 Gbps |
20 Gbps |
|
Fan modules |
Fanless |
Fanless |
Fanless |
Fanless |
|
Power |
External, 100-240V |
External, 100-240V |
Internal, 100-240V |
External, 100-240V |
|
IPv4 routing |
Up to 990 routes, RIP v2 |
Up to 990 routes, RIP v2 |
Up to 990 routes, RIP v2 |
Up to 32 static routes |
|
Hardware stacking |
Not supported |
Not supported |
Not supported |
Not published |
C1300-8P-E-2G and C1300-8T-E-2G share eight Gigabit ports, two combo uplinks and an external supply, and PoE separates them: C1300-8P-E-2G feeds 30W PoE+ to all eight ports from a 67W budget. C1300-8T-E-2G has no PoE output and fits sites where every device has its own power. When the planned PoE load passes 67W, for example three 30W access points, C1300-8FP-2G carries 120W on the same port layout and moves the supply inside the chassis. C1200-8P-E-2G matches the ports, the 67W budget and 20 Gbps but routes with up to 32 static routes only, which suits sites whose router handles inter-VLAN routing. None of the three Catalyst 1300 models stacks, so a site that needs a single-IP stack moves to a C1300 Family 1 model such as C1300-8MGP-2X.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Power dedicated to PoE |
67W shared by 8 PoE-capable ports |
|
PoE standards |
802.3at PoE+, 802.3af and Cisco pre-standard PoE |
|
Ports at the full 30W PoE+ level |
Two ports use 60W; a third would need 90W in total |
|
All eight ports powered at once |
Average draw must stay at 8.3W or less per port |
|
Endpoint count check |
Add the rated draw of every planned phone, camera and access point and keep the total at or under 67W |
|
Power consumption with PoE |
110V=87.89W; 220V=84.86W |
|
Heat dissipation |
299.91 BTU/hr |
Ordering Checklist
- Combo uplink optics: Add a supported 1G SFP such as GLC-SX-MMD (550 m multimode), GLC-LH-SMD (10 km single-mode) or GLC-TE (100 m copper) for each combo port that will use its SFP slot. No optics ship in the box.
- Rack bracket: Add RCKMNT-CMPCT-1K= if the switch goes into a 19-inch rack. Only 24-port and 48-port models ship with 19-inch brackets.
- Power cord option: Leave NO-POWER-CORD off the order unless power is sourced separately. The box then includes the power cord, or a power adapter on select 8-port models, and this switch has no internal supply.
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Console cable, 6 feet, RJ-45 connector |
|
CAB-CONSOLE-USB-C |
USB-C console cable |
|
CAB-CONSOLE-USB-C= |
USB-C console cable, spare |
|
RCKMNT-CMPCT-1K= |
19-in rack-mount bracket for C1000, C1200 and C1300 8-, 12- and 16-port models |
|
1000 Mbps SFP, multimode fiber, 550 m | |
|
1000 Mbps SFP, single-mode fiber, 10 km | |
|
1000 Mbps SFP, single-mode fiber, 40 km | |
|
1000 Mbps SFP, single-mode fiber, 70 km | |
|
GLC-BX-U |
1000 Mbps bidirectional SFP, single-mode fiber, 10 km |
|
GLC-BX-D |
1000 Mbps bidirectional SFP, single-mode fiber, 10 km |
|
1000 Mbps copper SFP, UTP Cat 5e, 100 m | |
|
MGBSX1 |
1000 Mbps SFP, multimode fiber, 500 m |
|
MGBLX1 |
1000 Mbps SFP, single-mode fiber, 10 km |
|
MGBLH1 |
1000 Mbps SFP, single-mode fiber, 40 km |
|
MGBT1 |
1000 Mbps copper SFP, UTP Cat 5e, 100 m |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1300-8P-E-2G | Product type | Managed Layer 3 Gigabit Ethernet PoE+ switch |
| Total ports | 10 x Gigabit Ethernet | RJ-45 ports | 8 x 10/100/1000 PoE+ |
| Combo ports (RJ-45 + SFP) | 2 x Gigabit Ethernet combo | Combo port operation | One copper Ethernet port and one SFP slot per combo port, one active at a time |
| Console port | Cisco standard RJ-45 console port and USB Type C port | USB port | USB Type C, for file and image management and console access |
| LEDs | System, Link/Act, PoE, Speed | Default PoE budget | 67W |
| Number of ports that support PoE | 8 | Maximum power per PoE+ port | 30W |
| PoE standards | 802.3at PoE+, 802.3af, Cisco pre-standard PoE | PoE features | Time-based PoE, persistent PoE |
| Switching capacity | 20 Gbps, wire speed and nonblocking | Forwarding rate | 14.88 Mpps (64-byte packets) |
| Packet buffer | 1.5 MB, dynamically shared across all ports | MAC addresses | 16,000 entries |
| IPv4 routes | 990 (dynamic plus static) | IP interfaces | 128 |
| ACL rules | 1,024 | IGMP groups | 2,000 |
| VLANs | 4,094 (4078 to 4094 reserved for internal use) | Jumbo frames | Up to 9,000 bytes |
| Spanning tree | MSTP 16 instances; PVST+ and Rapid PVST+ 126 instances | Link aggregation | LACP, up to 8 groups with up to 8 ports each |
| Port mirroring | Up to 8 source ports to 1 destination port | Layer 3 routing | IPv4 and IPv6 wire-speed routing, RIP v2, policy-based routing |
| DHCP | DHCP server, DHCP relay, UDP relay | Voice | Voice VLAN with Voice Services Discovery Protocol, Auto Smartports |
| VLAN features | Guest VLAN, private VLAN, RADIUS dynamic VLAN | Security | 802.1X, web authentication, DHCP snooping, IP Source Guard, Dynamic ARP Inspection, port security, storm control, IPv6 First Hop Security, RADIUS, TACACS+, SSH, SSL, BPDU Guard, Root Guard |
| QoS | 8 hardware queues, strict priority and WRR scheduling, 802.1p, DSCP and IP precedence classification, ingress policing, egress shaping | Hardware stacking | Not supported |
| Operating system | Customized Linux OS | Management | Cisco Business Dashboard, Cisco Business mobile app, web UI, SNMP v1/v2c/v3, CLI |
| Firmware upgrade | Dual images | CPU | ARM dual-core at 1.5 GHz |
| DRAM | 1 GB DDR4 | Flash | 1GB SLC |
| Default power supply | External, 100-240V 50-60 Hz | System power consumption | 110V=13.04W; 220V=13.33W |
| Power consumption with PoE | 110V=87.89W; 220V=84.86W | Idle power | 110V=7.76W; 220V=7.46W |
| Heat dissipation | 299.91 BTU/hr | Fan modules | Fanless |
| MTBF at 25°C | 2,865,360 hours | Cabling | UTP Cat 5e or better for 1000BASE-T |
| Dimensions (H x W x D) | 268 x 185 x 43.94 mm (10.55 x 7.28 x 1.73 in) | Weight | 1.72 kg (3.79 lb) |
| Mounting | Rack-mountable; 19-in bracket not included | Operating temperature | -5°C to 50°C (23°F to 122°F); cold start minimum 32°F (0°C) |
| Storage temperature | -25°C to 70°C (-13°F to 158°F) | Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing | Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3ad, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w, 802.1s, 802.1X, 802.3af, 802.3at, 802.1AB, 802.3az | Package contents | Switch, power cord or power adapter (select 8-port models) unless NO-POWER-CORD is selected, pointer card |
