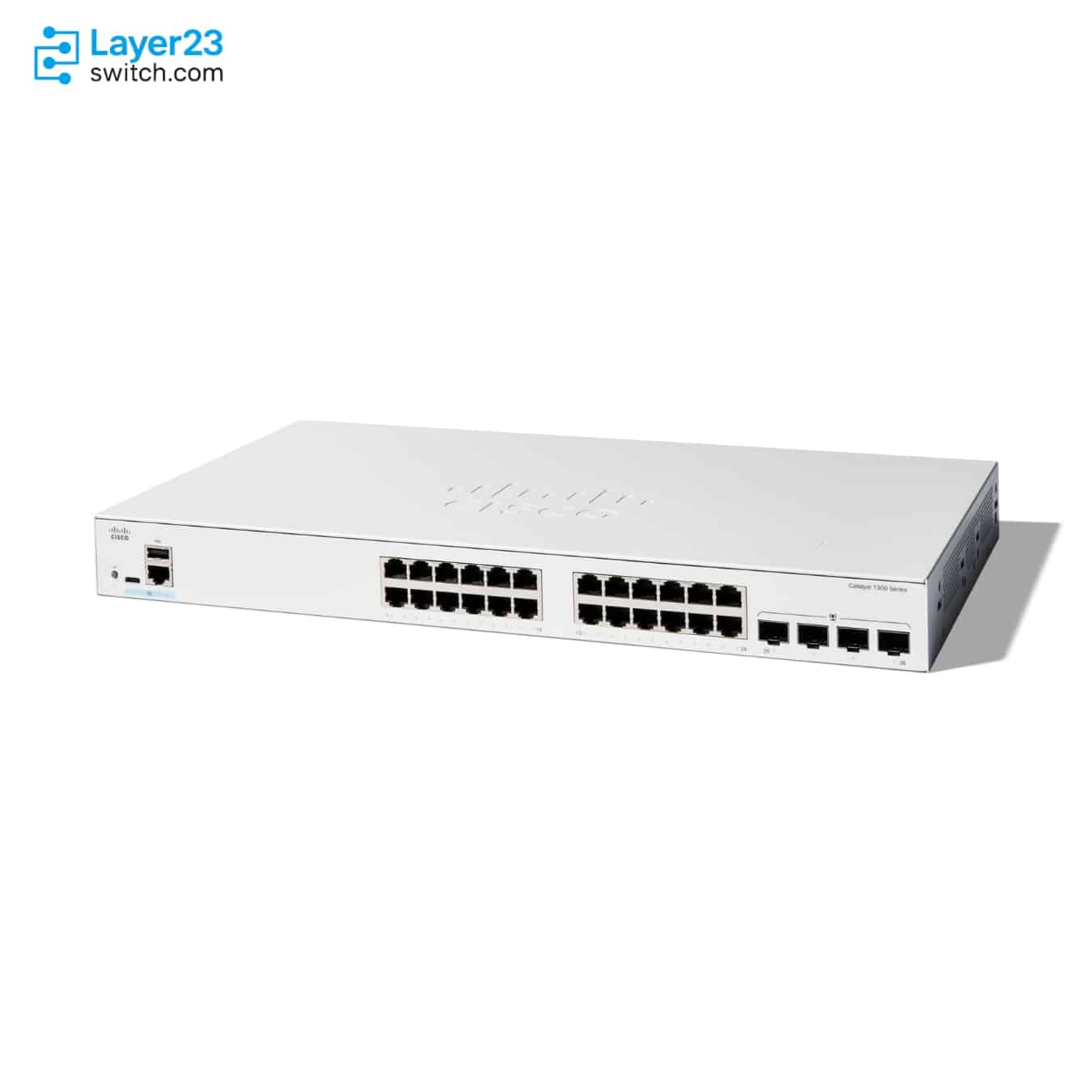

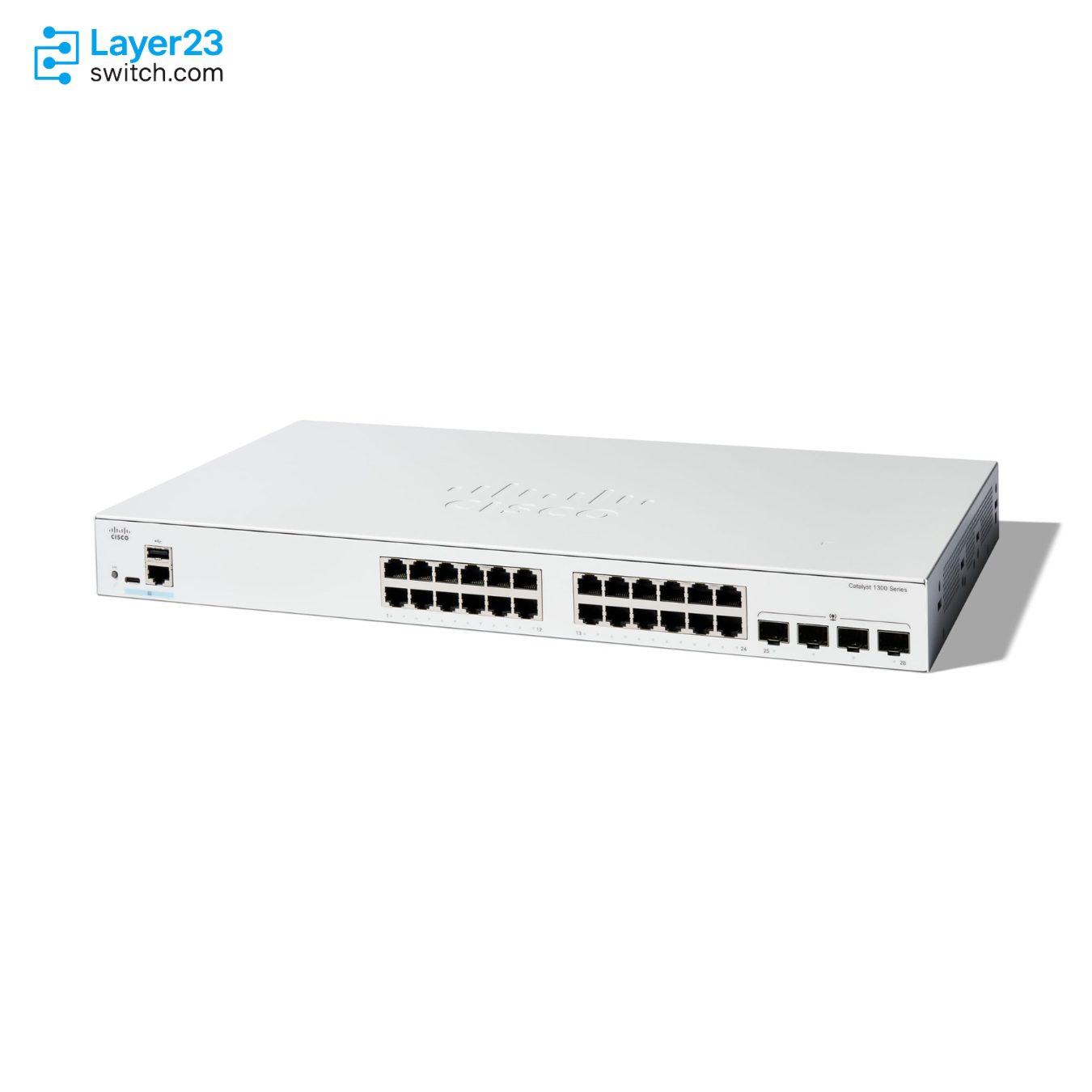

C1300-24T-4G Description
The C1300-24T-4G is a Cisco Catalyst 1300 Series fanless Layer 3 access switch for branch cabinets and office floors where every wired device has its own power source. The switch has 24 Gigabit RJ-45 data ports with no PoE output, four dedicated Gigabit SFP uplinks and 56 Gbps of nonblocking switching capacity. Routing covers RIP v2 and policy-based routing with up to 990 IPv4 routes, and the model is not on any Catalyst 1300 hardware stacking list.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1300-24T-4G |
|
RJ-45 ports |
24 x 10/100/1000 |
|
Uplink ports |
4 x Gigabit SFP |
|
Total ports |
28 x Gigabit Ethernet |
|
PoE |
No PoE output; data-only ports |
|
Switching capacity |
56 Gbps |
|
Forwarding rate |
41.67 Mpps |
|
Fan modules |
Fanless |
|
Layer 3 routing |
RIP v2, policy-based routing, static routes |
|
IPv4 routes |
990 (dynamic plus static) |
|
Hardware stacking |
Not supported |
|
Power supply |
Internal, 100-240V 50-60 Hz |
|
Mounting |
19-in brackets included |
Product Performance
Key Features
The four SFP slots are separate ports, not copper/SFP combo pairs, so fiber uplinks do not take a desk port out of service. Two slots can face the site core while the other two reach a second building or a neighboring cabinet, with GLC-LH-SMD covering 10 km of single-mode fiber.
The chassis has no fan, measures 240 mm deep in one rack unit, and ships with 19-inch brackets in the box. Worst-case draw is 14.6W at 110V, which adds only 50.5 BTU/hr of heat to a closed cabinet.
Up to 128 IP interfaces and 990 IPv4 routes let staff, voice and guest VLANs route on the switch itself. RIP v2 exchanges routes with the site router, and policy-based routing can send selected traffic to a different next hop. OSPF is not part of the feature set.
Application Scenarios
At a branch office, the switch sits in the network cabinet and connects desktops, printers and a local server, with fiber uplinks running to the building core over its SFP slots.
Because the switch has no fan, a design or accounting team can keep it on an open office floor, where it links two dozen workstations and routes their traffic between department VLANs.
A small hotel uses Guest VLAN and private VLAN on the switch to keep in-room wired guest connections apart from front-desk and back-office systems, while 802.1X controls which staff devices join the business network.
Product Comparison
|
Parameter |
C1300-24T-4G | |||
|---|---|---|---|---|
|
RJ-45 ports |
24 x 10/100/1000 |
24 x 10/100/1000 PoE+ |
24 x 10/100/1000 |
24 x 10/100/1000 |
|
PoE power budget |
Not applicable |
195W |
Not applicable |
Not applicable |
|
Uplink ports |
4 x Gigabit SFP |
4 x Gigabit SFP |
4 x 10G SFP+ |
4 x Gigabit SFP |
|
Switching capacity |
56 Gbps |
56 Gbps |
128 Gbps |
56 Gbps |
|
Fan modules |
Fanless |
Fanless |
Fanless |
Fanless |
|
Layer 3 routing |
RIP v2, policy-based routing |
RIP v2, policy-based routing |
RIP v2, policy-based routing |
Up to 32 static routes |
|
Hardware stacking |
Not supported |
Not supported |
C1300 Family 1, up to 8 units |
Not published |
PoE separates C1300-24T-4G from C1300-24P-4G: both have 24 Gigabit ports, four 1G SFP uplinks and 56 Gbps, but only C1300-24P-4G powers phones, cameras or access points, with up to 30W of PoE+ per port from a 195W budget. Where the uplinks must run at 10G or several switches must operate as one, C1300-24T-4X adds four 10G SFP+ slots, 128 Gbps and C1300 Family 1 stacking of up to eight units. C1200-24T-4G keeps this port layout and 56 Gbps but routes with up to 32 static routes only, which suits sites whose router already handles all inter-VLAN traffic.
Ordering Checklist
- Uplink optics: Add one supported 1G SFP per uplink in use, such as GLC-SX-MMD for 550 m multimode, GLC-LH-SMD for 10 km single-mode or GLC-TE for copper. No optics ship in the box.
- Power cord option: Leave NO-POWER-CORD off the order unless cords are sourced locally, because selecting it removes the power cord from the package.
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Console cable, 6 feet, RJ-45 connector |
|
CAB-CONSOLE-USB-C |
USB-C console cable |
|
CAB-CONSOLE-USB-C= |
USB-C console cable, spare |
|
RCKMNT-1RU-1K= |
1 RU rack-mount kit for C1000, C1200 and C1300 24- and 48-port models |
|
1000 Mbps SFP, multimode fiber, 550 m | |
|
1000 Mbps SFP, single-mode fiber, 10 km | |
|
1000 Mbps SFP, single-mode fiber, 40 km | |
|
1000 Mbps SFP, single-mode fiber, 70 km | |
|
GLC-BX-U |
1000 Mbps bidirectional SFP, single-mode fiber, 10 km |
|
GLC-BX-D |
1000 Mbps bidirectional SFP, single-mode fiber, 10 km |
|
1000 Mbps copper SFP, UTP Cat 5e, 100 m | |
|
MGBSX1 |
1000 Mbps SFP, multimode fiber, 500 m |
|
MGBLX1 |
1000 Mbps SFP, single-mode fiber, 10 km |
|
MGBLH1 |
1000 Mbps SFP, single-mode fiber, 40 km |
|
MGBT1 |
1000 Mbps copper SFP, UTP Cat 5e, 100 m |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1300-24T-4G | Product type | Managed Layer 3 Gigabit Ethernet switch |
| Total ports | 28 x Gigabit Ethernet | RJ-45 ports | 24 x 10/100/1000 |
| Uplink ports | 4 x Gigabit SFP, dedicated (not combo) | PoE | No PoE output; data-only ports |
| Console port | Cisco standard RJ-45 console port and USB Type C port | USB port | USB Type C, for file and image management and console access |
| Switching capacity | 56 Gbps, wire speed and nonblocking | Forwarding rate | 41.67 Mpps (64-byte packets) |
| Packet buffer | 1.5 MB, dynamically shared across all ports | MAC addresses | 16,000 entries |
| IPv4 routes | 990 (dynamic plus static) | IP interfaces | 128 |
| ACL rules | 1,024 | IGMP groups | 2,000 |
| VLANs | 4,094 (4078 to 4094 reserved for internal use) | Jumbo frames | Up to 9,000 bytes |
| Spanning tree | MSTP 16 instances; PVST+ and Rapid PVST+ 126 instances | Link aggregation | LACP, up to 8 groups with up to 8 ports each |
| Port mirroring | Up to 8 source ports to 1 destination port | Layer 3 routing | IPv4 and IPv6 wire-speed routing, RIP v2, policy-based routing |
| DHCP | DHCP server, DHCP relay, UDP relay | Voice | Voice VLAN with Voice Services Discovery Protocol, Auto Smartports |
| VLAN features | Guest VLAN, private VLAN, unauthenticated VLAN, RADIUS dynamic VLAN | Security | 802.1X, web authentication, DHCP snooping, IP Source Guard, Dynamic ARP Inspection, port security, storm control, IPv6 First Hop Security, RADIUS, TACACS+, SSH, SSL, BPDU Guard, Root Guard |
| QoS | 8 hardware queues, strict priority and WRR scheduling, 802.1p, DSCP and IP precedence classification, ingress policing, egress shaping | Hardware stacking | Not supported |
| Energy efficiency | EEE 802.3az on all copper Gigabit Ethernet ports, energy detect, cable length detection, time-based port operation | Discovery | LLDP-MED, CDP, Bonjour |
| Operating system | Customized Linux OS | Management | Cisco Business Dashboard, Cisco Business mobile app, Cisco Network Plug and Play, web UI, SNMP v1/v2c/v3, CLI |
| Firmware upgrade | Dual images | CPU | ARM dual-core at 1.5 GHz |
| DRAM | 1 GB DDR4 | Flash | 1GB SLC |
| Default power supply | Internal, universal, 100-240V 50-60 Hz | System power consumption | 110V=14.6W; 220V=14.8W |
| Idle power | 110V=4.9W; 220V=5.2W | Heat dissipation | 50.5 BTU/hr |
| Fan modules | Fanless | MTBF at 25°C | 664,987 hours |
| Cabling | UTP Cat 5e or better for 1000BASE-T | Mounting | Rack-mountable; 19-in brackets included |
| Dimensions (H x W x D) | 444.3 x 240 x 43.94 mm (17.49 x 9.45 x 1.73 in) | Weight | 2.63 kg (5.80 lb) |
| Operating temperature | -5°C to 50°C (23°F to 122°F); cold start minimum 32°F (0°C) | Storage temperature | -25°C to 70°C (-13°F to 158°F) |
| Operating humidity | 10% to 90%, relative, noncondensing | Storage humidity | 10% to 90%, relative, noncondensing |
| Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A | Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3ad, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w, 802.1s, 802.1X, 802.1AB, 802.3az |
| Package contents | Switch, power cord unless NO-POWER-CORD is selected, 19-in mounting brackets, pointer card |
