C1300-16P-4X – 16x1G PoE+ Ports – 4x10G SFP+ Uplinks – 120W PoE Budget
Shop Expert-Recommended Accessories for the C1300-16P-4X
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $853.95.$52.00Current price is: $52.00. -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $2,439.88.$150.00Current price is: $150.00. -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $633.46.$59.00Current price is: $59.00. -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $1,260.58.$95.80Current price is: $95.80.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
C1300-16P-4X Description

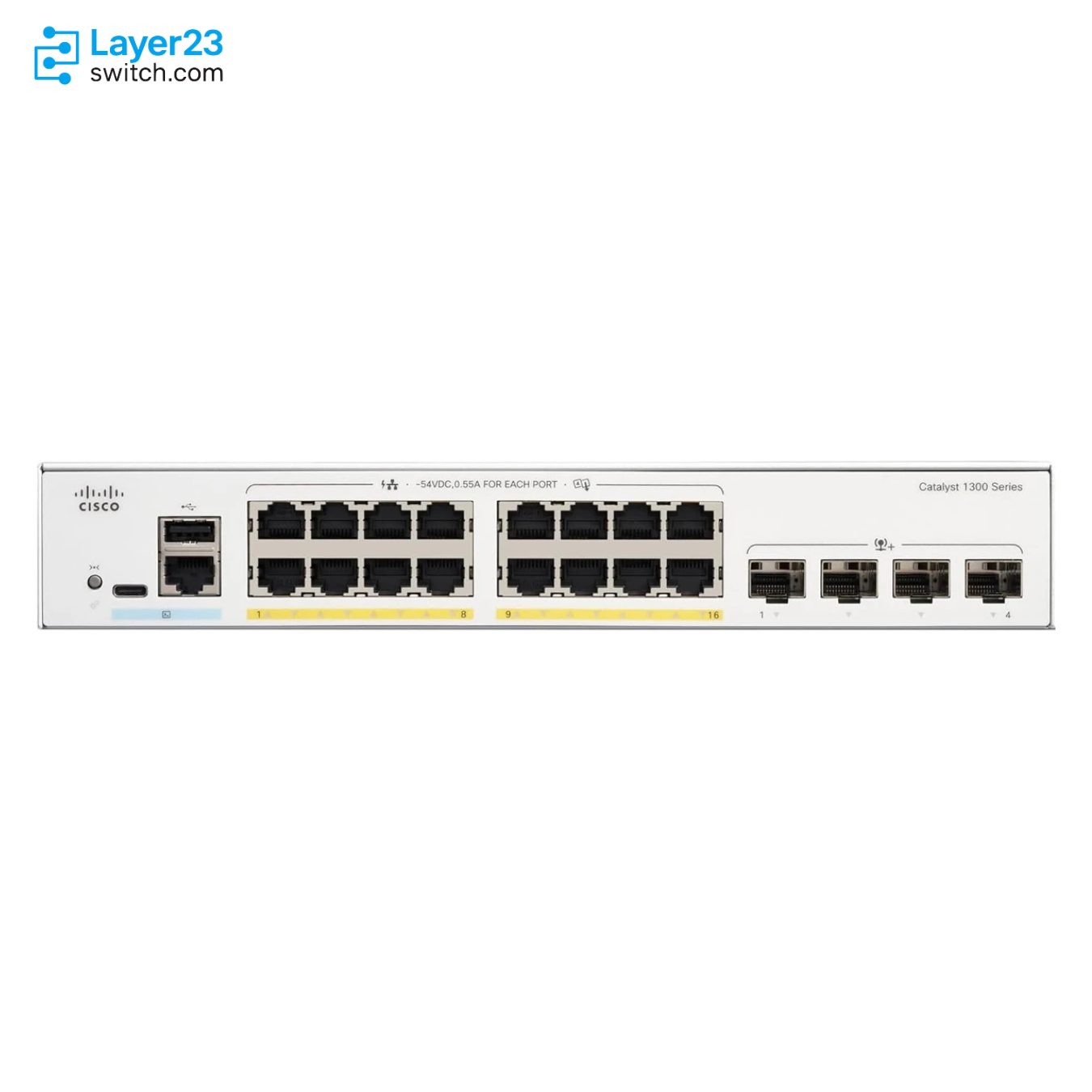

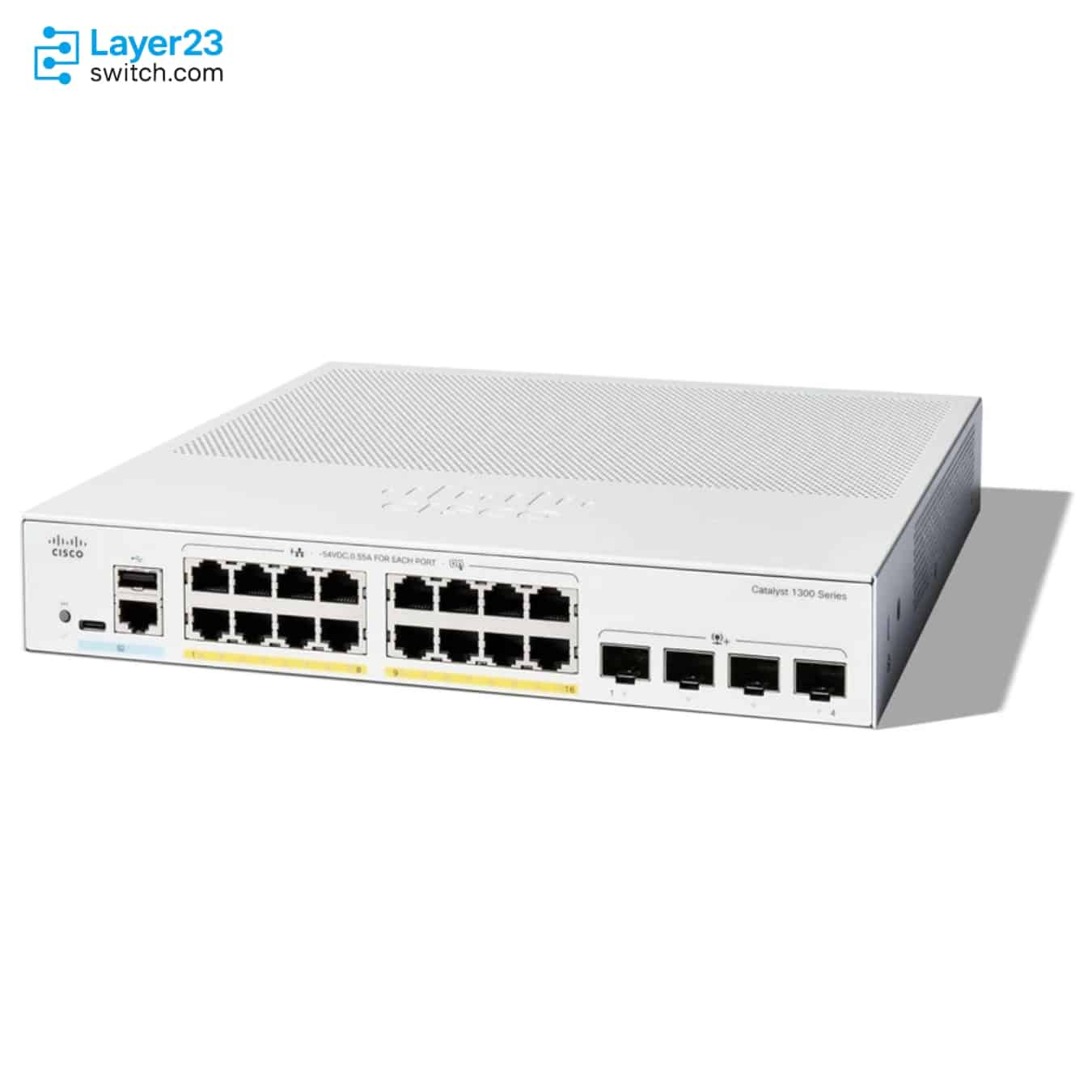

The C1300-16P-4X is a Cisco Catalyst 1300 Series managed Layer 3 PoE+ switch for small offices and branch cabinets that need 10G uplinks from a 16-port access switch. Sixteen Gigabit PoE+ ports draw on a 120W PoE budget, while four 10G SFP+ uplinks and 112 Gbps of nonblocking switching sit in a fanless chassis. The 120W pool runs four ports at the full 30W at once, and routing covers static routes, RIP v2 and policy-based routing but not OSPF.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1300-16P-4X |
|
RJ-45 ports |
16 x 10/100/1000 PoE+ |
|
Uplink ports |
4 x 10G SFP+ |
|
PoE power budget |
120W |
|
Number of ports that support PoE |
16 |
|
Maximum power per PoE+ port |
30W |
|
PoE standards |
802.3at PoE+, 802.3af, Cisco pre-standard PoE |
|
Switching capacity |
112 Gbps |
|
Forwarding rate |
83.32 Mpps |
|
Fan modules |
Fanless |
|
Hardware stacking |
C1300 Family 1, up to 8 units |
|
Layer 3 routing |
Static routes, RIP v2, policy-based routing |
|
Power supply |
Internal, 100-240V 50-60 Hz |
Product Performance
Key Features
Each port is rated for 30W of PoE+, but all 16 share one 120W budget. Four access points at the full 30W use the whole pool, so the planned mix of devices, not the port count, sets the limit.
The uplinks take 10G SFP+ optics such as SFP-10G-SR for 26 to 400 m on multimode or SFP-10G-LR for 10 km on single-mode. For a rack-to-rack run, a copper coax or active optical cable from 1 m to 10 m replaces a pair of optics.
Up to eight C1300 Family 1 switches, including the 24- and 48-port 10G-uplink models, operate as one system with a single IP address and hardware failover. Stack links run over the SFP+ ports; a port set up for stacking carries no user traffic, so each one used for the stack is one fewer 10G uplink.
The switch has no fan and measures 268 x 297 x 43.94 mm at 2.49 kg. Without fan noise it can be installed outside the wiring closet, in a classroom, a shop or an open-plan office.
Worst-case draw rises from 24.7W without PoE to 157.6W at 110V with the PoE budget in use. The switch then gives off 537.4 BTU/hr, a figure for small cabinets with limited ventilation and for sizing the UPS behind it.
IPv4 and IPv6 traffic routes at wire speed with static routes, RIP v2 and policy-based routing, and the switch can run a DHCP server for local subnets. Traffic between office VLANs can therefore route on the switch instead of the site router.
Application Scenarios
In a small branch office, the switch sits in the network cabinet, powers IP phones and an access point from its PoE+ ports and links to the site router over a 10G SFP+ uplink.
Schools and offices can mount the fanless unit in the room it serves, where it feeds a ceiling access point and desk phones without adding fan noise to the space.
A retail store powers its IP cameras from the PoE+ ports in a back-room cabinet, and Voice VLAN keeps the till-side phones in their own segment on the same switch.
Product Comparison
|
Parameter |
C1300-16P-4X | |||
|---|---|---|---|---|
|
RJ-45 ports |
16 x Gigabit Ethernet PoE+ |
16 x Gigabit Ethernet PoE+ |
16 x Gigabit Ethernet PoE+ |
24 x Gigabit Ethernet PoE+ |
|
PoE power budget |
120W |
120W |
240W |
195W |
|
Uplink ports |
4 x 10G SFP+ |
2 x 1G SFP |
2 x 1G SFP |
4 x 10G SFP+ |
|
Switching capacity |
112 Gbps |
36 Gbps |
36 Gbps |
128 Gbps |
|
Fan modules |
Fanless |
Fanless |
Fanless |
Fanless |
|
Layer 3 routing |
Static routes, RIP v2, PBR |
Static routes, RIP v2, PBR |
Static routes, RIP v2, PBR |
Static routes, RIP v2, PBR |
|
Hardware stacking |
C1300 Family 1, up to 8 units |
Not supported |
Not supported |
C1300 Family 1, up to 8 units |
C1300-16P-4X and C1300-16P-2G share 16 Gigabit PoE+ ports and 120W, but C1300-16P-4X adds four 10G SFP+ uplinks, 112 Gbps of switching and Family 1 stacking, against two 1G SFP uplinks, 36 Gbps and no stacking on C1300-16P-2G. The 1G model fits a standalone switch whose site handoff is 1G fiber. When the PoE load passes 120W, for example five 30W access points, C1300-16FP-2G doubles the budget to 240W but keeps 1G uplinks and cannot stack. Cabinets that need more than 16 powered ports with the same 10G uplinks move to C1300-24P-4X, which carries 195W and joins the same Family 1 stack. OSPF routing requires a Catalyst 1300X model such as C1300X-24P-4X.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Power dedicated to PoE |
120W shared by 16 PoE-capable ports |
|
PoE standards |
802.3at PoE+, 802.3af and Cisco pre-standard PoE |
|
Ports at the full 30W PoE+ level |
Four ports use the full 120W; a fifth would need 150W in total |
|
All 16 ports powered at once |
Average draw must stay at 7.5W or less per port |
|
Endpoint count check |
Add the rated draw of every planned phone, camera and access point and keep the total at or under 120W |
|
Power supply |
Internal universal supply, 100-240V 50-60 Hz |
|
PoE scheduling |
Time-based PoE; persistent PoE keeps endpoints powered while the switch reboots |
Ordering Checklist
- Stack cabling: Add an SFP+ direct-attach cable such as SFP-H10GB-CU1M or SFP-H10GB-CU3M for each stack link when the switch joins a Family 1 stack. Stacking runs only over 10G links, and no cables ship in the box.
- Uplink optics: Add a 10G SFP+ module such as SFP-10G-SR for multimode or SFP-10G-LR for 10 km single-mode on each uplink that will carry traffic. The switch ships without optics.
- Rack bracket: Add RCKMNT-CMPCT-1K= if the switch goes into a 19-inch rack. Only 24-port and 48-port models ship with 19-inch brackets.
- Power cord option: Leave NO-POWER-CORD off the order unless cords are sourced locally. With that option selected, the switch arrives without a cord for its internal supply.
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Console cable, 6 feet, RJ-45 connector |
|
CAB-CONSOLE-USB-C |
USB-C console cable |
|
CAB-CONSOLE-USB-C= |
USB-C console cable, spare |
|
RCKMNT-CMPCT-1K= |
19-in rack-mount bracket for C1000, C1200 and C1300 8-, 12- and 16-port models |
|
10G SFP+, multimode fiber, 26-400 m | |
|
10G SFP+, multimode fiber, 26-400 m | |
|
10G SFP+, single-mode fiber, 10 km | |
|
10G SFP+, single-mode fiber, 10 km | |
|
10G SFP+, single-mode fiber, 40 km | |
|
10G SFP+, single-mode fiber, 40 km | |
|
SFP-10G-BXD-I |
10G bidirectional SFP+, single-mode fiber, 10 km |
|
SFP-10G-BXU-I |
10G bidirectional SFP+, single-mode fiber, 10 km |
|
SFP-10G-T-X |
10GBASE-T SFP+, UTP Cat6A/Cat7 or better, 30 m |
|
10G SFP+ copper coax cable, 1 m | |
|
10G SFP+ copper coax cable, 3 m | |
|
10G SFP+ copper coax cable, 5 m | |
|
10G SFP+ active optical cable, 1 m | |
|
10G SFP+ active optical cable, 3 m | |
|
10G SFP+ active optical cable, 10 m |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1300-16P-4X | Product type | Managed Layer 3 Gigabit Ethernet PoE+ switch with 10G uplinks |
| Total ports | 16 x Gigabit Ethernet + 4 x 10G | RJ-45 ports | 16 x 10/100/1000 PoE+ |
| Uplink ports | 4 x 10G SFP+ | Console port | Cisco standard RJ-45 console port and USB Type C port |
| USB port | USB Type C, for file and image management and console access | LEDs | System, Link/Act, PoE, Speed |
| Default PoE budget | 120W | Number of ports that support PoE | 16 |
| Maximum power per PoE+ port | 30W | PoE standards | 802.3at PoE+, 802.3af, Cisco pre-standard PoE |
| PoE features | Time-based PoE, persistent PoE | Switching capacity | 112 Gbps, wire speed and nonblocking |
| Forwarding rate | 83.32 Mpps | Packet buffer | 1.5 MB, dynamically shared across all ports |
| VLANs | 4,094 (4078 to 4094 reserved for internal use) | Jumbo frames | Up to 9,000 bytes |
| Spanning tree | MSTP 16 instances; PVST+ and Rapid PVST+ 126 instances | Link aggregation | LACP, up to 8 groups with up to 8 ports each |
| Port mirroring | Up to 8 source ports to 1 destination port | Layer 3 routing | IPv4 and IPv6 wire-speed routing, static routes, RIP v2, policy-based routing |
| DHCP | DHCP server, DHCP relay, UDP relay | Voice | Voice VLAN with Voice Services Discovery Protocol, Auto Smartports |
| VLAN features | Guest VLAN, private VLAN, RADIUS dynamic VLAN | Security | 802.1X, web authentication, DHCP snooping, IP Source Guard, Dynamic ARP Inspection, port security, storm control, IPv6 First Hop Security, RADIUS, TACACS+, ACLs, SSH, SSL, BPDU Guard, Root Guard |
| QoS | 8 hardware queues, strict priority and WRR scheduling, 802.1p, DSCP and IP precedence classification, ingress policing, egress shaping | Hardware stacking | C1300 Family 1, up to 8 units managed as one system with a single IP address |
| Stacking interconnect | SFP+ ports configured as stack ports, 10G links | Stack features | Cross-stack LAG, QoS, VLAN and port mirroring; ring or chain topology; hot swap; active/standby |
| Operating system | Customized Linux OS | Management | Cisco Business Dashboard, Cisco Business mobile app, Network Plug and Play, web UI, SNMP v1/v2c/v3, CLI |
| Firmware upgrade | Dual images | CPU | ARM dual-core at 1.5 GHz |
| DRAM | 1 GB DDR4 | Flash | 1GB SLC |
| Default power supply | Internal, universal, 100-240V 50-60 Hz | System power consumption | 110V=24.7W; 220V=26.8W |
| Power consumption with PoE | 110V=157.6W; 220V=156.3W | Idle power | 110V=8.7W; 220V=10.3W |
| Heat dissipation | 537.4 BTU/hr | Fan modules | Fanless |
| MTBF at 25°C | 426,778 hours | Cabling | UTP Cat 5e or better for 1000BASE-T |
| Dimensions (H x W x D) | 268 x 297 x 43.94 mm (10.55 x 11.69 x 1.73 in) | Weight | 2.49 kg (5.49 lb) |
| Mounting | Rack-mountable; 19-in bracket not included | Operating temperature | -5°C to 50°C (23°F to 122°F); cold start minimum 32°F (0°C) |
| Storage temperature | -25°C to 70°C (-13°F to 158°F) | Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing | Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3ad, 802.3z, 802.3ae, 802.3an, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w, 802.1s, 802.1X, 802.3af, 802.3at, 802.1AB, 802.3az | Package contents | Switch, power cord unless NO-POWER-CORD is selected, pointer card |
