C1300-16P-2G Description

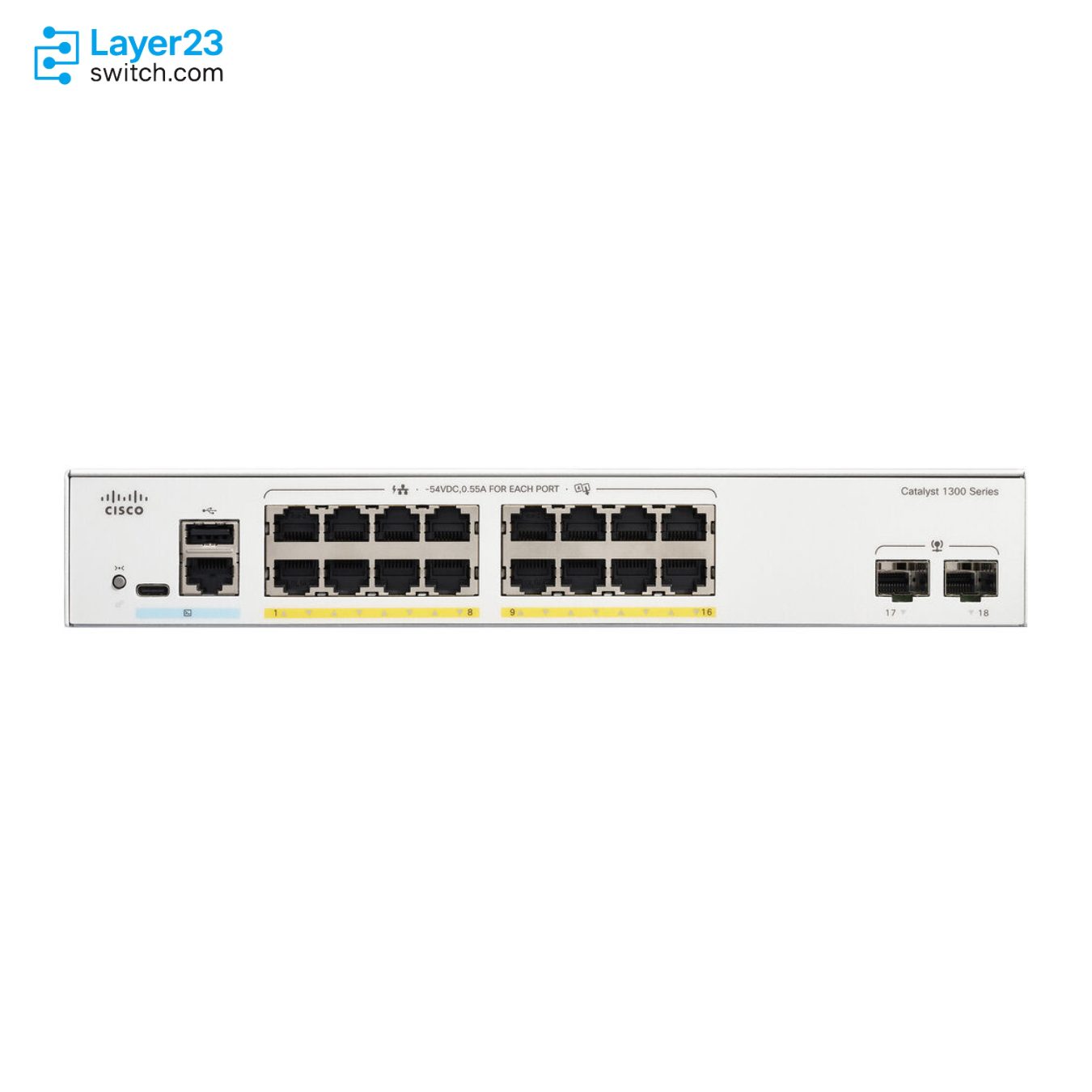

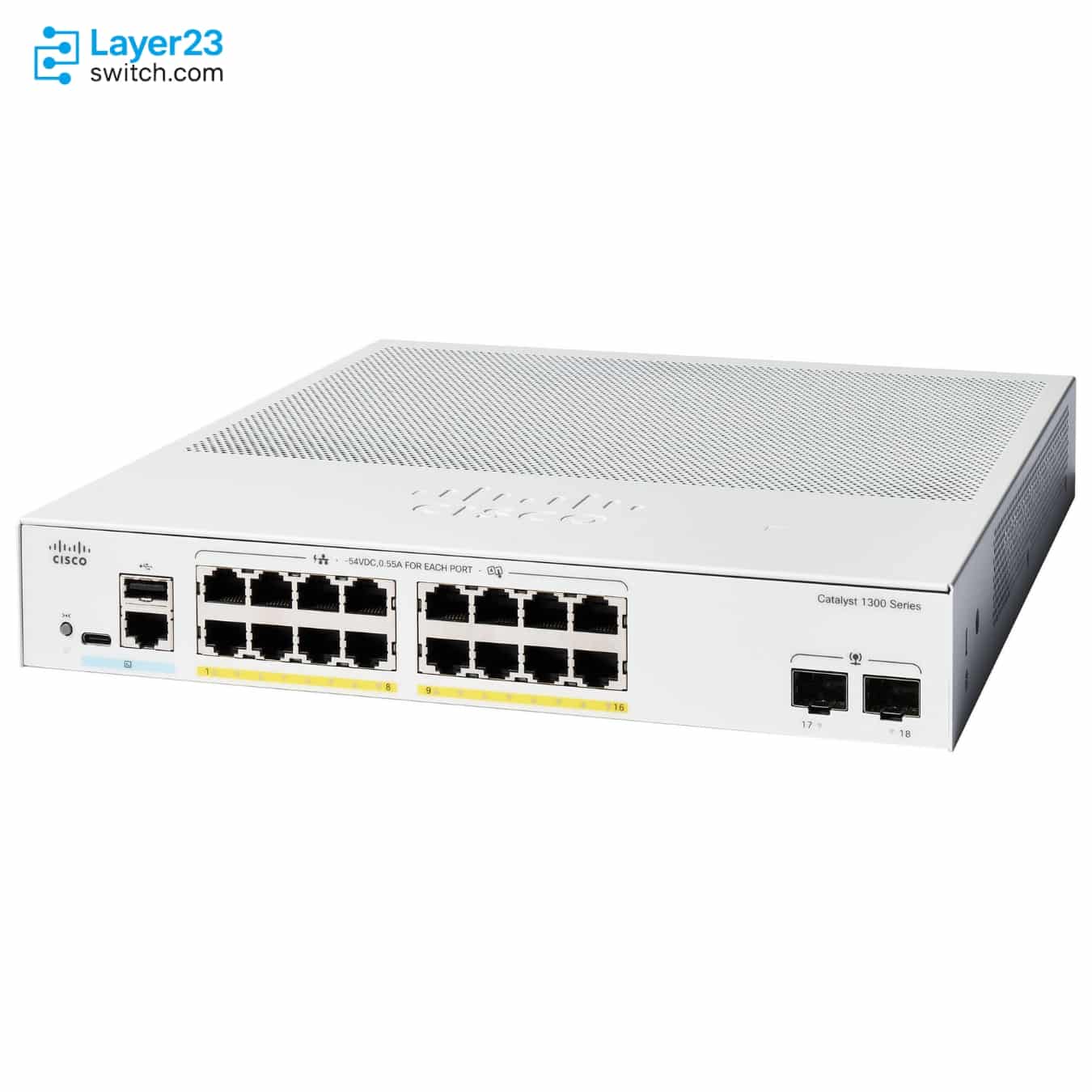

The C1300-16P-2G is a Cisco Catalyst 1300 Series fanless Layer 3 PoE+ switch for small offices and branch sites that power phones, cameras and access points. Sixteen Gigabit PoE+ ports share a 120W PoE budget, two Gigabit SFP ports carry the uplinks, and the switch moves traffic at 36 Gbps of switching capacity with no fan. Routing covers RIP v2 and policy-based routing without OSPF, and the switch does not support hardware stacking.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1300-16P-2G |
|
RJ-45 ports |
16 x 10/100/1000 PoE+ |
|
Uplink ports |
2 x Gigabit SFP |
|
PoE power budget |
120W |
|
Maximum power per PoE+ port |
30W |
|
Number of ports that support PoE |
16 |
|
PoE standards |
802.3at PoE+, 802.3af, Cisco pre-standard PoE |
|
Switching capacity |
36 Gbps |
|
Forwarding rate |
26.78 Mpps |
|
Fan modules |
Fanless |
|
Layer 3 routing |
RIP v2, policy-based routing, static routes |
|
Hardware stacking |
Not supported |
|
Power supply |
Internal, 100-240V 50-60 Hz |
Product Performance
Key Features
Each of the 16 copper ports can deliver up to 30W of PoE+, and all of them draw on one 120W pool. Sixteen phones drawing 7W each total 112W and fit inside the pool, while every 30W access point takes a quarter of it.
The two uplinks are dedicated SFP slots rather than combo ports. All 16 copper ports stay free for endpoints. A single-mode run back to the main cabinet takes a GLC-LH-SMD for up to 10 km, and a GLC-SX-MMD covers 550 m on multimode.
With no fan, the switch makes no operating noise, and the body measures 268 x 297 x 43.94 mm at 2.38 kg. That lets it sit in a classroom, a shop or an open-plan office instead of a closed wiring room.
Power comes from an internal 100-240V supply, and the install point needs only an outlet and the power cord that ships in the box. No external adapter has to be mounted beside the switch.
IPv4 and IPv6 traffic routes at wire speed with RIP v2, policy-based routing and a built-in DHCP server. With room for 990 IPv4 routes across up to 128 IP interfaces, traffic between local VLANs can route on the switch instead of the site router.
Time-based PoE turns port power off on a schedule, for example after business hours. Persistent PoE keeps cameras and phones powered while the switch restarts after a firmware upgrade.
Application Scenarios
In a school, the switch sits in a classroom or library cabinet and powers ceiling access points and room phones over PoE+, with no fan noise in a space where people study.
A small warehouse or clinic gathers its IP cameras on the 16 PoE+ ports, and one SFP uplink carries the video over fiber to the recorder in the main network room.
An office with a front desk and a visitor lounge runs its IP phones on a Voice VLAN and gives the lounge access point its own Guest VLAN, both from the same switch.
Product Comparison
|
Parameter |
C1300-16P-2G | |||
|---|---|---|---|---|
|
RJ-45 ports |
16 x Gigabit Ethernet PoE+ |
16 x Gigabit Ethernet |
16 x Gigabit Ethernet PoE+ |
16 x Gigabit Ethernet PoE+ |
|
Uplink ports |
2 x Gigabit SFP |
2 x Gigabit SFP |
2 x Gigabit SFP |
2 x Gigabit SFP |
|
PoE power budget |
120W |
Not applicable |
240W |
120W |
|
Number of ports that support PoE |
16 |
Not applicable |
16 |
16 |
|
Switching capacity |
36 Gbps |
36 Gbps |
36 Gbps |
36 Gbps |
|
Fan modules |
Fanless |
Fanless |
Fanless |
Fanless |
|
IPv4 routing |
Up to 990 routes, RIP v2 |
Up to 990 routes, RIP v2 |
Up to 990 routes, RIP v2 |
Up to 32 static routes |
|
Hardware stacking |
Not supported |
Not supported |
Not supported |
Not published |
C1300-16P-2G and C1300-16T-2G share 16 Gigabit copper ports, two 1G SFP uplinks and 36 Gbps, and PoE separates them: C1300-16P-2G powers every port with 30W PoE+ from a 120W budget, while C1300-16T-2G has no PoE output for sites whose devices bring their own power. When the planned PoE load passes 120W, for example eight 30W access points at 240W, C1300-16FP-2G doubles the budget on the same port layout. C1200-16P-2G matches the ports and the 120W budget but routes with up to 32 static routes only, which suits sites whose router handles inter-VLAN routing. None of the three Catalyst 1300 models stacks; designs needing 10G uplinks or a single-IP stack moves to C1300-16P-4X, a C1300 Family 1 model with four 10G SFP+ ports and the same 120W budget.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Power dedicated to PoE |
120W shared by 16 PoE-capable ports |
|
PoE standards |
802.3at PoE+, 802.3af and Cisco pre-standard PoE |
|
Ports at the full 30W PoE+ level |
Four ports use the full 120W; a fifth would need 150W in total |
|
All 16 ports powered at once |
Average draw must stay at 7.5W or less per port |
|
Endpoint count check |
Add the rated draw of every planned phone, camera and access point and keep the total at or under 120W |
|
Power consumption with PoE |
110V=152.7W; 220V=151.8W |
|
Heat dissipation |
520.7 BTU/hr |
Ordering Checklist
- Uplink optics: Add a supported 1G SFP such as GLC-SX-MMD (550 m multimode), GLC-LH-SMD (10 km single-mode) or GLC-TE (100 m copper) for each SFP uplink in use. The box ships without optics.
- Rack bracket: Add RCKMNT-CMPCT-1K= when the switch goes into a 19-inch rack. Only 24-port and 48-port models ship with 19-inch brackets.
- Power cord option: Leave NO-POWER-CORD off the order unless a cord is sourced locally. With that option selected, the switch arrives with no power cord for its internal supply.
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Console cable, 6 feet, RJ-45 connector |
|
CAB-CONSOLE-USB-C |
USB-C console cable |
|
CAB-CONSOLE-USB-C= |
USB-C console cable, spare |
|
RCKMNT-CMPCT-1K= |
19-in rack-mount bracket for C1000, C1200 and C1300 8-, 12- and 16-port models |
|
1000 Mbps SFP, multimode fiber, 550 m | |
|
1000 Mbps SFP, single-mode fiber, 10 km | |
|
1000 Mbps SFP, single-mode fiber, 40 km | |
|
1000 Mbps SFP, single-mode fiber, 70 km | |
|
GLC-BX-U |
1000 Mbps bidirectional SFP, single-mode fiber, 10 km |
|
GLC-BX-D |
1000 Mbps bidirectional SFP, single-mode fiber, 10 km |
|
1000 Mbps copper SFP, UTP Cat 5e, 100 m | |
|
MGBSX1 |
1000 Mbps SFP, multimode fiber, 500 m |
|
MGBLX1 |
1000 Mbps SFP, single-mode fiber, 10 km |
|
MGBLH1 |
1000 Mbps SFP, single-mode fiber, 40 km |
|
MGBT1 |
1000 Mbps copper SFP, UTP Cat 5e, 100 m |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1300-16P-2G | Product type | Managed Layer 3 Gigabit Ethernet PoE+ switch |
| Total ports | 18 x Gigabit Ethernet | RJ-45 ports | 16 x 10/100/1000 PoE+ |
| Uplink ports | 2 x Gigabit SFP | Console port | Cisco standard RJ-45 console port and USB Type C port |
| USB port | USB Type C, for file and image management and console access | LEDs | System, Link/Act, PoE, Speed |
| Default PoE budget | 120W | Number of ports that support PoE | 16 |
| Maximum power per PoE+ port | 30W | PoE standards | 802.3at PoE+, 802.3af, Cisco pre-standard PoE |
| PoE features | Time-based PoE, persistent PoE | Switching capacity | 36 Gbps, wire speed and nonblocking |
| Forwarding rate | 26.78 Mpps (64-byte packets) | Packet buffer | 1.5 MB, dynamically shared across all ports |
| MAC addresses | 16,000 entries | IPv4 routes | 990 (dynamic plus static) |
| IP interfaces | 128 | ACL rules | 1,024 |
| IGMP groups | 2,000 | VLANs | 4,094 (4078 to 4094 reserved for internal use) |
| Jumbo frames | Up to 9,000 bytes | Spanning tree | MSTP 16 instances; PVST+ and Rapid PVST+ 126 instances |
| Link aggregation | LACP, up to 8 groups with up to 8 ports each | Port mirroring | Up to 8 source ports to 1 destination port |
| Layer 3 routing | IPv4 and IPv6 wire-speed routing, RIP v2, policy-based routing | DHCP | DHCP server, DHCP relay, UDP relay |
| Voice | Voice VLAN with Voice Services Discovery Protocol, Auto Smartports | VLAN features | Guest VLAN, private VLAN, RADIUS dynamic VLAN |
| Security | 802.1X, web authentication, DHCP snooping, IP Source Guard, Dynamic ARP Inspection, port security, storm control, IPv6 First Hop Security, RADIUS, TACACS+, SSH, SSL, BPDU Guard, Root Guard | QoS | 8 hardware queues, strict priority and WRR scheduling, 802.1p, DSCP and IP precedence classification, ingress policing, egress shaping |
| Hardware stacking | Not supported | Operating system | Customized Linux OS |
| Management | Cisco Business Dashboard, Cisco Business mobile app, web UI, SNMP v1/v2c/v3, CLI | Firmware upgrade | Dual images |
| CPU | ARM dual-core at 1.5 GHz | DRAM | 1 GB DDR4 |
| Flash | 1GB SLC | Default power supply | Internal universal, 100-240V 50-60 Hz |
| System power consumption | 110V=18.3W; 220V=20.5W | Power consumption with PoE | 110V=152.7W; 220V=151.8W |
| Idle power | 110V=8.4W; 220V=10.2W | Heat dissipation | 520.7 BTU/hr |
| Fan modules | Fanless | MTBF at 25°C | 412,959 hours |
| Cabling | UTP Cat 5e or better for 1000BASE-T | Dimensions (H x W x D) | 268 x 297 x 43.94 mm (10.55 x 11.69 x 1.73 in) |
| Weight | 2.38 kg (5.25 lb) | Mounting | Rack-mountable; 19-in bracket not included |
| Operating temperature | -5°C to 50°C (23°F to 122°F); cold start minimum 32°F (0°C) | Storage temperature | -25°C to 70°C (-13°F to 158°F) |
| Operating humidity | 10% to 90%, relative, noncondensing | Storage humidity | 10% to 90%, relative, noncondensing |
| Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A | Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3ad, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w, 802.1s, 802.1X, 802.3af, 802.3at, 802.1AB, 802.3az |
| Package contents | Switch, power cord unless NO-POWER-CORD is selected, pointer card |
