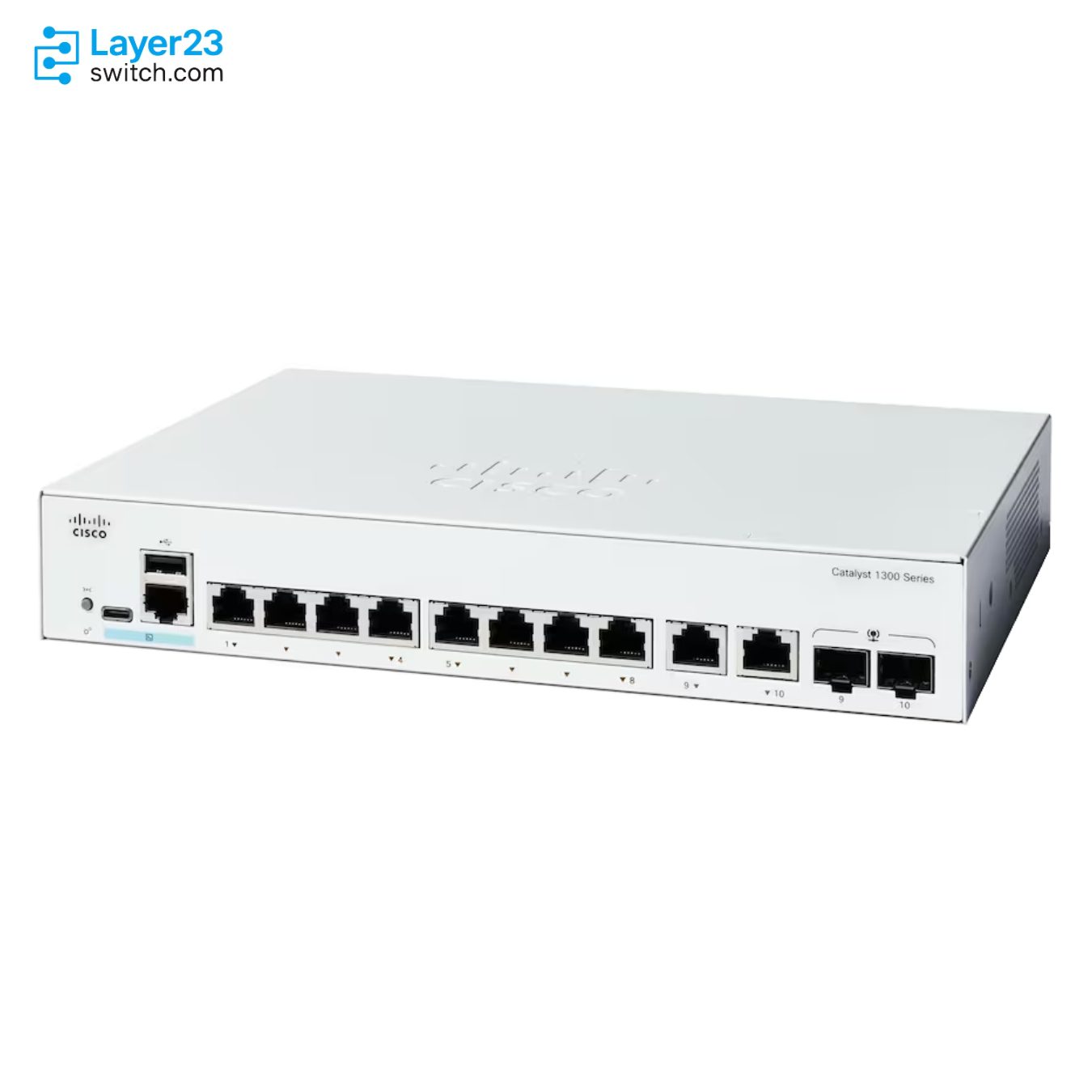

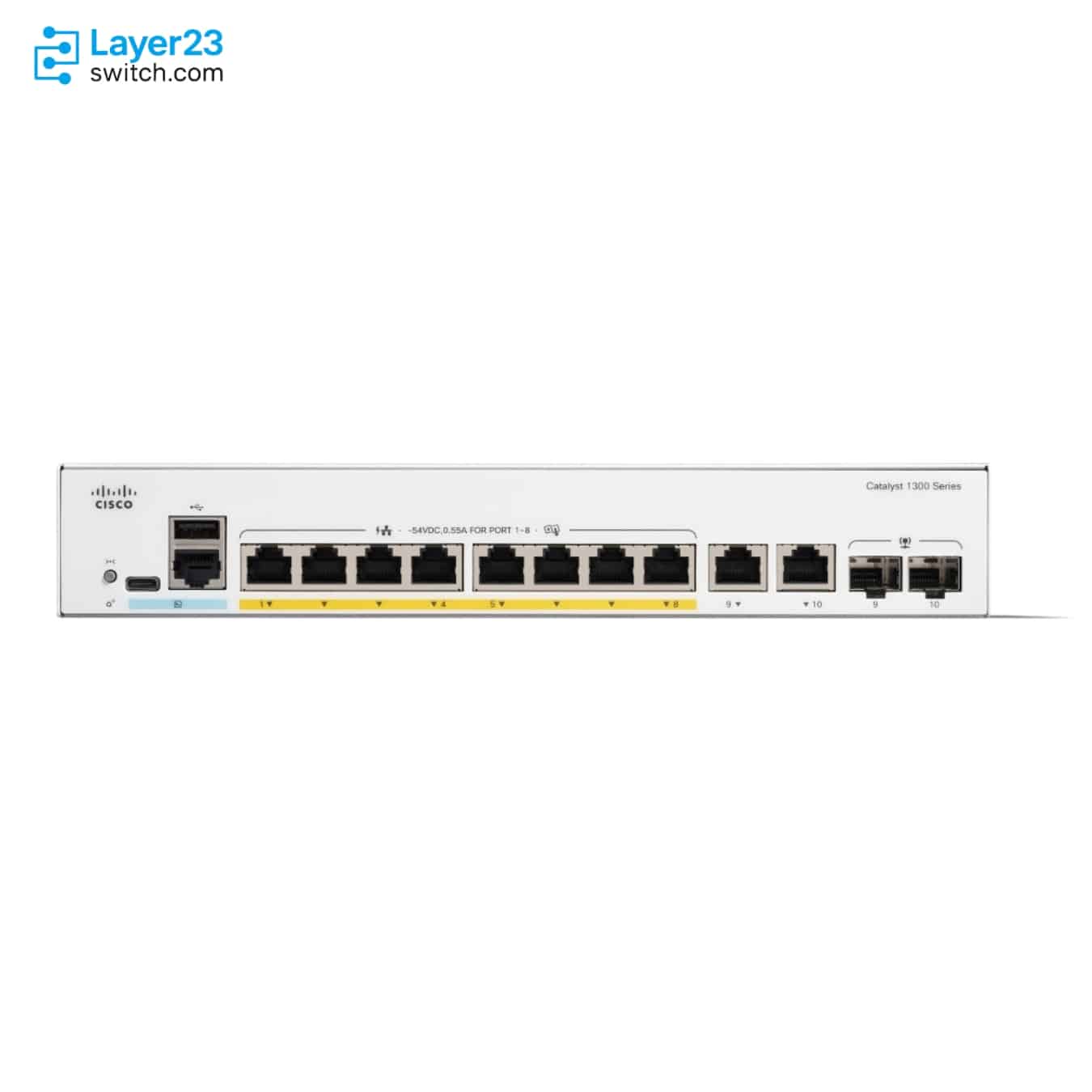

C1300-8FP-2G – 8x1G PoE+ Ports – 2x1G Combo Uplinks – 120W PoE Budget
6/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C1300-8FP-2G Description
C1300-8FP-2G is a Cisco Catalyst 1300 Series managed Gigabit Ethernet PoE+ switch for small access deployments that need eight powered copper ports, two Gigabit copper/SFP combo uplinks, and a Cisco-listed 120W PoE budget.
The practical difference inside the 8-port group is power and power-supply design. C1300-8P-E-2G keeps the same 8-port PoE+ and 2xGE combo layout but lowers the PoE pool to 67W with an external power supply, while C1300-8T-E-2G is the data-only option without a PoE budget.
For quote review, confirm the endpoint wattage total, decide whether each combo uplink will use copper or SFP, include the right regional AC cord, and add the compact rack-mount bracket if the 8-port chassis must sit in a 19-inch rack.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1300-8FP-2G |
|
Product family |
Cisco Catalyst 1300 Series |
|
Product type |
Managed Gigabit Ethernet PoE+ switch |
|
Downlink ports |
8 x 10/100/1000 RJ45 PoE+ ports |
|
Uplink interfaces |
2 x Gigabit copper/SFP combo ports |
|
Total system ports |
8 x Gigabit Ethernet plus 2 x Gigabit combo uplinks |
|
PoE budget |
120W power budget |
|
PoE standards |
802.3af PoE and 802.3at PoE+ |
|
Switching capacity |
20.0 Gbps |
|
Forwarding rate |
14.88 Mpps |
|
Packet buffer |
1.5 MB |
|
Power supply |
Internal universal AC |
|
Fan design |
Fanless |
Product Performance
Key Features
The SKU is the full-power 8-port PoE+ model in the Catalyst 1300 2G group, giving more aggregate endpoint power than the 67W C1300-8P-E-2G variant.
Two combo uplinks allow a copper handoff or an SFP fiber handoff, but the copper and SFP side of the same combo position are not counted as two active ports.
Cisco lists C1300-8FP-2G under the internal 100 to 240V AC models, unlike the 8T-E and 8P-E models that use external power supplies.
The fanless design and 268 x 297 x 43.94 mm chassis help fit small wiring rooms, retail back-office cabinets, or wall-adjacent equipment locations.
Catalyst 1300 documentation covers CLI, web UI, Cisco Business Dashboard, Cisco Business mobile app, and SNMP management paths for this switch family.
Cisco lists a 1.5 MB aggregate packet buffer for this PID, keeping the 8-port model aligned with other Catalyst 1300 Gigabit access SKUs.
Application Scenarios
C1300-8FP-2G fits sites with a small number of phones, cameras, readers, or access points where the total powered-device load must stay inside 120W.
The model is useful when the upstream handoff is not fixed yet, because the two Gigabit combo uplinks can be ordered around copper or Cisco-listed SFP media.
Use this SKU for small branch, classroom, retail, or office cabinets where an 8-port fanless Catalyst 1300 switch with internal AC power is easier to place than a 16-port or 24-port chassis.
Product Comparison
|
Parameter |
C1300-8FP-2G | |||
|---|---|---|---|---|
|
Product family |
Catalyst 1300 Series |
Catalyst 1300 Series |
Catalyst 1300 Series |
Catalyst 1300 Series |
|
Product type |
Managed Gigabit Ethernet PoE+ switch |
Managed Gigabit Ethernet PoE+ switch |
Managed Gigabit Ethernet switch |
Managed Gigabit Ethernet PoE+ switch |
|
Downlink ports |
8 x 10/100/1000 PoE+ |
8 x 10/100/1000 PoE+ |
8 x 10/100/1000 data ports |
16 x 10/100/1000 PoE+ |
|
Uplink interfaces |
2 x Gigabit copper/SFP combo |
2 x Gigabit copper/SFP combo |
2 x Gigabit copper/SFP combo |
2 x Gigabit SFP |
|
PoE budget |
120W |
67W |
Data only |
240W |
|
PoE-capable ports |
8 |
8 |
Data only |
16 |
|
Switching capacity |
20.0 Gbps |
20.0 Gbps |
20.0 Gbps |
36.0 Gbps |
|
Forwarding rate |
14.88 Mpps |
14.88 Mpps |
14.88 Mpps |
26.78 Mpps |
|
Power supply |
Internal universal AC |
External 100 to 240V AC |
External 100 to 240V AC |
Internal universal AC |
|
Fan design |
Fanless |
Fanless |
Fanless |
Fanless |
|
Unit dimensions |
268 x 297 x 43.94 mm |
268 x 185 x 43.94 mm |
268 x 185 x 43.94 mm |
268 x 323.3 x 43.94 mm |
|
Unit weight |
3.05 kg |
1.72 kg |
1.39 kg |
2.49 kg |
- In a C1300-8FP-2G vs C1300-8P-E-2G comparison, the key difference is PoE budget and power design: C1300-8FP-2G raises the switch-level budget to 120W and uses internal universal AC.
- The C1300-8FP-2G vs C1300-8T-E-2G difference is powered access; C1300-8T-E-2G keeps the 8-port 2G layout but does not provide a Cisco-listed PoE budget.
- For C1300-8FP-2G vs C1300-16FP-2G, the comparison changes port count and PoE budget because the 16-port model moves to 16 PoE+ ports and 240W.
- The which SKU to order check should start with powered-device count, then confirm whether the uplink handoff needs combo copper/SFP or dedicated Gigabit SFP.
Selection Guide
1. Choose it for the 120W 8-port PoE class
Select C1300-8FP-2G when the design needs eight PoE+ access ports and the device power calculation is above the 67W class of C1300-8P-E-2G.
2. Keep 8P-E for lighter endpoint loads
C1300-8P-E-2G is the adjacent choice when eight powered ports are still enough and the aggregate PoE requirement fits within 67W.
3. Use 8T-E only for unpowered endpoints
C1300-8T-E-2G belongs on data-only access quotes where the same 2xGE combo uplink layout is wanted but switch-delivered PoE is not required.
4. Move to 16FP when port count doubles
C1300-16FP-2G is the better fit when the BOM requires 16 powered copper ports or a 240W PoE pool instead of the 8-port 120W design.
PoE Power Planning
|
Check Item |
Cisco-confirmed Value |
Planning Impact |
|---|---|---|
|
PoE budget |
120W power budget |
Keep total powered-device draw inside the switch-level limit |
|
PoE port count |
8 PoE+ copper ports |
All powered endpoints share one aggregate PoE pool |
|
PoE standards |
802.3af PoE and 802.3at PoE+ |
Match phones, cameras, readers, and access points to the supported PoE class |
|
Power consumption with PoE |
110V=145.44W; 220V=141.80W |
UPS and circuit sizing should use loaded PoE draw rather than idle power |
|
Heat dissipation |
496.31 BTU/hr |
Cabinet thermal planning should include powered operation even with a fanless switch |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact product ID |
Purchase line shows C1300-8FP-2G |
Separates the 120W full-power 8-port model from 8P-E and 8T-E alternatives |
|
Powered-device load |
Endpoint wattage total fits inside 120W |
Prevents treating eight PoE+ ports as eight simultaneous 30W endpoints |
|
Combo uplinks |
Each uplink position is planned as copper or SFP |
Combo ports allow one active side per position |
|
SFP media |
Cisco-listed 1000 Mbps SFP options match fiber or copper reach |
Keeps the uplink BOM aligned with the Gigabit combo ports |
|
AC and cord |
Internal 100 to 240V AC input and the correct regional cord are captured |
Avoids quoting the external-adapter design used by nearby 8-port E models |
|
Rack mounting |
RCKMNT-CMPCT-1K= is included when a 19-inch rack bracket is required |
Cisco lists the compact bracket accessory for 8/12/16-port Catalyst 1300 models |
|
Stacking requirement |
A different Cisco-listed stacking-supported C1300 model is selected if hardware stacking is required |
C1300-8FP-2G is not included in the data sheet stacking-supported model list |
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable with RJ-45 connector for Catalyst 1300 models |
|
CAB-CONSOLE-USB-C |
Cisco USB-C console cable option for Catalyst 1300 models |
|
CAB-CONSOLE-USB-C= |
Cisco USB-C console cable spare option for Catalyst 1300 models |
|
PWR-CLP |
Cisco power cable restraining clip for Catalyst 1300 models |
|
RCKMNT-CMPCT-1K= |
Cisco 19-inch rack-mount bracket for C1000, C1200, and C1300 8/12/16-port models |
|
MGBSX1 |
Cisco-listed 1000 Mbps multimode fiber SFP option |
|
MGBLX1 |
Cisco-listed 1000 Mbps single-mode fiber SFP option |
|
MGBLH1 |
Cisco-listed 1000 Mbps single-mode fiber SFP option |
|
MGBT1 |
Cisco-listed 1000 Mbps UTP SFP option |
|
GLC-SX-MMD |
Cisco-listed 1000 Mbps multimode fiber SFP option |
|
GLC-LH-SMD |
Cisco-listed 1000 Mbps single-mode fiber SFP option |
|
GLC-TE |
Cisco-listed 1000 Mbps UTP Cat 5e SFP option |
Specifications
Packaging weight and dimensions included:| Weight | 4.13 kg |
|---|---|
| Dimensions | 45 × 38.5 × 9.5 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product family | Cisco Catalyst 1300 Series |
| Product ID | C1300-8FP-2G | Product type | Managed Gigabit Ethernet PoE+ switch |
| Downlink ports | 8 x 10/100/1000 RJ45 PoE+ ports | Uplink interfaces | 2 x Gigabit copper/SFP combo ports |
| Total system ports | 8 x Gigabit Ethernet plus 2 x Gigabit combo uplinks | Combo port behavior | One copper Ethernet port and one SFP slot with one side active at a time |
| PoE budget | 120W power budget | PoE-capable ports | 8 |
| PoE standards | 802.3af PoE and 802.3at PoE+ | Switching capacity | 20.0 Gbps |
| Forwarding rate | 14.88 Mpps | Packet buffer | 1.5 MB |
| Operating software | Linux-based software | Management | Web UI, CLI, Cisco Business Dashboard, Cisco Business mobile app, SNMP |
| Console ports | Cisco standard RJ-45 console port and USB Type C port | Flash | 1GB SLC |
| CPU | ARM dual-core at 1.5 GHz | DRAM | 1 GB DDR4 for C1300 |
| Power supply | Internal universal AC | AC input | 100 to 240V, 50 to 60 Hz |
| System power consumption | 110V=14.59W; 220V=14.33W | Power consumption with PoE | 110V=145.44W; 220V=141.80W |
| Idle power | 110V=7.21W; 220V=7.13W | Heat dissipation | 496.31 BTU/hr |
| Fan design | Fanless | MTBF | 2,865,360 hours at 25 C |
| Unit dimensions | 268 x 297 x 43.94 mm (10.55 x 11.71 x 1.73 in) | Unit weight | 3.05 kg (6.72 lb) |
| Operating temperature | 23 to 122 F (-5 to 50 C) | Storage temperature | -13 to 158 F (-25 to 70 C) |
| Warranty | Limited lifetime with return-to-factory replacement | Package contents | Switch, power cord, mounting kit, pointer card |
Get More Information
Need pricing, stock, or shipping details for the C1300-8FP-2G ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is C1300-8FP-2G used for in a small PoE closet?
-
How much PoE power does C1300-8FP-2G provide?
-
Is C1300-8FP-2G fanless?
-
What do the two combo uplinks on C1300-8FP-2G mean?
-
Does C1300-8FP-2G support hardware stacking?
-
How is C1300-8FP-2G different from C1300-8P-E-2G?
-
Can C1300-8FP-2G do routing for a tiny branch VLAN layout?
-
What power design detail matters for C1300-8FP-2G?
