C1300-24P-4G Description

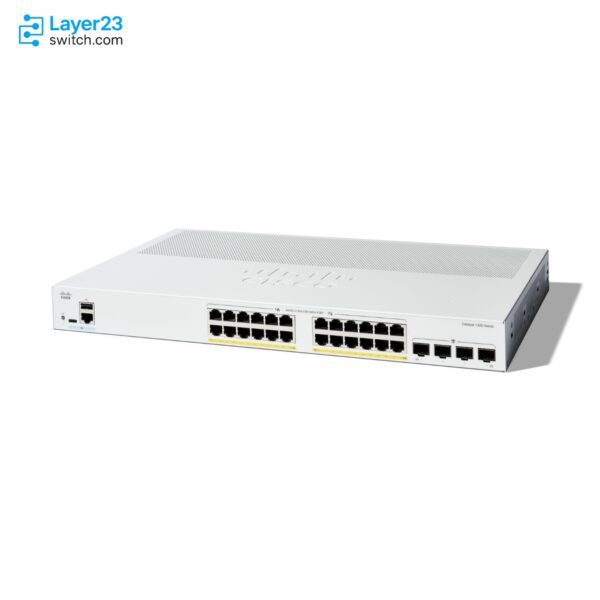

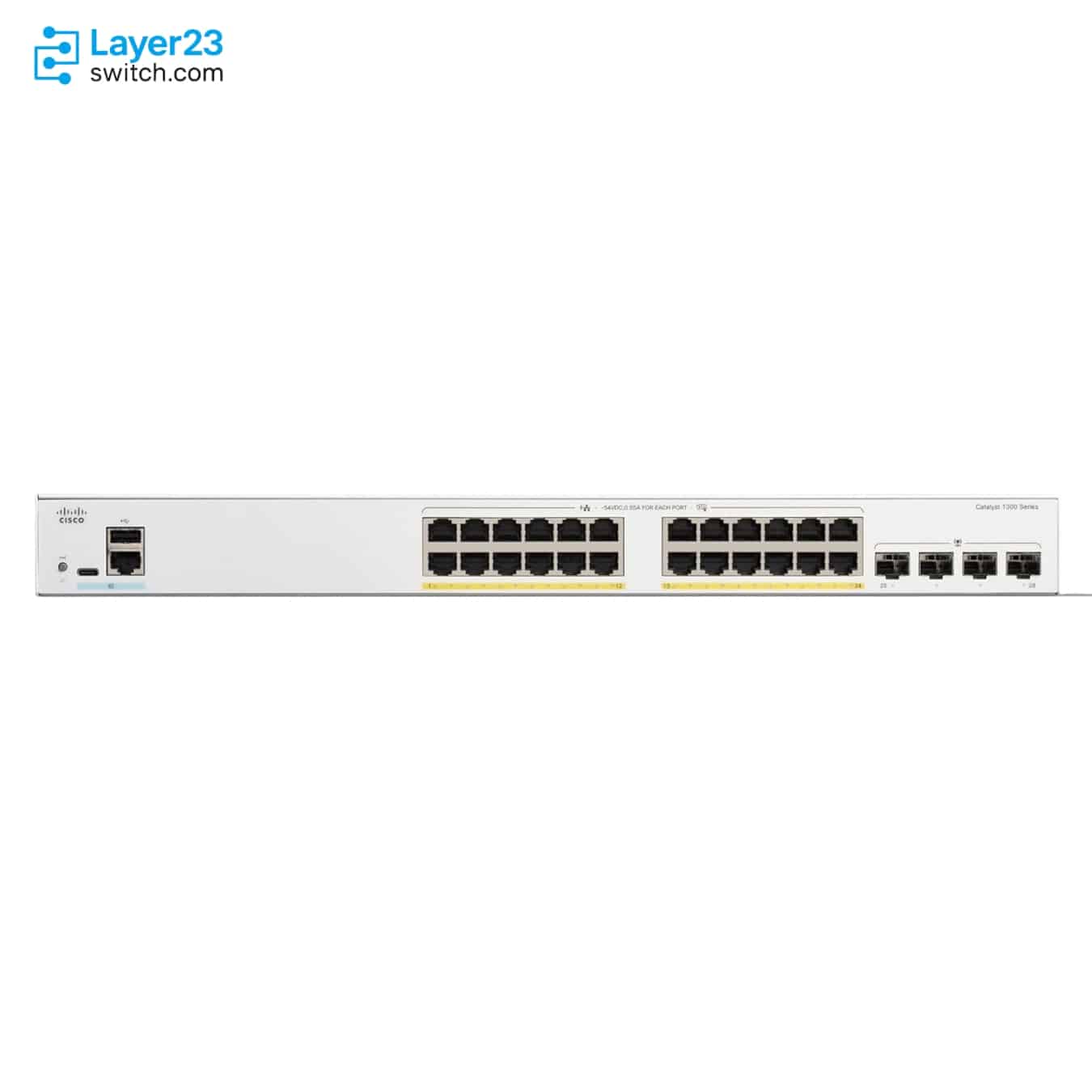

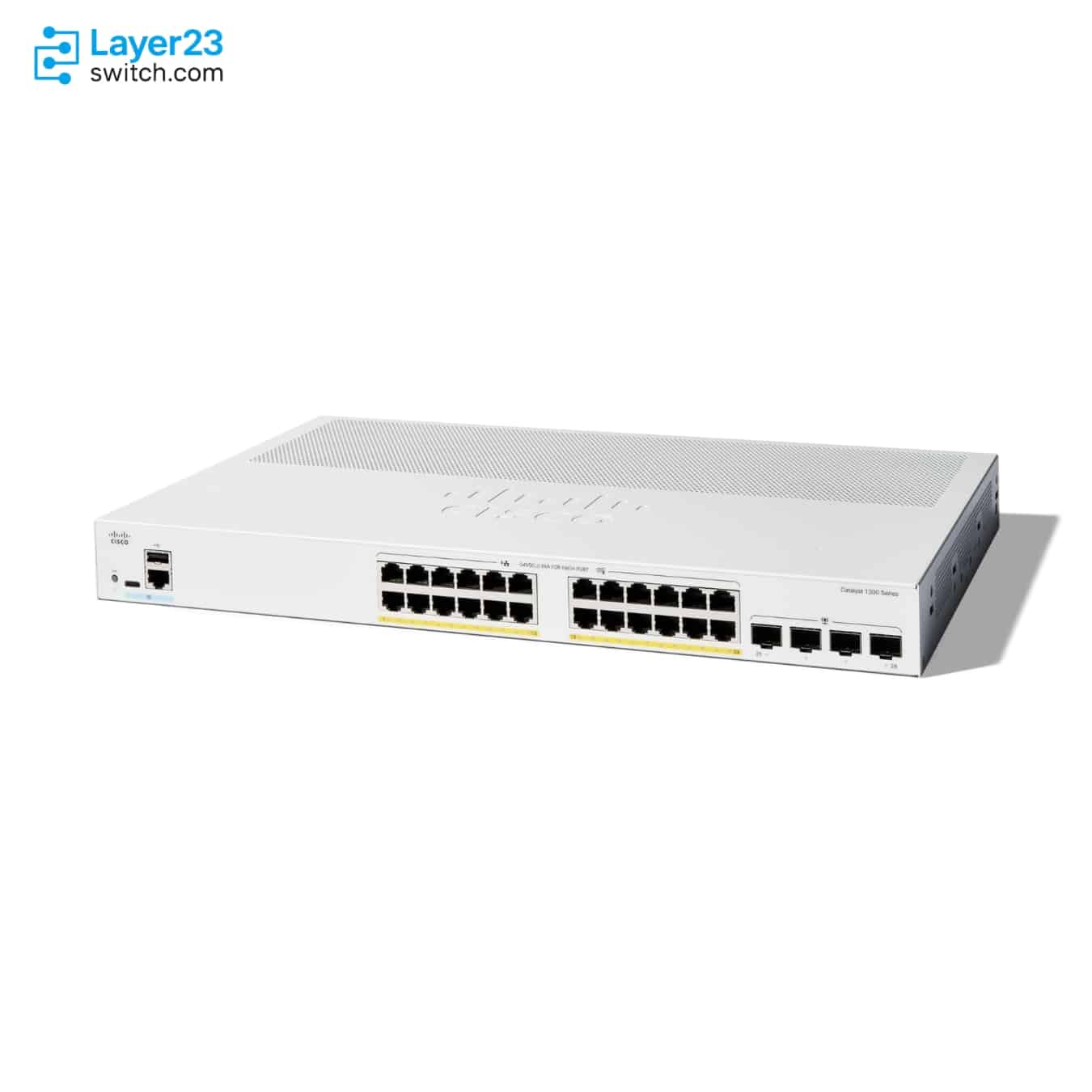

The C1300-24P-4G is a Cisco Catalyst 1300 Series fanless Layer 3 access switch for small offices, shops and classrooms that power a limited number of PoE+ endpoints. A 195W PoE budget is shared by all 24 Gigabit PoE+ ports, four 1G SFP slots handle the uplinks, and switching capacity reaches 56 Gbps. Routing runs on RIP v2 and static routes rather than OSPF, and the model is not on any Catalyst 1300 stacking list, so each switch is managed as a separate unit.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1300-24P-4G |
|
Downlink ports |
24 x 10/100/1000 RJ-45 PoE+ ports |
|
Uplink ports |
4 x 1G SFP |
|
PoE power budget |
195W |
|
Number of ports that support PoE |
24 |
|
Maximum power per PoE+ port |
30W |
|
PoE standards |
802.3at PoE+, 802.3af, Cisco pre-standard PoE |
|
Switching capacity |
56 Gbps |
|
Forwarding rate |
41.67 Mpps |
|
Cooling |
Fanless |
|
Layer 3 routing |
RIP v2, policy-based routing, static routes |
|
Hardware stacking |
Not supported |
|
Power supply |
Internal universal AC, 100-240V 50-60 Hz |
Product Performance
Key Features
Every port is rated for 30W of PoE+, but one 195W pool feeds all 24 of them. On this switch the budget, not the port count, sets how many high-draw cameras and access points can run at once.
The four SFP slots are dedicated uplinks rather than combo ports, for 28 Gigabit ports in total. Supported 1G optics range from GLC-SX-MMD at 550 m on multimode fiber to GLC-ZX-SMD at 70 km on single-mode, with GLC-TE for 100 m copper runs.
With no fan inside, the switch adds no fan noise to the room. That makes it practical to mount outside a wiring closet, in an open-plan office, a store or a classroom.
IPv4 and IPv6 traffic routes at wire speed between VLANs, with RIP v2 for dynamic routes and policy-based routing for steering specific flows. The routing table holds 990 IPv4 routes across up to 128 IP interfaces.
The model belongs to no Catalyst 1300 stacking family. A second switch at the same site keeps its own IP address and configuration, managed separately through Cisco Business Dashboard, the web UI or the CLI.
Persistent PoE keeps phones and cameras powered while the switch restarts, so a reboot after a firmware upgrade leaves powered endpoints running. Time-based PoE can also turn port power off on a schedule, such as outside business hours.
Application Scenarios
In an open-plan office, the switch can sit close to the desks without a closet, powering IP phones and ceiling access points over PoE+ while Voice VLAN keeps phone traffic in its own segment.
A retail store connects its IP cameras and in-store access points to the PoE+ ports, and one SFP slot carries a fiber link back to the main network cabinet in the back office.
Schools mount the unit in or near classrooms, where it powers wireless access points for students and teachers and hands their traffic to the building core over a 1G SFP uplink.
Product Comparison
|
Parameter |
C1300-24P-4G | |||
|---|---|---|---|---|
|
RJ-45 ports |
24 x Gigabit Ethernet PoE+ |
24 x Gigabit Ethernet PoE+ |
24 x Gigabit Ethernet PoE+ |
24 x Gigabit Ethernet |
|
Uplink ports |
4 x 1G SFP |
4 x 1G SFP |
4 x 10G SFP+ |
4 x 1G SFP |
|
PoE power budget |
195W |
375W |
195W |
Not applicable |
|
Number of ports that support PoE |
24 |
24 |
24 |
Not applicable |
|
Switching capacity |
56 Gbps |
56 Gbps |
128 Gbps |
56 Gbps |
|
Fan modules |
Fanless |
1 fan, 39 dBA at 25°C |
Fanless |
Fanless |
|
Layer 3 routing |
RIP v2, policy-based routing |
RIP v2, policy-based routing |
RIP v2, policy-based routing |
RIP v2, policy-based routing |
|
Hardware stacking |
Not supported |
Not supported |
C1300 Family 1, up to 8 units |
Not supported |
C1300-24P-4G and C1300-24FP-4G both have 24 PoE+ ports and four 1G SFP uplinks, and the PoE budget separates them: 195W here against 375W. A site that needs more than six devices at the full 30W, or a total PoE draw above 195W, should order C1300-24FP-4G and accept its single fan, rated at 39 dBA. Where no endpoint needs PoE, C1300-24T-4G keeps the same 24-port, 1G SFP layout without PoE output. C1300-24P-4X keeps the 195W budget and the fanless chassis but moves to four 10G SFP+ uplinks and 128 Gbps. It is also the model to order when switches must stack, since C1300 Family 1 stacks up to eight units.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Power dedicated to PoE |
195W shared by 24 PoE-capable ports |
|
PoE standards |
802.3at PoE+, 802.3af and Cisco pre-standard PoE |
|
Ports at the full 30W PoE+ level |
Six ports use 180W; a seventh would need 210W in total |
|
All 24 ports powered at once |
Average draw must stay at 8.1W or less per port |
|
Endpoint count check |
Add the rated draw of every planned phone, camera and access point and keep the total at or under 195W |
|
Power consumption with PoE |
110V=233.2W; 220V=230.5W |
|
Heat dissipation |
795.2 BTU/hr |
Ordering Checklist
- 1G SFP uplink modules: Add a supported 1G SFP such as GLC-SX-MMD, GLC-LH-SMD or GLC-TE for each uplink in use. The box holds only the switch, power cord, rack brackets and pointer card, so no optics arrive with it.
- Power cord: A power cord ships in the box by default, and selecting NO-POWER-CORD on the order removes it. Keep the default unless cords for the site are sourced separately.
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Console cable, 6 feet, RJ-45 connector |
|
CAB-CONSOLE-USB-C |
USB-C console cable |
|
CAB-CONSOLE-USB-C= |
USB-C console cable, spare |
|
RCKMNT-1RU-1K= |
1 RU rack-mount kit for C1000, C1200 and C1300 24- and 48-port models |
|
1000 Mbps SFP, multimode fiber, 550 m | |
|
1000 Mbps SFP, single-mode fiber, 10 km | |
|
1000 Mbps SFP, single-mode fiber, 40 km | |
|
1000 Mbps SFP, single-mode fiber, 70 km | |
|
GLC-BX-U |
1000 Mbps bidirectional SFP, single-mode fiber, 10 km |
|
GLC-BX-D |
1000 Mbps bidirectional SFP, single-mode fiber, 10 km |
|
1000 Mbps copper SFP, UTP Cat 5e, 100 m | |
|
MGBSX1 |
1000 Mbps SFP, multimode fiber, 500 m |
|
MGBLX1 |
1000 Mbps SFP, single-mode fiber, 10 km |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1300-24P-4G | Product type | Managed Layer 3 Gigabit Ethernet PoE+ switch |
| Total ports | 28 x Gigabit Ethernet | RJ-45 ports | 24 x 10/100/1000 PoE+ |
| Uplink ports | 4 x 1G SFP | Console port | Cisco standard RJ-45 console port and USB Type C port |
| USB port | USB Type C, for file and image management and console access | LEDs | System, Link/Act, PoE, Speed |
| Default PoE budget | 195W | Number of ports that support PoE | 24 |
| PoE standards | 802.3at PoE+, 802.3af, Cisco pre-standard PoE | PoE features | Time-based PoE, persistent PoE |
| Switching capacity | 56 Gbps, wire speed and nonblocking | Forwarding rate | 41.67 Mpps (64-byte packets) |
| Packet buffer | 1.5 MB, dynamically shared across all ports | MAC addresses | 16,000 entries |
| IPv4 routes | 990 (dynamic plus static) | IP interfaces | 128 |
| ACL rules | 1,024 | IGMP groups | 2,000 |
| VLANs | 4,094 (4078 to 4094 reserved for internal use) | Jumbo frames | Up to 9,000 bytes |
| Link aggregation | LACP, up to 8 groups with up to 8 ports each | Port mirroring | Up to 8 source ports to 1 destination port |
| Layer 3 routing | IPv4 and IPv6 wire-speed routing, RIP v2, policy-based routing | DHCP | DHCP server, DHCP relay, UDP relay |
| Voice | Voice VLAN with Voice Services Discovery Protocol, Auto Smartports | Hardware stacking | Not supported |
| Operating system | Customized Linux OS | Management | Cisco Business Dashboard, Cisco Business mobile app, web UI, SNMP v1/v2c/v3, CLI |
| Firmware upgrade | Dual images | CPU | ARM dual-core at 1.5 GHz |
| DRAM | 1 GB DDR4 | Flash | 1GB SLC |
| Default power supply | Internal universal, 100-240V 50-60 Hz | System power consumption | 110V=27.1W; 220V=27.5W |
| Power consumption with PoE | 110V=233.2W; 220V=230.5W | Idle power | 110V=13.9W; 220V=12.9W |
| Heat dissipation | 795.2 BTU/hr | Fan modules | Fanless |
| MTBF at 25°C | 396,413 hours | Cabling | UTP Cat 5e or better for 1000BASE-T |
| Dimensions (H x W x D) | 444.3 x 299 x 43.94 mm (17.49 x 11.77 x 1.73 in) | Weight | 3.53 kg (7.78 lb) |
| Mounting | Rack-mountable; 19-in mounting brackets included | Operating temperature | -5°C to 50°C (23°F to 122°F); cold start minimum 32°F (0°C) |
| Storage temperature | -25°C to 70°C (-13°F to 158°F) | Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing | Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Quality Certifications
Customer Reviews
Questions & Answers
-
Can C1300-24P-4G be stacked?
-
Does C1300-24P-4G support OSPF, and how is it managed?
-
How many VLANs and LACP groups does C1300-24P-4G support?
-
What CPU and memory does C1300-24P-4G have?
-
Which security features does C1300-24P-4G support on its access ports?
-
How does C1300-24P-4G discover and place IP phones?
