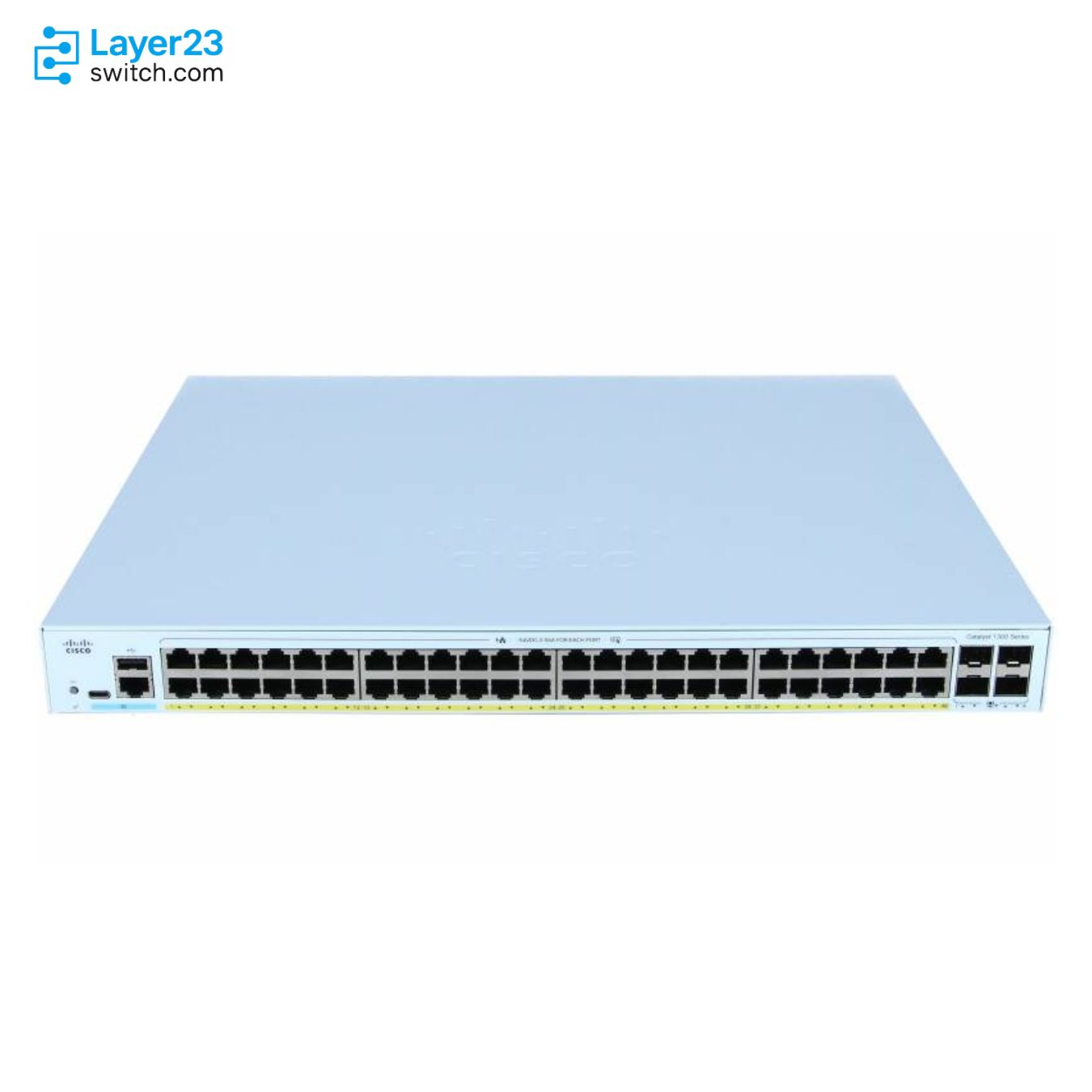

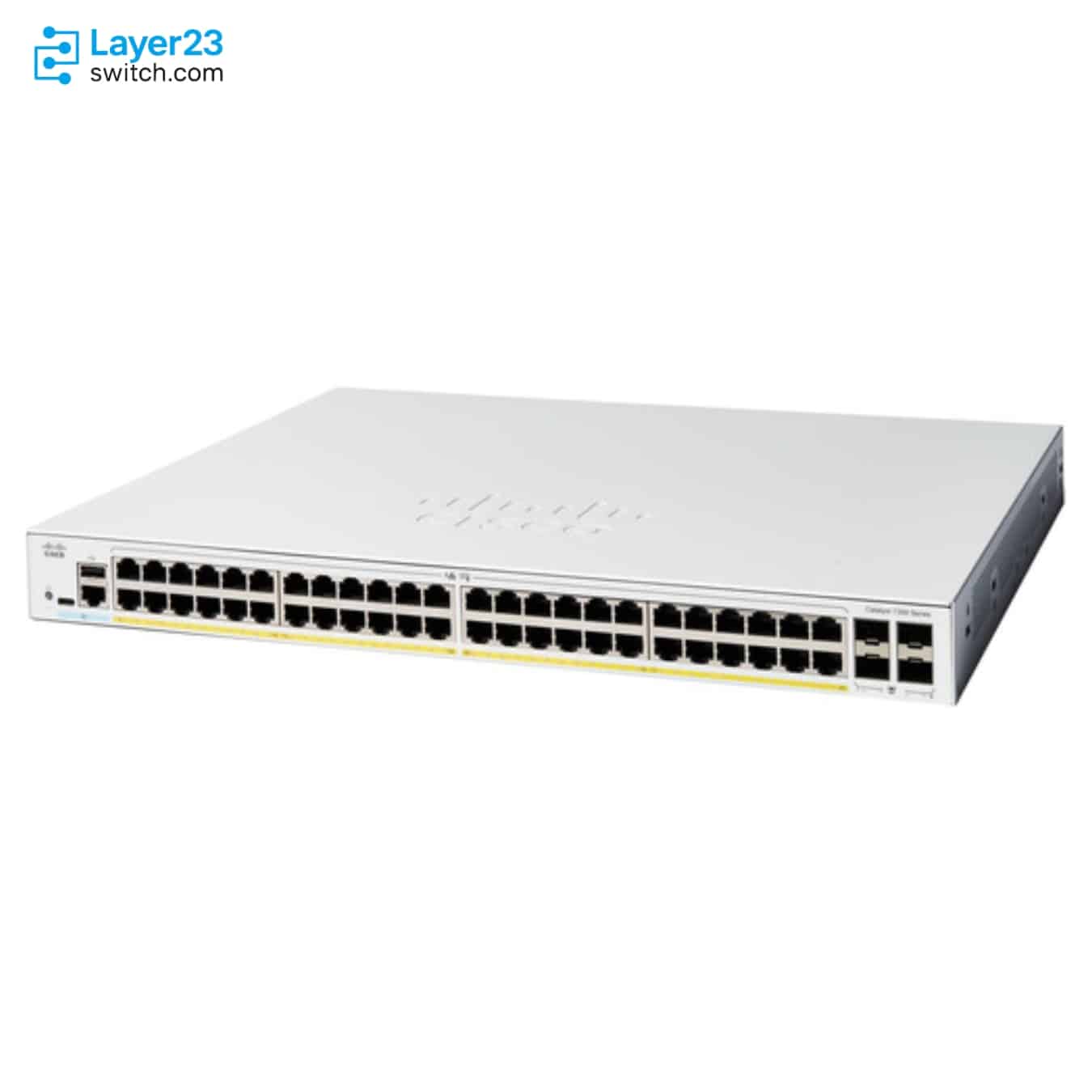

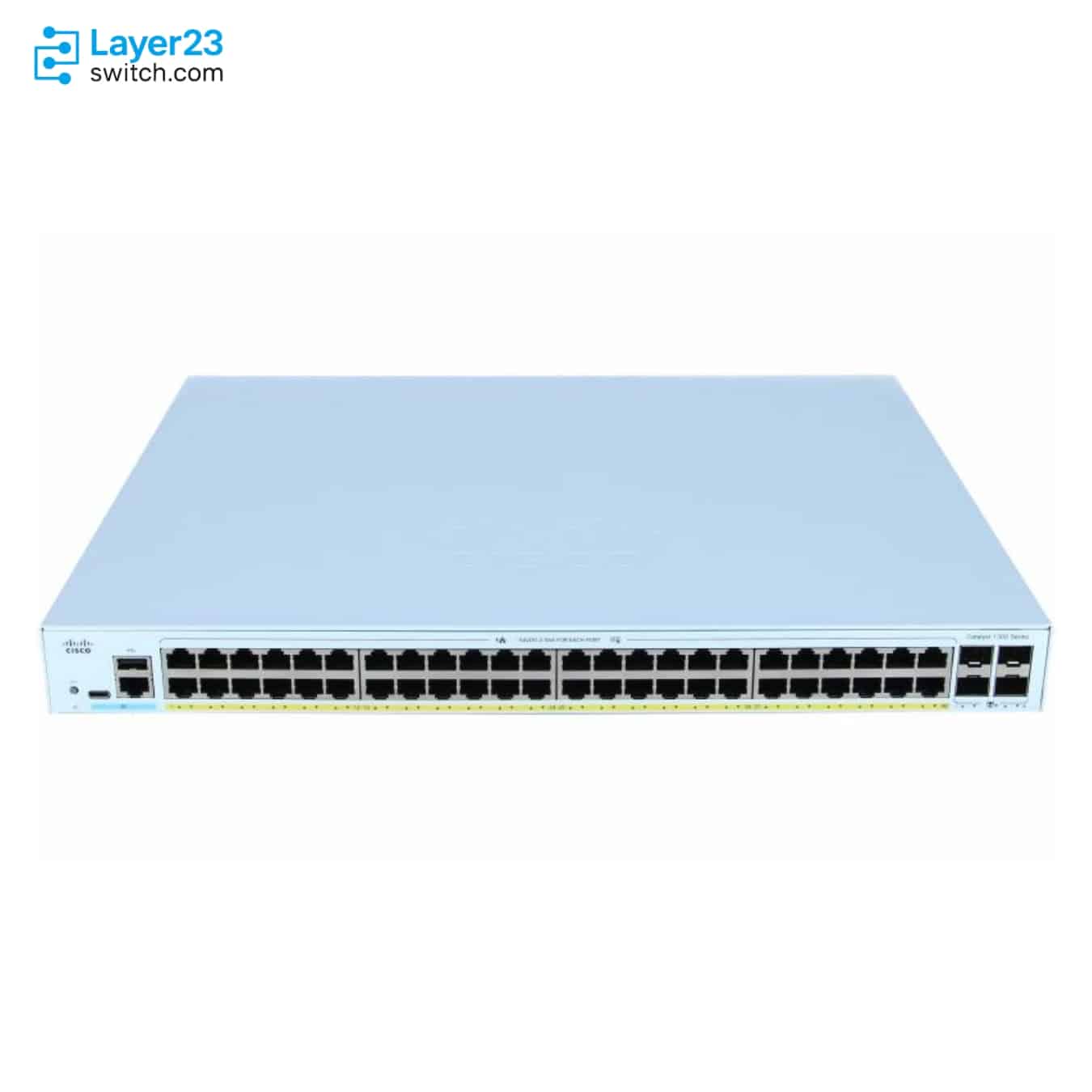

C1300-48FP-4G – 48x1G PoE+ Ports – 4x1G SFP Uplinks – 740W PoE Budget
2/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C1300-48FP-4G Description
C1300-48FP-4G is a Cisco Catalyst 1300 managed Gigabit Ethernet PoE+ switch for campus access networks that need a high-port-count Gigabit edge switch with fiber uplinks. It provides 48 x 10/100/1000 RJ45 PoE+ downlink ports, 4 x Gigabit SFP uplinks, a 740W PoE budget, 104.0 Gbps switching capacity, 77.38 Mpps forwarding rate, internal universal AC power, and Layer 3 static routing features for small and midsize access deployments.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C1300-48FP-4G |
|
Product type |
Managed Gigabit Ethernet PoE+ switch with Layer 3 static routing features |
|
Downlink ports |
48 x 10/100/1000 RJ45 PoE+ ports |
|
Uplink interfaces |
4 x Gigabit SFP |
|
Total system ports |
52 x Gigabit Ethernet |
|
Default PoE budget |
740W power budget |
|
PoE-capable ports |
48 |
|
PoE standards |
802.3at PoE+, 802.3af, and Cisco pre-standard PoE |
|
Switching capacity |
104.0 Gbps |
|
Forwarding rate |
77.38 Mpps |
|
Internal power input |
Internal universal AC power |
|
Fan and acoustic value |
1 fan; 48.7 dBA at 25 C |
Product Performance
Key Features
One C1300-48FP-4G order line supplies 48 powered Gigabit copper ports, letting the buyer size endpoint count and PoE draw in the same hardware choice.
The uplink block is 4 x Gigabit SFP, so the optics list should stay in the 1G SFP family rather than the 10G SFP+ media used by 4X SKUs.
The full-PoE budget supports larger powered-device worksheets than the 370W 48P variant, while still requiring aggregate wattage control across all PoE ports.
Cisco lists this model under internal 100 to 240V AC power, which keeps power planning tied to rack PDU and cord selection instead of an external adapter.
Catalyst 1300 documentation describes managed switching with web UI, CLI, SNMP, Cisco Business Dashboard, Cisco Business mobile app, and Layer 3 static routing features.
The chassis is rack-mountable with one fan, 48.7 dBA acoustic noise at 25 C, and a 2915.50 BTU/hr PoE-loaded heat value that should be visible in closet planning.
Application Scenarios
C1300-48FP-4G fits a closet where cameras, phones, readers, or access points need 48 Gigabit PoE+ copper ports and the powered-device worksheet approaches full-PoE territory.
The SKU is appropriate when upstream handoff remains 1G SFP and the project does not require the 4 x 10G SFP+ uplinks found on C1300-48FP-4X.
This model belongs in 48-port Catalyst 1300 quotes where C1300-48P-4G has the right port count but its 370W PoE budget is too low for the endpoint plan.
Product Comparison
|
Parameter |
C1300-48FP-4G | |||
|---|---|---|---|---|
|
Product type |
Managed Gigabit Ethernet PoE+ switch |
Managed Gigabit Ethernet PoE+ switch |
Managed Gigabit Ethernet switch |
Managed Gigabit Ethernet PoE+ switch |
|
Downlink ports |
48 x 10/100/1000 PoE+ |
48 x 10/100/1000 PoE+ |
48 x 10/100/1000 |
48 x 10/100/1000 PoE+ |
|
Uplink interfaces |
4 x Gigabit SFP |
4 x Gigabit SFP |
4 x Gigabit SFP |
4 x 10 Gigabit SFP+ |
|
Default PoE budget |
740W |
370W |
No PoE output |
740W |
|
PoE-capable ports |
48 |
48 |
No PoE output |
48 |
|
Switching capacity |
104.0 Gbps |
104.0 Gbps |
104.0 Gbps |
176.0 Gbps |
|
Forwarding rate |
77.38 Mpps |
77.38 Mpps |
77.38 Mpps |
130.94 Mpps |
|
Packet buffer |
1.5 MB |
1.5 MB |
1.5 MB |
1.5 MB |
|
Power supply |
Internal universal AC |
Internal universal AC |
Internal universal AC |
Internal universal AC |
|
Chassis size |
17.49 x 13.78 x 1.73 in |
17.49 x 13.78 x 1.73 in |
17.49 x 11.33 x 1.73 in |
17.49 x 13.78 x 1.73 in |
|
Fan and acoustic value |
1 fan; 48.7 dBA at 25 C |
1 fan; 37.3 dBA at 25 C |
1 fan; 29.7 dBA at 25 C |
1 fan; 48.7 dBA at 25 C |
- In a C1300-48FP-4G vs C1300-48P-4G comparison, the key difference is PoE budget: both keep 48 PoE+ downlinks and 4 x 1G SFP uplinks, but the FP SKU moves to 740W.
- The C1300-48FP-4G vs C1300-48T-4G difference is powered access; the T model has the same 48-port 1G access count and 4 x 1G SFP uplinks without PoE.
- For C1300-48FP-4G vs C1300-48FP-4X, the comparison is uplink speed and switching capacity, because the 4X SKU changes to 4 x 10G SFP+ and 176.0 Gbps.
- The which model to choose check should separate three requirements: 740W PoE, 48-port copper density, and whether the uplink design is 1G SFP or 10G SFP+.
Selection Guide
1. Start with endpoint wattage
Choose C1300-48FP-4G when the powered-device worksheet needs the 740W PoE class across 48 Gigabit access ports.
2. Keep C1300-48P-4G for lighter PoE designs
C1300-48P-4G is the adjacent 48-port 1G SFP model when 370W is enough and the order does not need the full-PoE budget.
3. Remove PoE only for data-only access
C1300-48T-4G should be quoted only when the same 48 copper access count is required without powered endpoints.
4. Move to the 4X model for faster uplinks
C1300-48FP-4X keeps the 48-port full-PoE profile but belongs in BOMs that require 10G SFP+ uplinks instead of 1G SFP handoff.
PoE Power Planning
|
Check Item |
Cisco-confirmed Value |
Planning Impact |
|---|---|---|
|
PoE budget |
740W power budget |
Size the endpoint worksheet against one aggregate switch-level pool |
|
PoE port count |
48 PoE-capable access ports |
Every copper access port can be part of the powered-device plan |
|
PoE standards |
802.3at PoE+, 802.3af, and Cisco pre-standard PoE |
Match each endpoint to the supported power standard before ordering |
|
Power consumption with PoE |
110V=854.45W; 220V=819.41W |
UPS and circuit planning should use loaded PoE operation rather than idle draw |
|
Heat dissipation |
2915.50 BTU/hr |
Cabinet cooling should account for the full-PoE operating case |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact product ID |
C1300-48FP-4G is on the purchase line |
Prevents substitution with C1300-48P-4G or a data-only 48T model |
|
Endpoint power worksheet |
Aggregate powered-device draw fits within 740W |
The switch has 48 PoE+ ports but still uses one shared PoE budget |
|
Uplink media |
1G SFP optics or copper SFP modules match the upstream handoff |
Avoids ordering 10G SFP+ media intended for 4X models |
|
Electrical plan |
100 to 240V AC input and PoE-loaded power draw are acceptable |
The powered configuration draws far more than the idle switch |
|
Rack and airflow space |
1RU depth and ventilation clearance are available |
Cisco installation guidance requires clearance around ventilation openings |
|
Acoustic and heat review |
48.7 dBA at 25 C and 2915.50 BTU/hr are acceptable for the closet |
High-PoE 48-port access switches can affect office-adjacent spaces and cabinets |
Optional Add-ons
|
Model |
Description |
|---|---|
|
CAB-CONSOLE-RJ45 |
Cisco console cable with RJ-45 connector for Catalyst 1300 models |
|
CAB-CONSOLE-USB-C |
Cisco USB-C console cable option for Catalyst 1300 models |
|
CAB-CONSOLE-USB-C= |
Cisco USB-C console cable spare option for Catalyst 1300 models |
|
PWR-CLP |
Cisco power cable restraining clip for Catalyst 1300 models |
|
RCKMNT-1RU-1K= |
Cisco 1RU rack-mount kit for C1000, C1200, and C1300 24/48-port models |
|
GLC-SX-MMD |
Cisco-listed 1000 Mbps multimode SFP option with 550 m maximum distance |
|
GLC-LH-SMD |
Cisco-listed 1000 Mbps single-mode SFP option with 10 km maximum distance |
|
GLC-TE |
Cisco-listed 1000 Mbps copper SFP option for UTP Cat 5e with 100 m maximum distance |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C1300-48FP-4G | Product type | Managed Gigabit Ethernet PoE+ switch with Layer 3 static routing features |
| Downlink ports | 48 x 10/100/1000 RJ45 PoE+ ports | Uplink interfaces | 4 x Gigabit SFP |
| Total system ports | 52 x Gigabit Ethernet | Default PoE budget | 740W power budget |
| PoE-capable ports | 48 | PoE standards | 802.3at PoE+, 802.3af, Cisco pre-standard PoE |
| Switching capacity | 104.0 Gbps | Forwarding rate | 77.38 Mpps |
| Packet buffer | 1.5 MB | Management | Cisco Business Dashboard, Cisco Business mobile app, web UI, CLI, SNMP |
| Operating software | Linux-based software | Layer 3 feature | Layer 3 static routing features |
| Console ports | Cisco standard RJ-45 console port and USB Type C port | Rack mounting | Rack-mountable |
| Power supply | Internal universal AC | AC input | 100 to 240V, 50 to 60 Hz |
| System power consumption | 110V=45.66W; 220V=45.14W | Power consumption with PoE | 110V=854.45W; 220V=819.41W |
| Idle power | 110V=21.27W; 220V=21.03W | Heat dissipation | 2915.50 BTU/hr |
| Fan count | 1 | Acoustic noise | 48.7 dBA at 25 C |
| MTBF | 1,469,406 hours at 25 C | Chassis size | 17.49 x 13.78 x 1.73 in |
| Unit weight | 6.48 kg (14.28 lb) | Operating temperature | 23 to 122 F (-5 to 50 C) |
| Storage temperature | -13 to 158 F (-25 to 70 C) | Warranty | Limited lifetime with return-to-factory replacement |
| Package contents | Switch, power cord, mounting kit, pointer card | Rack kit scope | 19-in mounting brackets included for 24/48-port models |
Get More Information
Need pricing, stock, or shipping details for the C1300-48FP-4G ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is C1300-48FP-4G used for?
-
How much PoE power does C1300-48FP-4G provide?
-
Is C1300-48FP-4G fanless?
-
What uplink speed does C1300-48FP-4G have?
-
Does C1300-48FP-4G support front-panel stacking?
-
How is C1300-48FP-4G different from C1300-48P-4G?
-
Can C1300-48FP-4G support many cameras and phones on one switch?
-
What operational checks matter for C1300-48FP-4G?
