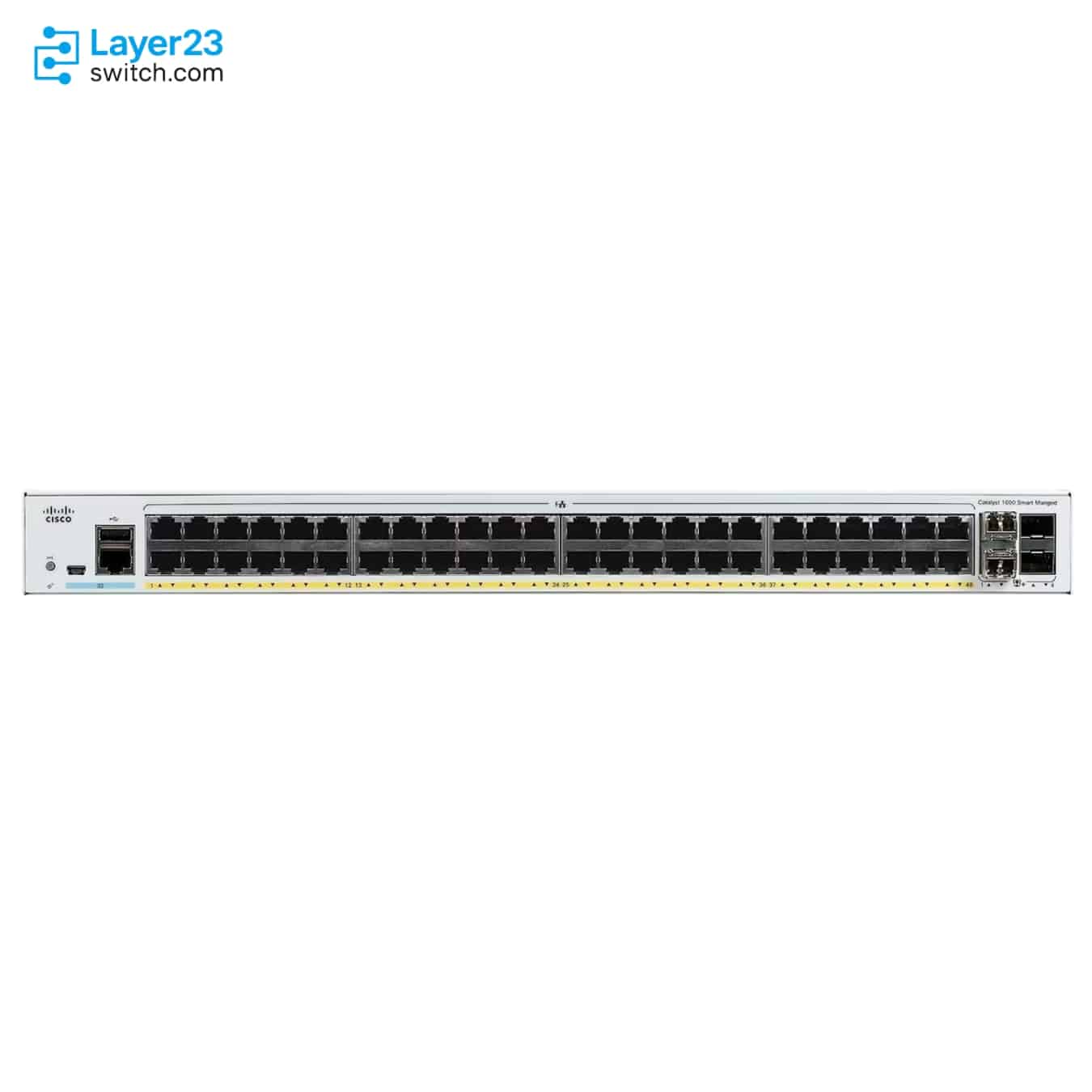

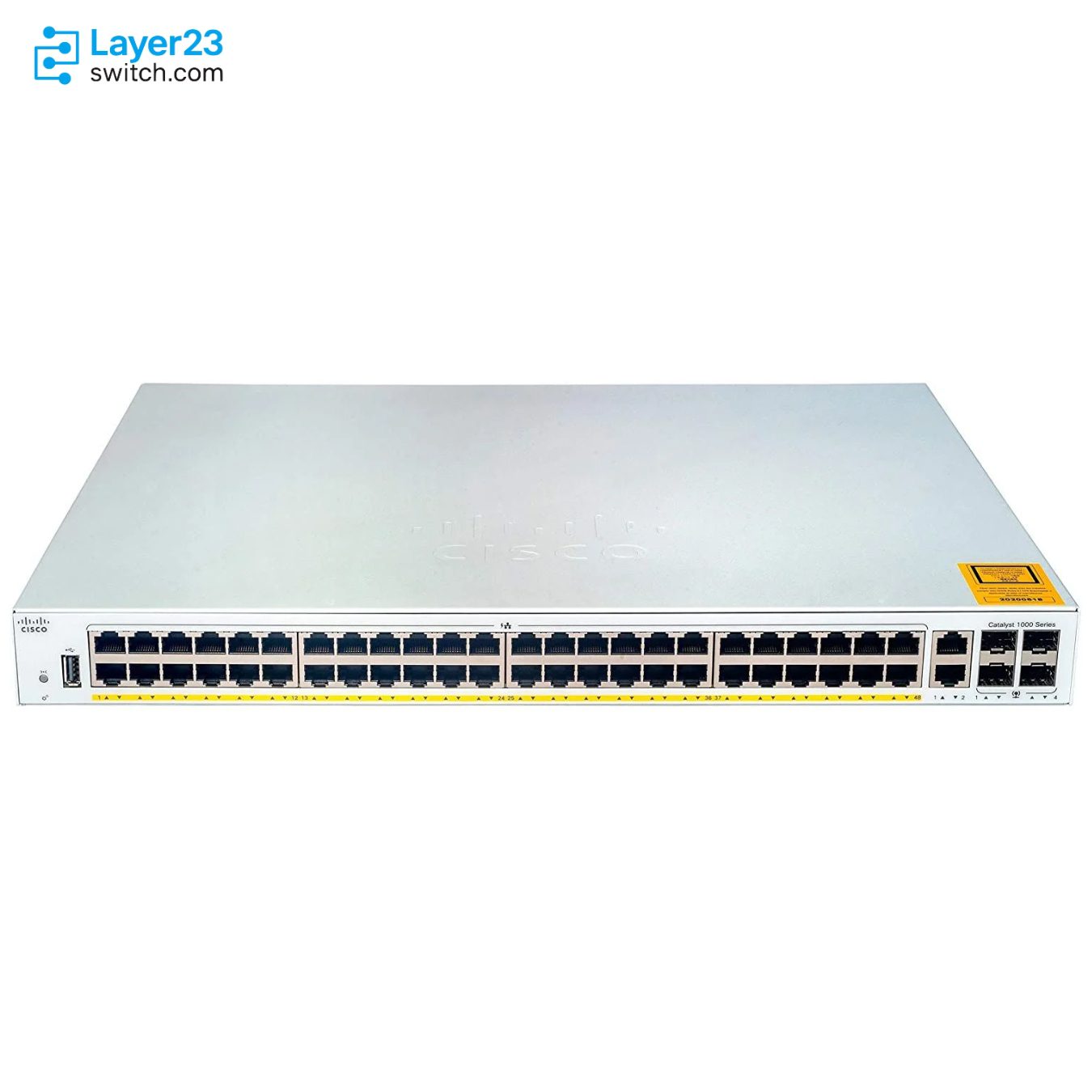

C1000-48P-4G-L – 48x1G PoE+ Ports – 4x1G SFP Uplinks – 370W PoE Budget

Brand: Cisco Category: Catalyst 1000 Switches Model: C1000-48P-4G-L
5.06 reviews11 Questions14 sold this month
List Price: $3,603.83 48% OFF
$1,886.00
Price Alert
In StockShips in as little as 1 business day Brand New
Related models
Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policyExpress Shipping2-6 Business Daysvia UPS, FedEx, DHL and more
Trusted & Secure Payments

Shop Expert-Recommended Accessories for the C1000-48P-4G-L

Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.
  • GLC-SX-MMD

    GLC-SX-MMD

    1000BASE-SX SFP - MMF 850nm - DOM
    Original price was: $633.46.Current price is: $59.00.
  • GLC-LH-SMD

    GLC-LH-SMD

    1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
    Original price was: $1,260.58.Current price is: $95.80.

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded
Customers
Units shipped
Countries
Cisco switches in stock at the Layer23-Switch warehouse
Play

Inventory You Can See

Cisco stock on hand
Models ready to ship
Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

  • Advance replacement for in-stock models
  • New unit for dead-on-arrival
  • 14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

C1000-48P-4G-L Description

The C1000-48P-4G-L is a Cisco Catalyst 1000 Series fixed managed Layer 2 Gigabit Ethernet switch for access closets that power phones, cameras and access points. The switch has 48 10/100/1000 RJ45 PoE+ ports, four 1G SFP uplinks, a 370W PoE budget with up to 30W per port and 104 Gbps of switching bandwidth at 77.38 Mpps. The PoE budget is fixed by the model and cannot be raised, and the switch cannot be grouped with units that have 10G uplinks.

Quick Specs

Parameter

Specification

Product ID

C1000-48P-4G-L

Product type

Fixed managed Gigabit Ethernet Layer 2 switch

Downlink ports

48 x 10/100/1000 RJ45 PoE+ ports

Uplink ports

4 x 1G SFP uplinks

Default PoE budget

370W available PoE

Per-port PoE support

Up to 30W per PoE port

Fan design

Fan-cooled 48-port model

Internal power input

Single fixed internal AC power supply

Switching capacity

104 Gbps for 48-port models with 1G uplinks

Forwarding rate

77.38 Mpps for 48-port models with 1G uplinks

Dimensions

17.48 x 13.78 x 1.73 in.

Weight

5.43 kg

Product Performance

Powered Access Port Density
PoE Budget Boundary
48-port 1G-Uplink Forwarding Class

Key Features

48 PoE+ Ports In One Unit

All 48 RJ45 ports support IEEE 802.3af and 802.3at, so a full closet of phones and access points needs one switch rather than two.

370W Fixed PoE Budget

Each port can source up to 30W, but the 370W total covers about 7.7W per port if all 48 draw power at once, so heavy devices need budgeting.

Four 1G SFP Uplinks

The uplink slots accept SFP optics only, which suits closets that connect to the distribution layer over 1G fiber.

Perpetual PoE

Power to connected devices stays on while the switch reloads, so phones and cameras keep running through a software upgrade.

Fan-Cooled At 36.1 dB

The chassis is fan-cooled with a typical sound pressure of 36.1 dB, which is audible in a small room, so placement near occupied desks needs thought.

Single IP Management For 1G Units

Up to eight Catalyst 1000 switches with 1G uplinks can be managed under one IP address over their SFP ports. Units with 10G uplinks cannot join the same group.

Application Scenarios

Office Floor Closet With PoE+ Devices

On an office floor, the switch powers IP phones and wireless access points from its PoE+ ports and carries their traffic to the distribution layer over 1G SFP fiber.

Camera Aggregation Point

A warehouse or retail site can land PoE+ security cameras on the switch, which supplies up to 30W per port within its 370W budget.

School Building Classroom Drops

A school can serve classroom phones, displays and access points from one 48-port switch, with a single management IP shared with other 1G Catalyst 1000 units.

Product Comparison

Parameter

C1000-48P-4G-L

C1000-48T-4G-L

C1000-48P-4X-L

C1000-48FP-4G-L

Ports

48 x 10/100/1000 RJ45 PoE+

48 x 10/100/1000 RJ45 data

48 x 10/100/1000 RJ45 PoE+

48 x 10/100/1000 RJ45 PoE+

Uplinks

4 x 1G SFP

4 x 1G SFP

4 x 10G SFP+

4 x 1G SFP

Default PoE budget

370W

No PoE budget

370W

740W

Switching capacity

104 Gbps

104 Gbps

176 Gbps

104 Gbps

Forwarding rate

77.38 Mpps

77.38 Mpps

130.94 Mpps

77.38 Mpps

Fanless

No

No

No

No

Weight

5.43 kg

3.95 kg

5.43 kg

5.82 kg

Power rating

0.5 kVA

0.06 kVA

0.5 kVA

0.95 kVA

C1000-48P-4G-L is the 370W PoE+ model with four 1G SFP uplinks at 77.38 Mpps, while C1000-48P-4X-L has the same 48 PoE+ ports and 370W budget with four 10G SFP+ uplinks at 130.94 Mpps. When attached powered devices total more than 370W, C1000-48FP-4G-L raises the budget to 740W on the same 1G uplinks, with a 0.95 kVA power rating against 0.5 kVA. Closets with no powered endpoints can use C1000-48T-4G-L, which drops PoE and weighs 3.95 kg against 5.43 kg. Single IP Management groups 1G models only with other 1G models, so C1000-48P-4G-L cannot be grouped with 4X switches. Catalyst 1000 has no license tiers to upgrade.

PoE Power Planning

Check Item

Cisco-confirmed Value

Planning Impact

Available PoE

370W

Total powered endpoint draw must fit within this budget after phones, cameras, access points, and other PoE devices are counted

Per-port PoE behavior

Up to 30W per PoE port with IEEE 802.3af and IEEE 802.3at support

A single endpoint may use PoE+ power, but the whole switch is still limited by the 370W total budget

Consumption with PoE

434.01W

UPS and branch electrical planning should include the powered-switch draw rather than the no-PoE baseline only

Higher-PoE alternative

C1000-48FP-4G-L with 740W available PoE

Use the FP model if the powered endpoint load cannot fit into the 370W class

Ordering Checklist

  • Uplink optics: Add SFP modules only for the four SFP uplink slots, checked in the Cisco Transceiver Module Compatibility Matrix. The SFP slots do not accept SFP+ modules, so a 10G optic cannot be installed.
  • Power cord: Select one AC power cord for the destination country. The chassis ships without a cord and the ordering guide requires one to be selected.
  • Console cable and cord clip: Add CAB-CONSOLE-RJ45 or CAB-CONSOLE-USB for management access, and PWR-CLP to retain the power cord. These are separate line items, so a switch ordered without them arrives with no console cable or cord clip.

Optional Add-ons

Model

Description

CAB-CONSOLE-RJ45

Cisco console cable 6 ft. with RJ-45 for Catalyst 1000 management access

CAB-CONSOLE-USB

Cisco console cable 6 ft. with USB Type A and mini-B connectors

PWR-CLP

Power cable restraining clip for Catalyst 1000 switch power-cord retention

RCKMNT-1RU-2KX=

Rackmount kit for Catalyst 1000 24-port and 48-port models

Specifications

Parameter Specification Parameter Specification
Product ID C1000-48P-4G-L Product type Fixed managed Gigabit Ethernet Layer 2 switch
Downlink ports 48 x 10/100/1000 RJ45 PoE+ ports Uplink ports 4 x 1G SFP uplinks
Default PoE budget 370W available PoE Per-port PoE support Up to 30W per PoE port
Fan design Fan-cooled 48-port model Internal power input Single fixed internal AC power supply
Voltage 100 to 240V AC in Frequency 50 to 60 Hz
Current 0.42A to 0.74A Power rating 0.5 kVA maximum consumption
Consumption without PoE 54.25W Consumption with PoE 434.01W
Default PoE budget 370W Maximum power wattage for BTU/hr 500.4W
Forwarding bandwidth 52 Gbps for 48-port models with 1G uplinks Switching capacity 104 Gbps for 48-port models with 1G uplinks
Forwarding rate 77.38 Mpps for 48-port models with 1G uplinks MAC addresses 16000
Maximum active VLANs 256 VLAN IDs available 4094
Maximum STP instances 64 Maximum SPAN sessions 4
Console port RJ-45 Ethernet console USB-A port 1 USB-A port for storage and Bluetooth console
CPU ARM v7 800 MHz DRAM 512 MB
Flash 256 MB Acoustic noise 36.1 dB typical sound pressure for C1000-48P-4G-L and C1000-48P-4X-L
Operating temperature -5 to 50°C at sea level Operating altitude 10000 ft (3000 m)
Operating humidity 5% to 90% at 40°C non-condensing Dimensions 17.48 x 13.78 x 1.73 in.
Weight 5.43 kg

Quality Certifications

Customer Reviews

Write A Review
5.0
(6 reviews)
5 Stars
6
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
    Rafael Richardson
    Posted on 18/03/2026
    Verified Buyer
    5.0

    We didn’t sacrifice quality for the lower price. Both came through.

    Raymond Hunter
    Posted on 08/03/2026
    Verified Buyer
    5.0

    Got a quick response when I needed pricing confirmation for an internal approval.

    Jeffrey Rivera
    Posted on 17/12/2025
    Verified Buyer
    5.0

    Received in two business days. Our timeline stayed on track.

    Network Tech
    Posted on 20/09/2024
    Verified Buyer
    5.0

    Arrived quickly for a network emergency. Saved the day.

    Skyler White
    Posted on 12/06/2024
    Verified Buyer
    5.0

    Everything was accounted for in the ledger. Invoice correct. Professional.

Questions & Answers

  • Can C1000-48P-4G-L be stacked or grouped with other switches?

    Yes, through Single IP Management. C1000-48P-4G-L can be grouped under one management IP with up to eight Catalyst 1000 switches that have 1G uplinks, linked over their SFP ports. Units with 10G uplinks cannot join the same group.

  • At which network layer does C1000-48P-4G-L operate, and how is it managed?

    C1000-48P-4G-L is a fixed managed Layer 2 switch, and Catalyst 1000 has no license tier to upgrade. Management is through the RJ-45 Ethernet console, the USB-A port with a Bluetooth console, or one shared IP across up to eight Catalyst 1000 units with 1G uplinks.

  • Does C1000-48P-4G-L forward jumbo frames, and at what MTU?

    C1000-48P-4G-L supports a Layer 3 MTU of 9198 bytes and jumbo Ethernet frames of 10,240 bytes. These values apply to all Catalyst 1000 models. Connected servers and uplink peers must use matching MTU values, because a frame over the smallest MTU on the path is dropped.

  • Which ACL and multicast table sizes apply on C1000-48P-4G-L?

    C1000-48P-4G-L holds 600 IPv4 and MAC security ACEs, 600 IPv6 ACEs and 1024 multicast groups, alongside 16,000 unicast MAC addresses. The public datasheet gives 16,000 MAC addresses, so size MAC tables from that value. Security policy is limited to 600 ACEs per address family.

  • Which IPv6 route and SVI limits apply on C1000-48P-4G-L?

    C1000-48P-4G-L supports 64 SVIs, 414 IPv6 direct routes and 128 IPv6 indirect routes, with static routing as the only routing method. Route tables are limited to the 414 direct and 128 indirect IPv6 values, so plan prefix counts within those limits.

  • What ambient temperature range can C1000-48P-4G-L run in at 5,000 ft and 10,000 ft?

    C1000-48P-4G-L runs at ambient temperatures up to 45 C at 5,000 ft (1500 m) and up to 40 C at 10,000 ft. The 50 C figure is short-term only per the datasheet footnote, and cold start needs 0 C. Sustained operation must stay inside the 45 C and 40 C steps.

  • How do I convert an SFP uplink on C1000-48P-4G-L into a Single IP Management port?

    Enter switch N hstack-port 1 or 2 followed by the uplink name, save with copy running-config startup-config, then reload C1000-48P-4G-L. At most two ports can serve as management ports. Both uplinks can be single-IP ports, or one can stay a network port. Mixing SFP and SFP+ as management ports is not supported.

  • Can sFlow run on C1000-48P-4G-L when it is a Single IP Management member?

    No. sFlow cannot be used on member switches in a Single IP Management group that includes C1000-48P-4G-L. Single IP Management is a management feature, not a data-plane stack, with one active unit and the other units as members. The link uses front-panel uplinks, downlink gigabit ports are not supported for it, and no Fast Ethernet model can join.

  • Which egress queue count applies to QoS on C1000-48P-4G-L?

    The datasheet states up to 8 egress queues and 2 thresholds per port on C1000-48P-4G-L, with egress bandwidth control, shaping and priority queuing. Plan QoS policies around 8 queues per port, because queue counts above that figure are not available on this model.

  • What can the USB-A port on C1000-48P-4G-L be used for?

    The USB-A port on C1000-48P-4G-L is limited to USB storage and a Bluetooth dongle for CLI and GUI access. The switch has an ARM v7 800 MHz CPU, 256 MB flash and 512 MB DRAM, measured in megabytes, not megabits, plus a 1.5 MB egress buffer.

  • Does perpetual PoE on C1000-48P-4G-L keep endpoints powered during a switch power outage?

    No. Perpetual PoE on C1000-48P-4G-L applies only to soft reloads, meaning an image upgrade, a crash or a manual reboot. It does not cover a switch power outage or removal of the power supply. Phones and access points still lose power if the AC feed to the switch drops.
