C9600-PWR-2KWAC Description

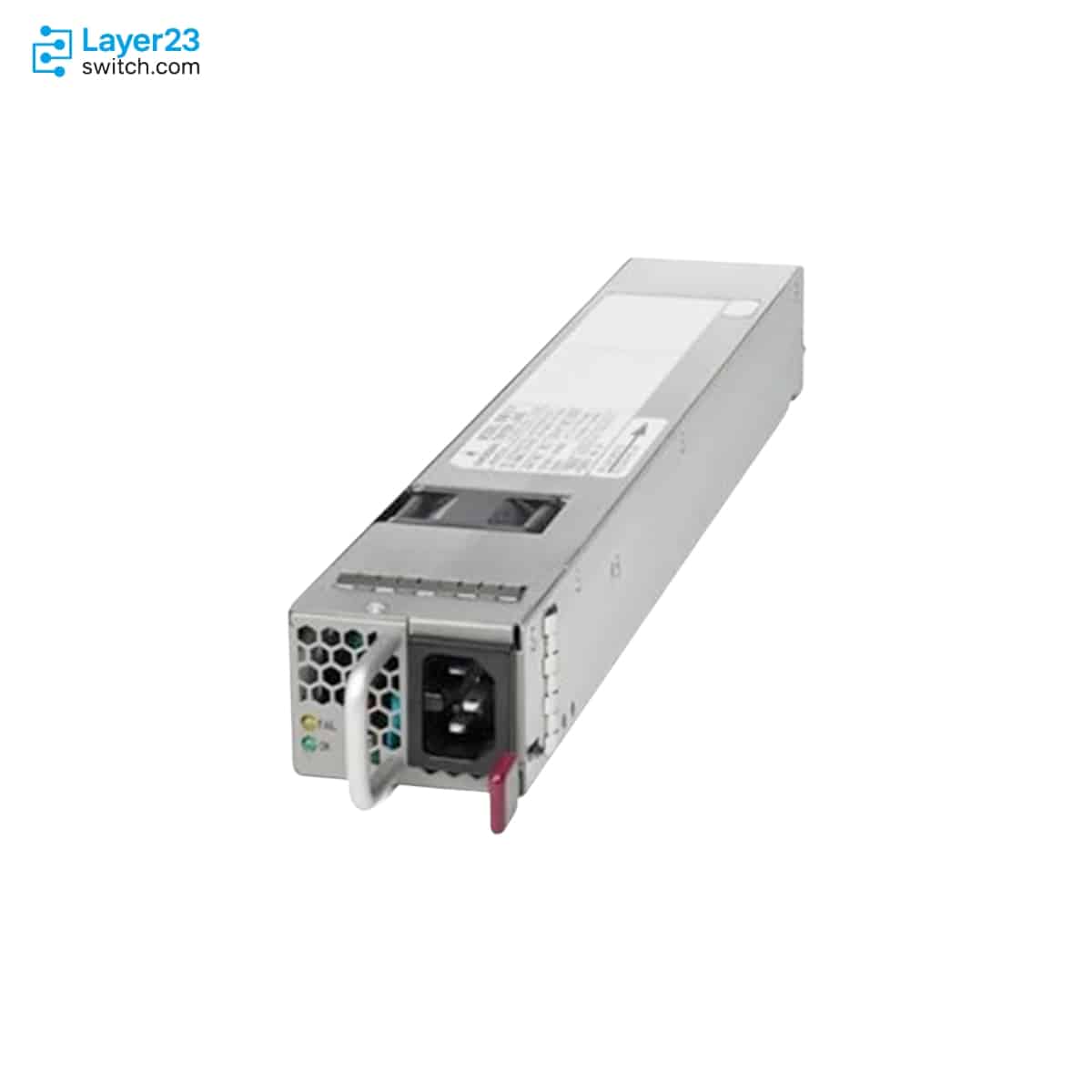

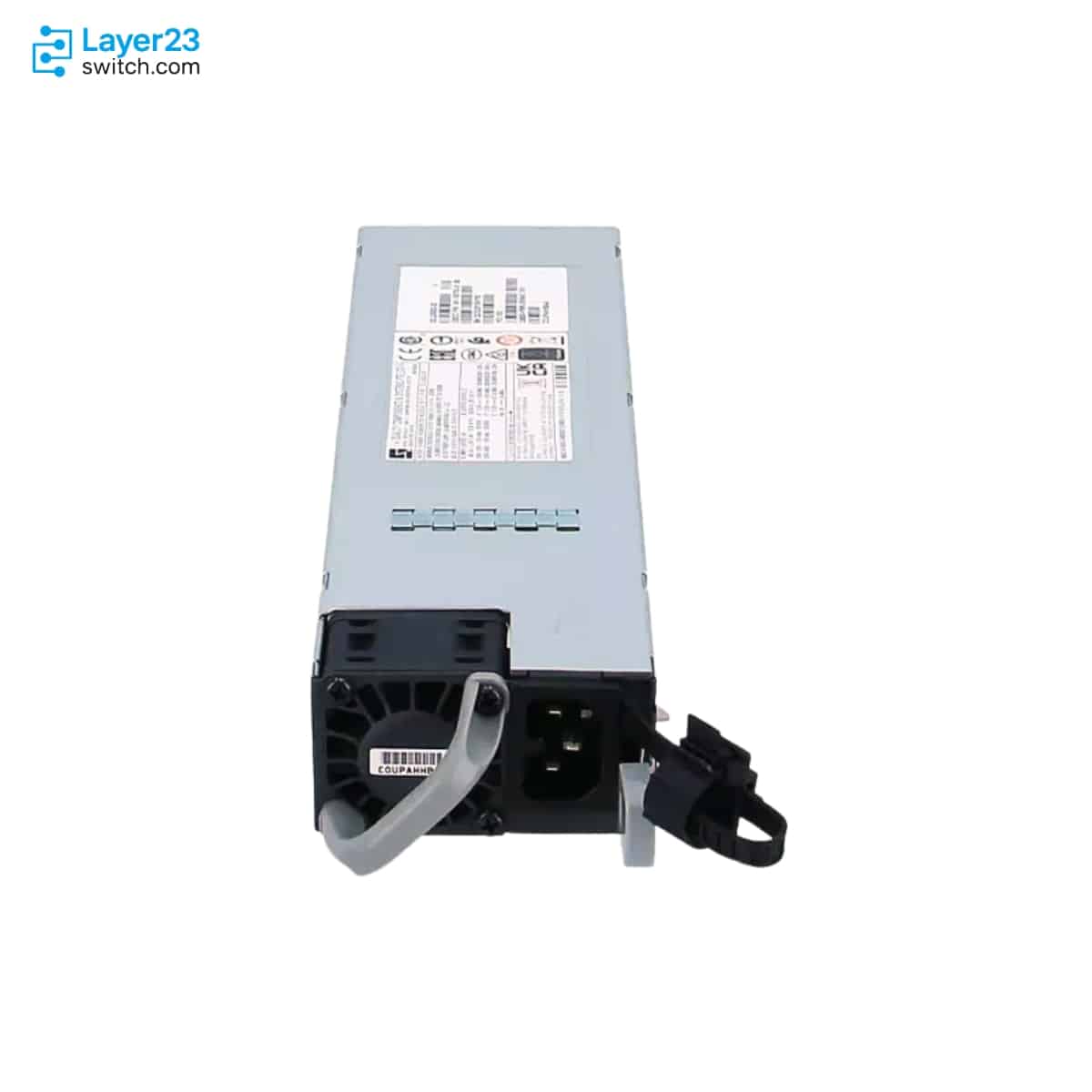

C9600-PWR-2KWAC is a Cisco Catalyst 9600 Series 2000W AC power supply module for Catalyst 9600 modular chassis power bays.
Compared with C9600-PWR-3KWAC, this SKU is the lower 2KW AC power class with an IEC C16 input and AC 15A cord rating. It also differs from C9600-PWR-2KWDC because the site feed is single-phase AC rather than a DC plant connection.
Procurement checks should cover the Catalyst 9600 chassis, site voltage, PSU count, regional C15 power cord, and combined or N+1 power mode. Low-line AC operation provides less output than high-line AC, so 110V deployments need a separate power-budget review before the quote is finalized.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9600-PWR-2KWAC |
|
Cisco ordering PID |
C9600-PWR-2KWAC (=) |
|
Product family |
Cisco Catalyst 9600 Series |
|
Product type |
2000W AC power supply module |
|
Supported chassis |
Cisco Catalyst 9606R modular chassis |
|
Chassis PSU slots |
Four power-supply slots, operating with one to four modules |
|
Input type |
Single-phase AC |
|
Input voltage and frequency |
90 to 140 VAC or 180 to 264 VAC, 47 to 63 Hz |
|
Low-line 12V output |
1050W at 100 to 120 VAC |
|
High-line 12V output |
2000W at 200 to 240 VAC |
|
Input receptacle and cord rating |
IEC 60320 C16, AC 15A |
|
Cooling airflow |
Front-to-rear, self-cooling minimum 17 CFM at 100 percent load |
|
Power supply modes |
Combined and N+1 redundant modes |
Application Scenarios
C9600-PWR-2KWAC fits Catalyst 9600 BOMs that require an AC-input power supply in the 2000W class rather than the larger 3000W AC option.
For maintenance inventory, this SKU keeps the spare PSU aligned with Catalyst 9600 systems already standardized on 2KW AC modules and C16 input hardware.
This module belongs in power-budget reviews where the chassis will run combined mode or N+1 redundant mode and the available output changes between low-line and high-line AC feeds.
Product Comparison
|
Parameter |
C9600-PWR-2KWAC | ||
|---|---|---|---|
|
Product family |
Cisco Catalyst 9600 Series power supply |
Cisco Catalyst 9600 Series power supply |
Cisco Catalyst 9600 Series power supply |
|
Product type |
2000W AC power supply module |
3000W AC power supply module |
2000W DC power supply module |
|
Input power |
Single-phase AC |
Single-phase AC |
DC |
|
Input voltage range |
90 to 140 VAC or 180 to 264 VAC |
90 to 140 VAC or 180 to 264 VAC |
-40 to -72 VDC |
|
Maximum power rating |
2000W |
3000W |
2000W |
|
Output capacity |
1050W at low-line AC; 2000W at high-line AC |
1500W at low-line AC; 3000W at high-line AC |
2000W at -40 to -72 VDC |
|
Power supply efficiency |
94 percent typical |
94 percent typical |
92 percent typical |
|
Output holdup time |
20 ms minimum with 1200W output |
20 ms minimum with 1800W output at high-line input |
5 ms with 1200W output |
|
Input receptacle |
IEC 60320 C16 |
IEC 60320 C20 |
Amphenol C10-638976-000 |
|
Power cord rating |
AC 15A |
AC 20A |
DC 70A |
|
Cooling airflow |
Front-to-rear, minimum 17 CFM |
Front-to-rear, minimum 17 CFM |
Self-cooling, minimum 9.5 CFM |
|
Power supply modes |
Combined and N+1 redundant modes |
Combined and N+1 redundant modes |
Combined and N+1 redundant modes |
- In a C9600-PWR-2KWAC vs C9600-PWR-3KWAC comparison, the key difference is the AC power class: 2000W high-line output with C16 and AC 15A hardware versus 3000W high-line output with C20 and AC 20A hardware.
- The C9600-PWR-2KWAC difference from C9600-PWR-2KWDC is the input-power design, because C9600-PWR-2KWAC is an AC module while C9600-PWR-2KWDC is the DC plant option.
- For buyers comparing C9600-PWR-2KWAC vs C9600-PWR-3KWAC or C9600-PWR-2KWDC, the model to choose should match the site feed, output requirement, receptacle type, cord rating, and redundancy mode.
Selection Guide
1. Match the 2KW AC class to the chassis plan
Select C9600-PWR-2KWAC when the Catalyst 9600 BOM calls for a 2000W AC power supply rather than a 3000W AC or 2000W DC module.
2. Check low-line and high-line output separately
Confirm whether the site will use low-line or high-line AC input, because the same PSU provides 1050W at low-line AC and 2000W at high-line AC.
3. Keep redundancy rules in the power review
Combined and N+1 modes depend on installed PSU count and equal-wattage planning, so replacement and expansion orders should not mix wattage classes without a chassis power calculation.
4. Tie the cord plan to the region
Verify the IEC C16 input path, C15 appliance connector, AC 15A rating, and regional power cord option before releasing the purchase order.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
C9600-PWR-2KWAC |
Prevents substitution with the 3000W AC or 2000W DC Catalyst 9600 PSU |
|
Target chassis |
Cisco Catalyst 9606R modular chassis |
Confirms the order belongs to the Catalyst 9600 power-supply bay design |
|
Site voltage |
Low-line AC or high-line AC |
Determines whether the Cisco-documented output is 1050W or 2000W |
|
PSU count |
One to four installed power supplies |
Drives the available chassis power in combined or N+1 redundant mode |
|
Power mode |
Combined mode or N+1 redundant mode |
Determines whether total output or standby reserve is the design target |
|
PSU mix |
Equal wattage, with AC/DC mixing only under Cisco-documented conditions |
Prevents unsupported power-supply combinations in the chassis |
|
Power cord |
IEC C16 PSU input with the correct regional C15 cord option |
Avoids a mismatch between PSU, rack power, and country cord selection |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product ID | C9600-PWR-2KWAC |
| Cisco ordering PID | C9600-PWR-2KWAC (=) | Product type | 2000W AC power supply module |
| Product family | Cisco Catalyst 9600 Series | Supported chassis | Cisco Catalyst 9606R modular chassis |
| Chassis power-supply slots | Four | Supported installed count | One to four power supply modules |
| Input type | Single-phase AC | AC-input type | Wide-ranging input with power factor correction |
| AC input voltage | 90 to 140 VAC or 180 to 264 VAC | AC input frequency | 47 to 63 Hz |
| Low-line 12V output | 1050W at 100 to 120 VAC | High-line 12V output | 2000W at 200 to 240 VAC |
| Maximum power rating | 2000W | Power supply efficiency | 94 percent typical |
| Output ratings | 12V main at 88A; 12V main at 167A | Output holdup time | 20 ms minimum with 1200W output |
| Input receptacle | IEC 60320 C16 | Power cord rating | AC 15A |
| Branch circuit requirement | Dedicated fused branch circuit; North America 15A | Power cord connector | IEC 60320 C15 appliance connector |
| Cooling airflow | Front-to-rear, self-cooling minimum 17 CFM at 100 percent load | Power supply modes | Combined and N+1 redundant modes |
| Combined mode AC/DC mix | Equal wattage with AC input at 220V | N+1 redundant mode AC/DC mix | Equal wattage with AC input at 220V |
| Heat dissipation | 683 BTU per hour | Weight | 2.65 lb (1.2 kg) |
