C9600-PWR-3KWAC – 3000W AC PSU – Catalyst 9600 – C20 Input
0/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9600-PWR-3KWAC Description

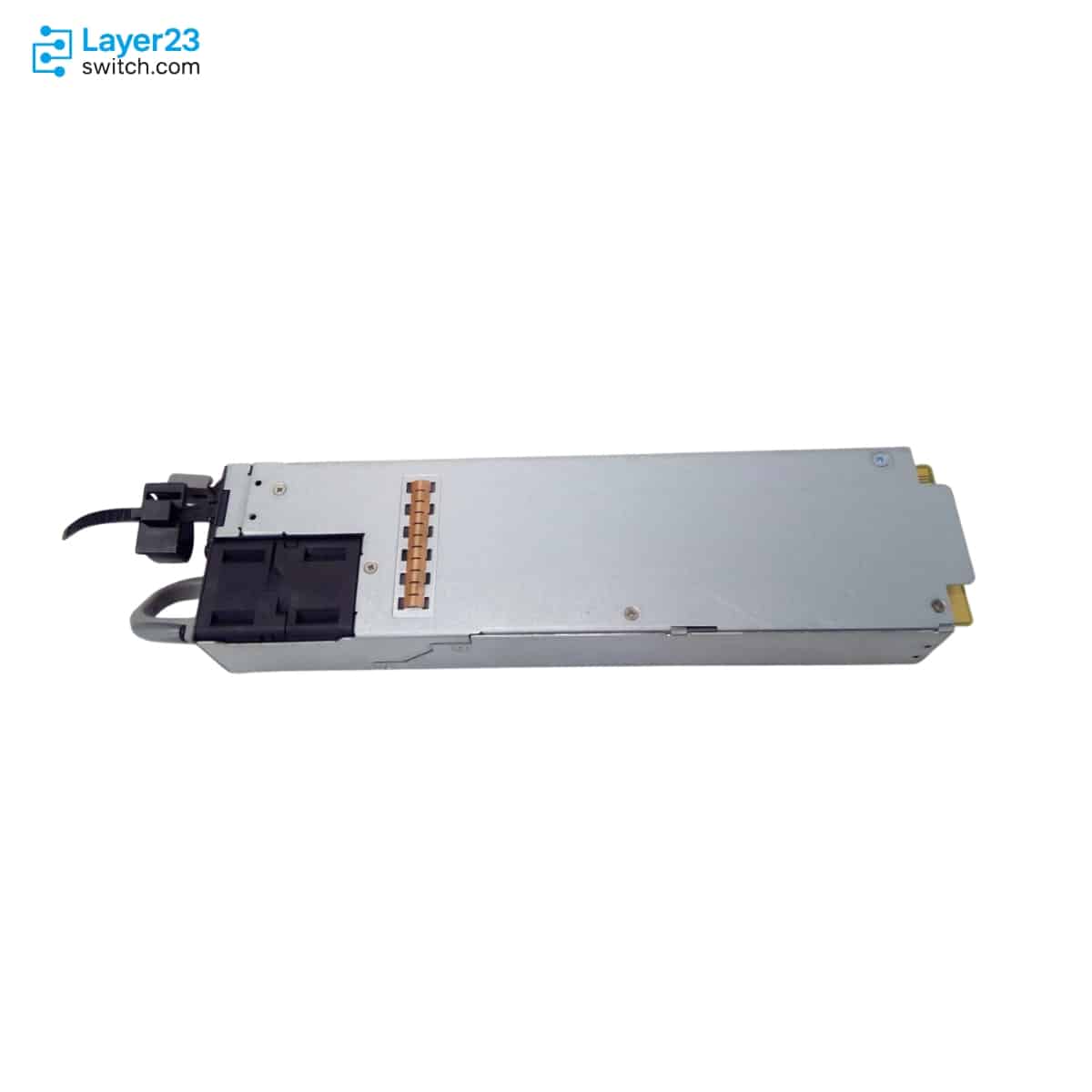

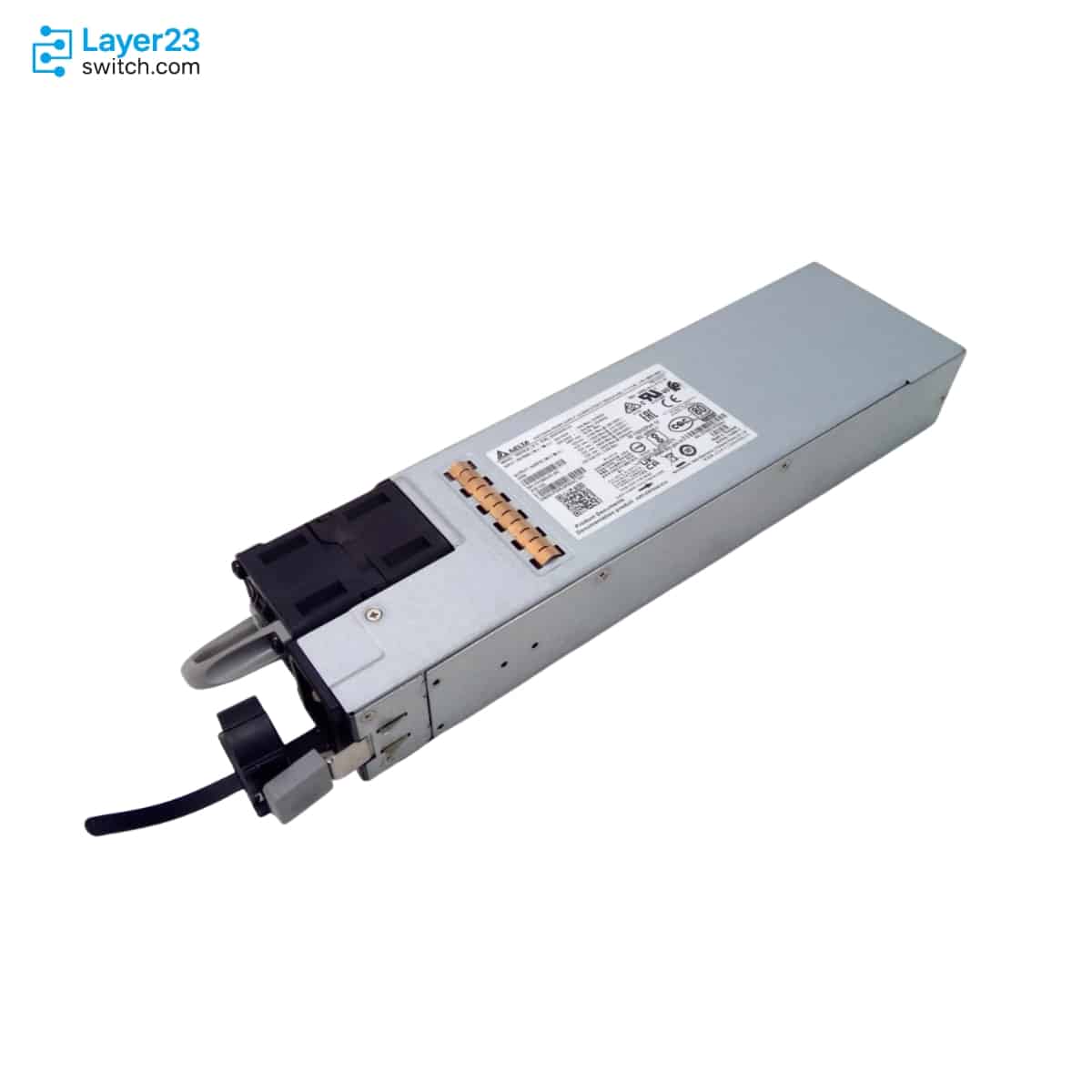

C9600-PWR-3KWAC is a Cisco Catalyst 9600 Series 3000W AC power supply module for Catalyst 9600 modular switch power bays.
This PSU fits Catalyst 9600 power designs that use AC site power and need the 3000W AC class instead of the 2000W AC or 2000W DC alternatives. Cisco documents 1500W output at low-line AC input and 3000W output at high-line AC input, so site voltage is a primary ordering check.
The order should be matched to the chassis power-supply count, site input voltage, C20 and 20A cord plan, redundancy mode, and any AC/DC PSU mix rule. For replacement work, keep the wattage family consistent with the installed Catalyst 9600 power design.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9600-PWR-3KWAC |
|
Product family |
Cisco Catalyst 9600 Series Switches |
|
Product type |
3000W AC power supply module |
|
Supported chassis |
Cisco Catalyst 9606R |
|
Chassis PSU bays |
Four power-supply bays |
|
Input type |
Single-phase AC |
|
Input voltage range and frequency |
90 to 140 VAC or 180 to 264 VAC, 47 to 63 Hz |
|
Max power rating |
3000W |
|
12V output capacity |
1500W at 90 to 140 VAC; 3000W at 180 to 264 VAC |
|
AC input current |
17.6A at 100 VAC for 1500W output; 17.6A at 200 VAC for 3000W output |
|
Power supply efficiency |
94% typical |
|
Input receptacle and cord rating |
IEC 60320 C20, AC 20A |
|
Power supply modes |
Combined and N+1 redundant modes |
Application Scenarios
Use C9600-PWR-3KWAC in Catalyst 9600 chassis builds where the site power plan supports high-line AC input and the BOM needs the 3000W AC PSU class.
Select this SKU for replacement inventory when the installed Catalyst 9600 chassis already uses the 3000W AC power-supply family and the maintenance plan needs a matching spare.
Include C9600-PWR-3KWAC in power-budget reviews where combined mode or N+1 redundant mode is part of the chassis design, especially when the system load depends on high-line AC output.
Product Comparison
|
Parameter |
C9600-PWR-3KWAC | ||
|---|---|---|---|
|
Product family |
Cisco Catalyst 9600 Series power supply |
Cisco Catalyst 9600 Series power supply |
Cisco Catalyst 9600 Series power supply |
|
Product type |
3000W AC power supply module |
2000W AC power supply module |
2000W DC power supply module |
|
Input power |
AC |
AC |
DC |
|
Input voltage range |
90 to 140 VAC or 180 to 264 VAC |
90 to 140 VAC or 180 to 264 VAC |
-40 to -72 VDC |
|
Max power rating |
3000W |
2000W |
2000W |
|
Low-line output |
1500W at 90 to 140 VAC |
1050W at 100 to 120 VAC |
Not an AC-input PSU |
|
High-line output |
3000W at 180 to 264 VAC |
2000W at 200 to 240 VAC |
Not an AC-input PSU |
|
Input current |
17.6A at 100 VAC or 200 VAC |
10.5A at 115 VAC or 230 VAC |
60A maximum per DC input at -40 VDC |
|
Power supply efficiency |
94% typical |
94% typical |
92% typical |
|
Output holdup time |
20 ms minimum with 1800W output at high line input |
20 ms minimum with 1200W output |
5 ms with 1200W output |
|
Input receptacle |
IEC 60320 C20 |
IEC 60320 C16 |
Amphenol C10-638976-000 |
|
Power cord rating |
AC 20A |
AC 15A |
DC 70A |
- In a C9600-PWR-3KWAC vs C9600-PWR-2KWAC comparison, the main difference is the AC power class: 3000W high-line output with a C20 and 20A cord plan versus 2000W high-line output with a C16 and 15A cord plan.
- The C9600-PWR-3KWAC difference from C9600-PWR-2KWDC is the input-power design. C9600-PWR-3KWAC is the AC PSU option, while C9600-PWR-2KWDC belongs in a DC plant design.
- For buyers comparing C9600-PWR-3KWAC vs C9600-PWR-2KWAC or C9600-PWR-2KWDC, the model to choose should match site voltage, required output class, power-cord rating, and the planned redundancy mode.
Selection Guide
1. Match the PSU to the site power design
Select C9600-PWR-3KWAC only when the Catalyst 9600 chassis will use AC input power and the site circuit plan supports the required 3000W AC PSU installation.
2. Check low-line versus high-line output
The same PSU provides different output capacity by input range, so confirm whether the deployment is using the low-line or high-line AC source before finalizing the power budget.
3. Keep equal wattage in redundancy planning
Cisco documents equal-wattage requirements for combined and redundant modes, so replacement or expansion orders should not mix lower-wattage PSUs into a 3000W AC design without a power review.
4. Confirm the cord and receptacle path
Use the C20 input and AC 20A cord requirement as part of the quote check, especially when the order spans multiple regions or cabinet jumper options.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
C9600-PWR-3KWAC |
Prevents substitution with the 2000W AC or 2000W DC Catalyst 9600 PSU |
|
Target chassis |
Cisco Catalyst 9606R |
Confirms the PSU belongs to the Catalyst 9600 modular chassis family |
|
Site voltage |
90 to 140 VAC or 180 to 264 VAC |
Determines whether the PSU is planned around 1500W or 3000W output |
|
Branch circuit |
Dedicated fused branch circuit, 20A in North America |
Aligns installation planning with the 3000W AC-input power supply |
|
Power cord |
C20 input with the correct regional 20A or 16A cord option |
Avoids a mismatch between PSU receptacle, rack PDU, and country cord |
|
Power mode |
Combined mode or N+1 redundant mode |
Determines PSU quantity and whether spare capacity is reserved |
|
PSU mix |
Equal wattage, with AC/DC mixing only under Cisco-documented conditions |
Prevents unsupported power-supply combinations in the chassis |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product ID | C9600-PWR-3KWAC |
| Product family | Cisco Catalyst 9600 Series Switches | Product type | 3000W AC power supply module |
| Cisco ordering description | Cisco Catalyst 9600 Series 3000W AC Power Supply | Supported chassis | Cisco Catalyst 9606R |
| Chassis power-supply bays | Four | Minimum chassis PSU count | At least two power supplies; three if fully loaded at 110V input |
| Input type | Single-phase AC | AC-input type | Wide-ranging input with power factor correction |
| AC input voltage | 90 to 140 VAC or 180 to 264 VAC | AC input frequency | 47 to 63 Hz |
| AC input current | 17.6A at 100 VAC for 1500W output; 17.6A at 200 VAC for 3000W output | Max power rating | 3000W |
| Low-line 12V output | 1500W at 90 to 140 VAC | High-line 12V output | 3000W at 180 to 264 VAC |
| Power supply efficiency | 94% typical | Output holdup time | 20 ms minimum with 1800W output at high line input |
| Input receptacle | IEC 60320 C20 | Power cord rating | AC 20A |
| Branch circuit requirement | Dedicated fused branch circuit; North America 20A | Self-cooling airflow | Minimum 17 CFM at 100 percent load |
| Power modes | Combined and N+1 redundant modes | Combined mode output at 220V | 3000W with one PSU; 5910W with two; 8820W with three; 11730W with four |
| N+1 redundant output at 220V | 3000W with two PSUs; 5910W with three; 8820W with four | Weight | 2.98 lb (1.35 kg) |
