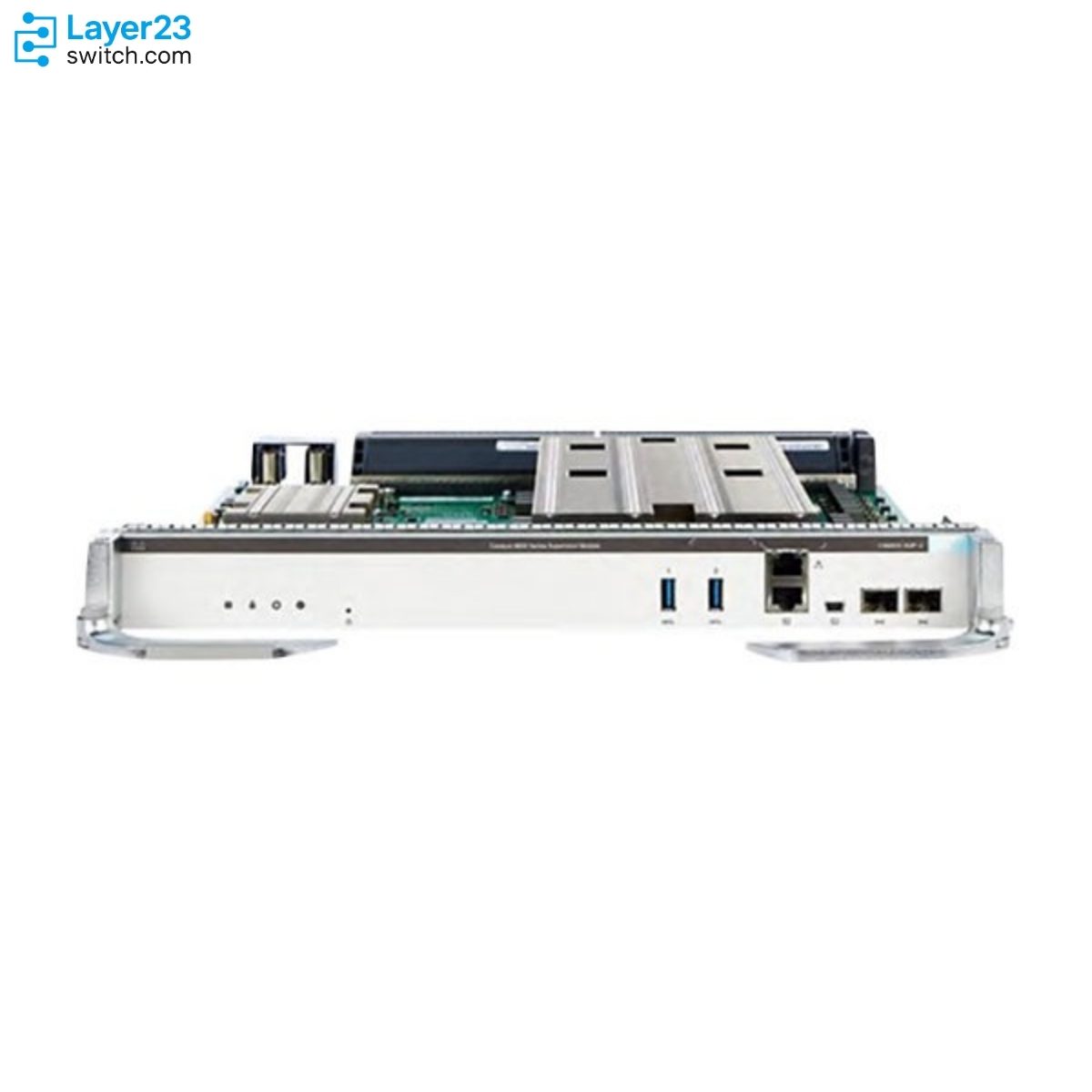

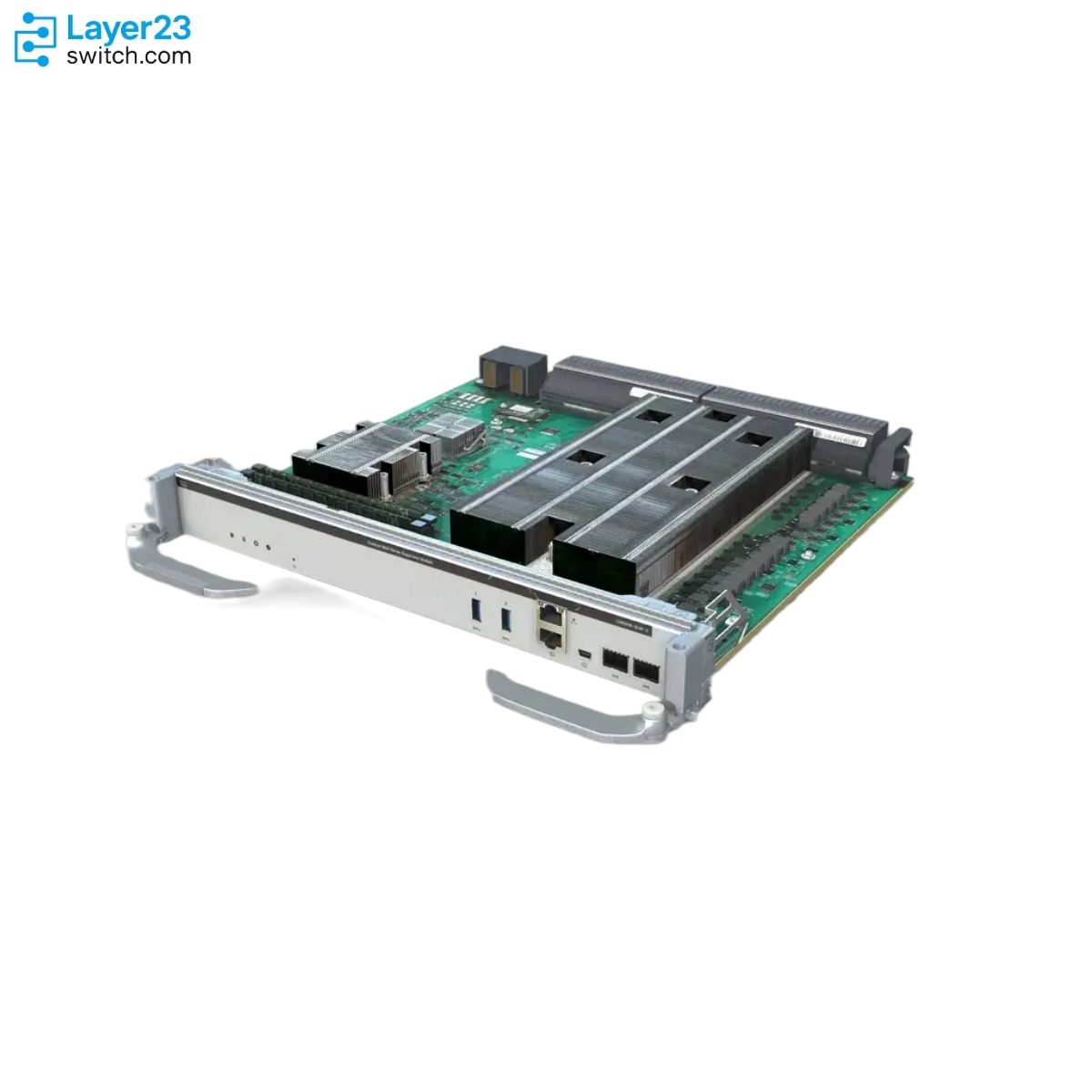

C9600X-SUP-2 – Silicon One Q200 – 6.4 Tbps Per Slot – Catalyst 9600 Supervisor Engine 2

4.918 reviews10 Questions
List Price: $82,988.21 80% OFF
$16,476.00
Price Alert
In StockShips in as little as 1 business day Brand New
Related models
Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policyExpress Shipping2-6 Business Daysvia UPS, FedEx, DHL and more
Trusted & Secure Payments

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded
Customers
Units shipped
Countries

Inventory You Can See

Cisco stock on hand
Models ready to ship
Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

  • Advance replacement for in-stock models
  • New unit for dead-on-arrival
  • 14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

C9600X-SUP-2 Description

The C9600X-SUP-2 is a Cisco Catalyst 9600 Series Supervisor Engine 2 module for the C9606R chassis in campus core and Internet edge designs. The engine is built on one Cisco Silicon One Q200 ASIC and provides up to 25.6 Tbps of system switching capacity, up to 6.4 Tbps per line-card slot, an 8 Bpps forwarding rate and up to 2,000,000 IPv4 routes. Supervisor Engine 2 requires Cisco IOS XE 17.7.1 or later and cannot share a chassis with Supervisor Engine 1.

Quick Specs

Parameter

Specification

Product ID

C9600X-SUP-2

Compatible chassis

C9606R, dedicated supervisor slots 3 and 4

ASICs

One Cisco Silicon One Q200, 7nm

System switching capacity

Up to 25.6 Tbps (12.8 Tbps full-duplex)

Per-slot switching capacity

Up to 6.4 Tbps (3.2 Tbps full-duplex)

Forwarding rate

8 Bpps

IPv4 and IPv6 routes

Up to 2,000,000 IPv4 and up to 1,000,000 IPv6

Packet buffer

80 MB shared memory system plus 8 GB High Bandwidth Memory

SFP+ management ports

Two 10G SFP+, 10G transceivers only

Minimum software release

Cisco IOS XE 17.7.1

Application Scenarios

Campus Internet Gateway

At the campus Internet edge, the engine carries large IPv4 and IPv6 route tables for the gateway, using the Q200 High Bandwidth Memory for route table expansion and deep packet buffers.

EVPN And SD-Access Border Nodes

Large VXLAN fabrics place the chassis at the border or spine, where the supervisor serves as an SD-Access LISP or BGP EVPN border node for many virtual networks.

Product Comparison

Parameter

C9600X-SUP-2

C9600-SUP-1

C9400X-SUP-2

Supported chassis

C9606R

C9606R

C9404R, C9407R and C9410R

Per-slot switching capacity

Up to 6.4 Tbps (3.2 Tbps full-duplex)

Up to 2.4 Tbps (1.2 Tbps full-duplex)

240 Gbps

System switching capacity

Up to 25.6 Tbps (12.8 Tbps full-duplex)

Up to 9.6 Tbps (4.8 Tbps full-duplex)

Up to 9.6 Tbps

IPv4 routes

Up to 2,000,000

Up to 256,000

Up to 256,000

Security ACL scale

Up to 8,000 IPv4 / 4,000 IPv6

Up to 27,000 IPv4 / 13,500 IPv6

27,000 entries

Cisco WAN MACsec (256-bit AES-GCM)

Available, HSEC license required

Not available

Not published

C9600X-SUP-2 and C9600-SUP-1 are the two engines that seat in a C9606R, and they scale in opposite directions: C9600X-SUP-2 moves 6.4 Tbps per slot and holds up to 2,000,000 IPv4 routes against 2.4 Tbps and 256,000. A core whose security policy runs past 8,000 IPv4 ACL entries but whose route table stays under 256,000 is better served by C9600-SUP-1 at 27,000. Links that need Cisco WAN MACsec under an HSEC license keep the order on C9600X-SUP-2. C9400X-SUP-2 carries a similar Supervisor 2 name but installs in C9404R, C9407R and C9410R chassis at 240 Gbps per slot, so a Catalyst 9400 project orders that engine instead.

Ordering Checklist

  • Catalyst 9606R chassis: Install the engine in C9606R supervisor slot 3 or 4; a second engine for redundancy is C9600X-SUP-2/2, because C9600-SUP-1 cannot share the chassis with it.
  • Line cards: Pair it with C9600X-LC-56YL4C, C9600X-LC-32CD, C9600-LC-40YL4CD, C9600-LC-24C, C9600-LC-48YL or C9600-LC-48TX; C9600-LC-48S does not run under this engine.

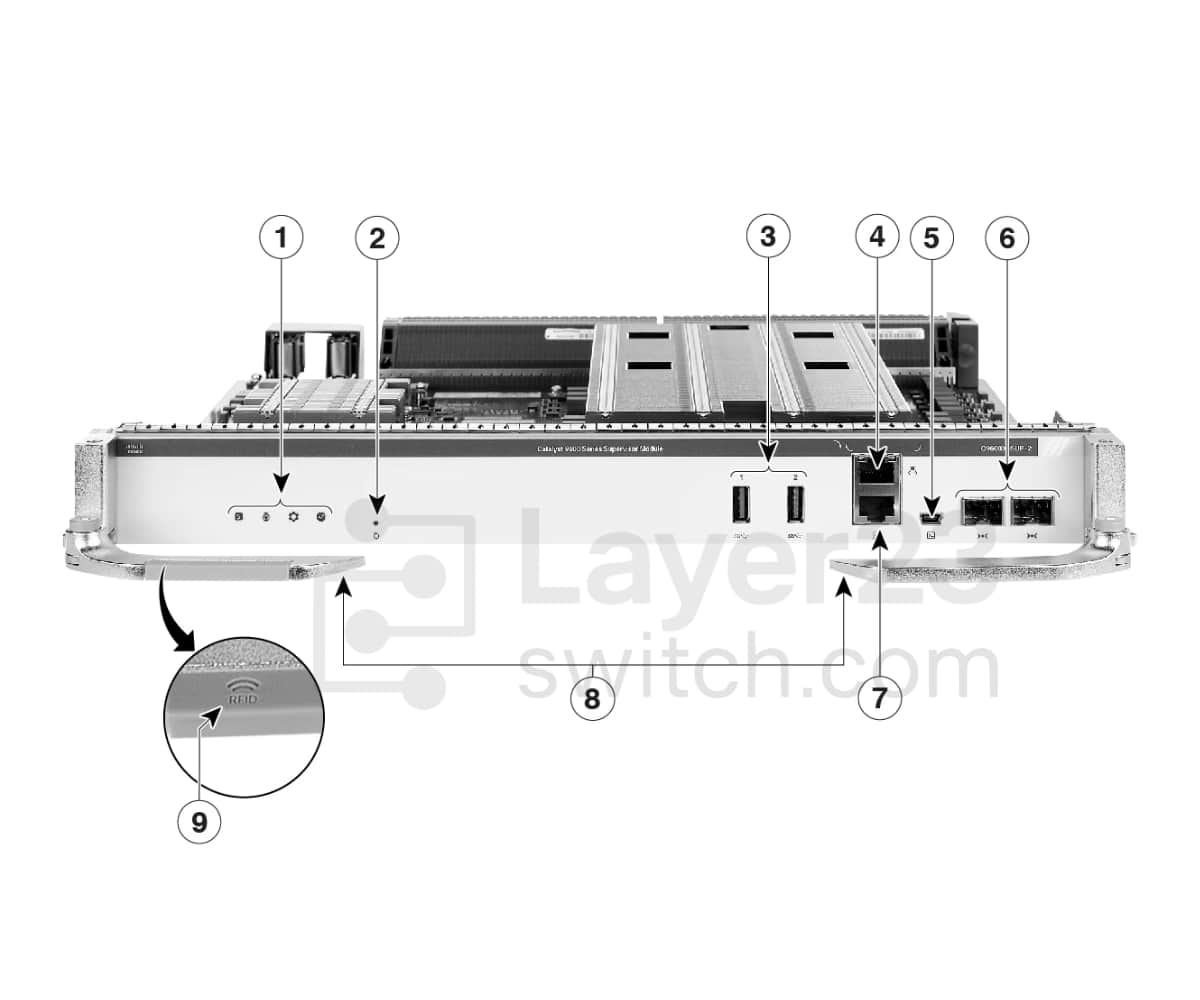

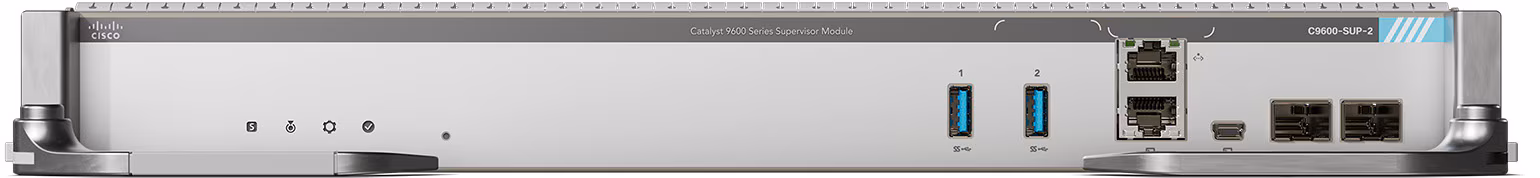

Front Panel Components

1

Supervisor engine LEDs

6

10G SFP+ management ports

2

Reset button

7

RJ-45 console port

3

USB 3.0 Type A ports

8

Ejector levers

4

RJ-45 Ethernet management port

9

RFID embedded on the left ejector lever

5

USB mini Type B console port

–

–

Specifications

Parameter Specification Parameter Specification
Product ID C9600X-SUP-2 Cisco ordering description Cisco Catalyst 9600 Series Supervisor 2 Module, spare part number C9600X-SUP-2=, redundant supervisor PID C9600X-SUP-2/2
Compatible chassis C9606R 6 slot chassis, dedicated supervisor slots 3 and 4 Supported line cards C9600X-LC-56YL4C from Cisco IOS XE 17.13.1, C9600X-LC-32CD from 17.9.1, C9600-LC-40YL4CD, C9600-LC-24C, C9600-LC-48YL and C9600-LC-48TX from 17.7.1
Unsupported line cards C9600-LC-48S 1 gbps optics SFP-1G-SX or SFP-1G-LH only, on compatible line cards
Maximum chassis port density 8 x 400G, 128 x 100G, 224 x 50G, 128 x 40G, 256 x 25G, 256 x 10G and 8 x 1G in a C9606R System switching capacity Up to 25.6 Tbps (12.8 Tbps full-duplex), based on a C9606R chassis with four line cards
Per-slot switching capacity Up to 6.4 Tbps (3.2 Tbps full-duplex) Forwarding rate 8 Bpps
CPU Intel 2.7-GHz x86, 8 cores DRAM 32 GB DDR4
Flash 16 GB SSD capacity Up to 960 GB SATA SSD for container-based application hosting
SSD options C9K-F2-SSD-240GB, C9K-F2-SSD-480GB or C9K-F2-SSD-960GB; 960 GB is the default selection on the primary supervisor Packet buffer 80 MB shared memory system plus 8 GB on-chip 2.5D High Bandwidth Memory
ASICs One Cisco Silicon One Q200, 7nm fabrication ARP entries Up to 128,000
NDP entries Up to 128,000 GRE tunnels Up to 1,024
MPLS labels 256,000 in the default Core SDM template Security/Object groups 32,000 in the default Core SDM template
SDM templates Default Core template; custom templates from Cisco IOS XE 17.7.1 adjust forwarding values but not ACL allocation MACsec sessions Up to 1,024 per PHY
Encryption MACsec-256 (AES-GCM); Cisco WAN MACsec with the Catalyst 9000 HSEC license Resiliency features SMU, Cisco StackWise Virtual, StackWise Virtual QuadSup RPR, SSO and ISSU with two supervisors or StackWise Virtual, GIR, MKA High Availability
Security features Trustworthy Solutions, Image Signing, Secure Boot, Cisco Trust Anchor Module Features hardware capable, not available at FCS Bidirectional PIM, VPLS, MPLS over GRE
Features not available Centralized Gateway (Asymmetric IRB), ESI multi-homing, VPLS and EoMPLS L2 border handoff, SD-Access Layer 2 Border Line card limits with this engine C9600-LC-48YL, C9600-LC-24C and C9600-LC-48TX run without MACsec; C9600-LC-48TX runs at 10GE only
MAC addresses Up to 256,000 IPv4 routes Up to 2,000,000, shared with IPv6 and set by the SDM template
QoS ACL scale (IPv4/IPv6) Up to 8,000/4,000 Security ACL scale (IPv4/IPv6) Up to 8,000/4,000
NetFlow entries (IPv4/IPv6) Up to 2,000,000 sampled Total number of IPv6 routes Up to 1,000,000
Multicast routes Up to 32,000 VLAN IDs 4,096
PVST instances 4,096 STP virtual ports for PVST 32,000
STP virtual ports for MST 100,000 Switched virtual interfaces (SVIs) 4,096
Jumbo frames 9,216 bytes IGMP/MLD snooping entries Up to 16,000
Supervisor redundancy Two C9600X-SUP-2 engines; C9600X-SUP-2 and C9600-SUP-1 cannot be used together in one chassis SFP+ management ports Two 10G SFP+, 10G transceivers only; one port for management, the other can connect to a line-card port
Management port One 10/100/1000 RJ-45 in Mgmt-vrf; one management port type is used at a time Console port RJ-45 console and USB mini Type B console
USB port Two USB 3.0 Type A Minimum software release Cisco IOS XE 17.7.1
Rack units 1 RU Dimensions (H x W x D) 1.7 x 15.0 x 13.41 in (4.32 x 38.1 x 34.06 cm) to faceplate; 1.7 x 15.0 x 15.7 in (4.32 x 38.1 x 39.88 cm) to ejector
Operating temperature -5°C to 45°C (23°F to 113°F) up to 6,000 feet; -5°C to 40°C (23°F to 104°F) up to 10,000 feet Storage temperature -40°C to 70°C (40°F to 158°F)
Operating humidity 10% to 95%, noncondensing Operating altitude -60 to 3,000 m (-197 to 9843 feet)
MTBF 305,880 hours

Quality Certifications

Customer Reviews

Write A Review
4.9
(18 reviews)
5 Stars
17
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0
    James Shaw
    Posted on 13/04/2026
    Verified Buyer
    5.0

    Sent a thank-you email — got a friendly, prompt reply. Real people behind the scenes.

    Amanda Murray
    Posted on 11/02/2026
    Verified Buyer
    5.0

    Budget was tight for this project. Layer23’s pricing let us complete it without compromising.

    Andrei Boyd
    Posted on 01/01/2026
    Verified Buyer
    5.0

    Received with original packaging and all accessories. Nothing missing.

    IT Staff
    Posted on 22/09/2025
    Verified Buyer
    5.0

    Arrived in anti-static packaging. Sealed.

    T'Challa
    Posted on 15/08/2025
    Verified Buyer
    5.0

    Advanced logistics. The shipment was handled with respect.

Questions & Answers

  • Which chassis slots and line cards does C9600X-SUP-2 support?

    C9600X-SUP-2 installs in C9606R supervisor slot 3 or 4 and supports C9600X-LC-56YL4C, C9600X-LC-32CD, C9600-LC-40YL4CD, C9600-LC-24C, C9600-LC-48YL and C9600-LC-48TX. C9600-LC-48S does not run under the engine, and C9600-SUP-1 cannot share the chassis with it.
  • Which Cisco IOS XE release does C9600X-SUP-2 need?

    C9600X-SUP-2 requires Cisco IOS XE 17.7.1 or later. Line card minimums on the engine are 17.7.1 for C9600-LC-40YL4CD, C9600-LC-24C, C9600-LC-48YL and C9600-LC-48TX, 17.9.1 for C9600X-LC-32CD and 17.13.1 for C9600X-LC-56YL4C, as listed per card.
  • How many 1G ports does a C9606R support with C9600X-SUP-2?

    A C9606R supports only 8 ports at 1G with C9600X-SUP-2, and only with SFP-1G-SX or SFP-1G-LH optics on a compatible line card. If the design needs more 1G downlinks, the supervisor must be changed before the line cards are ordered.
  • What spare PID replaces a failed C9600X-SUP-2?

    C9600X-SUP-2= is the spare ordering PID for the supervisor in the Catalyst 9600 ordering guide. The same guide lists C9606R= for the chassis and C9606-FAN= for the fan tray. The redundant second engine orders as C9600X-SUP-2/2.
  • What must be removed from the C9606R slot before installing C9600X-SUP-2?

    Remove the C9606-SLOT-BLANK= blank panel from supervisor slot 3 or 4 before installing C9600X-SUP-2, per the Catalyst 9600 supervisor installation note. The same step applies when a second engine goes into the other supervisor slot.
  • Which SDM tables can be customized on C9600X-SUP-2?

    Custom SDM is available from Cisco IOS XE 17.7.1 and draws on a 608,000-entry pool in steps of 1,000. MAC addresses can range from 32,000 to 256,000, with 128,000 as the default. ACL customization is not supported, because ACL entries are shared first come, first served.
  • What can the second SFP+ management port of C9600X-SUP-2 be used for?

    C9600X-SUP-2 has two 10G SFP+ management ports that accept only 10G SFP+ optics. One port is used for management, and the other can connect to any port on a line card. The RJ-45 management port is also present on the module.
  • How much power does C9600X-SUP-2 draw at maximum?

    C9600X-SUP-2 draws up to 660 W at maximum. Count that draw for each installed supervisor when you size the power supplies of a C9606R, because the chassis holds one or two engines.
  • How many 100G ports can a C9606R hold with C9600X-SUP-2?

    A C9606R holds up to 128 at 100G with C9600X-SUP-2, together with 224 at 50G and 8 at 400G. The 8 at 200G are hardware ready, and the 256 at 25G or 10G need QSFP-4SFP breakout cables.
  • Which release does Flexible NetFlow need on C9600X-SUP-2?

    Flexible NetFlow on C9600X-SUP-2 needs Cisco IOS XE 17.8.1. The supervisor supports up to 2,000,000 sampled NetFlow entries, as listed in the Catalyst 9600 data sheet supervisor table.
