C9600-LC-48TX Description

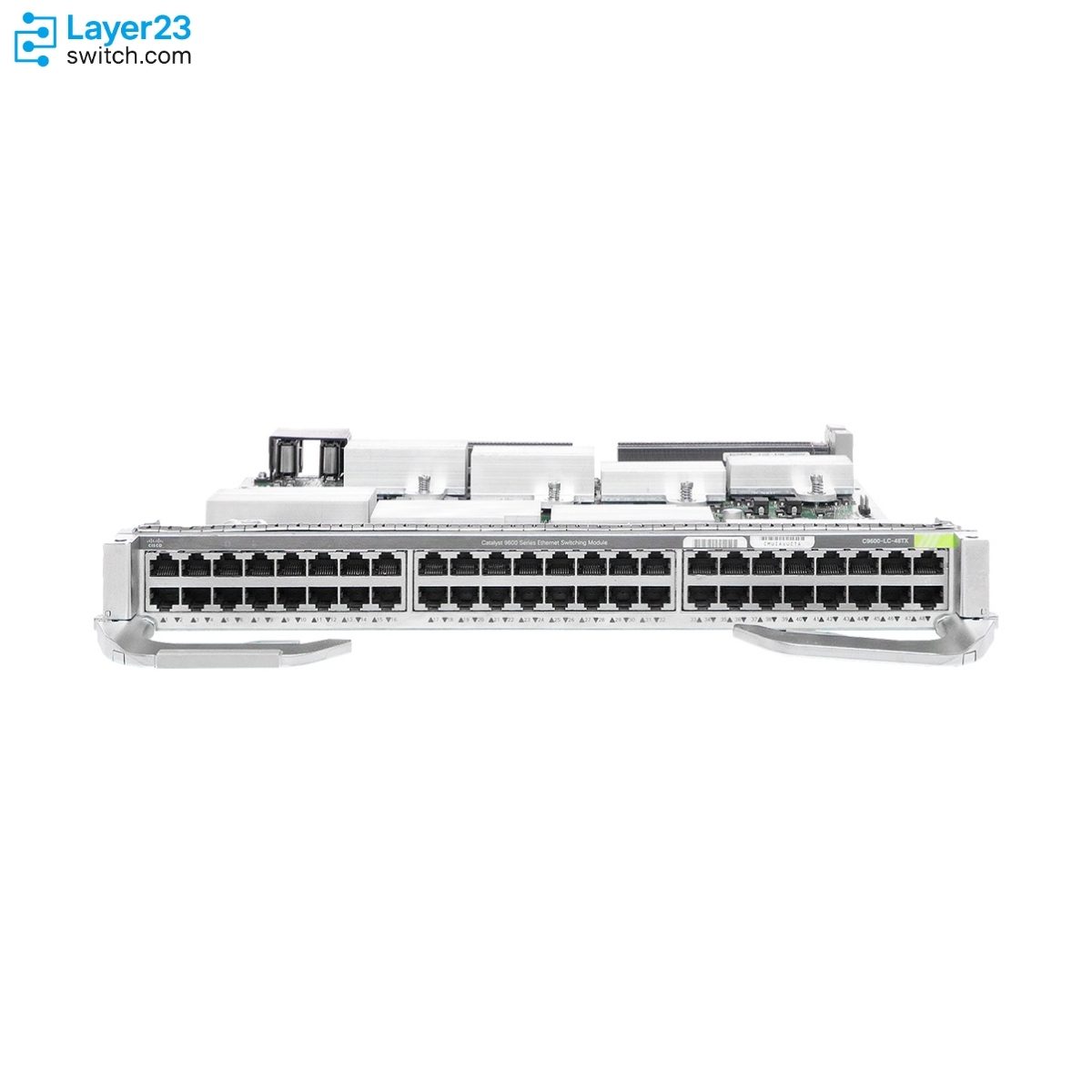

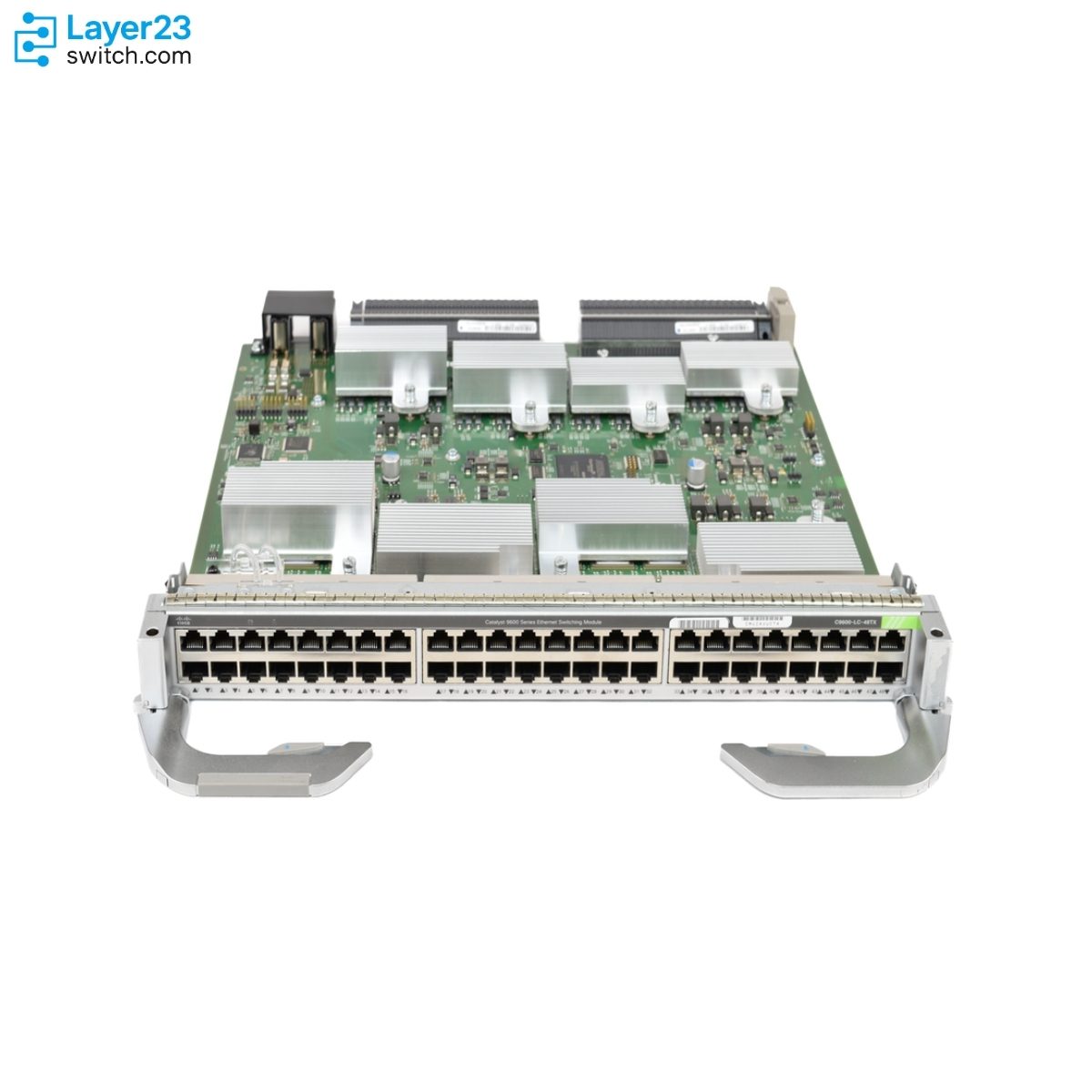

The C9600-LC-48TX is a Cisco Catalyst 9600 Series 48-port RJ45 copper line card for high-density campus access and distribution connections. Each port runs 10G, 5G, 2.5G, 1G, 100 Mbps or 10 Mbps with C9600-SUP-1, and the card provides 960 Gbps full-duplex bandwidth in Catalyst 9606R slots 1, 2, 5 or 6. With C9600X-SUP-2 the ports run at 10G only, and the card has no optical interfaces.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9600-LC-48TX |
|
Product type |
48-port RJ45 copper line card |
|
Cisco ordering description |
Cisco Catalyst 9600 Series 48-port RJ45 Copper – 10GE/5GE/2.5GE/1GE/100Mbps/10Mbps line card |
|
Supported chassis |
Cisco Catalyst 9606R |
|
Supervisor compatibility |
C9600X-SUP-2 and C9600-SUP-1 |
|
Installation slot rule |
Catalyst 9606R slots 1, 2, 5, and 6 |
|
Total ports |
48 |
|
Port type |
RJ45 copper ports |
|
Port speeds with C9600-SUP-1 |
10G, 5G, 2.5G, 1G, 100 Mbps, and 10 Mbps |
|
Port speed with C9600X-SUP-2 |
10G |
|
Bandwidth per slot |
960 Gbps full duplex |
|
Minimum software release |
Cisco IOS XE 17.1.1 with C9600-SUP-1; Cisco IOS XE 17.7.1 with C9600X-SUP-2 |
Key Features
All 48 ports are RJ45 copper, so existing structured cabling plugs in without transceivers. With C9600-SUP-1 each port negotiates from 10G down to 10 Mbps.
The same card behaves differently by engine. C9600-SUP-1 gives the full 10G to 10 Mbps range, while C9600X-SUP-2 limits the ports to 10G.
The Catalyst 9606R has four line card slots, and slots 3 and 4 stay reserved for the supervisors. The card seats in any of the four line card positions.
Maximum rated power is 315 W with either supervisor. That draw belongs in the chassis power plan next to the power supplies installed in the four bays.
The card has no optical interfaces. Fiber links need a different line card, and nothing on this one depends on transceiver support.
Cisco IOS XE 17.1.1 is the minimum release with C9600-SUP-1, and 17.7.1 is the minimum with C9600X-SUP-2.
Application Scenarios
In a campus distribution block built on a Catalyst 9606R, the line card terminates copper downlinks from access-layer switches at 10G, 5G, 2.5G or 1G on its 48 RJ45 ports.
A chassis running C9600-SUP-1 can use the card to connect legacy 100 Mbps and 10 Mbps copper devices alongside 1G and multigigabit links on the same 48 ports.
Product Comparison
|
Parameter |
C9600-LC-48TX | ||
|---|---|---|---|
|
Description |
48-port RJ45 Copper – 10GE/5GE/2.5GE/1GE/100Mbps/10Mbps |
48-Port 50/25/10/1GE |
48-Port 1GE |
|
Supervisor engines supported |
C9600-SUP-1 and C9600X-SUP-2 |
C9600-SUP-1 and C9600X-SUP-2 |
C9600-SUP-1 only |
|
Port speed |
10GE, 5GE, 2.5GE, 1GE, 100M and 10M with C9600-SUP-1; 10GE with C9600X-SUP-2 |
25/10/1GE with C9600-SUP-1; 50/25/10/1GE with C9600X-SUP-2 |
1GE with C9600-SUP-1; Not supported with C9600X-SUP-2 |
|
Minimum software release |
Cisco IOS XE 17.1.1 with C9600-SUP-1; 17.7.1 with C9600X-SUP-2 |
Cisco IOS XE 16.11.1 with C9600-SUP-1; 17.7.1 with C9600X-SUP-2 |
Cisco IOS XE 17.2.1 with C9600-SUP-1; Not supported with C9600X-SUP-2 |
|
Max rated power |
315 W with C9600-SUP-1; 315 W with C9600X-SUP-2 |
230 W with C9600-SUP-1; 300 W with C9600X-SUP-2 |
160 W with C9600-SUP-1; Not supported with C9600X-SUP-2 |
|
MTBF (hours) |
543,000 |
640,750 |
640,750 |
C9600-LC-48TX is the RJ45 copper card of this group, with 48 ports at 10G, 5G, 2.5G, 1G, 100 Mbps and 10 Mbps with C9600-SUP-1 and 960 Gbps per slot, while C9600-LC-48YL and C9600-LC-48S are SFP-family fiber cards. With C9600X-SUP-2 the copper ports run at 10G only, so a chassis that needs multigigabit or 100 Mbps copper steps stays on C9600-SUP-1. Fiber at 25G or 10G moves to C9600-LC-48YL, which reaches 50G and 4.8 Tbps per slot with C9600X-SUP-2; 1G fiber on C9600-SUP-1 uses C9600-LC-48S, which draws 160 W against 315 W here and is not supported on C9600X-SUP-2. C9600-LC-48TX needs Cisco IOS XE 17.1.1 with C9600-SUP-1 or 17.7.1 with C9600X-SUP-2.
Ordering Checklist
- Chassis: Install the card in the Catalyst 9600 Series 6 Slot Chassis, PID C9606R, the only chassis listed for this line card. It has 4 line card slots, and slots 3 and 4 are reserved for supervisor engines.
- Supervisor engines: Pair the card with C9600-SUP-1 or C9600X-SUP-2, since both engines support it; copper ports run 10G-only on C9600X-SUP-2.

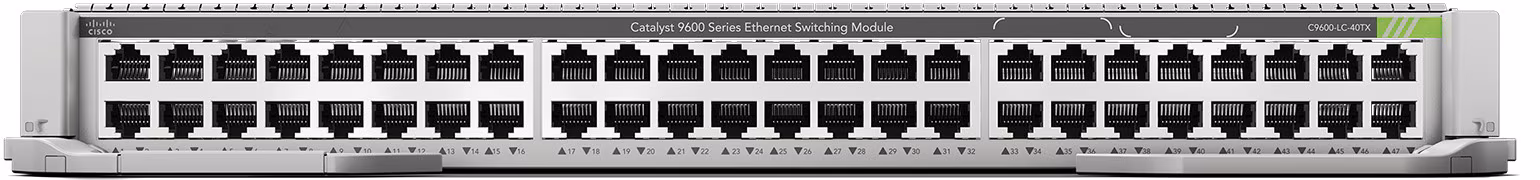

Front Panel Components
|
1 |
Status LED |
5 |
Ejector levers |
|
2 |
Locate (Blue beacon) LED |
6 |
Port Link LED for the port in the top row |
|
3 |
10G/5G/2.5G/1G/100 Mbps/10 Mbps RJ45 copper ports |
7 |
Port Link LED for the port in the bottom row |
|
4 |
RFID embedded on the left ejector lever |
– |
– |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9600-LC-48TX | Product type | 48-port RJ45 copper line card |
| Cisco ordering description | Cisco Catalyst 9600 Series 48-port RJ45 Copper – 10GE/5GE/2.5GE/1GE/100Mbps/10Mbps line card | Supported chassis | Cisco Catalyst 9606R |
| Supervisor compatibility | C9600X-SUP-2 and C9600-SUP-1 | Installation slot rule | Slots 1, 2, 5, and 6 |
| Total ports | 48 | Port type | RJ45 copper ports |
| Port speeds with C9600-SUP-1 | 10G, 5G, 2.5G, 1G, 100 Mbps, and 10 Mbps | Port speed with C9600X-SUP-2 | 10G |
| Minimum software with C9600-SUP-1 | Cisco IOS XE 17.1.1 | Minimum software with C9600X-SUP-2 | Cisco IOS XE 17.7.1 |
| Bandwidth per slot | 960 Gbps full duplex | Max rated power | 315 W with C9600-SUP-1 or C9600X-SUP-2 |
| AC-input allocated power | 350 W | DC-output requested power | 315 W |
| Heat dissipation | 1,195 BTU/hr | MTBF | 543,000 hours |
| Weight | 4.03 kg (8.88 lb) | Optical interfaces | No optical interfaces available |
| Physical dimensions to faceplate | 1.7 x 15.0 x 13.41 in (4.32 x 38.1 x 34.06 cm) | Physical dimensions to ejector | 1.7 x 15.0 x 15.7 in (4.32 x 38.1 x 39.88 cm) |
| Operating temperature up to 6000 ft | -5°C to 45°C (23°F to 113°F) | Operating temperature up to 10000 ft | -5°C to 40°C (23°F to 104°F) |
| Operating altitude | -60 to 3000 m (-197 to 9843 ft) |
