C9600-LC-40YL4CD Description

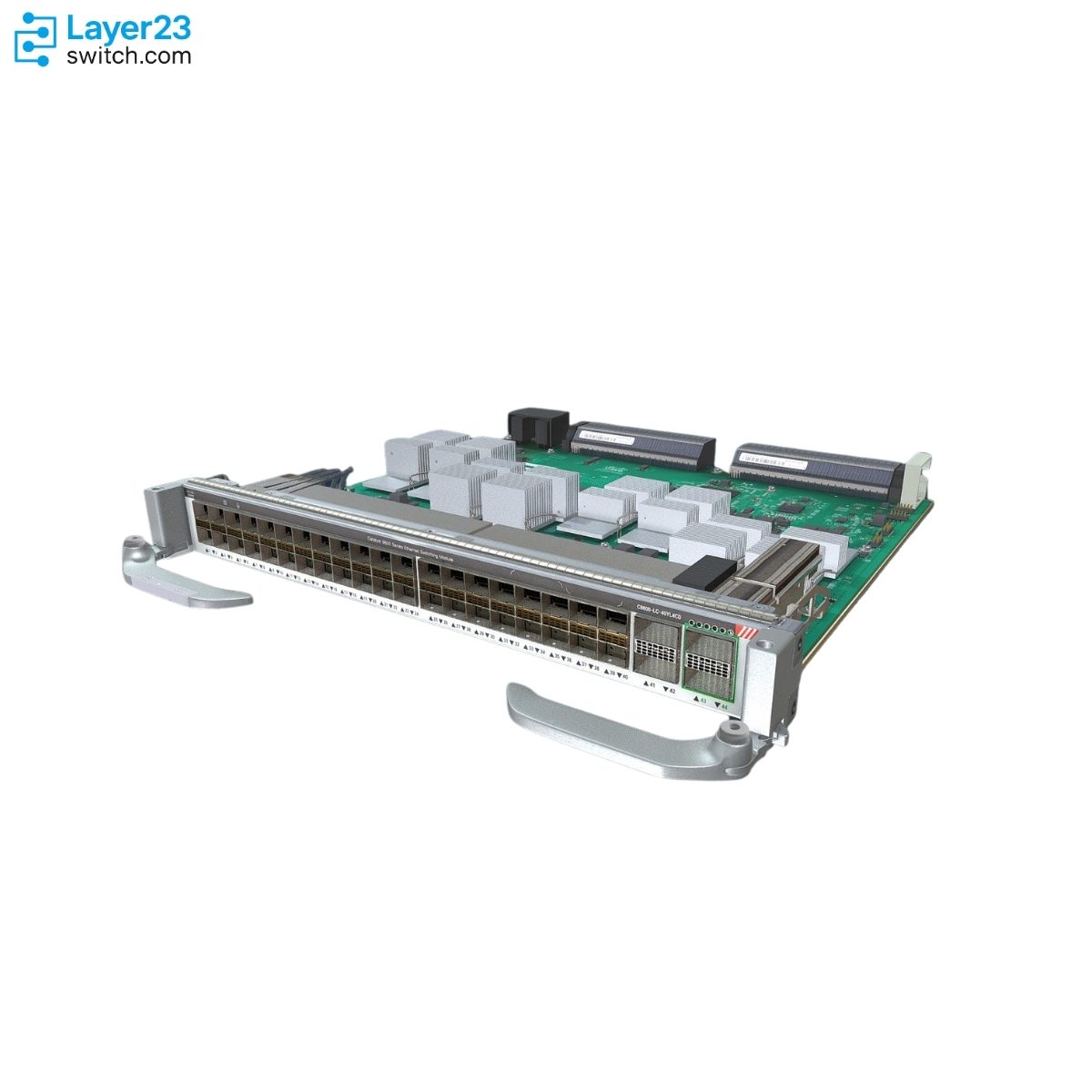

The C9600-LC-40YL4CD is a Cisco Catalyst 9600 Series combo line card for Catalyst 9606R chassis in campus aggregation and core designs. The card has 40 SFP56 ports, 2 QSFP56 ports and 2 QSFP-DD ports, and it installs in slots 1, 2, 5 and 6 with either C9600X-SUP-2 or C9600-SUP-1. QSFP-DD operation, including 400G, needs C9600X-SUP-2, and the card requires Cisco IOS XE 17.7.1 or later.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9600-LC-40YL4CD |
|
Product type |
Combo line card |
|
Supported chassis |
Cisco Catalyst 9606R |
|
Supervisor compatibility |
C9600X-SUP-2 and C9600-SUP-1 |
|
Installation slot rule |
Catalyst 9606R slots 1, 2, 5, and 6 |
|
SFP56 ports |
40 |
|
SFP56 speed with C9600X-SUP-2 |
50G, 25G, and 10G |
|
SFP/SFP28 speed with C9600-SUP-1 |
25G, 10G, and 1G |
|
QSFP56 ports with C9600X-SUP-2 |
2 ports supporting 200G, 100G, and 40G |
|
QSFP-DD ports with C9600X-SUP-2 |
2 ports supporting 400G, 200G, 100G, and 40G |
|
Minimum software release |
Cisco IOS XE 17.7.1 |
|
Bandwidth per slot |
6.4 Tbps (3.2 Tbps full-duplex) with C9600X-SUP-2; 2.4 Tbps (1.2 Tbps full-duplex) with C9600-SUP-1 |
Key Features
Forty SFP56 ports sit beside two QSFP56 and two QSFP-DD ports, so downlinks and high-speed uplinks share one line card slot.
With C9600X-SUP-2 the SFP56 ports run at 50G, 25G and 10G, the QSFP56 ports at 200G, 100G and 40G and the QSFP-DD ports at 400G, 200G, 100G and 40G. With C9600-SUP-1 the SFP ports run at 25G, 10G and 1G, and QSFP-DD operation is not supported.
The card starts at Cisco IOS XE 17.7.1 on both supervisor engines, a later release than the 16.11.1 that older Catalyst 9600 line cards accept with C9600-SUP-1.
With C9600X-SUP-2, adjacent SFP56 ports in a port group must run the same speed, and the speed of port 43 sets the speed of port 44.
The CVR-QSFP-SFP10G adapter lets QSFP ports take 10G transceivers with C9600X-SUP-2, and 10G or 1G transceivers with C9600-SUP-1.
The card requests 420 W of DC output power, draws 466 W of AC input and dissipates 1590 BTU/hr, which the chassis power budget has to cover.
Application Scenarios
In a campus aggregation layer, the card terminates access-facing links on its 40 SFP56 ports and sends traffic upstream on the QSFP56 and QSFP-DD ports from one slot of the Catalyst 9606R.
A campus core on C9600X-SUP-2 uses the two QSFP-DD ports for 400G or 200G links while the SFP56 ports run at 50G, 25G or 10G on the same card.
Product Comparison
|
Parameter |
C9600-LC-40YL4CD | ||
|---|---|---|---|
|
Description |
40x SFP56, 2x QSFP56 and 2x QSFP-DD |
48x SFP56 at 50/25/10/1GE |
24x QSFP28 at 40GE and 100GE |
|
Supported supervisor engines |
C9600-SUP-1 and C9600X-SUP-2 |
C9600-SUP-1 and C9600X-SUP-2 |
C9600-SUP-1 and C9600X-SUP-2 |
|
Maximum port speed with C9600X-SUP-2 |
SFP56 50G, QSFP56 200G, QSFP-DD 400G |
SFP56 50G |
QSFP28 100G |
|
Per-slot bandwidth with C9600X-SUP-2 |
6.4 Tbps (3.2 Tbps full-duplex) |
6.4 Tbps (3.2 Tbps full-duplex) |
6.4 Tbps (3.2 Tbps full-duplex) |
|
Per-slot bandwidth with C9600-SUP-1 |
2.4 Tbps (1.2 Tbps full-duplex) |
2.4 Tbps (1.2 Tbps full-duplex) |
2.4 Tbps (1.2 Tbps full-duplex) |
|
Minimum software release |
Cisco IOS XE 17.7.1 |
Cisco IOS XE 16.11.1 with C9600-SUP-1; 17.7.1 with C9600X-SUP-2 |
Cisco IOS XE 16.11.1 with C9600-SUP-1; 17.7.1 with C9600X-SUP-2 |
C9600-LC-40YL4CD is the combo card of this group, with 40 SFP56 ports plus 2 QSFP56 and 2 QSFP-DD ports, while C9600-LC-48YL has 48 SFP56 ports and no QSFP positions and C9600-LC-24C has 24 QSFP28 ports. Links above 100G, up to 200G on the QSFP56 ports and 400G on the QSFP-DD ports, need C9600-LC-40YL4CD on C9600X-SUP-2. Slot bandwidth is set by the supervisor, not the card: 6.4 Tbps (3.2 Tbps full-duplex) per slot with C9600X-SUP-2 and 2.4 Tbps (1.2 Tbps full-duplex) with C9600-SUP-1, the same for C9600-LC-48YL and C9600-LC-24C. A chassis that needs only SFP-family links stays on C9600-LC-48YL, which starts at Cisco IOS XE 16.11.1 with C9600-SUP-1 against 17.7.1 here, and a QSFP28-only design moves to C9600-LC-24C. All three run on C9600X-SUP-2 and C9600-SUP-1; on C9600-SUP-1 this card offers 40 ports of 25G, 10G or 1G plus 2 ports of 100G or 40G.
Ordering Checklist
- Chassis: Install the card in the Catalyst 9600 Series 6 Slot Chassis, PID C9606R, the only chassis listed for this line card. It has 4 line card slots, and slots 3 and 4 are reserved for supervisor engines.
- Supervisor engines: Pair the card with C9600-SUP-1 or C9600X-SUP-2, since both engines support it, at Cisco IOS XE 17.7.1 on each.

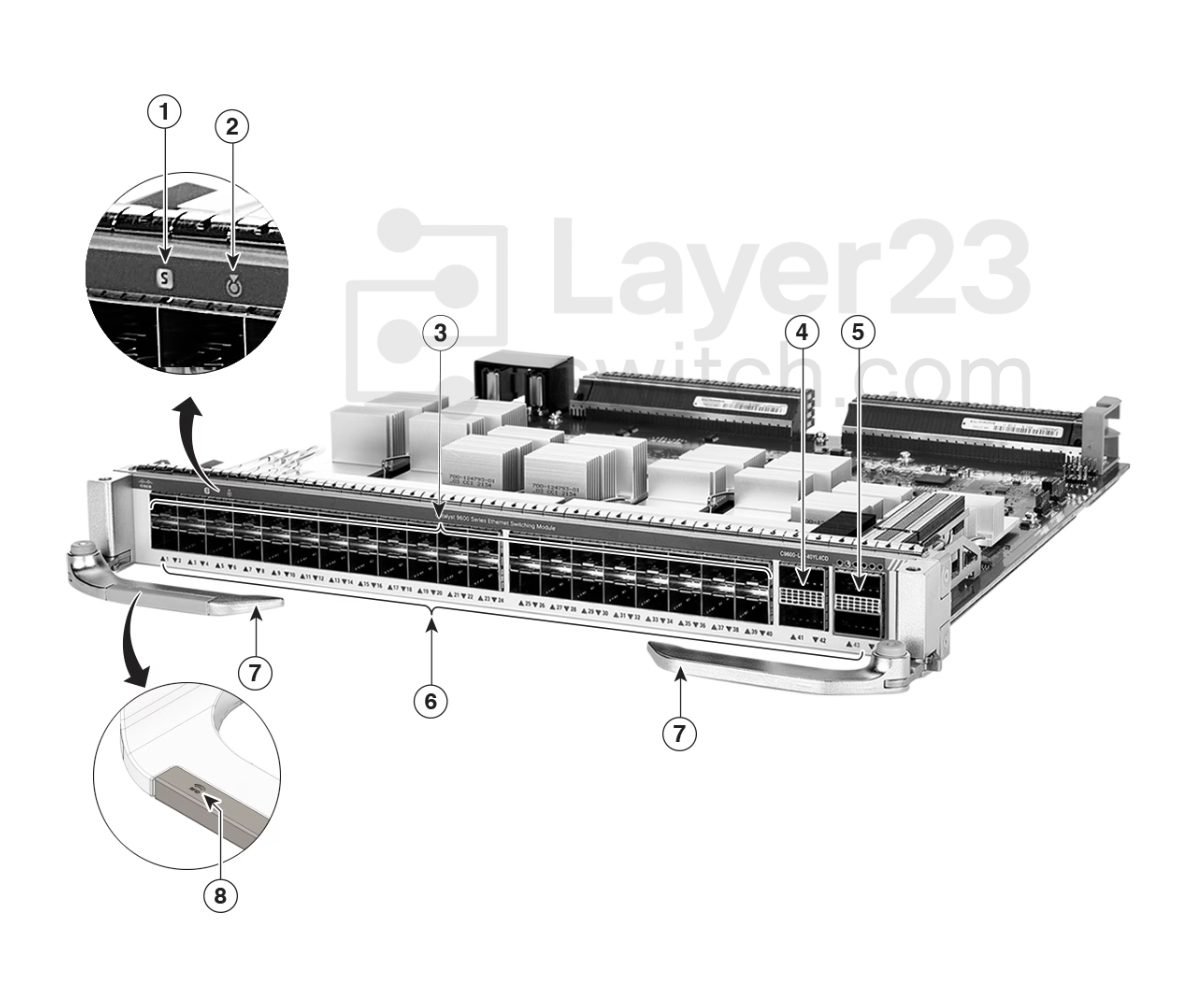

C9600-LC-40YL4CD Front Panel Components
|
1 |
Status LED |
5 |
2 x 400G/200G/100G/40G QSFP-DD ports |
|
2 |
Locate (Blue beacon) LED |
6 |
Port Link LEDs |
|
3 |
40 x 50G/25G/10G SFP56 ports |
7 |
Ejector levers |
|
4 |
2 x 200G/100G/40G QSFP56 ports |
8 |
RFID embedded on the left ejector lever |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9600-LC-40YL4CD | Product type | Combo line card |
| Supported chassis | Cisco Catalyst 9606R | Installation slot rule | Slots 1, 2, 5, and 6 |
| Supervisor compatibility | C9600X-SUP-2 and C9600-SUP-1 | Minimum software release | Cisco IOS XE 17.7.1 |
| SFP56 ports | 40 | SFP56 speed with C9600X-SUP-2 | 50G, 25G, and 10G |
| SFP/SFP28 speed with C9600-SUP-1 | 25G, 10G, and 1G | QSFP56 ports with C9600X-SUP-2 | 2 ports supporting 200G, 100G, and 40G |
| QSFP-DD ports with C9600X-SUP-2 | 2 ports supporting 400G, 200G, 100G, and 40G | QSFP-DD support with C9600-SUP-1 | Not supported |
| QSA adapter support with C9600X-SUP-2 | CVR-QSFP-SFP10G with 10G transceivers | QSA adapter support with C9600-SUP-1 | CVR-QSFP-SFP10G with 10G and 1G transceivers |
| Bandwidth with C9600X-SUP-2 | 6.4 Tbps (3.2 Tbps full-duplex) per slot | Bandwidth with C9600-SUP-1 | 2.4 Tbps (1.2 Tbps full-duplex) per slot |
| Port group restriction with C9600X-SUP-2 | Adjacent SFP56 ports in a port group must run the same speed | QSFP restriction with C9600X-SUP-2 | Port 43 speed determines port 44 speed |
| AC input power | 466 W | DC output power requested | 420 W |
| Heat dissipation | 1,590 BTU/hr | Weight | 3.75 kg (8.27 lb) |
| Operating temperature up to 6000 ft | -5°C to 45°C (23°F to 113°F) | Operating altitude | -60 to 3000 m (-197 to 9843 ft) |
